Fisher & Paykel RS6121W User manual

REFRIGERATOR & FREEZER
RS6121S, RS6121SH, RS7621S, RS7621SH
RS4621F, RS6121F & RS7621F
REFRIGERATOR-FREEZER
RS6121W & RS7621W
WINE CABINET
RS6121V
INTEGRATED COLUMN
INSTALLATION GUIDE
NZ AU UK IE EU SG HK

3
CONTENTS
Safety and warnings 4
Integrated refrigerator & freezer 5
Integrated refrigerator-freezer 6
Integrated wine cabinet 6
Supplied parts 7
Required parts 8
Door panel kit 9
Handle kit 10
Hinge change kit 11
Wine display accessories 11
Tools 12
Product dimensions 13
Cabinetry dimensions — Single installation 14
Cabinetry dimensions — Multiple installation 15
Stainless steel Door panel dimensions — Single installation 16
Custom Door panel dimensions — Single installation 17
Custom Door panel dimensions — Multiple installation 18
Toe kick dimensions 19
Installation options 20
Door clearance 21
Drawer clearance 21
Electrical and plumbing 22
Custom door panel install dimensions 23
Before installation 28
Cavity preparation 30
Appliance preparation 31
Door panel preparation — Stainless steel panel 33
Door panel preparation — Custom panel 34
Door panel preparation — Wine cabinet only 35
Power and water supply connection 37
Single installation — Align appliance into cabinetry 38
Single installation — Secure appliance into cabinetry 40
Door panel installation 41
Toe kick installation 43
Grilles installation 46
Carbon filter installation 47
Air flow divider installation 47
Door covers & Trims installation 48
Top trim & hinge pocket covers installation 49
Multiple installation — Appliance preparation 50
Multiple installation — Join products 51
Multiple installation — Roll into cabinetry 52
Multiple installation — Level and secure 53
Grilles installation 54
Multiple installation — Top trim & hinge pocket covers installation 55
Multiple installation — Install trims 56
Wine display for wine cabinet 57
Change the door hinges (optional) 58
Final checklist 63

4
SAFETY AND WARNINGS
READ AND SAVE THIS GUIDE
WARNING!
To avoid hazard, follow these instructions carefully before Installing or using thisappliance.
z Please make this information available to the persons installing the appliance.
z Assume all electrical parts are live.
z Disconnect power supply before servicing and installation.
BEFORE INSTALLATION
z The appliance has front and rear rollers to easily move forward and backward. Do not
move the appliance sideways to avoid damaging the rollers or the floor covering/surface.
z Ensure your appliance is not exposed to any heat generating appliance eg cooktop, oven
or dishwasher.
z The appliance must be installed by a qualified installer, or Fisher and Paykel trained and
supported service technician to avoid faulty electrical and plumbing connections.
z All connections for electrical power and grounding must comply with local codes and
ordinances and be made by licensed personnel when required.
z Avoid installation of the appliance/s under a ground fault circuit interrupter (GFCI).
z Ensure the appliance is installed properly. Improper installation that results in appliance
failure is not covered under the appliance warranty.
UNPACKING
z The appliance is heavy and requires at least twopersons to move and install.
z Remove the installation kit (internal box) and trims kit (external box) while the product is
still on the pallet.
z Avoid scratching the surface of your appliance when moving or installing.
z Keep the appliance stable and door closed to prevent tipping over when moving to the
installation location.
z Ensure the feet of the appliance are retracted before moving to the installation location.
z If the appliance is damaged, contact your Fisher and Paykel dealer.
z Ensure all components and accessories are complete. Refer to 'Before installation'.
z Record the default Wifi password, and the model and registration numbers for future
servicing or repair of your appliance.
ELECTRICAL/PLUMBING
z Alternatively, electrical and water supply connections for these appliances can be located
in an adjacent area or unit (cabinet or cupboard) that are easily accessible in case of
repair or disconnection.
z Ensure an isolating switch is available if electrical connection is not accessible.
WARNING!
Electric Shock Hazard
Failure to follow this advice may result in
electrical shock or death.
• Read and follow the safety and warnings outlined
in this User guide before operating this appliance.
WARNING!
Cut Hazard
Failure to use caution could result in injury.
• Take care: panel edges may be sharp.
• Do not put fingers in the drawers when closing.
WARNING!
Tip Hazard
• This product may tip until it is fully installed.
Keep children away and take care. Failure to
follow this advice may result in injury.
• This appliance is top-heavy and must be secured
to prevent the possibility of tippingforward.
To ensure that the appliance is stable under
all loading conditions:
• Theanti-tip bracket and fittings supplied must
be installed by a professional installer according
tothe installation steps in this guide.

5
SAFETY AND WARNINGS
INSTALLATION
z The anti-tip bracket and fittings supplied must be fitted tothe wall of the finished
enclosure to withstand a 100kg load.
z Ensure that the anti-tip bracket is installed correctly to prevent the possibility of the
appliance tipping forward when the door is open.
z Ensure the door of the appliance is closed when rolling into thecabinetry.
z Ensure the power cord is not run over or damaged when rolling the product into
the cabinetry.
z For flush installation, ensure the door panels are installed flush with cabinetry front
surface. Ensure the appliance is properly is centreed.
z All four corners of the appliance must be supported firmly on the floor to eliminate any
movement. Installing the appliance on a soft, uneven, or not level floor may cause twisting
and poor door sealing.
z Use low speed, low torque setting when using a powered driver for the screws when fixing
or aligning the product.
z Open the appliance door to remove the alignment brackets from both sides of the
appliance, and then re-tighten the screws.
Stainless steel panel
z Protect the finish of the Fisher and Paykel Stainless Steel door panels from any scratch
or damage.
z Remove the blue tape attached to inner edges of the door panels after the handles
are installed.
z We recommend to load the shelves in the appliance door with weights to ensure an
accurate door panel gap width. Load 15kg for RS61 models, and 20kg for RS76 models.
Custom panel
z If using Custom door panels, ensure they are prepared as per 'Custom door panel install
dimensions' section.
z The thickness of the custom door panel can vary as long as the screws do not penetrate
beyond the full depth of the door panel, and as long as the overall weight of door panel
does not exceed the allowable weight. Refer to 'Door panel dimensions' for maximum
door panel weight of your product.
z Do not place the handle holes in marked areas to avoid clashing with panel
attachment brackets.
z Minimum panel thickness where screw hole is drilled must be 16mm.
Changing the door hinge (optional)
z Door hinges are interchangeable for each model. A hinge change kit is available and can
be purchased separately if you prefer to change from ‘right hinge door’ to ‘left hinge door’
or vice versa.
INTEGRATED REFRIGERATOR & FREEZER
Left or Right hinged door available for each model.
Freezer, 46cm
RS4621FLJK*
& RS4621FRJK*
Freezer, 61cm
RS6121FLJK*
& RS6121FRJK*
Refrigerator, 61cm
RS6121SLK*, RS6121SLHK*,
RS6121SRHK* & RS6121SRK*
Freezer, 76cm
RS7621FLJK*
& RS7621FRJK*
Refrigerator, 76cm
RS7621SLK*, RS7621SLHK*,
RS7621SRHK* & RS7621SR*

6
Refrigerator-Freezer, 61cm
RS6121WLUK* & RS6121WRUK*
Refrigerator-Freezer, 76cm
RS7621WLUK* & RS7621WRUK*
INTEGRATED REFRIGERATOR-FREEZER INTEGRATED WINE CABINET
Wine Cabinet, 61cm
RS6121V2LK* & RS6121V2RK*
Left or Right hinged door available for each model.

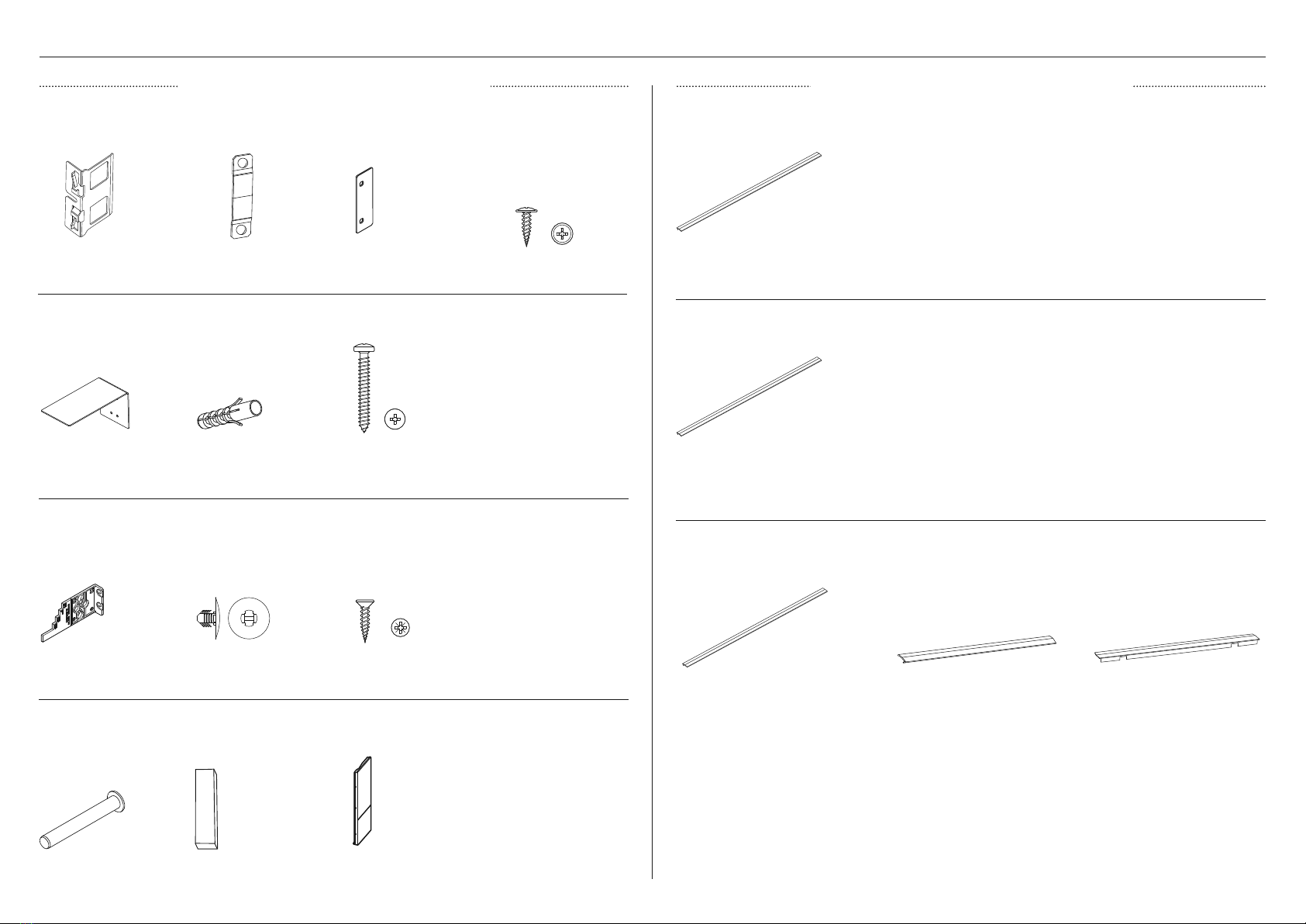

7
Depth alignment
gauge (4)
Hinge limiting pin (3)
Door panel attachment kit
Install fasteners kit
Miscellaneous parts
Side spacer
bracket (12)
8Gx16 Countersunk
screw (7)
M5x12 Cross-head
screw (44)
Side bracket (12) Bracket slider (12)
Barbed plug (2)
Air toe kick seal (1)
Anti-tip bracket (1) 10-12x35mm
crosshead screw (5)
Masonry plug (5)
INSTALLATION KIT (INTERNAL BOX)
SUPPLIED PARTS
TRIMS INSTALL KIT (EXTERNAL BOX)
Flow divider cap (1)
Anti-tip bracket assembly
Refrigerator or Freezer
Door panel side cover (2)
Wine Cabinet
Door panel side cover (2)
Upper door panel side cover (2) Lower door panel side cover (2) Drawer top trim (1)
Refrigerator-Freezer

8

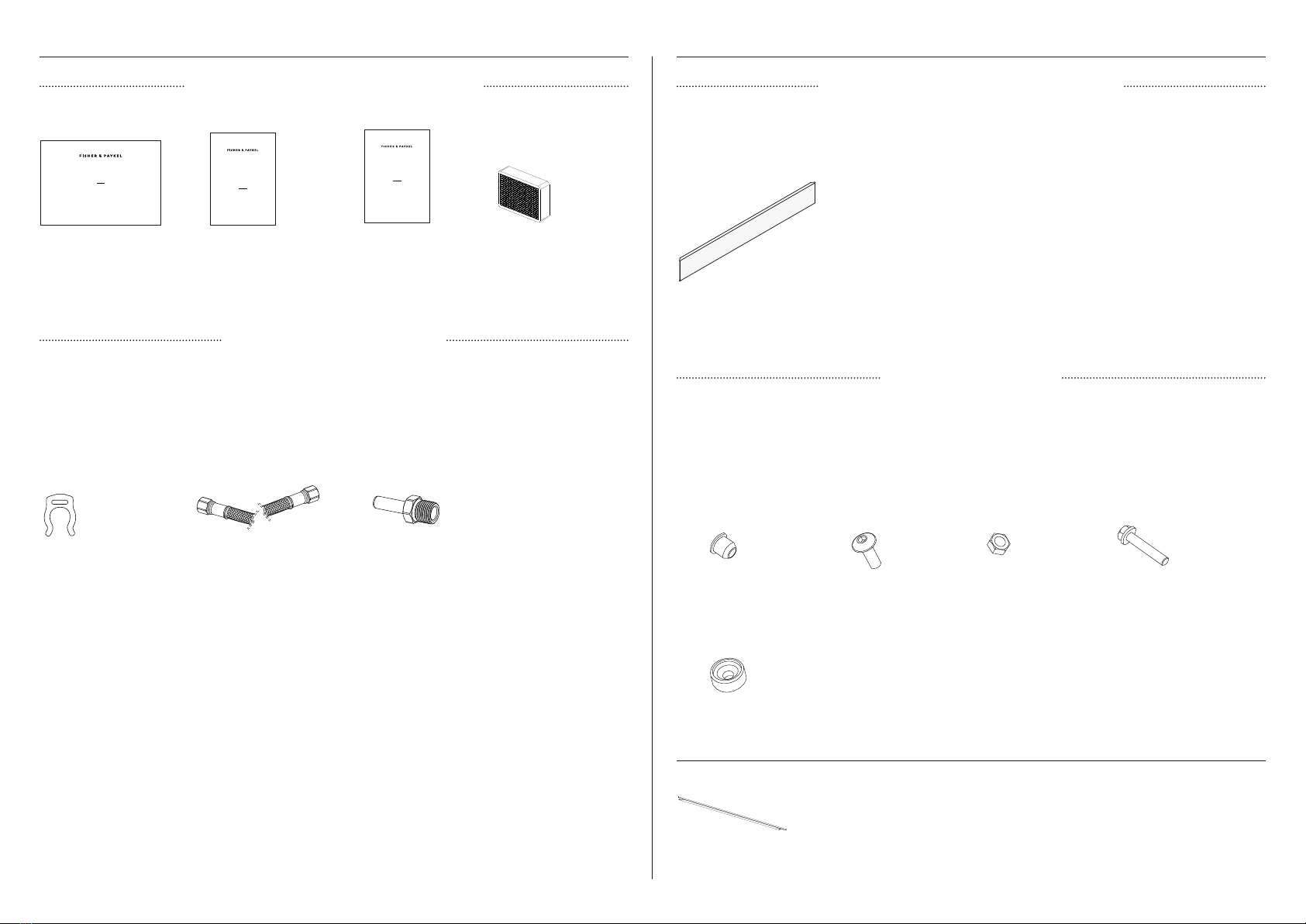

REQUIRED PARTSSUPPLIED PARTS
Air carbon filters (2)
#862755
For Wine Cabinet only
MISCELLANEOUS ITEMS (MI) PACK
Installation guide
INSTALLATIONGUIDE
NZ AU UK IE EU SG HK
INTEGRATED COLUMN
REFRIGERATOR& FREEZER
RS6121S, RS6121SH, RS7621S, RS7621SH
RS4621F,RS6121F & RS7621F
REFRIGERATOR-FREEZER
RS7621W & RS7621W
WINE CABINET
RS6121V
6mm Stainless steel
braided hose with
7/16-24 UNS thread (1)
6.35mm Adaptor (2)
Collet locking clip (1)
WATER CONNECTION KIT
Service & Warranty
SERVICE & WARRANTY
SERVICE ET GARANTIE
ΣΈΡΒΙΣΚ ΑΙ ΕΓΓΎΗΣΗ
SERVIZIO E GARANZIA
SERVICE & GARANTIE
HUOLTOJA TAKUU
SERVICE OG GARANTI
保修和维修
݉ଡ଼ڸߴঔ
User guide
USER GUIDE
NZ AU UK IE SG HK
INTEGRATED
REFRIGERATOR & FREEZER
INTEGRATED REFRIGERATOR
RS6121S, RS6121SH, RS7621SH & RS7621S
INTEGRATED FREEZER
RS4621F,RS6121F & RS7621F
Supplied in models with Ice & Water function only
(RS6121SH, RS7621SH, RS4621F, RS6121F, RS7621F, RS7621W & RS7621W)
Water filter comes preinstalled on this product.
Not supplied and can be purchased separately through an authorised Fisher and Paykel dealer.
Visitfisherpaykel.com for more information.
Standard toe kick height is 102mm forstandard stainless steel
door panel.
For Custom door panel installation, atoe kick 50–152mm must
be fitted andadjusted accordingly.
An extra bottom grille is required when you use 50mm toe
kick height.
You can purchase the extra bottom grille (847542P) online
at fisherpaykel.com.
STAINLESS STEEL TOE KICK PANEL
Toe kick panel (1)
Joiner Sleeve (2)
Flange Joiner Trim (2)
INSTALL JOINER KIT
Used for combined installation of multiple appliances. Supplied in selected appliances only
(Freezer and Wine Cabinets). For other models, the joiner kit (AJ-RS84LR) can be purchased
separately through an authorised Fisher and Paykel dealer. Visitfisherpaykel.com for more
information.
Joiner fastener kit
Aluminium center trim (1)
M6 Hex Nut (1) Bolt M5 HEX (2)
Screw WSH M6 (1)

9
Custom door panel Custom door panel Custom door panel
The Custom door panel must leave the glass pane visible. A full
custom panel sheathing over the glass pane does not meet the
specifications of the Wine Cabinet.
8Gx16 Mush washer screw (48)
RH LH
RS61 RD6121WRD RD6121WLD
RS76 RD7621WRD RD7621WLD
Stainless steel door panel kit Stainless steel door panel kit Stainless steel door panel kit

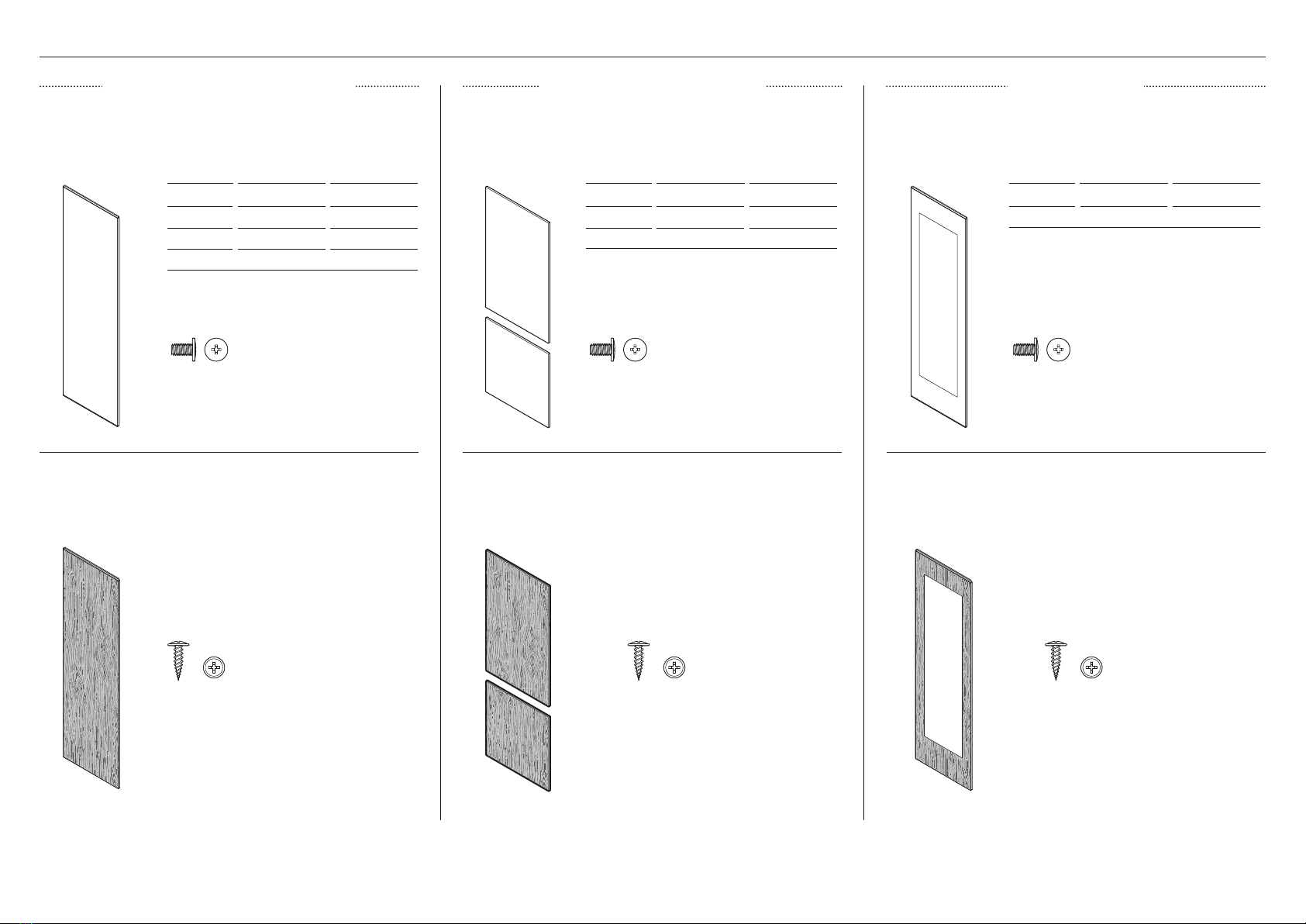

DOOR PANEL KIT
REFRIGERATOR OR FREEZER REFRIGERATOR-FREEZER WINE CABINET
Custom door panels must be supplied by the customer to match their cabinetry. Stainless steel door panels are not supplied and must be purchased separately through an authorised Fisher and Paykel dealer.
Take note of the part numbers above to ensure you are ordering the correct door panel set. Visitfisherpaykel.com for more information.
M5x12 Cross-head screw (44)
Included in Installation kit
M5x12 Cross-head screw (44)
Included in Installation kit
M5x12 Cross-head screw (44)
Included in Installation kit
8Gx16 Mush washer screw (32)
RH LH
RS46 RD4621R4D RD4621L4D
RS61 RD6121R4D RD6121L4D
RS76 RD7621R4D RD7621L4D
8Gx16 Mush washer screw (32)
RH LH
RS61 RD6121VR4 RD6121VL4

10
CONTEMPORARY PROFESSIONAL
HANDLE KIT
The handle kit is not supplied and must be purchased separately through an authorised Fisher and Paykel dealer. Visitfisherpaykel.com for more information.
For Refrigerator-Freezer models, each handle kit includes two (2x) handles for door and drawer panels, and M5x25 hex screws (8x).
Round flush handle
(1)
M5x25 Hex screw
(4)
MODEL DESCRIPTION
REFRIGERATOR/FREEZER
WINE CABINET
AHP3-RDSF
RS61 REFRIGERATOR-FREEZER AHP3-RD6121W
RS76 REFRIGERATOR-FREEZER AHP3-RD7621W
Stainless steel round flush handle set
Square fine handle
(1)
M5x25 Hex screw
(4)
Round handle
(1)
M5x25 Hex screw
(4)
M5x25 Hex screw
(4)
MODEL DESCRIPTION
REFRIGERATOR/FREEZER
WINE CABINET
AHD5-RDSF
RS61 REFRIGERATOR-FREEZER AHD5RD6121W
RS76 REFRIGERATOR-FREEZER AHD5RD7621W
MODEL DESCRIPTION
REFRIGERATOR/FREEZER
WINE CABINET
AHSRDSF
RS61 REFRIGERATOR-FREEZER AHSRD6121W
RS76 REFRIGERATOR-FREEZER AHSRD7621W
Aluminium/Black square fine handle set
Aluminium round handle set
Classic handle set
MODEL DESCRIPTION
REFRIGERATOR/FREEZER
WINE CABINET
AHCLRDSF
RS61 REFRIGERATOR-FREEZER AHCLRD6121W
RS76 REFRIGERATOR-FREEZER AHCLRD7621W

11
HINGE CHANGE KIT
Not supplied and must be purchased separately through an authorised Fisher and Paykel dealer.
Visitfisherpaykel.com for more information. Select among the hinge change kit options below:
Top grille (1)
Supplied in Hinge change kit
for Refrigerator & Freezer and
Wine Cabinet only.
*Top and bottom adaptor brackets for Wine Cabinet different from illustration.
WINE DISPLAY ACCESSORIES
HINGE KIT
REFRIGERATOR OR FREEZER WINE CABINET REFRIGERATOR-FREEZER
48CM 61CM 76CM 61CM 61CM 76CM
Left to Right hinge
848186 848188 848190 864757P 848184P 848184P
Right to Left hinge
848185 848187 848189 864759P 848183P 848183P
Accessories are not supplied with the appliance. A wine display kit and a label kit are sold
separately and can be purchased online at fisherpaykel.com.
Wine display kit
Wine label kit
2x 1x
Handle assembly (1)
Cradle assembly (4)
Spacer (1)
Label (14) Pencil (1)
Top alcove bracket
RH (2) K05 top adaptor*
bracket RH (1)
Top hinge pocket
RH (2)
K05 bottom adaptor*
bracket RH (1)
Left to Right hinge kit
Top alcove bracket
LH (2) K05 top adaptor*
bracket LH (1)
Top hinge pocket
LH (2)
K05 bottom adaptor*
bracket LH (1)
Right to Left hinge kit

12

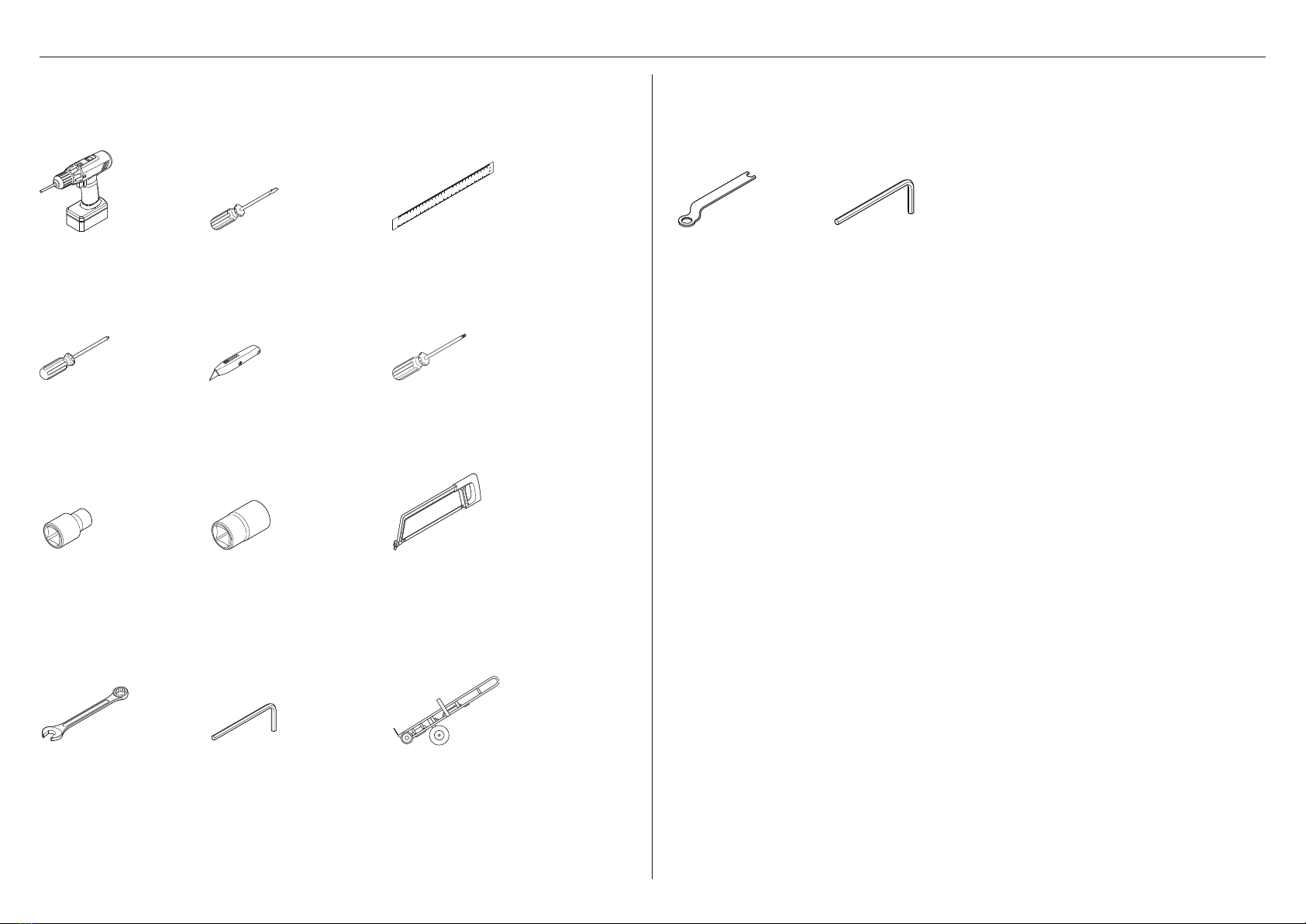

M4 hex keySpanner
Supplied tools
Ruler
T20 star-head
screwdriver
(Used for changing hinge)
Powered driver
Cross-head
screwdriver
Hacksaw
(For cutting air flow
divider to length)
Hand truck
Flathead screwdriver
Cutter (1)
Required tools
Not supplied and must be provided by the installer.
8mm socket wrench
(Used for joiner bolts)
10mm spanner
(Used for multiple installation)
13mm socket wrench
(Used for drawer panel of
Refrigerator-Freezer model)
3mm allen key
(Used for multiple installation)
TOOLS

13
C
B
A
E
D
PRODUCT DIMENSIONS
46CM 61CM 76CM
MM MM MM
A Overall height 2134 2134 2134
B Overall width 451 603 756
C Overall depth (excluding door panel) 610 610 610
D Depth of toe kick (measured from back of door panel) 73–102 73–102 73–102
E Height from floor to bottom of Stainless steel door/drawer panel 102 102 102
F Height from floor to top of drawer panel (Refrigerator-Freezer only) 874 874 874
G Gap between door and drawer panels (Refrigerator-Freezer only) —33
PRODUCT WEIGHT (WITHOUT PACKAGING) KG KG KG
Refrigerator or Freezer 101 117 134
Refrigerator-Freezer —142 163
Wine cabinet —152 —
46cm model for Freezer only. Wine Cabinet available in 61cm only.
PRODUCT DIMENSIONS
REFRIGERATOR OR FREEZER REFRIGERATOR-FREEZER WINE CABINET
C
B
A
C
B
A
E
D
E
F
D
G
FRONT FRONT FRONTPROFILE PROFILE PROFILE

14
CAVITY DIMENSIONS
46CM 61CM 76CM
MM MM MM
A Overall height of cavity 2134 2134 2134
B Overall width of cavity 457 610 762
C Minimum overall depth of cavity* 635 635 635
d Minimum gap from edge of door panel to cabinetry 333
e Minimum required finished return 102 102 102
*Assumes a door panel thickness of 19mm.
CABINETRY DIMENSIONS — SINGLE INSTALLATION
ISOMETRIC
UNFRAMED
Aligns appliance with cabinetry
FRAMED
Aligns appliance with frame of cabinetry
D
E
D
E
Flush with front
of cabinetry
PLAN
A
B
C
Illustrations may differ from your purchased appliance.

15

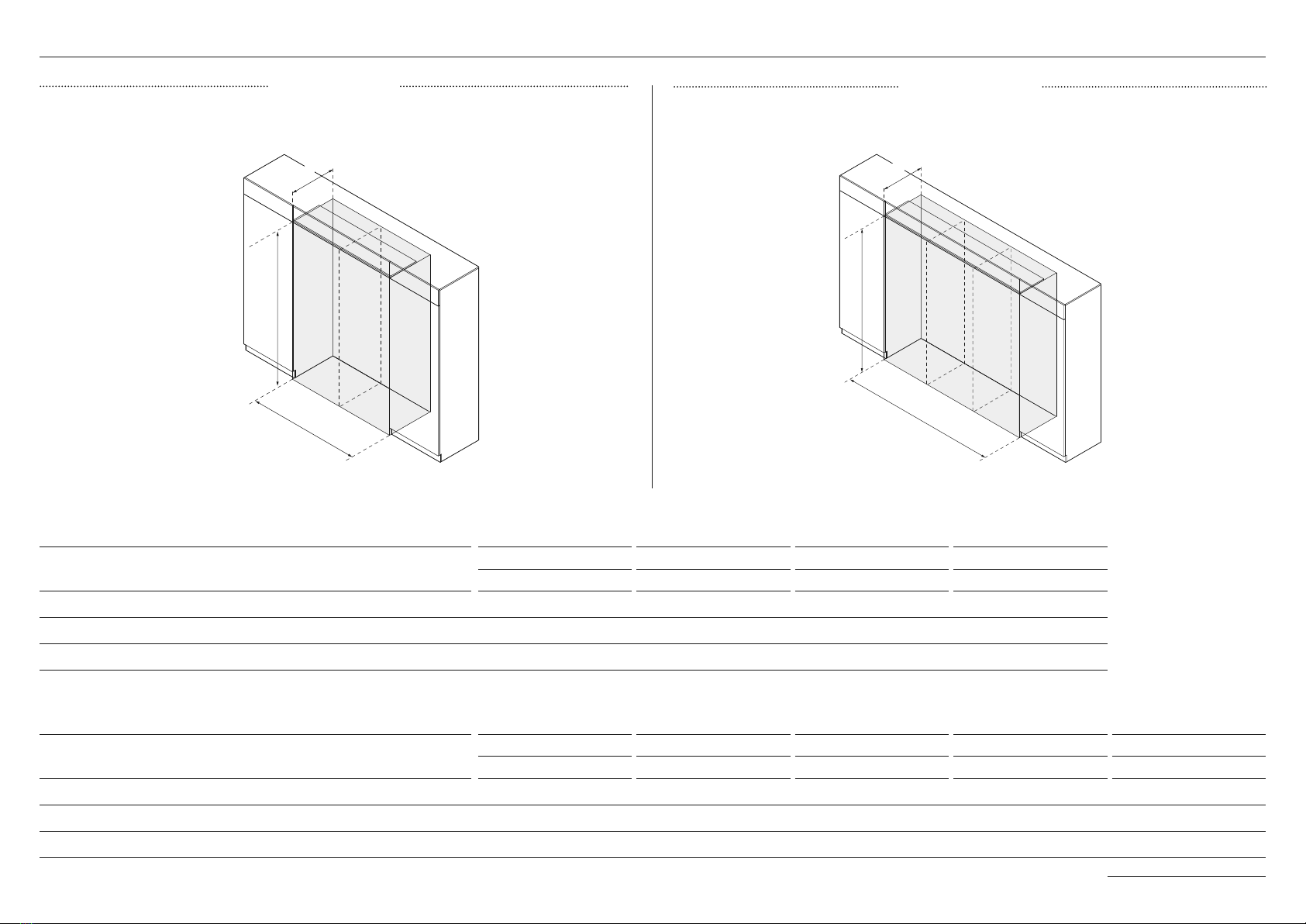

CABINETRY DIMENSIONS — MULTIPLE INSTALLATION
DUAL INSTALL TRIPLE INSTALL
A
B
C
A
B
C
DUAL INSTALL
CAVITY DIMENSIONS
107CM 122CM 137CM 152CM
MM MM MM MM
A Overall height of cavity 2134 2134 2134 2134
B Overall width of cavity 1067 1220 1372 1524
C Minimum overall depth of cavity* 635 635 635 635
*Assumes a door panel thickness of 19mm.
TRIPLE INSTALL
CAVITY DIMENSIONS
168CM 183CM 198CM 213CM 229CM
MM MM MM MM MM
A Overall height of cavity 2134 2134 2134 2134 2134
B Overall width of cavity 1677 1829 1982 2134 2286
C Minimum overall depth of cavity* 635 635 635 635 635
*Assumes a door panel thickness of 19mm.
Illustrations may differ from your purchased appliance.

16
DOOR PANEL DIMENSIONS
46CM 61CM 76CM
MM MM MM
A Height of door panel 2029 2029 2029
C Width of door panel 451 603 756
C Depth of door panel* 19 19 19
*Excluding handle
DOOR PANEL WEIGHT
46CM 61CM 76CM
KG KG KG
Weight of Refrigerator or Freezer
door panel 20 25 30
Weight of Wine cabinet door panel — 8 —
DOOR PANEL DIMENSIONS
61CM 76CM
MM MM
A Height of top door panel 1254 1254
B Height of bottom drawer panel 772 772
C Width of door panel 603 756
D Depth of door panel* 19 19
*Excluding handle
DOOR PANEL WEIGHT 61CM 76CM
KG KG
Weight of top door panel 9 10
Weight of bottom drawer panel 6 7
REFRIGERATOR OR FREEZER / WINE CABINET REFRIGERATOR-FREEZER
C
A
B
C
A
B
D
A
C
B

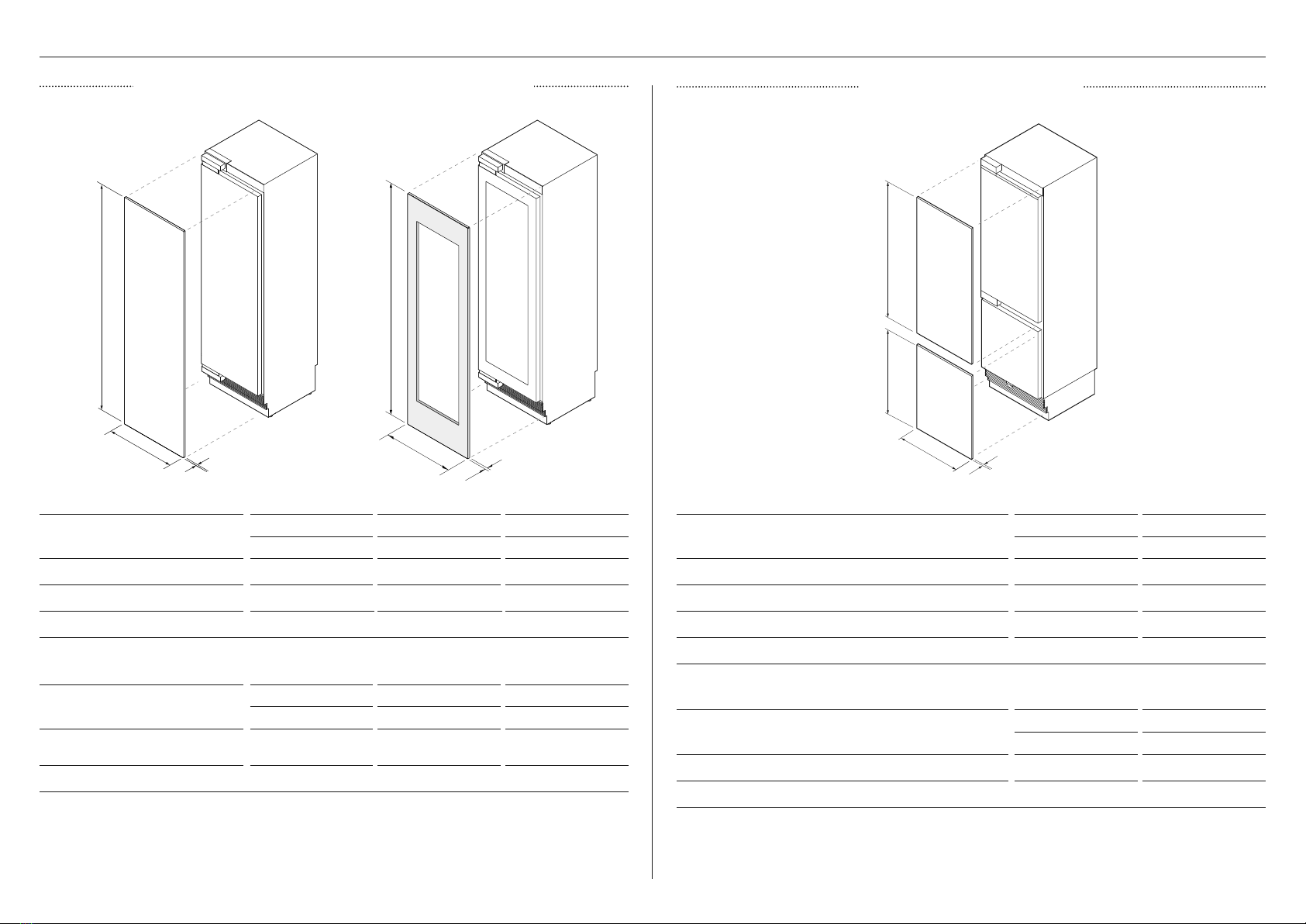

STAINLESS STEEL DOOR PANEL DIMENSIONS — SINGLE INSTALLATION
Illustrations may differ from your purchased appliance.

17
DOOR PANEL DIMENSIONS
46CM 61CM 76CM
MM MM MM
A Height of door panel 1978–2080 1978–2080 1978–2080
C Width of door panel 451 603 756
C Depth of door panel* min 16–max 25 min 16–max 25 min 16–max 25
*Excluding handle
DOOR PANEL WEIGHT
46CM 61CM 76CM
KG KG KG
Weight of Refrigerator or Freezer
door panel max 20 max 25 max 30
Weight of Wine cabinet door panel — max 25 —
DOOR PANEL DIMENSIONS
61CM 76CM
MM MM
A Height of top door panel 1254 1254
B Height of bottom drawer panel 721–822 721–822
C Width of door panel 603 756
D Depth of door panel* min 16–max 25 min 16–max 25
*Excluding handle
DOOR PANEL WEIGHT 61CM 76CM
KG KG
Weight of top door panel max 15 max 18
Weight of bottom drawer panel max 9 max 11
REFRIGERATOR OR FREEZER / WINE CABINET REFRIGERATOR-FREEZER
C
A
B
C
A
B
CUSTOM DOOR PANEL DIMENSIONS — SINGLE INSTALLATION
For Wine cabinet, the Custom door panel must leave the glass pane visible. A full custom panel sheathing over the glass pane does not meet the specifications of this appliance.
For all models, maximum panel weight must not be exceeded.
D
A
C
B
Illustrations may differ from your purchased appliance.

18
CUSTOM DOOR PANEL DIMENSIONS — MULTIPLE INSTALLATION
DUAL INSTALL TRIPLE INSTALL
The illustrations below are examples of custom door panels of different combinations for dual
installation. Minimum gaps of 3mm must be retained between door panel side edges and cabinetry
regardless of door panel widths.
The illustrations below are examples of custom door panels of different combinations for triple
installation. Minimum gaps of 3mm must be retained between door panel side edges and cabinetry
regardless of door panel widths.
CC C
C
A
BB
CCCC
C
A
BBB
DIMENSIONS 46CM 61CM 76CM
MM MM MM
A Height of door panel 2029 2029 2029
C Width of door panel 452 605 757
c Minimum clearance between
door panels and cabinetry 333
*Excluding handle
DIMENSIONS 46CM 61CM 76CM
MM MM MM
A Height of door panel 2029 2029 2029
C Width of door panel 454 605 757
c Minimum clearance between
door panels and cabinetry 333
*Excluding handle
Illustrations may differ from your purchased appliance.

19

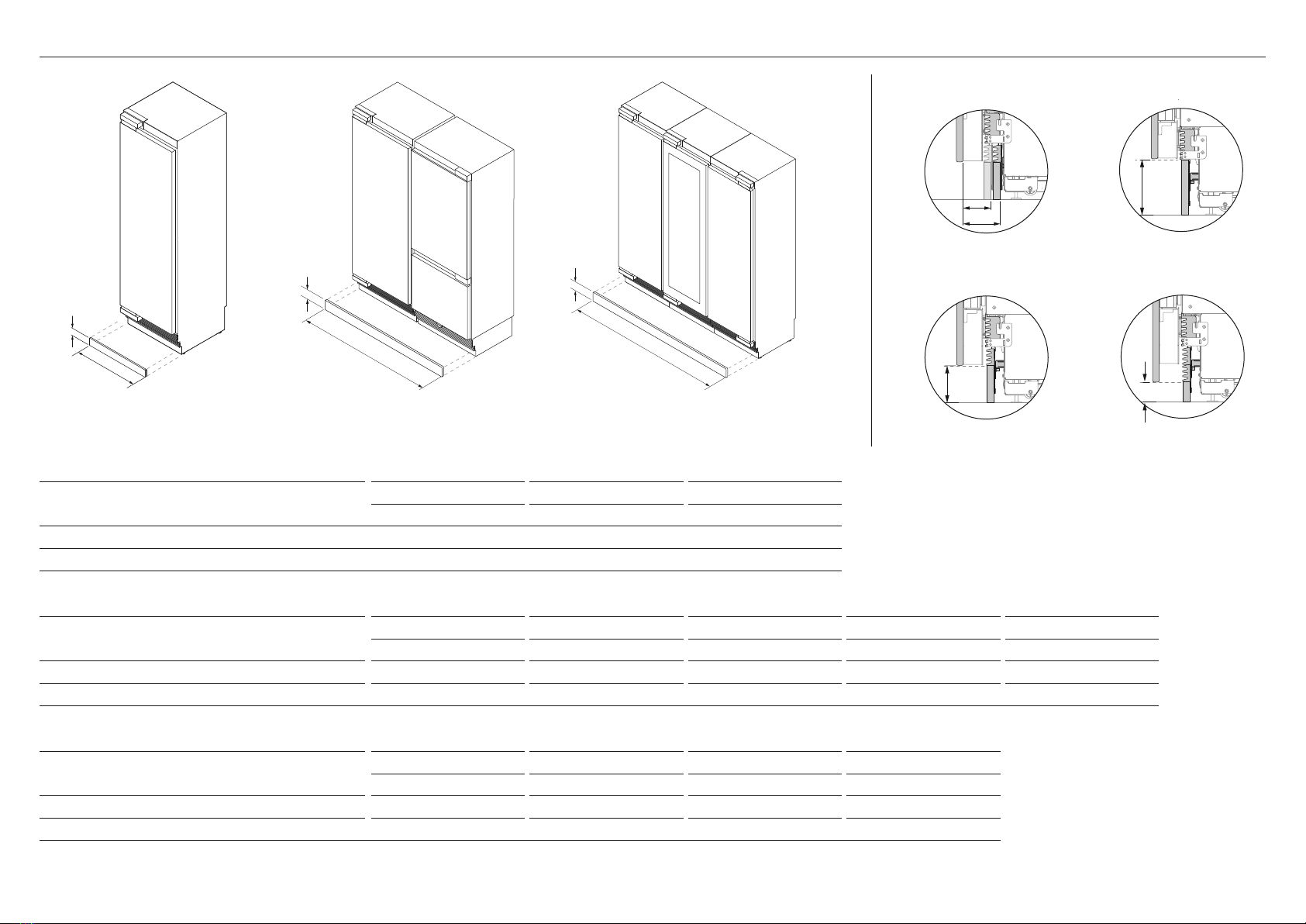

TOE KICK DIMENSIONS
Custom toe kick options
51mm toe kick height
(with extra lower grille attached)
102mm toe kick height
152mm toe kick height
73mm–102mm toe kick
clearance measured from rear
of door panel
A
B
SINGLE INSTALL
STAINLESS STEEL/CUSTOM PANEL
46CM 61CM 76CM
MM MM MM
A Height of toe kick* 102 102 102
B Width of toe kick 454 606 759
DUAL INSTALL
STAINLESS STEEL/CUSTOM PANEL
92CM 107CM 122CM 137CM 152CM
MM MM MM MM MM
A Height of toe kick* 50–152 50–152 50–152 50–152 50–152
b Width of toe kick 912 1064 1216 1368 1521
TRIPLE INSTALL
STAINLESS STEEL/CUSTOM PANEL
168CM 183CM 213CM 229CM
MM MM MM MM
A Height of toe kick* 50–152 50–152 50–152 50–152
B Width of toe kick 1674 1826 2131 2283
*Standard toe kick height is 102mm for any install options.
SINGLE INSTALL DUAL INSTALL TRIPLE INSTALL
B
A
B
A
Illustrations may differ from your purchased appliance.

20
INSTALLATION OPTIONS
The illustrations above show acceptable installation options with reference to the door opening range and partition (optional). Be aware of clashing (circled) of doors or handles when opening at the same time.
If installing a partition between the appliances, ensure there is enough clearance to avoid doors/handles from interfering with each other when opening or closing.
If necessary, use a hinge limiting pin to restrict door opening rotation to 90°. Refer to 'Door clearance' for more information.
SINGLE INSTALL MULTIPLE INSTALL
WALL
WALL
WALL
100mm
60mm
WALL
WALL
WALL WALL
WALL
WALL
WALL
WALL
WALL
WALL
WALL
WALL
Illustrations may differ from your purchased appliance.
WALL
WALL
WALL
