Fisher & Paykel 9 Series User manual

INSTALLATION GUIDE
NZ AU UK IE SG
MINIMAL WB60SDEB2 & WB60SDTEB1
CONTEMPORARY WB60SDEX2
WARMING DRAWER

3
CONTENTS
Safety and warnings 4
Warming drawer models 5
Unpack your product 6
Electrical specifications 6
Parts supplied 7
Tools required 7
Product dimensions - 600mm minimal & contemporary models 8
Product dimensions - 600mm minimal (tall) model 9
Cabinetry dimensions - 600mm minimal & contemporary models 10
Cabinetry dimensions - 600mm minimal (tall) model 11
Installation options 12
Installing the drawer 14
Adjusting the depth 15
Adjusting the height 15
Installer checklist 16

4
SAFETY AND WARNINGS
! WARNING!
Tip Hazard
This product may tip. Keep children away and
take care. Failure to follow this advice may
result in injury.
• Drawer must be secured in place by supplied
screws.
• Ensure there is a fixed shelf directly above
the drawer if it is not installed under another
product.
! WARNING!
Cut Hazard
Failure to use caution could result in injury.
• Take care: some edges may be sharp.
• Do not put fingers in the drawer when closing.
! WARNING!
Electric Shock Hazard
Failure to follow this advice may result in
electrical shock or death.
• If the product is damaged, switch the appliance
off and disconnect it from the mains to avoid
possible electric shock.
!WARNING!
420-630 lb
190-285 kg
Weight Hazard
Failure to follow this advice may result in
damage or personalinjury.
• Ensure the bottom shelf of the cabinetry can fully
support the weight of combined appliances.

5
SAFETY AND WARNINGS WARMING DRAWER MODELS
READ AND SAVE THIS GUIDE
WARNING!
To reduce the risk of fire, injury to persons or damage when using the appliance, follow the
important safety guides listed below. Read all the instructions before using the appliance.
Installation
zPlease make this information available to the person installing the product.
zThe appliance must be installed by a qualified installer, or Fisher & Paykel trained and
supported service technician to avoid faulty electrical connection.
zEnsure the installation complies with all clearance requirements and applicable standards
and regulations.
zWhen installed in combination with a companion product, the companion product can be
placed directly onto the appliance. A built-in shelf at the base of the cabinetry must be
able to support the weight of both products.
zEnsure the cabinetry is square and level and with correct dimensions.
zIf installing the appliance directly underneath an oven, ensure you do not damage the
oven’s lower trim. Fisher & Paykel does not accept any responsibility for any damage
resulting from incorrect installation.
zBefore installing the appliance, inspect for any signs of damage. Do not install or use
damaged appliances.
zBe careful when stacking the appliances on top of each other to avoid damage to the
appliances.
Electrical
zAll connections for electrical power and earthing must be done by a qualified electrician
and must comply with local codes and ordinances.
zBefore installation, ensure that the voltage and frequency listed on the data plate
corresponds with the household electrical supply.
zWhen combining with another appliance, ensure each appliance has its own power outlet.
Avoid sharing the power point to prevent accidental switching off of the appliance.
zEnsure your appliance is properly grounded (earthed).
zConnect the drawer to a properly rated, protected and sized power supply circuit to avoid
electrical overload.
zDo not use an extension cord or a portable electrical outlet device (e.g. multi-outlet outlet
box) to connect the drawer to the power supply. Ensure the power supply cord is located
so that it will not be stepped on, tripped over or otherwise subject to damage or stress.
zEnsure there is a switched outlet in an easily accessible area within 900mm of the centre
rear of the product.
Servicing
zDo not repair or replace any part of the appliance unless specifically recommended in the
user guide. All other servicing should be done by a Fisher & Paykel trained and supported
service technician or qualified person.
zAlways disconnect the power supply before doing any installation, maintenance or repair
work.
zIf the power supply cord is damaged, it must be replaced by a qualified electrician or
Fisher & Paykel trained and supported service technician.
600mm Warming Drawer,
Minimal style
WB60SDEB2
600mm Warming Drawer,
Contemporary style
WB60SDEX2
600mm Warming Drawer,
Minimal (Tall) style
WB60SDTEB1

6

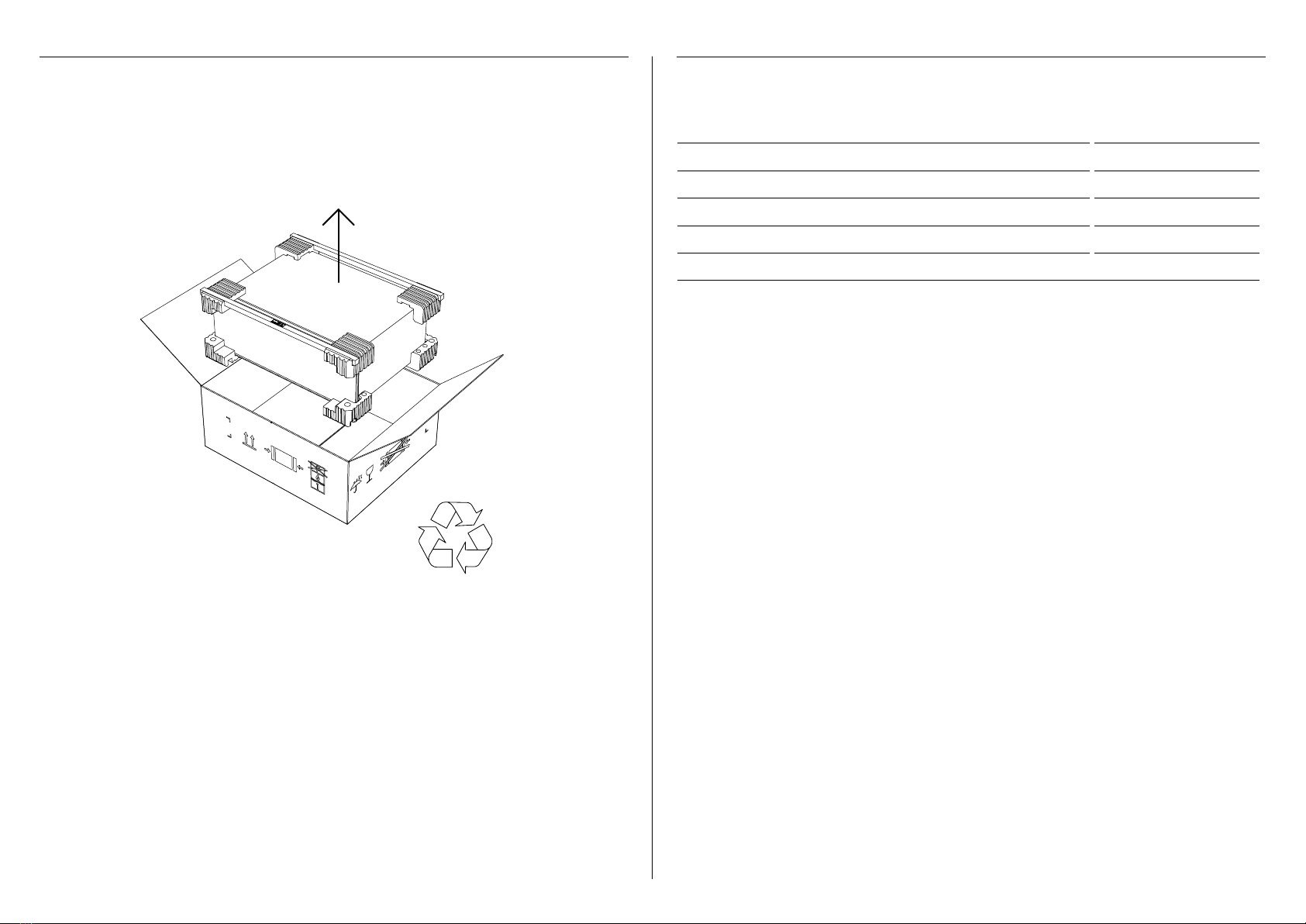

Remove the warming drawer and accessories box from the packaging. Recycle the materials
that can be reused. Dispose packaging materials in accordance with local regulations on waste
disposal.
Inspect the warming drawer for any signs of damage. Do not install the warming drawer if it
has been damaged. If the product is damaged, contact your local Fisher & Paykel dealer.
UNPACK YOUR PRODUCT ELECTRICAL SPECIFICATIONS
RECYCLE
RESPONSIBLY
All electrical work must be done by a qualified electrician, or a Fisher & Paykel trained and
supported service technician.
WB60SD
Supply 220-240 VAC, 50/60 Hz
Service 10 amp circuit
Maximum Power 810 W
Power outlet* 3-prong grounding-type
Power cord (total length) 1800mm
* The power outlet must be earthed and located within 900mm of the centre rear of the product.

7
Wire shelf (1)
For WB60SDTEB Tall
models only
Installation guide (1)Service & Warranty (1)
SERVICE & WARRANTY
SERVICE ET GARANTIE
ΣΈΡΒΙΣΚ ΑΙ ΕΓΓΎΗΣΗ
SERVIZIO E GARANZIA
SERVICE & GARANTIE
HUOLTO JA TAKUU
SERVICE OG GARANTI
保修和维修
服務和保修 INSTALLATION GUIDE
NZ AU UK IE SG
MINIMAL WB60SDEB2 & WB60SDTEB1
CONTEMPORARY WB60SDEX2
WARMING DRAWER
User guide (1)
USER GUIDE
NZ AU UK IE SG
WARMING DRAWER
MINIMAL WB60SDEB2 & WB60SDTEB1
CONTEMPORARY WB60SDEX2
5mm Hex key T20 star-head screwdriver
PARTS SUPPLIED TOOLS REQUIRED
T20 star head screw 4x20
WB60SDT models (4)
WB60SDE models (2)

8

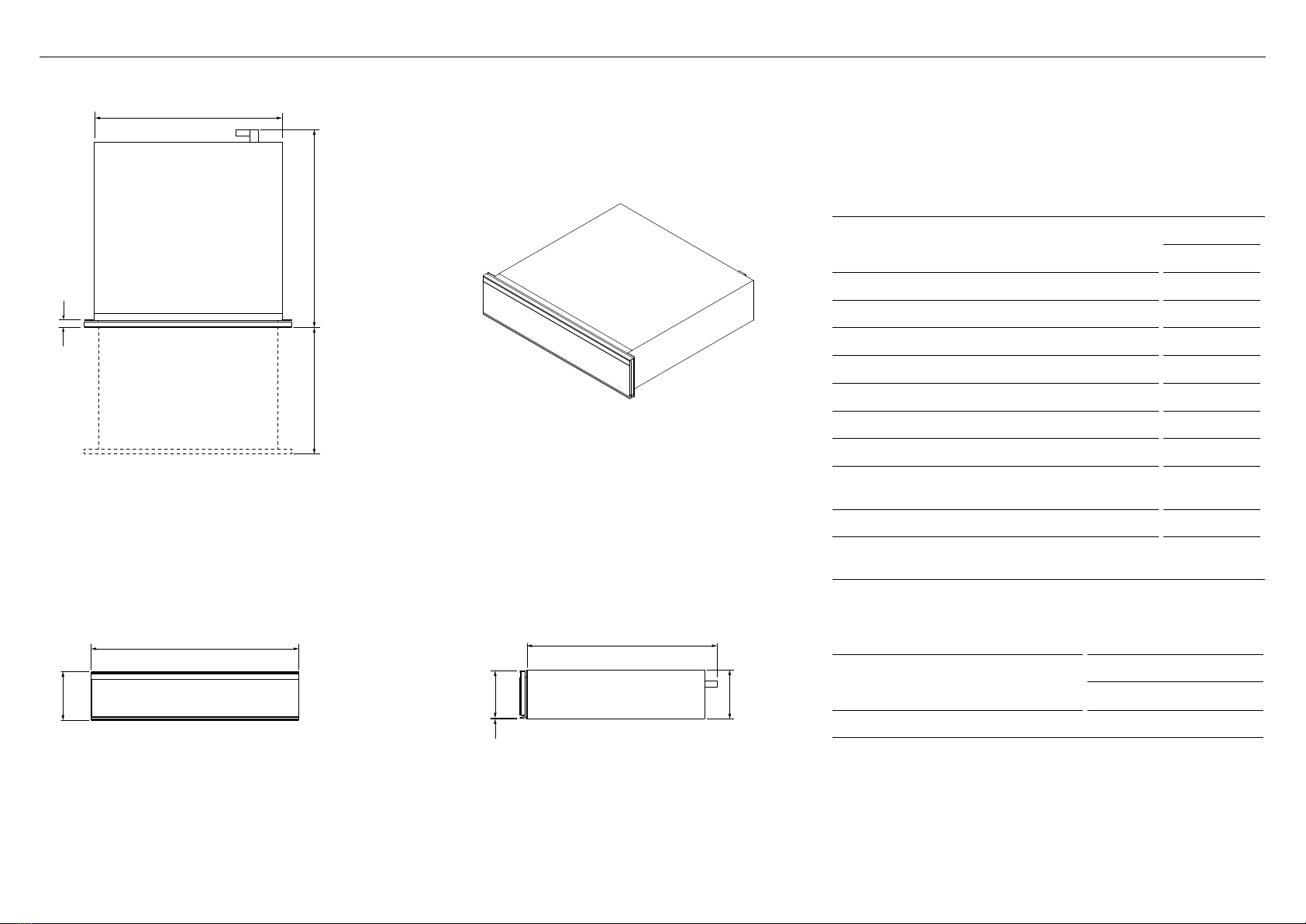

PRODUCT DIMENSIONS - 600MM MINIMAL & CONTEMPORARY MODELS
C
i
h
E
PLAN
ISOMETRIC
FRONT
B
A
PROFILE
D
G
F
j
Actual product dimension may vary by ±2 mm.
PRODUCT DIMENSIONS
WB60SDE
MM
A Overall height 140
B Overall width 596
C Overall depth* 567
D Height of chassis 140
E Width of chassis 543
F Depth of chassis** 547
G Height of drawer front panel 136
H Depth of drawer front panel and attachment
flange 20
I Depth of open drawer 414
J Height from bottom of chassis to bottom of
front panel 2
* Including drawer front panel and power plug
** Including power plug
PRODUCT WEIGHT
WB60SDE
KG
Total weight of drawer* 22
*including packaging

9
PRODUCT DIMENSIONS - 600MM MINIMAL (TALL) MODEL
PLAN
ISOMETRIC
Actual product dimension may vary by ±2 mm.
PRODUCT DIMENSIONS
WB60SDT
MM
A Overall height 290
B Overall width 596
C Overall depth* 567
D Height of chassis 290
E Width of chassis 543
F Depth of chassis** 547
G Height of drawer front panel 286
H Depth of drawer front panel and attachment
flange 20
I Depth of open drawer 419
J Height from bottom of chassis to bottom of
front panel 2
* Including front panel and power plug
** Including power plug
PRODUCT WEIGHT
WB60SDT
KG
Total weight of drawer* 37
*including packaging
C
i
h
E
FRONT
B
A
PROFILE
D
G
F
j

10

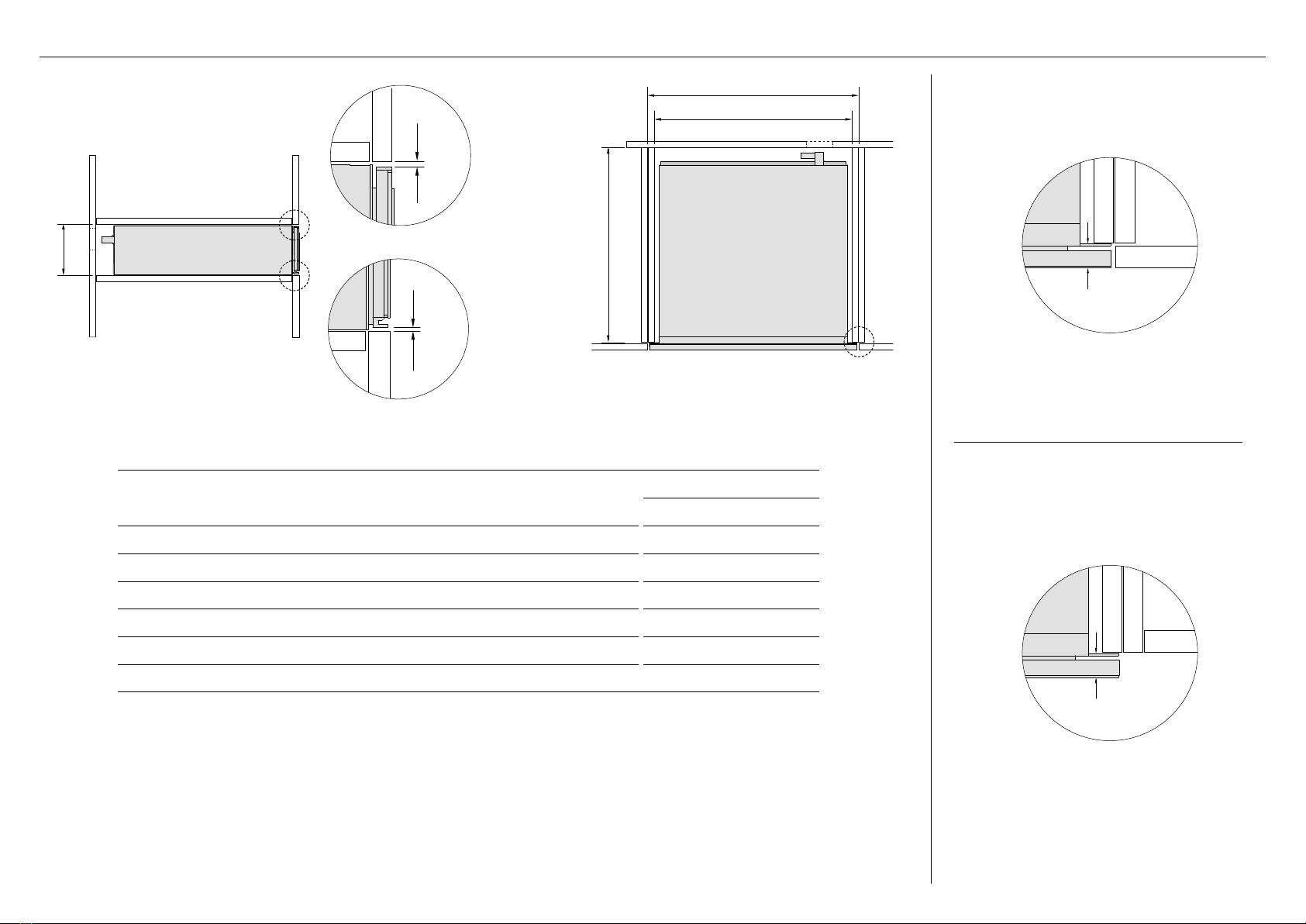

CABINETRY DIMENSIONS - 600MM MINIMAL & CONTEMPORARY MODELS
PROUD INSTALL
FLUSH INSTALL
PLAN
c
b
d
PO*
PROFILE
aPO*
e
f
CABINETRY DIMENSIONS
WB60SDE
MM
A Minimum inside height of cavity 142
B Minimum inside width of cavity 560
C Minimum inside depth of cavity 572
D Overall width of cabinetry 600
E Minimum clearance between top of front panel and upper cabinetry panel 3
F Minimum clearance between bottom of front panel and lower cabinetry panel 2
* The power outlet (PO) must be earthed and located within 900mm of the centre rear of the product.
Actual product dimension may vary by ±2 mm.
13/16 (20mm)
13/16 (20mm)

11
CABINETRY DIMENSIONS - 600MM MINIMAL (TALL) MODEL
PROUD INSTALL
FLUSH INSTALL
Actual product dimension may vary by ±2 mm.
CABINETRY DIMENSIONS
WB60SDT
MM
A Minimum inside height of cavity 292
B Minimum inside width of cavity 560
C Minimum inside depth of cavity 572
D Overall width of cabinetry 600
E Minimum clearance between top of front panel and upper cabinetry panel 3
F Minimum clearance between bottom of front panel and lower cabinetry panel 2
* The power outlet (PO) must be earthed and located within 900mm of the centre rear of the product.
PLAN
c
b
d
PO*
a
PROFILE
PO*
e
f
13/16 (20mm)
13/16 (20mm)

12

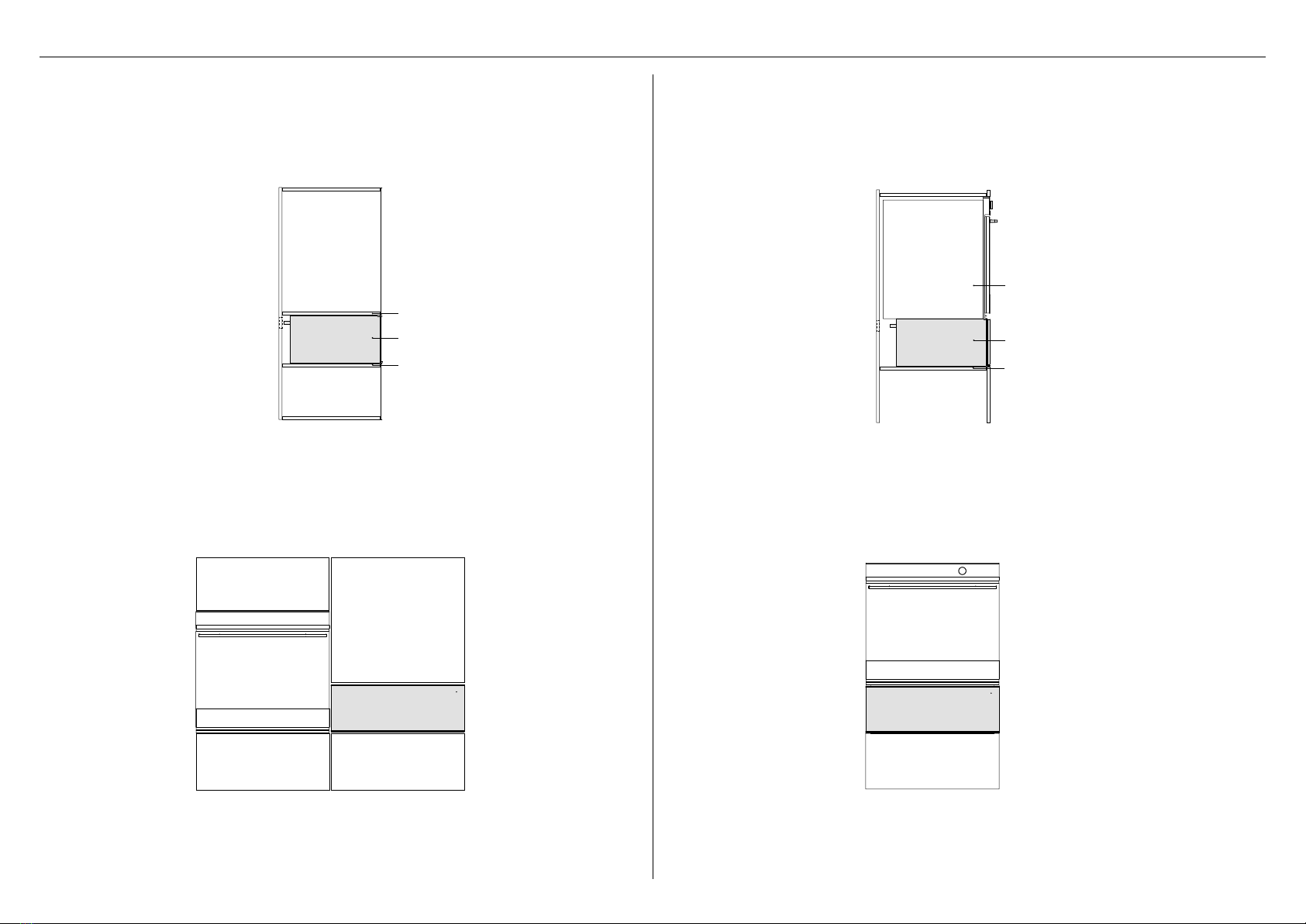

STANDALONE INSTALLATION
This combination is suitable for Minimal, Contemporary or Professional Warming Drawer that
can fully support a 600mm Fisher & Paykel wall oven.
COMBINED WITH SINGLE OVEN
PROFILE
Top shelf
Bottom shelf
Warming Drawer
FRONT
PROFILE
Single oven
Warming Drawer
FRONT
Bottom shelf
INSTALLATION OPTIONS
This installation is suitable for Minimal, Contemporary or Professional 600mm Warming drawer.
A fixed shelf must be installed above the warming drawer.

13
This combination is suitable for Minimal, Contemporary or Professional Warming drawer that
can fully support a 600mm Fisher & Paykel companion product.
COMBINED WITH COMPANION PRODUCT
PROFILE
FRONT
Companion product
Warming Drawer
Top shelf
Bottom shelf
This combination is suitable for Minimal 600mm Tall Warming drawer that can fully support a
600mm Fisher & Paykel double oven.
COMBINED WITH DOUBLE OVEN
FRONT
PROFILE
Double oven
Warming Drawer
Bottom shelf
INSTALLATION OPTIONS

14

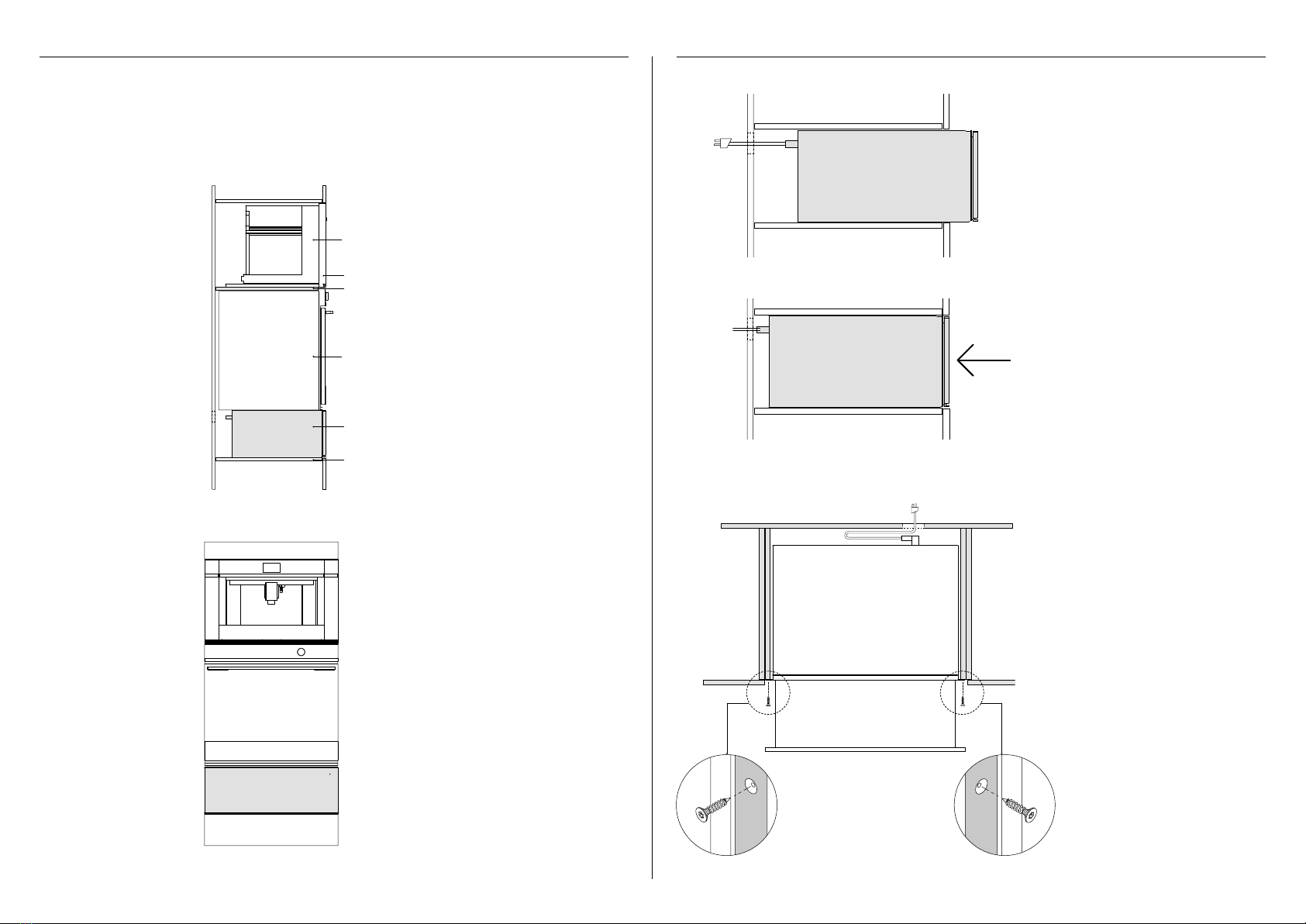

INSTALLING THE DRAWERINSTALLATION OPTIONS
Connect the power plug into the
power outlet.
Place the warming drawer carefully
inside the cabinetry.
1
Push the warming drawer back
into the cabinetry, and align the
front panel with the cabinetry as
desired.
2
3Open the drawer and secure the
attachment flanges of the drawer
to the side edges of cabinetry with
4x25 T20 star head countersunk
screws.
PLAN VIEW
PROFILE
This combination is suitable for Minimal 600mm Tall Warming drawer that can fully support
600mm Fisher & Paykel single oven and companion product. A shelf is required above the
oven to support the companion product. Ensure the bottom shelf can fully support the weight
of all appliances.
COMBINED WITH SINGLE OVEN & COMPANION PRODUCT
FRONT
PROFILE
Companion product
Top shelf
Wall oven
Bottom shelf
Warming Drawer
600mm Companion Trim Kit

15
ADJUSTING THE DEPTH ADJUSTING THE HEIGHT
Open the drawer fully.
Using a hex key, turn the adjustment
screw to move the front panel forward.
Turn clockwise to move backwards or
anticlockwise to move forwards.
1
2The depth is adjustable within 4mm.
The depth of the front panel of the warming drawer can be adjusted to align with the
surrounding cabinetry.
Open the drawer fully, and slightly
loosen the screws.
1
2
3
Adjust to the required height and then
re-tighten the screws. The height is
adjustable within 2mm.
Close the drawer and check the
alignment. Adjust again if necessary.
The front panel of the warming drawer can be adjusted vertically to align with the surrounding
cabinetry.
max 2mm

16
F the warming drawer is level and securely fitted to the cabinetry to
F any internal packaging has been removed from the drawer
F the isolating switch is accessible by the customer
F the bottom shelf can fully support the total weight of the combined appliances
F Open the drawer.
F Press the
1h
2h
1h
2h
1h
2h
1h
2h
FP WARMER DRAWER INTERFACE LOGIC_V1
PRODUCT OFF
THE THREE TEMPERATURE BUTTONS WORK AS A UNIT
ONLY ONE CAN BE SELECTED AND SHOW RED AT A TIME,
THE OTHER TWO BUTTONS SHOW WHITE
THE TWO TIMER BUTTONS WORK AS A UNIT
ONLY ONE CAN BE SELECTED AND SHOW RED AT A TIME,
THE OTHER BUTTON SHOWS WHITE
ICE AND WATER INTERFACE COMPONENTS
All bezels capable of glowing white and red
except fot the on /o bezel which only needs
to glow red.
Component Layout As Shown.
USER PRESSES ON/OFF BUTTON
ALL OTHER BEZELS GLOW WHITE EXCEPT
TEMPERATURE SETTING WHICH IS PRESET TO
MEDIUM AND GLOWS RED (PRODUCT STARTS
HEATING TO THE MEDIUM TEMPERATURE)
ON/OFF GLOWS RED UNTIL BUTTON IS PRESSED
AGAIN SHUTTING THE PRODUCT OFF.
WHEN THE TIMER BUTTON IS PRESSED THE
PRODUCT IS SET TO RUN FOR THE ALLOWED
TIME.
WHEN THIS TIME RUNS OUT THE PRODUCT SHUTS
OFF.
1h
2h
1h
2h
button to turn the warming drawer on.
F Shut the drawer.
F After 5-10 minutes, open the drawer to feel the internal surfaces of drawer is slightly
warmed.
F Press the
1h
2h
1h
2h
1h
2h
1h
2h
FP WARMER DRAWER INTERFACE LOGIC_V1
PRODUCT OFF
THE THREE TEMPERATURE BUTTONS WORK AS A UNIT
ONLY ONE CAN BE SELECTED AND SHOW RED AT A TIME,
THE OTHER TWO BUTTONS SHOW WHITE
THE TWO TIMER BUTTONS WORK AS A UNIT
ONLY ONE CAN BE SELECTED AND SHOW RED AT A TIME,
THE OTHER BUTTON SHOWS WHITE
ICE AND WATER INTERFACE COMPONENTS
All bezels capable of glowing white and red
except fot the on /o bezel which only needs
to glow red.
Component Layout As Shown.
USER PRESSES ON/OFF BUTTON
ALL OTHER BEZELS GLOW WHITE EXCEPT
TEMPERATURE SETTING WHICH IS PRESET TO
MEDIUM AND GLOWS RED (PRODUCT STARTS
HEATING TO THE MEDIUM TEMPERATURE)
ON/OFF GLOWS RED UNTIL BUTTON IS PRESSED
AGAIN SHUTTING THE PRODUCT OFF.
WHEN THE TIMER BUTTON IS PRESSED THE
PRODUCT IS SET TO RUN FOR THE ALLOWED
TIME.
WHEN THIS TIME RUNS OUT THE PRODUCT SHUTS
OFF.
1h
2h
1h
2h
button to turn the warming drawer off and shut the drawer.
Complete and keep for safe reference:
Model
Serial No.
Purchase Date
Purchaser
Dealer Address
Installer’s Name
Installer’s Signature
Installation Company
Installation Date
INSTALLER CHECKLIST
IMPORTANT!
Read all installation instructions in this manual to see if the unit has been correctly installed.
Ensure that installation has been completed correctly before use.
Ensure that: Test operation:

59214A 06.20
FISHERPAYKEL.COM
© Fisher & Paykel Appliances 2020. All rights reserved.
The models shown in this guide may not be available in all markets
and are subject to change at any time.
The product specifications in this guide apply to the specific products and
models described at the date of issue. Under our policy of continuous product
improvement, these specifications may change at any time.
For current details about model and specification availability in your country,
please go to our website or contact your local Fisher&Paykel dealer.
