Fisher & Paykel WD60S User manual

NZ AU GB IE
590513B 03.13
WD60S models
INSTALLATION INSTRUCTIONS
Warming Drawer

2
WARNING!
Electrical shock hazard
Before carrying out any work on the
electrical section of the appliance, it
must be disconnected from the mains
electricity supply.
Connection to a good earth wiring
system is absolutely essential and
mandatory.
Alterations to the domestic wiring
system must only be made by a qualified
electrician.
Failure to follow this advice may result
in electrical shock or death.
WARNING!
Cut hazard
Take care - some panel edges are sharp.
Failure to use caution could result in
injury or cuts.
IMPORTANT SAFETY INSTRUCTIONS!
To reduce the risk of fire, electrical shock, injury
to person, or damage when using the warming
drawer, please these instructions carefully before
installing this product.
Please make this information available to the
person installing the product – doing so may
reduce your installation costs.
Installation work, maintenance and repairs may
only be carried out by suitably qualified and
competent persons in accordance with national
and local safety regulations.
Always disconnect the power supply prior to
carrying out any installation, maintenance or
repair work.
Before installation make sure that the voltage
and frequency listed on the data plate
corresponds with the household electrical supply.
SAFETY AND WARNINGS
1
WARNING!
Fire hazard
Do not use adapters, reducers, or
branching devices to connect this
appliance to the mains power supply.
Failure to follow this advice may result
in overheating, burning, or fire.

3
When installing companion products the weight
of the companion product should be distributed
across the edges of the warming drawer. Products
above which rest on “feet” may only be installed
if the feet of the product lie within 70mm of
the sides of the warming drawer, as this area
is reinforced. Failure to do this may result in
damage to the warming drawer and companion
product.
Before installing the warming drawer you must
inspect it for any signs of damage. Under no
circumstances should you install or use the
warming drawer if it has been damaged.
If the power supply cord is damaged, it must be
replaced by the manufacturer, its service agent
or a similarly qualified tradesperson in order to
avoid a hazard. .
Connect the warming drawer to a properly rated,
protected and sized power supply circuit to avoid
electrical overload.
Do not use an extension cord or a portable
electrical outlet device (e.g. multi-socket outlet
box) to connect the Warming Drawer to the
power supply. Make sure the power supply cord is
located so that it will not be stepped on, tripped
over or otherwise subject to damage or stress.
Ensure the connection to power supply is
accessible after installation.
IMPORTANT SAFETY INSTRUCTIONS!
The electrical outlet should be easily accessible
after installation.
When a companion product is installed in
combination with the warming drawer to the
same circuit, operating both products may
cause an overload. If in doubt consult a qualified
electrician.
When installed in combination with a companion
product the companion product may be placed
directly onto the warming drawer. It is not
necessary to place a shelf between the products. A
built- in shelf at the base of the cabinetry able to
support the weight of both products is required.
If installing the warming drawer directly
underneath an oven, ensure you do not damage
the oven’s lower trim. The lower trim ensures
correct air circulation to the oven and allows
the door to open and close without obstruction.
Fisher & Paykel does not accept any responsibility
for any damage resulting from incorrect
installation.
The maximum weight the warming drawer is able
to support is 60 kg.
The warming drawer is not designed for use in
mobile installations such as recreational vehicles,
boats or aircraft.
SAFETY AND WARNINGS
1

4
PRIOR TO INSTALLATION
3
the cavity is square and level, and are the required dimensions.
the installation will comply with all clearance requirements and applicable standards and regulations.
the power switch will be easily accessible to the customer when the warming drawer is installed.
the warming drawer (and any product on top of it) will rest on a surface that can support its weight.
the height from the floor suits the customer.
you consult local building authorities and by-laws if in doubt regarding installation.
If installing with a companion product
Important!
If installing with a companion product please refer to the installation instructions of that product to ensure the installation requirements of BOTH products are met.
When installing products on top of the warming drawer, the weight of the product should be distributed across the edges of the warming drawer.
Products above which rest on “feet” may only be installed if the feet of the product lie within 70mm of the sides of the warming drawer, as this area is reinforced.
Failure to do this may result in damage to the warming drawer and companion product.

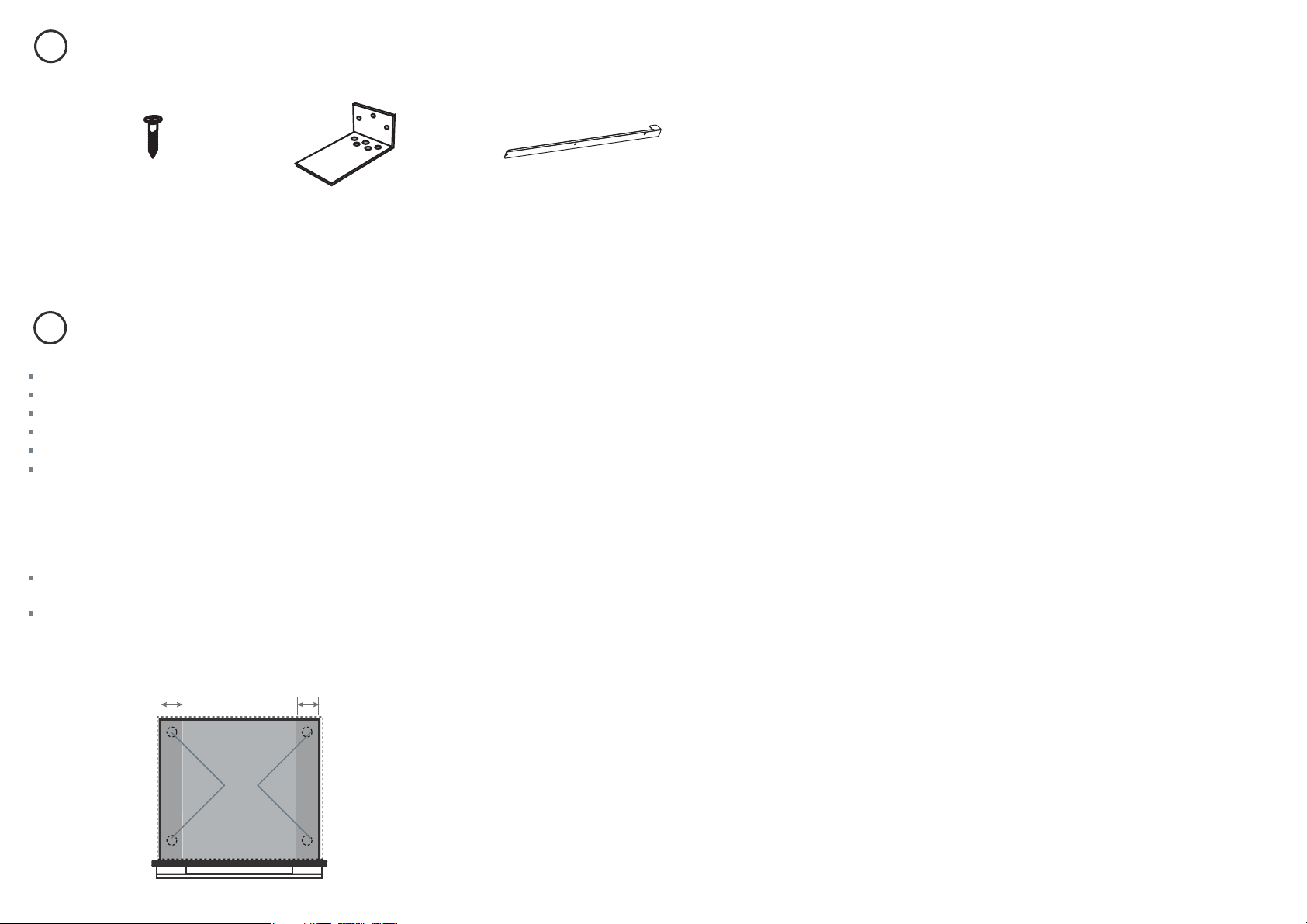

PARTS SUPPLIED
2
Screws (4) Anti-tip bracket (1) Oven support brackets (2)
Warming Drawer can withstand a
maximum weight of 60 kg
70 mm 70 mm
Feet

5
4PRODUCT DIMENSIONS
Product dimensions (mm)
WD60S
Aoverall height of product 118
Boverall width of product 596
Coverall depth of product (including terminal block, excluding handle) 555
Ddepth of chassis (including terminal block) 536
Ewidth of chassis 557
Fheight of chassis 102
Gdepth of drawer front panel (excluding handle) 20
Hdepth of drawer when fully open (measured from front of drawer front panel) 475
Iheight of drawer front panel 116
Jheight from top of front panel to top of chassis 2
Kdepth of handle 41
Lheight of bottom of front panel to bottom of chassis 16
A
B
C
D
F
G
H
I
J
K
L
E
TOP
FRONT SIDE

6

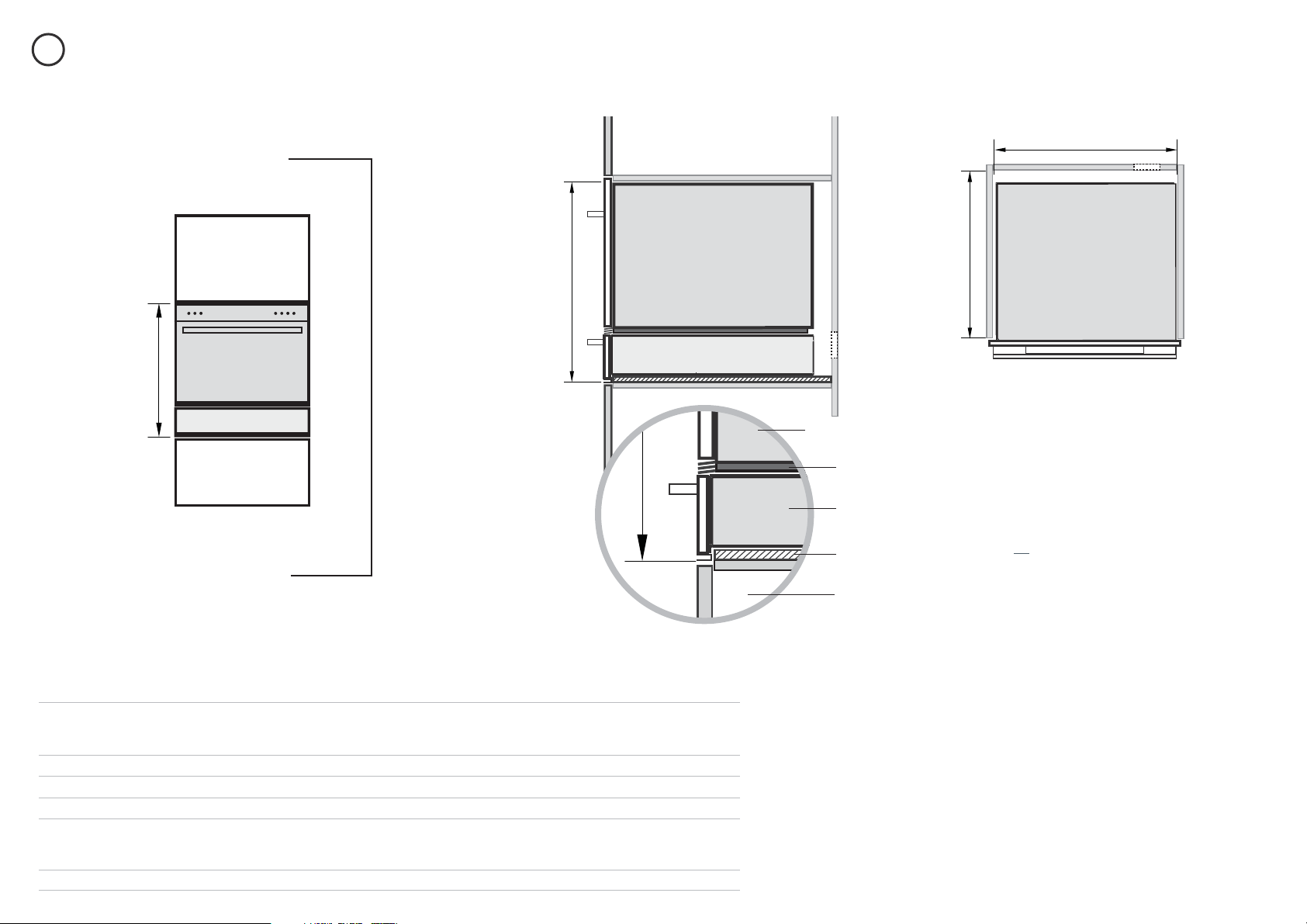

5a CABINETRY DIMENSIONS
Cabinetry dimensions (mm)
WD60S
Mminimum inside height of cavity (with F&P 60cm wide single oven) 687
Ninside width of cavity 560
Ominimum inside depth of cavity 565
Note: When installed in combination with a companion product the companion product may be placed directly onto the
warming drawer. It is not necessary to place a shelf between the products. A built- in shelf at the base of the cabinetry able to
support the weight of both products is required.
* PO - POWER OUTLET. Ensure there is an accessible earthed power outlet within 900 mm of the centre rear of the product.
** In some instances the front cabinetry rail may need to be removed to enable installation.
TOP
SIDE
M
N
O
**
720 mm
Warming Drawer
Warming Drawer
Oven Oven
*PO
Tab
Oven support bracket
Fit the supplied oven support brackets
Unscrew-fit-
rescrew
THE FOLLOWING PAGES DETAIL COMMON CABINETRY SCENARIOS
Underbench (ie installed with a F&P 60cm wide single oven)
Important!
If installing under an oven, you must first fit the two supplied
Oven support brackets to the sides of the Warming Drawer.
The brackets help support the rear of the oven.
Unscrew the 3 top screws on each side, fit the brackets with the
tabs facing inwards as shown and screw back in.
Note: The screws may not be identical. Replace each screw into
its original hole position.
Oven support
brackets

7
M
M
N
O
5b CABINETRY DIMENSIONS
Cabinetry dimensions (mm)
WD60S
M
minimum inside height of cavity
with optional Lower grill kit tted
without optional Lower grill kit tted
590
570
Ninside width of cavity 560
Ominimum inside depth of cavity 550
Note: When installed in combination with a companion product the companion product may be placed directly onto the
warming drawer. It is not necessary to place a shelf between the products. A built- in shelf at the base of the cabinetry able to
support the weight of both products is required.
* PO - POWER OUTLET. Ensure there is an accessible earthed power outlet within 900 mm of the centre rear of the product.
TOP
SIDE
600 mm
Warming Drawer
Warming Drawer
Compact Oven
Compact Oven
*PO
Wall Mounted (ie installed with a F&P Compact Oven)
Cabinet below
Additional 18 mm Wood Spacer
Warming Drawer
Lower grill kit
(optional, supplied separately)
Compact oven
Important!
In a wall mounted installation, there
needs to be an 18 mm Spacer fixed
underneath the warming drawer first
to raise it to the required height.

8
M
M
N
O
5c CABINETRY DIMENSIONS
Cabinetry dimensions (mm)
WD60S
M
minimum inside height of cavity
with optional Lower grill kit tted
without optional Lower grill kit tted
590
570
Ninside width of cavity 560
Ominimum inside depth of cavity 545
Note: When installed in combination with a companion product the companion product may be placed directly onto the
warming drawer. It is not necessary to place a shelf between the products. A built- in shelf at the base of the cabinetry able to
support the weight of both products is required.
* PO - POWER OUTLET. Ensure there is an accessible earthed power outlet within 900 mm of the centre rear of the product.
TOP
SIDE
600 mm
45 mm
Warming Drawer
Warming Drawer
Coffee Maker
Coffee Maker
*PO
Wall Mounted (ie installed with a F&P Coffee Maker)
Warming Drawer
Lower grill kit
(optional, supplied separately)
Coffee Maker
Side rail
Important!
When installing under an F&P Coffee Maker
you must ensure the supplied anti-tip bracket
is installed, unless there is a fixed shelf
above the drawer acting as an anti-tip obstacle.
Anti-tip Bracket
Supplied Anti-tip Bracket
(screwed to the back wall)
Important!
If installing under the F&P Coffee Maker, ensure there
is the 45 mm gap at the back of the cabinet and the
200 mm
2
toekick cutout required for airflow. Refer to
the Coffee Maker Install instructions.
Additional 18 mm Wood Spacer
Important!
In a wall mounted installation, there
needs to be an 18 mm Spacer fixed
underneath the warming drawer first
to raise it to the required height.

9
M
*PO
Additional 18 mm Wood Spacer
Cabinet above
Cabinet below
Fixed shelf
Important!
In a standalone wall mounted installation, you
must ensure that the supplied anti-tip bracket is
installed unless there is a fixed shelf above
acting as an anti-tip obstacle.
Supplied Anti-tip Bracket
(screwed to the back wall)
5d CABINETRY DIMENSIONS
Cabinetry dimensions (mm)
WD60S
Minside height of cavity 120
Ninside width of cavity 560
Ominimum inside depth of cavity 545
* PO - POWER OUTLET. Ensure there is an accessible earthed power outlet within 900 mm of the centre rear of the product.
Wall Mounted (Standalone)
Warming drawer
120 mm
Warming Drawer
Steam Oven
N
O
TOPSIDE
Important!
In a wall mounted installation, there
needs to be an 18 mm Spacer fixed
underneath the warming drawer first
to raise it to the required height.

10
6
8
7
DISCARD PACKAGING RESPONSIBLY
REMOVING THE DRAWER (OPTIONAL)
CONNECT THE WARMING DRAWER TO THE MAINS SUPPLY
Recycle responsibly
Unpack the warming drawer and inspect for any signs of damage. Do not
install the warming drawer if it has been damaged.
Important!
Packing materials (e.g. plastic bags, polystyrene foam, staples, packing straps
etc) and tools should not be left around during and after installation,
especially if they are within easy reach of children, as they may cause serious
injuries.
Important!
All electrical work may only be carried out by suitably qualified and competent
persons in accordance with national and local safety regulations.
This warming drawer must be earthed.
Before placing the warming drawer into the cavity, route the power cord
into the back of the cavity and plug it in to the switched socket. The
switched socket should be in an easily accessible area within 900 mm of
the centre rear of the product.
Power requirements
Model Code Power Voltage Wattage
WB60SD 1.6 - 1.8 A 220-240 V 360-420W
5
You can remove the drawer to aid the installation process. Removing the drawer allows
you to pre-drill the holes through the front trim for the securing screws.
1 Ensure the warming drawer is switched off.
2 Open the drawer to its fullest extent (ensure the drawer is empty).
3 Using a small Phillips-head screwdriver undo the screws located on the drawer sides
(one on each side).
4 Carefully pull the drawer forward until clear of the tabs at the back of each telescopic
slide.
5 Lift the drawer off the telescopic slides.
Replacing the drawer
1 Extend the slides out.
2 Place the drawer over the outer ends of the telescopic slides.
3 One at a time, pull the telescopic slides forward until the screw holes in the slide and
drawer align.
4 Replace the screws.
2
2
1
3

11
9
10
SECURE THE WARMING DRAWER TO THE CABINETRY
SECURE THE ANTI-TIP BRACKET (optional depending on cabinetry configuration)
1 Slide the warming drawer fully into the cavity. Ensure it is level.
Important!
Do not lift the warming drawer by the drawer handle.
2 Fully open the drawer (if the drawer has not already been removed).
3 Fasten the warming drawer in place with the two screws supplied, through the front trim,
beneath the drawer. Do not overtighten the screws.
4 Replace the drawer if it has been removed following the steps on the previous page.
If the anti-tip bracket is required (see example scenarios) first secure the product at the front,
then place the bracket centrally at the back of the cavity, sitting it on the top of the chassis.
Secure it to the rear cabinet wall using the screws provided.

11 FINAL CHECKLIST
Important!
SAVE THESE INSTRUCTIONS
The models shown in this document may not be available in all markets and are subject to change
at any time. For current details about model and specification availability in your country, please
visit our local website listed at the end of this document or contact your local Fisher & Paykel
dealer.
www.sherpaykel.com
TO BE COMPLETED BY THE INSTALLER
Make sure the warming drawer is level and securely fitted to the cabinetry.
Make sure any internal packaging has been removed from the drawer.
Make sure that the isolating switch is accessible by the customer.
Make sure the anti-tip bracket has been fitted correctly if it is required.
If installing an oven directly ontop of the warming drawer, make sure the
supplied oven support brackets have been fitted to the warming drawer.
TEST OPERATION:
Open the drawer and press the button to turn the warming drawer on.
The on/off halo and temperature setting 2 ( ) halo should glow red.
Shut the drawer.
After 5-10 minutes open the drawer. The internal surfaces of the drawer
should feel slightly warmed.
Press the button to turn the warming drawer off and shut the drawer.
Installer’s name:
Installer’s signature:
Installation company:
Date of installation:
LEAVE THESE INSTRUCTIONS WITH THE CUSTOMER
