Fisher & Paykel AquaSmart WL26C Mounting instructions

AquaSmart™ clothes washer
Installation instructions
and user guide US CA (EN)
WL37T26C, WL26C
Laveuse AquaSmart™
Instructions d’installation
et guide de l’utilisateur US CA (FR)
Lavadora AquaSmart™
Instructivo de instalación
y guía de usuario US CA (ES)

Please Note: To obtain maximum efficiency, your AquaSmart™ washer has the ability to learn
and adapt to the local environment. This may take several wash cycles, therefore maximum
energy efficiency may not be achieved until a number of wash cycles have been completed.
This usually takes about 5 cycles.
As an ENERGY STAR® Partner Fisher & Paykel Limited has determined
that this product meets ENERGY STAR® guidelines for energy efficiency.
WARNING!
Electric Shock Hazard
Read and follow the IMPORTANT SAFETY INSTRUCTIONS outlined in this
User Guide before operating this appliance, pages 3 – 5.
Failure to do so can result in death, electric shock, fire or injury to persons.
English Page 1 – 45
Español Pág 46 – 83
Français Page 84 – 121

1
Important Safety Instructions 3
Installation instructions 6
Before you do your first wash 12
Checklist, Water consumption, Capacity 12
Getting started quickly 14

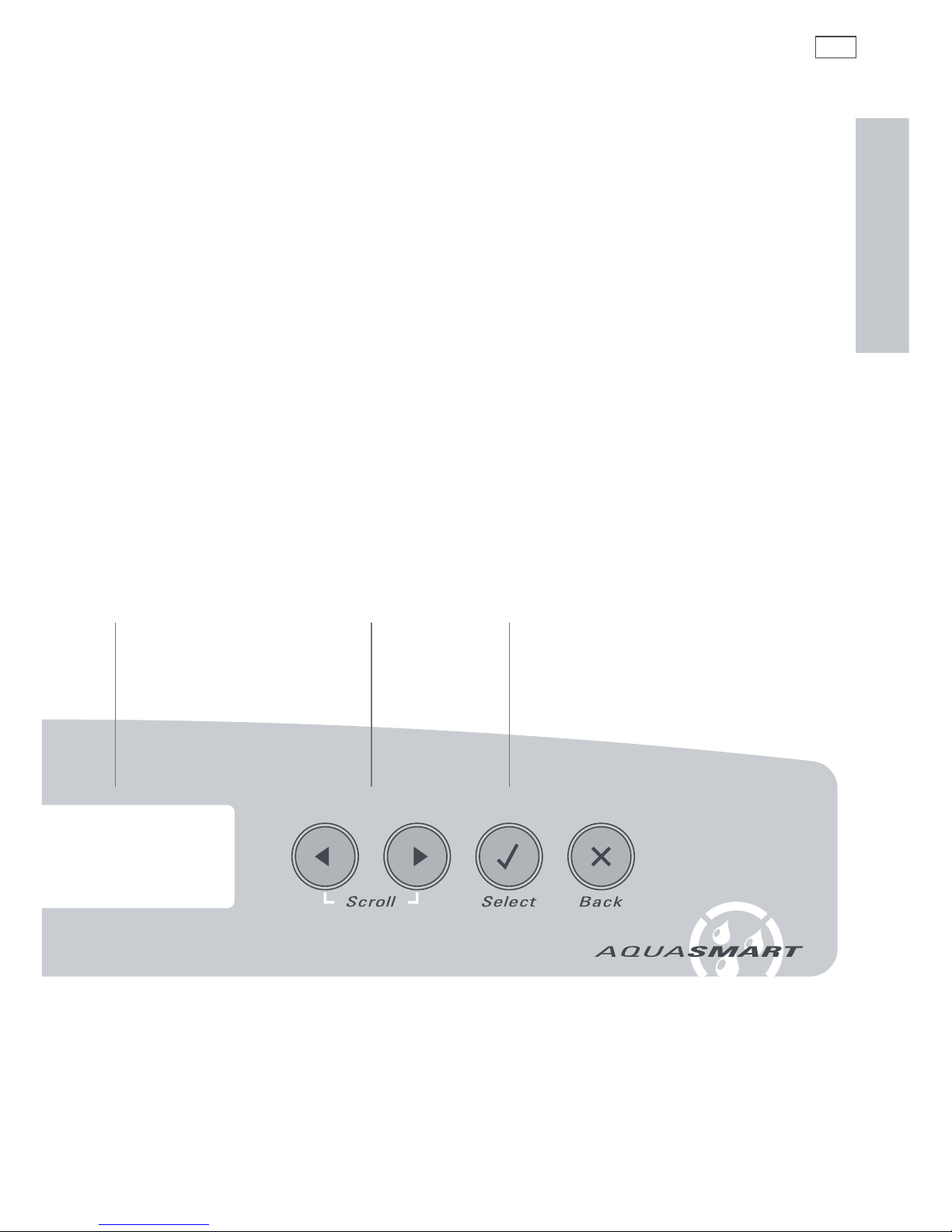

AquaSmart™ controls 16

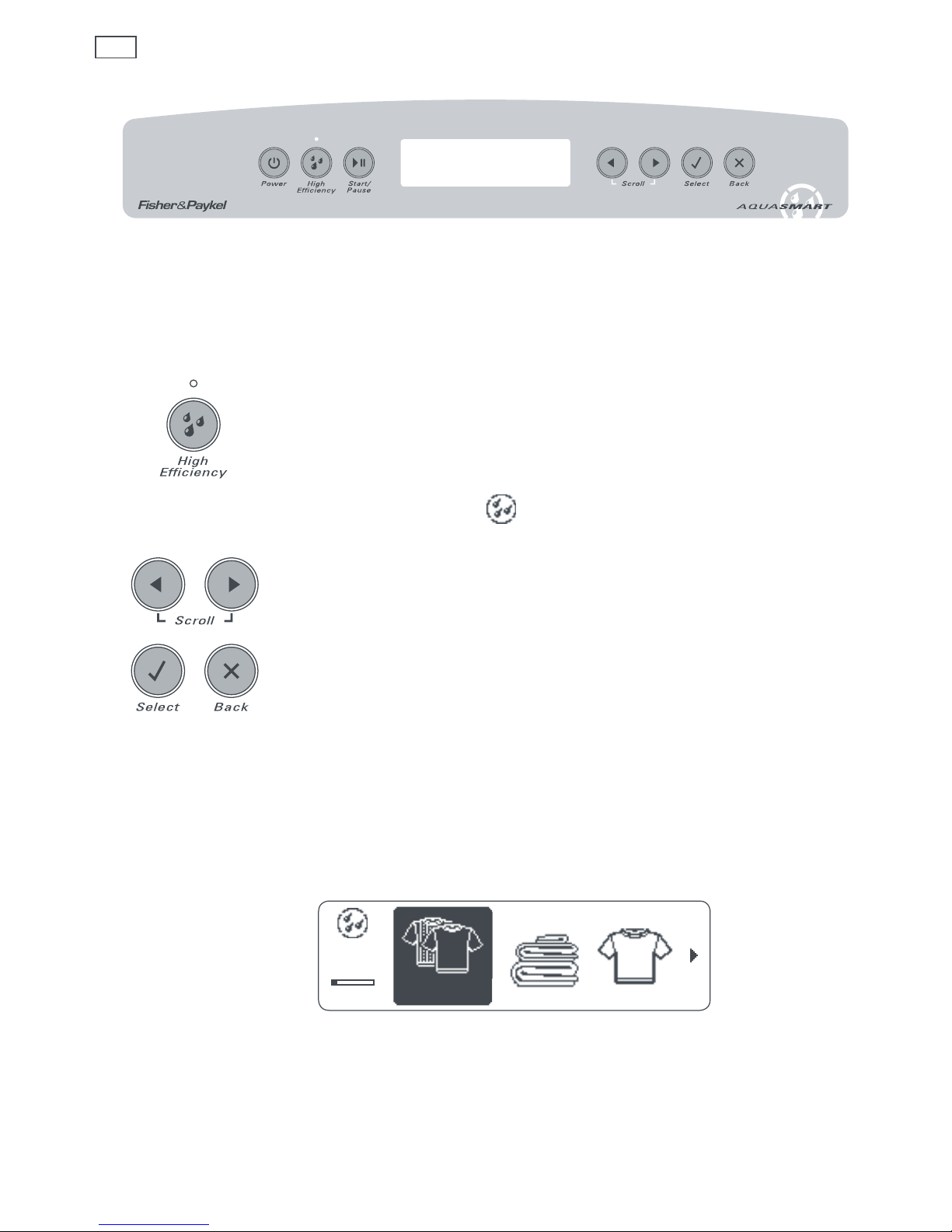

Easy touch controls, The display screen, Time to go 16
The unique AquaSmart™ wash 17
Fully automatic water level 18
Sorting and loading 18
Detergent 19
Bleach 20
Choosing your wash cycle 21
Changing the wash cycle options 22
Wash cycle options 23
Wash cycles explained 24
Bulky wash options 27
Lifestyle cycles 28
Special Care Handwash / Wool / Jeans 29
Stains Chocolate / Tomato / Blood / Grass / Fruit / Wine 30
Family Comforter / Allergy / Hygiene / Diaper Rinse / Soft Toys 31
Sports Sweaty / Muddy / Sports Shoes / Beach Gear 32
Clean Up Clean Me 32
Settings Menu 33
Balance Recovery / Alarm Level 33
Screen Brightness / Key Lock Mode / Hints 34
Language / Service Contacts / Trouble Shooting / Reset Defaults / Replay Intro 35
Lid Lock 35
Caring for your AquaSmart™ washer 36
Before you call for service 38
If your AquaSmart™ beeps for help 38
Solving operating problems 40
Solving wash problems 42
Limited warranty 43
Important!
SAVE THESE INSTRUCTIONS
Contents
The models shown in this user guide may not be available in all markets and are subject to change
at any time. For current details about model and specification availability in your country, please go
to our website www.fisherpaykel.com or contact your local Fisher & Paykel dealer.
EN

2
Welcome to AquaSmart™
Thank you for buying a Fisher & Paykel AquaSmart™ clothes washer. We are very proud of this
washer and trust it will serve you well for many years.
At Fisher & Paykel we aim to provide innovative products that are simple to use, ergonomic and
kind to the environment. Thousands of tonnes of washing and 70 years of laundry experience
have been programmed into your clothes washer to help give you the best possible performance.
Your AquaSmart™ clothes washer works differently from a conventional washer. It is a “High
Efficiency” washer utilizing innovative technology to wash in less water and take great care of
your clothes.
The revolutionary, super water efficient wash action of your AquaSmart™ washer means that it
is no longer necessary to wash using a full bowl of water. This innovative wash action relies on
maintaining a small volume of water for the wash load to ensure the best wash results. Please be
aware that the water level for this model is fully automatic, with the machine ‘smarts’ choosing
the appropriate water volume for you. This means that there is no option to select your
water level.
It is important that you take the time to read these instructions carefully before you begin using
your washer. Like all High Efficiency washers, a little extra care in how you sort your clothes and
choose your cycle and detergent will ensure that you get the best possible wash result.
We hope you enjoy your new washer, we have certainly enjoyed designing it for you.
Introduction
Important!
It is important that this User Guide should be retained with your AquaSmart™ clothes washer
for future reference. Should the appliance be sold or transferred to another owner, please ensure
that the User Guide is left with the appliance. This will ensure that the new owner can familiarize
themselves with the information and warnings contained within the Guide.

3
Important Safety Instructions
Read all safety information before using
Many washers are located near a gas dryer or a water heater in the home.
WARNING!
Fire Hazard
For your safety the information in this manual must be followed to
minimize the risk of fire or explosion or to prevent property damage,
personal injury or loss of life.
Do not store or use gasoline or other flammable vapors and liquids in the
vicinity of this or any other appliance.
Installation and service must be performed by a qualified installer, service
agency or the gas supplier.
What to do if you smell gas
DO NOT try to light any appliance.
DO NOT touch an electrical switch; do not use any phone in your building.
Clear the room, building or area of all occupants.
Immediately call your gas supplier from your neighbor’s phone.
Follow the gas supplier’s instructions.
If you cannot reach your gas supplier, call the fire department.
Water heater safety
Under certain conditions Hydrogen gas may be produced in a water heater that has not been
used for two weeks or more.
HYDROGEN GAS CAN BE EXPLOSIVE UNDER THESE CIRCUMSTANCES.
If the hot water has not been used for two weeks or more, prevent the possibility of damage or
injury by turning on all hot water faucets and allowing them to run for several minutes before
using any electrical appliance which is connected to the hot water system. This will allow any
hydrogen gas to escape. Since the gas is flammable, do not smoke or use an open flame or
appliance during this process.
EN

4
WARNING!
Electric Shock Hazard
Follow the safety precautions outlined in this User Guide.
Failure to do so can result in death, electric shock, fire or injury to persons.
Important safety precautions
Read all instructions before using the appliance.
Use this appliance only for its intended purpose as described in this User Guide.
This washer must be properly installed and located in accordance with the Installation Instructions
before it is used.
This washer must be properly grounded to conform with all governing codes and ordinances. Follow
details in the Installation Instructions.
Do not install or store washer where it will be exposed to temperatures below freezing or exposed to
the weather.
Connect to a properly rated, protected and sized power supply circuit to avoid electrical overload.
Connect to adequate plumbing and drain facilities as described in the Installation Instructions.
Turn off water faucets when the washer is not in use to relieve pressure on hoses and valves and to
minimize leakages if a hose or valve should break or rupture.
Do not repair or replace any part of the appliance or attempt any servicing unless specifically
recommended in this User Guide or in published user repair instructions that you understand, and
have skills to carry out.
When disconnecting the appliance pull by the plug rather than the cord or junction of cord to avoid
damage to the cord or junction of the cord and plug.
Make sure that the cord is located so that it will not be stepped on, tripped over or otherwise subject
to damage or stress.
Keep all laundry aids (such as detergents, bleach, fabric softener, etc.) out of the reach of children,
preferably in a locked cabinet. Observe all warnings on container labels to avoid personal injury.
Do not tamper with the controls.
Keep the area around/underneath your appliance free from the accumulation of combustible
materials, such as lint, paper, rags, chemicals, etc.
Keep the floor around your appliance clean and dry to reduce the possibility of slipping.
Never reach into the washer if the tub or agitator is moving.
Before loading, unloading or adding clothes, press START/PAUSE and wait until the washer has
completely stopped before opening the lid.
Close supervision is necessary if this appliance is used by or near children. Do not allow children to
play inside, or on, or with this appliance or any discarded appliance.
Important Safety Instructions

5
Important Safety Instructions
Dispose of discarded appliances and shipping/packing materials properly. Before discarding a
washer, or removing from service, remove the washer lid.
Do not leave the washer lid up during the cycle. The washer will not function. To start, close lid and
press START/PAUSE.
Do not wash or dry articles that have been cleaned in, washed in, soaked in, or spotted with
combustible or explosive substances (such as wax, oil, paint, gasoline, degreasers, dry-cleaning
solvents, kerosene, etc.) which may ignite or explode. Do not add these substances to the wash
water. Do not use these substances around your washer and/or dryer during operation, as they give
off vapors that could ignite or explode.
The laundry process can reduce the flame retardancy of fabrics. To avoid such a result, the garment
manufacturer’s care instructions should be followed very carefully.
Do not mix chlorine bleach with ammonia or acid such as vinegar and/or rust remover. Mixing can
produce a toxic gas which may cause death.
Never climb on or stand on the washer top or lid.
Do not wash fibreglass articles in your washer. Skin irritation could result from the remaining
particles that may be picked up by clothing during subsequent washer use.
To minimize the possibility of electric shock, unplug this appliance from the power supply or
disconnect the washer at the household distribution panel by removing the fuse or switching off the
circuit breaker before attempting any maintenance or cleaning.
Note: Pressing the POWER button does NOT disconnect the appliance from the power supply, even
though the lights are out.
Do not operate this appliance if it is damaged, malfunctioning, partially disassembled or has
missing or broken parts, including a damaged cord or plug.
Do not operate this appliance if the lid has been incorrectly fitted.
If you are using an extension cord or a portable electrical outlet device (eg. multi-socket outlet box),
ensure that it is positioned so that it does not come into contact with water or moisture.
SAVE THESE INSTRUCTIONS
EN

Before you begin – read these instructions completely and carefully.
WARNING!
Electric Shock Hazard
Read and follow the IMPORTANT SAFETY INSTRUCTIONS outlined in this
User Guide before operating this appliance, pages 3 – 5.
Improper connection of an equipment-grounding conductor can result in a
risk of electric shock. Check with a qualified electrician or serviceman if you
are in doubt as to whether the appliance is properly grounded.
Do not modify the plug provided with the appliance – if it will not fit the
outlet, have a proper outlet installed by a qualified electrician.
Failure to do so can result in death, electric shock, fire or injury to persons.
Important!
Observe all governing codes and ordinances.
Installation Requirements
Location
Your washer must be installed on firm flooring to minimize vibration during spin cycles. Concrete
flooring is best, but wood base is sufficient providing the floor support meets FHA standards.
Your washer should not be installed on rugs or exposed to the weather.
Plumbing
Water Temperature
Your cold water should not exceed 95˚F (35˚C) or your hot water exceed 149˚F (65˚C).
Temperatures above this may damage your washer.
Shut Off Valves
Both hot and cold shut-off valves (faucets) should be available in the laundry area.
Drain
Water may be drained into a standpipe or set tub/sink. The standpipe must be 1 ½” (38 mm)
minimum interior diameter and must be open to the atmosphere.
Electrical
This appliance must be supplied with 110V – 120V, 60Hz electrical supply and connected to an
individual, properly grounded branch circuit, protected by a 15 or 20 amp circuit breaker or time
delay fuse.
Installation instructions
6

7
Water supply
This washer must be plumbed into both a hot and cold water supply or it will not work
correctly. Please ensure that both hot and cold water are connected to the washer.
If you have an uncontrolled water-heating source (eg. a wet back or solar heating) you should
have a tempering device fitted. This will ensure the hot water temperature remains within
safe limits. For the most suitable type of tempering device we recommend you contact a local
plumber or plumbing supply merchant.
Inlet Water Static Pressure 3psi (20kPa) to 150psi (1MPa) (If using a header tank then the top of
the header tank must be at least 39” (2 m) above the top of your clothes washer).
Minimum flow rate from the faucet supplying the clothes washer should be greater than
1 ½ gallons/min (6 liters/min) (assumes ½” (12.7 mm) diameter pipes).
Minimum height of faucets to clear the top of the washer is 45” (1150 mm).
Draining
Regularly check that your standpipe or set tub/sink is free from lint or other obstructions, which
may affect how your washer works or may cause flooding.
In multi-storey apartments or any upper floor, the washer should be installed on a drained floor.
Draining must comply with local by-laws.
Clothes washer safety
This clothes washer is not intended for use by young children or infirm persons without
supervision.
Please supervise young children to ensure they do not play with this clothes washer.
Important!
If you are using an extension cord or a portable electrical outlet device (eg. multi-socket outlet
box), ensure that it is positioned so that it does not come into contact with water or moisture.
Accessories and spare parts
Available from your Fisher & Paykel Dealer or Authorized Service Center.
Drain Hose Extension Part No. 425627p
Power Cord If the Power Cord of your clothes washer is damaged it must be
replaced by a Fisher & Paykel Authorized Service Center, as it
is not a standard power cord.
Installation instructions
EN

8

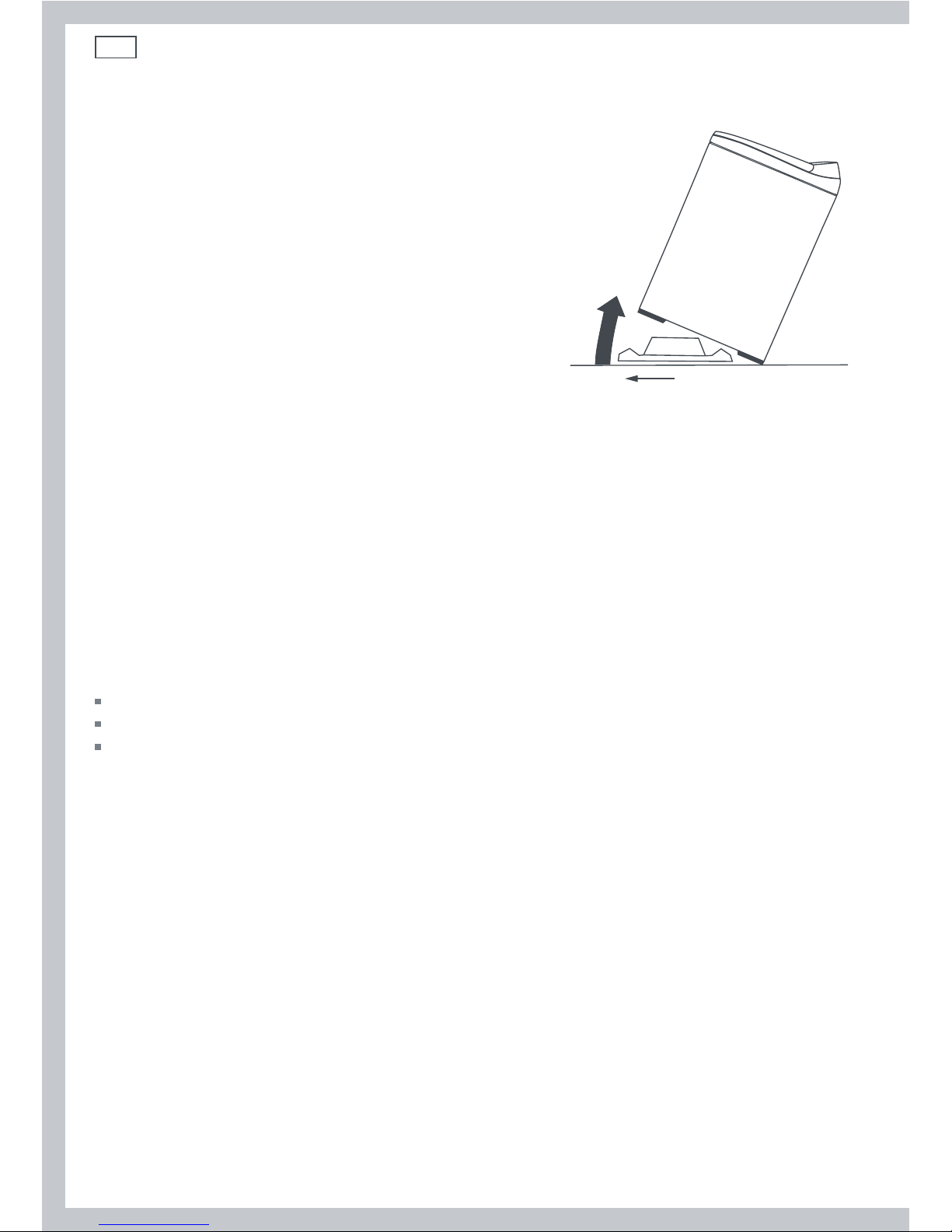

Fig.1 Tilt washer backwards
to remove packer
Unpacking
To ensure the best performance from your new AquaSmart™
clothes washer please follow the instructions below.
Removing the packaging
1
Remove the outer packaging.
2
Tilt the washer backwards and walk it off the bottom
packer one foot at a time.
3
Remove the bottom packer from under the washer by
pulling it out the front.
Caution!
Operating the washer when the bottom packer is in
place can result in damage to the washer.
4
Lift the lid and remove the basket packer from the basket.
5
Remove the hoses and accessories.
6
Keep the bottom packer and basket packer in case they are required for future transit.
Please ensure that the bottom packer has been removed before operating your washer.
Installation
In your clothes washer you will find:
4 rubber inserts for the levelling feet (joined together).
1 hose guide.
2 inlet hoses.
Installation instructions
