Fisher & Paykel WL4227J1 User manual

US CA
Installation instructions
and User guide
AquaSmart™ clothes washer
Laveuse AquaSmart™ Instructions d’installation
et Guide d’utilisation

WARNING!
Electric Shock Hazard
Read and follow the IMPORTANT SAFETY INSTRUCTIONS outlined in this
UserGuide before operating this appliance, pages 3 – 5.
Failure to do so can result in death, electric shock, fire or injury to persons.
Please Note: to obtain maximum efficiency, your AquaSmart™ washer has the ability to learn and
adapt to the local environment. This may take several wash cycles, therefore maximum energy
efficiency may not be achieved until a number of wash cycles have been completed.
This usually takes about 5 cycles.
English Page 1 – 52
Français Page 55 – 106
As an ENERGY STAR® Partner Fisher & Paykel has determined
that this product meets ENERGY STAR® guidelines for energy efficiency.

Contents
Important!
SAVE THESE INSTRUCTIONS
The models shown in this User Guide may not be available in all markets and are
subject to change at any time. For current details about model and specification
availability in your country, please visit our local website listed on the back cover
or contact your local Fisher & Paykel dealer.
Introduction 2
Important safety instructions 3
Installation instructions 6
Water supply 7
Leveling 10
Before you do your first wash 14
Getting started quickly 16
AquaSmart™ controls 18
AquaSmart™ safety features 19
The unique AquaSmart™ wash 20
Sorting and loading 21
Detergent 24
Fabric softener 25
Bleach 26
Wash cycles 27
Regular, Heavy 27
Delicate, Sheets, Easy Iron 28
Bulky, Allergy 29
Whites, Basket Clean, Towels 30
Rinse & Spin, Rinse, Spin 31
Wash cycle options 32
Customizing wash cycles 35
Changing pre-set options 36
Caring for your AquaSmart™ washer 42
Before you call for service 44
Solving operating problems 46
Solving wash problems 48
Limited warranty 50
How to get service 52
1
US
CA

Introduction
Welcome to AquaSmart™
Thank you for buying a Fisher & Paykel AquaSmart™ clothes washer. We are proud of this washer
and trust it will serve you well for many years.
At Fisher & Paykel we aim to provide innovative products that are simple to use, ergonomic and
kind to the environment. Thousands of tonnes of washing and over 75 years of laundry experience
have been programmed into your clothes washer to help give you the best possible performance.
Your AquaSmart™ washer has an extra large capacity, numerous wash cycles and options, and
an ergonomic design so you can efficiently perform every wash task with ease. Your washer is a
‘HighEfficiency’ machine utilizing innovative technology to wash in less water while taking great
care of your clothes. Similarly, taking extra care in the way you use your high efficiency washer
will help ensure you make the most of its capabilities.
The revolutionary water and energy efficient wash action of your AquaSmart™ washer means
that it is no longer necessary to wash using a full bowl of water. This innovative wash action
relies on rolling the clothes through a small volume of water to ensure optimal wash results.
Please be aware that the water level for this washer is fully automatic, meaning that there is no
option to manually select your water level.
Please take the time to read these instructions carefully before you begin using your washer. Like
with all High Efficiency washers, a little extra care in how you sort your clothes and in choosing
your wash cycle and detergent, will ensure that you get the best possible performance from your
washer.
We hope you enjoy your new washer. We have certainly enjoyed designing it for you.
Fig.1 AquaSmart™ washers
Important!
It is important that this User Guide should be retained with your AquaSmart™ clothes washer
for future reference. Should the appliance be sold or transferred to another owner, please ensure
that the User Guide is left with the appliance. This will ensure that the new owner can familiarize
themselves with the information and warnings contained within the Guide.
2
US
CA

Important safety instructions
Read all safety information before using
Many washers are located near a gas dryer or a water heater in the home.
WARNING!
Risk of Fire Hazard
For your safety the information in this manual must be followed to minimize
the risk of fire or explosion or to prevent property damage, personal injury
or loss of life.
Do not store or use gasoline or other flammable vapors and liquids in the
vicinity of this or any other appliance.
Installation and service must be performed by a qualified installer, service
agency or the gas supplier.
What to do if you smell gas

DO NOT try to light any appliance.

DO NOT touch an electrical switch; do not use any phone in your building.

Clear the room, building or area of all occupants.

Immediately call your gas supplier from your neighbor’s phone.
Follow the gas supplier’s instructions.

If you cannot reach your gas supplier, call the fire department.
Water heater safety
Under certain conditions Hydrogen gas may be produced in a water heater that has not been
used for two weeks or more.
HYDROGEN GAS CAN BE EXPLOSIVE UNDER THESE CIRCUMSTANCES.
If the hot water has not been used for two weeks or more, prevent the possibility of damage or
injury by turning on all hot water faucets and allowing them to run for several minutes before
using any electrical appliance which is connected to the hot water system. This will allow any
hydrogen gas to escape. Since the gas is flammable, do not smoke or use an open flame or
appliance during this process.
SAVE THESE INSTRUCTIONS
3
US
CA

Important safety instructions
WARNING!
Risk of Fire, Electric Shock and Injury to Persons Hazards
Follow the safety precautions outlined in this User Guide.
Failure to do so can result in death, electric shock, fire or injury to persons.
Important safety precautions

Read all instructions before using the appliance.

Use this appliance only for its intended purpose as described in this User Guide.

This washer must be properly installed and located in accordance with the Installation
Instructions before it is used.

This washer must be properly grounded to conform with all governing codes and ordinances.
Follow details in the Installation Instructions.

Do not install or store washer where it will be exposed to temperatures below freezing or exposed
to the weather.

Connect to a properly rated, protected and sized power supply circuit to avoid electrical overload.

Connect to adequate plumbing and drain facilities as described in the Installation Instructions.

Turn off water faucets when the washer is not in use to relieve pressure on hoses and valves and
to minimize leakages if a hose or valve should break or rupture.

Do not repair or replace any part of the appliance or attempt any servicing unless specifically
recommended in this User Guide or in published user repair instructions that you understand, and
have skills to carry out.

When disconnecting the appliance pull by the plug rather than the cord or junction of cord to
avoid damage to the cord or junction of the cord and plug.

Make sure that the cord is located so that it will not be stepped on, tripped over or otherwise
subject to damage or stress.

Keep all laundry aids (such as detergents, bleach, fabric softener, etc.) out of the reach of children,
preferably in a locked cabinet. Observe all warnings on container labels to avoid personal injury.

Do not tamper with the controls.

Keep the area around/underneath your appliance free from the accumulation of combustible
materials, such as lint, paper, rags, chemicals, etc.

Keep the floor around your appliance clean and dry to reduce the possibility of slipping.

Never reach into the washer if the tub or agitator is moving.

Before loading, unloading or adding clothes, press START/PAUSE and wait until the washer has
completely stopped before opening the lid.
SAVE THESE INSTRUCTIONS
4
US
CA

Important safety instructions

Close supervision is necessary if this appliance is used by or near children. Do not allow children
to play inside, or on, or with this appliance or any discarded appliance.

Dispose of discarded appliances and shipping/packing materials properly. Before discarding a
washer, or removing from service, remove the washer lid.

Do not leave the washer lid up during the cycle. The washer will not function. To start, close lid
and press START/PAUSE.

Do not wash or dry articles that have been cleaned in, washed in, soaked in, or spotted with
combustible or explosive substances (such as wax, oil, paint, gasoline, degreasers, dry-cleaning
solvents, kerosene, etc.) which give off vapors that could ignite or explode. Do not add these
substances to the wash water. Do not use these substances around your washer and/or dryer
during operation, as they give off vapors that could ignite or explode.

The laundry process can reduce the flame retardancy of fabrics. To avoid such a result, the
garment manufacturer’s care instructions should be followed very carefully.

Do not mix chlorine bleach with ammonia or acid such as vinegar and/or rust remover. Mixing
can produce a toxic gas which may cause death.

Never climb on or stand on the washer top or lid.

Do not wash fibreglass articles in your washer. Skin irritation could result from the remaining
particles that may be picked up by clothing during subsequent washer use.

To minimize the possibility of electric shock, unplug this appliance from the power supply or
disconnect the washer at the household distribution panel by removing the fuse or switching off
the circuit breaker before attempting any maintenance or cleaning.

Note: pressing the POWER button does NOT disconnect the appliance from the power supply,
even though the lights are out.

Do not operate this appliance if it is damaged, malfunctioning, partially disassembled or has
missing or broken parts, including a damaged cord or plug.

Do not operate this appliance if the lid has been incorrectly fitted.

If you are using an extension cord or a portable electrical outlet device (eg multi-socket outlet
box), ensure that it is positioned so that it does not come into contact with water or moisture.

For grounding instructions and warnings related to this appliance please refer to the relevant
sections of pages 6 and 13 of this User Guide.
SAVE THESE INSTRUCTIONS
5
US
CA

6
US
CA
Installation instructions
Before you begin – read these instructions completely and carefully.
WARNING!
Electric Shock Hazard
Read and follow the IMPORTANT SAFETY INSTRUCTIONS outlined in this
User Guide before operating this appliance, pages 3 – 5.
Improper connection of an equipment-grounding conductor can result in a
risk of electric shock. Check with a qualified electrician or serviceman if you
are in doubt as to whether the appliance is properly grounded.
Do not modify the plug provided with the appliance – if it will not fit the
outlet, have a proper outlet installed by a qualified electrician.
Failure to do so can result in death, electric shock, fire or injury to persons.
Important!
Observe all governing codes and ordinances.
Installation Requirements
Location
Your washer must be installed on firm flooring to minimize vibration during spin cycles. Concrete
flooring is best, but wood base is sufficient providing the floor support meets FHA standards.
Your washer should not be installed on rugs, carpet or exposed to the weather.
Plumbing
Water Temperature
Your cold water should not exceed 95˚F (35˚C) or your hot water exceed 149˚F (65˚C).
Temperatures above this may damage your washer.
Shut Off Valves
Both hot and cold shut-off valves (faucets) should be available in the laundry area.
Drain
Water may be drained into a standpipe or tub/ sink. The standpipe must be 1 ½” (38 mm)
minimum interior diameter and must be open to the atmosphere.
Electrical
This appliance must be supplied with 110V – 120V, 60Hz electrical supply and connected to an
individual, properly grounded branch circuit, protected by a 15 or 20 amp circuit breaker or time
delay fuse.

7
US
CA
Installation instructions
Water supply

This washer must be plumbed into both a hot and cold water supply or it will not work correctly.
Please ensure that both hot and cold water are connected to the washer.

If you have an uncontrolled water-heating source (eg a wet back or solar heating) you should
have a tempering device fitted. This will ensure the hot water temperature remains within
safe limits. For the most suitable type of tempering device we recommend you contact a local
plumber or plumbing supply merchant.

Inlet Water Static Pressure: Min. 5psi (34kPa) to Max. 150psi (1MPa) is required.

Minimum flow rate from the faucet supplying the clothes washer should be greater than
1 ½ gallons/min (6 liters/min) (assumes ½” (12.7 mm) diameter pipes).
Draining

Regularly check that your standpipe or tub/ sink is free from lint or other obstructions, which
may affect how your washer works or may cause flooding.

In multi-storey apartments or any upper floor, the washer should be installed on floor equipped
with a drain.

Draining must comply with local by-laws.
Clothes washer safety

This clothes washer is not intended for use by young children or infirm persons without
supervision.

Please supervise young children to ensure they do not play with this clothes washer.
Important!
If you are using an extension cord or a portable electrical outlet device (eg multi-socket outlet
box), ensure that it is positioned so that it does not come into contact with water or moisture.
Accessories and spare parts
Available from your Fisher & Paykel Dealer or Authorized Service Center.
Drain Hose Extension Part No. 425627p
Power Cord If the Power Cord of your clothes washer is damaged it must be
replaced by a Fisher & Paykel Authorized Service Agent, as it
is not a standard power cord.

8
US
CA
Installation instructions
Unpacking
To ensure the best performance from your new AquaSmart™
clothes washer please follow the instructions below.
Removing the packaging
1 Remove the outer packaging.
2 Tilt the washer backwards and walk it off the base packer
one foot at a time (ensure the lid remains taped down).
3 Remove the base packer from under the washer by pulling
it out from the front.
Important!
Operating the washer when the base packer is in place can result in damage to the washer.
Ensure the base packer has been removed BEFORE OPERATING your washer.
4 Remove the tape, lift the lid and remove the basket packer from the basket.
5 Remove the hoses and accessories.
6 Keep the base packer and basket packer in case they are required for future transit.
Installation

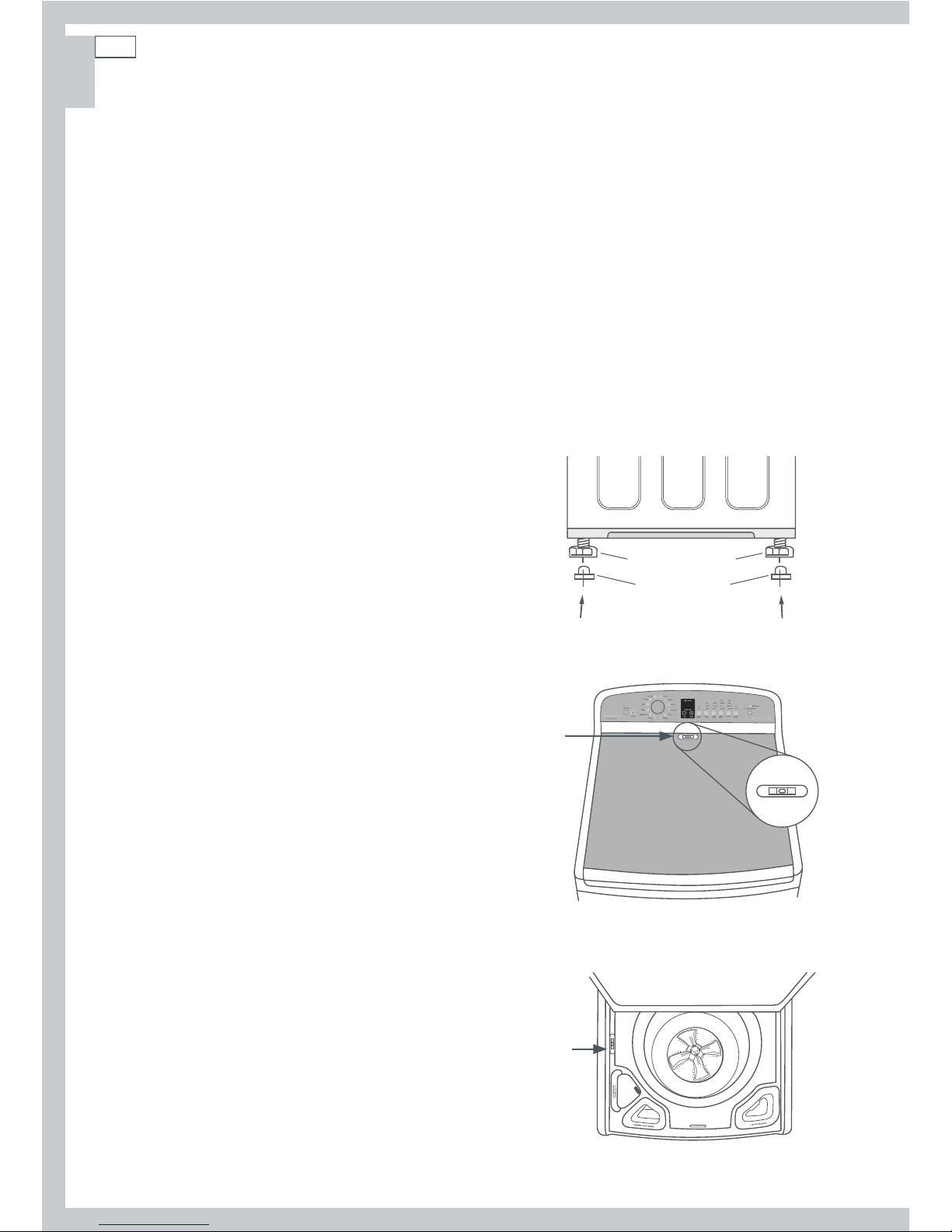

In your clothes washer you will find:

1 hose guide.

2 inlet hoses.

4 rubber foot inserts (if not already inserted into the feet of your washer).

1 User Guide.
Fig.2 Tilt washer backwards
to remove base packer
