Fitness Reality 2050H.3 User manual

Electric Treadmill with Pulse
2050H.3-020317
IMPORTANT: Read all instructions carefully before assembling and/or using this product.
Retain this owner’s manual for future reference. The specifications of this product may
vary from this photo and is subject to change without notice.

PLEASE DO NOT RETURN THIS PRODUCT TO THE STORE.
STOP. Contact customer service if you have any questions
regarding assembly or proper operation of the machine.
Email us at:
[e-mail]
Hours: 8:00 AM to 5:00 PM (PST) Daily
Or call us at:
1-844-641-7920

1
TABLE OF CONTENT
SERVICE ------------------------------------------------------------------------ 2
LABEL PLACEMENT --------------------------------------------------------- 3
IMPORTANT SAFETY GUIDELINES ------------------------------------ 4
OVERVIEW DRAWING ------------------------------------------------------ 8
HARDWARE & TOOLS PACK ----------------------------------------------- 9
PARTS LIST -------------------------------------------------------------------- 10
ASSEMBLY --------------------------------------------------------------------- 11
COMPUTER -------------------------------------------------------------------- 15
STORAGE ----------------------------------------------------------------------- 18
MAINTENANCE & TROUBLE SHOOTING ----------------------------- 19
ADJUSTMENT & LUBRICATION ------------------------------------------ 21
WARRANTY -------------------------------------------------------------------- 22
PARTS REQUEST FORM -------------------------------------------------- 23

2
SERVICE
IMPORTANT: FOR NORTH AMERICA ONLY
For damaged or defective product, questions, replacement parts or any other service
support, please contact our customer service department by the below methods:
For The Best Service, please Email:
[e-mail]
Response Time: 1-2 Business Days
Emailing us with the information above will be the best method to receive a response during
peak business hours
Website:
www.paradigmhw.com
Toll-Free:
1-844-641-7920
(8:00 AM - 5:00 PM Pacific Standard Time, Daily)
Response time may vary via calling
Please have the following information ready when requesting for service:
•Your name
•Phone number
•Model number
•Serial number
•Part number
•Proof of Purchase
For damaged or defective product please contact our customer service before returning to
the store.
Paradigm Health & Wellness, Inc.
1189 Jellick Ave.
City of Industry, CA 91748, USA

3
LABEL PLACEMENT

4
IMPORTANT SAFETY GUIDELINES
Basic precautions should always be followed, including the following safety
instructions when using this treadmill: Read ALL GUIDELINES BEFORE USING THIS
TREADMILL.
DANGER:To reduce the risk of electric shock, read the following:
Always unplug the treadmill from the electrical outlet immediately after usage.Also unplug the
treadmill before cleaning, assembling, or servicing.
NOTE: Failure to follow these instructions may lead to personal injury and cause
damage to the treadmill.
WARNING: To reduce the risk of burns, fire, electric shock or injury to any persons,
read the following:
Never leave the treadmill unattended when plugged in. Always disconnect the treadmill by
turning off the master power switch and unplugging the power cord before any assemblage.
Use this unit only for its intended use as described in this manual. Do not use attachments not
recommended by the manufacturer.
DO NOT operate this treadmill if it has a damaged cord or plug, or if it is not working properly. If
it has been dropped or damaged, or been exposed to water, Contact Customer Service before
continuing use.
Do not attempt any maintenance or adjustments other than those described in this manual.
Should any problems arise, discontinue use and contact customer service.
Never operate the unit with the air openings blocked. Keep the air openings free of lint, hair,
and any other foreign objects.
Do not pull the treadmill by its power cord or use the cord as a handle.
Keep children and pets away from the equipment while in use. This machine is designed for
adults only. This appliance is not intended for use by persons with reduced physical, sensory
or mental capabilities, or lack of experience and knowledge, unless they have been given
supervision or instruction concerning use of the appliance by a person responsible for their
safety.
Keep children under the age of 13 away from this machine.
Do not operate where aerosol (spray) products are being used or where oxygen is being
administered.
Do not operate where aerosol (spray) products are being used or where oxygen is being
administered.
Keep Dry - do not operate in a wet or moist condition.
Do not operate the treadmill on or near a blanket. Excessive heating can occur and cause
fire, electrical shock, or injury to user.

5
IMPORTANT SAFETY GUIDELINES
Keep the electrical cord away from heated surfaces.
Never insert any object into any opening.
Keep the treadmill on a solid, level surface with a minimum safety area clearance of 6 square
feet around the treadmill. Be sure the area around the treadmill remains clear during use and
has adequate clearance.
This treadmill is for household use only. Use this machine in doors only.
Only one person should be on the treadmill while in use.
Wear comfortable and suitable clothing when using the treadmill. Do not use
the treadmill barefoot, in only socks, or in sandals. Always wear athletic shoes. Never wear
loose clothing because it could run the risk of getting caught in the treadmill.
Always hold on to the handrails while using the treadmill.
Always make sure the storage latch is in place when folding and moving the
treadmill.
Do not leave children who are under 13 year-old unsupervised near or on the
treadmill.
To disconnect the machine, turn all controls to the off position, then remove the plug from
outlet.
This unit is not intended for use by persons (including children) with reduced physical, sensory
or mental capabilities, or lack of experience and knowledge, unless they have been given
supervision or instruction concerning use of the unit by a person responsible for their safety.
Children should be supervised, if near the machine, to stay away from the machine at all times.
Pull up the Safety Tether Key for the emergency stop. Reinstall the Safety Tether Key onto the
Computer Console to reactivate the treadmill. Press the START/STOP button to begin exercise
again.
This treadmill is designed for WALKING only.
CAUTION: Risk of Injury to Persons –To Avoid Injury, use extreme caution
when stepping onto or off of a moving belt. Read all instructions & guidelines before using the
treadmill.
Note: It is the obligation of the owner to review and explain these safety precautions to all
users of this treadmill.
WARNING: DO NOT EXCEED SUGGESTED MAXIMUM USER WEIGHT CAPACITY
The Maximum Weight Capacity is 220 lbs / 100 kgs.
WARNING: Connect the treadmill to a properly grounded outlet only. See
grounding instructions.

6
IMPORTANT SAFETY GUIDELINES
GROUNDING INSTRUCTIONS
This product must be grounded. If it should malfunction or break down,
grounding provides a path of least resistance for electric current reducing the
risk of electric shock. * This treadmill is equipped with a cord having
equipment grounding conductor and a grounding plug. The plug must
be plugged into an appropriate outlet that is properly installed and
grounded in accordance with all local codes and ordinances.
DANGER:Improper connection of the treadmill grounding conductor can result in the
risk of electric shock. Check with a qualified electrician, if you are in doubt as to whether the
product is properly grounded. Do not modify the plug provided with the treadmill. If it will not fit your
outlet, have a properly grounded outlet installed by a qualified electrician.
This product is for use on a nominal 120 volt circuit and has a grounding plug that looks like
the plug illustrated in sketch A in Figure 1.
Make sure that the product is connected to an outlet having the same configuration as the
plug. No adapter should be used with this product.
This unit must be plugged into a nominal 120 volt outlet which has been grounded.
Keep hands clear of all moving parts. Never place hands or feet under the Treadmill while in it
use.
Do not use the treadmill on a carpet that is greater than 1/2 inch in height.
Before using the treadmill, check that the belt is aligned and centered on
the walking deck and all visible fasteners on the treadmill are sufficiently
tightened and secure.

7
IMPORTANT SAFETY GUIDELINES
The product weighs more than 44 lbs. It is heavily
recommended that at least 2 persons.
WARNING: Before beginning any exercise program consult your physician. This is
especially important for the people who are over 35 years old or who have pre-existing health
problems. Read all instructions before using any fitness equipment. We assume no responsibility
for personal injury or property damage sustained by or through the use of this product. Do not
operate this exercise equipment without properly fitted guards, as the moving parts can present a
risk of serious injury to young children.
CAUTION: Read all instructions carefully before operating this product. Retain this
Owner’s Manual for future reference.

8
OVERVIEW DRAWING

9

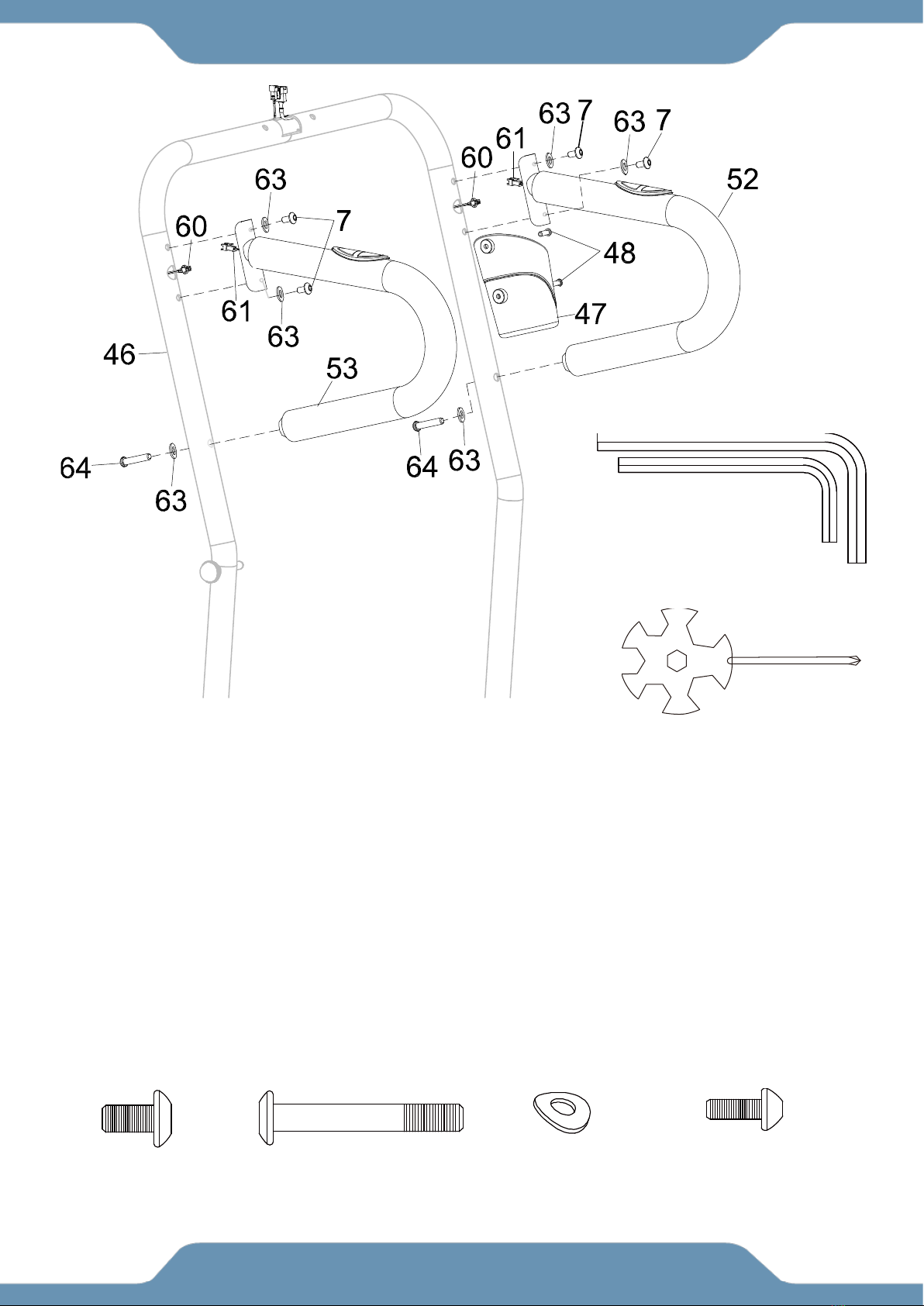

HARDWARE & TOOLS PACK
Silicone Oil
1 bottle
(49) Triangle Knob
2 PCS
Allen Wrench 6mm 1PC
Allen Wrench 5mm 1PC
Multi Hex Tool with Phillips
Screwdriver 1PC
(23) Spring Washer
4 PCS
(7) Hex Bolt
8 PCS (63) Curve Washer
10 PCS
(64)Hex Socket Bolt
2 PCS (14) Phillips Screw
2 PCS
(48) Cross Head
Screw
2 PCS

10
PARTS LIST
No.
Description
Qty
No.
Description
Qty
1
Stabilizer
1
34
Running Deck
1
2
Front
Pad 41x32x30 2 35
Cross recessed Pan Head Screw
M6x35
6
3
Transport
Wheel Ø50xT25 2 36
Flange Nut
M6 6
4
Hex Socket Head Bolt M8x
40 2 37
Deck Bumper
6
5
Lock Nut M8
2
38
Side Rail
2
6
Hex Socket Head Bolt M12x75
2 39
EVA cushion
4
7
Hex Bolt M8x15
8 40
C type
End Cap 2
8
Main Frame
1 41
Left Rear
End Cap 1
9
Motor 0.75HP
1
42
Right Rear End Cap
1
10
End Cap 25x50
2 43
Wire Protector
2
11
Power Cord
1 44
Front Roller
1
12
Wire Plug
1 45
Rear Roller
1
13
Fuse Box
1
46
Upright Frame 205x635x1073
1
14
Phillips Screw M5x10
13 47
Cup Holder
Ø90*132 1
15
Spring Washer Ø
5 3 48
Cross Head
Screw M6x16 2
16
Flat Washer Ø5
3 49
Triangle Knob M6x45
2
17
Power Switch
1
50
Spring Knob
1
18
Power Control Board
1 51
Signal Wire
Ⅰ
1
19
Cross Head Screw 3x10
4 52
Handlebar
2
21
Phillips Screw M4x8
2 53
Foam Grip
2
22
Hex Socket Head Bolt M8x30
4
54
Hand Pulse
2
23
Spring Washer Ø8
8 55
Cross Head Screw ST4.2x32
2
24
Flat Washer Ø
8 4 56
Safety Tether Key
1
25
Pad for Motor
Ø22xT10 4 57
Computer
1
26
Flange Nut M8
4
58
Wire for Switch (100mm)
1
27
Motor Belt
1 59
Wire for Power
Control Board
(180mm)
1
28
Running Belt
1 60
Hand Pulse Sensor Wire
Ⅰ
(600mm)
2
29
Hex Socket Head Bolt M8x45
1 61
Hand Pulse Sensor Wire
Ⅱ
(500mm)
2
30
Phillips Screw M6x25
1
62
S
ignal Wire Ⅱ(600mm)
1
31
Hex Socket Head Bolt M8x55
2 63
Curve Washer
Ø8 10
32
Upper Motor Cover
1 64
Hex Socket Head Bolt M8x50
2
33
Lower Motor Cover
1

11
ASSEMBLY
Step 1

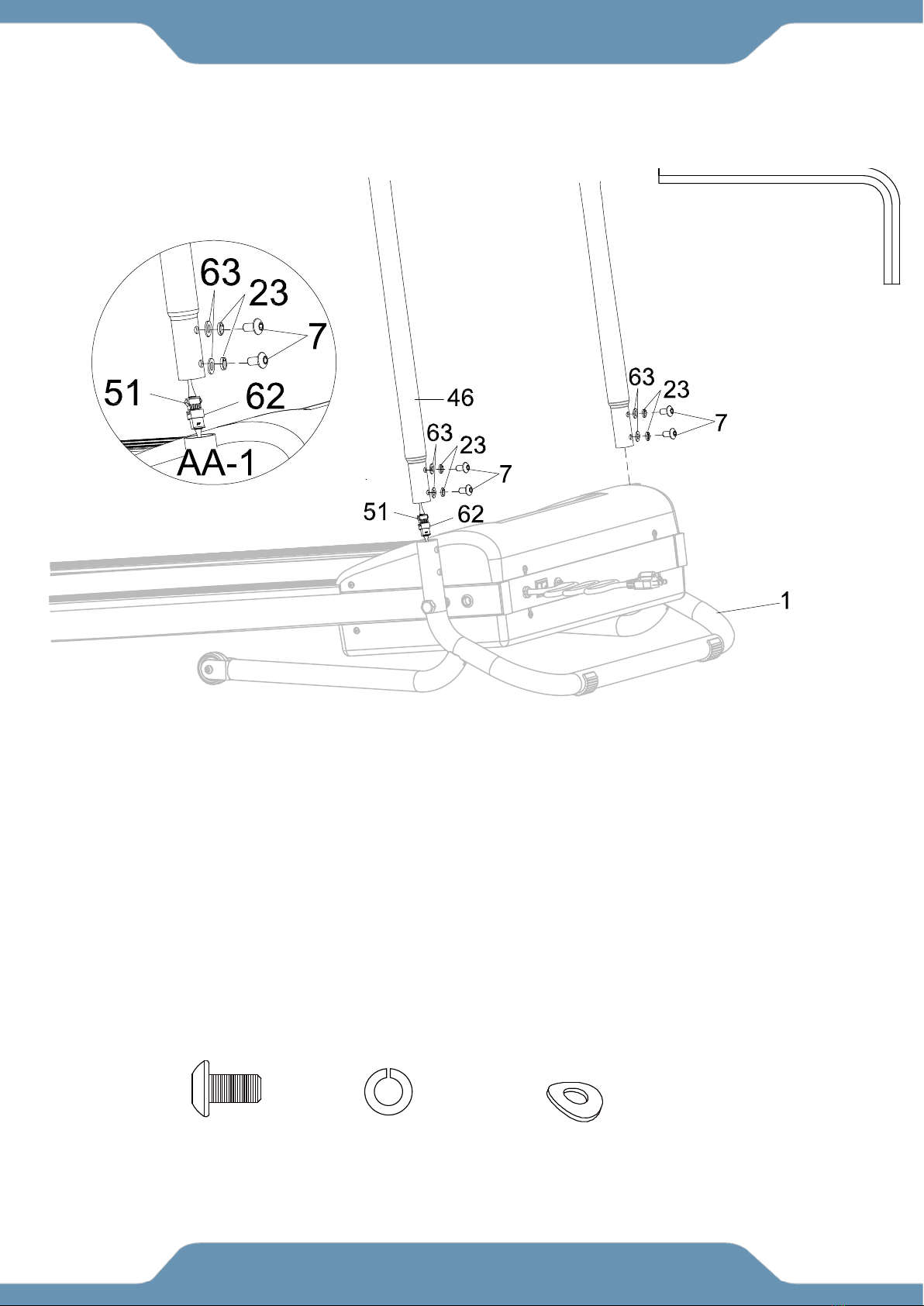

1A. Installing the Upright Frame
Connect the Signal Wire II (62)from the Stabilizer (1)to the Signal Wire I (51)from the Upright
Frame (46)as you begin inserting the frame into the stabilizer. Secure the Upright Frame (46) into
the Stabilizer (1) with the Curve Washers (63), Spring Washers (23)and four Hex Bolts (7).
Tighten the bolts with the Allen Wrench 6mm provided. See figure AA-1.
IMPORTANT: While sliding the upright frame into the stabilizer, make sure the wires are installed
inside the upright frame and are not pinched or damaged. See figure AA-1.
Hardware:
Allen Wrench 6mm
1PC
Tool:
(63) Curve Washer
4 PCS
(23) Spring Washer
4 PCS
(7) Hex Bolt
4 PCS

12
ASSEMBLY
Step 2
2A. Installing the Handlebars
Connect the Hand Pulse Sensor Wires II (61) from one of Handlebar (52)to the Hand Pulse
Sensor Wires I (60)on the left side of the Upright Frame (46). As you’re connecting the pulse
wires, align and secure the Handlebar (52) onto one side of the Upright Frame (46) using two Hex
Bolts (7), one Hex Socket Bolt (64), and three Curve Washers (63). Tighten the bolts with the 5 &
6 mm Allen Wrenches provided. Repeat this step to attach the other Handlebar (53) onto the right
side of the Upright Frame (46).
2B. Installing the Cup Holder
Attach the Cup Holder (47) onto the Upright Frame (46) using two Cross Head Screws (48) and
then tighten using the Multi Hex tool with Phillips Screwdriver provided.
Hardware:
Tool:
5mm Allen Wrench 1 PC
6mm Allen Wrench 1 PC
(7) Hex Bolt
4 PCS (64)Hex Socket Bolt
2 PCS (63) Curve Washer 6 PCS (48) Cross Head Screw
2 PCS
Multi Hex Tool with Phillips
Screwdriver 1PC

13
ASSEMBLY
Step 3
3A. Installing the Computer

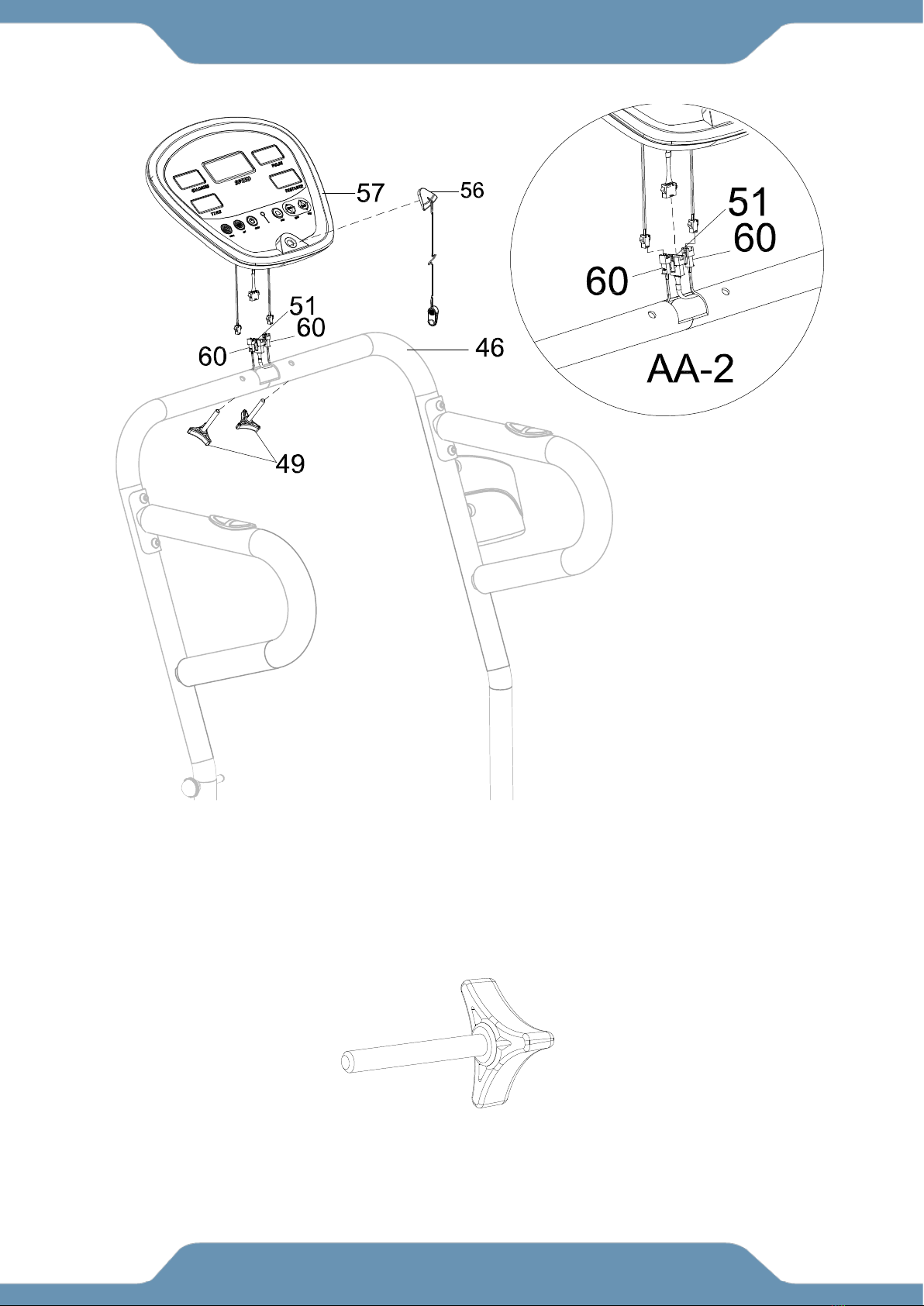

Connect the Sensor Wire I (51) and the set of Hand Pulse Sensor Wires (60)from the Upright
Frame (46) to the wires coming from the back of the Computer (57). Tuck the connected wires into
the Upright Frame (46) as seen in figure AA-2. Secure the Computer (57)to the Upright Frame
(46)with two Triangle Knobs (49). Place the Safety Tether Key (56) onto the Computer (57).
Hardware:
(49) Triangle Knob
2 PCS

14
ASSEMBLY
Step 4
4A. Installing the Rear End Caps.
Attach the Right Rear End Cap (42) on to the Main Frame (8), secure it using one Phillips Screw
(14). Tighten the screw using the Multi Hex Tool with Phillips Screwdriver provided.
Repeat this step to install the Left Rear End Cap (41).
Hardware:
(14) Phillips Screw
2 PCS
Multi Hex Tool with Phillips
Screwdriver 1PC
Tool:

15
COMPUTER
Quick Start:
Plug the Power Cord (11) into a wall outlet and flip the Power Switch (17) that is located at the
front of the treadmill to the ON position. Make sure the Safety Tether key is positioned on the
Computer (57) then attach the Safety Clip securely to your clothing. Always begin the treadmill
standing on the side rails, not on the belt.
Press the START button to start exercise, in the TIME window a 3 second countdown will begin
before the running belt starts moving. The running belt will start moving with an initial speed of 1.0
MPH. The TIME window will display your elapsed workout TIME. The DISTANCE window will
display your cumulative DISTANCE. The CALORIES window will display your total CALORIES
burned during your workout. The PULSE window will display your current heart rate 4 - 5 seconds
after you grip the handlebar hand pulse sensors with both of your hands. You may press the FAST
or SLOW button on the Computer (57) to increase or decrease the running speed during exercise.
The treadmill’s speed range is from 1.0 MPH to 5.0 MPH. The SPEED window will display your
current speed. During training, you may press the STOP button to stop the treadmill running at any
time and press the START button to start the treadmill running again. You can also pull out the
safety tether key to stop the treadmill.

16
COMPUTER
Button Functions:
START: To start the treadmill.
STOP: To stop the treadmill.
MODE: To navigate through the Pre Set goals.
FAST: To increase adjustments for pre-set target training time, distance, or calories. Or to
Increase speed during training by 0.1 MPH.
SLOW: To decrease adjustments for pre-set target training time, distance, or calories. Or to
Decrease speed during training by 0.1 MPH.
Computer Functions:
TIME: Displays your elapsed workout time in minutes and seconds.
SPEED: Displays the current speed from the minimum 1.0 MPH to the maximum 5.0 MPH. You
may increase or decrease the speed by pressing the FAST or SLOW button on the computer
console.
DISTANCE: Displays the cumulative distance traveled during your workout.
CALORIES: Displays the total cumulative calories burned during your workout.
PULSE: The PULSE window will display your current heart rate 4 - 5 seconds after you grip the
hand pulse sensors with both your hands. To ensure the pulse readout is precise, always grip the
hand pulse sensors with two hands instead of just with one hand when you try to test your heart
rate figures.
NOTE: If the equipment is left inactive for 5 minutes, the computer display will show a clock (time)
and room temperature; that is called sleep mode. In sleep mode, all previous pre-set data and
training data are kept and will show up when any button is pressed.

17
COMPUTER
PRE-SET TARGET GOALS: The computer allows for 3 different Pre-set target features,
Time/Distance/Calories. To set a Target, have the computer in stop mode and press the MODE
button to select one of the 3 targets. The display will flash, Then press the FAST or SLOW buttons
to increase or decrease the Time/Distance/Calorie target. Once you have made your selection,
press the START button to begin.
PRE-SET TARGET TIME: A pre-set target time range can be set from 5:00 to 99:00 minutes. The
running belt will start moving with an initial speed of 1.0 MPH. The speed can be adjusted using the
FAST and SLOW buttons. Time will count down from the set value to 0:00, The Computer will Beep
when the Target is met.
PRE-SET TARGET DISTANCE: A pre-set target distance range can be set from 0.30 to 624.4
miles. The running belt will start moving with an initial speed of 1.0 MPH. The speed can be
adjusted using the FAST and SLOW buttons. Distance will count down from the set value to 0.00,
The Computer will Beep when the Target is met.
PRE-SET TARGET CALORIES: A pre-set target calorie burn range can be set from 20 to 9990
calories. The running belt will start moving with an initial speed of 1.0 MPH. The speed can be
adjusted using the FAST and SLOW buttons. Calories will count down from the set value to 0, The
Computer will Beep when the Target is met.

18
Spring Knob (50)
STORAGE
LIFTING UP THE TREADMILL

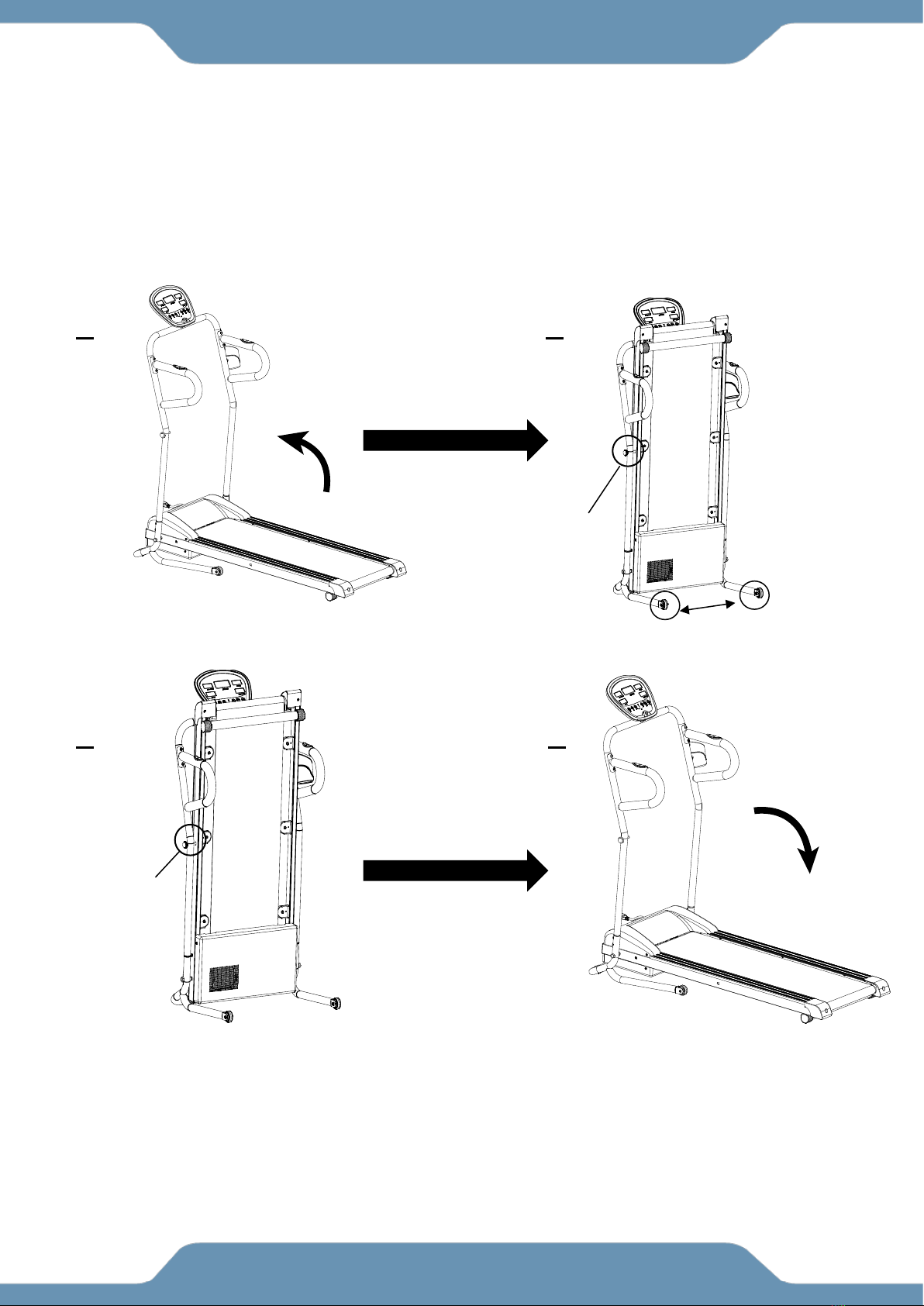

For convenience, the treadmill can be folded up and placed in a storage area. To fold the treadmill
place one hand on the rear end of the main frame and use your other hand to pull out & hold the
Spring Knob (50), then lift the main frame up until the Spring Knob (50) "pops" into the locked
position as shown in figure B. The unit can be carefully tilted onto its Transport Wheels (3) for easy
moving and storage. Ensure the Power Switch (17) is in the off position and the Power Cord (11)
is unplugged from the electrical wall outlet. Store the treadmill in a clean and dry environment away
from children or pets. See Figure A & B.
SETTING DOWN THE TREADMILL
Note: Do not stand under the deck when setting down the treadmill. TO PREVENT INJURY,
MAKE SURE YOU HOLD ONTO THE TREADMILL WHEN LIFTING UP OR SETTING DOWN
THE DECK.
Pull and hold the Spring Knob while then lowering the main frame down. See Figure C & D.
Spring Knob (50)
Transport Wheels (3)
BA
C D
