FIXAIR Mini FXM36 User manual

USER`S MANUAL
FixAir Mini
Bipolar Ionization and UVC-UVA Sterilization Air Purifying System
Bipolar Ionization
FixAir In-Duct_MU
Versión: 1.04 ENGLISH

FixAir In-Duct_MU
Versión: 1.04
Page 2 of 17
Bipolar Ionization
ENGLISH
Table of Contents
General Information.
Packaging Contents List.
Proper Use of the Device.
Technical Data.
Safety Instructions.
Functional Description.
Main Components.
Transport and Packaging.
Installing.
Starting Up.
Carrying out Maintenance on the Device.
Product Scope.
WARRANTY.
Troubleshooting.
Abbreviations Used.
Models.
Technical Information.
VOC’S (Volatile Organic Components).
Replacing the quick flow fuse.
POLLUTANTS, MICROORGANISMS AND PATHOGENS
(VIRUSES AND BACTERIA).
CLUSTERING.
Symbols Used.
1.
2.
3.
4.
5.
6.
7.
8.
9.
10.
11.
12.
13.
14.
1.1
1.2
3.1
3.2
6.1
6.2
6.3
12.1
3
3
3
3
4
4
4
5
5
6
6
7
7
8
8
8
13
13
15
15
16
17
Air Cleaning Capacity Specifications.3.3 4

FixAir In-Duct_MU Page 3 of 17
Versión: 1.04
Bipolar Ionization
ENGLISH
Packaging Contents List.2.
Inside the product packaging, you will find:
One (1) User’s Manual.1.
2.
3.
One (1) FixAir Mini device.
One (1) Electrical cord.
General Information.
.
Abbreviations Used.1.1
1.
Tab. 2: Symbols.
Tab. 1: Abbreviations.
Symbols Used.1.2
High voltage - Danger!
Danger!
The following information must be considered and
instructions complied with. Danger to life is involved.
The following information must be considered and
instructions complied with.
Caution!
Notice!
Fig.
Max.
Min.
Tab.
HVAC
VOC.
Figure.
Maximum.
Minimum.
Table.
Heating Ventilating Air Conditioning.
Volatile Organic Component.
The following information is important for handling and
must be considered.
The following information will make handling easier.
GFCI. Ground Fault Circuit Interrupter.

FixAir In-Duct_MU
Versión: 1.04
Page 4 of 17
Bipolar Ionization
ENGLISH
Technical Information.3.2
Bipolar Ions Output. > 200 Million Ions/cm of air.
3
Carbon Fiber Brushes.
FXM36
FXM64
8 W approx.
15 W approx.
220-240VAC
2 Phases and Ground Line.
Operation Temperature.
Relative Humidity.
* Subject to an adequate maintenance of the carbon fiber brushes.
-20°C up to 60°C.
Up to 100%.
Ionization Type.
Energy Consumption.
Voltage.
Electrical Connection. 50-60 Hz.
Frecuency.
Housing Material. Powder Coated Cold Roll Steel.
Dimensions. 355 x 114 x 65mm.
Weight. 1,5kg (3,3 lb) approx.
Life Cycle. 34.000 hours*
Type of Installation. In Split or Cassette Type Air
Conditioning Systems.
Air Cleaning Capacity Specifications.3.3
The air cleaning capacity of the FixAir models is given for the cooling
capacity of the split-type units for which they are designed. The following
table shows this relationship.
Technical Data.3 .
Models
Tab. 3: FixAir Mini models.
3.1
MODEL HOUSING
MATERIAL
DIMENSIONS
Width x
height x depth Kg W m/hour-cfm
WEIGHT ENERGY
CONSUMPTION
FXM36 Powder
Coated Coll
Rolled Steel 376 x 114 x 42 1,5 7,5
15,0
8
15
FXM64

FixAir In-Duct_MU
Versión: 1.04
Page 5 of 17
Bipolar Ionization
ENGLISH
Proper Use of the Device.5.
FixAir Mini systems are checked thoroughly prior to their delivery for
possible material quality problems and functioning inconsistencies.
The incorrect use or a use different to what the devices are intended
for can create unnecessary risks.
Always operate the device in accordance with the information provided in
this User’s Manual. Incompliance with the instructions here given will
render all warranty claims invalid and no liability will be assumed.
FixAir devices must never operate in rooms where there is risk of fire.
FixAir devices are to be installed on top or under a cassette o minisplit
type of air conditioning system.
FixAir devices must not be operated in a corrosive atmosphere.
FixAir devices are not waterproof and must be protected against
moisture.
The housing of FixAir devices must be checked for dirt/dust on a
regular basis and cleaned if it is deemed necessary.
Tab. 4: FixAir Mini’s Capacities.
MODEL
AIR CONDITIONING REFRIGERATION CAPACITY
BTU/hr RT (Refrigerations Tons)
FXM36 Up to 34,000 Up to 3
Up to 5Up to 64,000
FXM64
Safety Instructions.4.
Caution, high voltage!
Disconnect the device from the AC outlet before opening it.
Only qualified staff may work on the device!
All mounting, start-up and maintenance work must be
carried out by qualified staff.

FixAir In-Duct_MU
Versión: 1.04
Page 6 of 17
Bipolar Ionization
ENGLISH
Functional Description.6.
POLLUTANTS, MICROORGANISMS AND PATHOGENS
(VIRUSES AND BACTERIA).
6.1
FixAir ionization systems’ effectiveness in purifying the air lies in the
capacity that the ions they generate have for reaching practically
every surface and every corner inside the space the devices have been
properly selected for. Once in the air ions alter oxygen molecules in
the environment creating reactive oxygen compounds that are better
known as “active oxygen”. These compounds neutralize air pollu-
tants and microorganisms by means of oxidation.
The needlepoint technology in FixAir systems consists of oppositely
charged pairs of electrode brushes made of special carbon fiber mate-
rial. These electrodes are energized with a high voltage charge which
generates a bipolar ion discharge throughout the air molecules in
their proximity. Contact with positive and negative ions has microbici-
dal effects on pathogens (viruses and bacteria), which in the end dis-
rupt their surface proteins rendering them inactive.
Fig. 1: Bipolar ionization’s effect on viruses and bacteria.
Viruses and bacteria… in the presence of
Active Oxgen…
are rendered inactive.
H O
2 2
HO-
OH
O
-
2
H O
2 2
HO-
OH
O-
2

FixAir In-Duct_MU
Versión: 1.04
Page 7 of 17
Bipolar Ionization
ENGLISH
CLUSTERING.6.2
PM2.5, that is, particulate matter less than 2.5 micrometers in diameter
and smaller -particles abundant in cities and industrial areas- can get
deep into the lungs and even reach the bloodstream. In the lung these
particles irritate and corrode the alveolar wall, and consequently impair
lung function. Bipolar ions generated by FixAir systems are attracted to
the particles in the air attaching to them while they are suspended in
the air or on surfaces; these particles agglomerate to form clusters that
become sufficiently heavy and thus precipitate due to gravity´s effect,
ridding the air of their presence.
VOC’S6.3
Bipolar ions make water and oxygen present in the air react, creating active
oxygen which consists of hydroxyl radicals, oxygen radicals and bipolar oxygen
ions (positive/negative).

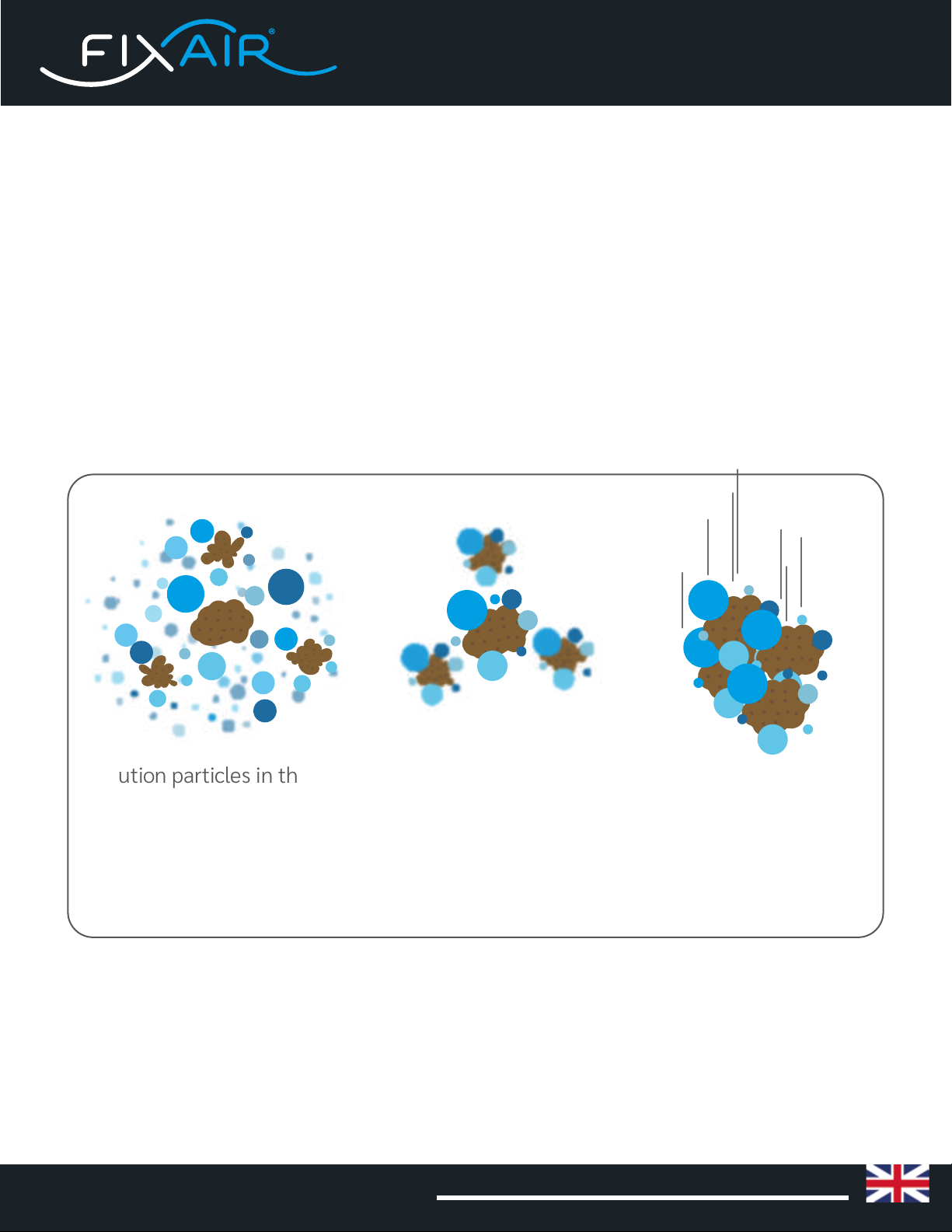

Fig. 2: Bipolar ionization’s effect on airborne pollution particles.
IMPORTANT:
Pollution particles in the
presence of bi-polarions…
Particle clustering does not occur unless air speed is bellow 0.3
become electrically charged
and attract each other…
becoming heavier and
thus precipitate.

FixAir In-Duct_MU
Versión: 1.04
Page 8 of 17
Bipolar Ionization
ENGLISH
Main Components.7.
The device consists of the following components:
Fig. 4: Components
4
0
1
2
3
5
6
7
8
9
These components are high in energy and oxidize both the organic and inorganic
pollutants present in the air, pollutants that can generate unpleasant odors, with
only carbon dioxide, water and other harmless elements resulting
as byproducts.
Fig. 3: Bipolar ionization’s effect on VOC’s.
VOC’s present in the air in the
presence of active oxygen…
are oxidized… and are rendered inactive.
H O
2 2
HO-
OH
O
-
2
H O
2 2
HO- OH
O
-
2
H O
2 2
HO-
OH
O
-
2
H O
2 2
HO-
OH
O
-
2
H O
2 2
HO-
OH
O
-
2
H O
2 2
HO- OH
O
-
2
H O
2 2
HO-
OH
O
-
2
H O
2 2
HO-
OH
O
-
2

FixAir In-Duct_MU
Versión: 1.04
Page 9 of 17
Bipolar Ionization
ENGLISH
External components.
No. component.
Internal components.
Front panel.1.
Front panel screws (6 in
total)
2.
On/Off Button.0. UVC-UVA LED lights.6.
Ionizers’ pilot LED lights.7.
Quick blow fuse.8.
Side covers.3.
Back plate.4.
5. Electrical cord connector.
Carbon fiber brushes.9.
These components are high in energy and oxidize both the organic and inorganic
pollutants present in the air, pollutants that can generate unpleasant odors, with
only carbon dioxide, water and other harmless elements resulting
as byproducts.
Transport and Packaging.8.
All FixAir products undergo thorough quality control checks before
being carefuly packed, and their packaging is suitably designed and
manufactured for transport. When opening the package, with the Con-
tents List in hand do check that all contents are complete, in good
condition and that the device is opperational. Please report any
findings to your dealer inmediately, for claims made at a later date will
not be honoured.
To select the proper location for the instalation of your FixAir Room
device, the following considerations must be taken into account:
Installing.9.
Only qualified staff may work on the device!
When installed in a cold room, connect the device to a
Ground Fault Circuit Interrupter (GFCI) socket, or
directly to the evaporator unit.
Only qualified staff may mount or carry out maintance on
the device.
The device must be connected to a Ground Fault Circuit
Interrupter (GFCI) socket, or directly to the evaporrator
unit of the air conditioner when installed in a cold room.

FixAir In-Duct_MU
View of the suction slots of the evaporator unit.
Versión: 1.04
Page 10 of 17
Bipolar Ionization
ENGLISH

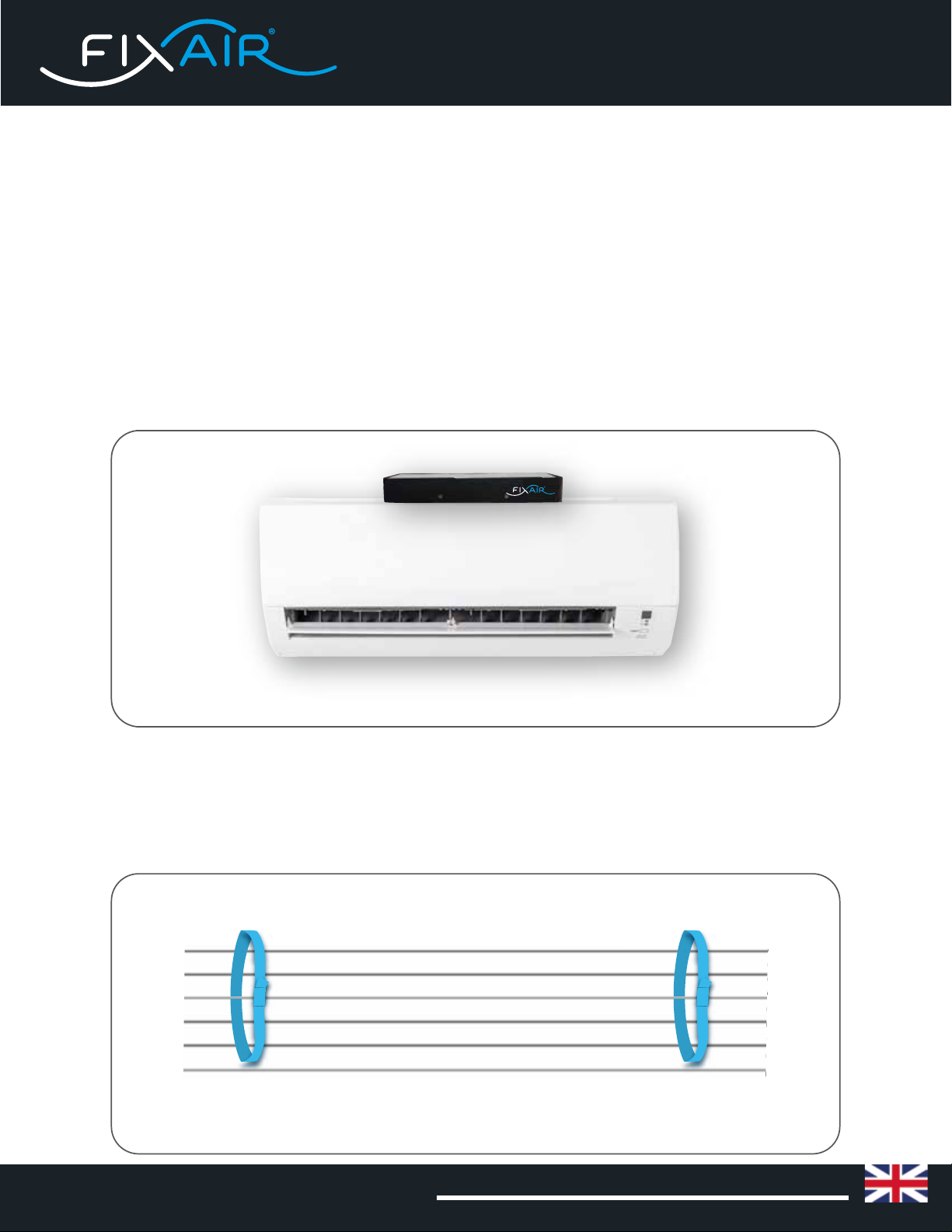

Fig. 5: Installation of the FixAir Mini device on a evaporator unit
equipment of the minisplit or cassette device.
Remember: your FixAir Mini device must be in accordance with the indica-
tions provided in Table 3.
-
Attach the device to the evaporator unit of the split system correctly,
ensuring that the UV light is not directly visible to the occupants of the
room in which the HVAC equipment is located.
-
Do not install the device in a location where it may obstruct the safe
movement of people, materials, doors, or vehicles.
-
To achieve correct distribution of the bipolar ions generated by your FixAir
Mini device, make sure to place it in the air suction line of the evaporator.
-
The power cord supplied with your FixAir Mini device is 1,5 meters long.
-
Pass the two plastic straps through the suction slots of the evaporator
unit of the 'split' type device, locating them one from the other and close
them only partially.
1.

FixAir In-Duct_MU
Versión: 1.04
Page 11 of 17
Bipolar Ionization
ENGLISH

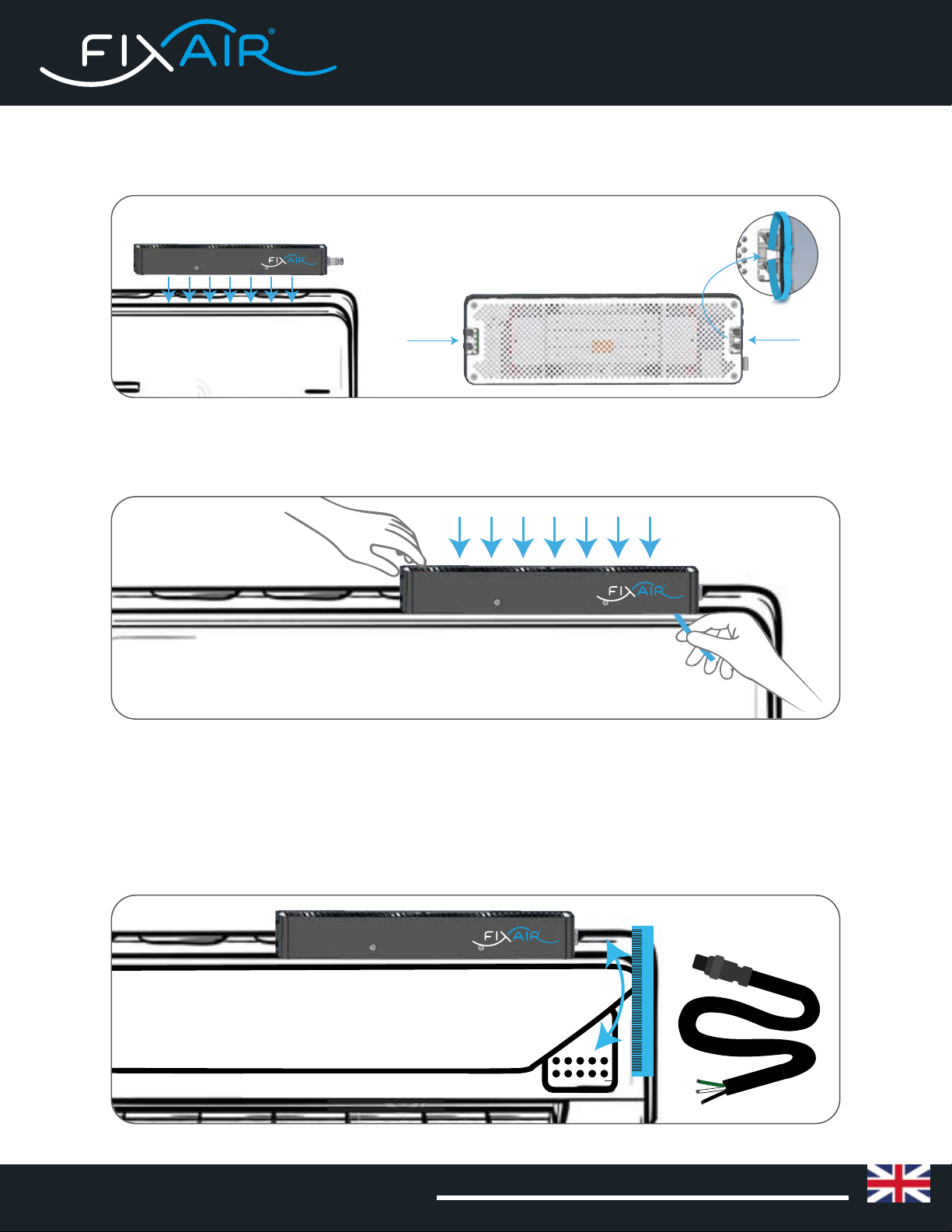

2. Present the body of the mini split device and thread the straps over the
lower chassis lugs at both ends.
3. Tighten the straps while compressing the lower plate, until the equipment
is completely adjusted to the evaporator unit.
4. Check and make sure the device has been properly secured to the evaporator
unit.
5.
Adjust the length of the connection cable by measuring the distance
between the device connector and the connection terminal block (located
inside) of the evaporator unit. Trim the cable to the desired length.
Lower
chassis.
Lower
chassis.

FixAir In-Duct_MU
Versión: 1.04
Page 12 of 17
Bipolar Ionization
ENGLISH
L1 L2

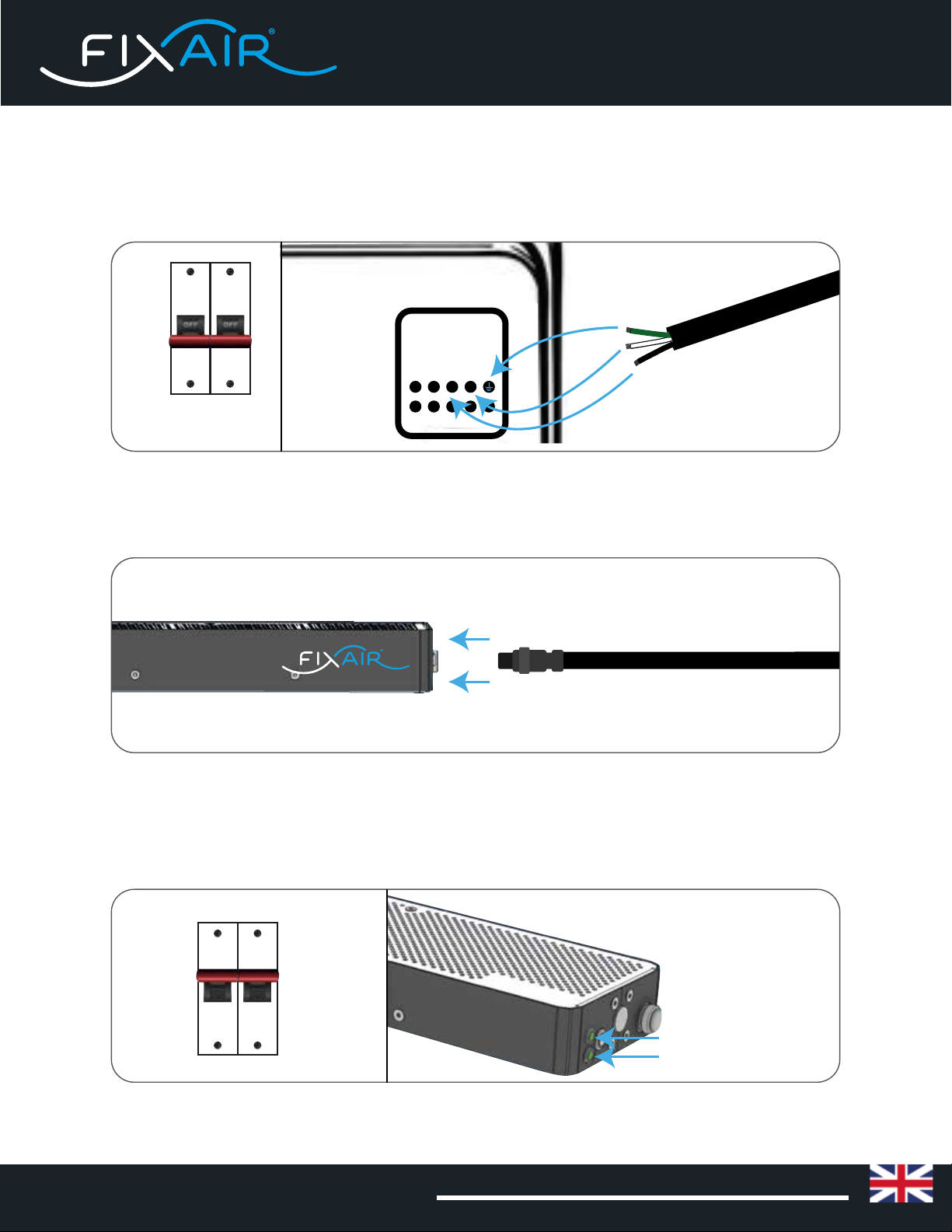

6. With the evaporator unit de-energized (make sure that the respective
breakers on the distribution board are down), connect the two live and
neutral lines to the respective terminal blocks on the evaporator unit.
7.
!
Connect the end of the cable with the male connector to the female
connector.
8. Re-energize the 'split' type equipment from the distribution board.
Press the on/off button. The device should start working immediately.
Luces de
encendido.
OFF OFF
!
ON ON

FixAir In-Duct_MU
Versión: 1.04
Page 13 of 17
Bipolar Ionization
ENGLISH
Start-Up.10.
Press the on/off button. Its LED lights will indicate that it is operating,
and specifically that the ionizer(s) are operating.
MANTENIMIENTO ACCIONES
The FixAir Mini device must be disconnected
from the AC outlet before starting maintenance
work, by disconnecting its power cable at its
connection point to the device.
Release the FixAir Mini device from the evapora-
tor unit, cutting the ties from the plastic straps.
Disinstalling
the device.
FixAir strongly recommends the device be cleaned on a regular basis and
at least twice a year, taking the following instructions into consideration:
Carrying out Maintenance on the Device.11.
Caution, high voltage!
Disconnect the device from the AC outlet. To avoid an
electrical shock or a short circuit during maintenance
work, the device must be disconnected from the electrical
supply
Only qualified staff may carry out maintenance work!
Only qualified technitians may carry out maintenance
work on the device.
Take the economic life-time of the bipolar ionizers
into account!
The average economic life-time of an ionizer is
approximately 34,000 hours, roughly corresponding to
four years of continuous operation.

FixAir In-Duct_MU
Versión: 1.04
Page 14 of 17
Bipolar Ionization
ENGLISH
Remove the front
panel screws (6
total). With the
help of an Allen
key gently pull the
front panel to
separate it from
the housing.
1
4
6
5
Using a soft brush and/or an electric blower,
remove any dust that has accumulated, espe-
cially from the carbon brushes of the bipolar
ionizer(s).
With a damp cloth remove the dust that has
been deposited on the casing both outside
and inside.
Be sure to dry the surfaces once you're done.
Opening the
housing.
Cleaning the device.
Tab. 5. Maintenance tasks.
Screw the front panel back on with its six (6)
screws.
Repeat step 1 to 4 of the installation section
in this manual.
Connect the device to the AC source by recon-
necting the male connector of the power cable
to the female connector of the device. Press
on/off button. Its LED lights will indicate that it
is operating, and specifically that the ionizer(s)
are operating.
NOTICE: Always be careful never to touch the
needlepoint brushes of the ionizers; there is a
risk of electric shock.
Closing the housing.
Re-installing the
device on the ‘split’
type air conditioner.
Testing the device.
2
3

FixAir In-Duct_MU
Versión: 1.04
Page 15 of 17
Bipolar Ionization
ENGLISH
If the device has a fault, proceed as follows:
Troubleshooting
12.
FAULT CAUSE CHECK REMEDY
Device does
not function.
The green
power indica-
tor does not
turn on but
the ionizer/
inonizers
operating
pilot(s) do.
An indicator
of operation
of the ioni-
zers does not
turn on.
The power
button LED
is off.
Contact your local
supplier.
Contact your local
supplier.
Check the power supply
Check the electrical cord
for damage.
Replace the quick blow
fuse inside. Refer to nume-
ral 12.1
No energy
is powering
the compo-
nents.
The power indicator is
burned out.
The ionizer failed.
1.
2.
3.
Replacing the quick flow fuse.12.1
Disconnect the device from the
power source.
With the use of a phillips screwdriver
open the short blow fuse casing by
pressing and turning its cap with a
counter clockwise motion.
Replace the fuse and close the fuse
holder by pressing and turning the cover
with a Phillips screwdriver clockwise
motion.
Img. 6. Replacing the quick blow fuse.
Fuse holder.

FixAir In-Duct_MU
Versión: 1.04
Page 16 of 17
Bipolar Ionization
ENGLISH
Product Scope.13.
BIPOLAR IONIZATION SYSTEMS
FixAir Go
FixAir Nano
FixAir Mini
FixAir In-Duct
FixAir Go combines bipolar ionization technology
with UV-C LED light sterilization in a portable small
size elegant casing. ; with its small size and rechar-
geable lithium battery, it is your bring-along-guar-
dian to keep you safe and to carry with you
everywhere you go*.
FixAir Nano‘s versatile size makes bipolar ioniza-
tion technollogy available for fancoil, ‘minisplit‘
and ‘cassette‘ type air conditioning systems.
Ideal for ‘minisplit‘ and ‘cassette‘ type air condi-
tioning systems FixAir Mini combines UV-C LED
light sterilization capabilities with bipolar ioniza-
tion technollogy to provide the ideal air
purification.
Designed specifically for centralized HVAC sys-
tems, FixAir In-Duct brings bipolar ionization
technology’s benefits to every corner of your
home or facility where your HVAC system reaches.
FixAir Room
Designed specifically for small or medium sized
rooms that may or may not have a ‘cassette’ or
‘mini split’ type of air conditioning system, FixAir
Room’s continuous non stop operation brings
bipolar ionization technology’s benefits into your
own personal space.
FixAir
Home and Office
Easy to move around, our FixAir Home and Office
solution is ideal for homes and spaces where
people spend long periods of time and need a
permanently high air quality to keep them safe
from the transmission of viruses and to boost
productivity.
Spaces without air conditioning systems benefit
specially from the continuous non stop air purif-
ying and renewing capacity of FixAir Home and
Office.
*IMPORTANT: Particle clustering does not occur unless air speed is under 0.3 m/s

FixAir In-Duct_MU
Versión: 1.04
Page 17 of 17
Bipolar Ionization
ENGLISH
After trying out your new FixAir product and verifying that it is
functional, you will benefit from a one (1) yearlong product warranty,
as follows: from the day of reception and during 12 months, all
product quality problems will be covered, except those caused by
human factors; we will repair your product or replace it with a new
device of the same model and same specifications, all free of charge,
as long as the product shows no evidence of mishandling.
In the event of repairs, or replacement of any parts of the unit, this
warranty will thereafter continue and remain in force only for the
unexpired period of the warranty. Moreover, the time taken for repairs,
replacement, and in transit, whether under the warranty or otherwise,
shall not be excluded from the warranty period.
Warranty exceptions:
WARRANTY.14.
Accessories are not covered by warranty.
1.
If the product has been tampered with, repaired, or modified by
non-authorized personnel.
2.
Damage (accidental or otherwise) to the product that does not
impact the product’s operation, such as -and without limitation to-
rust, change in color, texture or finish, wear and tear, and gradual
deterioration.
3.
The damage of products caused by accident, abuse, natural disas-
ter, intentional or accidental misuse, fire, neglect, or improper
maintenance, and use under abnormal conditions.
4.
When the products exceed the warranty service period stipulated
by our company.
5.
When the original serial number is removed, obliterated, or altered
from the product.
6.
Packaging and accessories attached, services and additional confi-
gurations other than those promised by the salesperson.
7.
Not following the instructions in the user’s manual.
8.
FixAir is proud to inform you that the
product you have just acquired is covered
with a one (1) year warranty.
