FLACARP F1 User manual
Fish-bite indicator with listening-in device
FLACARP F1 and RFX receiver
INSTRUCTIONS FOR USE
QUALITY
EUROPEAN
PRODUCT
Thank you for buying the FLACARP indicators.
These pure Czech products reect the needs of modern anglers and
combine the state-of-the-art electronics with the best materials while
keeping the practicality and high reliability. The products are completely
developed and produced here in the Czech Republic, and for this reason we
can offer excellent services and a exible reply to your requirements.

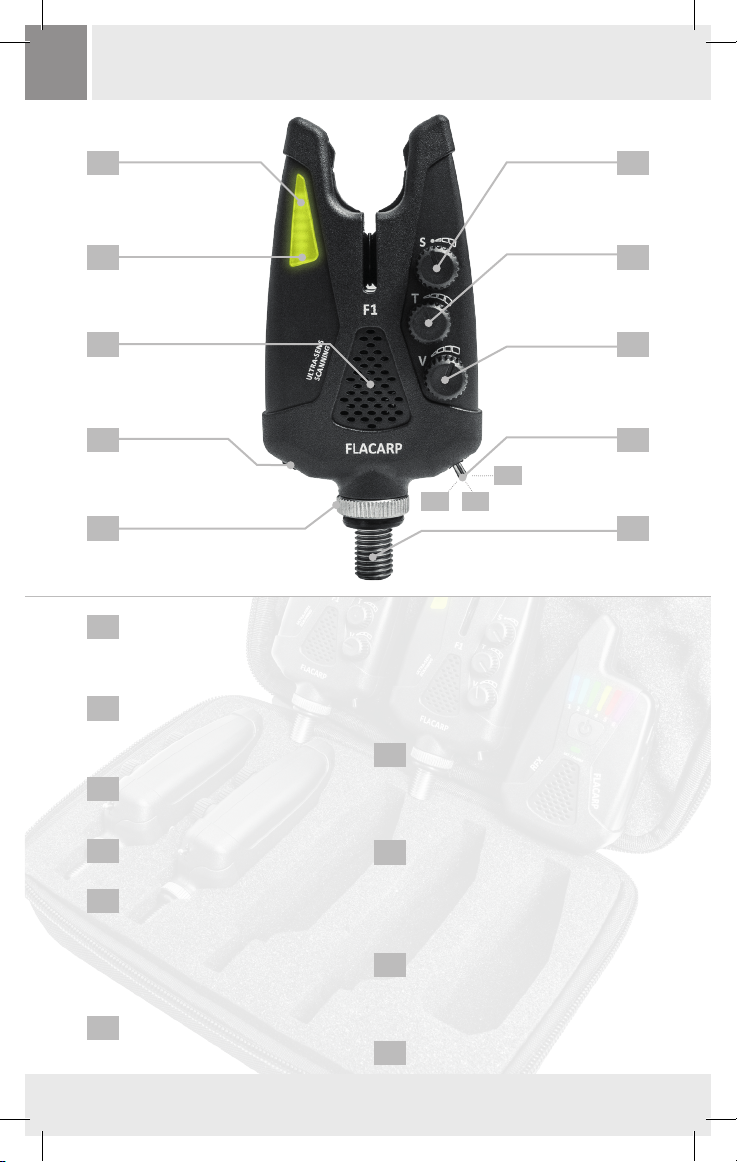

RGB LED COLUMN
It indicates the bite and the direction
of the shing-line unwinding with
memory.
RED LED
Permanent light or ashing
indicates low battery (see more on
page 5).
LOUDSPEAKER
Acoustic indication of sh bite and
functions.
CONNECTOR
For swinger connection.
BATTERY REPLACEMENT
Unscrew the lock nut and open the
rear lid to replace the batteries
Batteries: 2 pcs LR03 (AAA). Use
only high-quality alkaline or lithium
batteries (2x 1,5V).
SENSITIVITY ADJUSTMENT
■The highest sensitivity on the
right-hand side (the nest
unwinding of shing line).
■The lowest sensitivity on the left-
hand side (the longest unwinding
of shing line).
■ The “S” button can also be used
to choose the LED colour - see
below.
BEEP HEIGHT ADJUSTMENT
■Turn right to increase the beep
height.
■Turn left to decrease the beep
height.
VOLUME CONTROL
■Turn right to increase the volume.
■Turn left to decrease the volume.
■The “V” button can also be used
to set up the LED brightness - see
below.
MULTIFUNCTION SWITCH
■ON - the lever on top.
■OFF - the lever the middle.
■FC - function push button (to
press the lever downwards).
MAIN LOAD-BEARING SCREW
1
1
2
7
3
8
4
9
5
6
10
6
2 7
3 8
4 9
510
ON
OFFFC
1
INDICATOR - CONTROL ELEMENTS
F1 Indicator - switching on / off
■To turn on the indicator: Set the switch to ON position (the lever upwards).
■To turn off the indicator: Set the switch to OFF position (the lever to the middle).
MUTE (to switch off the sound and the transmission temporarily)
To turn on the MUTE function
■Switch off the indicator (the lever in the middle, OFF position).
■Briey press the lever downwards (FC position).
■Switch on again immediately (the lever upwards, ON position).
To turn off the MUTE function
Th e f un ct io n i s c an ce ll ed au to ma ti ca ll y after 30 s e co nd s u po n th e l as t sh -li ne un wi nd in g,
or switch off the indicator for 2 seconds (OFF position) - the function is cancelled.
Night position LED lamp (NIGHT)
To turn on the NIGHT function
■Switch off the indicator (the lever to the middle, OFF position).
■Press the lever downwards three-times in succession (FC position). A green position
LED lamp comes on slightly on the top.
■Switch on again immediately (the lever upwards, ON position).
To turn off the NIGHT function
The same procedure as in the case of function switching-on. Or switch off the indicator
for 2 seconds, OFF position) - the function is cancelled.
RGB LED colour and brightness adjustment, full switching-off of LED (discrete mode)
To turn on the RGB function
■Switch off the indicator (the lever to the middle, OFF position).
■Briey press the lever downwards (FC position) and hold it for 2 seconds. After a while,
a beep will resound and signaling LEDs start “running”. Now, you can choose the colour
by turning the “S” button. By turning the “V” button you can set up the brightness and
turn-off the LED completely.
To turn off the function for LED colour and brightness choice
The same procedure as in the case of function switching-on, or switch on the indicator
(the lever upwards, ON position). Notice: if the LED indication is switched off, the MUTE
function is switched off as well. The night position LED lamp and the swinger are
functioning.
Fluctuating beep at high-speed ride
The indicator indicates high-speed unwinding of the shing line (the ride) by a uctuating
beep. This function is welcomed by anglers, and for this reason it is set as default by the
manufacturer. If you prefer a traditional and simple long-drawn tone, you can switch off
the uctuating beep function:
To switch off the uctuating beep function at the ride
■Press the push button ten times in rapid succession to reach the FC position.
■A short beep resounds, the green LED ashes shortly, and the function is off. To switch
the function on again, use the identical procedure.
Ultrasensitivity of the sensor - USS function
■Press the push button fteen times in rapid succession to reach the PC positon, red
LED ashes shortly.
■By turning the “S” button completely to the left, the function of ultrasensitivity is
activated (this does not distinguish the direction of shing-line unwinding). The
function can be switched off in the same manner.
2
INDICATOR - FUNCTION DESCRIPTION 2
INDICATING CHANNEL RGB LED
LED indication of particular
channels (up to 12 devices can be
stored). The LED colour is identical
with the one set-up on the indicator.
MULTIFUNCTIONAL LED
It displays:
BATTERY CHARGE
■GREEN = battery OK.
■RED = low battery.
ALARM
■It ashes alternately in the
case of an alarm from external
sensors.
LOUDSPEAKER
For sound indication of a bite.
BATTERY REPLACEMENT
Slide up the lid on receiver’s rear
side to replace the battery.
Batteries: 2 pcs LR03 (AAA). Use
only high-quality alkaline or lithium
batteries (2x 1,5V).
LOOP
For a neck string to be drawn
through.
MULTIFUNCTIONAL PUSH
BUTTONS +/-
■Volume adjustment (PLUS and
MINUS push buttons).
■Switching-on of vibrations (hold
the PLUS bush button for 1
second).
■Switching-off of vibrations (hold
the MINUS bush button for 1
second).
■Stepping in matching mode (see
below).
ON/OFF push button
■To switch the receiver on or off,
hold for approx. 1 second.
■You can control up to 4
FLACARPS lamps (see
Description of functions) by
pressing the button several
times shortly.
1
1 5
2
6
3 7
4
5
6
2
7
4
3
3
RECEIVER - CONTROL ELEMENTS
Receiver switching on / off
To switch on the receiver:
■Press the push button ON/OFF for approx. 1 second.
■A double short beep will resound, and LEDs ash briey towards the right-hand side; LED
BAT indicates the battery charge (green LED = battery OK).
To switch off the receiver:
Press the push button ON/OFF for approx. 1 second.
A long-drawn deep beep will resound, and LEDs ash briey towards the left-hand side.
Matching with indicator (or accessories)
■Press the PLUS and MINUS push buttons simultaneously and hold for 1 second.
■A white LED at position 1 comes on.
■Using the PLUS and MINUS push buttons step to the position at which you wish to store the
new indicator. Turn the reading pulley at the bite indicator which will send a signal and the
receiver stores this. The matching is nished.
If a deep beep resounds at matching, and the white LED is still on (the bite indicator has not
been matched), the position is already occupied, or the same indicator has already been
stored in the memory. In the same say, you can also match other accessories (alarm devices).
You have up to 12 channels available, two devices for each LED. The rst group of six lights
with white LED while learning, the other group of six lights with red LED.
Removal of bite indicator from the memory
■Press the side PLUS and MINUS push buttons simultaneously.
■A white LED at position 1 comes on.
■Using the PLUS and MINUS push buttons, step to the position you wish to delete (vacate).
■Press the MINUS push button and hold for 1 second. = deleted.
■The deletion is indicated by a quite deep beep and the red LED at a given position (1 - 6)
comes on for a short time.
Differentiation of parachute at listening-in device
Flashing memory signalization = parachute indication.
Remote control of FLACARP lamps
The listening-in device makes it possible to control FLACARP lamps remotely. Simply by
short pressing the main pushbutton on the listening-in device, you can control up to four
FLACARP lamps. Press this main pushbutton once, you control the rst lamp; when you
press the pushbutton twice, you control the second lamp; when you press the pushbutton
three times, you control the third lamp; when you press the pushbutton four times, you
control the fourth FLACARP lamp. The transmitting, or the chosen channel is displayed by
short lighting-up of LED No. 1–4 on the listening-in device.
Clear adjustment of sound volume on listening-in device
When adjusting the volume using PLUS and MINUS side pushbuttons, the volume degree is
now clearly displayed by a LED column on the listening-in device (1-6).
Range of listening-in device, battery lifetime
Our bite indicators are equipped with a high-powered transmitter for listening with long
range. The reason for this super-sized range consists in its excellent spreading even in the
case of obstacles, dams, and terrain irregularities, which reduce the range signicantly. Our
listening-in device will be thus reliable even in places where other bite indicators can fail.
The battery lifetime corresponds to the frequency of product use and to the intensity of
sound indication; at bite indicator, it also depends on the adjusted LED brightness and beep
volume. The higher LED brightness or the more intensive beep, the shorter battery lifetime.
If you do not use the bite indicator for a longer period of time (at the end of the season), we
recommend to remove the batteries to avoid product damage caused by leaking batteries.
4
RECEIVER - DESCRIPTION OF FUNCTIONS
Clear indication of battery condition at FLACARP F1 indicator
After short pressing the FC push button on the indicator (press shortly the switch
lever downwards to the screw), the current battery condition is clearly displayed by a
colour column of LEDs within approx. two seconds.
■All three colours are on (full column - green + blue + red) = battery is fully charged,
lifespan up to several months.
■Only blue + red are on = battery capacity is below 50%, lifespan still several weeks.
■Only red is on = low battery capacity, lifespan only for several days, max. weeks. It is
necessary to replace the battery.
The signalling is indicative, and it is very dependent on the type of batteries, condition
of batteries, temperature, and especially frequency of bites. However, it can avoid
the situation when the angler comes to the water, and his/her indicator switches off
because the batteries are empty.
Before your trip, you only need to verify the battery condition by pressing the
pushbutton shortly. Moreover, the indicator also includes the energy saving function:
■If the battery capacity drops below a dangerous limit, it reduces the consumption
by decreasing the LED brightness and sound intensity to achieve a reliable
assessment of the bite.
This function can extend the battery lifespan even by 10%. If the battery capacity
is very low, the bottom LED slightly ashes in red (5times after switching on, after a
bite, or another event). If the bottom LED is permanently on, the battery capacity is
critical, and the indicator can fail to work.
100%
Full battery
50%
Battery medium
capacity
10%
Low battery
5
FLACARP - QUALITY EUROPEAN PRODUCT
Purpose of Use
The FLACARP sh-bite indicator is intended to indicate a sh bite by assessing the
shing-line unwinding.
Guarantee
Guarantee of 24 months is provided for the FLACARP products. The guarantee does not
relate to damage caused by use that is contrary to these instructions, and damage caused
by leaking batteries, chemical agents, high temperature, incompetent intervention in
the product, mechanical damage, and inappropriate loading in contradiction to the
purpose of use. Whether your product is under warranty or not, we will always be ready
to support you and to solve a possible problem.
FLACARP - EU DECLARATION OF CONFORMITY
of a radio device with the European Direc�ve RED 2014/53/EU, establishing technical requirement for radio equipment, and
the Governmental Decree No. 481/2012 Col., which is harmonized with Direc�ve 2011/65/EU, about the use of some
dangerous substances in electrical and electronical devices.
Manufacturer: TFE elektronika s.r.o., names� Svobody 1509, 696 81 Bzenec, Czech Republic
ETSI 300-220-1 v.3.1.1
ETSI 300-220-2 v.3.1.1
ČSN ETSI EN 301 489-1 v.1.9.2
ČSN EN 55032
ČSN EN 55024
ČSN EN 62368-1
ČSN EN 50581
FLACARP fisherman signaling device set
FLACARP F1, FLACARP RFX, FLACARP FL5, FLACARP AL1, AL2
868,32 MHz
max. 14dBm
GFSK
signaling of fish engagement with wireless signal transmission
Bzenec,
1.4.2021 Tomas Flajzar , company director
The Declara�on has been issued under the sole responsibility of the producer.
6
EN1
We produce a lot of accessories to FLACARP indicators.
For example the bivouac lamp FLACARP FL5, which automatically comes on in the
case of sh bite. Furthermore, the motion sensor FLACARP with sensors and high-
performance position LED to guard your shing site, bivouac, boat, parking car etc. We
offer the sensor in two versions:
■with guarding sensor on one side (FLACARP AL1)
■with sensors on both sides (FLACARP AL2)
We are developing for you further accessories to FLACARP indicators.
You can nd our current offer on www.acarp.com
PRODUCER, SERVICE, TECHNICAL SUPPORT
TFE elektronika s.r.o., náměstí Svobody 1509, 696 81 Bzenec, Czech Republic
Contact: Tomáš Flajzar, email: tomas@tfe.cz

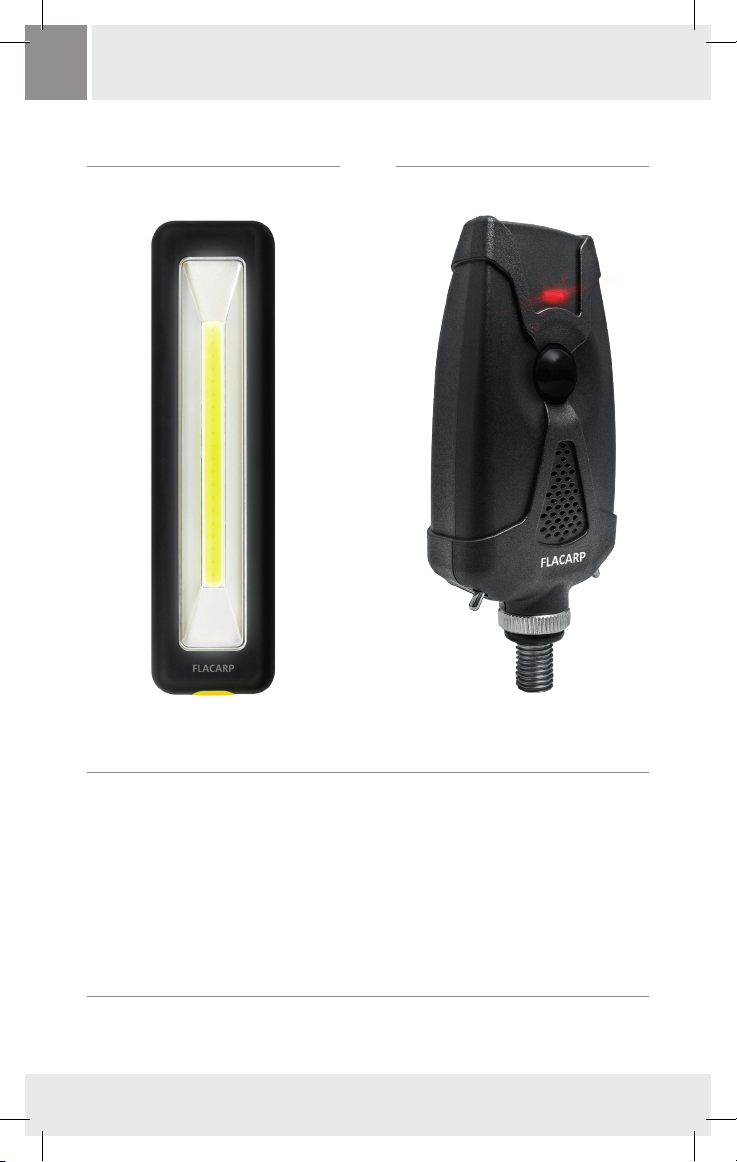

Bivouac lamp
FLACARP FL5
Motion sensor
FLACARP AL1 (AL2)
7
FLACARP - FOR YOU
This manual suits for next models
1
Popular Receiver manuals by other brands
Hunter
Hunter Institutional Commercial Remote Owner's manual and installation instructions
Dual Electronics Corporation
Dual Electronics Corporation DV715B Installation & owner's manual
Denon
Denon AVR-S950H Series owner's manual
Denon
Denon IN-Command AVR-X4000 Specifications
Cobalt Digital Inc
Cobalt Digital Inc BlueBox BBG-2OE-MK2 Dual Fiber-To-Coax quick start guide
BFT
BFT CLONIX E Series Installation and user manual
