Flash professional P7200050 User manual

USER MANUAL / INSTRUKCJA OBSŁUGI

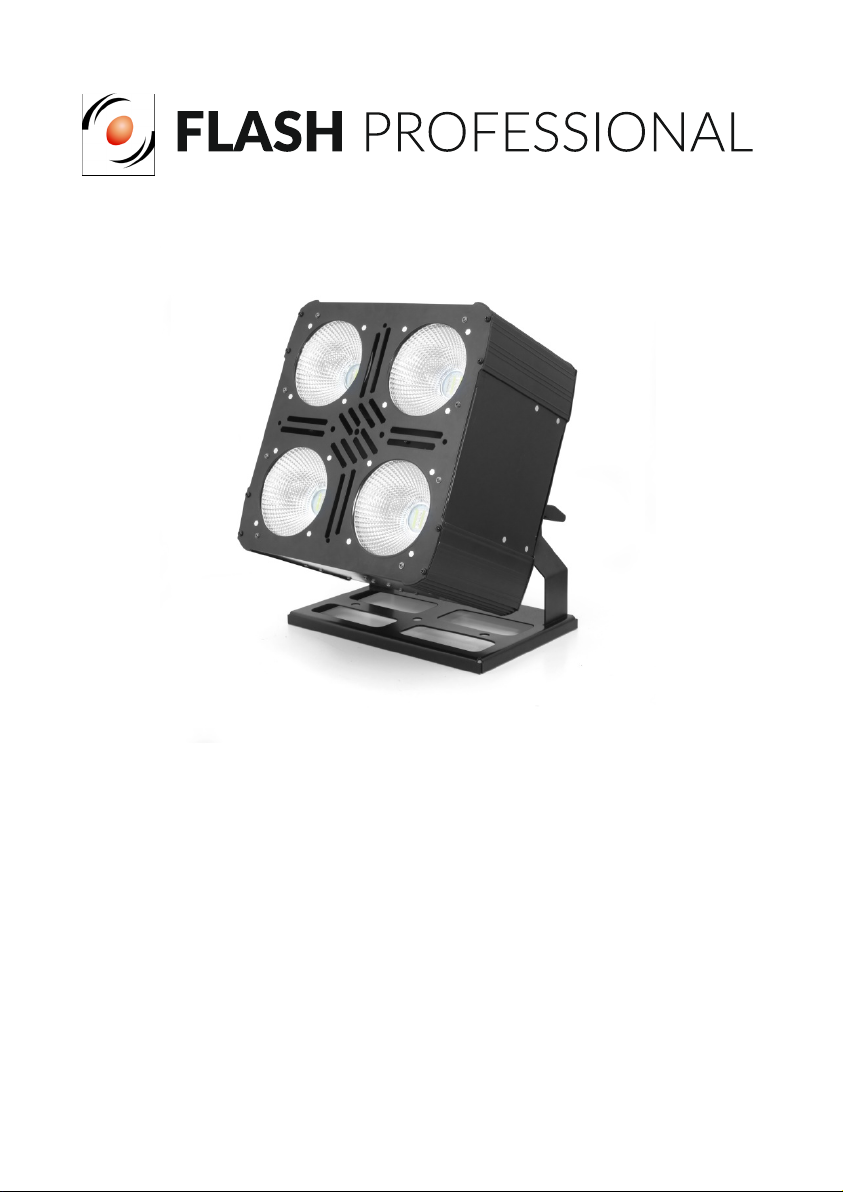

P7200050 - LED BLINDER 1.2kW
RGBWA+UV 6w1 COB Mk2
P7200050

LED BLINDER 1.2kW RGBWA+UV 6w1 COB Mk2 - P7200050
www.flash-butrym.pl
1
Table of contents
1Introduction......................................................................................................................................................3
2Safety information ...........................................................................................................................................3
3Security principles relating to UV radiation.................................................................................................3
3.1 Threats to health, effects of exposure to UV radiation...........................................................................3
3.2 Personal protective equipment .................................................................................................................4
4Product information ........................................................................................................................................4
4.1 Features .......................................................................................................................................................4
4.2 Specification ................................................................................................................................................4
4.3 Photometric data ........................................................................................................................................5
5Installation........................................................................................................................................................6
6Connections......................................................................................................................................................6
6.1 Connecting DMX signal.............................................................................................................................6
6.2 Voltage specification..................................................................................................................................6
6.3 Connecting power supply ........................................................................................................................6
7Operation manual............................................................................................................................................7
7.1 Control panel ..............................................................................................................................................7
7.2 Master / slave ..............................................................................................................................................7
7.3 DMX channel list ........................................................................................................................................7
Spis treści
1Wprowadzenie...............................................................................................................................................13
2Zasady bezpieczeństwa ................................................................................................................................13
3Zasady bezpieczeństwa dotyczące korzystania z urządzeń emitujących promieniowanie UV ..........13
3.1 Zagrożenia dla zdrowia, skutki wystawienia na działanie promieniowania UV............................13
3.2 Osobiste wyposażenie ochronne ............................................................................................................14
4Informacje o produkcie.................................................................................................................................14
4.1 Funkcje.......................................................................................................................................................15
4.2 Specyfikacja...............................................................................................................................................15
4.3 Dane fotometryczne.................................................................................................................................16
5Instalacja .........................................................................................................................................................16
6Połączenia.......................................................................................................................................................16
6.1 Podłączenie sygnału DMX......................................................................................................................16

www.flash-butrym.pl 2
6.2 Specyfikacja zasilania...............................................................................................................................17
6.3 Podłączanie zasilania ...............................................................................................................................17
7Instrukcja użytkowania.................................................................................................................................17
7.1 Panel sterowania.......................................................................................................................................17
7.2 Master / slave.............................................................................................................................................17
7.3 Lista kanałów DMX..................................................................................................................................18

LED BLINDER 1.2kW RGBWA+UV 6w1 COB Mk2 - P7200050
www.flash-butrym.pl
3
1INTRODUCTION
Thank you for purchasing LED BLINDER 1.2kW RGBWA+UV 6w1 COB Mk2. For safety reasons and to
ensure the trouble-free operation, carefully read the instructions.
2SAFETY INFORMATION
1. Installation should be done by qualified personnel in order to minimize the risk of
accidental electric shock
2. Disconnect the power supply before installation.
3. Before connecting the unit to the mains, make sure it is not damaged mechanically. If you
notice any signs of damage you should contact your dealer immediately. Do not connect
the device to the mains.
4. Do not use the device in high humidity conditions and at temperatures above 40° C
5. The device must be installed on stable structures
6. Always use steel security cable to attach the device to a stable structure
7. Do not connect power supply to more than 3 devices in series.
3SECURITY PRINCIPLES RELATING TO UV RADIATION
1. A device emitting UV light can be installed and used only by personnel
trained in the knowledge of the hazards when using UV light sources,
methods to counteract these threats and the rules of safe use of such
sources (particularly the high power sources of UV light). The manufacturer is not responsible
for damages resulting from improper use of the device.
2. The device must be installed at a distance from the illuminated people, which ensures a safe
staying in a room without compromising the health of the negative effects of UV radiation. The
device must be installed in a way as to prevent illumination directly on the skin, face or eyes.
The room can be illuminated only by light reflected from the surface (walls, ceilings) - never
through direct referral of the reflector in the direction of people in the room.
3.1 Threats to health, effects of exposure to UV radiation
An excessive effect of UV radiation on the body often has no immediate symptoms. Symptoms of
overexposure, including the various stages of burns or Photokeratitis, usually occur from 4 to 24 hours
after the exposure. There is a possibility that the level of UV intensity emitted by the device significantly
exceeds the naturally occurring level (especially at a short distance from the light source).
•SKIN: UV radiation can cause erythema (sunburn) within the exposed skin. This involves
redness and/or ulcerations, which can have a different intensity. In the case of improper use of
the device effects of UV radiation on the skin can occur even after a few seconds of exposure.
Symptoms may be different depending on the genetic background. People with pale to fair skin
are more prone to sunburn. Some medications (eg. Contraception), and some food products (eg.
celery root, figs) may increase sensitivity to UV radiation. Chronic exposure to UV radiation
causes premature skin aging, wrinkles and skin cancer.
•EYES: UV radiation is dangerous for the eyes, not only for looking directly into the light source,
but also when eyes are exposed to the UV rays reflected from surfaces (reflectors with high
power). Exposure of the eye to UV radiation can cause corneal damage and Photokeratitis

www.flash-butrym.pl 4
(painful inflammation of the eye caused by changes induced by UV radiation to the cornea). One
of the symptoms may be "feeling of sand in the eyes" which may persist for several days. In
extreme cases, it can cause damage to the lens of the eye that can lead to cataracts.
•OTHER THREATS: In addition to significant hazards for the eyes and skin, the impact of UV
radiation on substances in the air can lead to the generation of toxic compounds that may be
harmful to people in the room.
WARNING! When installing and using the device you should provide appropriate conditions, which
prevents the occurrence of risks described above.
3.2 Personal protective equipment
•EYE PROTECTION: Eye protection must be worn at all case where there is possibility of
exposure to UV radiation. Glasses should be consistent with ANSI-Z87. Normal eye protection,
prescription glasses or contact lenses offer little or no protection. Glasses providing adequate eye
protection are marked Z87.1
•PROTECTIVE MASK: In some cases, in addition to safety glasses or goggles, a full face
protection should be worn. Masks protect the entire face, especially under the chin, where
serious skin burns may occur, even in the short time exposure. Full face protection is
recommended in case of long term exposure to UV radiation.
•PROTECTIVE CLOTHING: In some cases it is required to wear protective clothing to prevent
burns resulting from exposure of the skin to UV rays
4PRODUCT INFORMATION
The device is equipped with high-quality, bright COB LED with Red, Green, Blue, White and additional
Amber and UV chips. Unique design, high quality and high durability make this device a great tool for
both power users and those, who value simplicity and reliability.
The ergonomic double bracket (included) facilitates the use of the device in any condition. In order to
expand the range of mounting options, the holder has an additional mounting holes.
The electronics is made of high quality components and offers several features such as:
4.1 Features
•16-bit dimming resolution
•Various dimming curves for smooth dimming in 8-bit mode
•Dim delay (light bulb simulation)
•Full DMX signal regeneration
•Electronic protection against overheating
•THEATRE or DISCO cooling volume modes.
•Permanent color correction
•Native support for optional wireless DMX module
4.2 Specification
•Power consumption: 1200W
•Power supply voltage: 100 - 245V
•Voltage frequency: 50/60Hz
•Diode type: COB 6in1
