Flash SO/PPS300W User manual
300W Portable Power Station
SO/PPS300W Instruction Manual
Instruction Manual

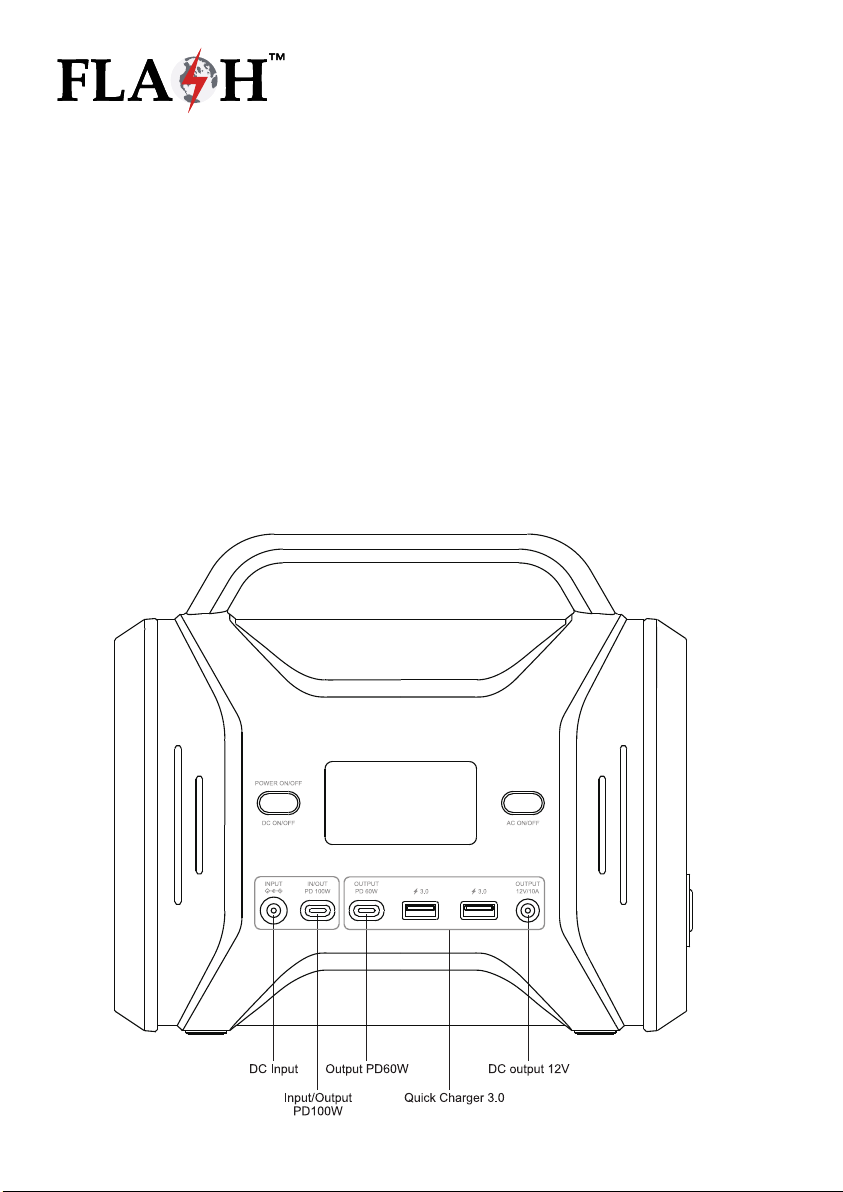

SO/PPS300W Portable Power Station (300W)
Don't worry about the lack of outdoor power, use the Portable Power Station, you can easily
maintain a state of charge on the go. There is no need to worry about sudden power failure or
the dark night outdoors, portable power station oers you great power supply and condence
in the wild!
Attention:
1. Specications and images in this manual are for reference only.
2. This product is for emergency use only.
3. Fully charge the product before using if for the rst time (minimum 10 hours), Once the battery
bar no longer ashes it is fully charged.
11
2
Charging Your Product
ATTENTION: If the ambient temperature is too high or the battery temperature is higher than
60°C due to continuous high-power discharge, the product cannot be charged. When the
battery temperature is less than 55°C, the charging function will automatically resume. If it is not
used for a long time, it is best to fully charge it every three months before storing; it is best to fully
charge the battery.
There are 5 segments to the battery, approximating 20%-40%-60%-80%-100% capacity.
As you use your product, segments will disappear from the display, indicating the remaining
charge. When charging your product you will notice a battery segment blinking at a 1 second
interval status. Once your product is fully charged, all battery segments will be lit and remain solid.
Notes:
The actual charging eciency can vary widely depending on weather, ambient temperature,
sunlight’s strength, the angle that the Flash Portable Solar Panel faces to direct sunlight and
other factors. The maximum output voltage of the Flash Portable Solar Panel should not exceed
23.5V. It is recommended to use Flash Portable Solar Panels with an open circuit output voltage of
10.8-23.5V. The maximum electric current can reach A3.

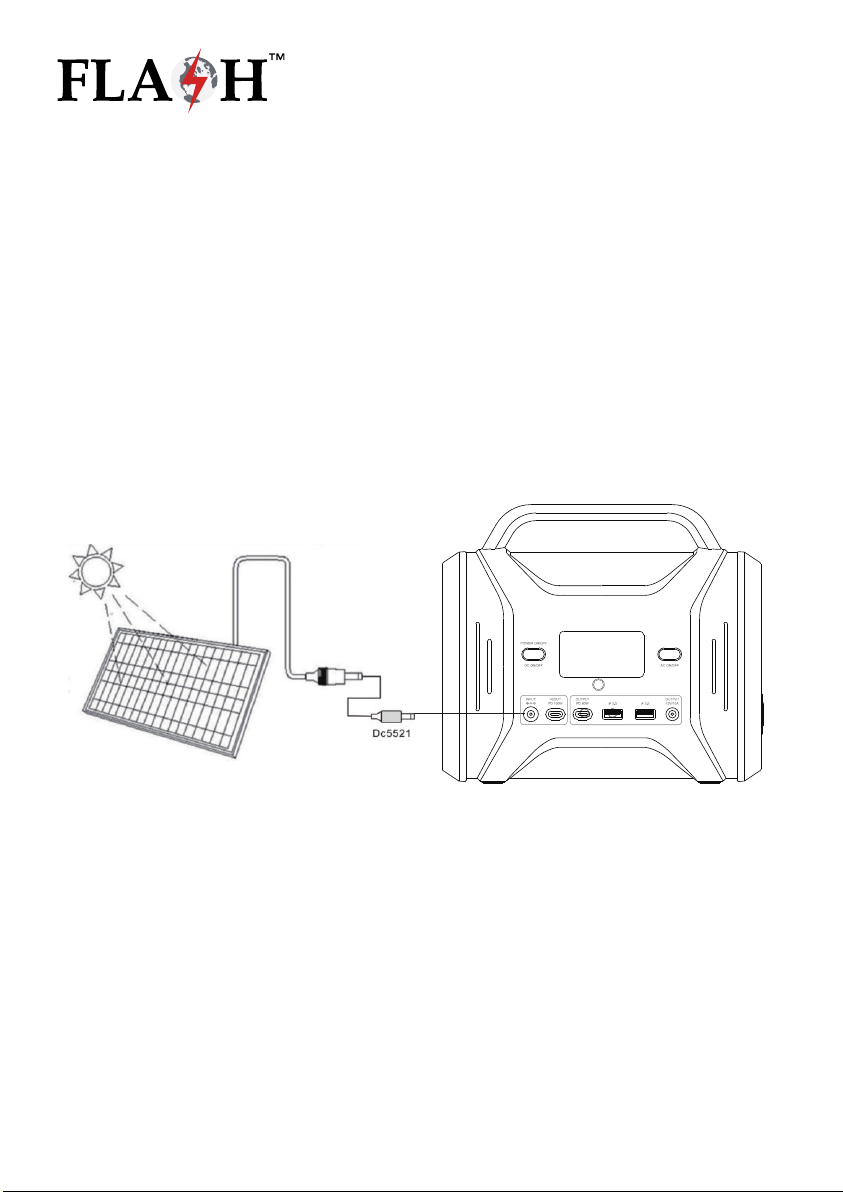

2. Charge Through Flash Portable Solar Panel
A. Place your Flash Portable Solar Panel where it will get as much strong direct sunlight as possible.
B. Connect the output port of the Flash Portable Solar Panel with the input port of the product to
start charging. You will know the product is being charged when the LCD display indicators blink.
The product is fully charged when all battery indicators stop blinking and remain solid.
1. LCD Battery Display
AC Adapter
3. Charge Through AC Adapter
Plug the original adapter into the machine’s
DC input port and you will see the battery
indicators on the screen blink.
Notes:
A. The battery is fully charged when all battery level segments stop blinking and remain solid.
After the battery is fully charged it is best to unplug the charging cables. The battery will
not over charge, but removing the cables is the best practice.
B. Usually, it takes around 7 hours to fully charge the battery using the AC power adapter.
C. When you charge your power station by the INPUT port, the PD 100W port can’t be used
as an output
Notes:
To avoid car battery power loss, you should charge this product through your car cigarette lighter
only when your car engine is started. This function is for 12V car ONLY.
A. Plug the original car charger into the cigarette lighter socket of your 12V car, and then
plug into the DC input port of the machine.
B. The original car charger features a 10A protector tube to protect your car.
C. You will know the machine is being charged when the battery indicators blink.
3
4. Charge Through Your Car
Protection mode (DC Input)
A. Depending on your car model, it may not be fully charged.
B. Under-voltage protection: The power generator can’t be charged if the voltage of your car is too low.
4
A. Long press the power button for 3 seconds to turn the machine on. Short press the power
button to turn on the DC function. When not in use, press the power button to turn o the
DC function.
B. Long press the AC button to turn o the sound, long press the AC button again to turn
on the sound.
C. Press the Power button and Light button simultaneously to restart the machine.
D. Press the Power button and AC button simultaneously to switch the frequency of
the machine.
A. Press this button to turn on the light, high-light mode.
B. Press this button again to change the light mode into low-light mode.
C. Press this button again to change the light mode into SOS.
D. Press the button again to change the light mode into ash mode.
E. Press the button again to turn o the light.
2. Light Modes
Using Your Product
1. Buttons
Warning! DO NOT stare straight into the light
5. Charge Through PD Charger
(PD charger not included)
Plug your PD charger into the
PD 60W IN/OUT Dock.
5
4. DC Outputs
Notes:
When the product’s AC, DC and USB output at the same time, and the total battery current is
greater than 38A, after 3 minutes of operation, the product’s buzzer will alarm, and the LCD
screen will display the fault code E11. If the alarm continues for more than 30 seconds, it has not
been cleared. The product will forcibly turn o the DC output to reduce the total output current
of the battery and ensure the safety of the product. When the DC output is turned o due to
overload, please do not force it to turn on again by pressing the button.
When the battery voltage is less than 11.2V, the DC output function will be forcibly closed, and
it needs to be charged to release it.
A. The cigarette lighter and the DC5521 (5.5mm in diameter) 11.2-14.6V ports oer max 10A
output current and automatically distribute max current according to the external connected
devices to ensure shortest charging time.
B. The DC5521 port can be connected with a cigarette lighter (power requires no
more than 100W).
3. USB Output Function
Protection mode (DC Output)
Short circuit protection: when short-circuit occurs to the external devices, the machine
starts beeping and stops charging.
When two USB-A ports are used simultaneously,
the two ports can only output 5V/3.8A in total.
Cannot enter fast charge mode.
230V 50Hz 300W Sine ave
0°C~40°C
Notes:
When there is no operation, the LCD screen backlight will automatically become dim after 2 minutes. When the machine is not
working, it will automatically shut down. When the battery voltage is less than 11.2V, the AC output function will be forcibly closed,
and it needs to be charged to be released. The AC output is automatically closed after 8 hours of inactivity. When not in use, please turn
o the AC power.
5. AC Output Function
A. Plug the power cable of the AC appliance into the AC outlet of
the machine. Press the power button to enter AC mode.
B. Make sure the power of the connected AC appliance is less
than 300W.
6
Product Specications:
Battery
Port
General
AC output
230V
Protection mode (AC Output)
A. This product has undervoltage protection; overload protection; short circuit protection. The over
temperature protection adopts double isolation circuit, which is safe, reliable and ecient.
B. When overload, over temperature or short circuit occurs, this machine will start beeping and the
AC icon on the screen will ash, and then the machine automatically shuts down to ensure safety.
7
Error Codes:
Cold Weather Usage
Cold temperatures (0 ~ 40°C) can aect the product’s battery capacity due to chemical
characteristics of the battery. If you’ll be living o grid in sub-zero conditions, it is recommended
to keep your product in an insulated cooler, and connected to a power source (12V car /
AC adapter / Flash Portable Solar Panel). The natural heat generated by the product contained in
an insulated cooler will keep the battery capacity at its highest level.
Disposal and Recycle
This product should not be disposed along with household waste. Please dispose or recycle this
product and the battery inside according to the local rules and regulations.
Battery Information
This product has an internal, non-removable, LiFePO4 Rechargable battery.
Do not attempt to remove the battery, as you may damage the device.
can then be used
Place
Place
to
products temperature to rise
can then
charger
to drop
overloaded,
prompted
normally
can then
8
Caution
1. Do not short-circuit the product. To avoid short-circuiting, keep the product away from
all metal objects.
2. Do not heat the product, or dispose it in re, water or other liquids. Keep it away from high
ambient temperature. Do not expose the product to direct sunlight.
3. Keep the product away from humid, dusty places.
4. Do not disassemble or reassemble this product.
5. Do not drop, place heavy objects on, or allow strong impact to this product.
6. This product is not intended to be used by persons with reduced physical, sensory or
mental capabilities.
7. Please keep this product away from children.
8. Do not cover the product with towels, clothing and other items.
9. Do not overcharge this product.
10. When fully charged, disconnect the product from the power source immediately.
11. If you are not going to use this product for a long time, please disconnect the cable
before storing it away.
12. To charge some portable electronic devices, you may need to set those devices in
charge mode rst. Refer to corresponding user manual of those devices for conrmation.
13. Do not pull the socket cover of the cigarette lighter too hard, the tether could break.
Pure Sine Wave Output
This product generates Pure sine wave, which is compatible with AC electric appliances that work
with Sinusoidal waveform (power<300W).
Package Content
1 x Portable Power Station
1 x AC Adapter
1 x Car Charger Cable
Guarantee
Our company provides customers with a guarantee of 24 months from the date of purchase.
