Flavel FDW60 Installation instructions

contents
3
Introduction
Welcome 2
Know your dishwasher / specification 4
Standards and testing information /
EC declaration of conformity 4
Warning and safety information 5
Electrical Safety 5
Childrens safety 5
General 5
ecycling 6
Energy and water saving 6
What should not be washed in your dishwasher 6
Before first use 6
Installation 7
Electrical requirements 7
This appliance must be earthed 7
Fitting a different plug 7
Water inlet hose connection 8
Drain hose connection 8
Installation of dishwasher 9
How to use 0

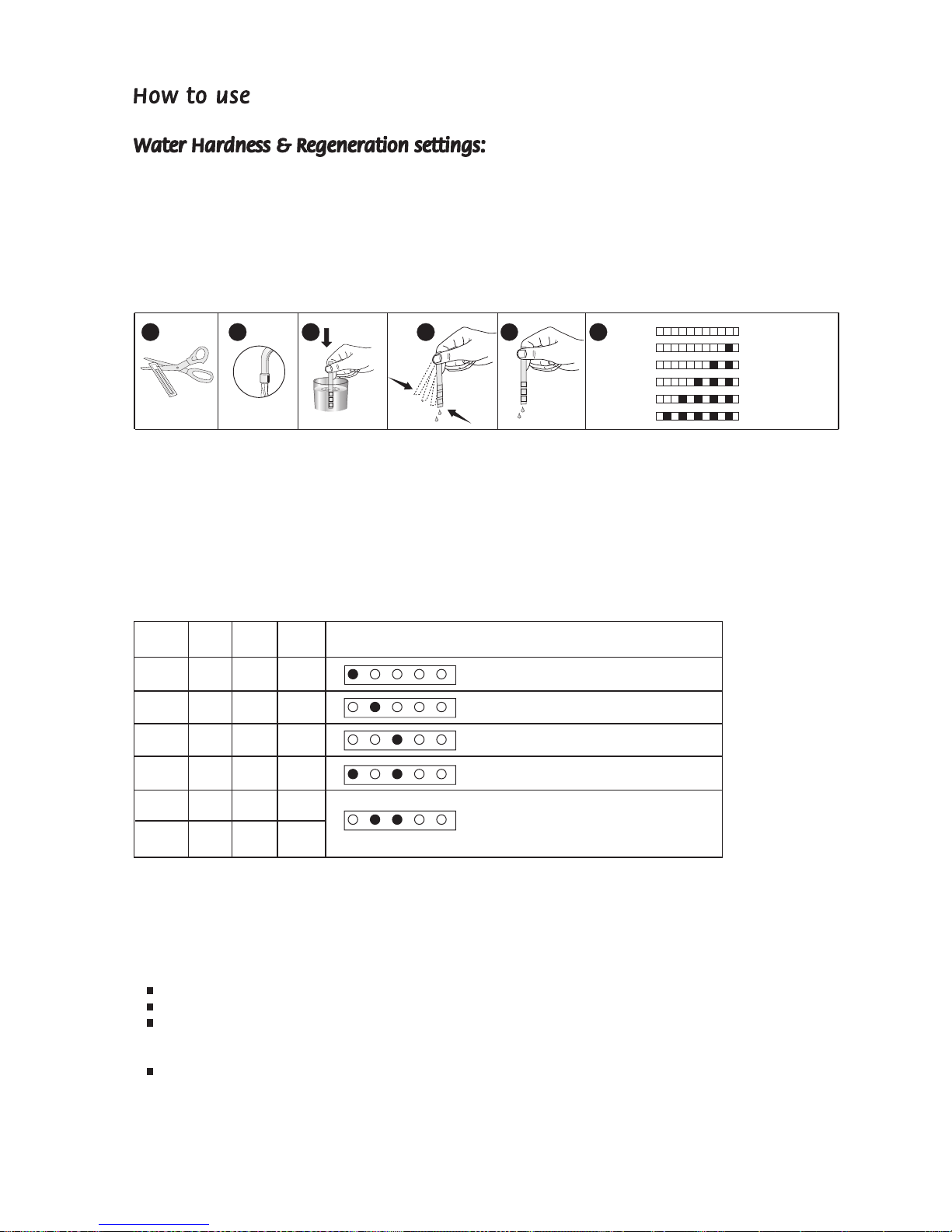

Water hardness & egeneration settings 10

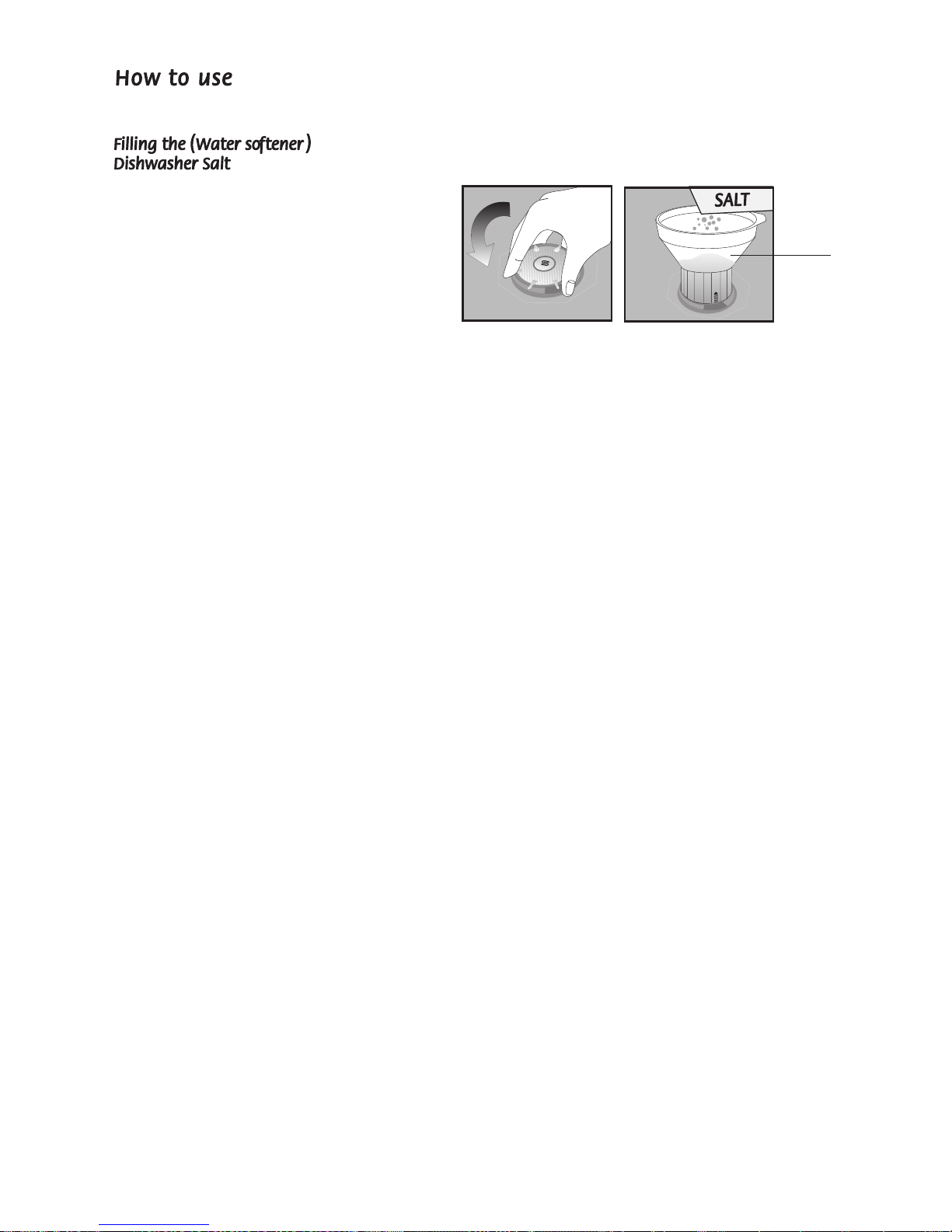

Filling the (Water softener) Dishwasher salt 11
Detergent use 12
Filling the detergent dispenser 12
inse aid 13
Filling the rinse aid dispenser 13
Loading the Dishwasher 14
Folding plate support rods 14
Three-way split cutlery basket 15
Upper basket height adjustment 15
Standard loading and testing institute information 6
Operating the Dishwasher 7
Unloading the Dishwasher 17
How to clean your Dishwasher 7
Filters 18
Upper spray arm 18
Lower spray arm 18
Before calling service / Trouble shooting 9
Guarantee Details 2
How to obtain service 22

4
specification
Because we continually strive to improve our
products, we may change our specifications and
designs without prior notice.
Diameter of plates for :
Upper basket : 25 cm max.
Lower basket : 31 cm max.
73/23/EC
89/336/EC
93/68/EC
IEC 436/DIN 44990
EN 50242
This appliance has been designed, constructed and
distributed in compliance with the safety requirements
of EC directives.
Load capacity : 12 place settings.
Load Capacity
Height
Width
Depth
Net weight
Supply voltage
Fuse currrent
Total power
Heater power
Pump powers
12 Place settings
820 mm
598 mm
570 mm
36 kg
220-240 V ~ 50 Hz
13 A
1900-2200 W
2000 W
125/30 W
:
:
:
:
:
:
:
:
:
Upper basket
Dishwasher salt cap
ower basket
Cutlery basket
Detergent and Rinse
aid dispenser
Upper
spray arm
ower
spray arm
Filters
Heating element
concealed behind
the liner
Programme indicator lights
On/Off button
70°C
60°C50°C
No Heat 35°C
Programme Selection Button
Start / Stop Button
inse aid level indicator light
Salt level indicator light
Start / Stop indicator light
CANCEL
P
3
ECONOMY
50°C
NORMAL
60°C
45
INTENSIVE
70°C
1
PRE-WASH
No Heat
RAPID
35°C
Please clean the filters regularly. Failure
to do so will result in poor cleaning,bad
smells, and damage to your dishwasher
which is not covered by the Guarantee.
Filter cleaning instructions are contained
in the Instruction Booklet.
WARNING !

The dishwasher should only be operated on
the voltage specified. For electrical safety,
only earthed plugs and sockets should be
used. Always use the fused plug provided
with the appliance. The user is responsible
for meeting these basic safety requirements.
The life of your machine and your safety
depend on you using an electrical installation
compliant to standards.
Do not use an extension cable.
When disconnecting your machine from the
mains supply, always pull from the plug.
Never pull the cord itself.
Never allow your children to play with your
dishwasher.
Dishwasher detergents contain irritants and
abrasives. These ingredients might have
caustic effects in the eyes, mouth and throat.
They can be extremely dangerous if
swallowed. Avoid contact with skin and eyes.
Check that the detergent receptacle is empty
after completion of the wash cycle.
Keep detergents out of childrens reach and
do not put detergent in the machine until
right before you start the washing
programme.
The water in your dishwasher is not suitable
for drinking, for this reason do not allow
your children near your machine when the
front door is open.
Never allow your children to play on or sit
onto the front door when the front door is
open.
After unpacking your machine, keep the
packing material out of childrens reach.
Warning !
ong cutlery, such as ladles and long knives,
etc must be placed horizontally on top of
the full cutlery basket or on the racks to
prevent accidental injury.
The appliance is not intended for use by
young children or infirm persons without
supervision.
This dishwasher has been designed to clean
your dirty dishes at home.
Never use chemical solvents in your machine;
this may lead to explosion risk.
Never use materials other than specially
produced softening salts in the salt dispenser
of your machine.
Never use materials other than specially
produced detergents and rinse-aids in the
detergent and rinse aid dispensers of your
machine.
Please dispose of the packaging material and
old appliances carefully. Please ensure old
machines do not become a threat to child safety.
It is known that children lock themselves in
unused machines. To avoid such a problem it
is advised that you cut the mains cable off and
break the door latch so it does not lock.
The door of your machine is designed to support
the weight of a full basket when the lower
basket is pulled all the way out. Never place
any other load on the door, otherwise the
machine may tip over.
After using the dishwasher always close the
door as an open door can be a hazard.
Do not open the door whilst the appliance is
in operation.
5

Please help us to protect our environment. Packing
materials and some parts of your machine are
produced using recyclable materials. These materials
are marked up with recycling symbol and material
type information (>PE<, >PS<, >POM<, ). These
raw materials should not be mixed with daily
garbage and should be given to recycling centers.
We suggest you contact your local authority for
disposal information and facilities available.
6
After unpacking your dishwasher, check the machine
against any possible transportation damage. Never
install and use damaged machines. If your machine is
damaged contact your retailer. Always have your
machine installed by qualified electrician/plumber to
ensure correct installation.
Any repairs and maintenance work on this dishwasher
should be carried out by authorised service staff only.
epairs conducted by third persons are not only
dangerous, but also lead to the cancellation of your
warranty.
Make sure the electricity and water connections of your
dishwasher are in compliance with the instructions for
assembly as stated in the relevant part of this booklet.
Any water remaining in the dishwasher after production
should be carefully removed due to reasons of hygiene.
Therefore, always select a pre-wash
programme before first use
(Pre-wash or Economy programme).
Before the first wash, add 1 lt of water to the
salt container of your machine.
This product bears the selective sorting
symbol for waste electrical and electronic
equipment (WEEE).
This means that this product must be
handled pursuant to European Directive
2002/96/EC in order to be recycled or dismantled
to minimize its impact on the environment. For
further information, please contact your local or
regional authorities.
Electronic products not included in the selective
sorting process are potentially dangerous for the
environment and human health due to the presence
of hazardous substances.
Do not wash items soiled with cigarette ash, candle,
paint wax, dyes, chemicals etc. since these may
damage your machine
Do not wash forks, knives and spoons with wooden
or bone handles, items stuck together with
adhesives, plastic items not resistant to high
temperatures copper, tin items and aluminium
ware in your dishwasher.
As with hand washing, some on-glaze
decorated china, aluminum or silver have a
tendency to discolour or fade. Also, certain
types of glassware and crystals may loose their
shine and become opaque in time.
Scrape excess food from the dishes before loading
Start your dishwasher after fully loading the
machine. Do not use the pre-wash programme
unless required. Make your programme selection
as per the programme chart and quick reference
guide supplied.
A chemical reaction can occur between silver cutlery
and stainless steel cutlery. As a precaution, do not
wash together.
Iron and cast iron objects can rust and stain other
items.
Pay special attention to whether or not the item you
wash in the dishwasher is dishwasher-proof.
If in doubt, contact the manufacturer of the item.
Do not overload your dishwasher or do not load items
other than those mentioned in this manual.

7

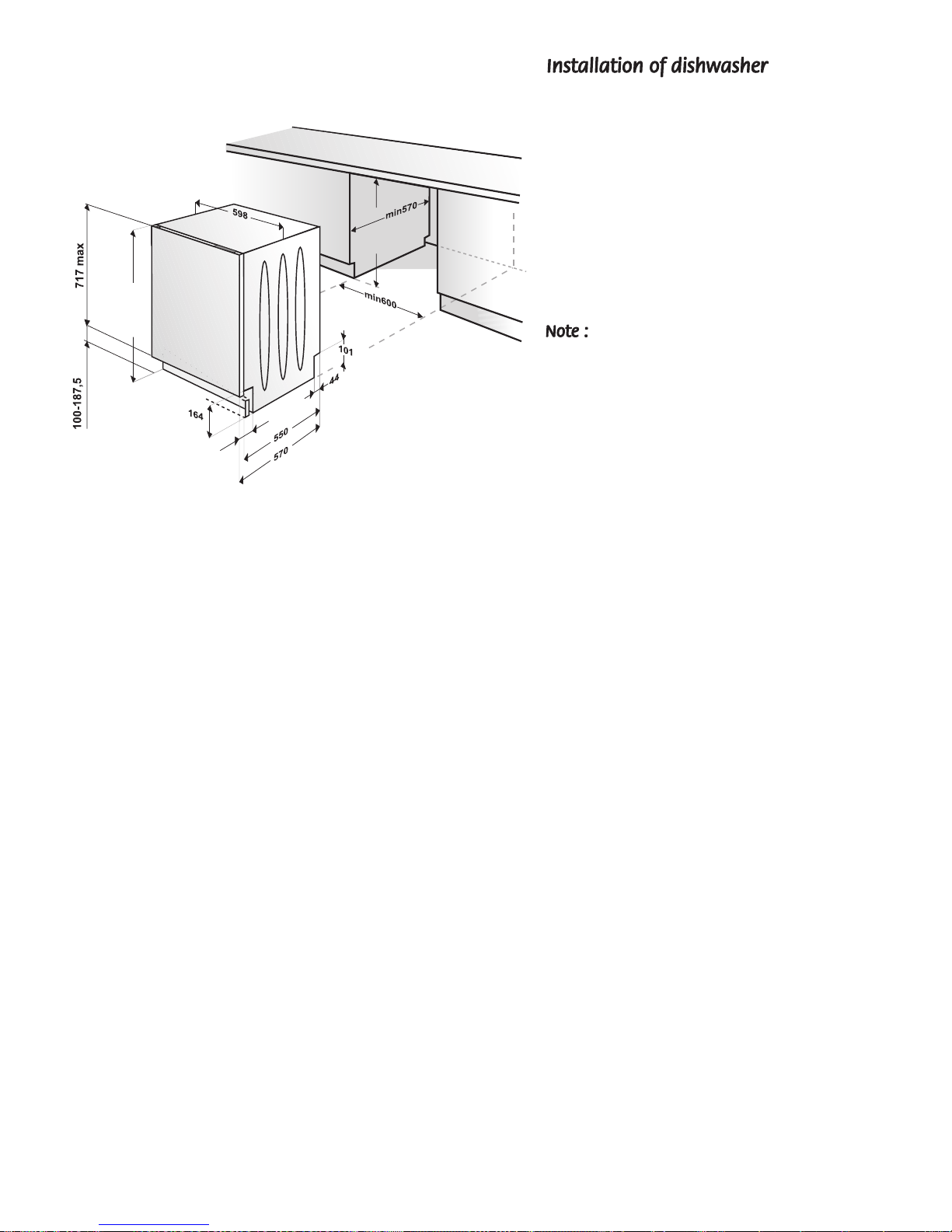

When deciding on where to install your new
dishwasher, ensure that the position of your
dishwasher makes it easy and quick for you to
place the dishes in the dishwasher and also to
take them out and store away after the
dishwashing is completed.
Avoid placing the dishwasher where the ambient
temperature is likely to fall below. 0 degrees
C. (32° F)
When positioning your appliance, take care not
to damage your flooring, pipes wall coverings
etc. Do not move the appliance by pulling by
the door or handle
Before you insert the plug into the wall socket
make sure that the voltage and the frequency
shown in the rating label corresponds to your
electricity supply.
We recommend that this appliance be
connected to the mains supply via a suitable
switched and fused socket in a readily accessible
position.
Should the mains lead of the appliance become
damaged or need replacing at any time, it must
be replaced by a special purpose made mains
lead which can only be obtained from an
authorised service agent.
If the supply cord or the mains lead is damaged
please do not replace it by your own. The
supply cord or the mains lead must be replaced
by an authorised service agent or a similar
qualified person.
If the fitted moulded plug is not suitable for
your socket, then the plug should be cut off
and an appropriate plug fitted.
Destroy the old plug, which is cut off as a plug
with a bared cord could cause a shock hazard
if inserted into a socket elsewhere in the house.
The moulded plug on this appliance
incorporates a 13A fuse. Should the fuse need
to be replaced an ASTA approved BS1362 fuse
of the same rating must be used. Do not forget
to refit the fuse cover. In the event of losing
the fuse cover, the plug must not be used until
a replacement fuse cover has been fitted.
Colour of the replacement fuse cover must be
the same colour as that visible on the pin face
of the plug. Fuse covers are available from any
good electrical store.
As the colours of the wires in the mains lead of
this appliance may not correspond with the
coloured markings identifying the terminals on
your plug, proceed as follows:
1 Connect the green - yellow or green (earth)
wire to the terminal in the plug marked E or
with the symbol or coloured green and
yellow or green.
2 Connect the blue (neutral) wire to the terminal
in the plug marked N or coloured black.
3 Connect the brown (live) wire to the terminal
in the plug marked L or coloured red.
With the alternative plugs a 13A fuse must be
fitted either in the plug or adaptor or in the
main fuse box. If in doubt contact a qualified
electrician.
L
Brown or red
N
Blue or
black
Green and yellow
or green

Make sure your plumbing is suitable to
install your new dishwasher. If in doubt
contact a qualified plumber.
The appliance must be connected to the
water mains using the new hose set
supplied with your new dishwasher. Old
hose sets must not be re-used.
The water pressure coming from the water
mains supply must be a minimum of 0.3 and a
maximum of 10 MPa.
Fit the drainage hose of your machine
to the drainage pipe without bending.
Secure your hose firmly to the waste
pipe to avoid it coming off during the
washing process.
The waste pipe must only be connected
into the foul drains and not surface water
drainage system.
The hose should be placed between
50 cm and 110 cm from the floor level
and must not be extended otherwise the
machine may not empty the waste water.
Connect the straight end to your water
mains supply Ensure plastic filter and
black rubber seal is in place.
Please turn on the tap and check for
leakages after connecting the hose.
Please ensure the tap is turned off when
the machine is not used;
If you only have one cold water feed (For
example for your washing machine) dont
worry. a Y adaptor will provide you with
the additional cold water feed you need
for your dishwasher. Y adaptor is available
from most DIY stores.
1
8
max 110 cm
01020 30 40
50
60 70 80 90 100 110
12cm
min 4cm
max 110 cm
min 50 cm
18
21
1

An additional sheet containing assembly and
installation instructions is provided with your
appliance. Please follow the instructions and pre-
cautions contained in the mentioned sheet in
order to assemble and install your dishwasher
easily and correctly.
See the diagram on the left and also the additional
sheet. Ensure there is a clearance each side of the
machine to allow slight side ways movement for
servicing.
Position the machine next to a water tap and a
drain.
When inserting the machine, ensure that the
water inlet and drain hoses are not kinked or
squashed.
Care must be taken to ensure that the appliance
does not stand on the electrical supply cable.
Good levelling is essential for correct closure and
sealing of the door,
Make sure your dishwasher is perfectly level using
the adjustable feet.
When the appliance is correctly levelled, the door
will not catch on the inner liner on either side of
the cabinet.
If the door does not close correctly, loosen or
tighten the adjustable feet, until the machine is
perfectly level.
Ensure that door furniture is fitted properly and
check that door does not catch any other surface
to ensure door closed smoothly.
9
max 100
(+100)
(+100)
820-920
(+100)
820-920
