POWERFLUE GAS FIRES
Installation, Maintenance & User Instructions
Hand these instructions to the user
Model No’s FVPC**MN & FVPP**MN are for use on Natural Gas (G20)
at a supply pressure of 20 mbar in G.B. / I.E.
** denotes fascia / colour variant

CONTENTS
Section 1 Information and Requirements PAGE
1.0 Appliance Information 3
1.1 Conditions of Installation 4
1.2 Flue terminal position 5
1.3 Fireplace / surround suitability 6
1.4 Fire place opening / catchment space 6
1.5 Shelf position 6
1.6 Installation types 7-9
1.7 Hearths 9
1.8 Spillage monitoring system 9
Section 2 Installation of Fire
2.1 Unpacking the fire 10
2.2 Marking the flue pipe opening 10
2.3 Marking / making the fan unit recess (Inset fan installations) 11-13
2.4 Marking the fan unit spacer position (Outset fan installations) 14-16
2.5 Securing the fan box / running the gas supply pipe 17-19
2.6 Making the electrical connection 20
2.7 Gas tightness and inlet pressure 21
Section 3 Assembling Fuel Bed and Commissioning
3.1 Assembling the ceramics and fuel bed (Linear pebble models) 22-24
3.2 Assembling the ceramics and fuel bed ( enilworth & Linear models) 24-27
3.3 Lighting the appliance 29
3.4 Checking for clearance of combustion 30
products
Section 4 Maintenance
4.1 Removal of the Burner Assembly 31
4.2 Removal of the Piezo Igniter 31
4.3 Removal of the Control Tap 32
4.4 Removal of the Thermocouple 32
4.5 Removal of the Solenoid 32
Spare Parts Shortlist / Wiring Diagram 33
Section 5 User Instructions
5.1 Installation information / about your new fire 34-36
5.2 Lighting the appliance 37
5.3 Cleaning instructions 38
5.4 Re-assembling the ceramics and fuel-bed 39-45
Efficiency Declaration
The efficiency of this appliance has been measured as specified in BS EN 13278 and the
result is 48%. The gross calorific value of the fuel has been used for this efficiency
calculation. The test data from which it has been calculated has been certified by GL
Industrial Services U Ltd. The efficiency value may be used in the U Government’s
Standard Assessment Procedure (SAP) for energy rating of dwellings.
This appliance is manufactured by :-
BFM Europe Ltd, Trentham Lakes, Stoke-on-Trent, ST4 4TJ
2

SECTION 1
INFORMATION AND REQUIREMENTS
1.0 APPLIANCE INFORMATION
Model FVPC**MN
FVPP**MN
** denotes fascia / colour variant
Gas Type G20
Main injectors (2 off) Size 260
Pilot Type Copreci
Single Flame
21100 / 141
Max. Gross Heat Input : 6.9 kW
Min. Gross Heat Input : 4.2 kW
Cold Pressure : 20.0 +/-1.0 mbar
Ignition : Push-button Piezo
Supply Voltage : 230V a.c.
Supply Frequency : 50Hz
Supply Fuse : 3 Amp to BS 1362
Power Input : 60W
IP Rating : IP00
Electrode Spark Gap 4.0mm
Packed Weight : 18.5 kg enilworth Brass, 16.5 kg Black &
Chrome
Packed Weight : 16.5 kg Linear Coal, 15.0 kg Linear Pebble
Fire box Dimensions (with trim’s / fascia’s fitted)
Width : (with standard trim) 470mm
Height : (with standard trim) 586mm
Depth : (overall-without fender) 170mm
Gas Connection : 8mm Compression (Supplied with fire)
3

INSTALLATION REQUIREMENTS
1.1 CONDITIONS OF INSTALLATION
It is the law that all gas appliances are installed only by a GAS SAFE Registered
Installer, in accordance with these installation instructions and the Gas Safety
(Installation and Use) Regulations 1998 as amended. Failure to install appliances
correctly could lead to prosecution. It is in your own interest and that of safety to
comply with the law.
The installation must also be in accordance with all relevant parts of the Local and
National Building Regulations where appropriate, the Building Regulations
(Scotland Consolidation) issued by the Scottish Development Department, and all
applicable requirements of the following British Standard Code of Practice.
1. B.S. 5871 Part 2 Installation of Inset Fuel Effect Gas Fires
2. B.S. 6891 Installation of Gas Pipework
3. B.S. 5440 Parts 1 & 2 Installation of Flues and Ventilation
4. B.S. 1251 Open fire place components
5. B.S. 715 Metal flue pipes for gas appliances
6. B.S. 6461 Part 1 Installation of Chimneys and flues
7. I.S. 813 : 1996 Domestic Gas Installation (Republic of Ireland)
No purpose made additional ventilation is normally required for this
appliance, when installed in G.B. When Installing in I.E. please consult
document I.S. 813 : 1996 Domestic Gas Installation, which is issued by the
National Standards Authority of Ireland. If installing in Northern Ireland,
please consult local building regulations. Any purpose made ventilation
must be checked periodically to ensure that it is free from obstruction.
4

1.2 FLUE TERMINAL POSITION
The minimum acceptable dimensions from the flue terminal to obstructions and
ventilation openings are shown below in fig. 1 and listed in the table (fig. 2 below)
IT IS IMPORTANT THAT THE POSITION OF THE FLUE ALLOWS THE FREE
PASSAGE OF AIR ACROSS IT AT ALL TIMES.

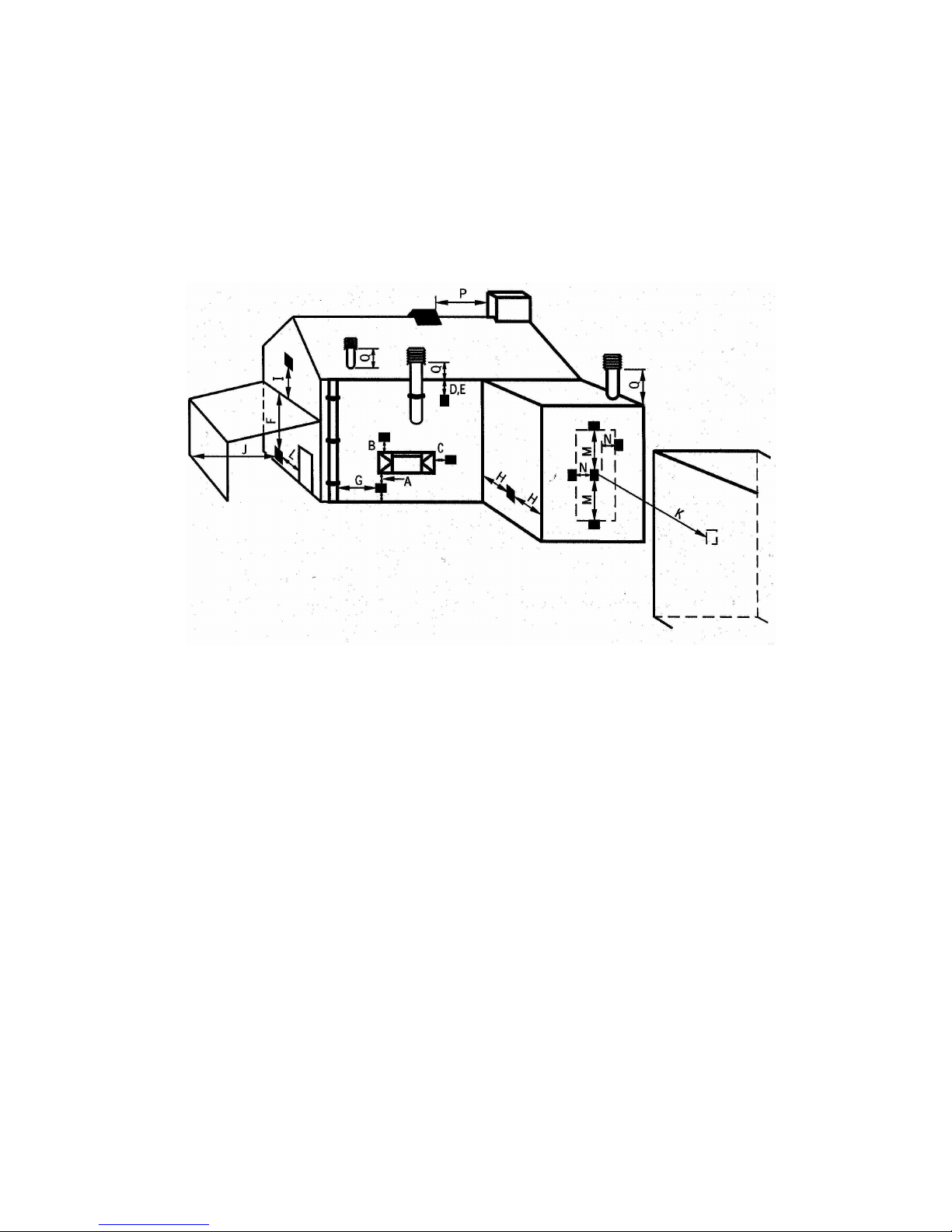

Fig. 1
Fig. 2
DIMENSION TERMINAL POSITION MINIMUM DIMENSION
A Directly below an opening, air brick, 300mm (12 in.)
opening window
B Above an opening, air brick, 300mm (12 in.)
opening window
C Horizontally to an opening, air brick, 300mm (12 in.)
opening window etc.
D Below gutters, soil pipes or drain pipes 75mm (3 in.)
E Below eaves 200mm (8 in.)
F Below balconies or car port roof 200mm (8 in.)
G From a vertical drain pipe or soil pipe 150mm (6 in.)
H From an internal or external corner 200mm (8 in.)
I Above ground roof or balcony level 300mm (12 in.)
J From a surface facing the terminal 600mm (24 in.)
From a terminal facing the terminal 1200m (48 in.)
L From an opening in the car port 1200m (48 in.)
M Vertically from a terminal on the same wall 1500mm (59 in.)
N Horizontally from a terminal on the 300mm (12 in.)
same Wall
O From the wall on which the terminal is mounted 50mm (2 in.)
P From a vertical structure on the roof N/A
Q Above intersection with roof 150mm
5

1.3 FIREPLACE / SURROUND SUITABILITY
The fire must only be installed on a hearth it must not be installed directly onto
carpet or other combustible floor materials. The fire is suitable for fitting to
non-combustible fire place surrounds and proprietary fire place surrounds with a
temperature rating of at least 150oc. If a heating appliance is fitted directly against
a wall without the use of a fire surround or fire place all combustible material must
be removed from behind the trim. Soft wall coverings such as blown vinyl, wall
paper etc. could be affected by the rising hot air and scorching and/or discoloration
may result. Due consideration should be made to this when installing or
decorating.
1.4 FIRE PLACE OPENING
The front opening of the fire place must be between 375 and 440 mm wide, and
between 550 and 570mm high. If the opening exceeds these dimensions then a
surround must be constructed from suitable non-combustible material to produce a
correct size opening. Any surround must be suitably sealed to the fire place to
prevent leakage. See below in fig.3
1.5 SHELF POSITION
The fire may be fitted below a combustible shelf providing there is a minimum
distance of 200mm above the top of the fire and the shelf does not project more
than 150mm. If the shelf overhangs more than 150mm the distance between the
fire and the shelf must be increased by 15mm for every 25mm of additional
overhang over 150mm.
6
Fire Opening
375mm Minimum
440mm Maximum
550mm Minimum
570mm Maximum
Minimum Flat
Sealing Area
Fig. 3
610mm Minimum
520mm Minimum

1.6 INSTALLATION TYPES
This fire can be fitted against an outside facing facing flat wall surface or into a
fireplace opening cut into the wall.
When fitting the fire in front of the inner cavity wall, the distance between the
mounting face of the fire and the rear face of the firebox must be a minimum of
170mm, a false chimney breast or fireplace surround should be constructed. The
firebox must then be secured into the fireplace using the method described in
section 2. Any combustible material must be removed from the the area around
the firebox flange. In all installations, ensure that there is no structural damage to
the property or the damp course. See fig. 4 below
When fitting the fire into a cavity wall, this requires the opening of the inner leaf
of brickwork, to recess the firebox into. The opening needs to be sufficient to
accomodate the firebox. To support the wall above the hole, a suitable lintel must
be inserted across the top of the opening. If fitting the appliance into a cavity wall,
a lintel 750mm long having a thickness of 75mm with a height of the inner wall
should be used. The lintel could be either pre-cast concrete or steel - Catnic
CN52 or CN 46 could be used, depending upon the inner wall thickness. Before
proceeding with the installation of the fire, an assessment of the area immediately
above the fire is required, see Fig. 5 overpage. If there is no existing openings
within either triangle, proceed with forming the opening. However, if opening or
beams occur within either triangle, then you should seek specialist advice from a
structural engineer or consider relocating the proposed position of the firebox.
7

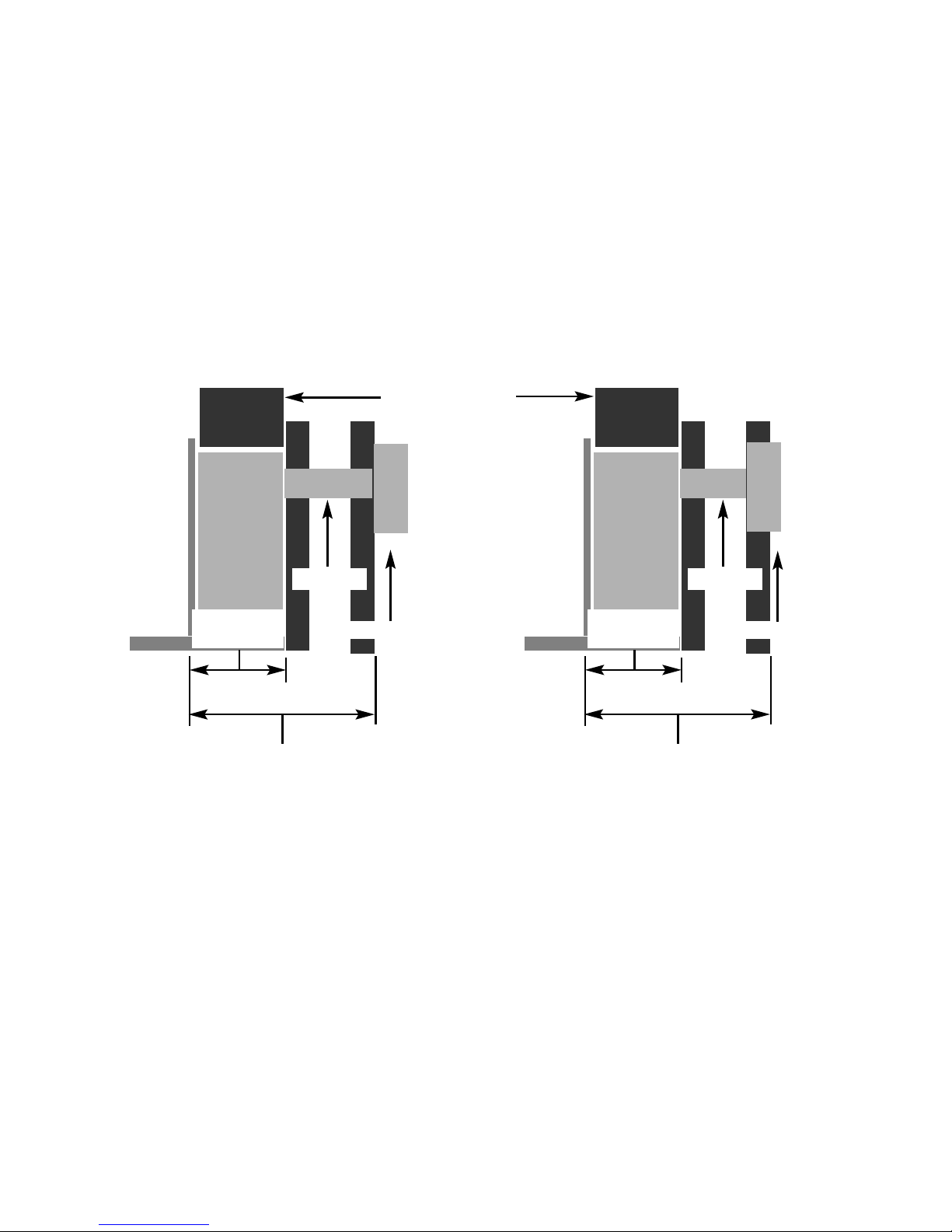

Fan Unit Outset
False Chimney
Breast or Fireplace
Rebate
170mm All
Models
570mm Maximum with standard flue duct
supplied and with fan unit outset
Fig. 4
Flue Pipe
Fan Unit Inset
170mm All
Models
Flue Pipe
715mm Maximum with standard flue duct
supplied and with fan unit inset
Up to 5000mm (5 metres) maximum with up to 3 off 90 degree bends with optional extra flue duct
components is available - see spare parts list for part numbers
150mm is minimum
flue length

Fig. 5
To proceed with the installation when the above stated criteria have been
satisfied :-
Mark out where possible, centrally beneath a block joint where the lintel is to be
fitted. Unless lime mortar has been used it will be necessary to drill four holes
with a masonary drill, then use a mechanical cutter such as a “shark saw” to cut
out the correct size of slot in the inner leaf of brickwork for the lintel you have
chosen to install. See fig. 6 below.
Fig. 6
Fit the lintel, ensure that it is bedded on mortar. Do not bed on a dry bed.
Then remove all debris from the cavity and construct the opening to the minimum /
maximum opening sizes as shown overpage (fig. 7) and in section 1.4, (fig. 3)
8
Opening Height
550mm Minimum
570mm Maximum
Firebox recess in
wall
400mm interactive
area
600mm load
triangle
The Interactive Zone -
Openings, beams or joists within
this area need to be assessed.
Load triangle - o beam or
opening permissible within this
area
Lintel
e.g. 750mm x 75mm
50mm Minimum Hearth Thickness
Opening Width
375mm Minimum
440mm Maximum

Remove any combustible material from within the area of the opening. No
combustible material can be allowed to come into contact with any area of the
appliance.
Fig. 7
1.7 HEARTHS
This appliance must only be installed on to a concrete or non-combustible hearth.
The hearth material must be a minimum thickness of 12mm with the top surface at
least 50mm above the floor. The hearth must be fitted symmetrically about the fire
opening and have a minimum width of 760mm and a minimum projection of
300mm forwards from the fire opening.
1.8 SPILLAGE MONITORING SYSTEM
This appliance is fitted with an atmosphere sensing spillage monitoring system in
the form of an oxygen sensing burner. This is designed to shut the fire off in the
event of a partial or complete blockage of the flue causing a build up of
combustion products in the room in which the fire is operated. The following are
important warnings relating to this spillage monitoring system :-
1) The spillage monitoring system must not be adjusted by the installer.
2) The spillage monitoring system must not be put out of operation.
3) When the spillage monitoring system is exchanged only a complete original
manufacturers part may be fitted.
Lintel must project
Minimum of 150mm
each side of the
opening
Opening Sizes Width :-
375mm Minimum
440mm Maximum
Opening sizes Height :-
550mm Minimum
570mm Maximum
Ensure that the recess that is cut is to the required
dimensions and is screed level so that the firebox will
sit level within the recess.
9

SECTION 2
INSTALLATION OF FIRE
2.1 UNPAC ING THE FIRE
Carefully lift the fire out of the carton. Remove the loose item packaging carefully
from the front of the appliance. Check the contents as listed :-
Packing Check List - All Models
1 off Fire box / burner assembly & standard flue pipe
1 off Boxed fuelbed base, ceramic front rail and 18 synthetic coals or 14
synthetic pebbles
1 off Loose items bag including isolation valve and olive.
1 off Installation, maintenance & user instruction book (combined)
1 off Fret / Ashpan cover
1 off Trim
1 off Rope seal, fan box clamping plate, fan spigot & fixing screws (packed in
loose items)
1off Boxed fan unit (Pack 2 of 2)
2.2 MAR ING THE FLUE PIPE OPENING ON THE WALL (ALL MODELS)
Drill a pilot hole into the outer leaf of brickwork at a height of 482mm from the
hearth level, centrally about the firebox, then create a square hole 100mm / 4 inch
vertically central to the centre line of the appliance. See fig. 8 below.
NOTE : If the fire is to be fitted against the inner cavity wall, the inner and
outer cavity walls will require the 100mm / 4 inch hole creating
Fig. 8
10
Inner
Cavity Wall
Outer
Cavity Wall
482mm to Centre
of Flue Pipe from
bottom of opening
100mm / 4 inch
square hole
IMPORTANT NOTE ::
DO NOT FIT THIS APPLIANCE FAN UNIT ABOVE A HEIGHT OF
1.4M FROM GROUND LEVEL
MAXIMUM
1.4 METRE

2.3 MAR ING / MA ING THE FAN UNIT RECESS ON THE OUTER
WALL (WHEN INSET FAN UNIT INSTALLATION IS REQUIRED).

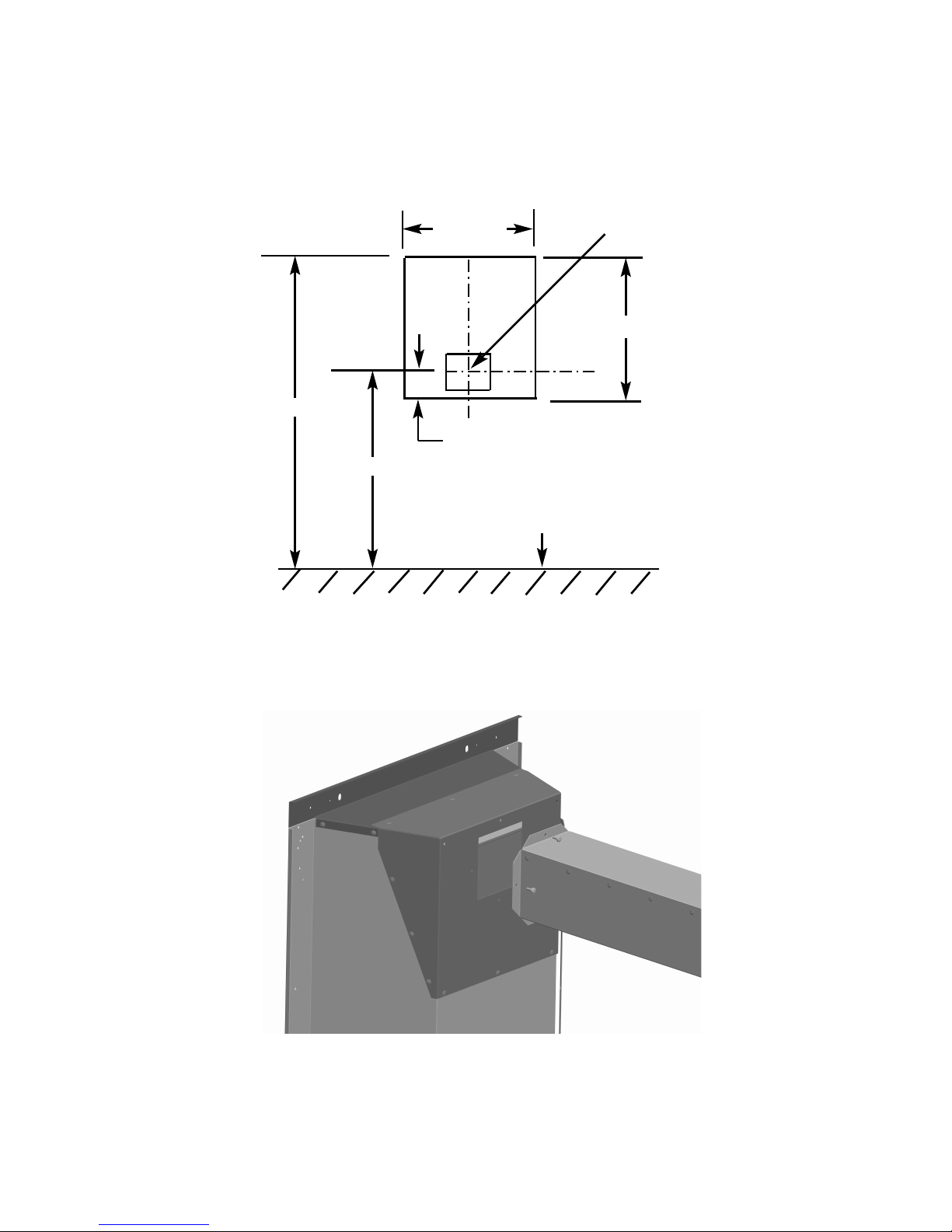

2.3.1 Cut the opening for the fan unit and the flue pipe duct in the outer wall
as shown below in Fig. 9.
2.3.2 To proceed with the installation, take the flue pipe (400mm in length)
and secure to the firebox as shown below in Fig. 10, with the 4 off fixing
screws supplied.
Fig. 10
2.3.3 Carefully place the firebox and flue pipe together into the builders
opening and allow the flue pipe to protrude through the hole in the outer
cavity wall.
11
Hearth Level
Centre Point of
Flue Duct
250mm
482mm
632mm
65mm
Fig. 9
320mm

2.3.4 Mark the flue pipe in line with the outer wall surface.
NOTE :- When cutting the flue pipe to length, allowance for the rebate
on the fire surround used or false chimney breast constructed must be
taken into account, if the surround or false chimney breast is not
already in place.
2.3.5 Subtract 145mm from the cut line as marked in section 2.3.4, to account
for the recessed fan unit, then cut the flue pipe. Secure the firebox /
and run the gas supply into the firebox as detailed in section 2.5
2.3.6 The electrical connection should be completed to the mains supply via a
3 amp fused switched spur or 3 pin socket and 3 amp plug. DO NOT
MA E THE FINAL ELECTRICAL CONNECTION AT THIS POINT. The
product is supplied with 2.5 metres of three core mains cable, this cable
should be routed as inconspicuously as possible, i.e. chased into the
plaster.
2.3.7 Route the five core cable that runs from the firebox to the fan unit within
the opening, ensure that it is not trapped or coming into contact with the
firebox. Position the molex connector through the opening in the outer
wall, for connection to the fan chassis later in the installation.

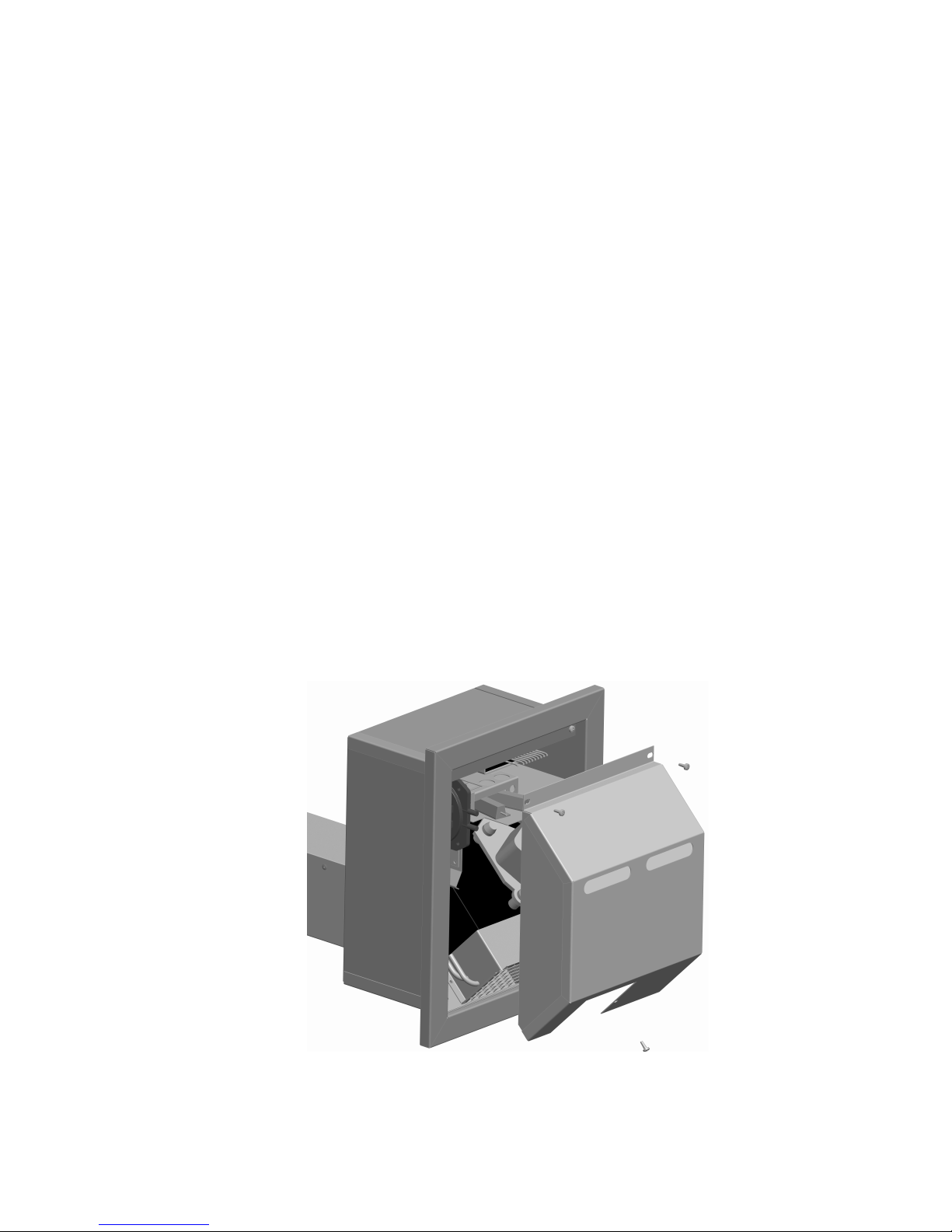

2.3.8 Remove the fan box cover as shown below in Fig. 11 via the three
screws.
Fig. 11
2.3.9 Remove the 2 off lower self tapping screws and loosen the 2 off pan
head screws that hold the fan chassis in position and then lift the fan
chassis and gasket clear and store in a safe position.
12

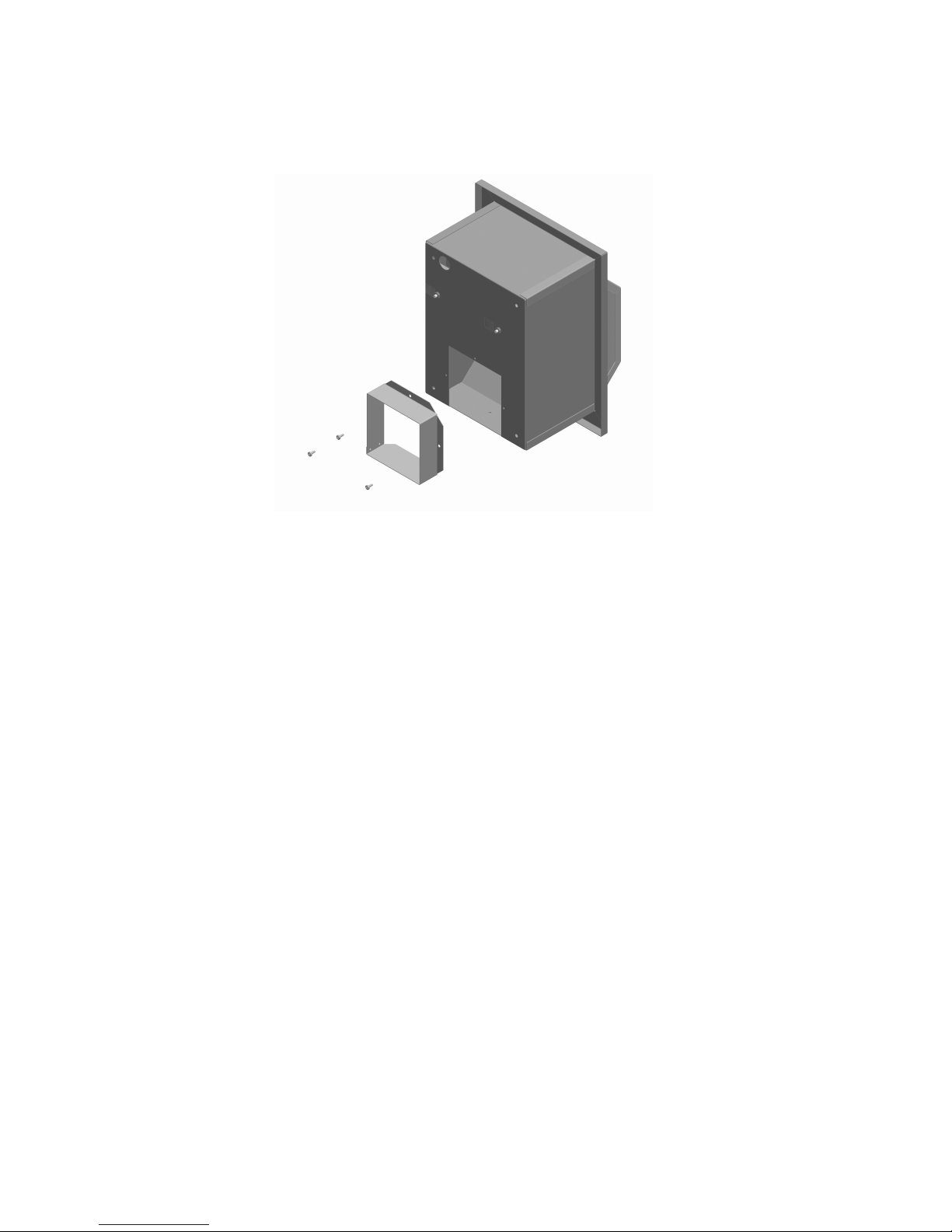

2.3.10 Fit the flue spigot to the fan box as shown below in Fig. 12 with 3 off
screws supplied in the loose items pack.
Fig. 12
2.3.11 Fit the 5 core cable through the grommet (slit the grommet) in the fan
box cover. Insert the fan box into the opening as cut in section 2.3.1,
Fig. 9
2.3.12 Fix the fan box to the outer skin of brickwork by using the 3 off bolts to
secure it. Ensure it is fitted centrally around the flue pipe opening.
2.3.13 Fit the fibre glass rope seal as supplied in the loose items pack into the
gap between the flue pipe and ensure it is flush with the edge of the flue
pipe.
2.3.14 Secure the cable gland to it’s bracket on the fan carrier and then
connect the fan power cable via the molex connector block to the fan
chassis, (see section 2.6, Fig. 22)
2.3.15 Replace the fan chassis and it’s gasket into the fan unit in reverse order
to section 2.3.9
2.3.16 Replace the fan cover via the three screws in reverse order to section
2.3.8 / Fig. 11.
2.3.17 Run a bead of mastic around the fan box between the fan and the wall
to prevent water ingress.
13

2.4 MAR ING THE FAN UNIT SPACER POSITION ON THE OUTER
WALL (WHEN OUTSET FAN UNIT INSTALLATION IS SPECIFIED).

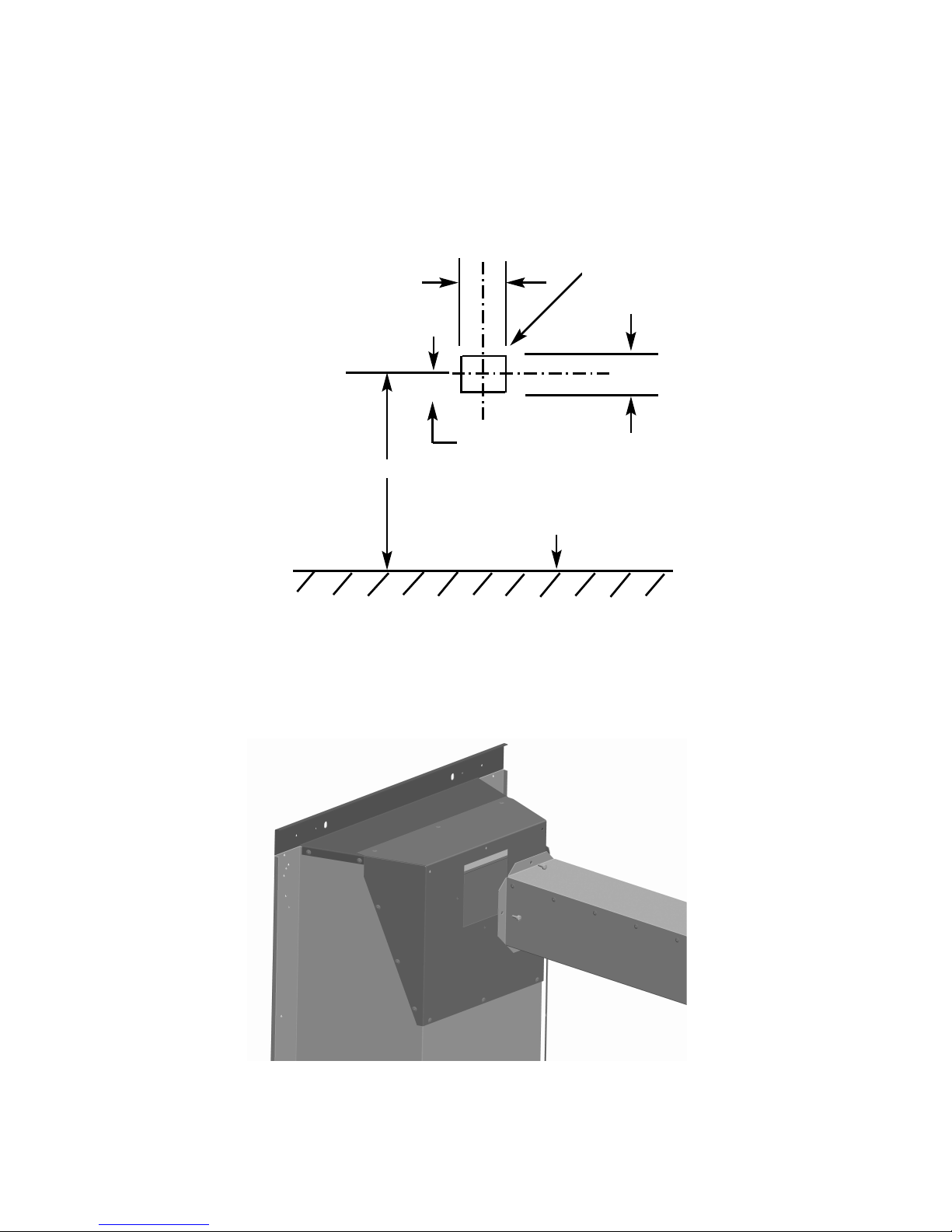

2.4.1 Cut the opening for the fan flue duct in the outer wall as shown below in
Fig. 13.
Fig. 13
2.4.2 To proceed with the installation, take the flue pipe (400mm in length)
and secure to the firebox as shown below in Fig. 14, with the 4 off fixing
screws supplied.
Fig. 14
14
Hearth Level
Centre Point of
Flue Duct
482mm
65mm 100mm
100mm

2.4.3 Mark the flue pipe in line with the outer wall surface so that it can be cut
to length.
NOTE :- When cutting the flue pipe to length, allowance for the rebate
on the fire surround used or false chimney breast constructed must be
taken into account.
2.4.4 Cut the flue to length, as marked in section 2.3.3. Secure the firebox
and run the gas supply into the firebox as detailed in section 2.5.
2.4.5 The electrical connection should be completed to the mains supply via a
3 amp fused switched spur or 3 pin socket and 3 amp plug. DO NOT
MA E THE FINAL ELECTRICAL CONNECTION AT THIS POINT. The
product is supplied with 2.5 metres of three core mains cable, this cable
should be routed as inconspicuously as possible, i.e. chased into the
plaster.
2.4.6 Route the five core cable that runs from the firebox to the fan unit within
the opening, ensure that it is not trapped or coming into contact with the
firebox. Position the molex connector through the opening in the outer
wall, for connection to the fan chassis later in the installation.
2.4.7 Remove the fan box cover as shown below in Fig. 15 via the three
screws.
Fig. 15
2.4.8 Remove the 2 off lower self tapping screws and loosen the 2 off pan
head screws that hold the fan chassis in position and then lift the fan
chassis and gasket clear and store in a safe position.
15

2.4.9 Remove the 2 off lower self tapping screws and loosen the 2 off pan
head that hold the fan chassis in position and then lift the fan chassis
and gasket clear and store in a safe position.
2.4.10 Fit the flue spigot to the fan box as shown below in Fig. 16 with 3 off
screws supplied in the loose items pack.
Fig. 16
2.4.11 Fit the 5 core cable through the grommet (slit the grommet) in the fan
box cover.
2.4.12 Fix the fan box to the outer skin of brickwork by using the 3 off bolts to
secure it. Ensure it is fitted centrally around the flue pipe opening.
2.4.13 Fit the fibre glass rope seal as supplied in the loose items pack into the
gap between the flue pipe and ensure it is flush with the edge of the flue
pipe.
2.4.14 Secure the cable gland to it’s bracket on the fan carrier and then
connect the fan power cable via the molex connector block to the fan
chassis (see section 2.6, Fig. 22)
2.4.15 Replace the fan chassis and it’s gasket into the fan unit in reverse order
to section 2.4.8.
2.4.16 Replace the fan cover via the three screws in reverse order to section
2.4.7.
2.4.17 Run a bead of mastic around the fan box between the fan and the wall
to prevent water ingress.
16

2.5 SECURING THE FIREBOX IN THE FIREPLACE OPENING /
RUNNING THE GAS SUPPLY PIPE.
2.5.1 Mark out and drill 4 off No 14 (6mm) holes in the back face of the fire
opening (inner face of the outer cavity wall in most instances) in the
positions shown below in fig. 17
Fig. 17
2.5.2 Fit the wallplugs provided and screw the fixing eyes securely into the
rear of the fire opening. If the clearance at the rear of the fire is at the
minimum specified for a powerflue application, it may be necessary to
bend over the lower fixing eyes after screwing them fully in to the rear
of the outer cavity wall inner face.
2.5.3 Run the gas supply in from the right hand side of the firebox as shown
below in Fig. 18
Fig. 18
2.5.4 Continue with the fan unit installation as detailed in section 2.3.6
(Inset fan installation) or section 2.4.5 (Outset fan installation)
Firebox
Approx.
60mm
Fireplace
Gas Supply
Flue Pipe
Fan Unit
17
20mm
325mm
100mm
500mm Fireplace Opening

Proceed as follows to remove the burner assembly from the firebox :-

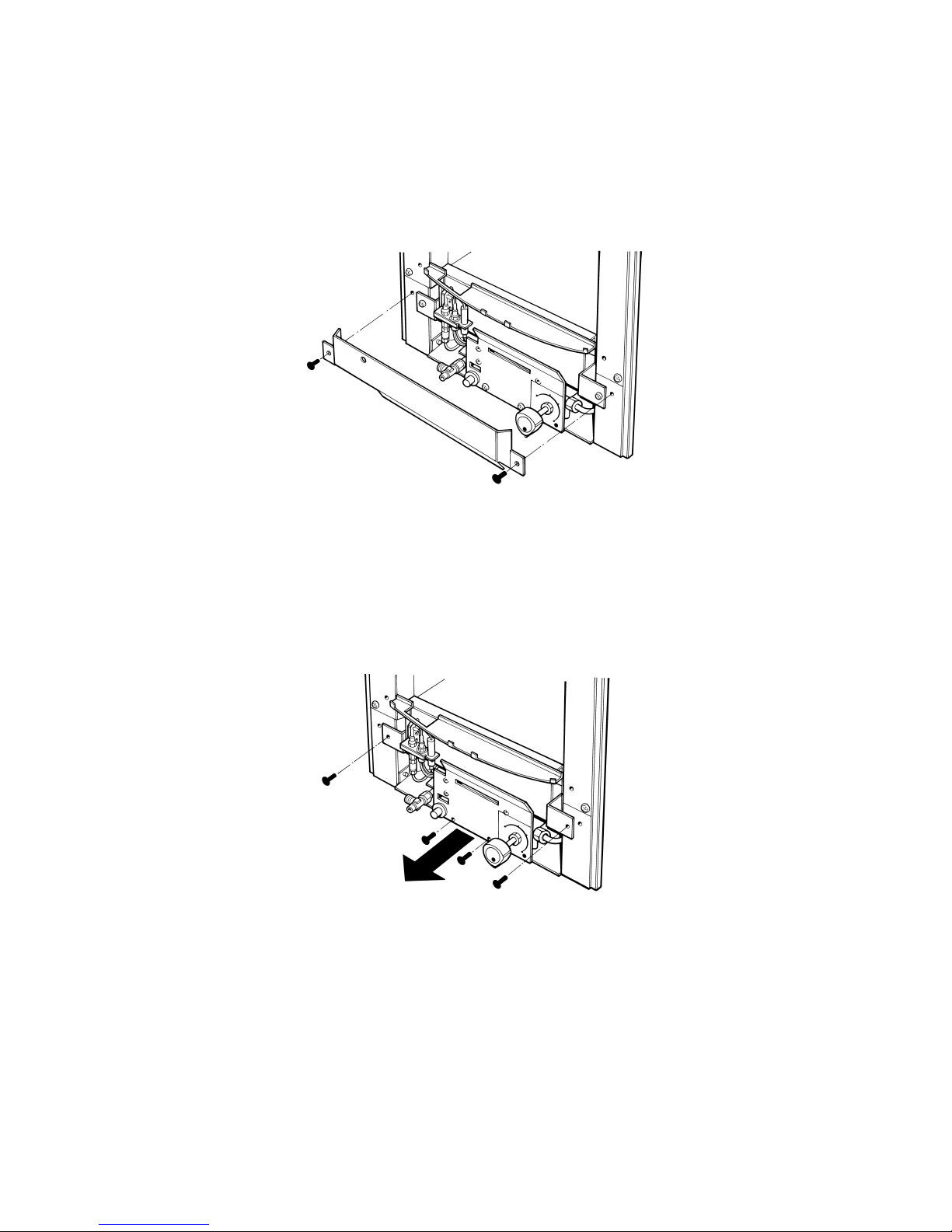

2.5.5 Remove the burner heat shield from the front of the fire box to allow
access to the burner, as shown below in fig. 19
Fig. 19
2.5.6 Break the connection between the pressure test point elbow and the
solenoid block. Remove the four retaining screws securing the burner
to the firebox. The base of the burner unit can now be pulled
forward, allowing the burner to be removed from the fire box.
See fig. 20 below.
Fig. 20
2.5.7 Uncoil the two fire fixing cables and thread one end of each of the
cables through one of the two holes on each side of the flue outlet
shroud.
2.5.8 Position the fire carefully on the (protected) surface of the hearth and
reach into the fire opening. Thread each of the cables vertically
downwards through the pair of fixing eyes on the same side of the fire.
Thread the free end of the cables through the corresponding circular
hole on each side of the lower rear of the fire. Carefully slide the fire
box back into the fire opening and pull both cables tight.
18

2.5.9 Thread a tensioning screw over each of the cables and ensure that the
tensioning nut is screwed fully up against the hexagon shoulder of the
tensioning screw (this provides maximum travel for the tensioning nut).
2.5.10 Fit a screwed nipple on to each of the cables and pull hand tight up
against the tensioning screw, then secure each nipple with a flat
bladed screwdriver. See fig. 21 below.
Fig. 21
2.5.11 Evenly tighten the tensioning nuts to tension both cables and pull the
fire snugly against the wall. Do not overtighten, it is only necessary to
pull the seal up against the sealing face of the wall, it does not need to
be compressed. Check that there are no gaps behind the seal.
2.5.12 With the fire securely in place, if a concealed gas connection has been
made through the access holes in the R/H side of the fire, the hole
should be closed around the pipe to prevent leakage of air
through the gap around the pipe.
2.5.13 Situate the isolation valve, supplied in the loose items pack at a
convenient point in the installation.
2.5.14 Refit the burner. Fit the four retaining screws and check that the burner
is correctly locked into position. Before making the final gas connection
to the solenoid valve, thoroughly purge the gas supply pipework to
remove all foreign matter, otherwise serious damage may be caused to
the gas control valve on the fire.
NOTE :- Failure to correctly purge the pipework will invalidate the
guarantee
19

2.6 MA ING THE ELECTRICAL CONNECTION.
WARNING : THIS APPLIANCE MUST BE EARTHED AND SHOULD BE
PREFERABLY CONNECTED VIA A 3 AMP FIXED FUSED
SPUR WITH A MINIMUM CONTACT SEPARATION OF 3MM.
IT MAY HOWEVER BE CONNECTED TO A 3 PIN PLUG TO
BS 5733, THAT IS FITTED WITH A 3 AMP FUSE TO BS
1362.
2.6.1 Remove the painted fan box cover, secured with 3 off screws as shown
in fig 15, page 15.
Fig. 22

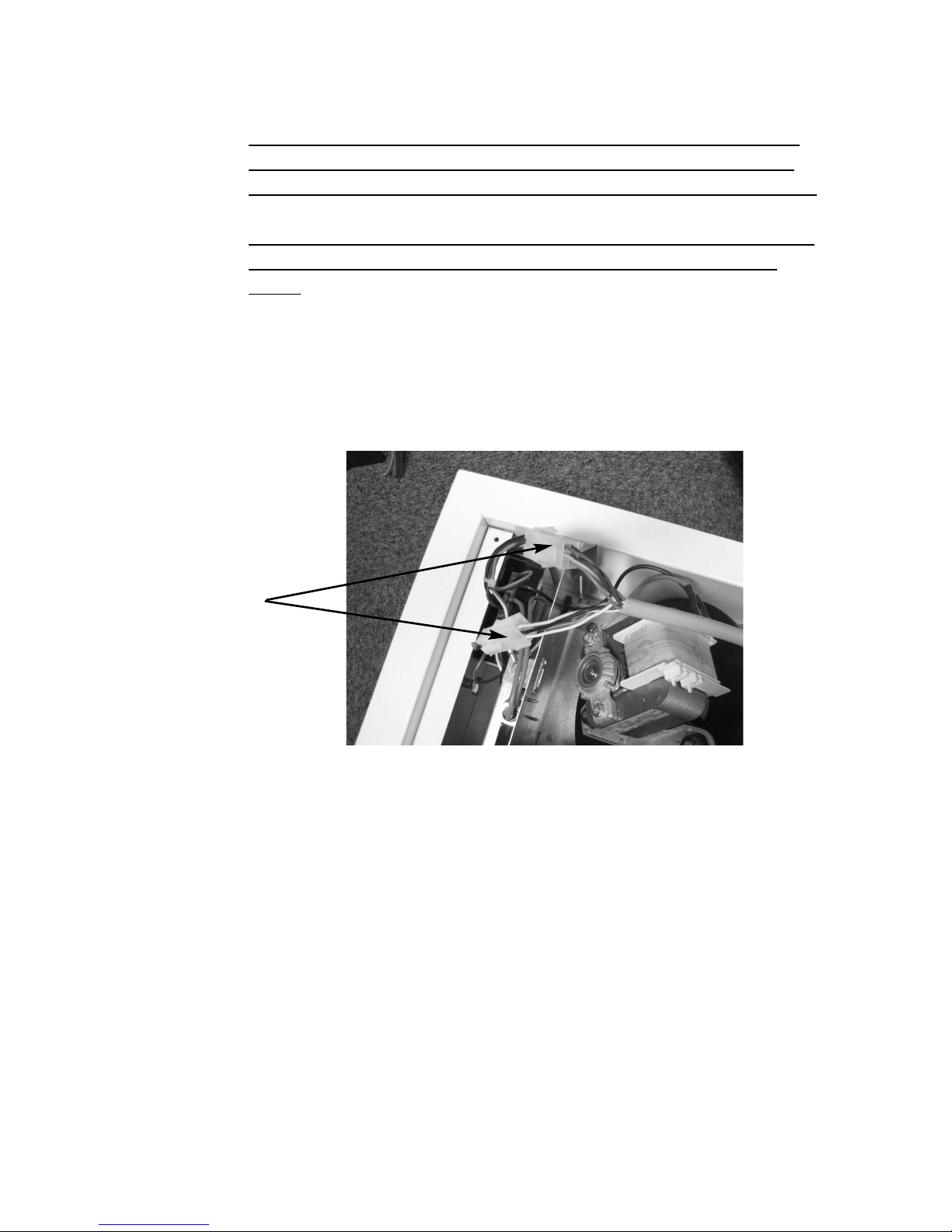

2.6.2 Connect the 2 off 6 way molex connectors to the fan power cable
emerging from the electronic circuit board, as shown below in Fig. 22
2.6.3 Replace the fan box cover and secure with 3 off screws as shown in
fig. 15 on page 15.
2.6.4 Make the final electrical connection to the 3 amp fixed fused spur
(preferred method) or 3 pin plug.
2.6.5 Proceed to commission the appliance as detailed in section 2.7 to 3.4.
Connect the 2 off
terminal
connectors
together as
shown
20
