TKSTAR TK806 vehicle tracking device
Introduction
In developing the products we offer, the manufacturers have acted with the utmost care and in
accordance with international standards.
Warranty
We offer a 12-month warranty on the products, which is valid from the date of purchase. Keep the
invoice or block you received at the time of purchase and / or the warranty card of the device,
because you can only enforce your warranty claim if you have them. During the warranty period, we
will replace any defective main unit, accessory or software of the product in the event of any defect
attributable to a manufacturing, material or software defect. Subsequent repairs to the device or its
accessories are not permitted by the manufacturer due to the design of the device.
The warranty does not cover a product (or accessory) that has been damaged or rendered inoperable
due to attempts to modify or repair the software, physical impact, poor voltage, improper use.
To ensure proper, effective and safe use of the product, read the instruction manual carefully and
keep it for future reference. Flexcom Kommunikációs Kft. Shall not be liable for any damage, product
damage, short-term or long-term health damage that may occur as a result of use, repair, storage
and transport other than those described in this manual.
Rights, trademarks
© 2019, Flexcom Kommunikációs Kft.
All rights reserved. No part of our printed or online publications may be reproduced, distributed or
transmitted in any form or by any means, including photocopying, recording or other electronic and
mechanical methods, without the prior written permission of the publisher. To obtain a permit,
contact your dealer:
Contact
Flexcom

Flexcom Communication Ltd Installation and operating instructions (2021/03/29)
2/26
Flexcom Communication Ltd.
2151 Fót, Szent Imre str. 94. HUNGARY
Email: [email protected]
Website: https://nyomkovetes.net
Office
2151 Fót, Dózsa György str. 34. HUNGARY
Phone: [phone]
Mobile 1: [phone]
Mobile 2: [phone]
Phone service: (Monday-Thursday) 9.00–15.00
Every effort has been made to ensure that the information in our documents is accurate. Flexcom
Kommunikációs Kft. Is not responsible for typographical errors and misspellings.
Flexcom GPS Tracking Solutions, GPS Positioning System, Nyomkovetes.net is a registered trademark
and domain name of Flexcom Kommunikációs Kft. In Hungary. Other company and product names
mentioned herein may be trademarks of their respective companies.
Protection of personal data
The product is a complete product as a combination of hardware and software components. For safe
and correct use, proceed as described in this manual during installation and use. Keep the device or
software out of the reach of unauthorized persons. Our company provides all technical and regulatory
conditions to ensure that data management complies with legal requirements and that your data does
not fall into unauthorized hands. We accept no liability for damage resulting from unauthorized use of
the product and software.
Flexcom

Flexcom Communication Ltd Installation and operating instructions (2021/03/29)
3/26
Formats and notations
The following style settings are used in descriptions, guides, and other documents:
Bold text Name of product components, instructions, options, processes, services, user interface
elements.
Italic text Links to other publications, emphasis.
Courier text System messages, internet addresses, document names.
Warning and cautionary signs:
Tips, advice, ideas.
Document download option.
General attention to information about the product or its operation.
Indication of situations with a lower risk to the user or the product (minor injuries,
inconveniences).
Indication of situations which present a higher risk to the user (serious injury, possibly
death) or which may cause damage or destruction of the product.
Flexcom

Flexcom Communication Ltd Installation and operating instructions (2021/03/29)
4/26
Product Description
The device combines several functions of accurate positioning, safety, monitoring, emergency alarms
and full tracking. It supports SMS / GPRS / Internet data transfer functions and can be widely used in
many areas of location-based services, traffic safety and management.
Based on its design and mounting, the device was designed by the manufacturer primarily for
tracking (land, water or air) vehicles - as a result, its users are primarily the owners and drivers
operating the vehicles. The included accessories allow the vehicle operator to quickly install or
remove. The operation of the device is based on the GSM / GPRS network and GPS satellite
positioning. You can track your device using SMS messages or a web application.
Settings that affect the operation of the device can only be changed from another device
(smartphone, computer) using the appropriate application or SMS commands - so users can be sure
that the device always works according to the parameters they specify.
Flexcom

Flexcom Communication Ltd Installation and operating instructions (2021/03/29)
5/26
How to use
After inserting a SIM card and setting up via SMS or a mobile phone or PC application, the device is
connected to the vehicle's electrical system. After switching on, the GPS receiver and the SIM card
automatically connect to the GPS and GSM networks (if available) and start collecting position data,
which can be queried using SMS or an internet application.
To use the features of your device, you need a SIM card, similar to a mobile phone. The device
communicates with the mobile service provider's network via SIM card, SMS or mobile phone or PC
applications.
After inserting the SIM card and charging the battery or connecting it to the vehicle, you can make
the necessary settings by sending an application or SMS (eg entering the device ID name, frequency
of sending GPS position data, etc.).
When switched on
The device continuously registers position data, which can be queried with a limited number of
SMS commands.
If you have a software subscription, the device sends the position data to the software service
center - the processed results (eg map route display, route event list, real-time tracking) - can
be viewed in the phone or computer application.
The subscription software provided by the distributor for the device greatly expands the range of
features of the device. These extensions are only available in the mobile or PC application.
You will find detailed information on the installation, use, maintenance and decommissioning of the
device in the following sections of the documentation.
Flexcom

Flexcom Communication Ltd Installation and operating instructions (2021/03/29)
6/26
Flexcom

Flexcom Communication Ltd Installation and operating instructions (2021/03/29)
7/26
Technical parameters
Physical characteristics
Parameter Value
Dimensions (mm) W: 27, L: 77, H: 15
Weight (g) 36
Humidity from 5% to 95% (none condensing)
Water resistance IP65
Operating temperature from -20C to +55C
Memory
Parameter Value
Built-in No
SD card No
Energy supply
Parameter Value
Battery Li-ion polimer 3.7V 150mAh
External input voltage 12-80 V
Charging Vehicle power source, USB
Operating time
Parameter Value
Standby time (on battery) 30 min
Network
Parameter Value
GNSS GPS
Type of data traffic GSM / GPRS (2G)
SIM card Micro
GSM frequencies 850, 900, 1800, 1900 MHz
GSM chip MTK6261
GSM signal strength measurement No
GPS chip UBLOX 7020
GPS sensitivity -159 dbm
GPS accuracy 5 m
Communication
Parameter Value
SMS Yes
TCP Yes
Sensors
Parameter Value
Vibration sensor Yes
Interface
Flexcom

Flexcom Communication Ltd Installation and operating instructions (2021/03/29)
8/26
Parameter Value
GSM antenna Internal
GPS antenna Internal
Analog input Yes
Digital input Yes
Digital output (relay) Yes
Flexcom

Flexcom Communication Ltd Installation and operating instructions (2021/03/29)
9/26
User's guide
Transport and storage
The packaging is designed to protect the product from the usual physical effects during transport. Be
careful to avoid effects other than these.
The packaging of the product is not water, flame and heat resistant and only moderately pressure
resistant. Therefore, do not keep the box in a humid environment, within the range of heat emitting
equipment, or place heavy objects on it.
Commissioning
The package consists of a box containing the device and its accessories.
Unpacking
Open the box.1.
Remove the product and accessories.2.
Contents of the package
1 tracking device
1 relay (for motor blocking)
Flexcom

Flexcom Communication Ltd Installation and operating instructions (2021/03/29)
10/26
1 db jármű csatlakozó kábel
1 relay connection cable
1 double-sided adhesive sheet for fixed fixing
1 installation instructions
Preparing the SIM card
As with mobile phones, a SIM card is required to operate the device. The device communicates with
the mobile service provider's network via SIM card, SMS or mobile phone or PC applications.
You can purchase the card independently from your mobile service provider or, in the
case of a software subscription, from your product distributor. If you received the SIM
card from your dealer, you do not need to make any settings: the card is already set up,
inserted in the device, switched on and ready for use.
If you have received the SIM card from your dealer, do not try to transfer it to another
device (eg phone) and use it! The distributor (service provider) will reimburse the
resulting costs or the correction of the resulting errors.
Settings for your SIM card
If you did not obtain the SIM card from your tracking device vendor, you must set it up before
inserting and using it in the device, which you can do as follows.
Disable SIM card PIN and other functions
Flexcom

Flexcom Communication Ltd Installation and operating instructions (2021/03/29)
11/26
Insert the SIM card in your phone.1.
Among the setting functions of the phone2.
turn off the PIN code request, auto-reply and call forwarding options.3.
After turning off the above, insert the card into the tracking device. See the next section for
instructions on how to insert the SIM card.
Setting up data traffic
If you want to operate the device not only via SMS, but also e.g. If you use the software tracking
service provided by your dealer, you must activate GPRS (Internet) data traffic and enter the
appropriate network settings. To do this, you need to send SMS messages from your phone to the
phone number of the SIM card inserted in the tracking device, as shown in the table below.
The factory-set access password for the tracking device in the commands: 123456
Setting SMS message Device response
Turn on GPRS data
traffic gprs123456 GPRS ok
Enter the APN name
apn123456(space)APN-name apn ok
APN names for domestic service providers in
Hungary: Telenor: online vagy net
Telekom: internet
Vodafone:
- in case of subscription: internet.vodafone.net
- in the case of a top-up card:
vitamax.internet.vodafone.net
Digi: internet
If your mobile network provider has not provided you with an APN username and password, you do
not need to send the following SMS messages to the tracking device!
APN username apnuser123456 APN-username apnuser ok
APN password apnpasswd123456 APN-password apnpassword ok
Inserting the SIM card
Only micro-sized SIM cards can be used with this product. If you have a nano SIM, use a
card adapter.
Insert the SIM card into the device as follows:
Flexcom

Flexcom Communication Ltd Installation and operating instructions (2021/03/29)
12/26
Steps:
Open the cover of the SIM card slot.1.
Insert the card into the slot. The device turns on and the LED lights up when the card is2.
inserted. Be sure to insert the card in the correct position.
Close the protective cover.3.
Installing the device
It is advisable to have the installation carried out by a specialist. Do not install the device in an
environment that shields the GSM network, and be sure to adjust the antennas to provide the
strongest possible reception. Select the installation location so that the device does not come into
contact with dust or water during operation.

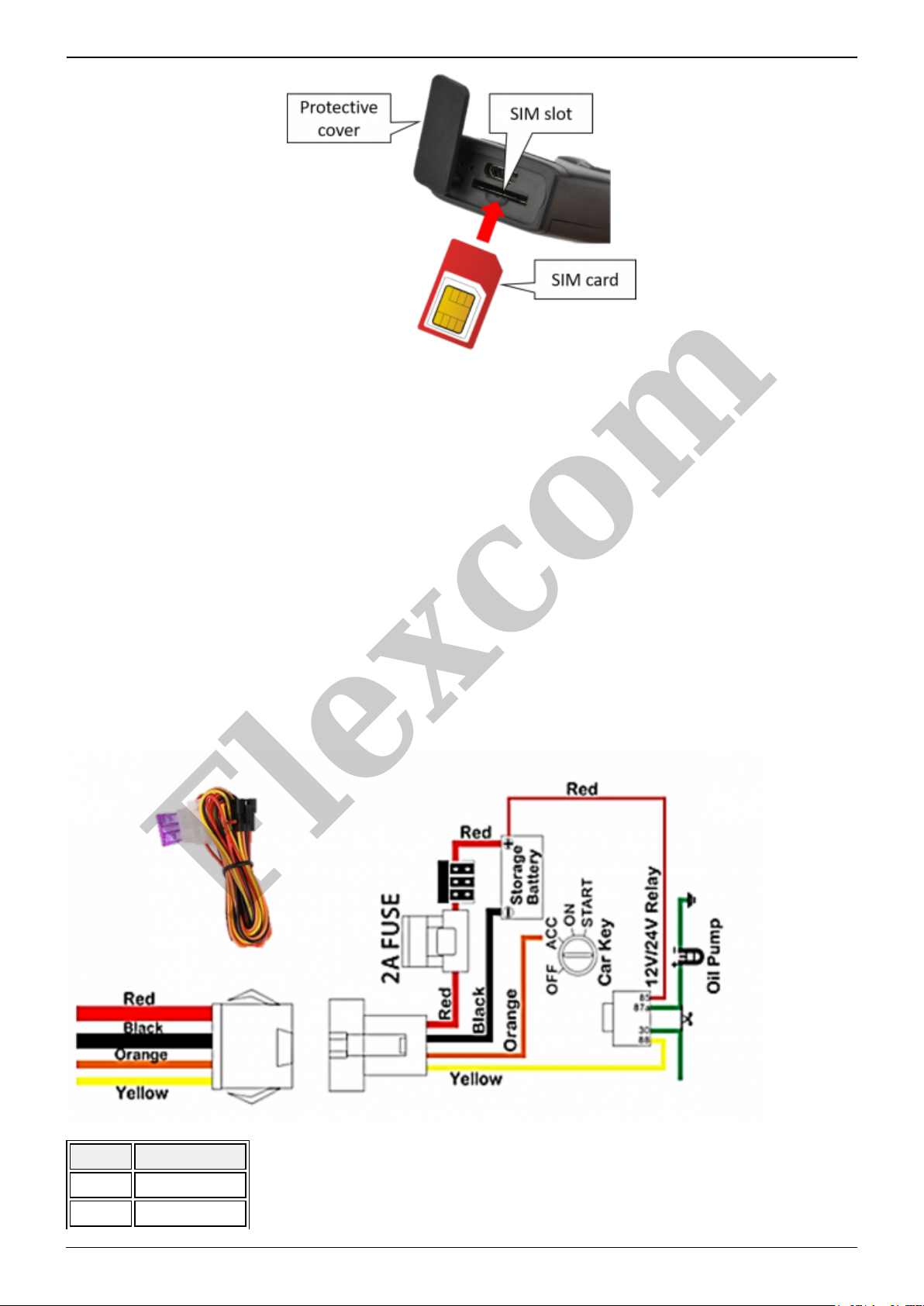

Using the wiring harness, connect the wires to the original car circuit as follows:
Wire Function
Red Positive pole
Black Negative pole
Flexcom

Flexcom Communication Ltd Installation and operating instructions (2021/03/29)
13/26
Orange Ignition
Yellow Relay
Application installation, access
In order to operate the device and other services based on it, the distributor provides mobile and
computer applications in the subscription system. The PC program is accessible via a browser at
https://gpspositions.net/map/, and you can install the phone application on your phone in one of the
following ways:
For Android phones
Open the Google Play app on your phone.1.
Search for „Flexcom” or „Flexcom tracking” on Google Play.2.
Install the tracking application.3.
or
Scan the QR code shown here with your phone.1.
Open the web address decoded from this.2.
Install the Flexcom tracking application.3.
For iPhones
Use the browser on your phone to access the service (https://gpspositions.net/map/).
Flexcom

Flexcom Communication Ltd Installation and operating instructions (2021/03/29)
14/26
Using the product
User Interface
The device does not have a traditional user interface (eg on / off button). An LED indicator informs the
user about its operation and status. In addition, only the charger connector, the SIM card slot and a
carrying strap can be connected on its surface.
LED display statuses
Display Status
Solid yellow No mobile network connection
Flashing yellow Connected to a mobile network
Solid blue No satellite connection
Flashing blue Connected to a satellite network
Internal battery
The device has a built-in battery, which has a small capacity and is mainly used to bridge the
Flexcom

Flexcom Communication Ltd Installation and operating instructions (2021/03/29)
15/26
temporary disconnection of the vehicle. When connected to a vehicle, the battery is charged, and if
disconnected, it can be charged using a phone charger and a USB cable.
A cable with a micro type USB connector can be used to charge the device.
When the battery is fully charged, disconnect the charging cable. The device does NOT
have overcharge protection, so keeping it on a long-term or continuous charger (eg
connecting to a vehicle battery) will shorten the life of the device or, in worse cases,
damage it. For the device with a voltage of 5V 1 Use a charger that provides current.
Chargers with a higher capacity can damage the battery.
The device operates continuously when connected to a vehicle. Powered by its own battery, its
operating time is approx. half an hour.
Switching on and off
The device switches on automatically when you insert the SIM card, and switches it off when you
remove it. It does not have a separate on / off button.
Normal operation of the device
The device can be operated in the following ways:
using the software service provided by the distributor and the SIM card together, in addition to1.
the software service provided by the distributor but using his own SIM card, or
without the service provider's software service, with your own SIM card.2.
Flexcom

Flexcom Communication Ltd Installation and operating instructions (2021/03/29)
16/26
The service provider provides a SIM card for the tracking device only if you subscribe to
the software service. In the case of unsolicited use of the software, the user must provide
the appropriate card with a data traffic limit (also).
With Distributor Software and SIM Card
In this case, you can receive the device in the ready state, no further settings are required to use it.
Separate software is available for setting or adjusting the operating parameters of the device, for
retrieving information or for using more advanced services (eg map route display, waiting and travel
points, diagrams, timetable, etc.). This is provided by the distributor in the form of a downloadable
application on a desktop and tablet browser on an Android mobile phone as part of a subscription
system.
To use the software, an active internet connection is required on your device (mobile
phone, computer).
The software stores and processes the data sent by the tracking device to the service provider's
center, from which the graphical and textual information is generated. Using the software triggers
(sometimes very expensive) SMS and voice call communication with the device and provides tracking
and security services that go well beyond the basic functions of the device.
After launching the application in a browser or phone:
In the login window, enter the username and password you received in the email from the1.
distributor or registered on its website.
In the interface that appears, select Help and review the information for using the software.2.
Software management information is available in its help.3.
With Distributor software but with own SIM card
After setting up and inserting the SIM card as described in the setup chapter, you must register the
card. To do this, contact your software service provider (device vendor). From now on, the operation
of the device is the same as described in the previous chapter.
Without software, with own SIM card
If you have subscribed to the reseller's software service, DO NOT use the standalone SMS
communication method because
redundant (the software has all the functions needed for tracking and settings),
Flexcom

Flexcom Communication Ltd Installation and operating instructions (2021/03/29)
17/26
the software provider charges a separate fee for the possible elimination of
possible operational anomalies caused by SMS commands,
if you use your own SIM card in the device, SMS will incur extra costs,
if you use your service provider's SIM card, your service provider will reimburse you
for the cost of the SMS.
If you do not use (have not subscribed) to the software service provided by the dealer, you can only
use the basic functions of the device - by sending SMS messages from your mobile phone to the
phone number of the device's SIM card.
Setting options via the software
When using the desktop or mobile application of Flexcom Kft, the setup operations related to tracing
can be accessed in the following ways.
The settings and commands that can be issued depend on the type of device. See the
rest of this guide for information on options for this device.
When using a desktop application:
Select the desired device on the
map or in the menu.
Click the Settings or Commands
button to select the general setting
or behavior you want.
When using a mobile application:
Flexcom

Flexcom Communication Ltd Installation and operating instructions (2021/03/29)
18/26
From the application menu, select
Map.
Switch to the Tools panel.
Find your device in the list of
devices and tap the Setup icon next
to the ID.
Flexcom

Flexcom Communication Ltd Installation and operating instructions (2021/03/29)
19/26
Select the desired setting or, when
sending a command, select
Commands.
Control the device with SMS commands sent from a mobile phone
The factory-set access password for the tracking device in the commands: 123456
General settings
Function Description SMS message Device
response
Restart device
You can also switch the
device on and off from
your phone without
moving the SIM card.
begin123456 Begin Ok
Administrator phone
number
After setting the
administrator phone
number (s), the device
only accepts calls and SMS
commands from this
number (s) and sends
alerts to this phone
number (s). Up to 5 such
phone numbers can be set
on the machine. After
setting the first phone
number, further ones can
only be entered with SMS
sent from this number.
admin123456 phone number
Például: admin123456 0036709876543
Use to enter the phone number
country code prefix (eg 0036,
Hungary).
Admin Ok
Delete administrator
phone number
Delete a previously set
administrator phone
number.
noadmin123456 phone number
For example: noadmin123456
003612345678
Admin Ok
Flexcom

Flexcom Communication Ltd Installation and operating instructions (2021/03/29)
20/26
Set time zone
The device's default time
zone is set to GMT + 0.
This is changed (eg in the
case of Hungary, the time
zone is GMT + 1), as
follows.
timezone123456 value (where value
e.g. +1, -2, 0 etc).
Például: timezone123456 +1 (Hungarian
time zone
setting)
Time Ok
Turn GPRS mode on
and off
The GPRS data transfer
mode is switched off by
default in the device (GSM
mode is active). If you use
tracking software, the
GPRS mode must be
turned on.
If you have purchased the
device with a software
service subscription from
the dealer, the GPRS mode
is already activated!
Turning on
SMS: gprs123456
Turning off
SMS: nogprs123456
GPRS Ok
or
NOGPRS
Ok
Query the position of the device
Description Device response
Call the phone number of the device's SIM card
from your phone. After receiving the call, the
device interrupts it and then sends the data back
in an SMS message: latitude and longitude,
current speed, time and link, which, when clicked
/ tapped, will display the device's indicator on the
Google map in our phone's browser.
If the device cannot connect to GPS satellites (eg
inside a building or in another shaded area), use
the cell information of the GSM transmission
towers to determine its position (LBS, Location
Based Service). Its accuracy depends largely on
the distance from the towers and the mobile
network coverage.
or LBS-based positioning
Stopping the vehicle remotely
Description SMS message Device response
Flexcom
