Flight Display Systems FDSDI-HDMI User manual

Rev:
A
Revision Date:
07/25/2012
Page 1 of 9
MAN – FDSDI - HDMI
Manufactured by MILIC, LLC with marketing support from Flight Display Systems.
This product does not have FAA PMA approval.
FDSDI-HDMI
Installation and Operation Manual
SDI to HDMI Converter
TECHNICAL SUPPORT
678-867-6717, or
www.FlightDisplay.com
All manuals and user guides at all-guides.com
all-guides.com

Rev:
A
Revision Date:
07/25/2012
Page 2 of 9
MAN – FDSDI - HDMI
FDSDI-HDMI
SDI to HDMI Converter
© 2012 Flight Display Systems. All Rights Reserved.
Flight Display Systems
1765 Grassland Parkway
Alpharetta, GA 30004
678-867-6717 Phone
678-867-6742 Fax
[e-mail]
www.flightdisplay.com
For the most current copy of all product manuals, please visit our website at
www.flightdisplay.com
All manuals and user guides at all-guides.com

Rev:
A
Revision Date:
07/25/2012
Page 3 of 9
MAN – FDSDI - HDMI
Table of Contents
General Information......................................................................................................................4
1. Functionality......................................................................................................................4
2. Front View and Specifications.........................................................................................4
Technical Drawing ......................................................................................................................5
Pinout .............................................................................................................................................6
Technical Support........................................................................................................................7
Warranty and Instructions for Continued Airworthiness ...................................................8
Log of Revisions...........................................................................................................................9
All manuals and user guides at all-guides.com

Rev:
A
Revision Date:
07/25/2012

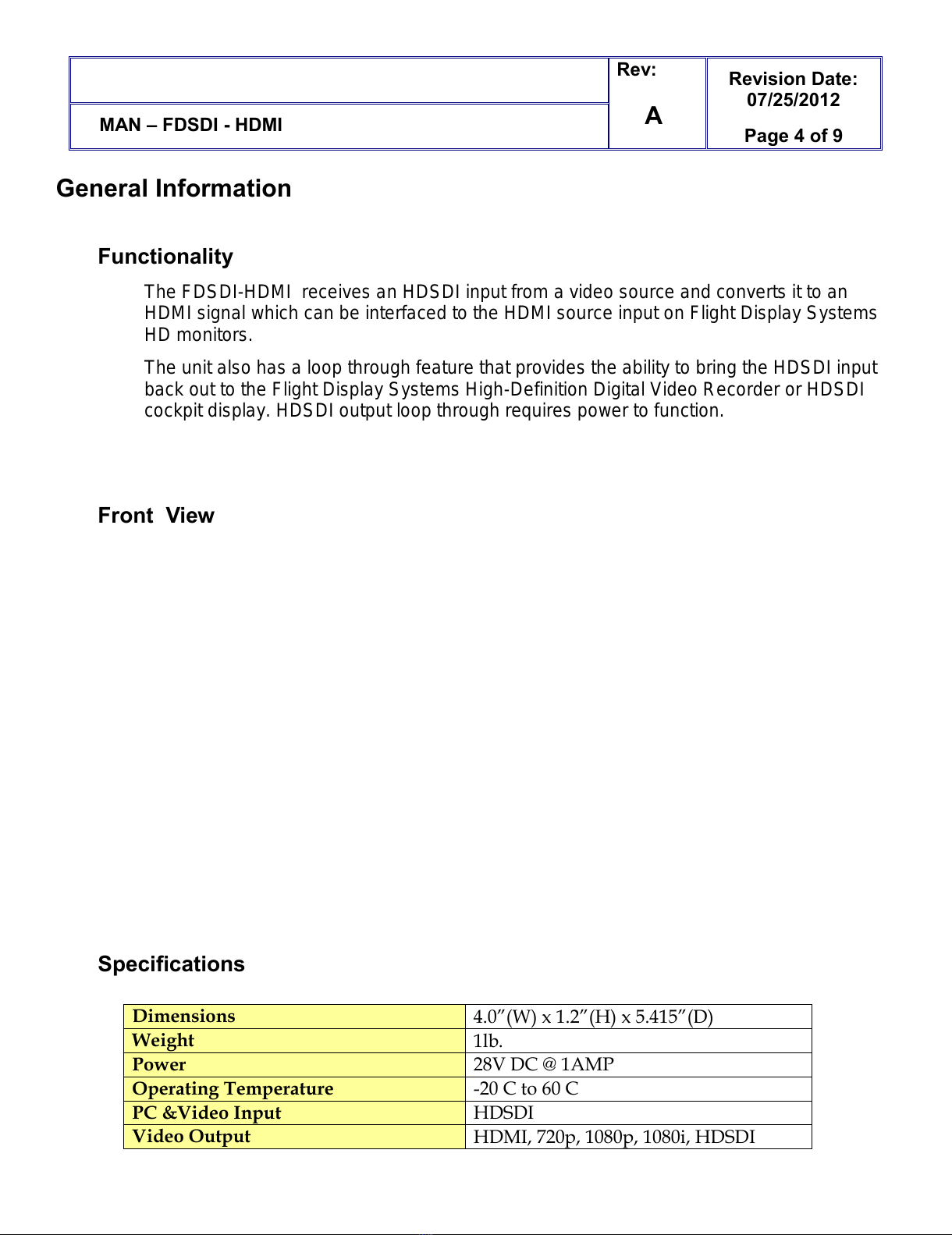

Page 4 of 9
MAN – FDSDI - HDMI
General Information
Functionality
The FDSDI-HDMI receives an HDSDI input from a video source and converts it to an
HDMI signal which can be interfaced to the HDMI source input on Flight Display Systems
HD monitors.
The unit also has a loop through feature that provides the ability to bring the HDSDI input
back out to the Flight Display Systems High-Definition Digital Video Recorder or HDSDI
cockpit display. HDSDI output loop through requires power to function.
Front View
Specifications
Dimensions
4.0”(W) x 1.2”(H) x 5.415”(D)
Weight
1lb.
Power
28V DC @ 1AMP
Operating Temperature
-20 C to 60 C
PC &Video Input
HDSDI
Video Output
HDMI, 720p, 1080p, 1080i, HDSDI
All manuals and user guides at all-guides.com

Rev:
A
Revision Date:
07/25/2012
Page 5 of 9
MAN – FDSDI - HDMI
Technical Drawing
All manuals and user guides at all-guides.com

Rev:
A
Revision Date:
07/25/2012
Page 6 of 9
MAN – FDSDI - HDMI
Pinout
Pin out DB9 Power (Supplied)
Connector P/N: M24308/2-281 or Equivalent
Crimp Contacts P/N: M39029/63-368 or Equivalent
Pin
Number
Description
1
28VDC Power
2
28VDC Ground
3
N/C
4
N/C
5
N/C
6
N/C
7
N/C
8
N/C
9
N/C
All manuals and user guides at all-guides.com
all-guides.com

Rev:
A
Revision Date:
07/25/2012
Page 7 of 9
MAN – FDSDI - HDMI
HD-SDI
HD-SDI Input/Output is a panel mounted BNC receptacle that mates with a standard BNC plug
(Amphenol P/N 31-242 supplied).
HDMI
HDMI Output is a flush mounted HDMI Type A Female Receptacle that mates with a HDMI Type A
Male Connector. (Not supplied)
Technical Support
Should you have any questions concerning this product or other Flight Display Systems
products, please contact our Product Support representatives at [phone].
Flight Display Systems
1765 Grassland Parkway
Alpharetta, GA 30004
Phone: [phone]
Fax: [phone]
Email: [e-mail]
For further product information, technical data and sample wiring diagrams, please click on
the Dealers section of our web site at www.flightdisplay.com
All manuals and user guides at all-guides.com

Rev:
A
Revision Date:
07/25/2012
Page 8 of 9
MAN – FDSDI - HDMI
Instructions for Continued Airworthiness
The FDSDI-HDMI converter is designed not to require regular general maintenance.
Warranty Information
Flight Display Systems warrants the FDSDI-HDMI converter against material or
manufacturing defects for a two-year period. Warranty begins on date of installation. The
warranty registration card must be returned upon installation in order to validate the two-
year warranty. Any warranty registration not returned during this time period will default to
the date of purchase as the warranty start date.
If product support is required, please call our Technical Support team at [phone]
to obtain assistance. If the return of the unit to the factory is required, an RMA number will
be issued at that time. Flight Display Systems will, upon receipt of the failed hardware,
remanufacture or replace the unit at our discretion.
Flight Display Systems will pay Ground Shipping charges for warranted items. Charges for
express shipment will be the responsibility of the sender.
This warranty is not transferable. Any implied warranties expire at the expiration date of this
warranty. We shall not be liable for incidental or consequential damages.
This warranty does not cover a defect or failure that has resulted from improper or
unreasonable installation, use or maintenance, as determined by Flight Display Systems.
This warranty is void if there is any attempt to disassemble or open this product without
factory authorization.
Flight Display Systems shall not be held responsible for any labor charges associated with
the removal of product or related troubleshooting.
All manuals and user guides at all-guides.com

Rev:
A
Revision Date:
07/25/2012
Page 9 of 9
MAN – FDSDI - HDMI
Log of Revisions
Rev
Date
Page
Description
A
7/25/2012
Initial Release
