Flint & Walling NightBright Instructions for use

NightBright Lighting System
Operating Instructions & Parts Manual
Please read and save these instructions. Read carefully before attempting to assemble, install, operate or maintain the product described.
Protect yourself and others by observing all safety information. Failure to comply with instructions could result in personal injury and/or
property damage! Retain instructions for future reference.
Description
This lighting system is designed for use with 115/230V 1/2, 3/4 and 1 HP floating
fountain systems. Optional colored lamp kits are available in red, green and blue.
All mounting hardware is included to attach lights to fountain and connect to
control center with factory installed timer.
General Safety Information
Carefully read and follow all safety
instructions in this manual and on
control center. Keep safety labels in
good condition. Replace missing or
damaged safety labels.
This is a SAFETY ALERT SYMBOL. When you see this symbol on
the pump or in the manual, look for
one of the following signal words and
be alert to the potential for personal
injury or property damage.
Warns of hazards that WILL cause
serious personal injury, death or major
property damage if ignored.
!
Warns of hazards that CAN cause
serious personal injury or death, if
ignored.
Warns of hazards that MAY cause
minor personal injury, product or
property damage if ignored.
IMPORTANT: Indicates factors
concerned with operation, installation,
assembly or maintenance which could
result in damage to the machine or
equipment if ignored.
NOTE: Indicates special instructions
which are important but are not
related to hazards.
!
Read these warnings and
instructions carefully. Failure to follow
could result in serious bodily injury
and/or property damage.
!
This product contains chemicals
known to the State of California to
cause cancer and birth defects or other
reproductive harm.
!
This unit not
tested for use in swimming
pool areas.
Electrical installa-
tions shall be in
accordance with
National Electric
Code (NEC) and all
applicable local
codes and ordi-
nances. A licensed
electrician should
perform installa-
tion.
Be sure system is connected to a circuit equipped with a fuse or
circuit breaker of proper size.
Protect the power cable from coming in contact with sharp
objects, oil, grease, hot surfaces
or chemicals. DO NOT kink the
power cable. If damaged replace
immediately.
Install all electrical equipment in protected area to prevent
mechanical damage which could produce
serious electrical shock and/or equipment
failure.
NEVER leave the control box, fused disconnect switch,
or covers open (either partially or
completely) when not being worked
on by a competent electrician or
repairman.
Always disconnect power source before performing any work on
or near the motor, lights or connected
load. If the power disconnect point
is out-of-sight, lock it in the open
position and/or tag it to prevent
unexpected application of power.
Failure to do so could result in fatal
electrical shock or bodily injury.
DO NOT use this system in
flammable liquids such as
gasoline, fuel oil, kerosene, etc. Failure
to follow this warning could result in
property damage and/or personal
injury.
Unpacking
Unpack and inspect system for damage.
Verify you have received the following
components:
1. Instructions
2. Warranty
3. Lights with 100 ft. power cord
4. Mounting hardware
a. Brackets (3)
b. 1/4-20 x 5/8 bolts (6)
c. 1/4-20 locknuts (3)
d. 1/4 lock washer (3)
5. Shrink tube splice kit
6. Wire tie
INSTALLATION INSTRUCTIONS
1. Required Tools and Supplies:
a. Flat screwdriver
b. 7/16" wrenches (2)
c. Crimping tool (for cable splicing
only)
d. Torch or heat gun for shrink tube
splice kit (for cable splicing only)
e. Multimeter to check voltage,
current and insulation resistance to
ground
2. Install Nightbright lighting system
to float. (See Fig 1).
a. Assemble lights (1) to mounting
brackets (2) using bolts (3), and
locknuts (5).
Hazardous voltage.
Can shock, burn
or cause death.
Ground system before
connecting to power
supply.
Specifications
120 volt
3 - LED lamps
100 ft. power cord
022901
FW1191
0909
Supersedes
0708

2
95 North Oak Street • Kendallville, IN 46755
Copyright 2009. All rights reserved.
NightBright Lighting System
Operating Instructions and Parts Manual
b. Attach light/bracket assemblies to
the threaded inserts in top of float,
using bolts (3) and lockwashers (4).
(Install in alternating inserts if 6
inserts are present in float.)
c. Adjust lights to provide desired
illumination. (See Fig 1).
d. Tighten all bolts & screws until
seated.
e. Determine required cable length.
Splice additional cable up to 250
feet total cable length using
included heat shrink splice kit. Use
18 AWG SOOW or larger cable
only. DO NOT EXCEED maximum
cable length or use smaller cable
than specified, as system damage
may occur.
f. Attach light system cord to
fountain system cord with
included nylon wire tie.
Never enter the water either
wading, swimming or in a
boat with the pump power on, as this
may result in severe electrical shock.
3. Only install this system in ponds
where no swimming, wading,
boating or fishing is allowed.
Disconnect power to system before
fishing or entering the water.
4. Post appropriate warning signs per
local and state codes.
5. Place power cord so that it rests on
bottom of pond away from sharp
rocks or vegetation so it can be easily
removed without being damaged or
becoming entangled. Leave enough
slack to accommodate anticipated
water level fluctuations.
NOTE: It is suggested that the
underwater power cables be installed
in conduit from the panel to 4 -5 ft into
the water to prevent possible cable
damage.
6. Before connecting the unit to the
control center, check to insure there
is no leakage to ground. This can
be done by using an ohm meter
and setting the scale to its highest
setting (i.e. Rx100K). Connect one
ohmmeter lead to the unit power
cord ground and to one of the
power conductors. It should read
infinite or at least 2 mega ohms.
Repeat with the other conductor. If
reading is below 2 mega ohms on
either conductor contact Customer
Service Help Line at 1-800-742-5044.
"NO SWIMMING” AND OR
WARNING SIGNS SHOULD BE
POSTED PER STATE AND LOCAL CODES.
Water leaving nozzle is at high
velocity and can cause bodily injury if
contact is made.
Always use caution when
operating electrical controls
in damp areas. If possible, avoid all
contact with electrical equipment
during thunderstorms or extreme
damp conditions.
7. Connect Nightbright lighting system
to control center. (See Fig 2).
8. All work must be done in
compliance with local and national
electrical codes by licensed,
qualified electrician. Refer to Fig. 2
in these instructions or on inside of
panel door for proper wiring.
9. Always keep control center door
closed and locked when not
servicing.
10. Have a licensed, qualified
electrician make final connections
of Nightbright lighting system to
system control center.
11. Have a licensed, qualified electrician
make connection to power source.
12. Apply power to unit and set timers
as described in the Setting Timers
section.
13. Test the ground fault interrupter
(GFI) for proper operation by
depressing the “test” button. The
fountain and lights should shut off.
Press the “reset” button to restart
the system. If pressing the “test”
button does not stop the unit,
immediately shut off power to unit
and contact Customer Service Help
Line at 1-800-742-5044.
!
FAILURE TO CONNECT THIS
UNIT, WITH THE GFI, TO A
PROPERLY GROUNDED POWER SUPPLY
MAY RESULT IN SEVERE ELECTRICAL
SHOCK.
Setting timer
IMPORTANT: Rotate dial in clockwise
direction only! Rotating dial counter
clockwise will damage timer!
1. Set the on-off time zones.
a) 6 trippers (3 red-on and 3 white-
off) stored below the dial, are
included with each timer for
setting up to 3 on-off time zones.
b)Install the red tripper at the
desired on time and the white
tripper at the desired off time.
c) Rotate the dial clockwise to verify
operation of the trippers.
d)The timer may be overridden by
turning the small on/off dial in
the upper right hand corner of
the timer. Timer will automatically
reset when next time zone occurs
unless manual override was set
within 1 hour of on or off cycle.
2. Setting the clock. (24 hr clock)
a) Turn the dial clockwise until the
arrowhead is aligned with the
proper time.
b)The timer includes built in battery
backup for maintaining time
during power outages.
Installation (Continued)

3
95 North Oak Street • Kendallville, IN 46755
Copyright 2009. All rights reserved.
Operating Instructions and Parts Manual
INSTALLATION CHECK LIST
Read installation instructions and
warnings.
Post appropriate warning signs.
Install NightBright lighting system
to float.
Check insulation resistance to
ground.
Connect NightBright lighting system
to control center.
Power up unit.
Test operation of GFI by pressing the
“Test” Button.
Set timer.
File instructions for future reference.
!
DO NOT handle pump or
lights with wet hands or
when standing in water as fatal
electrical shock could occur.
Disconnect main power supply before
handling system for any reason.
Troubleshooting Chart
Symptom Possible Cause(s) Corrective Action
Lights dim
or won't
light
1. Circuit breaker tripped
2. Low Voltage
1. Reset circuit breaker.
2. Verify voltage.
3. GFI Tripped
4. Excessive Cable Length
5. Timer/clock not set
6. Lights out of position
3. Reset GFI.
4. Verify acceptable maximum cable length.
5. Set clock to local time and timers for desired cycle. See Section on Setting Timers.
6. Aim lights to provide desired illumination.
GFI Trips 1. Electrical storm can trip GFI 1. Reset GFI.
2. Short in system
3. Defective power cable
2. Disconnect power and check cord for damage. If cord is damaged contact Customer
Service Help Line at 1-800-742-5044.
3. Disconnect power and check cord for damage. If cord is damaged contact Customer
Service Help Line at 1-800-742-5044.

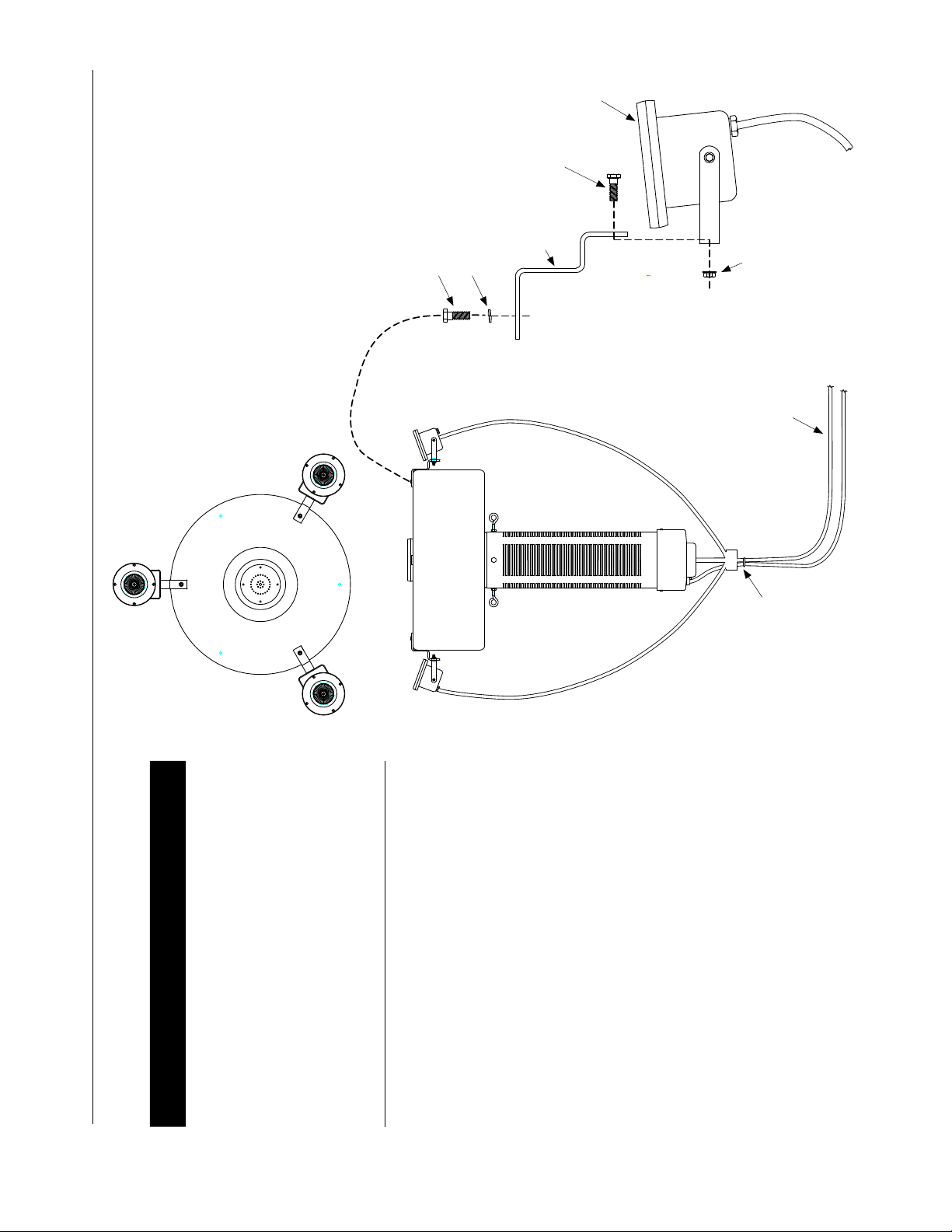

Figure 1 - Installation
IL0827
4
23
1
5
3
6

4
95 North Oak Street • Kendallville, IN 46755
Copyright 2009. All rights reserved.
NightBright Lighting System
Operating Instructions and Parts Manual
IL0809
ON
OFF
ON
OFF
Light Timer
Power
B
Pump
Motor
Contactor
Power Load
W
H1 H2
To Lights
W
GRD GRD
To Pump To Line
P1 P2 L1 N L2
Pump Timer
Power
Power Load
BRB R
B/W R/B
W/B
R/B
B/W
WB R
Ground Fault
Interrupter (GFI)
Reset
PowerTest
Fault
!
Never enter the
water either wading,
swimming or in a boat with
the pump power on, as this may result
in severe electrical shock.
!
This product contains chemicals
known to the State of California to
cause cancer and birth defects or other
reproductive harm.
Hazardous voltage.
Can shock, burn
or cause death.
Ground system before
connecting to power
supply.
Electrical installations
shall be in accor-
dance with National
Electric Code (NEC)
and all applicable
local codes and
ordinances. A
licensed electrician
should perform
installation.
Be sure system is connected to a circuit equipped with a fuse or
circuit breaker of proper size.
NEVER leave the control box, fused disconnect switch,
or covers open (either partially or
completely) when not being worked
on by a competent electrician or
repairman.
Always disconnect power source before performing any work on
or near the motor, lights or connected
load. If the power disconnect point is
out-of-sight, lock it in the open position
and/or tag it to prevent unexpected
application of power. Failure to do so
could result in fatal electrical shock or
bodily injury.
B
Figure 2 - Control Center Schematic

5
95 North Oak Street • Kendallville, IN 46755
Copyright 2009. All rights reserved.
Figure 3 – Parts Illustration for NightBright Lighting System
IL0825
4
23
1
5
Ref No. Description
Part
No. Qty
1Light Set 023056 1
2SS Light Bracket 022900 3 31/4-20 x 5/8 SS Bolt *021628 6 41/4 SS Lock Washer *021629 3 51/4-20 SS Locknut Hex Flange 127021 3 6Wire Tie 022283 1 Replacement Lamps (Sets of 3)
White 023060 1 Red 023059 1 Green 023058 1 Blue 023057 1
Shrink Tube Splice Kit 022919 1
(*) Standard hardware item, available locally () Not Shown
3
Light System Cord
Fountain Cord
6

6
95 North Oak Street • Kendallville, IN 46755
Copyright 2009. All rights reserved.
Operating Instructions and Parts Manual
Service Record
NightBright Lighting System
Date Maintenance performed Repair components required
