FLIR ONE User manual

TM
TM Cover. Table Of Contents. / User Manual. / 1
© 2014 FLIR Systems, Inc. All rights reserved. Document #: 435-0001-01-10
FLIR ONE™ ANATOMY
CHARGING THE FLIR ONE
ASSEMBLING FLIR ONE
FLIR ONE APP
MODE SWITCH
TUNING THE FLIR ONE
TAKING SNAPSHOTS
TAKING VIDEO
FLIR LIBRARY
CHANGING COLOR PALETTES
CONTROL PANEL
SPOT METER
LIGHT
SETTINGS MENU
EMISSIVITY
SAVE GPS LOCATION
SAVE TO CAMERA ROLL
TEMPERATURE UNIT
HELP & SUPPORT
TROUBLESHOOTING
FLIR ONE NOT DETECTED
TEMPERATURE READINGS NOT
ACCURATE
LEGAL
PRODUCT AND SAFETY INFORMATION
BATTERY AND CHARGER
TAKE CARE OF YOUR DEVICE
RECYCLE
02 |
03 |
04 |
05 |
06 |
07 |
08 |
08 |
08 |
09 |
10 |
10 |
10 |
11 |
11 |
11 |
11 |
11 |
12 |
12 |
12 |
12 |
13 |
14 |
14 |
15 |
15 |
The FLIR ONE™ allows you to see the world in a whole new
way, with a unique blend of thermal and visible imaging.
This user guide provides brief information on how to use the
FLIR ONE. Additional information is available directly from
the FLIR ONE app in the Settings menu.
TABLE OF CONTENTS
USER MANUAL

TM
TM USER MANUAL
Diagram. / User Manual. / 2
© 2014 FLIR Systems, Inc. All rights reserved. Document #: 435-0001-01-10
OPERATION INDICATOR LIGHT
VISIBLE CAMERA
THERMAL CAMERA
MICRO USB
MODE SWITCH/LENS COVER
CLOSED
OPEN
TUNE
BATTERY INDICATOR LIGHT
FLIR ONE™ Anatomy. / User Manual. / 2
IPHONE CAMERA / FLASH
CHARGING
CAMERA READY
CHARGED
CAMERA ACTIVATING

Iron Gray RainHottestColdest
43 Photos, 2 Videos
FLIR Library
Today
Done Select
Iron Gray RainHottestColdest
Iron Gray
Rain
Hottest
Coldest
App Store
Iron Gray RainHottestColdest
43 Photos, 2 Videos
FLIR Library
Today
Done Select
Iron Gray RainHottestColdest
Iron Gray
Rain
Hottest
Coldest
App Store
TM
© 2014 FLIR Systems, Inc. All rights reserved. TM USER MANUAL
User Manual. / 3
Document #: 435-0001-01-10
The power/status indicator will blink while the device is
charging. The FLIR ONE requires 2-4 hours for a full charge,
depending on the power source. When the device is fully charged,
the Power/Status indicator will be on continuously.
Note: The iPhone will not charge when
the FLIR ONE is charging. Also, it is not
possible to use the iPhone cable to charge
the FLIR ONE.
Plug the Micro USB end of the
power cable into the FLIR ONE
and plug the other end into a
USB power source.
CHARGING THE FLIR ONE™
Charging the FLIR ONE™. /

Iron Gray RainHottestColdest
43 Photos, 2 Videos
FLIR Library
Today
Done Select
Iron Gray RainHottestColdest
Iron Gray
Rain
Hottest
Coldest
App Store
Iron Gray RainHottestColdest
43 Photos, 2 Videos
FLIR Library
Today
Done Select
Iron Gray RainHottestColdest
Iron Gray
Rain
Hottest
Coldest
App Store
Iron Gray RainHottestColdest
43 Photos, 2 Videos
FLIR Library
Today
Done Select
Iron Gray RainHottestColdest
Iron Gray
Rain
Hottest
Coldest
App Store
TM
© 2014 FLIR Systems, Inc. All rights reserved. TM USER MANUAL
User Manual. / 4
Document #: 435-0001-01-10

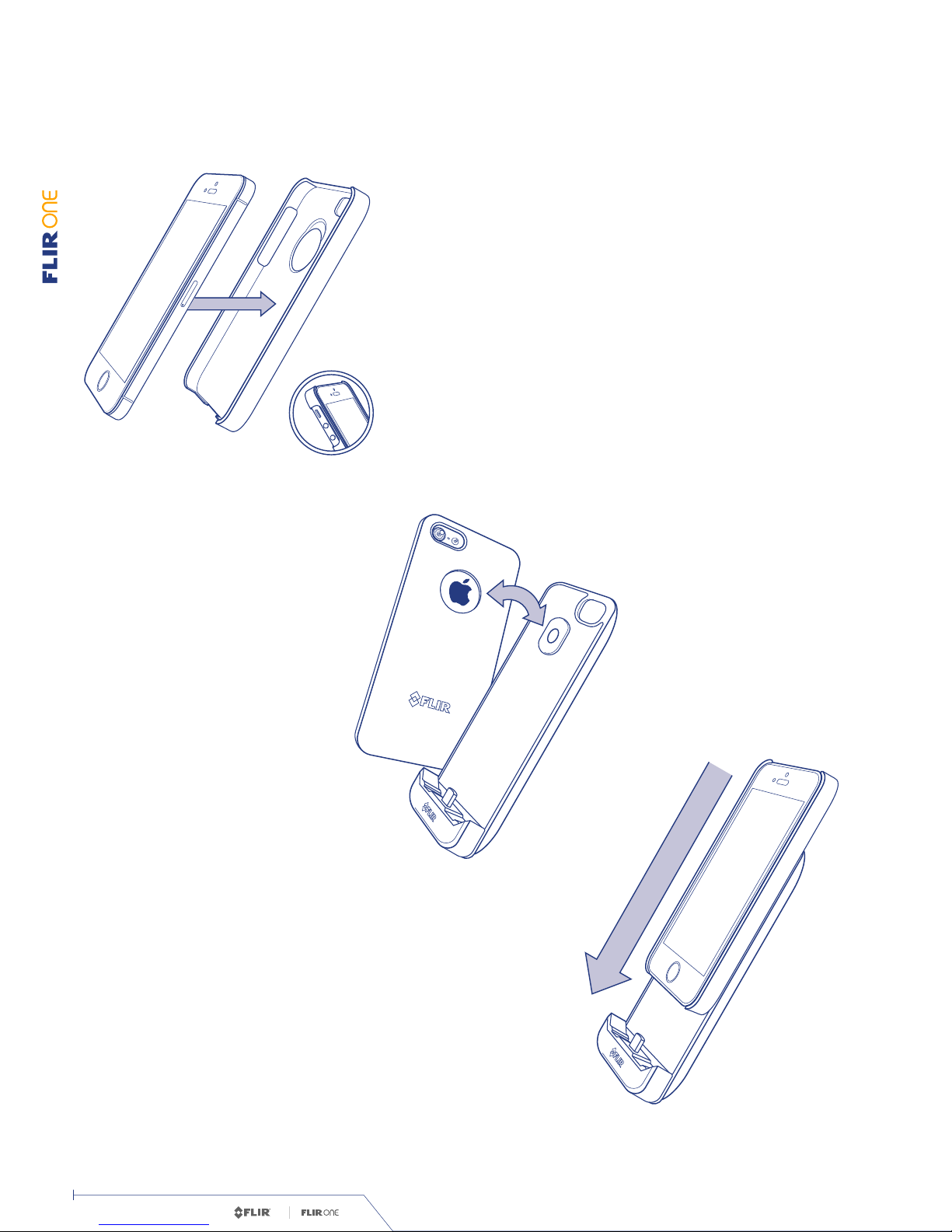

The round opening in the slim case will align with the protrusion
on the FLIR ONE and help it stay attached to the iPhone.
When snapping the slim case onto the iPhone, it is recommended
to snap the volume button side first, to avoid damaging the iPhone.
Snap the included slim case on
the iPhone, and then slide the
iPhone into the FLIR ONE.
ASSEMBLE THE FLIR ONE™
Assembling the FLIR ONE™. /

Iron Gray RainHottestColdest
43 Photos, 2 Videos
FLIR Library
Today
Done Select
Iron Gray RainHottestColdest
Iron Gray
Rain
Hottest
Coldest
App Store
Iron Gray RainHottestColdest
43 Photos, 2 Videos
FLIR Library
Today
Done Select
Iron Gray RainHottestColdest
Iron Gray
Rain
Hottest
Coldest
App Store
TM
© 2014 FLIR Systems, Inc. All rights reserved. TM USER MANUAL
User Manual. / 5
Document #: 435-0001-01-10
The latest version of the FLIR ONE app is available on the
Apple App Store. If the FLIR ONE is turned off, the app will
tell you to attach your FLIR ONE camera and open the shutter.
The iPhone iOS version must be 7.1.1 or higher.
Download and install the app,
then start it.
FLIR ONE™ APP
FLIR ONE™ App. /

Iron Gray RainHottestColdest
43 Photos, 2 Videos
FLIR Library
Today
Done Select
Iron Gray RainHottestColdest
Iron Gray
Rain
Hottest
Coldest
App Store
TM
© 2014 FLIR Systems, Inc. All rights reserved. TM USER MANUAL
User Manual. / 6
Document #: 435-0001-01-10
When it is in the up position, the device is turned off. When it
is in the middle position, it is turned on. When it is pulled down
to the bottom position, the device does an automatic tuning
operation, which is described below. When it is released it will
go back to the middle position.
To conserve the battery when the FLIR ONE APP is not the
focus, your FLIR ONE will automatically go into ‘Sleep Mode’.
To wake your FLIR ONE, momentarily close the MODE SWITCH
and return it to the open position.
The mode switch has three
positions.
Your FLIR ONE will go into
‘Sleep Mode’ automatically.
MODE SWITCH
SLEEP MODE
Mode Switch. /
OPTIMIZED
+1 METER
OPTIMIZED
+1 METER
OPTIMIZED
+1 METER
FLIR ONE uses two camera apertures and an exclusive image
blending process to ensure you always know what you’re look-
ing at. Position the camera at least an arms length or more
from your subject for optimal photos.
OPTIMIZE YOUR PHOTOS

Iron Gray RainHottestColdest
43 Photos, 2 Videos
FLIR Library
Today
Done Select
Iron Gray RainHottestColdest
Iron Gray
Rain
Hottest
Coldest
App Store
3 SEC.

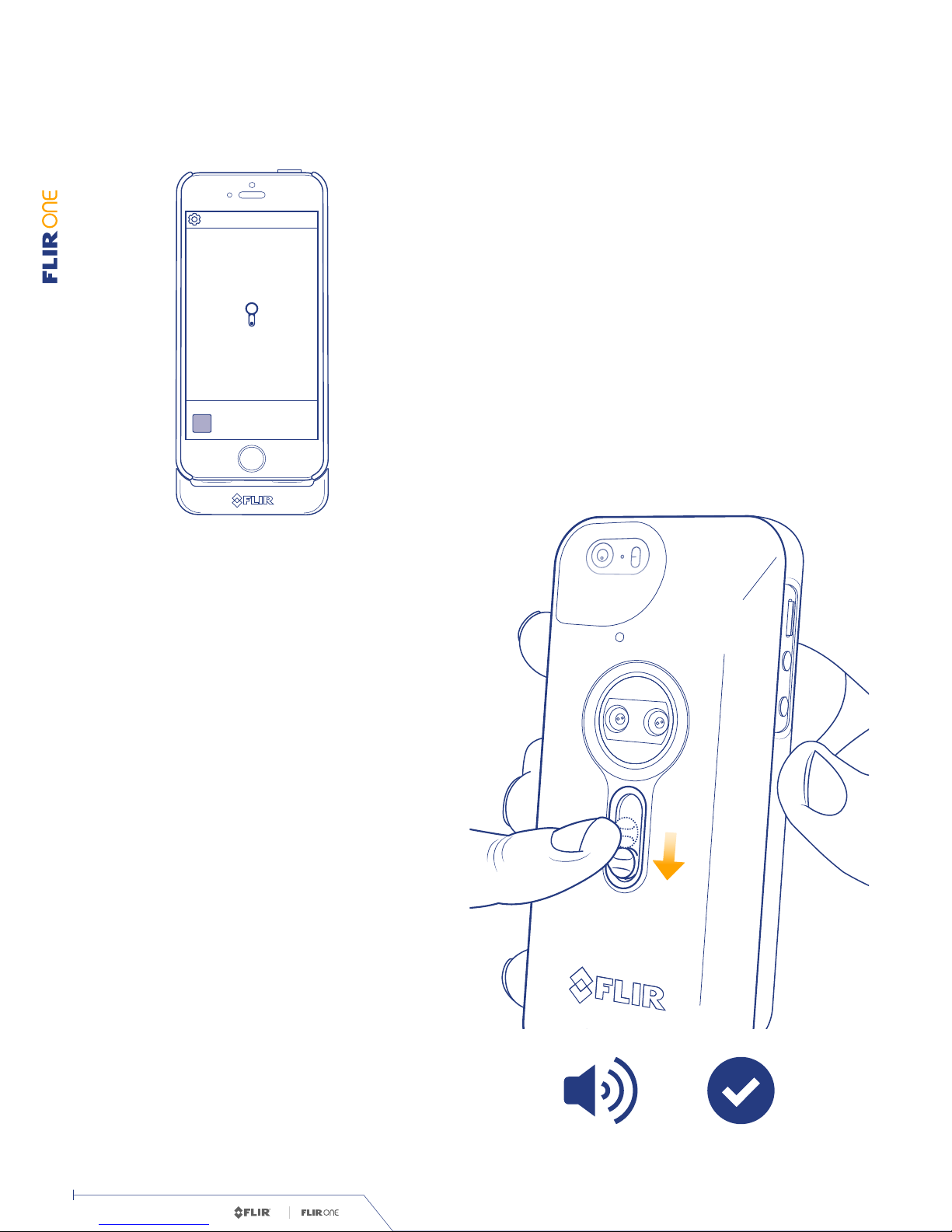

Tuning The FLIR ONE™. /
This causes the device to do a self-calibration and allows
the thermal imager to present an optimized image and a
more accurate temperature calculation (see Spot Meter for
additional information).
Periodically it may be necessary
to perform a Tuning operation
on the FLIR ONE.
TUNING THE FLIR ONE™
TM
© 2014 FLIR Systems, Inc. All rights reserved. TM USER MANUAL
User Manual. / 7
Document #: 435-0001-01-10

Iron Gray RainHottestColdest
43 Photos, 2 Videos
FLIR Library
Today
Done Select
Iron Gray RainHottestColdest
Iron Gray
Rain
Hottest
Coldest
App Store
Iron Gray
Rain
Hottest
Coldest
43 Photos, 2 Videos
FLIR Library
Today
Done Select
Iron Gray RainHottestColdest
Iron Gray
Rain
Hottest
Coldest
App Store
Iron Gray RainHottestColdest
43 Photos, 2 Videos
FLIR Library
Today
Done Select
Iron Gray RainHottestColdest
Iron Gray
Rain
Hottest
Coldest
App Store
OPTIMIZED
+1 METER
TM
© 2014 FLIR Systems, Inc. All rights reserved. TM USER MANUAL
User Manual. / 8
Document #: 435-0001-01-10
Tap the round blue button at the bottom of the screen to save
a snapshot. The images are saved to the FLIR Library.
In the bottom right corner,
swipe the blue camera icon to
the left to select photo mode.
TAKING SNAPSHOTS
Then tap on the red button to begin video capture. Tap on the
red button again to stop the video capture.
Images and videos may be shared through text messaging or
email and may be edited by changing the color palette or the
temperature scale.
Swipe the blue camera icon to
the red video camera icon on the
right to select video mode.
Captured images and video may
be viewed and edited by selecting
the thumbnail image in the lower
left corner of the screen.
TAKING VIDEO
FLIR LIBRARY
Snapshots. Video. FLIR Library. /

TM
© 2014 FLIR Systems, Inc. All rights reserved. TM USER MANUAL
User Manual. / 9
Document #: 435-0001-01-10
The color palettes are described in more detail in the Help
and Support feature of the app (see Settings Menu).
On the display (the live image),
swipe left or right to select a
different color palette and change
how the image is displayed.
CHANGING COLOR PALETTES
Changing Color Palettes. /

TM
© 2014 FLIR Systems, Inc. All rights reserved. TM USER MANUAL
User Manual. / 10
Document #: 435-0001-01-10
The Control Panel allows the user to turn on or off the Spot
Meter, turn on or off the Light, or access the Settings menu. It also
provides an indication of the battery charge level. Tap the blue
gear icon to close the panel.
Select the gear icon in the upper
left to open the Control Panel.
CONTROL PANEL
When the Spot Meter is enabled (indicated by an icon with
white background), the FLIR ONE™ will display a temperature
estimate (in degrees C or F) on the image for approximately
20 seconds after the Tuning operation has been done. The
accuracy of the Spot Meter depends on a great many factors,
including the distance from the object, the ambient tempera-
ture, and the emissivity of the material being observed. Users
are encouraged to learn more about the science of thermography
from http://infraredtraining.com/.
Multi Spectral Imaging (MSX ®
) is a patented technology
which makes use of the visible camera in the FLIR ONE to
maximize detail and image sharpness. This feature requires
some amount of visible light, so in dark environments turn on
the light to enhance the image detail. This feature makes use
of the light that is built into the iPhone.
SPOT METER
LIGHT
Control Panel. /

TM
© 2014 FLIR Systems, Inc. All rights reserved. TM USER MANUAL
User Manual. / 11
Document #: 435-0001-01-10
Configure additional features on
the FLIR ONE™.
SETTINGS MENU
When the Spot Meter is enabled, the temperature displayed
is affected by many factors, including a property of the target
material known as emissivity. This property is a relative rating
of how well a material emits or radiates thermal energy.
Some materials are more emissive than others; reflective
materials like metals tend to be poor emitters. For most
materials, the default “matte” setting is a fair approximation.
If a GPS signal is available, the location will be added to cap-
tured images. This makes it possible to see images on a map.
Turn this on to save a copy of your images and videos in the
iPhone photo gallery. Images will always be stored in the FLIR
ONE camera regardless of this setting. Items already captured
will not be copied.
EMISSIVITY
SAVE GPS LOCATION
SAVE TO CAMERA ROLL
Use this setting to change the temperature unit of measure
between the Fahrenheit and Celsius scale.
TEMPERATURE UNIT
Settings Menu. /

TM
© 2014 FLIR Systems, Inc. All rights reserved. TM USER MANUAL
User Manual. / 12
Document #: 435-0001-01-10
Much more information about
the FLIR ONE™ is described in
the Help & Support feature within
the FLIR ONE app.
FLIR ONE not detected...
HELP & SUPPORT
If the FLIR ONE™ app is not able to detect the FLIR ONE camera,
make sure the iPhone is properly attached to the FLIR ONE
and fully engaged. Make sure the FLIR ONE is turned on with
the mode switch in the middle position. When the FLIR ONE is
turned on, the red Power/Status indicator on the back should
be on. Make sure the FLIR ONE is adequately charged up (when
the device is plugged into a power source, the charge indicator
on the bottom of the device near the micro USB connection
will stay lit continuously if the device is fully charged).
TROUBLESHOOTING
Temperature Readings
Not Accurate...
The temperature indicated by the FLIR ONE is always a
calculated estimate and never exact. The indicated temperature is
affected by many factors, especially the emissivity of the object
being observed and the distance to the object. The temperature
may be influenced by the time of day, by weather conditions,
or by other hot or cold objects in the vicinity that may be
reflecting off the intended object.
Help & Support. /

TM
© 2014 FLIR Systems, Inc. All rights reserved. TM USER MANUAL
User Manual. / 13
Document #: 435-0001-01-10
This equipment has been tested and found to comply with the
limits for a Class B digital device, pursuant to Part 15 of the FCC
Rules. These limits are designed to provide reasonable protec-
tion against harmful interference in a residential installation.
This equipment generates, uses, and can radiate radio frequency
energy and, if not installed and used in accordance with the
instructions, may cause harmful interference to radio communi-
cations. However, there is no guarantee that interference will not
occur in a particular installation. If this equipment does cause
harmful interference to radio or television reception, which can
be determined by turning the equipment off and on, the user
is encouraged to try to correct the interference by one of the
following measures:
• Reorient or relocate the receiving antenna.
• Increase the separation between the equipment
and receiver.
• Connect the equipment into an outlet on a circuit different
from that to which the receiver is connected.
• Consult the dealer or an experienced radio/TV technician
for help.
This device complies with Part 15 of the FCC Rules. Operation
is subject to the following two conditions: (1) This device
may not cause harmful interference, and (2) this device must
accept any interference received, including interference that
may cause undesired operation.
FCC Caution: Any changes or modifications not expressly
approved by the party responsible for compliance could void
the user’s authority to operate this equipment.
LEGAL
FCC INTERFERENCE STATEMENT
IC STATEMENT
VCCI
This Class B digital apparatus complies with Canadian ICES-
003. Cet appareil numérique de la classe B est conforme à la
norme NMB-003 du Canada.
Legal. /

TM
© 2014 FLIR Systems, Inc. All rights reserved. TM USER MANUAL
User Manual. / 14
Document #: 435-0001-01-10
This device has an internal, non-removable, rechargeable
battery. Do not attempt to remove the battery from the device
as you may damage the device. The battery can be charged and
discharged hundreds of times, but it will eventually wear out.
Use and standby times are estimates only. Actual times are
affected by, for example, device settings, features being used,
battery condition, and temperature.
If the battery has not been used for a long time, to begin
charging, you may need to connect the charger, then discon-
nect and reconnect it.
If the battery is completely discharged, it may take several
minutes before the charging indicator is displayed.
When your charger is not in use, unplug it from the electri-
cal plug and the device. Do not leave a fully charged battery
connected to a charger, as overcharging may shorten the bat-
tery’s lifetime. If left unused, a fully charged battery will lose
its charge over time.
Always keep the battery between 15°C and 25°C (59°F
and 77°F). Extreme temperatures reduce the capacity and life-
time of the battery. A device with a hot or cold battery may not
work temporarily.
Do not dispose of batteries in a fire as they may explode. Dispose
of batteries according to local regulations. Recycle when possible.
Do not dispose as household waste.
Use the charger for its intended purpose only. Improper use
or use of unapproved chargers may present a risk of fire,
explosion, or other hazard, and may invalidate any approval
or warranty. If you believe the charger is damaged, take it to a
service center for inspection before continuing to use it. Never
use a damaged charger. Only use the charger indoors.
PRODUCT & SAFETY
BATTERY & CHARGER INFORMATION
Product & Safety. /

TM
© 2014 FLIR Systems, Inc. All rights reserved. TM USER MANUAL
User Manual. / 15
Document #: 435-0001-01-10
Handle your device, charger and accessories with care.
The following suggestions help you protect your warranty coverage.
• Keep the device dry. Precipitation, humidity, and all types
of liquids or moisture can contain minerals that corrode
electronic circuits. If your device gets wet, allow the
device to dry.
• Do not use or store the device in dusty or dirty areas.
Moving parts and electronic components can be damaged.
• Do not store the device in cold temperatures. When the
device warms to its normal temperature, moisture can
form inside the device and damage electronic circuits.
• Do not attempt to open the device.
• Unauthorized modifications may damage the device and
violate regulations governing radio devices.
• Do not drop, knock, or shake the device. Rough handling
can break internal circuit boards and mechanics.
• Use a soft, clean, dry cloth to clean the surface of
the device.
Always return your used electronic products, batteries, and
packaging materials to dedicated collection points. This way
you help prevent uncontrolled waste disposal and promote the
recycling of materials. Check how to recycle your FLIR ONE™
products at: www.flir.com/flirone
The crossed-out wheeled-bin symbol on your product,
battery, literature, or packaging reminds you that all electri-
cal and electronic products, batteries, and accumulators must
be taken to separate collection at the end of their working
life. This requirement applies in the European Union. Do not
dispose of these products as unsorted municipal waste.
TAKE CARE OF YOUR DEVICE
RECYCLE
Take Care Of Your Device. /
