USER INSTRUCTIONS
Installation
Operation
Maintenance
Limitorque MX DeviceNet Field Unit
FCD LMENIM2328-00 – 11/05

Limitorque MX DeviceNet Field Unit FCD LMENIM2328-00 – 11/05
2
Limitorque MX DeviceNet Field Unit Installation and
Operation Manual
©2005 Copyright Flowserve. All rights reserved. Printed in the United States of America
Disclaimer
This document is meant for use with the Limitorque MX Installation and Operation Manual for MX-05
through MX-40. Information in this document is also applicable to MX-85 and MX-140. No part of
this book shall be reproduced, stored in a retrieval system, or transmitted by any means, electronic,
mechanical, photocopying, recording, or otherwise without the written permission of Limitorque. While
every precaution has been taken in the preparation of this book, the publisher assumes no responsibility
for errors or omissions. Neither is any liability assumed for damages resulting from the use of the
information contained herein.
This document is the proprietary information of Flowserve, furnished for customer use ONLY. No other
uses are authorized without written permission from Limitorque.
Limitorque reserves the right to make changes, without notice, to this document and the products it
describes. Limitorque shall not be liable for technical or editorial errors or omissions made herein;
nor for incidental or consequential damages resulting from the furnishing, performance or use of this
document.
The choice of system components is the responsibility of the buyer, and how they are used cannot be
the liability of Limitorque. However, Flowserve Limitorque’s sales team and application engineers are
always available to assist you in making your decision.
This manual contains information that is correct to the best of Flowserve’s knowledge. It is intended
to be a guide and should not be considered as a sole source of technical instruction, replacing good
technical judgment, since all possible situations cannot be anticipated. If there is any doubt as to exact
installation, configuration, and/or use, call Flowserve Limitorque at [phone]. The latest revisions
to this document are available online at http://www.limitorque.com

3
Limitorque MX DeviceNet Field Unit FCD LMENIM2328-00 – 11/05
flowserve.com
Contents
Declaration of DeviceNet Conformance – ODVA Certification 5
Abbreviations 6
1 Introduction 7
1.1 Purpose 7
1.2 How to Use this Manual 7
1.3 User Safety 7
1.4 User Knowledge 8
1.5 DeviceNet System Capabilities and Features 8
1.5.1 General Specifications 8
2 System Components 10
2.1 Introduction 10
2.2 Hardware 10
2.2.1 Limitorque MX 10
2.2.2 DeviceNet Field Unit 11
2.2.3 Hardware interface 12
2.2.4 Network Cable 12
3 Installation and Configuration 13
3.1 Site and Network Cable Preparation 13
3.1.1 Site Preparation 13
3.1.2 Network Cable Preparation 13
3.2 Installation Verification 16
3.2.1 Network Cabling Installation Verification 16
3.2.2 DNFU Installation Verification 17
4 Object Model Diagram 17
4.1 Assembly Objects 18
4.2 Output Assembly Instances 18
4.2.1 DI_Position_and_Bus_Mode_Chan 22
4.2.2 DI_Position_Chan 22
4.2.3 DI_Actuator_Faults_1_Chan 22
4.2.4 DI_Actuator_Faults_2_Chan 23
4.2.5 DI_Actuator_Alarms_Chan 23
4.2.6 DI_Disc_User_Input_Chan 24
4.2.7 DI_Read_Disc_Output_Chan 24
4.2.8 DO_Position_Chan 24
4.2.9 DO_ESD_Chan (Read Only) 24
4.2.10 DO_Relay_Chan 25
4.2.11 DO_Actuator_Faults_3_Chan 25
4.2.12 Ctrl_Status_Chan 25
4.2.13 DI_Alarms_2_Chan 25
4.2.14 DI_Actuator_Faults_3_Chan 25
4.3 Channel Interface 26
4.4 Transducer Block Object 28
4.4.1 MAC ID 30
4.4.2 Baud Rate 31
4.5 Network Management 31
4.5.1 Offline Connection Set 31
4.5.2 Device Heartbeat Message 31

Limitorque MX DeviceNet Field Unit FCD LMENIM2328-00 – 11/05
4
4.5.1 Device Shutdown Message 32
4.6 Configuration Confirmation 32
4.6.1 Checking Connections 32
4.6.2 View Settings 32
5 View DeviceNet Status 33
5.1 Checking the Normal Display 34
5.2 EDS File 35
6 Associated Documents 35
7 Troubleshooting 35
7.1 Workmanship 36
8 How to Order Parts 37
9 Regulatory Information 37
10 Wiring Diagram 38

5
Limitorque MX DeviceNet Field Unit FCD LMENIM2328-00 – 11/05
flowserve.com
Declaration of DeviceNet Conformance –
ODVA Certification
Declaration of Conformity
to the DeviceNet™ Specification
DeviceNet and the DeviceNet CONFORMANCE TESTED logo mark and word marks are trademarks of ODVA.
Copyright © ODVA Inc. 2004 PUB00014R4 www.odva.org Page 1 of 1
ODVA hereby issues this Declaration of Conformity to the DeviceNet™ Specification for the product(s) described below. The Vendor
listed below (the "Vendor") has holds a valid the Terms of Usage Agreement for the DeviceNet Technology from ODVA, which is
incorporated herein by reference, thereby agreeing that it is the Vendor’s ultimate responsibility to assure that its DeviceNet
Compliant Products conform to the DeviceNet Specifications and that the DeviceNet Specifications are provided by ODVA to the
vendor on an AS IS basis without warranty. NO WARRANTIES, EXPRESSED OR IMPLIED, INCLUDING WITHOUT LIMITATION ANY
WARRANTIES OF MERCHANTABILITY OR FITNESS FOR A PARTICULAR PURPOSE, ARE BEING PROVIDED BY ODVA.
In recognition of the below DeviceNet Compliant Product(s) having been DeviceNet Conformance Tested at ODVA-authorized Test
Service Provider and having received a passing result from ODVA at the Composite Test Revision Level specified below, this
Declaration of Conformity authorizes the Vendor to use the DeviceNet Certification Marks in conjunction with the specific DeviceNet
Compliant Product(s) described below, for so long as the Vendor's Terms of Usage Agreement for the DeviceNet Technology remains
valid.
DeviceNet CONFORMANCE TESTED ™
Certification Logo Mark Certification Word Mark
This Declaration of Conformity is issued on 27 February 2006 on behalf of ODVA by:
Katherine Voss
Executive Director
Vendor Information
Vendor Name Flowserve Corporation
Vendor Address 5114 Woodall Road
Lynchburg, VA 24506
USA
Test Information
Test Date 16-17 February 2006
Composite Test Revision 18
ODVA File Number 10331
Product Information
Identity Object Instance 1
Device(s) Under Test Value
Vendor ID (Identity Object Attribute 1) 966
Network Category Node
Device Type (Identity Object Attribute 2) 0
Device Profile Name Generic Device
Product Revision (Identity Object Attribute 4) 1.002
Products Covered Under This Declaration of Conformity
No. Product Code (Identity Object Attribute 3) Product Name (Identity Object Attribute 7) SOC File Name
119800 Flowserve MX DLI.stc

Limitorque MX DeviceNet Field Unit FCD LMENIM2328-00 – 11/05
6
Abbreviations
CIP Common Industrial Protocol
CAN Controller Area Network
COS Change of State
ODVA Open DeviceNet Vendor Association
UCMM Unconnected Message Manager
NV-RO Non-Volatile Read Only. Data is stored in non-volatile memory and can only be read. Data is
stored during Power-Off. For DeviceNet Limitorque Interface this storage area is FLASH
NV-RW Non-Volatile Read Write. Data is stored in non-volatile memory and can be read and write.
Data is stored during Power-Off. For DeviceNet Limitorque Interface this storage area is EEPROM
V-RO Volatile Read Only. Data is stored in volatile memory and can only be read (e.g. Status). Data is
lost during Power-Off. For DeviceNet Limitorque Interface this storage area is RAM
V-RW Volatile Read Write. Data is stored in volatile memory and can be read and write data is lost
during Power-Off, for DeviceNet Limitorque Interface this storage area is RAM.
DNFU DeviceNet Field Unit (PCB w/in actuator control compartment)
SPI Synchronous Peripheral Interface
PCB Printed Circuit Board

7
Limitorque MX DeviceNet Field Unit FCD LMENIM2328-00 – 11/05
flowserve.com
1 Introduction
1.1 Purpose
This manual explains how to install and operate the Limitorque MX™/DeviceNet field unit (DNFU) and is
to be used as an addendum to Bulletin LMENIM2306, Limitorque MX Installation and Operation Manual.
Up to 63 actuators, each containing a DeviceNet field unit, may be connected by a single 5 strand,
twisted-pair cable to form a DeviceNet network, two wires for connection to the data highway and two
wires for connection to the DC power lines of the network highway, plus a screen connection. A suitable
power supply and termination resistors on the highway are required in order for the FU to function
correctly. This network permits the actuators to be operated by various control room devices such as a
distributed control system (DCS), a programmable logic controller (PLC), or a personal computer (PC).
The DeviceNet system communicates status and alarm data from each MX actuator.
1.2 How to Use this Manual
Each section provides the MX user with information on installing and operating the MX DNFU.
Section 1, Introduction: Details user safety and knowledge requirements, system capabilities, and
features.
Section 2, System Components: Focuses on the description of the DeviceNet system hardware and
software components.
Section 3, Installation and Configuration: Provides details for installing and configuring a DNFU.
Section 4, Object Model Diagram: Provides a list of inputs and outputs supported through the Assembly
Object system information.
Section 5, View DeviceNet Status
Section 6, Associated Documents
Section 7, Troubleshooting
Section 8, How to Order Parts
Section 9, Regulatory Information
Section 10, Wiring Diagram
1.3 User Safety
Safety notices in this manual detail precautions the user must take to reduce the risk of personal injury
and damage to the equipment. The user must read and be familiar with these instructions before
attempting installation, operation, or maintenance. Failure to observe these precautions could result
in serious bodily injury, damage to the equipment, warranty void, or operational difficulty. User must
follow local and state safety regulations.
Safety notices are presented in this manual in three forms:
WARNING: Refers to personal safety. Alerts the user to potential danger. Failure to follow
warning notices could result in personal injury or death.
c
c

Limitorque MX DeviceNet Field Unit FCD LMENIM2328-00 – 11/05
8
CAUTION: Directs the user’s attention to general precautions that, if not followed, could result in
personal injury and/or equipment damage.
NOTE: Highlights information critical to the user’s understanding of the actuator’s installation and
operation.
1.4 User Knowledge
It is recommended that the user read this manual in its entirety before the DeviceNet equipped actuator
is installed and operated.
The user needs to have a fundamental knowledge of electronics and microprocessor concepts. An
understanding of valve actuators and digital control systems is also of benefit to the DNFU user.
1.5 DeviceNet System Capabilities and Features
DeviceNet is a low cost communications protocol which permits up to 64 nodes (devices) to be
installed over a single network and is based upon CAN (Controller Area Network), a broadcast protocol
developed for the automotive industry. DeviceNet™ protocol is defined as an open network standard and
Limitorque’s device is certified for use by the ODVA, Open Device Standard Association. DeviceNet is
usually PLC input controlled and the Limitorque MX electronic actuator is well suited for this communi-
cation system. A typical network is seen in Figure 1.1.
Figure 1.1 – Typical Network
1.5.1 General Specifications
1.5.1.1 Network Specifications
DeviceNet is a digital, trunk/drop network that connects and serves as a communication network
between industrial controllers and I/O devices.
DeviceNet follows the Open Systems Interconnection (OSI) model, an ISO standard for network
communications that is hierarchical in nature. Networks that follow this model define all necessary func-
tions from the physical implementation up to the protocol and methodology to communicate control
and information data within and across networks.
a

9
Limitorque MX DeviceNet Field Unit FCD LMENIM2328-00 – 11/05
flowserve.com
Table 1.1 – Network specifications
Network Size Up to 63 Nodes
Network Length Selectable end-to-end network distance varies with speed
125 Kbps 500 m (1,640 ft)
250 Kbps 250 m (820 ft)
500 Kbps 100 m (328 ft)
Bus Topology Linear (trunkline/dropline); power and signal on the same network cable
Bus Addressing Multi-Master and Master/Slave special case; polled of change-of-state
(exception-based)
System Features Selectable end-to-end network distance varies with speed
Termination resistor (121 ohms) must be used at each end of the network
1.5.1.2 MX Field Unit Specifications
CIP Generic Device Profile (Device Type = 00hex) extended to DNFU requirements
Group 2 Server
UCMM capable device
Predefined Master/Slave Connection Set supporting
Explicit Connection
Polled I/O Connection
Bit-Strobed I/O Connection
Change of State / Cyclic I/O Connection
Full support of fragmentation protocol
Device Heartbeat Message
Device Shutdown Message
Offline Connection Set
Galvanical Isolation: The isolation voltage for the DNFU is up to 1,500 VRMS for 1 minute (1,800
VRMS for 1 second
Power Supply: The DNFU Interface will be powered from the DeviceNet bus. A switching regulator is
used to generate the internal supply voltage: VCC nominal 5.0 V ± 5 %
Surge Suppression: The DNFU Interface is equipped with surge suppression for the DeviceNet
network data and power lines. Surge suppression is compliant with IEC 61000-6-2:2001.
Environmental conditions
The DNFU environmental parameters are within the same environmental constraints as the actuator.
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•

Limitorque MX DeviceNet Field Unit FCD LMENIM2328-00 – 11/05
10
2 System Components
2.1 Introduction
This section gives an overview of the components used in the DeviceNet system. The field unit is
installed in each MX actuator. The network cable connects the field unit to the network via the actuator
terminal block. The network cable is connected to a host controller, typically a PLC.
2.2 Hardware
NOTE: Recommended storage procedures are detailed in Bulletin LMAIM1314 Limitorque MX
Maintenance and Spare Parts Manual. Failure to comply with recommended procedures will void the
warranty. For longer-term storage, contact Limitorque for procedures and recommendations.

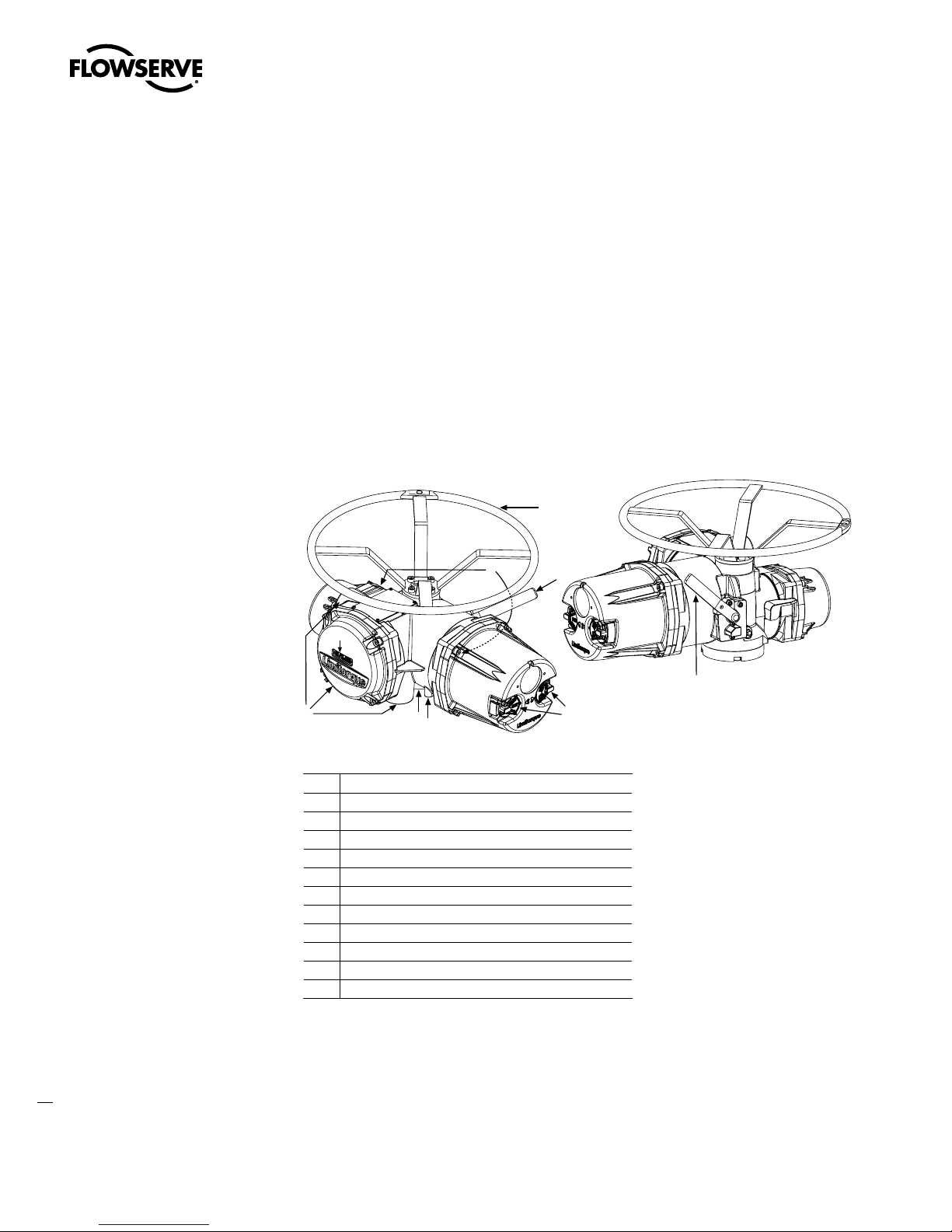

Figure 2.1 – MX-05 Actuator
2
1
2
3
7
8
4
5
11
12
10
6
9
Table 2.1 – MX-05 Actuator
1 Handwheel
2 Declutch Lever
3 Oil Fills (dotted arrow depicts fill on declutch side)
4 Controls Compartment (field unit location)
5 LCD Display
6 Control Knobs
7 Ground Lug
8 Thrust/Torque Base
9 Conduit Entries
10 Terminal Compartment
11 Motor
12 Nameplate
2.2.1 Limitorque MX
The MX is a multi-turn valve actuator designed for operation of ON-OFF and modulating valve applica-
tions. This actuator controls the opening and closing of valves. See Figure 2.1.

11
Limitorque MX DeviceNet Field Unit FCD LMENIM2328-00 – 11/05
flowserve.com
The MX features include:
Non-intrusive setup
Separately sealed terminal chamber
Patented absolute encoder for valve position sensing (no battery required)
32-character LCD for indication and calibration with configuration permitted in six languages.
Sophisticated electronic control, monitoring, and diagnostic capabilities with patented LimiGard™
technology
2.2.2 DeviceNet Field Unit
The DeviceNet field unit is installed in the MX controls compartment. This unit permits the actuator to
be controlled by a host controller, typically a PLC, via the DeviceNet network. The DNFU includes two
high-level, surge-protected, and isolated network communication channels, configurable digital I/O, and
configuration via LCD screen. The following commands and information may be transmitted over the
DeviceNet network:
“OPEN,” “STOP,” and “CLOSE” commands
“ESD” and “MOVE–TO” position commands
Actuator status and alarm messages
Six digital inputs and two analog inputs for user
A surge-protected and isolated communication channels
MX control panel configuration
Torque output (for reference only) and position feedback
Four digital outputs (standard)

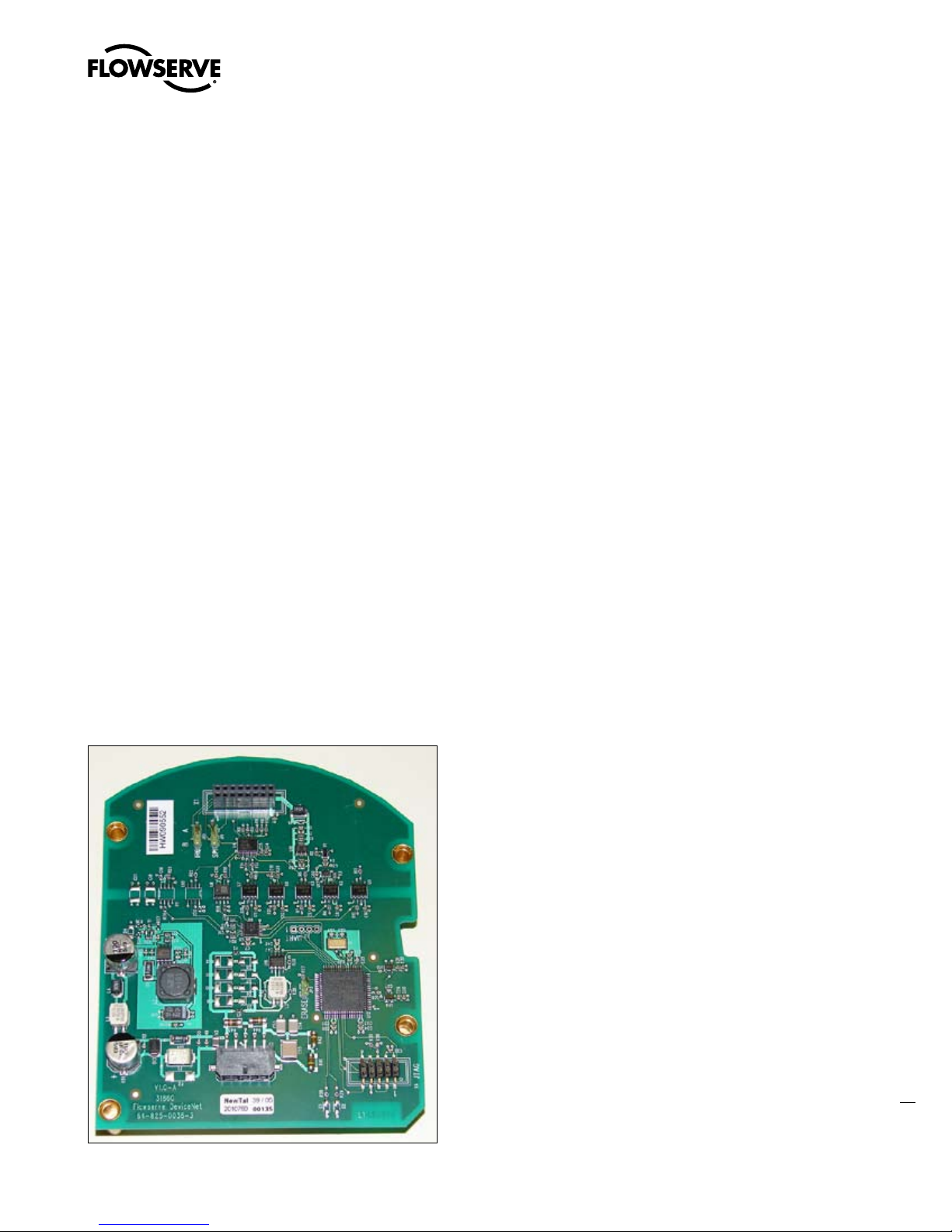

Figure 2.2 – DeviceNet Field Unit
•
•
•
•
•
•
•
•
•
•
•
•
•

Limitorque MX DeviceNet Field Unit FCD LMENIM2328-00 – 11/05
12
2.2.3 Hardware interface
The DeviceNet Limitorque Interface is comprised of a minimum of one PCB with two interfaces - One
for the DeviceNet Terminal Block connector and one for the SMT Main Board.
Figure 2.3 gives an overview about the hardware. The microcontroller on the DeviceNet Limitorque
Interface handles the DeviceNet protocol, stores the DeviceNet parameters in an EEPROM, and commu-
nicates with the SMT Main Board via SPI.

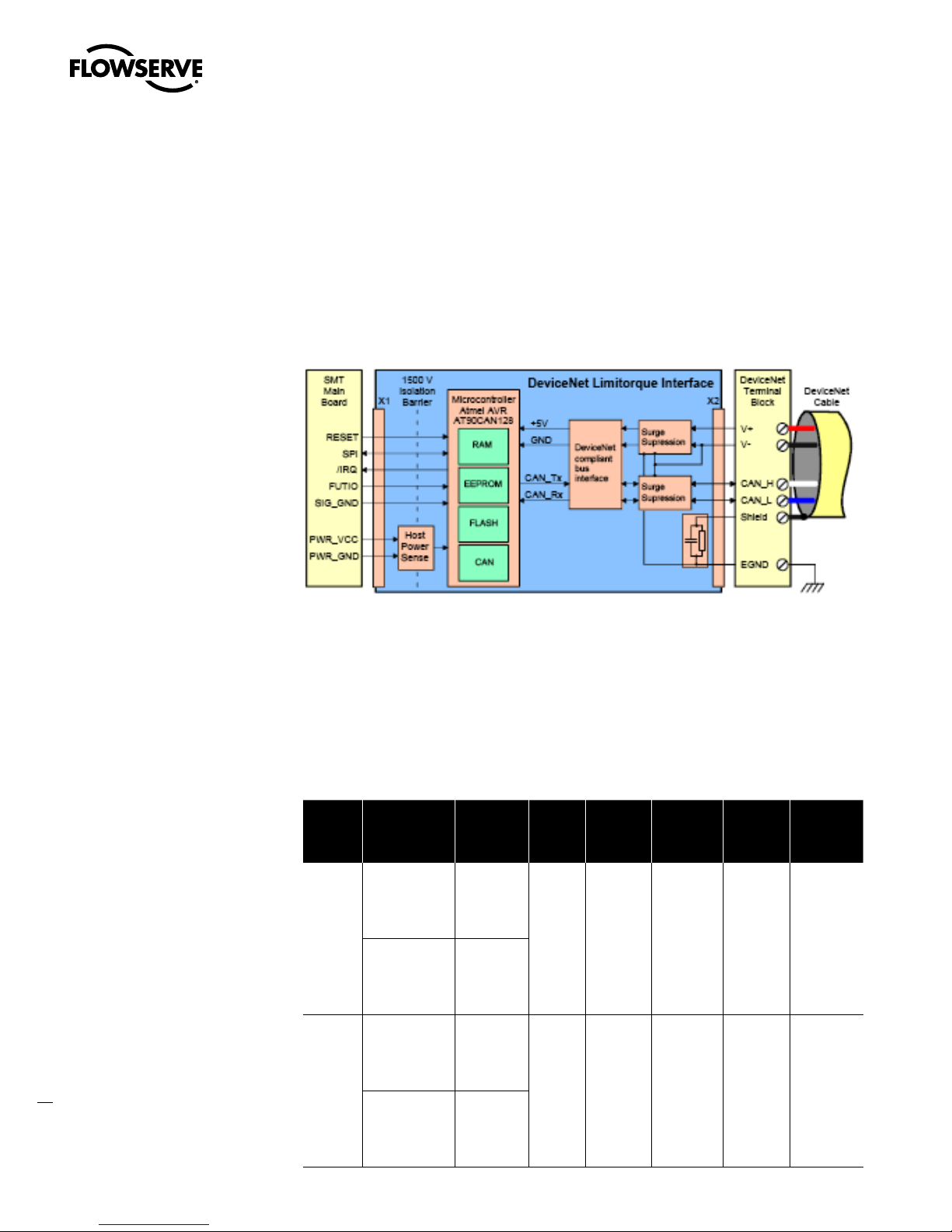

Figure 2.3 – DeviceNet Limitorque Interface
2.2.4 Network Cable
DeviceNet is a CAN - based protocol that uses 5 wires including a shield. Two of the conductors are
used for 24V DC power & up to 8 amps (4 amps for NEC Class 2) may be passed along the hi-way from
a suitable power source. Two conductors are used for the CAN bus signals, CAN_H and CAN_L, which
are usually smaller in diameter. Limitorque recommends Belden cable for connecting to a DeviceNet
network. The specifications for thick and thin cable (per site requirements) are as follows:
Table 2.2 – Belden Cable Specifications
Belden
Part No.
AWG
(Stranding)
dia. Inches
Nom. DCR
Insulation
material
(color code)
Nominal
O.D.
Nom
Impedance
(ohms)
Nominal
Capacitance
Test
Frequency
(MHz)
Maximum
Attenuation
dB/100ft
3082A
2 – 15 AWG
(19 x 28)
3.6 ohm/1000 ft
11.8 ohm/km
Power pair
(Black/Red)
12.2 mm 120 12.0 pF/ft
0.125
0.5
1
0.13
0.25
1.36
2 – 18 AWG
(19 x 30)
6.9 ohm/1000 ft
22.7 ohm/km
Data pair
(Blue/White)
3084A
2 – 22 AWG
(19 x 34)
17.5 ohm/1000 ft
57.4 ohm/km
Power pair
(Black/Red)
7.2 mm 120 12.0 pF/ft
0.125
0.5
1
0.29
0.50
1.70
2 – 18 AWG
(19 x 36)
28.0 ohm/1000 ft
91.9 ohm/km
Data pair
(Blue/White)

13
Limitorque MX DeviceNet Field Unit FCD LMENIM2328-00 – 11/05
flowserve.com
Table 2.3 – Total cable length between repeaters or nodes:
Network Size 125 KBPS 250 KBPS 500 KBPS
Thick Trunk Length 500 m (1,640 ft) 250 m (1,640 ft) 100 m (1,640 ft)
Thin Trunk Length 100 m (328 ft) 100 m (328 ft) 100 m (328 ft)
Flat Trunk Length 380 m (1,250 ft) 200 m (656 ft) 75 m (246 ft)
Maximum Drop Length 6 m (20 ft) 6 m (20 ft) 6 m (20 ft)
Cumulative Drop Length 156 m (512 ft) 78 m (256 ft) 39 m (128 ft)
Note: Each actuator includes 0.60 meters of internal drop length.
3 Installation and Configuration
3.1 Site and Network Cable Preparation
3.1.1 Site Preparation
Prepare the site and associated equipment for operation of the DeviceNet controlled MX actuators as
follows:
1. Prepare a detailed site plan consisting of the following:
Actuator locations, tag numbers, DeviceNet addresses
Junction boxes, terminal strip locations, and tag numbers
2. Provide free access to the MX control panel and terminal block for setup, configuration, and
troubleshooting.
3. Prepare cable and label all wires. See Section 3.1.2, Network Cable Preparation.
4. Install power and control wires in separate conduits. Shielding is not sufficient to prevent induction
of stray voltages onto signal leads from the power lines.
5. Install and verify earth grounds.
NOTE: Limitorque defines an effective local earth ground as a low impedance (less than 5 ohms) path
to:
A ground electrode placed in close vicinity of the actuator that is free of ground loop currents. OR
A safety ground that is free of ground loop currents running from the actuator back to the system
ground electrode. If the signal wiring is run on aerial cable where it may be exposed to high-
energy electrostatic discharge (such as lightning), a low impedance path to ground that is capable
of high current must be provided a short distance from the actuator as described above. OR
A power distribution grid identifying the impact of power isolation to a particular actuator or
group of actuators should be provided.
3.1.2 Network Cable Preparation
3.1.2.1 Network Cable Connection to the Field Unit
The DeviceNet field unit is connected to the network via the MX terminal block. The network cable is
connected to the terminal block as shown in Figure 3.1.
•
•
•
•
•

Limitorque MX DeviceNet Field Unit FCD LMENIM2328-00 – 11/05
14

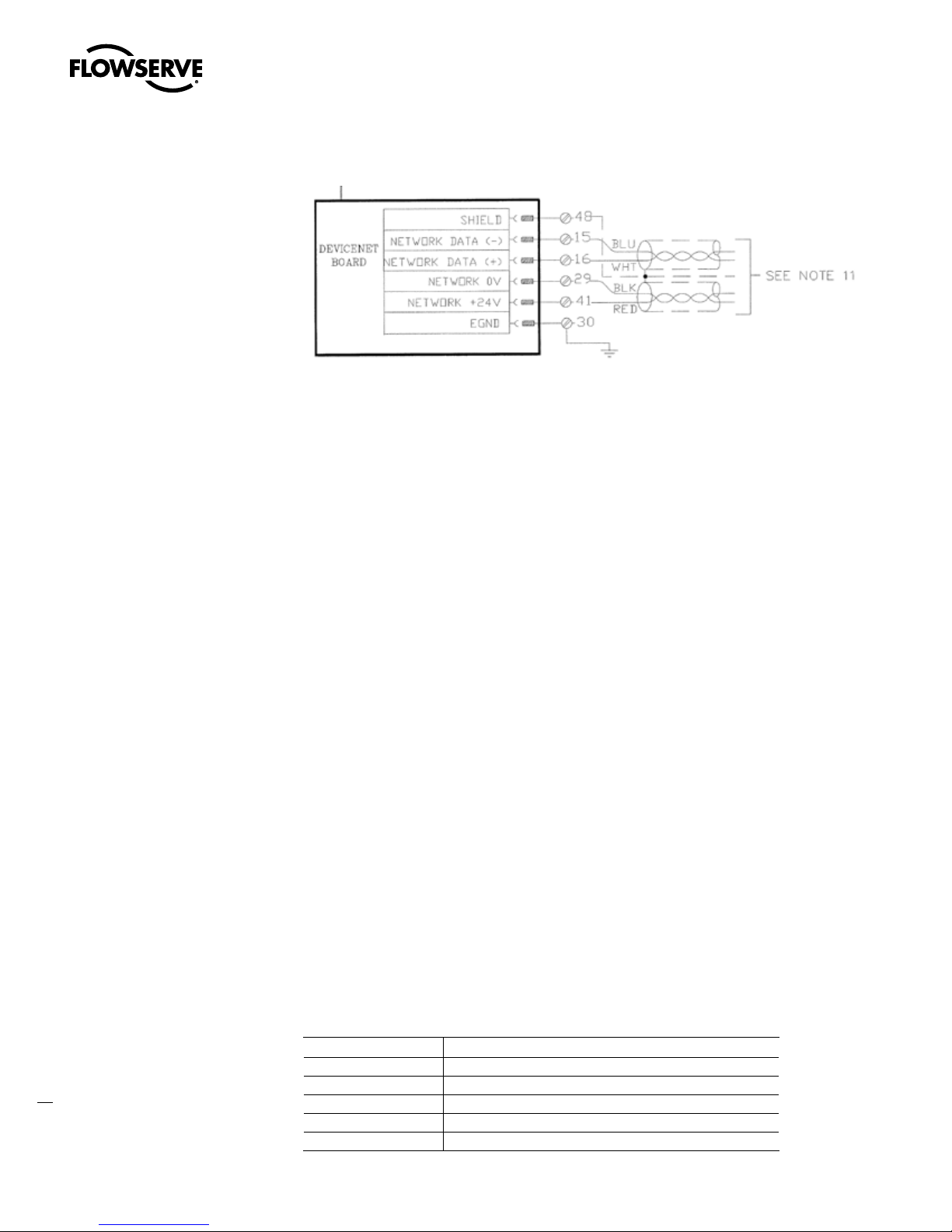

Figure 3.1 – Network cable connection to terminal block
NOTE: Recommended DeviceNet cable is Belden 3084A or equal. 121 ohm, ¼ W +/-1% termination
resistors must be connected at each segment end. Customer is required to connect wire between
terminal 30 and chassis ground for surge protection. Preferred network wiring is to connect shield to
terminal 48 for only one unit on each segment. Connect remaining individual network cable shields
together to ensure proper shielding of entire network. Consult wiring diagram for exact terminal
connection points as they may change.
Prepare the network cable for connection to the MX terminal block as follows.
CAUTION: Strip stranded conductors carefully; do not damage the strands. This will weaken the
conductor. Do not nick conductors or conductor insulation when stripping away the insulation.
Nicking stresses the conductor and can cause the conductor to break. This type of damage may
not be apparent and failure can occur later without warning.
NOTE: Excess cable should be cut, not coiled or looped, to prevent noise induction into the network and
to reduce signal loss through unnecessarily long cable runs.
Cable Preparation
1. Remove two to three inches (5 to 8 cm) of the outer plastic jacket.
2. Separate the cable parts. Unbraid the shield and peel back the foil shield to the same point where
the outer jacket was removed. Cut away the braided shield and the foil shield. Strip the insulation
from the conductors approximately 0.4 inch (1 cm).
3. Apply heat shrink tubing to insulate the drain wire and to provide stress relief to the cable.
CAUTION: Do not melt the insulation. NOTE: Ungrounded drain wires should be cut even with
the cable sheath. The brand foil and drain wire should have heat shrink tubing applied.
4. Install ring tongue connectors. Flowserve recommends the use of Thomas & Betts #RZ22-6 for
optimum results.
5. Connect the network cables to the MX terminal block as shown in Wiring Diagram #18-499-0038-3.
Table 3.1
48 Shield
15 (Blue) DATA (-)
16 (White) DATA (+)
29 (Black) Network 0 V
41 (Red) Network 24V
30 Earth ground for surge protection circuit
a
a

15
Limitorque MX DeviceNet Field Unit FCD LMENIM2328-00 – 11/05
flowserve.com
NOTE: Ground each segment of the cabling at only one point to prevent ground loops, which can affect system
performance. Verify the actuator is properly grounded.
6. Install jumper cable from terminal block pin 30 to earth ground or ground lug.
3.2 Installation Verification
3.2.1 Network Cabling Installation Verification
After installation is complete and prior to operation, inspect the network cable and its connection to
each field unit for the following:
NOTE: Units should be disconnected from power. Network should be disconnected from host.
1. There should be:
No nicks in the insulation—this can cause a short between conductors or to the grounded shield.
No cut strands in a stranded conductor—this can cause a poor connection and eventually an
open circuit.
2. Verify that there is data wiring on each actuator per wiring diagram.
3. Cable armor should not be shorted to the cable shield/drain wire. Cable armor may not be at ground
potential and could be subject to lightning surges.
The shield/drain wire should only be grounded at one end of each cable segment (the section between
adjacent actuators between the host system and an actuator) to avoid ground loop problems.
The ground/earth connection should be at true ground potential and effective at all times. See Section
3.1.1, Site Preparation.
3.2.2 DNFU Installation Verification
NOTE: Connect to either 24 V DC power or mains and activate power.
Verify the field unit is installed as follows:
1. Enter the “SETUP” mode as detailed in Bulletin LMAIM1306/2306, MX Installation and Operation
Manual.
2. In the “SETUP” mode, use the black control knob to select “YES” to the main menu selection “VIEW
DIAGNOSTICS?”
3. Select “YES” to the display “VIEW HARDWARE STATUS?”
4. Select “YES” to scroll through the menu selections. The LCD will read “DeviceNet (OK) – NEXT?” if
installed.
NOTE: If the “DeviceNet (OK) – NEXT?” does not appear, contact Flowserve for assistance.
19. To return to the normal display, use the red knob to select either “LOCAL” or “REMOTE.”
•
•

Limitorque MX DeviceNet Field Unit FCD LMENIM2328-00 – 11/05
16
4 Object Model Diagram

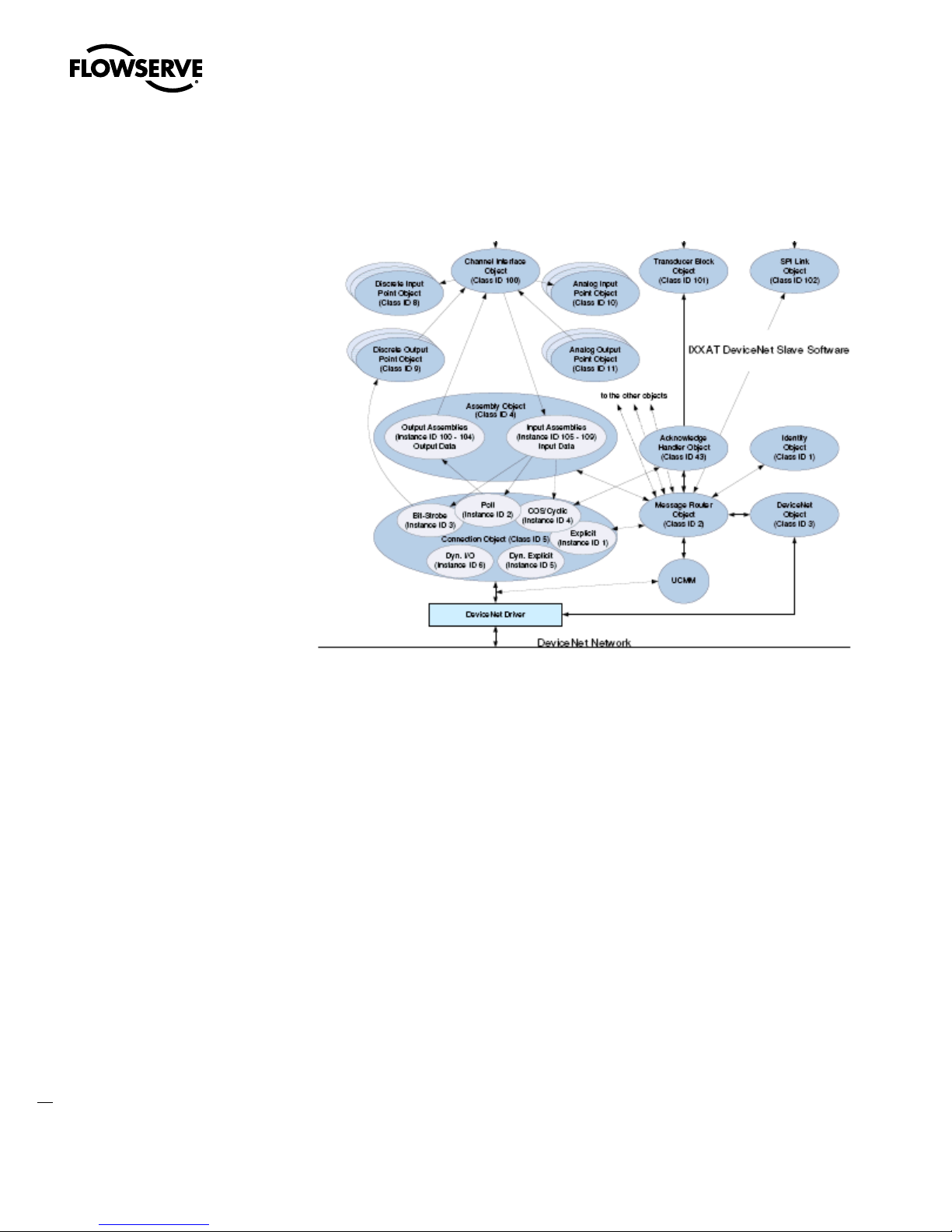

Figure 4.1 – Object Model of DeviceNet Limitorque Interface
4.1 Assembly Objects
The Assembly Object binds attributes of multiple objects, which allows data to or from each object to
be sent or received over a single connection. Assembly Objects can be used to bind input data or output
data. The terms input and output are defined from the networks point of view. An input will produce data
on the network and an output will consume data from the network
The terms input and output are defined from the networks point of view.
An input is a signal produced at the actuator and sent to the PLC via the network.•

17
Limitorque MX DeviceNet Field Unit FCD LMENIM2328-00 – 11/05
flowserve.com
An output is a signal produced at the PLC and sent to the actuator via the
network.
The user may select one output and one input instance.
The default assembly objects are as follows: Polled input - 105, Polled output - 100, Bitstrobe - 107,
COS - 109.
Table 4.1
Instance ID Type Data Component Name Size
100 Output Output 1 (All Control Channels) 9
101 Output Output 2 (Analog Control and ESD only) 5
102 Output Output 3 (Discrete Control and ESD only) 4
103 Output Output 4 (Analog Control only) 3
104 Output Output 5 (Discrete Control only) 3
105 Input Input 1 (All Status Information) 16
106 Input Input 2 (Position and Faults only) 6
107 Input Input 3 (Position and Faults only) 8
108 Input Input 4 (Position, User and Faults only) 11
109 Input Input 5 (Faults and Alarms only) 6
4.2 Output Assembly Instances
Table 4.2 – Output Assembly Instance 100
Assembly
Object
Instance ID
Data
Component
Name
Class Instance
ID
Attribute
ID Name ID Name Data
Type
100 Output 1 100 Channel
Interface
1 20 Ctrl_Status_Chan BYTE
100 Channel
Interface
1 1 AO_Ctrl_Valve_ Flow_Chan INT
100 Channel
Interface
1 9 DO_Position_Chan BYTE
100 Channel
Interface
1 21 DO_ESD_Poll_Cnxn BOOL
100 Channel
Interface
1 11 DO_Relay_Chan BYTE
100 Channel
Interface
1 18 DO_Move_Test_Chan BOOL
100 Channel
Interface
1 19 AO_Analog_Output_Chan UNIT
Table 4.3 – Output Assembly Instance 101
Assembly
Object
Instance ID
Data
Component
Name
Class Instance
ID
Attribute
ID Name ID Name Data
Type
101 Output 2 100 Channel
Interface
1 20 Ctrl_Status_Chan BYTE
100 Channel
Interface
1 1 AO_Ctrl_Valve_ Flow_Chan INT
100 Channel
Interface
1 21 DO_ESD_Poll_Cnxn BOOL
100 Channel
Interface
1 10 DO_Move_Test_Chan BOOL
•

Limitorque MX DeviceNet Field Unit FCD LMENIM2328-00 – 11/05
18
Table 4.4 – Output Assembly Instance 102
Assembly
Object
Instance ID
Data
Component
Name
Class Instance
ID
Attribute
ID Name ID Name Data
Type
102 Output 3 100 Channel
Interface
1 20 Ctrl_Status_Chan BYTE
100 Channel
Interface
1 9 DO_Position_Chan BYTE
100 Channel
Interface
1 21 DO_ESD_Poll_Cnxn BOOL
100 Channel
Interface
1 18 DO_Move_ Test_Chan BOOL
Table 4.5 – Output Assembly Instance 103
Assembly
Object
Instance ID
Data
Component
Name
Class Instance
ID
Attribute
ID Name ID Name Data
Type
103 Output 4 100 Channel
Interface
1 20 Ctrl_Status_Chan BYTE
100 Channel
Interface
1 1 AO_Ctrl_Valve_ Flow_Chan INT
Table 4.6
Assembly
Object
Instance ID
Data
Component
Name
Class Instance
ID
Attribute
ID Name ID Name Data
Type
104 Output 5 100 Channel
Interface
1 20 Ctrl_Status_Chan BYTE
100 Channel
Interface
1 9 DO_Position_Chan BYTE
100 Channel
Interface
1 21 DO_ESD_Poll_Cnxn BOOL

19
Limitorque MX DeviceNet Field Unit FCD LMENIM2328-00 – 11/05
flowserve.com
Table 4.7 – Input Assembly Instance 105
Assembly
Object
Instance ID
Data
Component
Name
Class Instance
ID
Attribute
ID Name ID Name Data
Type
105 Input 1 100 Channel
Interface
1 17 DI_Actuator_
Faults_3_Chan
BYTE
100 Channel
Interface
1 4 DI_Actuator_
Faults_1_Chan
BYTE
100 Channel
Interface
1 6 DI_Actuator_ Alarms_Chan BYTE
100 Channel
Interface
1 2 DI_Pos_And_
Bus_Mode_Chan
BYTE
100 Channel
Interface
1 5 DI_Actuator_
Faults_2_Chan
BYTE
100 Channel
Interface
1 12 AI_Position_Chan INT
100 Channel
Interface
1 7 DI_Disc_User_ Input_Chan BYTE
100 Channel
Interface
1 8 DI_Read_Disc_
Output_Chan
BYTE
100 Channel
Interface
1 13 AI_Analog_ Input_2_Chan INT
100 Channel
Interface
1 14 AI_Analog_ Input_2_Chan INT
100 Channel
Interface
1 16 DI_Alarms_2_
Chan
BYTE
100 Channel
Interface
1 15 AI_Torque_Chan INT
Table 4.8
Assembly
Object
Instance ID
Data
Component
Name
Class Instance
ID
Attribute
ID Name ID Name Data
Type
106 Input 2 100 Channel
Interface
1 17 DI_Actuator_
Faults_3_Chan
BYTE
100 Channel
Interface
1 4 DI_Actuator_
Faults_1_Chan
BYTE
100 Channel
Interface
1 6 DI_Actuator_ Alarms_Chan BYTE
100 Channel
Interface
1 2 DI_Pos_And_
Bus_Mode_Chan
BYTE
100 Channel
Interface
1 12 AI_Position_Chan INT

Limitorque MX DeviceNet Field Unit FCD LMENIM2328-00 – 11/05
20
Table 4.9 – Input Assembly Instance 107
Assembly
Object
Instance ID
Data
Component
Name
Class Instance
ID
Attribute
ID Name ID Name Data
Type
107 Input 3 100 Channel
Interface
1 17 DI_Actuator_
Faults_3_Chan
BYTE
100 Channel
Interface
1 4 DI_Actuator_
Faults_1_Chan
BYTE
100 Channel
Interface
1 6 DI_Actuator_ Alarms_Chan BYTE
100 Channel
Interface
1 2 DI_Pos_And_
Bus_Mode_Chan
BYTE
100 Channel
Interface
1 12 AI_Position_Chan INT
100 Channel
Interface
1 15 AI_Torque_Chan INT
Table 4.10 Input Assembly Instance 108
Assembly
Object
Instance ID
Data
Component
Name
Class Instance
ID
Attribute
ID Name ID Name Data
Type
108 Input 4 100 Channel
Interface
1 17 DI_Actuator_
Faults_3_Chan
BYTE
100 Channel
Interface
1 4 DI_Actuator_
Faults_1_Chan
BYTE
100 Channel
Interface
1 6 DI_Actuator_ Alarms_Chan BYTE
100 Channel
Interface
1 2 DI_Pos_And_
Bus_Mode_Chan
BYTE
100 Channel
Interface
1 12 AI_Position_Chan INT
100 Channel
Interface
1 7 DI_Disc_User_ Input_Chan BYTE
100 Channel
Interface
1 13 AI_Analog_ Input_2_Chan INT
100 Channel
Interface
1 15 AI_Torque_Chan INT
Table 4.11 Input Assembly Instance 109
Assembly
Object
Instance ID
Data
Component
Name
Class Instance
ID
Attribute
ID Name ID Name Data
Type
109 Input 5 100 Channel
Interface
1 17 DI_Actuator_
Faults_3_Chan
BYTE
100 Channel
Interface
1 4 DI_Actuator_
Faults_1_Chan
BYTE
100 Channel
Interface
1 6 DI_Actuator_ Alarms_Chan BYTE
100 Channel
Interface
1 2 DI_Pos_And_
Bus_Mode_Chan
BYTE
100 Channel
Interface
1 5 DI_Actuator_
Faults_2_Chan
BYTE
100 Channel
Interface
1 16 DI_Alarms_2_
Chan
BYTE
