Flowzone Storm 2V User manual

OPERATION GUIDE
®
Storm 2V
FZVAAG-2
™

ATTENTION
Please read the following information carefully. Failure to follow instructions or improper
use could lead to explosive failure causing serious injuries.
After using sprayer with chemicals, it is important to spray with fresh water for 3-5 minutes to ensure residual
chemicals in the gun, wand, tank, pump, and hose are cleaned out. This will extend the life of your sprayer. Never
leave chemicals or solutions sitting in your sprayer after using.
Do not store your sprayer in extremely high temperatures. Heat can lead to the build-up of pressure within the
sprayer, resulting in a possible explosion. If there is pressure in the pump, do not try to remove it with tools.
Do not try to make modications to the sprayer. Always use FlowZone® branded replacement parts from the
manufacturer.
Never spray ammable, caustic, acidic, chlorine, or other corrosive solutions or heat, pressure, or gas producing
chemicals. Always read and follow chemical manufacturer’s instructions before use with this sprayer as some
chemicals may be hazardous when used with this sprayer.
Only FlowZone nozzles are tested to be compatible with FlowZone® sprayers. Using ow restrictive nozzles could
damage the pump and will void any remaining warranty coverage.
WARNING
This product contains chemicals, including lead, known
to the state of California to cause birth defects and other
reproductive harm.
This product is designed to apply chemicals that may be
harmful and could cause serious personal injury if inhaled or
brought into contact with the user
NOTES:
1. The sprayer may have residual water in it due to quality
testing performed on it.
2. Some parts may be found inside the tank when rst
assembling the sprayer. Please make sure to remove the
parts before attempting to assemble or use the sprayer
for the rst time.
Copyright © WESSOL, LLC
2

IMPORTANT CONSIDERATIONS
After long periods of time without use, the battery may have a low
voltage and will require extended charging.
Always wear protective clothing, respirator, gloves, eye protection etc.
when using chemicals.
Never spray chemicals against the wind, towards humans, animals,
or food.
Do not operate sprayer in temperatures lower than 32ºF.
Never operate with strong acids, strong bases, or ammable liquids.
Never ll the sprayer with hot liquids (max temp. = 176ºF) or gasoline.
Do not leave the sprayer in reach of children or persons not qualied to
handle it in a proper fashion.
Do not dispose of lithium-ion battery with household waste; recycle
where facilities exist.
The sprayer is susceptible to water damage if left in wet conditions.
Always store it in a cool, dry place.
Always use FlowZone® original replacement parts.
Copyright © WESSOL, LLC 3

Copyright © WESSOL, LLC
LET’S
GET
SPRAYING!
To take advantage of the 1-year Limited Warranty from
WESSOL, LLC. Register your sprayer at the website below:
www.fzspray.com/register
Please read and follow this manual carefully to ensure that you
get the most out of your new sprayer. If you need assistance
with the assembly or operation of your sprayer, please don’t
hesitate to contact WESSOL via the support methods below:
www.fzspray.com
[e-mail]
+1 803.339.2500
REGISTER YOUR SPRAYER!
4

Copyright © WESSOL, LLC
TABLE OF CONTENTS
ABOUT
1.1  specications...........................................................................................page6
1.2 what’s in the box........................................................................................page 7
page6-7
SET UP
2.1 sprayer assembly......................................................................................page 8
2.2 spraying....................................................................................................page 9
2.3 aftercare...................................................................................................page 10
page8-10
TROUBLESHOOT page11-15
3.1 common solutions....................................................................................page 11
3.2 replacement parts....................................................................................page 12
3.3 warranty...................................................................................................page 14
5

Copyright © WESSOL, LLC
WHAT IS YOUR SPRAYER
CAPABLE OF?
A FlowZone® is a highly ecient sprayer
that is suitable for spraying many kinds
of water-soluble chemicals.
This includes fertilizers, pesticides, cleaning
products, etc. Powered by a 18V lithium-ion
battery, this sprayer results in 2-3x more
eciency than a manual sprayer. This sprayer
can be operated continuously for up to 2.5 hours
and spray more than 57 gallons per battery
charge at a distance of 25 feet.
FlowZone® Storm 2V™ Specications
Model Number FZVAAG-2 Pump Type Standard Pressure Diaphragm Pump
Battery Type Lithium-ion Spray Time Up to 2.5 hours
Battery Voltage 18V Pressure 7 psi to 60psi
Battery Capacity 2.6 Ah Spray Distance >25 feet (8 meters)
Battery Charging Time 2 hours Tank Capacity 2.5 gallons
Battery Cycle Life 1,000 cycles Flow Rate 0.250 gal/min to .476 gal/min
Battery Charger 21V/1A Pump Life 1,000 hours
6
WARNING
THIS PRODUCT IS DESIGNED TO APPLY
CHEMICALS THAT MAY BE HARMFUL
AND COULD CAUSE SERIOUS PERSONAL
INJURY IF INHALED OR BROUGHT INTO
CONTACT WITH THE USER. FAILURE TO
READ AND FOLLOW OPERATION GUIDE
BEFORE USE AND/OR MISUSE OF THIS
PRODUCT COULD RESULT IN INJURY.

Copyright © WESSOL, LLC
WHAT’S IN
THE BOX?
1.4-GALLONTANK2.TANKCAP3.INTAKEFILTER
4.TOP&BOTTOMHOLSTER/BOLTS5.COMFORTSTRAPS™
6.STAINLESS-STEELSPRAYWAND7.VINYLHOSE
8.18V/2.6AhLITHIUM-IONBATTERY9.21V/1AhBATTERYCHARGER
10.SPRAYGUN11.ADJUSTABLESPRAYNOZZLE
12.0ºJETNOZZLE13.25ºFANNOZZLE
4
7
1
5
7
6
10

Copyright © WESSOL, LLC

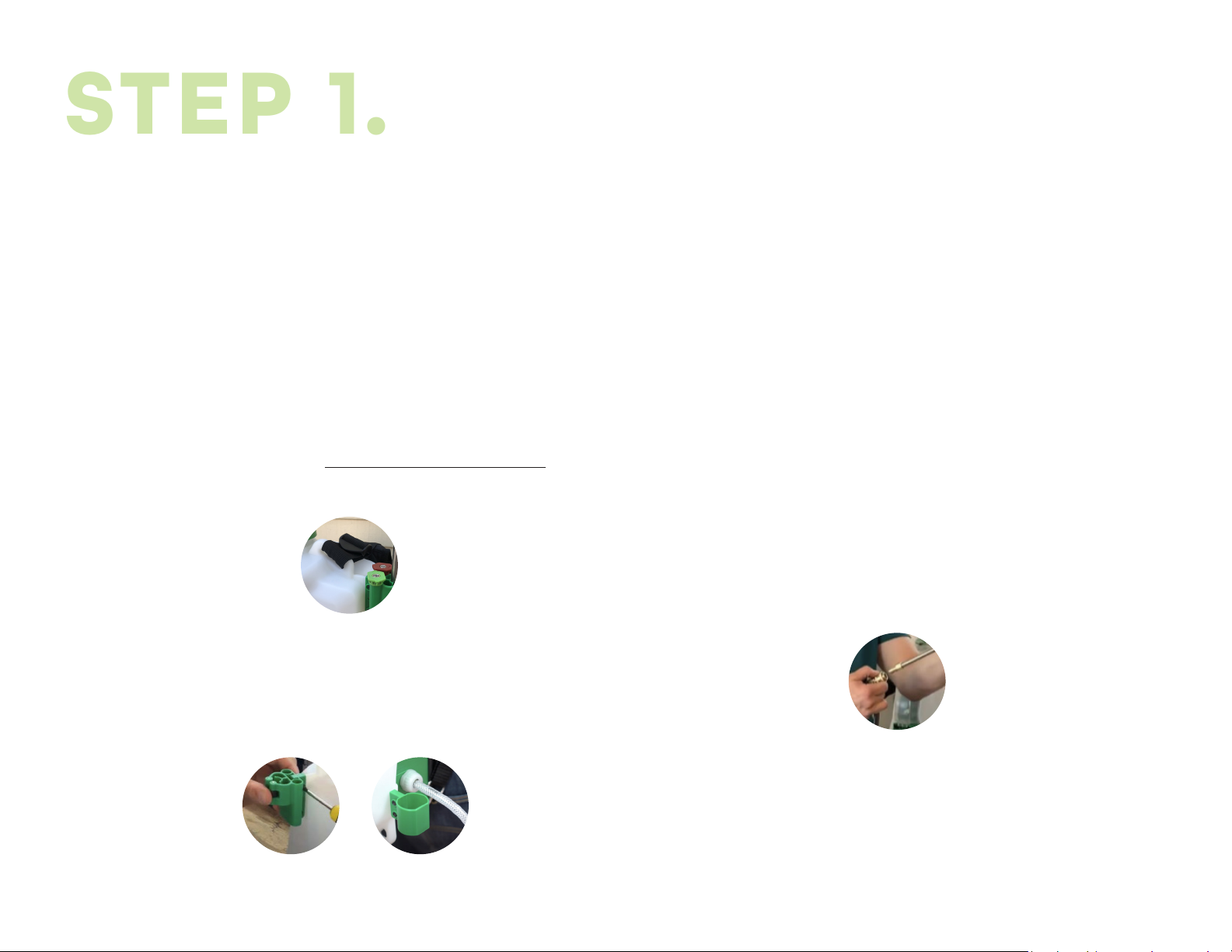

Attach the metal clips to the loops in the bottom
corners of the sprayer. Thread the top belt
buckles through the sprayer loops then back into
the buckle. Tighten, make sure they are secure.
Next, adjust the ComfortStraps™ (5) to your tting
by buckling the waist and chest belt. Adjust as
needed. Please visit fzspray.com/comfortstraps
for assembly instructions and video.
Place the top wand holster (4 left) on the proper
location on tank. While holding the holster, place
a nut on one side of the hexagonal slots and screw
the bolt through the other side until it fastens into
the nut. Repeat for other slot and bottom holster.
Take the spray gun (10) and twist on to the
threaded tting on the end of the hose (7). Tighten
the tting to ensure the gasket properly seals the
connection.
If spraying with the stainless-steel spray wand
(6), pull back on the collar of brass quick-connect
tting on the spray gun. Insert the male wand
tting into the female spray gun tting and push
the collar back into its original position. Nozzles
can be attached with the same process.
Snap the spray wand into the wand holster and
place any unused nozzles into their slot (4 left)
until ready to spray.
STEP 1.
ASSEMBLING SPRAYER
A) C)
B)
D)
E)
8
Required tools: phillips head screwdriver
Before you begin, open the tank lid and remove the nuts and bolts, holsters, and nozzles from inside the intake lter. Set aside.

In a seperate container, prepare the solution you
want to spray according to the manufactuer’s
instructions. Open the tank and carefully pour
the solution through the intake lter. Securely
tighten the tank lid.
Determine the nozzle you want to use (see below)
and insert it into the spray gun or spray wand
according to the method in Step 1. D).
a) Adjustable nozzle = ranges from jet stream to
conical stream
b) Fan nozzle = at 25 º mist
c) Jet nozzle = narrow stream
Turn the pump on by rotating the power switch on
the side of the unit. Position “0” will activate the
pump at 7 psi, full power will activate at 60 psi.
Adjust to the pressure of your choosing.
Begin spraying by squeezing the spray trigger on
the spray gun.
Copyright © WESSOL, LLC
A) C)
D)
B)
STEP 2.
PREPARING TO SPRAY
9
Fully charge the battery before the rst operation. Indicator lights will ash as the battery is charging.
a) b) c)

Copyright © WESSOL, LLC
Dispose of extra product based on manufacturer’s
instructions. Rinse out any residual solution in the
spray tank with warm, soapy water. Then spray
fresh water through the sprayer for 3 to 5 minutes
to completely clear the tank of chemicals.
Disconnect the wand from the spray gun and let
the hose hang down towards the ground in order
to drain the hose of any liquid.
Dry the sprayer tank and clear the nozzle of any
buildup.
Store the sprayer in a clean, cool, shaded location
to protect it from extreme heat or frost.
For long-term storage, regular charging of the
battery is required to maximize battery life. Check
the battery level using the indicator lights every 4
weeks Recharge the battery if it falls below 3 bars.
STEP 3.
AFTER YOU FINISH SPRAYING
Proper sprayer maintenance is crucial to ensure the life and
performance of your sprayer. Many spray materials can harden
if left in the sprayer causing clogs in the nozzle or hose.
Gasoline should never be used to clean out your sprayer.
NOTE:
A) D)
C)
B)
*
10

Copyright © WESSOL, LLC
TROUBLESHOOTING YOUR SPRAYER
Visit fzspray.com/troubleshoot for detailed troubleshooting instructions and videos.
TocontactTechnicalSupport,message[e-mail] or call 1(803)339-2500.
11
Sprayer is not turning
on and there is no sound
coming from the sprayer.
Dead battery Charge the battery. If the battery will not charge, test the charger or call Support at [phone] for a
replacement if applicable.
Loose/worn connections on
power switch
Remove cover plate. Using pliers, move all three wires on the power switch over to the neighboring side,
to the extra set of wire contacts.
Defective micro-switch Purchase replacement part or contact Support for help.
Defective circuit board Purchase replacement part or contact Support for help.
Leaks from gun/nozzle
area.
Loose connection Ensure spray gun is fully tightened onto threaded end of the hose.
Missing or worn gasket Contact Support or go to buyxstreamclean.com to purchase replacement gaskets.
Clogged pump / hose /
gun / wand / nozzle.
Not rinsing tank / pump /
hose / gun / nozzle(s) with
water after use.
Rinse sprayer throughly with warm, soapy water after each use.
Dead battery
Defective charger If the LED indicator lights do not turn on or only one red LED is on after being on charger for over 2
hours, test the charger using a multimeter. Replace if necessary.
Damaged lithium cells If the battery receives no reading from a multimeter, a replacement battery is needed.
Pump makes a sound
when sprayer is on and
output is
Clog in lter or nozzle Check lter or nozzles for clog. Using warm water, throughly clean the components.
Clog in pump Open the pump and clean. Contact Support for assistance.
Leak from sprayer tank
Loose hose-pump
connection
Open coverplate and identify the hose clamps. Use a athead screwdriver to tighten.
Damage on pump Replace the pump.
Damage on tank Replace the sprayer tank.
SOLUTION
PROBLEM POSSIBLE REASON(S)

Copyright © WESSOL, LLC
ACCESSORY &
REPLACEMENT PARTS
12
FZRAAS
Stainless steel
high-pressure wand
FZAAAR
Quick-connect
adjustable cone nozzle
FZAAAQ
Quick-connect
25º fan nozzle
FZRABV
Quick-connect
spray gun
FZAAAP
Quick-connect
0º jet nozzle
FZAAEN-2
18V/2.6A battery pack
FZAAEL
21V/1A quick-charger
FZRAEH
Tank lid
FZAAGE
ComfortStraps™

Copyright © WESSOL, LLC
ACCESSORY &
REPLACEMENT PARTS
13
FZRAEJ
Top wand holster
FZRAEK
Bottom wand holster
FZRAEG
Battery cover
FZRABW
Tank strainer
FZAABC
Heavy-duty trolley
FZAADL
Quick-connect to 11/16”
threaded female adaptor
FZRACM
Pump inlet lter
FZAAAZ
Trolley & 20’
extension hose kit
FZRAEF
5’ tank-to-gun
connection hose

Copyright © WESSOL, LLC
WESSOL,LLC
LIMITED WARRANTY
WARRANTY COVERAGE
WESSOL, LLC warrants to the original purchaser that the FlowZone® product will function as intended under
normal use and consistent maintenance, subject to certain limitations and exclusions. At the discretion of
WESSOL, LLC, we will repair or replace any parts found to be defective in material or workmanship without
charge, apart from shipping and handling costs, during the covered warranty period.
WARRANTY PERIOD
The warranty period will begin from the date of retail purchase and exist for one (1) year, regardless of when
the unit is placed in service. The warranty period is not extended if we opt to repair or replace the product in
question.
WARRANTY CLAIMS
WESSOL, LLC reserves the right to require the return of the defective product, proof of purchase, and
established product registration to le a claim under this warranty.
If the product fails to function as intended DO NOT RETURN IT TO THE STORE, call our Technical Support hotline
at [phone], email [e-mail] or submit a contact form at fzspray.com.
PRODUCT REGISTRATION
All sprayers purchased from FlowZone® or an authorized distributor must be registered online to validate the
warranty and allow for warranty claim processing. Sprayers can be registered at fzspray.com/register.
To le a warranty claim, visit:
www.fzspray.com/warranty
14

Copyright © WESSOL, LLC
EXCLUSIONS AND LIMITATIONS
WESSOL, LLC only warrants products purchased from authorized distributors. Products purchased from
unauthorized resellers or distributors are not subject to warranty services.
The limited warranty does not cover damages, loss, or injury resulting from transportation, storage, accident,
improper use, neglect, modications, normal wear, or operation not in accordance with the instruction manual.
WESSOL, LLC reserves the right to change the design or specications of any product without obligation to
modify previously produced units.
ANY IMPLIED WARRANTIES, INCLUDING THE IMPLIED WARRANTY OF MERCHANTABILITY AND FITNESS FOR
CONSUMER USE, ARE LIMITED TO THE DURATION SPECIFIED ABOVE. WESSOL, LLC’S LIABILITY IS LIMITED
SOLELY TO THE REPAIR OR REPLACEMENT OF THE NON-FUNCTIONING PRODUCT OR PART. WESSOL, LLC
EXCLUDES LIABILITY UNDER THIS WARRANTY FOR ANY AND ALL INCIDENTAL AND CONSEQUENTIAL LOSS OR
DAMAGE.
In no event shall WESSOL, LLC be liable for any incidental, special, consequential or punitive damages, or for
any costs, attorney fees, expenses, losses or delays alleged to be as a consequence of any damage to, failure of,
or defect in any product including, but not limited to, any claims for loss of prots.
Some states do not allow limitations on how long an implied warranty lasts, or the exclusion or limitation of
incidental or consequential damages, so these limitations or exclusions may not apply to you. This warranty
15

fzspray.com
[phone]
[e-mail]
WESSOL, LLC
