WIPCOOL C25 User manual

C25
CLEANING SPRAY GUN
OPERATION MANUAL
Light And Compact,
Strong Power
feeling for more

02 03
2.1 To ensure safety of the spray gun, please select manufacturer's original
accessories and charger.
2.2 The Compact Series cleaning spray gun is strictly forbidden to be used in places
where there is an explosion danger and flammable materials to avoid causing an
explosion or fire.
2.3 Don’t disassemble, open or chop the battery. Keep away from heat sources and
lames and avoid storage under direct sunlight.
2.4 Don’t use the battery seat to withstand mechanical impact. And don’t continue to
use it if battery is damaged or leaked.
2. Caution
WARNING
feeling for morefeeling for more
Wipcool C25 cleaning spray gun is specially designed for domestic air conditioner
inside and outside cleaning . The internal water pump adopts the high pressure water
pump driven by motor. The product is designed with compact size, light weight, high
pressure, stable performance and self-absorption function.
3. Product Introduction
3.1 Product Overview
3.1.1 Scope of Use
C25 air conditioning spray gun pressure is adjustable from 6.5bar to 25 bar and
has a high-strength shell. The accessory kit is easy to carry and equipped with a
special high-pressure short gun for refrigeration equipment, which can quickly connect
water inlet and outlet, total weigh only 1.7kgs.
■ Thank you for buying WIPCOOL Compact Series high pressure cleaning spray gun,
we are dedicated to providing you with high quality products.
■ Please check if your ordered goods in good shipment condition, with the correct
accessories, any damage during transportation, please contact us or the local
distributors in time if you find any problems.
■ This manual gives instructions on the correct installation, it’s important that you follow
this instructions carefully.
■ If there is any change in the product (including the specification), we won’t inform
any more.
To ensure the long-term stability of the product, please read this manual carefully
before you install, transport, repair or maintain in order to fully understand the safety
issues, the technical parameters and operation methods of the spray gun, etc.
1. Notice for Use
WARNING
2.5 Keep battery packs clean and dry.
2.6 Do not use it below 0℃. Machine head and motor are prone to cause
problem when frozen.
2.7 The filter of the inlet must not be removed, otherwise it is easy to enter the
impurity to block the spray gun, resulting in reduced pressure and even no
water. And ensure that the filtration device be cleaned regularly.
2.8 It is strictly forbidden to add detergent directly into water, and cleaning
the equipment through the cleaning spray gun. System will corrode the
machine head and related system.
2.9 Do not use in the rain, water enters into the machine will easily trigger
electric shock.
2.10 Do not spray high pressure water on people, animals, fragile
products, which may cause injury and damage.
WARNING

04 05
feeling for morefeeling for more
16
366
350
222
325
91

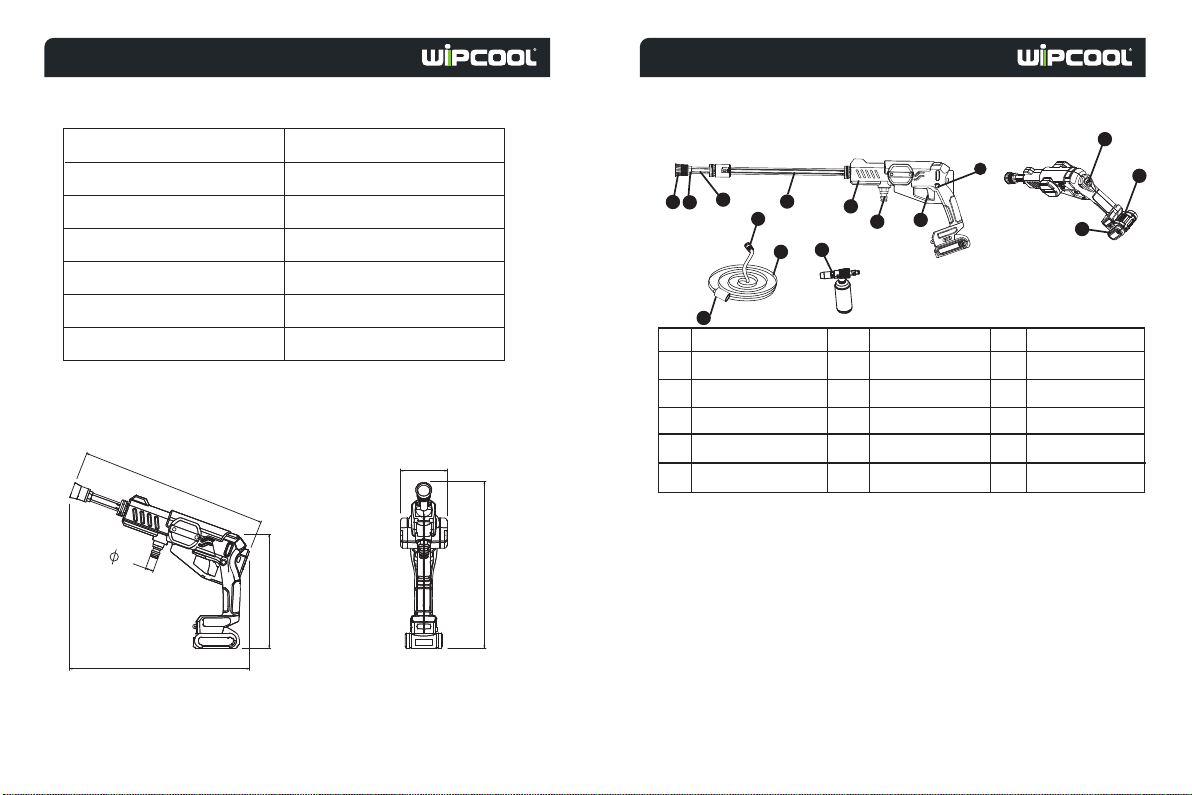

3.1.3 Dimension
3.1.4 Accessories
1
3
4
2
5
7
8
9
10
6
11
12
13
15
3.1.2 Technical Data
Model
Lithium Battery
Flow Rate
Max Suction
Working Pressure
Motor Power
Weight
C25
DC18V-2Ah
3L/min
1.5M
25bar
80W
1.7Kg No.
1
2
3
4
5
No.
6
7
8
9
10
No.
11
12
13
14
15
Part Name
Lock
Battery Pack Lock
Battery Pack
Trigger
Part Name
Water Inlet Joint
Gun Body
Long Rod
Extension Rod
Spray Head
Part Name
Spray Head Joint
Quick Connector
Water Pipe
Water Inlet Filter
Foam Pot
Low and high
pressure change
3.2 Operation Procedure
3.2.1 Check Before Operation
Please check before use whether the products and accessories are undamaged
and the battery pack is intact and undamaged; the filter net and the gun head are in
good condition, and there is no abnormality in assembly and connection.
3.2.2 Method of Application
1) Install the gun rod:
Mode 1: Use the short gun ( Note: When connecting, align the projection of the
short rod with the groove of the spray gun.).
14

06 07
feeling for morefeeling for more
Mode 2: Use the long gun ( Note: Connect the long rod with the short rod first, then
align the projection with the groove of the spray gun).
2) Install multi-function nozzles ( Note: After the nozzles are installed, shake the nozzles
left and right to check whether they are installed in place. In the shutdown state, the
nozzle can rotate 180 degrees to the left and right to form a straight line and a fan
shape, the nozzle must be upturn. )
3) Water pipe connection: insert the water inlet quick connector into the
corresponding position of the spray gun interface. After hearing the "click" sound, it
is firmly connected. When used for the first time, it is necessary to discharge the air
from the water pipe. Lower suction head is better, water flow out faster.
4) Two - speed model: select water pressure ( the washer has two water pressure
modes, H high pressure mode: used for cleaning stubborn dirt; L low pressure
mode, used to clean dirt that is easier to clean).
5) After the water outlet pipe is removed, the remaining water inside the water pipe
shall be cleaned first then put into the internal toolbox.

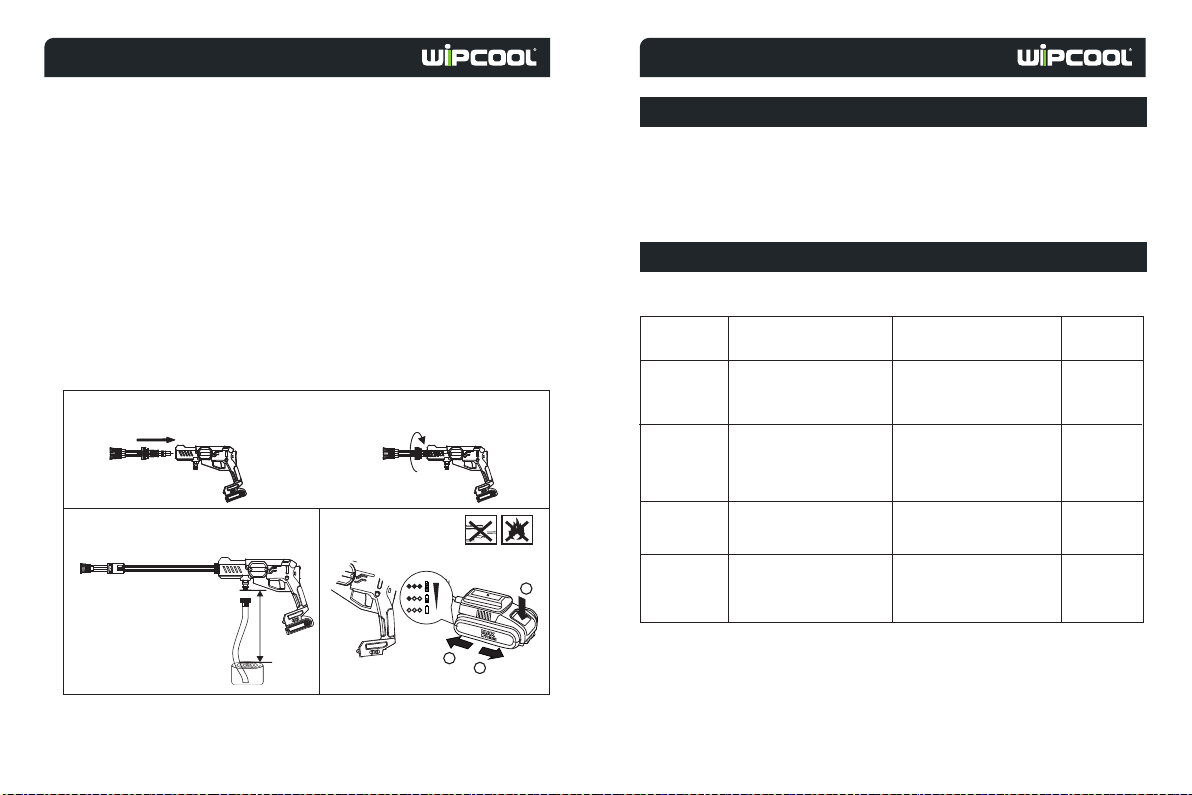

3.2.3 Installation Diagram
Insert gun rod into gun barrel Rotate gun rod to fit into the groove
Water inlet pipe installation diagram
Water inlet connector
Quick connector
Water inlet pipe
Bucket
1m
Battery pack
installation diagram
100%
0%
2
2'
1
20V
4. Maintenance
Remove the battery pack from the spray gun before maintenance.
1) Before maintenance, please check whether the spray gun and parts are damaged. If
any damage is found, please stop using the spray gun and contact the supplier or
manufacturer to replace the parts.
2) Clean the water inlet filter regularly to avoid blockage affecting water inlet.
Problem Cause Action Remarks
Spray gun
can’s start
1. The battery has no power
2. The ambient
temperature is below 0℃
3. Water absorption is not
smooth
1. Check the power supply
and charge it in time
2. Increase ambient temperature
3. Reduce the suction
5. Troubleshooting
Pressure is
not enough
1. There is air in the water pipe
2. The water inlet is blocked
3. There is impurities inside
1. Remove the gun rod and
work for a few seconds to
release air
2. Clean the water inlet filter
3.Remove internal impurities
Water leakage
1.The connection not tight
enough
2.O-ring damaged
1.Check the connection and tight
2.Change the O-ring
Running with
noise
1. Air sucking inside
2. Inner parts damaged
1. Check the water level and
inlet pipe
2. Repair spray gun and change
the parts
