Fluid E820 Fitness UBE User manual

2 Contents
1. Contents of E820/920 Box.
2. E820/E920 assembly instructions.
3. E820/E920 Control arm.
4. E920 Adjustable crank arms.
5. Tank filling and water treatment.
6. Long term water treatment and basic
operation.
7. The E820/E920 Ergometer.
8. Maintenance/Troubleshooting.
9. Tank belt drive adjustment.
10. Parts list and Warranty.
As with any piece of fitness equipment, consult a physician before be-
ginning your E820/E920 exercise program.
CAUTION
Use two hands and follow all safety instructions whenever raising
or lowering the E820/E920 control arm.
Warning
Do not remove hands while crank is in motion. The crank will continue
to rotate and could cause injury.
Training with E820/E920

3
Box Contents E820/E920 1x Seat and base
1x Right crank pedal
1x Fill funnel/hose
Hex Key
Telescoping tube at-
tachment bolts/spring
washers
Mainframe bolts
E820 fixed crank arm
Frame bolt washers
2x Mainframe Nylock nut
1x Multi-tool
1x Main frame w/
telescoping tube and
internal gas assist
shock
3x Frame levelers
(E-920 only) Adjustable crank arm kit in-
cludes 2x 300mm aluminum crank arms,
2x 10mm L-pins, and separately installed
left/right pedals.
Note the E-820 uses standard fixed length
crank arms as pictured in the mainframe
drawing above.
E-920 Adjustable
crank arm kit

4
E820/E920 Assembly Instructions
L-pin

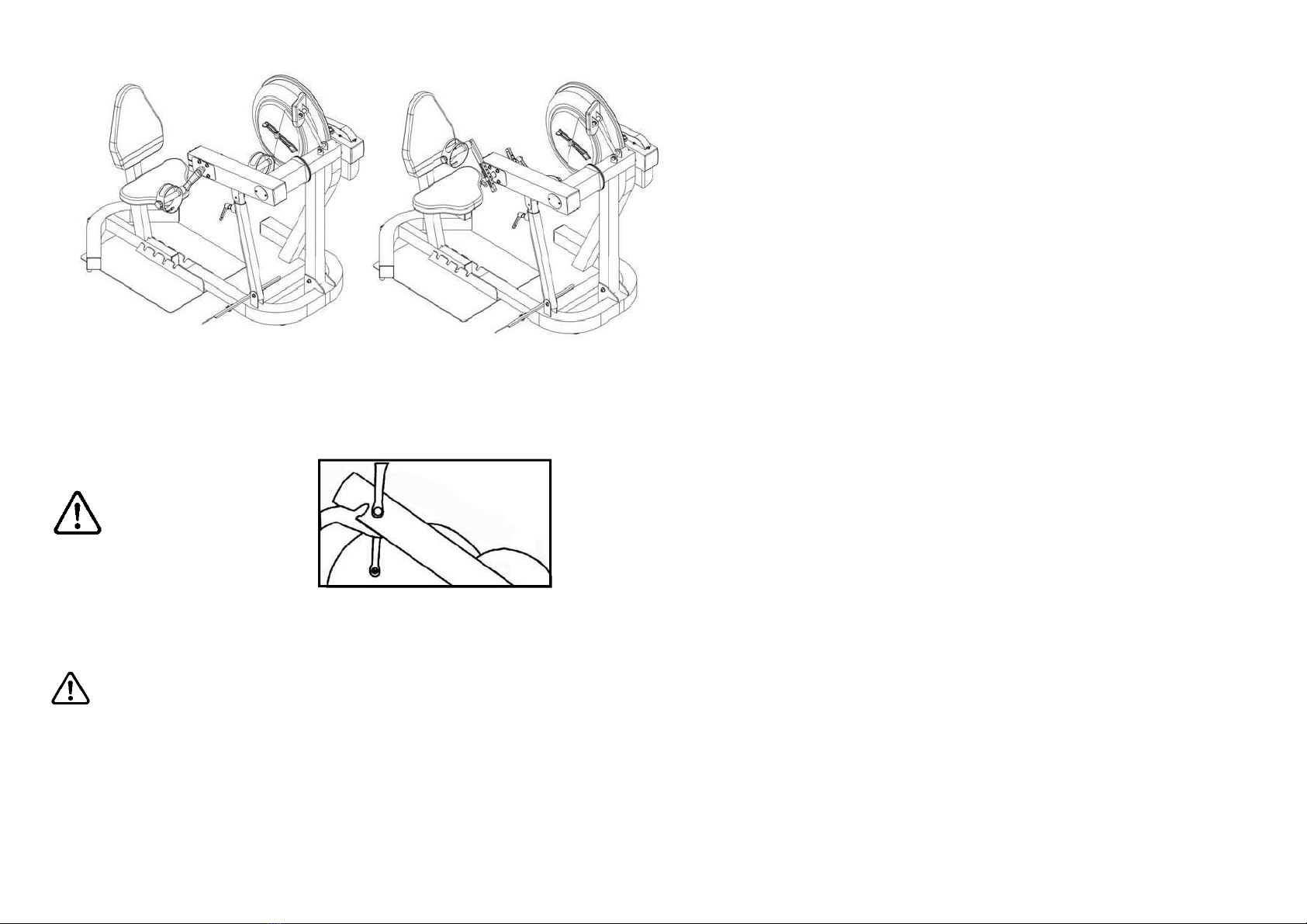

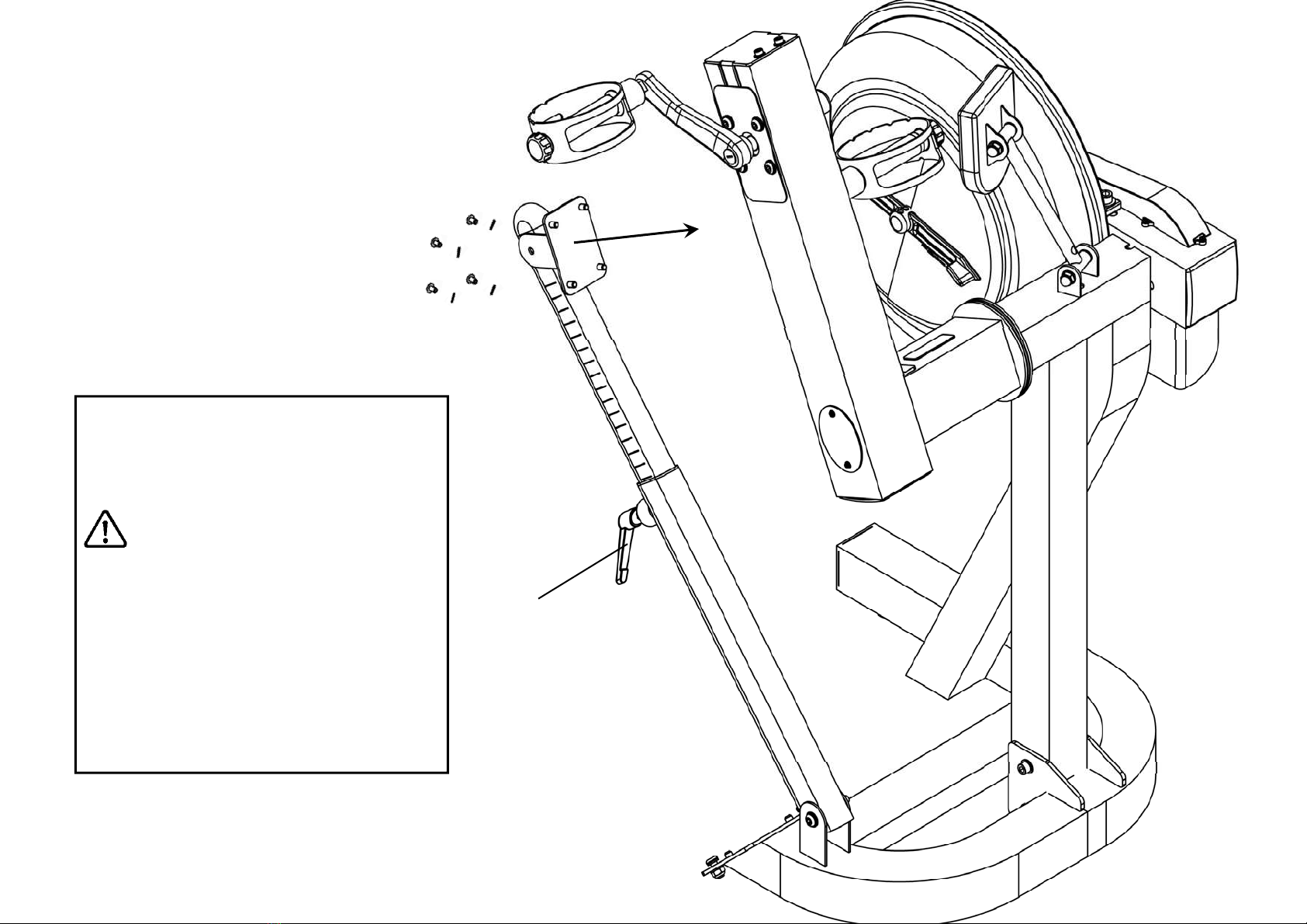

Step 1: Remove contents from box. At-
tach telescoping tube to the underside of
the control arm using 4x M8x15mm bolts
and 4x M8 spring washers.
The control arm is heavy and may
swing freely during this stage of
assembly. The L-pin is pre-
tightened from the factory in the opti-
mal position for assembly in relation to
the control arm. Do not loosen the L-
pin until the telescoping tube has been
safely secured to the underside of the
control arm.

5

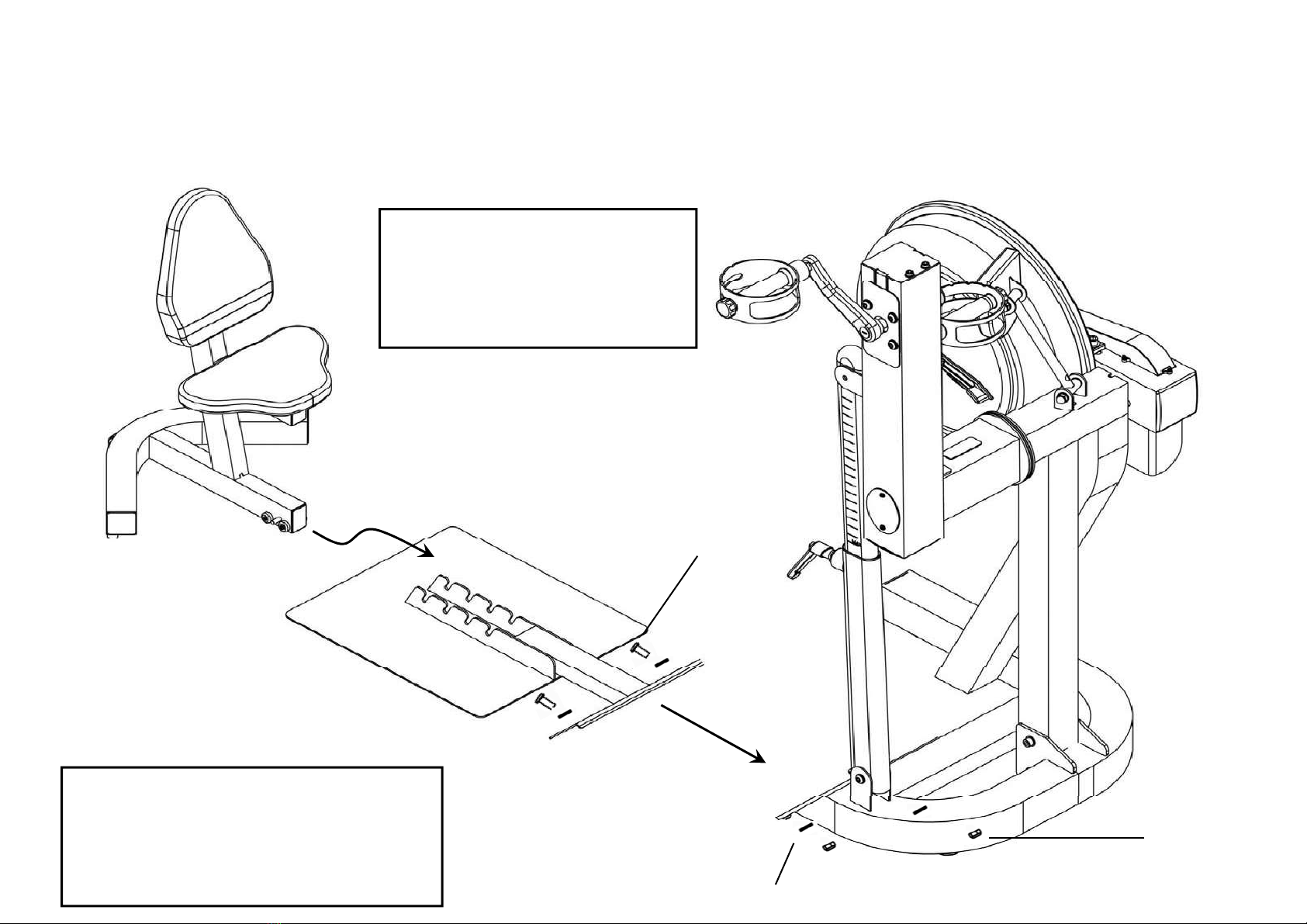

Step 2: Attach base plate to lower
mainframe using 2x M10x25mm
bolts, 2x M10 Nylock nuts and 4x
21*11*2 washers.
M10 Nylock nut
21*11*2 washer
M10x25mm bolt
E820/E920 Assembly instructions
Step 3: Tilt the seat rearward until transport
wheel is engaged. Secure the seat in any of
the 4 adjustment slots, or leave off entirely if
wheelchair access is required.

6
E820(only) Assembly Instructions
Step 4: Secure right pedal onto Crank arm. The pedal threads
have a green coating which will feel very tight when threaded
onto the crank arm. This is a type of thread locker, and once in
contact with the crank arm threads will activate in approximate-
ly 15minutes.
Caution! Extreme over-tightening could damage the aluminum
threads on the crank arm.
Note: Allow 15 minutes for the
thread locker to activate before first
time use.
Check pedal tightness periodically
thereafter with a 15mm wrench.

7
Step 4: Secure both left and right crank arms
onto the crank axle with M10 L-Pins. Note
Left and Right crank arms are marked as
such on the rear.
Note: Check pedal tightness periodically with a 15mm wrench.
E920 (only) Adjustable Crank Arm Kit Installation Instructions
(E-920 only) Adjustable crank arm kit includes 2x
300mm aluminum crank arms, 2x 10mm L-pins, and
pre-installed left/right pedals.
E920 Adjustable
Crank Arm Kit
Crank axle

8

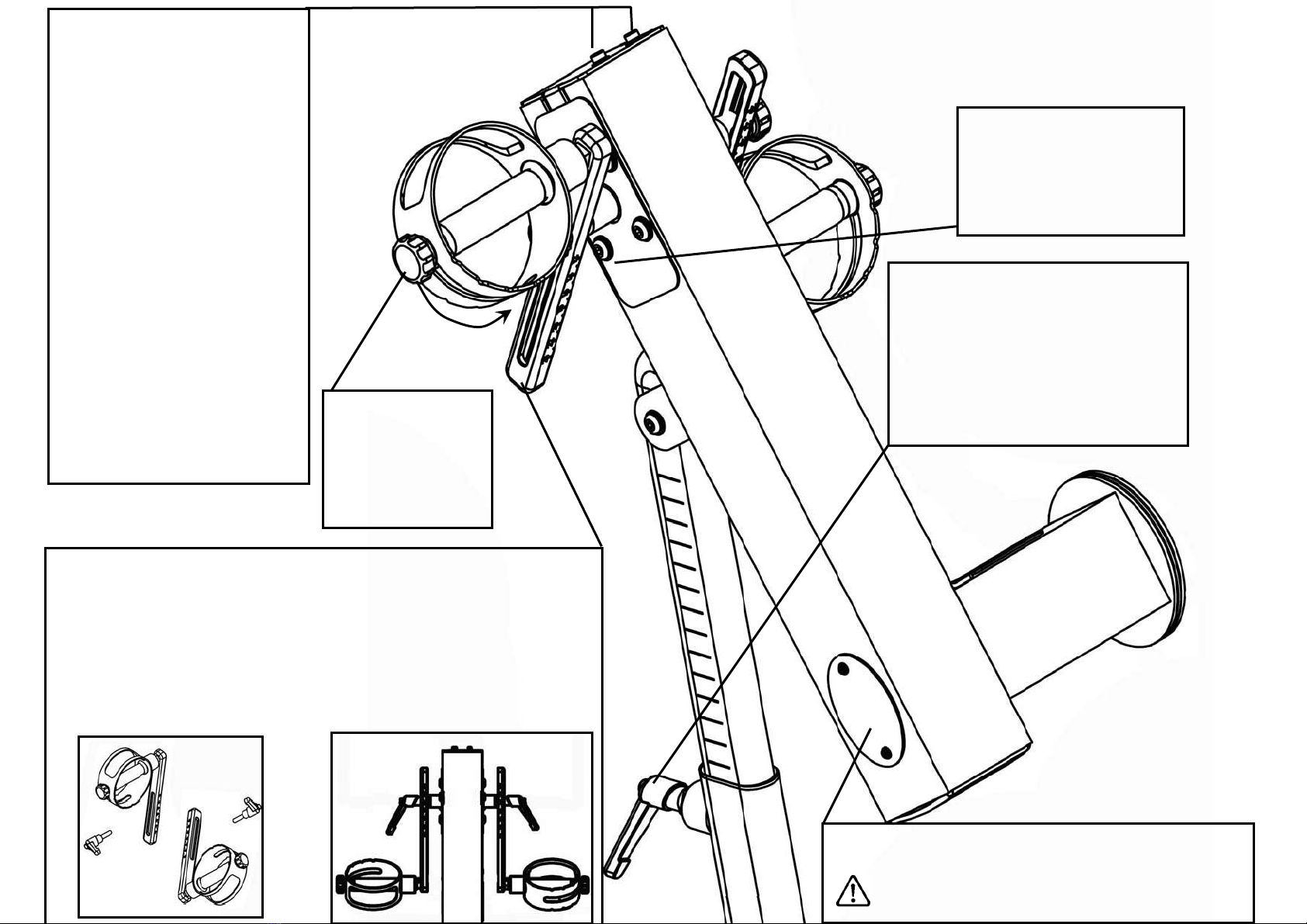

Chain tensioning bolts: Al-
lows for tightening the chain or
adjustment from side to side.
Make sure when tightening only
to adjust the same amount for
both bolts, otherwise the
sprocket will be misaligned.
Note: Tightening the right bolt
only will pull the right side of the
crank assembly toward you,
tightening the left will pull the
left side toward you. Use this
feature to realign the rear with
the front sprocket if needed or
when changing to a new chain.
Crank arm bolts: Loos-
en all 8 bolts slightly be-
fore adjusting/tightening
chain.
The E820 Control Arm
Inspection plate:
Open to check chain
tension.
Warning: Do not
check chain
tension with
fingers!
L-pin: Loosen to allow the control
arm to travel through 90 degrees
of travel. Note the telescoping
tube is gas assisted.
Tighten securely when desired
workout position is reached.
Pedal Handle: Loosen knob
to adjust handle position
from 0-90 degrees.

9
The E920 Control Arm
Chain tensioning bolts: Al-
lows for tightening the chain
or adjustment from side to
side. Make sure when tight-
ening only to adjust the same
amount for both bolts, other-
wise the sprocket will be mis-
aligned. Note: Tightening
the right bolt only will pull the
right side of the crank assem-
bly toward you, tightening the
left will pull the left side to-
ward you. Use this feature to
realign the rear with the front
sprocket if needed or when
changing to a new chain.
Crank arm bolts: Loosen
all 8 bolts slightly before
adjusting/tightening
chain.
Inspection plate: Open to check chain tension.
Warning: Do not check chain
tension by hand!
E920 Adjustable crank arms: Designed with a full 120mm of
travel , the 300mm crank arms are designed for a wide range
of upper body workout possibilities. The numbered indenta-
tions allow for accurate positioning on both sides throughout
the range of travel. One side can also be turned inde-
pendently to allow for even greater variation during your up-
per body workouts.
Pedal Handle:
Loosen knob to
adjust handle posi-
tion from 0-90 de-
grees.
L-pin: Loosen to allow the control
arm to travel through 90 degrees
of travel. Note the telescoping
tube is gas assisted.
Tighten securely when desired
workout position is reached.

10

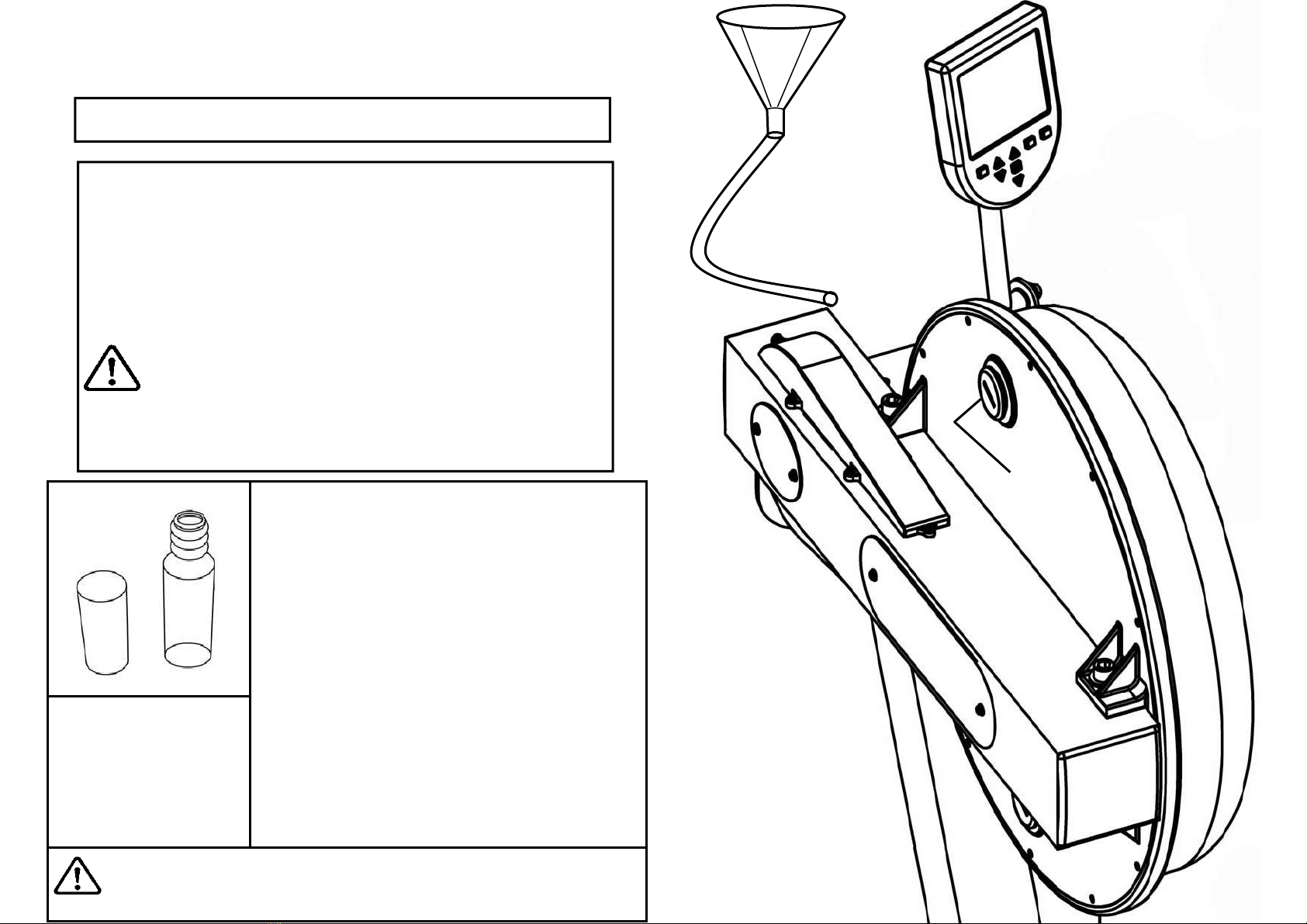

Note: A large bucket is required for filling (Not included)
Tank Filling and Water Treatment
Open the rear upper yellow tank plug and insert hose into tank
(rotating the impeller slightly may be necessary to allow the
hose to pass), move the tank adjuster handle to level 20 and
begin filling. Do not fill the tank higher than the level indicator
on the front of the clear shell. A properly filled tank holds ap-
proximately 8liters of water.
Warning: Do not under any circumstances put fingers
into the tank. Use the end of the hose to
move the impeller should the need arise.
Water Treatment Procedures:
1. Add Chlorine tablet.
2. Wait a minimum of 72 hours. Then
add very small amount of blue dye and
check for desired color. Important! Do
not add blue dye for at least 72 hours
following Chlorine treatment. The blue
dye adds visual appeal as well as cutting
down the amount of light affecting the tank
water, thus extending the amount of time
between water treatments.
Note: The blue dye
is extremely concen-
trated and will readily
stain carpet or cloth-
ing.
Caution: Use a drop cloth when filling or adding blue dye
Blue Dye Yellow tank
plug
Filling hose and
funnel

11
CAUTION
Caution: It is important that a drop cloth be used under the
fluid tank whenever the tank plug is opened for
water treatment.
The level of resistance is determined
by the level indicator located on the
front of the tank. Level one indicates
lightest resistance, level twenty rep-
resents heaviest resistance. Allow
three to four seconds after adjusting
resistance handle for the correct re-
sistance level to be achieved.
Long term water treatment:
Do not use any water treatment other than the tablets sup-
plied with this machine. For replacement tablets, contact
your local First Degree Fitness distributor.
Water treatment schedules for the E820/E920 will vary accord-
ing to the fluid tanks exposure to sunlight, but expect 8-12
months near a bright, sunlit window and 2 years or more for a
darker location. At the point of finding the water slightly cloudy,
add a Chlorine tablet. Remember to wait 72 hours following
the chlorine tablet before adding the blue dye as the Chlorine
tablet is extremely concentrated.
Important: Do not fill past the calibration mark as indicated
on the tank level sticker or water spillage may occur. See
tank filling/water treatment page for details.
Long Term Water Treatment and Basic Operation
Resistance:
Warning:
Use both hands when either raising or lowering
the E820/E920control arm.
Removing hands before the crank comes to a
complete stop while training can cause injury.
The crank is direct drive so as to allow both for-
ward and reverse rotation during workouts.

12

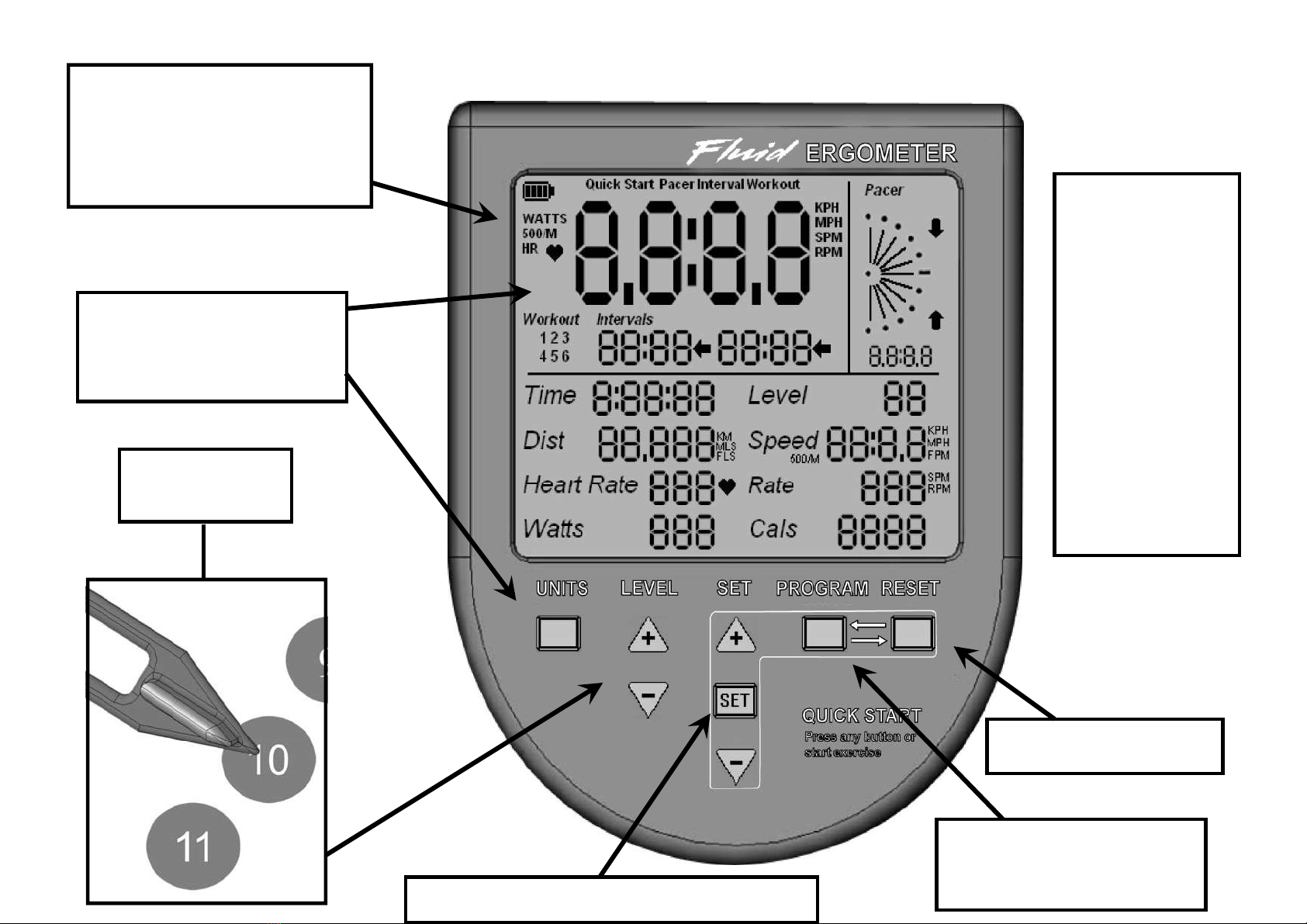

Quick start provides instant
workout information. Just start
training to activate. You can
choose to change UNITS dis-
played.
E820/E920 Ergometer.
UNITS displays
WATTS, RPM, HR, MPH, KPH
Level Adjustable
from 1-20
Set Changes Time, Distance parameters
Program Clears current exer-
cise program
Note: For
complete oper-
ational instruc-
tions, please
refer to the
computer man-
ual, which is in-
cluded with
your E820/
E920.
Reset Clears data

13
Item Timeframe Instructions Notes
Seat and Frame. Weekly. Wipe down weekly with lint free cloth or
more often with heavy club use.
PK belt tension. Monthly. Check monthly for signs of slippage. Ad-
just/tighten as required.
Tank and water treatment. 12 months to 2 years. Follow instructions as specified in the
“Water Treatment” section of this manual.
Chain drive. Check every 100 hours for correct
tension. Open the inspection plate and check ten- sion using a screwdriver or other tool.
Tighten as required using chain tensioning
bolts located at the end of the control arm.
E820/E920 pedals. Tighten weekly using 15mm box
wrench (supplied) The pedals should be checked on a regu- lar basis. A loose pedal can cause dam-
age to the crank arm aluminum threads,
requiring replacement.
M
a
i
n
t
enance
Ch
ar
t
.

14
Fault Probable Cause Solution
Water changes color or becomes
cloudy. Rower is in direct sunlight or has not had water treatment.
Change rower location to reduce direct exposure to sunlight. Add
water treatment and blue dye or change tank water as directed in
the water treatment section of this manual.
Knocking noise from inside the control
arm while training, especially when
changing directions.
Chain requires tightening or
adjustment. Open inspection plate located on front of control arm and check tension using a screwdriver or other tool. Use the chain tensioning
bolts located at the rear of the control arm to tighten or adjust as
needed. The chain should have approx 3mm of slack when
properly adjusted. See P.10 for details.
Pedals slip during hard training. PK tank belt requires tighten-
ing. Remove large inspection plate next to the tank, insert a long tool to push the rear end cap out from the inside, exposing the tank
belt tensioning bolt. Loosen tank bolts slightly. Remove upper
rubber belt cover to expose the PK belt. Tighten the tank tension-
ing bolt until the belt is too tight to be twisted from side to side
more than 45 degrees by hand. See P.15 for details
Pedal is loose (either left or right) and
cannot be retightened. Aluminum crank arm threads are stripped.
Contact service center for replacement. Then check weekly as
recommended.
Computer screen illuminates, but does
not register when rowing.
Loose or failed connection/
Sensor gap too wide (see er-
ratic computer display).
Check that the computer lead is connected properly. If connected
properly check sensor gap. Contact your local service center if
this fails to address the problem.
The E820/E920 computer does not illu-
minate after battery installation. Batteries installed incorrectly or need replacing. Reinstall batteries in correct position and try again. If the LCD screen fails to illuminate, try rotating the batteries slightly in the
computer. If this fails, contact your local service center.
The E820E920 computer display is er-
ratic/slow while displaying RPM and
WATTS
Gap between sensor and mag-
netic ring is too wide. Remove inspection plate and check sensor gap and that magnetic ring is not wobbly.
Troubleshooting Guide:

15
Step 1
Step 1: Remove large metal inspec-
tion plate as shown above right.
Step 2: Using a long tool, push out
the rear end cap as pictured above
right. This will give you access to the
tank tensioning bolt (shown bottom
right).
Step 3: Loosen both the rear and
front tank bolts slightly as shown left.
Remove front rubber belt cover.
Step 4: Using a 6mm Allen key,
tighten the belt using the tank ten-
sioning bolt until the belt no longer
slips during hard rowing.
Note: Do not over tighten tank
bolts.
Step 2
Step 3 Step 4
Tank Belt Adjustment
Tank tensioning bolt
End Cap
Rubber belt cover
Tip: Twist the belt by hand to gauge tightness. Correct
tension should be obtained when no longer able to twist
more than 60 degrees.

16 KEY P/N QTY Description
1 33100 1
Main Frame Assembly
2 20103 1
Mainshaft Assembly
3 20008 1 End Cap 75x75
4 10040 1
Bolt M12x140
5 10063 2 Bolt M12x30
6 10043 6
Washer M12
7 10042 3
Nut M12 Nylon
8 10066 3 End Cap 100mm
9 10067 2 Rubber Cover for Large PK Pulley
10 10068 1
Large Steel Side Cover 276mm
11 10072 2 Small Steel Side Cover 100mm
12 10170 6 Washer M4
13 10070 18 Screw M4x10
14 10189 1 Tank Tension Adjustment Bushing
15 10190 2 Washer M8x26
16 10191 1
Bolt M8x120
17 60108 1 Bungee Pulley Spacer
18 23200 1 Control Arm Assembly
19 23921 1 Control Arm Bushing
20 23922 1 Control Arm Spacer
21 23923 3
Spacer
22 23900 1
Computer Assembly
23 10082 3
Washer M10
24 20600 1
Crank Arm Assembly
25 20300 1 Tank Assembly
26 10041 2
Nut M10 Nylock
27 10096 1 Bolt M10x70 for Aluminum Rail
28 33934 1 Telescoping Tube External
29 20850 1 Tension Adjustment
30 20691 1 Right Handle Complete

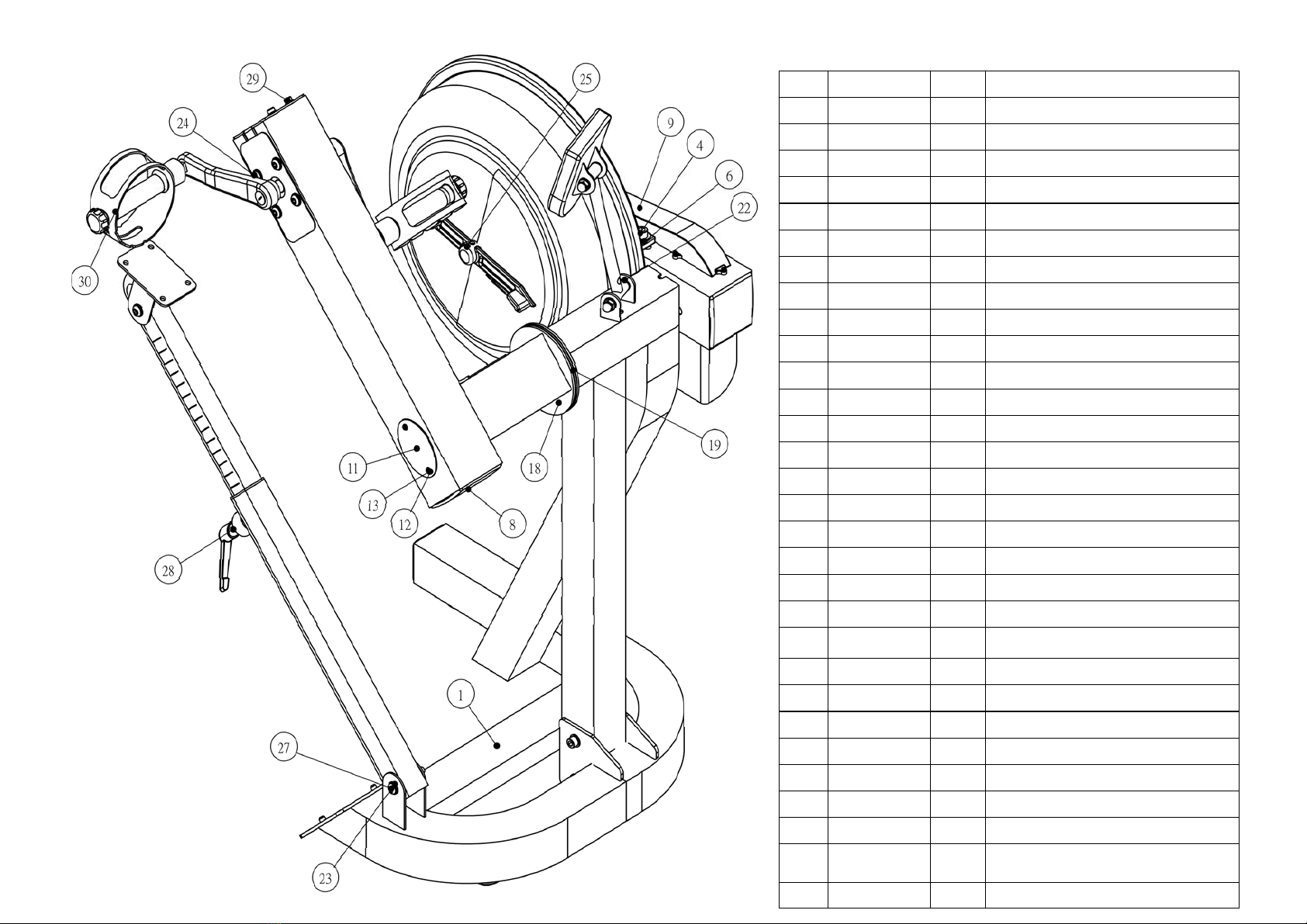

Exploded Diagrams/Parts Lists

17
KEY P/N QTY Description
1 23501 1 Seat Frame
2 20115 1
Seat LS-622
3 20117 1 Seat Back LS-622
4 10080 8 Bolt M6x20 for Seat
5 10081 8 Washer M6
6 10082 2
Washer M10
7 10041 1
Nut M10 Nylock
8 10069 2 End Cap 75x50mm
9 20008 2 End Cap 75x75
10 10101 2 Rubber Bumper
11 20186 1 Seat Frame Bump Stop
12 20187 1 Bolt M6x25
13 20123 4 Plastic Washer 30x6x12
14 10120 4 Screw M6x15
15 20009 1 Bolt M10x100
16 10103 2 Transport Wheel
17 23700 1 Foot Plate
17
Seat Assembly

18
KEY P/N QTY Description
1 20690 1 Left Handle Complete
2 20691 1 Right Handle Complete
3 20020 8
Bolt M10x35
4 10082 8 Washer M10
5 23134 1 Crank-Left
6 23135 1 Crank-Right
7 20052 2
Side Bearing Cover
8 23901 2
Aluminum Block Bearing Housing
9 23694 1 E920 Axle and Cog
10 33014 2 C Clip STW-30
11 23045 2 L Pin M10x40
KEY P/N QTY Description
1 20690 1
Left Handle Complete
2 20691 1 Right Handle Complete
3 20694 1 E820 Axle and Cog
4 20052 2
Side Bearing Cover
5 20020 8 Bolt M10x35
6 10082 8 Washer M10
7 20134 1 Crank-Left
8 20135 1
Crank-Right
9 20132 2
French Screw M8x20xP1.0
10 20133 2 Crank End Cap
11 20190 2 Aluminum Block Bearing Housing
12 20193 2
NSK 6004ZZ Aluminum Block Housing
Bearing
13 20196 2 Wave Washer 20mm
16 30012 1 DID-25 Chain 178
E920 Crank Arm Assembly
E820 Crank Arm Assembly

19
Item P/N QTY Description
1 20157 1 Shaft+Sprocket
2 10146 1 Ball Bearing NSK6006ZZ
3 10011 1 Bearing Housing
4 10012 1 NSK 6005ZZ Bearing
5 10015 1
150mm Large PK Transmission
Pulley
6 10017 1 Key way 7x7x32
7 10052 1 Grub Screw M4x6
8 10138 1 Shaft washer
9 10139 1 Spring Washer Flywheel shaft
10 10109 1 Belt 7PK 926mm HUTCHINSON
11 10083 1 Bolt M10x20
Item P/N QTY Description
4 13112 1 Computer Mounting Arm
5 10114 4 Bushing 20x16x13x10
1 10082 4 Washer M10
6 10116 1 Bolt M10x60
3 10097 2 Nut M10
7 10117 1 Sensor Wiring
2 10096 1 Bolt M10x70 for Aluminum Rail
8 20903 1 Com
p
ute
r
KEY P/N QTY Description
1 20043 1
Decal - UBE
2 20036 1
Small Warning Decal
3 23291 1 Control Arm
4 23920 2 Control Arm Bushing
5 20170 2 Chain Protection
Control Arm Assembly
Main Drive Assembly
Computer Assembly

20
FDF-9B Tank Assembly
70321
13205 Tank Cover Assem-
bly
20301 Tank Back Assem-
bly

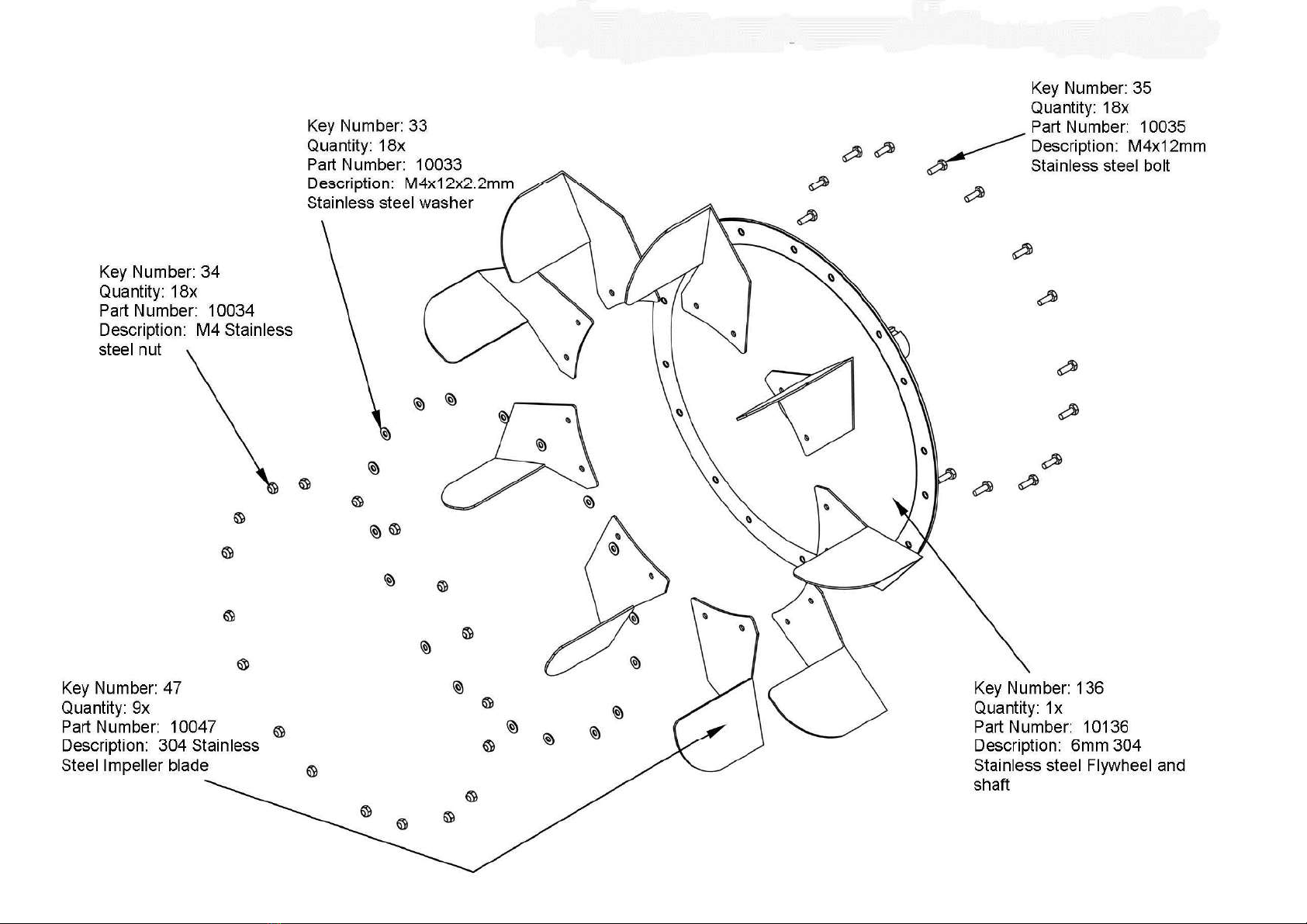

21
Flywheel Assembly
