BEFORE YOU BEGIN
Thank you for selecting the MARCY PLATINUM CORNER GYM by IMPEX FITNESS
PRODUCTS. For your safety and benefit, read this manual carefully before using the
machine. As the distributor, we are committed to provide you complete customer
satisfaction. If you have any questions, or find there are missing or damaged parts or you
require assistance assembling this product, we guarantee you complete satisfaction
through direct assistance. To avoid unnecessary delays, please call our customer service
department. Monday to Friday 9am to 5pm.
Tel: [phone]
E mail: [email protected]
Supplied by
Escalade International Ltd
Pleasant Road
Penllegaer
Swansea
SA4 9GE
Tel: [phone]
Fax: [phone]
www.escaladesports.co.uk
E mail: [email protected]
1

IMPORTANT SAFETY PRECAUTIONS
This gym built for optimum safety. However, certain precautions apply whenever you operate
a piece of exercise equipment. Be sure to read the entire manual before you assemble or use
your gym. In particular, note the following safety precautions:
1. Keep children and pets away from the gym at all times. Do not leave children unattended in the
same room with the gym. The gym is not a toy and therefore parents and guardians should be
aware of the natural tendency for children to play, leading to situations and behaviour for which
the gym is not intended.
2. If children are allowed to use the gym their physical/mental development and above all,
temperament should be taken into account. Constant supervision is therefore needed.
3. If the user experiences dizziness, nausea, chest pain or any other abnormal symptoms, STOP the
workout at once. Consult a physician immediately. Injuries may occur due to incorrect or
excessive exercise.
4. Position the gym on a clear levelled surface which is clear of all obstacles as not to restrict
movement whilst exercising. DO NOT use the gym near water or outdoors.
5. Keep hands away from all moving parts
6. Always wear appropriate clothing when exercising. DO NOT wear robes or other clothing that
could become caught in the gym. Running or aerobic shoes are also required when using the
gym.
7. Use the gym only for its intended use as described in this manual. DO NOT use attachments not
recommended by the manufacturer.
8. Do not place any sharp objects around the gym.
9. Disabled persons should not use the machine without a qualified person or physician in
attendance.
10. Before using the gym to exercise, always do stretching exercises to properly warm up.
11. Never use the gym if it is not functioning properly.
12. This product is intended for H=Domestic use only.
WARNING: BEFORE BEGINNING ANY EXERCISE PROGRAM, CONSULT YOUR
PHYSICIAN. THIS IS ESPECIALLY IMPORTANT FOR INDIVIDUALS OVER THE AGE OF 35
OR PERSONS WITH PRE-EXISTING HEALTH PROBLEMS. READ ALL INSTRUCTIONS
BEFORE USING ANY FITNESS EQUIPMENT. MARCY ASSUMES NO RESPONSIBILITY FOR
PERSONAL INJURY OR PROPERTY DAMAGE SUSTAINED BY OR THROUGH THE USE OF
THIS PRODUCT.
SAVE THESE INSTRUCTIONS.
2

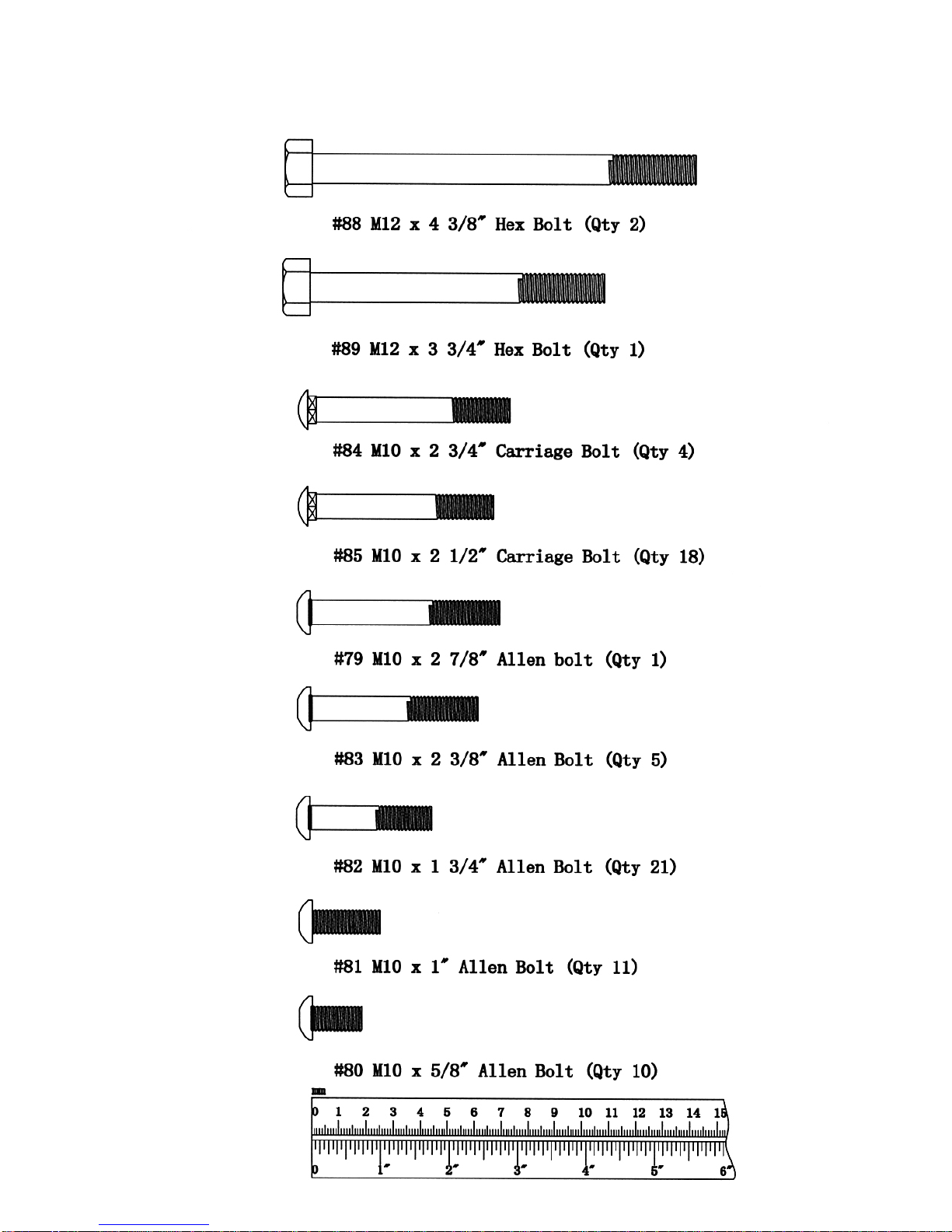

HARDWARE PACK

3
HARDWARE PACK

4
HARDWARE PACK

5
ASSEMBLY INSTRUCTION
Tools Required Assembling the Machine: Two Adjustable Wrenches and Allen Wrenches
NOTE: It is strongly recommended two or people assembling this machine to avoid
possible injury.
STEP 1 (See Diagram 1)
A.) Place the Right Base Frame (#1) on a flat surface. Make sure there is enough space around
to assemble the machine.

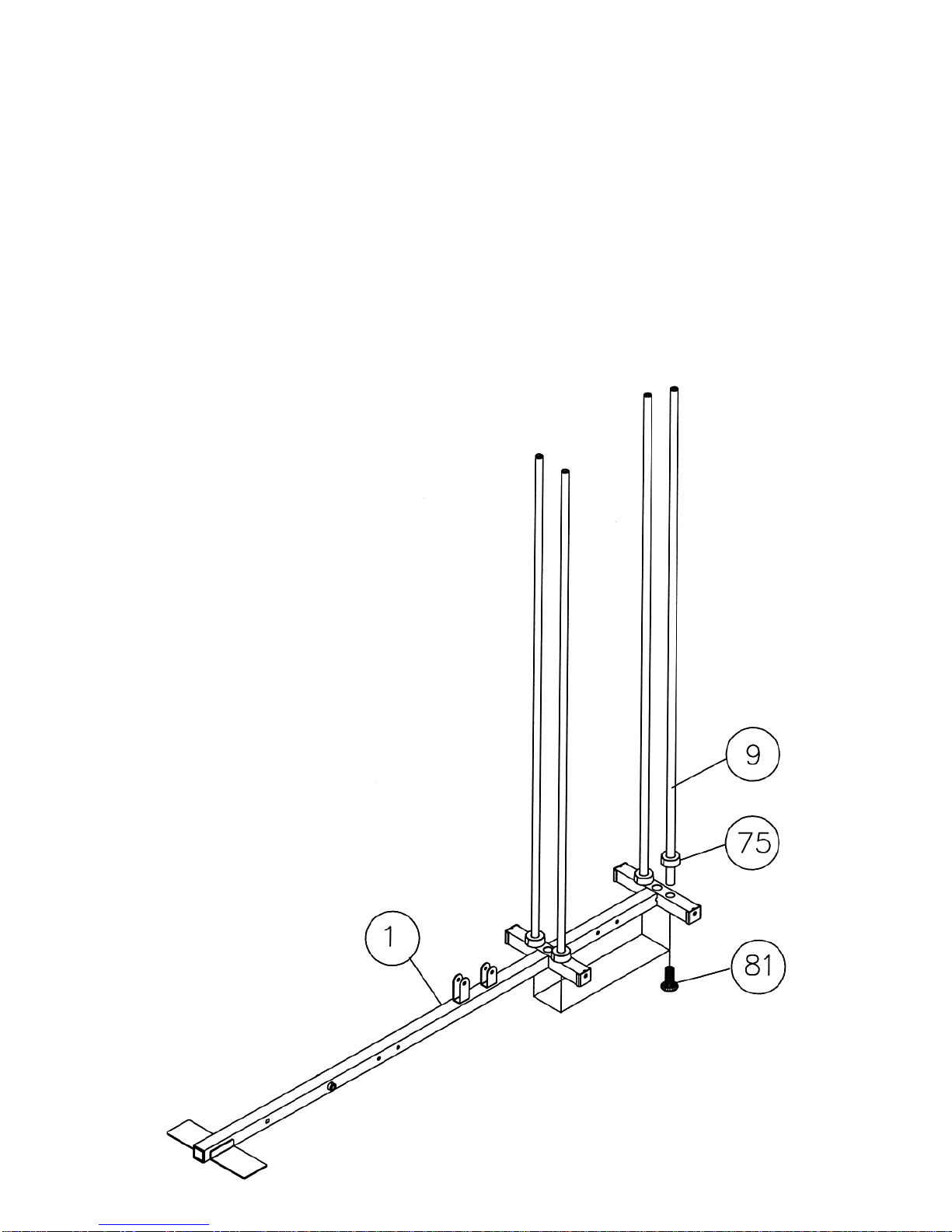

B.) Insert four Guide Rods (#9) into the holes on the Right Base Frame (#1). Secure each Guide
Rod to the Right Base Frame from the bottom with a M10 x 1” Allen Bolt (#81).
C.) Slide four Ø 2 ½” x 1” Rubber Bumpers (#75) onto the Guide Rods.
Diagram 1

6
STEP 2 (See Diagram 2)

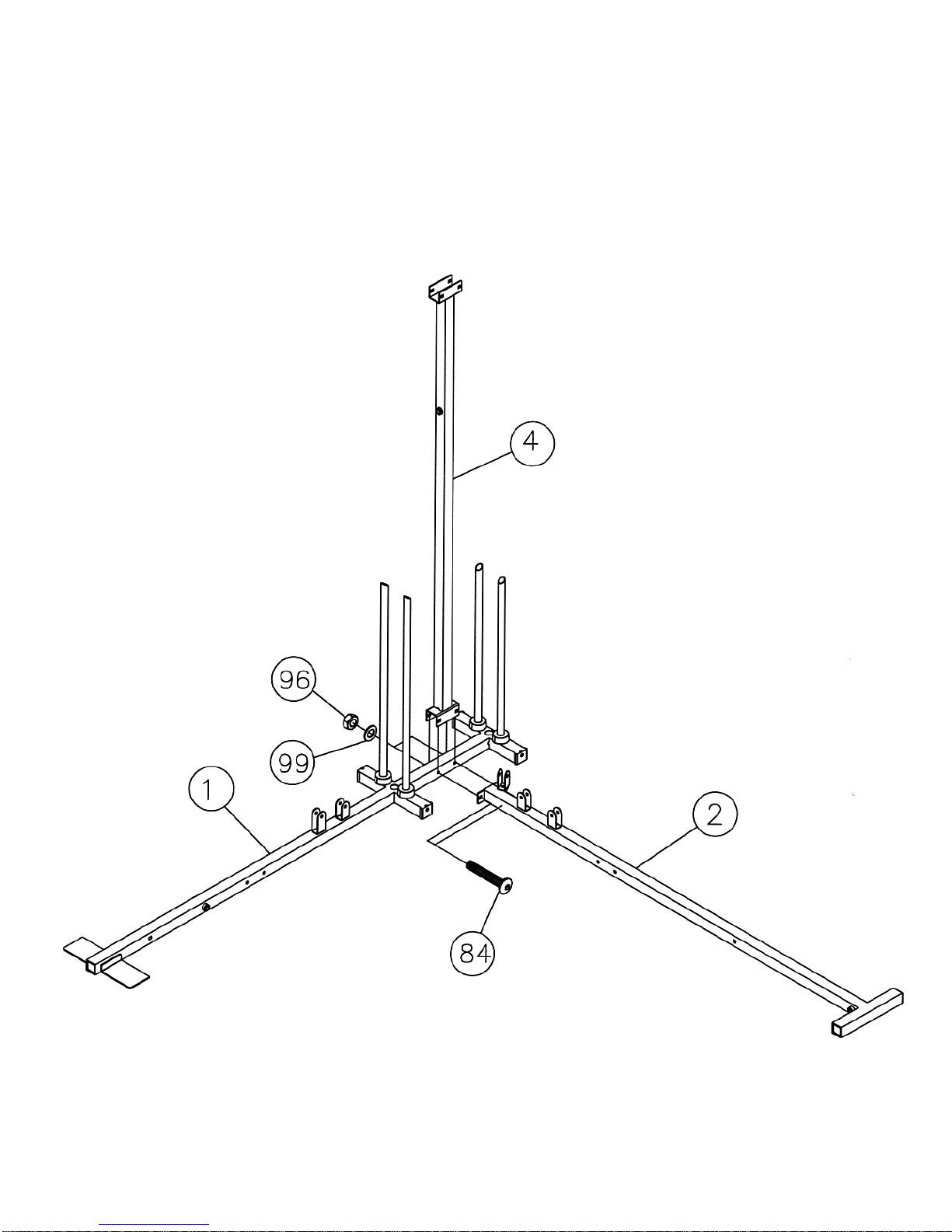

A.) Attach the Rear Vertical Frame (#4) to the Right Base Frame (#1). Attach the Left Base
Frame (#2) to the Rear Vertical Frame. Align the holes and secure them with two M10 x 2
¾” Carriage Bolts (#84), ∅¾” Washers (#99), and M10 Aircraft Nuts (#96).
B.) Do not tighten the Nuts and Bolts yet. DIAGRAM 2
7

STEP 3 (See Diagram 3)
A.) Attach the Right Vertical Beam (#3) to the Right Base Frame (#1). Secure it with two
M10 x 2 ½” Carriage Bolts (#85), ∅¾” Washers (#99), and M10 Aircraft Nuts (#96). DO
not tighten the Nuts and Bolts yet.
B.) Attach the Right Seat Support (#7) to the Right Vertical Beam (#3). Secure it with one
M10 x 2 ½” Carriage Bolt (#85), one M10 x 2 3/8” Allen Bolt (#83), one 3 1/8” x 1 ¾”
Bracket (#31), two Ø ¾” Washers (#99), and one M10 Aircraft Nut (#96).
C.)Attach the Right Seat Support (#7) to the Right Base Frame (#1). Secure it with one
M10 x 2 ½” Carriage Bolt (#85), ∅¾” Washer (#99), and M10 Aircraft Nut (#96).
D.)Attach the Leg Developer (#19) to the bracket on the Right Seat Support (#7). Secure it
with one M10 x 2 7/8” Allen Bolt (#79), two Ø ¾” Washers (#99), and one M10 Aircraft
Nut (#96). Do not over tighten the Leg Developer, make sure it is able to swivel.
DIAGRAM 3

8
STEP 4 (See Diagram 4)

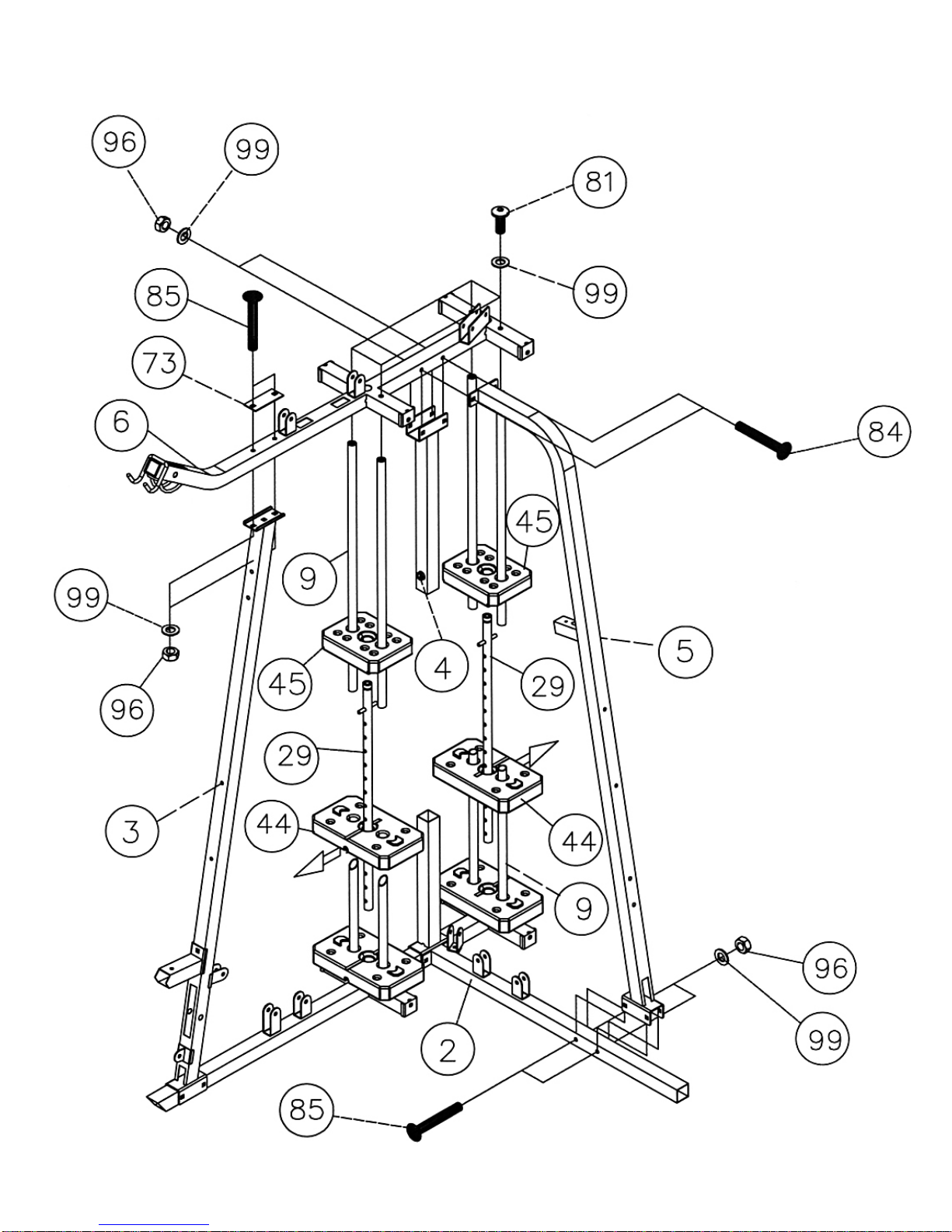

A.) Slide fourteen Weight Plates (#44) onto the rear set of Guide Rods (#9). Make sure the
groves on the Plates all face toward the back of the machine. Insert a Selector Rod (#29)
into the centre holes. Slide a Selector Stem (#45) onto the two Guide Rods.
B.) Repeat Procedure A above to install the other fourteen Weight Plates onto the other two
Guide Rods. Make sure the grove on the Plate all face toward the front of the machine.
C.)Place the Upper Frame (#6) onto the Right Vertical Beam (#3), Guide Rods (#9), and the
Rear Vertical Frame (#4).
D.)Secure the Upper Frame (#6) to the Right Vertical Beam (#3) with two M10 x 2 ½” Carriage
Bolts (#85), one 4 3/8” x 1 ¾” Bracket (#73), two Ø ¾” Washers (#99), and two M10 Aircraft
Nuts (#96).
E.) Secure the Upper Frame to each Guide Rod with one M10 x 1” Allen Bolt (#81) and Ø ¾”
Washer (#99).
F.) Attach the Left Vertical Beam (#5) to the Left Base Frame (#2). Secure it with two M10 x 2
½” Carriage Bolts (#85), Ø ¾” Washers (#99), and M10 Aircraft Nuts (#96).
G.)Secure the Left Vertical Beam (#5) to the Upper Frame (#6) and Rear Vertical Frame (#4)
with two M10 x 2 ¾” Carriage Bolts (#84), Ø ¾” Washers (#99), and M10 Aircraft Nuts
(#96).
H.)DO NOT tighten all Nuts and Bolts yet.
9

DIAGRAM 4
10

STEP 5 (See Diagram 5)
A.) Attach the Left Seat Support (#8) to the Left Vertical Beam (#5). Secure it with two M10 x 2 ½”
Carriage Bolts (#85), one 4 3/8” x 1 ¾” Bracket (#73), two Ø ¾” Washers (#99), and two M10
Aircraft Nuts (#96).
B.) Attach the Left Seat Support (#8) to the Left Base Frame (#2). Secure it with a M10 x 2 ½”
Carriage Bolt (#85), Ø ¾” Washer (#99), and M10 Aircraft Nut (#96).
C.)Attach the Leg Press Frame (#14) to the Left Base Frame (#2). Secure it with one M12 x 3 ¾”
Hex Bolt (#89), two Ø1” Washers (#100), and one M12 Aircraft Nut (#97).
D.)Attach the Leg Press Adjustment Frame (#15) to the Leg Press Plate (#28). Secure it with one
M10 x 2 ½” Carriage Bolt (#85), Ø ¾” Washer (#99), and M10 Aircraft Nut (#96).
E.) Insert the Leg Press Adjustment Frame (#15) into the opening on the Leg Press Frame (#14).
Use a M18 Lock Knob (#61) to secure it at desired position.
11

STEP 6 (See Diagram 6)

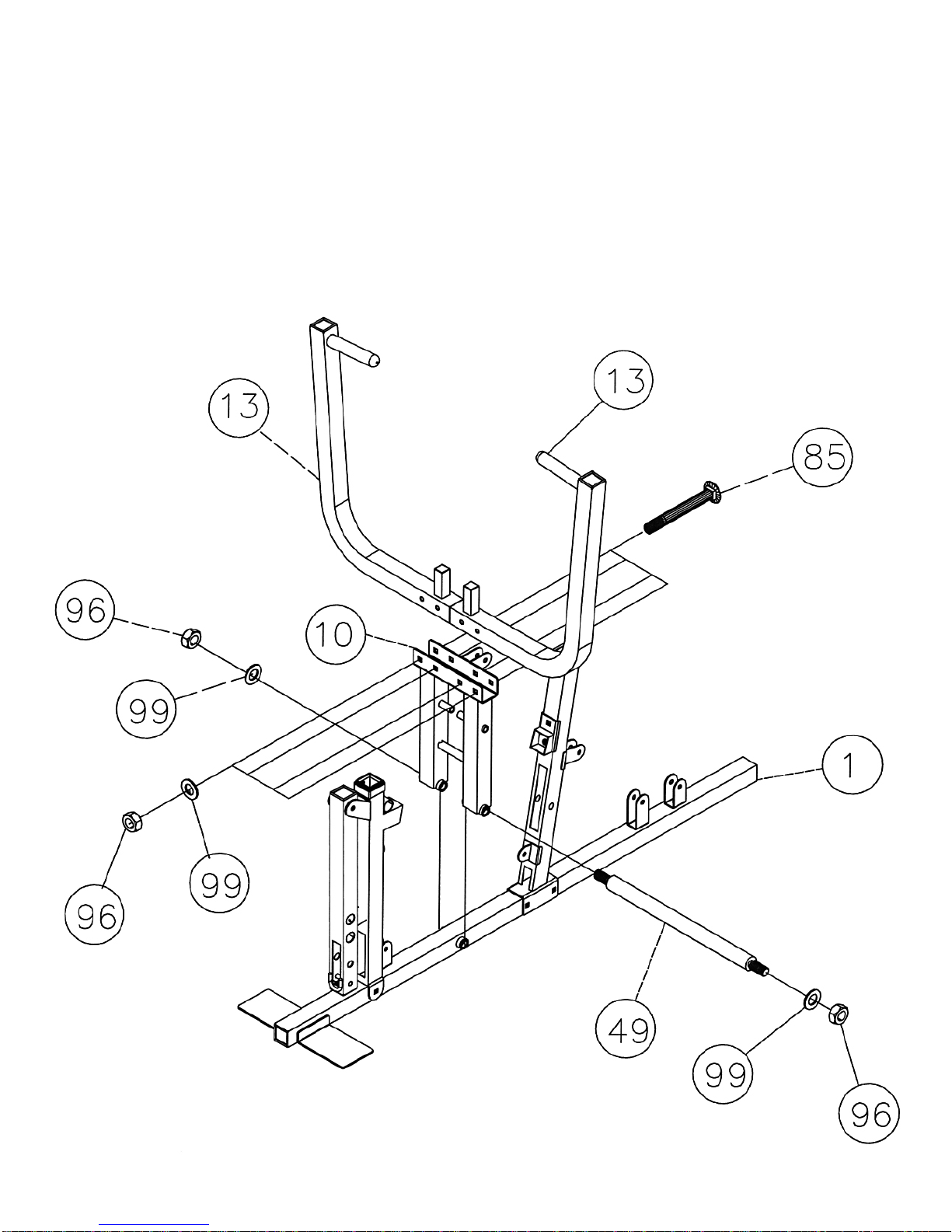

A.) Attach the Front Press Base (#10) to the Right Base Frame (#1). Secure it with one M10 x 9
¼” Front Press Axle (#49), two Ø ¾” Washers (#99), and two M10 Aircraft Nuts (#96).
B.) Attach two Front Press Frames (#13) onto the bracket on the Front Press Base. Secure them
to the Front Press Base with four M10 x 2 ½” Carriage Bolts (#85), Ø ¾” Washers (#99), and
M10 Aircraft Nuts (#96).
C.) Securely tighten all Nuts and Bolts previously installed.
DIAGRAM 6
12

STEP 7 (See Diagram 7)

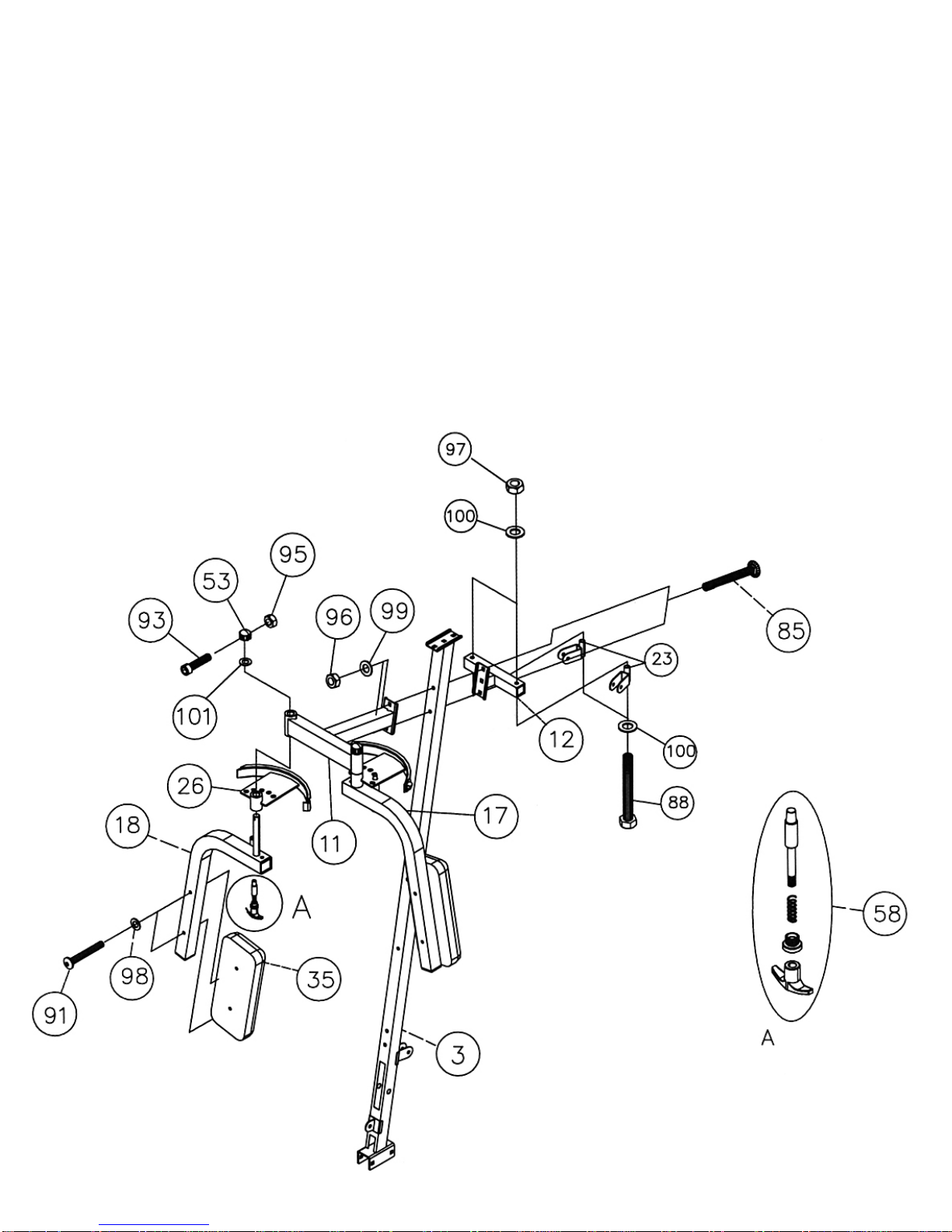

A.) Attach the Butterfly Support Frame (#11) to the front of Right Vertical Frame (#3). Attach
the Butterfly Pulley Support (#12) to the back of Right Vertical Frame. Align the holes and
secure them with two M10 x 2 ½” Carriage Bolts (#85), Ø ¾” Washers (#99), and M10
Aircraft Nuts (#96).
B.) Attach two Swivel Pulley Brackets (#23) to the Butterfly Pulley Support (#12). Secure each
Bracket with one M12 x 4 3/8” Hex Bolt (#88), two Ø1” Washers (#100), and one M12
Aircraft Nut (#97). Do not over tighten the nut and bolt. The brackets need to swivel.
C.)Insert the Axle on the Right Butterfly (#18) through a Butterfly Adjustment Frame (#26) into
the hole on the Butterfly Support Frame (#11). Secure it with one Ø1 ½” Washer (#101),
Lock Ring (#53), M6 x 1 ¼” Allen Bolt (#93), and M6 Aircraft Nut (#95).
D.)Thread a T-shaped Pull Pin (#58) through the hole on the Right Butterfly. Use the Pin to
adjust the Butterfly position.
E.) Attach a Butterfly Arm Pad (#35) to the Right Butterfly. Secure it with two M8 x 2 3/8” Allen
Bolts (#91) and Ø 5/8” Washers (#98).
F.) Repeat procedures C, D and E above to install the Left Butterfly.
13

STEP 8 (See Diagram 8)
A.) Attach the Vertical Press Frame (#20) to the Rear Vertical Frame (#4). Secure it with one
M10 x 4 7/8” Vertical Press Axle (#48), two Ø ¾” Washers (#99), and two M10 x 5/8” Allen
Bolts (#80).
B.) Place the Vertical Press Frame rest against the rubber bumper on the Left Vertical Beam
(#5).
DIAGRAM 8
14

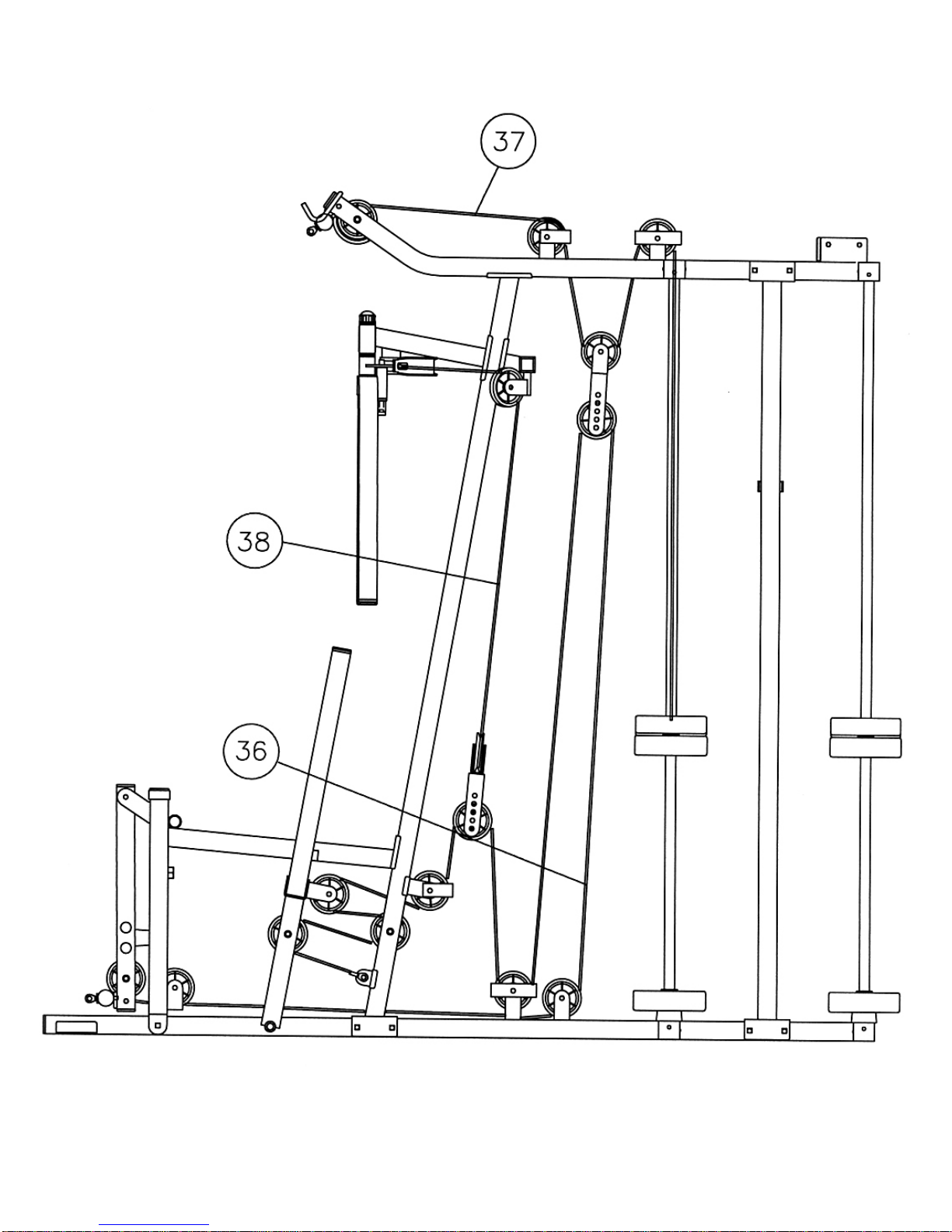

CABLE LOOP DIAGRAM
15

STEP 9 (See Cable Loop Diagram & Diagram 9)
A.) Attach the 108” Upper Cable (#37) to the front opening on the Upper Frame (#6). Attach a
Pulley (#56) to the opening. Secure it with one M10 x 2 3/8” Allen Bolt (#83), two Pulley
Bushings (#55), and one M10 Aircraft Nut (#96). Draw the Cable towards the back of the
machine. Note: Make sure the Ball Stopper is underneath the frame.
B.) Attach a Pulley to the bracket on the Upper Frame. Secure it with one M10x1 ¾” Allen Bolt
(#82), two ∅¾” Washers (#99), one 2 7/8” L-shaped Pulley Bracket (#50), and one M10
Aircraft Nut (#96). Pull the Cable over the Pulley then downward. Install a Pulley to a Flat
Double Floating Pulley Bracket (#25). Let the bracket hanging for now.
C.) Draw the Cable around the Pulley then upward to the second open bracket on the Upper
Frame. Install another Pulley with a U-shaped Pulley Bracket (#51).
D.) Draw the Cable around the Pulley then downward to the Selector Rod (#29). Securely thread
the end of the Cable through the Weight Selector Pin (#46) into the Selector Rod. Use the Nut
at the end of the Cable to tighten down the Bolt.
16

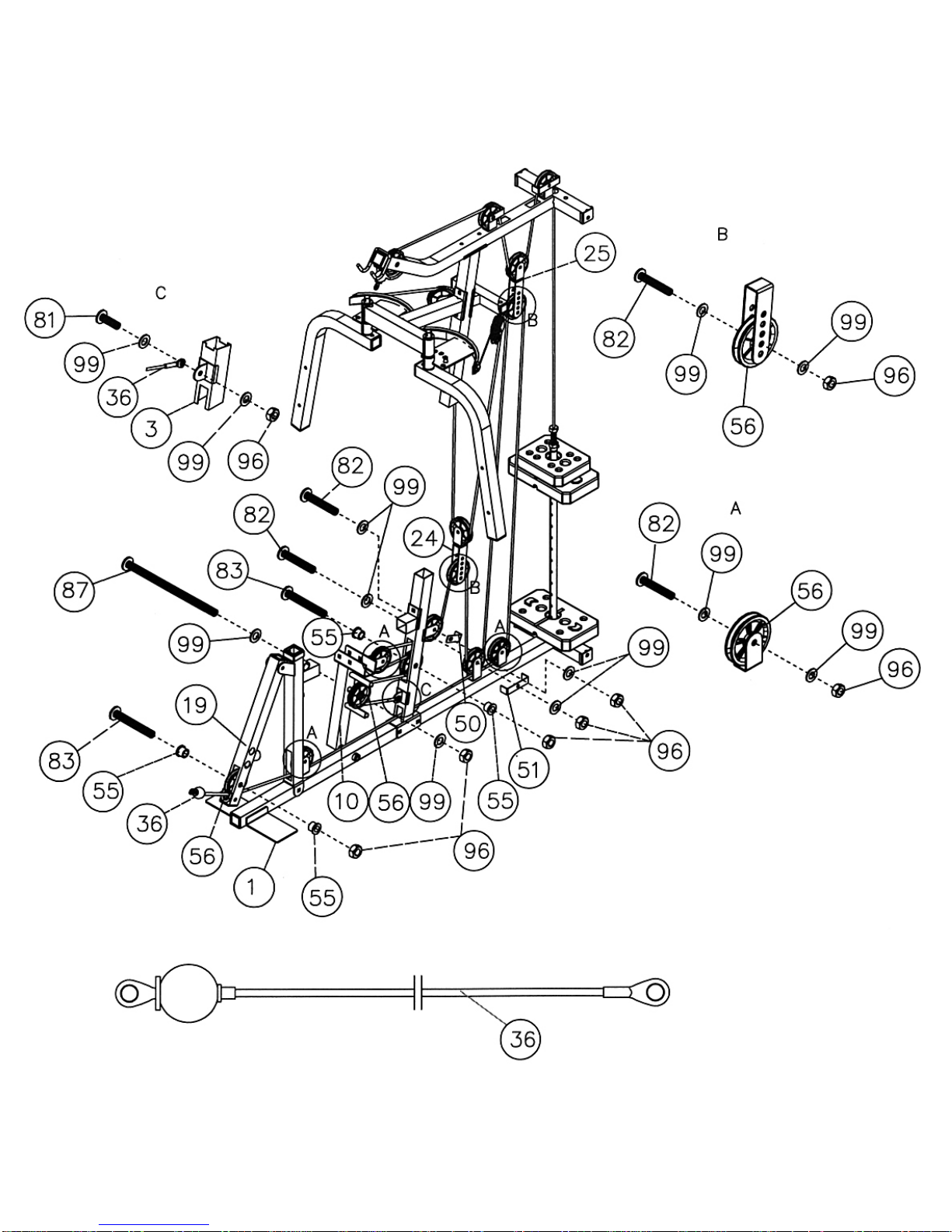

STEP 10 (See Cable Loop Diagram & Diagram 10)

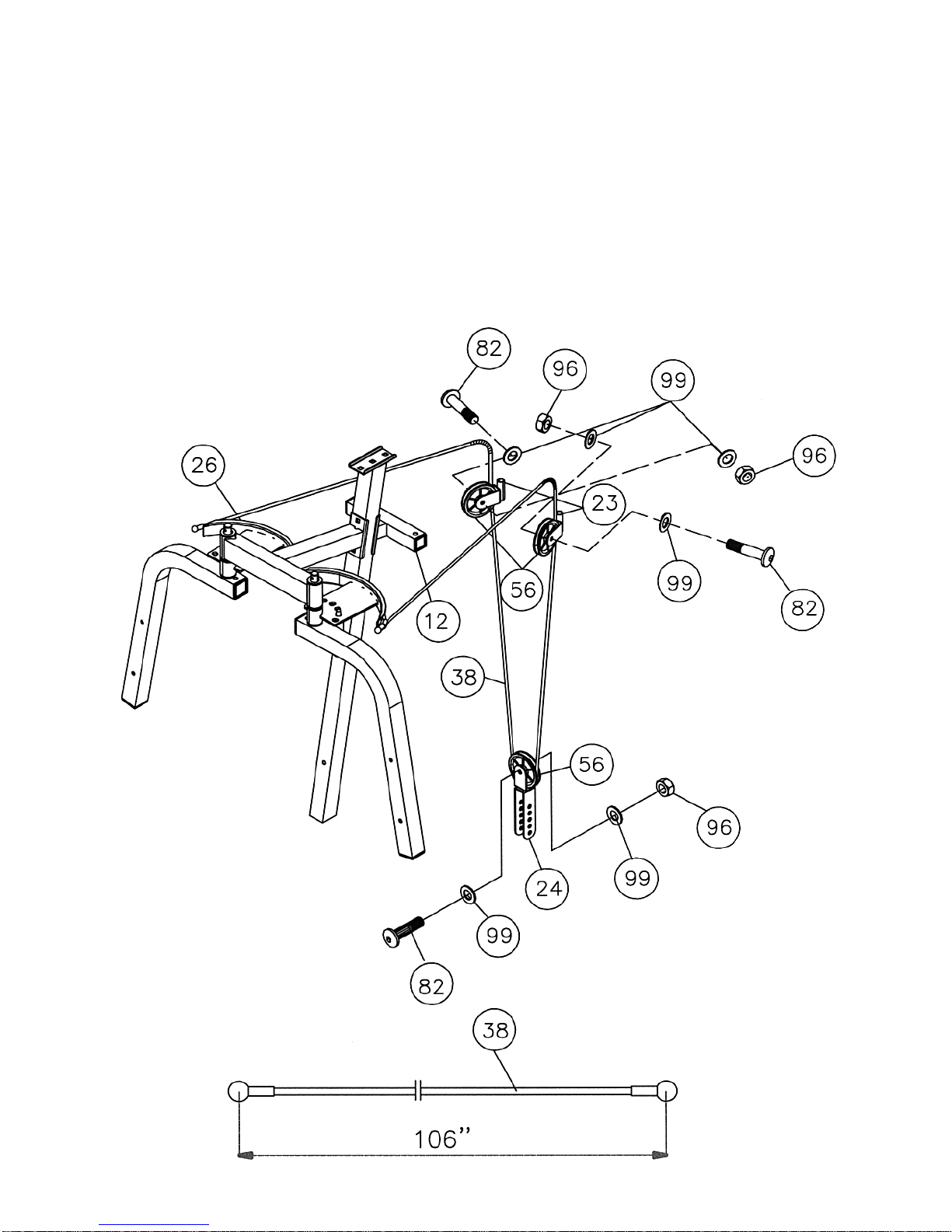

A.) Clip one end of the 106” Butterfly Cable (#38) to the slot on the Left Butterfly Adjustment
Frame. Draw the Cable through the slot then to the open left Swivel Pulley Bracket (#23).
B.) Attach a Pulley (#56) to the bracket. Secure it with one M10 x 1 ¾” Allen Bolt (#82), two ∅¾”
Washers (#99), and one M10 Aircraft Nut (#96).
C.) Draw the Cable around the Pulley then downward. Install a Pulley to the Angled Double
Floating Pulley Bracket (#24). Install another Pulley then let the Bracket hanging for now.
D.) Draw the Cable upward to the right Swivel Pulley Bracket. Install another Pulley.
E.) Draw the Cable to the Right Butterfly Adjustment Frame and secure the end of the cable to the
slot. DIAGRAM 10
17

STEP 11 (See Cable Loop Diagram & Diagram 11)
A.) Attach the 239” Front Press Cable (#36) to the lower opening on the Leg Developer (#19).
Attach a Pulley (#56) to the opening. Secure it with one M10 x 2 3/8” Allen Bolt (#83), two
Pulley Bushings (#55), and one M10 Aircraft Nut (#96).
B.) Draw the Cable underneath the Pulley to the opening on the bottom of Right Seat Support
(#7). Attach a Pulley to the opening and secure it with one M10 x 1 ¾” Allen Bolt (#82),
two Ø ¾” Washers (#99), and one M10 Aircraft Nut (#96).
C.) Draw the Cable underneath the Pulley then through the bottom opening on the Right
Vertical Beam (#3) to the second open bracket on the Right Base Frame (#1).
D.) Attach a Pulley to the second open bracket. Secure it with one M10 x 1 ¾” Allen Bolt (#82),
two ∅¾” Washers (#99), and one M10 Aircraft Nut (#96).
E.) Draw the Cable around the Pulley then upward to the Flat Double Floating Pulley Bracket
(#25) previously installed in Step-9. Install a Pulley to the Bracket on the selected hole.
Note: After completing the entire cable installations, come back to this step and check the
tightness of the cable loop system. If the cables are too loose, move up the pulley on the
bracket. If the cables are too tight, move down the pulley on the bracket.
F.) Draw the Cable around the Pulley then down to the first open bracket on the Right Base
Frame (#1). Install a Pulley with a U-shaped Pulley Bracket (#51).
G.) Draw the Cable around the Pulley then upward to the Angled Double Floating Pulley
Bracket (#24) previously installed in Step-10. Install a Pulley to the selected hole on the
Bracket. Adjust the tension of the cables by changing the Pulley position on the Bracket.
H.) Draw the Cable around the Pulley then down to the open bracket on the back of Right
Vertical Beam (#3). Install a Pulley with a 2 7/8” L-shaped Pulley Bracket (#50).
I.) Draw the Cable through the opening on the Right Vertical Beam to the open bracket on the
back of the Front Press Base (#10). Install a Pulley.
J.) Draw the Cable around the Pulley then back to the lower opening on the Right Vertical
Beam. Install a Pulley to the opening with one M10 x 2 3/8” Allen Bolt (#83), two Pulley
Bushings (#55), and one M10 Aircraft Nut (#96).
K.) Draw the Cable back to the opening on the Front Press Base. Install a Pulley to the
opening with one M10 x 8 ¼” Allen Bolt (#87), two Ø ¾” Washers (#99), and one M10
Aircraft Nut (#96).
L.) Draw the Cable back to the open bracket welded on the lower Right Vertical Beam. Secure
the end of the Cable to the bracket with one M10 x 1” Allen Bolt (#81), two Ø ¾” Washers
(#99), and one M10 Aircraft Nut (#96).
18

DIAGRAM 11
19
