Description
General Specifications
11
1
1 Description
The ThermoJacket® gives you the ability to use sensing heads from the Fluke Process Instruments Series
Endurance or Thermalert 4.0 in ambient temperatures up to 315°C (600°F). The ThermoJacket's rugged cast
aluminum housing completely encloses the sensing head and provides water and/or air cooling and air purging.
Sensing heads can be installed or removed from the ThermoJacket housing in its mounted position. All necessary
mounting accessories are supplied with the ThermoJacket for your sensing head.
The ThermoJacket is available in the following versions:
• A-TJ-T40 – ThermoJacket with mounting material for Thermalert 4.0 sensors
• E-TJ1 – ThermoJacket with mounting material for Endurance sensors
Figure 1-1: ThermoJacket
[e-mail]

ThermoJacket
Users Manual, Rev. 1.1, Jan 2019
12
2 Technical Data
2.1 General Specifications
Air purge flow 35 – 48 l / min (1.24 to 1.7 foot³ / min.)
Ambient temperatures
water cooling 315°C (600°F)
air cooling 115°C (240°F)
Coolant pressure (min./max.)
water cooling 2.7 bar (40 psi) to 8.6 bar (125 psi)
air cooling 5.5 bar (80 psi) to 8.3 bar (120 psi)
filtered or instrument-clean air is required
Table 2-1: Ambient Temperatures versus Coolant Flow
Max. Ambient Temperature
Water Cooling Flow
Air Cooling Flow
93°C (200°F)
121°C (250°F)
149°C (300°F)
232°C (450°F)
315°C (600°F)
0.3 l / min (0.01 foot³ / min)
0.6 l / min (0.02 foot³ / min)
1.0 l / min (0.035 foot³ / min)
1.3 l / min (0.046 foot³ / min)
2.0 l / min (0.07 foot³ / min)
95 l / min (3.3 foot³ / min)
110 l / min (3.9 foot³ / min)
Water/air temperature of 20°C (68°F) at inlet assumed.
[e-mail]

Technical Data
Dimensions
13
2
2.2 Dimensions
Figure 2-1: Dimensions for the ThermoJacket
Air Purge IN
¼” NPT
¾” NPT thru
electrical conduit
and one blind
plug
(A)
3 x Ø 7.9 (.31) thru hole
with 6.6 (.26) wide slot thru
with Ø 14.6 (.575)
cbore x 0.05 DP
ON Ø 3.00 BC
(A)
[e-mail]

ThermoJacket
Users Manual, Rev. 1.1, Jan 2019
14
2.3 Scope of Delivery
The following items are supplied with the ThermoJacket:
2x Swage lock fittings
(Parker Hannifin Corp. 5FSC4N-
316)
1/4” NPT metric adapter
(for air purge)
3/4” NPT cable compression
gland fitting for cable diameter
between 5 to 12 mm
(0.2 to 0.47 in.)
ThermoJacket for Thermalert 4.0
sensors (A-TJ-T40)
Nose adapter
Spacer ring
Rear adapter
not to use
ThermoJacket for Endurance
sensors (E-TJ1)
Nose adapter
Extraction tool
[e-mail]

Installation
Assembly
15
3
3 Installation
3.1 Assembly
Thermalert 4.0
Endurance
Unlatch the ThermoJacket end cap. Pull the end cap from the ThermoJacket body.
Firmly screw the spacer ring followed by the nose
adapter onto the sensing head.
Hint: Lightly coat the outer groove on the nose adapter
with silicon grease to make a later removal easier.
Place the rear adapter over the connector end of the
sensing head, and slide it forward until it rests against
the sensing head body. Tighten the rear adapter set
screws with a 1/8 in hex key to secure it to the head.
Do not exceed 2.8 Nm (25 lbf in) torque.
Figure 3-1: Sensor with Rear Adapter, Spacer
Ring, and Nose Adapter
Firmly screw the nose adapter onto the sensing head.
Hint: Lightly coat the outer groove on the nose
adapter with silicon grease to make a later removal
easier.
Figure 3-2: Sensor with Nose Adapter

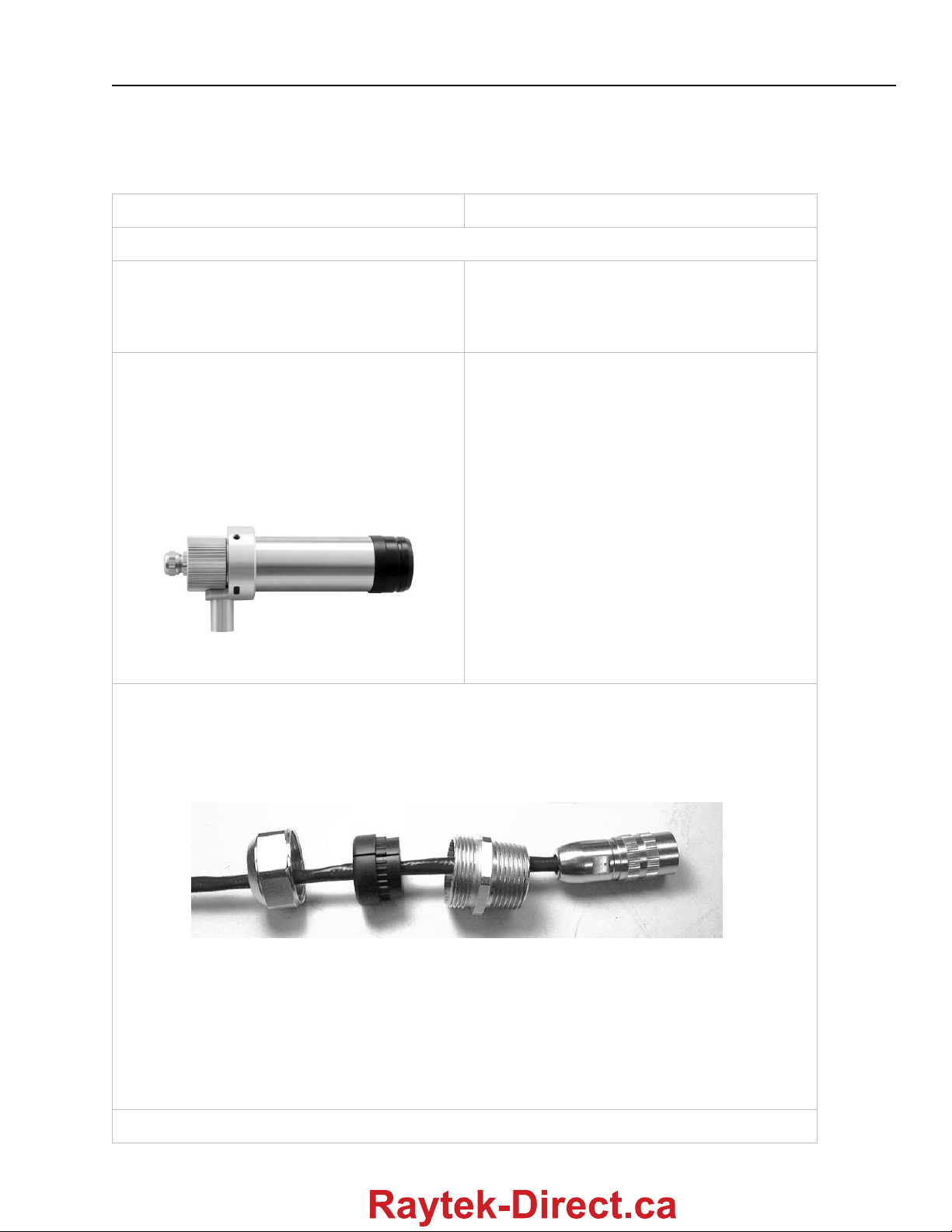

The cable compression fitting has a split gland that fits over the sensor cable with a cap and body that slide over
the connector to facilitate installation.
Figure 3-3: Cable Compression Fitting
Remove cable compression gland assembly from the ThermoJacket. Disassemble the cable compression gland
assembly (30 mm wrench required). Slide compression cap and then the body over the cable connector and
down the cable. Slip gland around the cable in between the cap and body. Route the cable connector through
the bottom of the ThermoJacket body. Attach compression body to ThermoJacket. Tighten cap to body.
Connect and tighten the cable connector to the sensing head, and slide the head into the ThermoJacket body
cavity, lens first. For Endurance sensors: Make sure the connector post on the sensing head is touching or nearly
touching the low end of the cam ramp located on the inside of the ThermoJacket body.
Place the ThermoJacket end cap back onto the body, and latch the end cap to the body.
Compression Cap
Gland
Compression Body
to ThermoJacket
[e-mail]

ThermoJacket
Users Manual, Rev. 1.1, Jan 2019
16
3.2 Disassembly
Thermalert 4.0
Endurance
Removal of the sensor is the reverse of installation.
To aid removal, firmly rotate the head so the head
connector post slides across (up) the cam ramp.
Figure 3-4: Sensor with Rear Adapter
To aid removal, firmly rotate the head so the head
connector post slides across (up) the cam ramp. If
needed, use the extraction tool E-TJET available as
accessory.
Figure 3-5: Sensor with Extraction Tool
For more information, see section 4.6 Extraction Tool
for Endurance (E-TJET), page 26.
[e-mail]

Installation
Water Cooling
17
3
3.3 Water Cooling
The ThermoJacket body is equipped with one H2O-in port and one H2O-out port. These stainless-steel tubes have
an outer diameter of 5/16” (8 mm) or can be connected to existing plumbing with the two supplied fittings (Parker
Hannifin Corp., part number 5FSC4N-316). These fittings made from stainless steel 316 SS couple directly to the
stainless-steel tube and have a female 1/4” NPT for field connections.
If the 1/4” NPT is not acceptable for your installation, then direct connection to the stainless-steel tubes is possible
or Parker Hannifin Corp. offers numerous swage-lock fittings.
Connect the water supply line to the stainless-steel tube H2O-in port and the water return line to the stainless-steel
tube H2O-out port. To determine approximate flow rates at given ambient temperatures see section 2.1 General
Specifications, page 12. Flow may be increased to compensate for greater water inlet temperatures.
To control water pressure, use the water flow regulator accessory. The water flow regulator is equipped with two
female 1/4” NPT ports. To ensure leak-free connections, use Teflon® tape or equivalent water pipe sealant to plumb
the ThermoJacket and water flow regulator.
An installation overview you can find in section 6 Exemplary Installation, page 37.
Note
Care should be taken to properly insulate coolant lines!
3.3.1 Installation of the Tube Fittings
The following steps explain the installation of the tube fittings to the cooling tubes of the ThermoJacket.
1. Insert tubing into the Swagelok tube fitting.
2. Make sure that the tubing rests firmly on the shoulder of
the tube fitting body and that the nut is finger-tight.
3. Scribe the nut at the 6 o’clock position.
4. While holding the fitting body steady with a back-up
wrench, tighten the nut 1 ¼ turns to the 9 o’clock
position.
[e-mail]

ThermoJacket
Users Manual, Rev. 1.1, Jan 2019
18
3.3.2 Reassembly of the Tube Fittings
You may disassemble and reassemble a Swagelok tube fitting as often as required.
1. Insert tubing with pre-swaged ferrules into the fitting
body until the front ferrule seats.
2. Rotate the nut with a wrench to the previously pulled-up
position. At this point, a significant increase in
resistance will be encountered.
3. Tighten slightly with a wrench.
3.4 Air Cooling
The H2O ports are also designed to use air for cooling, for further information see section 3.3 Water Cooling,
page 17.
To control air flow, use the air flow regulator accessory, see section 4.9 Air Flow Regulator (A-TJ-AFR), page 33.
3.5 Air Purging
Connect the air line to the female 1/4” NPT air-in port. Control the air flow with an air flow regulator. Air flow for
purging should be approximately 46 l / min (1.6 foot³ / min) and filtered through a pressure regulator with an integral
filter to prevent oil and contaminant build-up on the sensor lens. Connect the air flow regulator between the
ThermoJacket and the air pressure regulator. To ensure leak-free connections, use Teflon tape or equivalent pipe
sealant.
[e-mail]

Accessories
Air Purging
19
4
4 Accessories
A full range of accessories for various applications and industrial environments are available. Accessories include
items that may be ordered at any time and added on-site. These include the following:
• Mounting Flange (A-TJ-MF) (equivalent to previous E-MF)
• Adjustable Mounting Base (A-TJ-MB) (equivalent to previous E-MB)
• Adjustable Pipe Adapter (A-PA-A) (equivalent to previous E-APA)
• Sighting Tube (A-ST-xx) (equivalent to previous E-STxx and E-BEESIGHT)
• Mounting Flange for Sighting Tube (A-MF-ST) (equivalent to previous E-MST)
• Extraction Tool for Endurance (E-TJET)
• Blast Gate (A-TJ-GTx) (equivalent to previous E-GTQ)
• Water Flow Regulator (A-TJ-WFR) (equivalent to previous E-WR)
• Air Flow Regulator (A-TJ-AFR) (equivalent to previous E-CAFR)
• Air Pressure Regulator (A-TJ-APR) (equivalent to previous E-AR)
• Conversion Kit for Thermalert 4.0 (A-TJ-T40-CKIT), makes the Thermalert 4.0 suitable in an existing
ThermoJacket, consists of nose adapter, spacer ring, rear adapter, O-ring, hex key
[e-mail]

ThermoJacket
Users Manual, Rev. 1.1, Jan 2019
20
4.1 Mounting Flange (A-TJ-MF)
The mounting flange accessory can be used independently to mount the ThermoJacket to walls, existing ports or
flanges. This mounting flange has a variety of mounting holes to accommodate various mounting configurations.
Figure 4-1: Mounting Flange
[e-mail]

Accessories
Adjustable Mounting Base (A-TJ-MB)
21
4
4.2 Adjustable Mounting Base (A-TJ-MB)
The adjustable mounting base provides stable, permanent placement of the ThermoJacket while allowing the
ThermoJacket to pivot 360° and position 90° forward.
Figure 4-2: Adjustable Mounting Base
Installing the Adjustable Mounting Base to the ThermoJacket:
1. Mount the adjustable mounting base (item 6) onto the desired surface with four screws (1/4” 20 UNC or
M6 x 1).
2. Loosen the cap screw (item 3) with the 1/4” hex key.
3. Unscrew the setscrew (item 2) with a screwdriver.
4. Remove the adapter (item 1) from the journal.
5. Attach the adapter (item 1) to the ThermoJacket either bottom or top with two screws (1/4” 20 UNC or
M6x1) (item 7).
6. Insert the ThermoJacket with adapter (item 1) attached back into the journal (item 4).
7. Tighten the 1/4” cap screw (item 3).
Adjusting the Mounting Base:
8. Loosen the collar (item 5) and the cap screw (item 3) with the 1/4” hex key enough to allow the adapter
(item 1) to pivot and the journal (item 4) to rotate.
9. Adjust the ThermoJacket sighting by rotating and pivoting the ThermoJacket body.
10. Tighten the collar (item 5) first, then tighten the cap screw (item 3).
[e-mail]
