Fly Dragon Light Sky Sunny User manual
SUNNY
E-mail:
n
Address: No. 43, Yunfeng Road, Xiuquan Street,
Huadu District, Guangzhou, China
1. Safety information.............................................................................................................................................................2
2. Technical information.......................................................................................................................................................4
3. Attachment and body size...........................................................................................................................................6
4. Installation and connecting...................................................................................................................................7
5. Control panel.................................................................................................................................................................9
6. Menu setting..................................................................................................................................................................10
7. Channel function................................................................................................................................................................12
8. Circuit connecting diagram............................................................................................................................................24
9. Cleaning and maintenances...........................................................................................................................................25
10.Troubeshooting.................................................................................................................................................................26
11.Duty exonerative and copyright protection............................................................................................................27
Congratulations on choosing our company product! We thank you for your custom.
◆Please note that this product, as all the others in the rich my company range, has
been designed and made with total quality to ensure excellent performance and
best meet your expectations and requirements.
◆Carefully read this user manual in its entirety and keep it safe for future reference.
It is essential to know the information and comply with the instructions given in this
manual to ensure the tting is installed, used and serviced correctly and safely.
◆My company disclaims all liability for damage to the tting or to other property or
persons deriving from installation, use and maintenance that have not been carried
out in conformity with this user manual, which must always accompany the tting.
◆My company reserves the right to modify the characteristics stated in this user
manual at any time and without prior notice.
Contents
2
SAFETY INFORMATION
Please do not install the xture onto combustible surface.
The double insulation between the LV power supply and the control conductor on the xture.
■Mounting surface and re protection
Keep all combustible materials at least 20 cm away from the xture.
■This lighting xture is for professional use only - it is not for household use.
Make sure all parts for xing the projector are in a good state of repair.
Make sure the point of anchorage is stable before positioning the projector.
Enhanced care has to be considered during the installation.
The safety chain must be prgperly hooked onto the tting and secured to the framework.
The unit can be placed directly on the stage oor which can support 10 times
of the unit’s weight.
Make sure there are no ammable materials close to the unit while operating,
as it is re hazard.
ta 40℃
This fixture is suitable for indoor use and wet locations. Do not immerse in water.
The ambient temperature Ta: -20℃ 40℃.～
3
The products referred to in this manual conform to the European Community Directives to which
they are subject:
Low Voltage 2014/35/EU
Electromagnetic Compatibility 2014/30/EU
Never look directly into the light source. You risk injury to your retina, which may induce blindness.
Do not look at LEDs with magniers, telescopes, binoculars or similar optical instruments that may
concentrate the light output.
Protection optical radiation
Protection against explosion
The protection screen, lens or ultraviolet screen on the lamp can be damaged to the degree
of failure if visible damage, such as a crack or deep mark, should be replaced.
The light source in this xture shall be replaced by the manufacturer or its service agent or
similar qualication.
Always disconnect from mains before replacing the light.
tc 80℃ The maximun temperature that can be reached on the external surface of the tting,
in a thermally steady state,is 80℃。
Avoid contact bypersons and materials.
Allow the xture to cool for at least 5 minutes before handling.
■The light source
Avoid any inflammable liquids, water or metal objects entering the unit. Once it happen,
cut off the mains power immediately.
4
TECHNICAL INFORMATION
● Power supplies available：
100-240V ~，50/60 Hz
● Rated power：1070W PF : 0.96
● DMX Connector：IP66 waterproof signal line
● Power Connector：IP66 waterproof Power input line
● Light source：LUMILEDS 72×15W RGBL（Red、Green、Blue、Lime） LED
● 30000hAverage life：
● Luminous flux of light source：45550lm
● Luminaire flux：36660lm
● Lens Angle：6°
● Material of lens：PMMA
● Beam Angle：standard 14°, optional 25° and 45°
● Vertical tilt Angle：±90°
● CCT：2500K -7000K
● CRI：Ra 75 ≥
● ： Color
●trobe ：S
- times se .1 30 cond electronic strobe and randomstrobe/
：● Dimmer
16Bit，0-100％The linear dimming，provides four dimming options.
● ： Control Mode
DMX512, RDM, Stand-alone mode ,Wireless DMX512(optional).
：● Channel
Standard channel:8C ; channel: 40CH、36CH、32CH、1CH、3CH、4CH1、4CH2、H
5CH、7CH.
● Display panel：OLED black and white display.
● Built-in program：yes
● Intelligent temperature control：yes
● Software upgrade ： Update via DMX link Channel.
● RDM：two-way transmission of RDM data.
● Data connection：3-core waterproof signal transfer input line/output line
(5-core waterproof line connector is optional).
Maximum number of signal connections dmx@ 25.
● ：Aluminumalloy,toughenedglass. Outlooking
● Surface treatment：Gray-green fine sand, anti - salt spray corrosion.
● IP protection level： Ip66
● Heat dissipation mode：natural heat dissipation.
● Working environment temperature：- 40 ~ + 45℃
●Light size：916X275X640MM
Packing Size (1stes)：1000X580X500 ●
N.W.：49.7Kg ，G.W.：67.5Kg
Flycase Size(1stes)：1025X585X655MM●
N.W.：49.7Kg ，G.W.：85.9Kg
RGBL macro color system.soft and no flicker,Single ring can be controlled separateiy,
fast marco color system.
14°Lux(fc) R
G
B
L
RBGL
4106(382)
5398(502)
806(75)
7197(669)
17300(1608)
532(50)
795(74)
120(11.2)
1077(101)
2480(231)
58(5.4)
80(7.4)
12(1.1)
117(10.9)
252(23.4)
1223(114)
1920(179)
292(27)
2705(251)
6000(558)
301(28)
480(45)
75(7)
470(44)
1500(140)
74(6.9)
111(10.3)
17.7(1.7)
156(14.5)
352(32.8)
140(13)
214(20)
33.5(3.1)
296(27.5)
660(63.3)

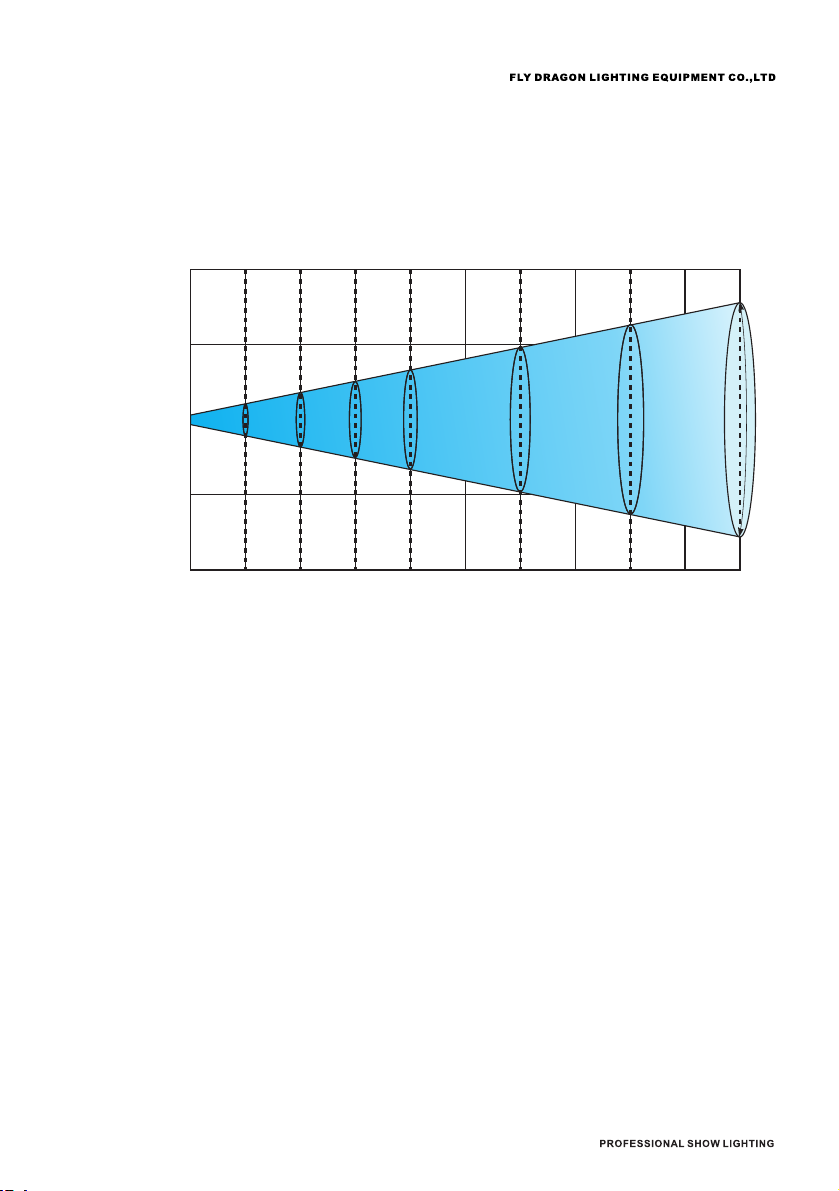

Distance,spot diameter and illumination diagram
10 20 30 40 500
Distance(m)
Diameter 10％(m) 4.36 8.85 13.6 17.8 21.5
5
2.16
15
6.76
0
5
10
5
10
14°
5
6

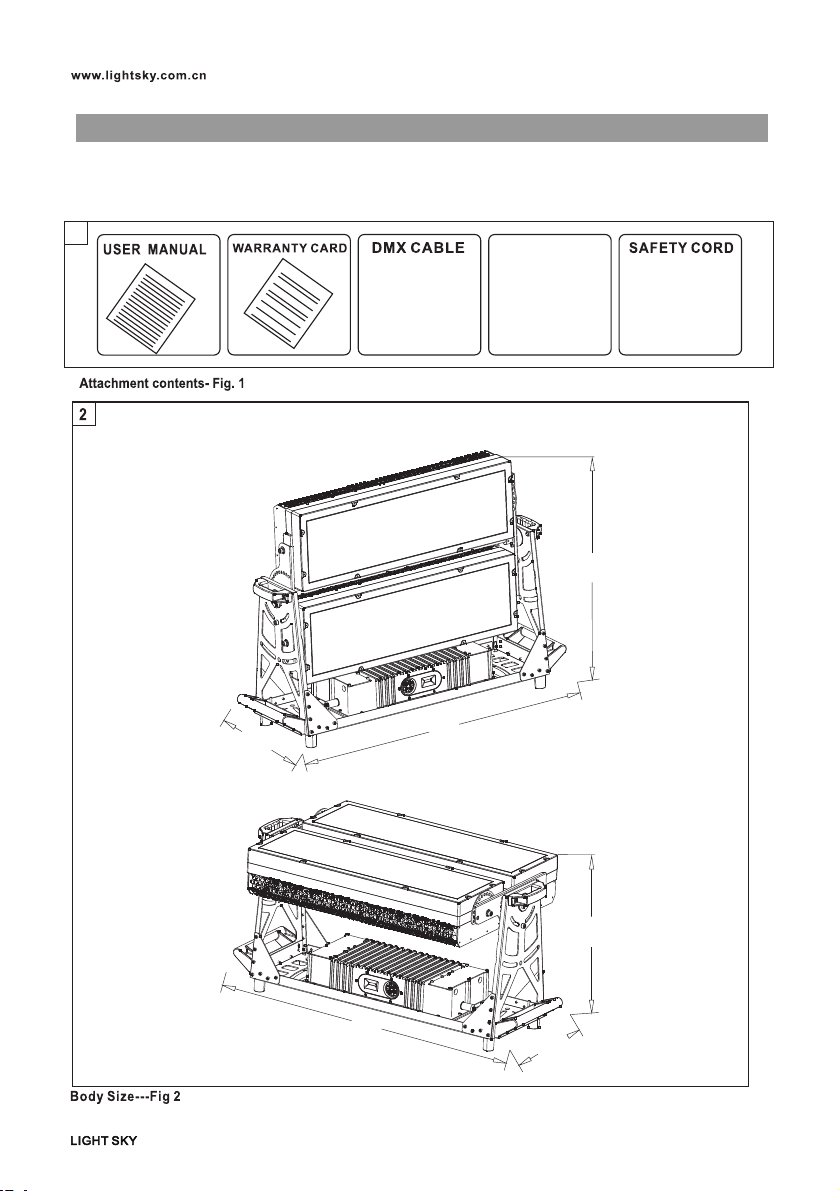

ATTACHMENT AND BODY SIZE
power cord
1
916
275
640
916
275
455
● After doing the above operation and making sure all the devices had been
installed with natural operate, press the power switch to check whether every
-thing is working normally.
● connection to the eiectricty mains must be carried out by a qualied electrical
installer.
7
or
L
N
black
blue
brown
yellow-green
white
green
Conductor Symbol
live
neutral
ground(earth)
Wire Color
(EU models)
Wire Color
(US models)
Wire color-coding and power connections：
INSTALLATION AND CONNECTING
POWER IN
N(White/Blue)
(Green/Yellow Green)
L(Black/Brown)
3
3
8
DMX - output
1 - Shield
2 - Signal (-)
- Signal (+)
- Not connected
- Not connected
3
1
2
3
DMX-input
- Shield
-Signal (-)
- Signal (+)
- Not connected
- Not connected
4
5
4
5
PIN3
PIN2
OUT
IN
DMX IN
OUT
IN
OUT
CONNECTOR
CABLE
I O P
V
CONNECTOR
CABLE
I O P
V
CONNECTOR
CABLE
I O P
V
4
4

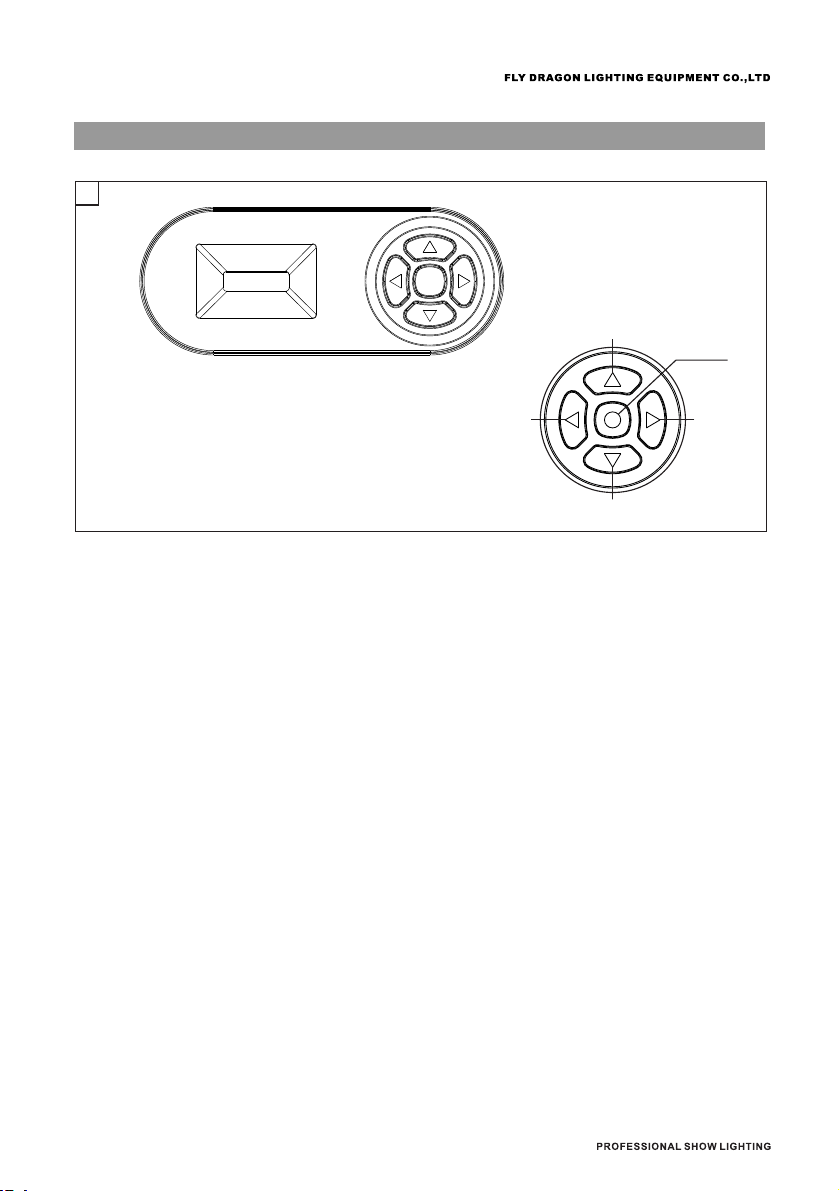

Up arrowhead : page up
Down arrowhead : page down
Left arrowhead : reduce
Right arrowhead : increase
Enter : OK function
Exit : in the choice screen
UP
DOWN
LEFT RIGHT
ENTER
CONTROL PANEL
9
5
MENU SETTING
10
Main menu Ⅰmenu Ⅱ menu Ⅲ menu IV menu
Dmx Set
Dmx Addr Edit A001~AXXX
DMX Function/功能
Hold
Black
Red
Green
Blue
Lime
Red&Green
Red&Blue
Red&Lime
Green&Blue
Green&Lime
Blue&Lime
Program1~12
Auto Run Mode
Alone（Default）
Master
Auto Run Sp Speed = 01--99
（Default ：88）
Addr Edit（Auto） Yes/No
Information
Total Time Total Time:****(H)
Total LED :****(H)
Fixture Time Fixture:****(H)
LedOpen:****(H)
Soft Version V1.00A...
Clr Fixture Time Yes/No
DMX Info Strobe.Dimmer...........
Box Info Box Temp= ;/
Humidity= ;/
Personal Set
Channel Mode
08CH （Default）
40CH
36CH
32CH
01CH
03CH
04CH
04CH
05CH
07CH
Standby Key Lock On/Off （Default：Off ）
RD M S et
RD M U ID = x x xx x xx x xx x x;
MA N U. . LA B EL = L I GH T SK Y
DEVICE LABEL = SUNNY
11
Main menu Ⅰmenu Ⅱ menu Ⅲ menu IV menu
SelectDimmer Hz
Select 24K Hz
Select 12K Hz
Select 6K Hz
Select 3K Hz
DimmerCurve
Linear (Default)
Square
I-Square
SCurve
Manual Control Channel Strobe.Dimmer...........
Service
Calibration Red，Green,Blue,White
Factory Set
Reset Default
Yes/No
ClearTotalTime Yes/No
Developer Yes/No
Temp To Power
On/Off
（Default
：On）
Manual Or Dmx On/Off
（Default
：On ）
LOGO Display On/Off
（Default
：On）
Reset Address Yes/No
Language English （Default）
Chinese
Dis Rotation Normal （Default）
Rotate 180/
Temperature
Temp1;Temp2;Temp3;Temp4
Personal Set
（Default）
Special key function description:Press UP and DOWN buttons at the same time,keep 3
seconds,Show direction reversal;Press Left and Right buttons at the same time.
Hold for 3 seconds and switch between Chinese and English
(Default)
CHANNEL FUNCTION
12
Standardchannel（ 8CH）
Channel Value Percentage Function Note
1
Shutter
0..9 No
function
10..255 Strobe
effect
slow
to
fast
2Dimmer
0..255 Dimmer
0%...100%
3Red
0..255 0-100%
Red
dimmer
from
dark
to
bright
4Green
0..255 0-100%
Green
dimmer
from
dark
to
bright
5Blue
0..255 0-100%
Blue
dimmer
from
dark
to
bright
6Lime
0..255 0-100%
Lime
dimmer
from
dark
to
bright
7
Pixel
Macro
0..4 No
function
5..28 Marcro
1
29..55 Marcro
2
53..76 Marcro
3
77..100 Marcro
4
101..124 Marcro
5
125..148 Marcro
6
149..172 Marcro
7
173..196 Marcro
8
197..220 Marcro 9
221..244 Marcro 10
245..250 Marcro 11
251..255 Marcro 12
8Macro Speed
0..255 Macro Speed from slow to fast
No t e: A f te r t he a d dr es s b at c h mo d if i ca t io n i s su c ce s sf u l, t he l i gh t s wi l l tu r n on r e d, g r ee n , bl u e an d
le m on i n t ur n , an d f in al l y st r ob e t wi c e, a n d th e n sw i tc h b ac k t o th e or i gi n al l i gh t s ta t e.
13
channel（ 40CH）
Channel Value Percentage Function Note
1
Shutter
0..9 No function
10..255 Strobe effect slow to fast
2Dimmer
0..255 Dimmer
0%...100%
3Red
0..255 0-100%
Red
dimmer
from
dark
to
bright
4Green
0..255 0-100%
Green
dimmer
from
dark
to
bright
5Blue
0..255 0-100%
Blue
dimmer
from
dark
to
bright
6Lime
0..255 0-100%
Lime
dimmer
from
dark
to
bright
7
Pixel
Macro
0..4 No
function
5..28 Marcro
1
29..55 Marcro
2
53..76 Marcro
3
77..100 Marcro
4
101..124 Marcro
5
125..148 Marcro
6
149..172 Marcro
7
173..196 Marcro
8
197..220 Marcro
9
221..244 Marcro
10
245..250 Marcro
11
251..255 Marcro
12
8Macro
Speed
0..255 Macro
Speed
from
slow
to
fast
9Red
in
Pixel
1
0..255 Red
in
pixel
1
saturation
control
(0-100%)
10 Green
in
Pixel
1
0..255 Green
in
pixel
1
saturation
control
(0-100%)
11 Blue
in
Pixel
1
0..255 Blue in pixel 1 saturation control(0-100%)
12 Lime in pixel 1
0..255 Lime in pixel 1 saturation control(0-100%)
14
Channel Value Percentage Function Note
13 Red in pixel 2
0..255 Red in pixel 2 saturation control(0-100%)
14 Green in pixel 2
0..255 Green in pixel 2 saturation control(0-100%)
15 Blue
in
pixel
2
0..255 Blue
in
pixel
2
saturation
control(0-100%)
16 Lime
in
pixel
2
0..255 Lime
in
pixel
2
saturation
control(0-100%)
17 Red
in
Pixel
3
0..255 Red
in
pixel
3
saturation
control
(0-100%)
18 Green
in
pixel
3
0..255 Green
in
pixel
3
saturation
control(0-100%
19 Blue
in
pixel
3
0..255 Blue
in
pixel
3
saturation
control(0-100%)
20 Lime
in
pixel
3
0..255 Lime
in
pixel
3
saturation
control(0-100%)
21 Red
in
Pixel
4
0..255 Red
in
pixel
4
saturation
control
(0-100%)
22 Green
in
pixel
4
0..255 Green
in
pixel
4
saturation
control(0-100%)
23 Blue
in
pixel
4
0..255 Blue
in
pixel
4
saturation
control(0-100%)
24 Lime
in
pixel
4
0..255 Lime
in
pixel
4
saturation
control(0-100%)
25 Red
in
Pixel
5
0..255 Lime
in
pixel
5
saturation
control
(0-100%)
26 Green
in
pixel
5
0..255 Green
in
pixel
5
saturation
control(0-100%)
27 Blue
in
pixel
5
0..255 Blue
in
pixel
5
saturation
control(0-100%)
28 Lime
in
pixel
5
0..255 Lime
in
pixel
5
saturation
control(0-100%)
29 Red
in
Pixel
6
0..255 Lime
in
pixel
6
saturation
control
(0-100%)
30 Green in pixel 6
0..255 Green in pixel 6 saturation control(0-100%)
31 Blue in pixel 6
0..255 Blue in pixel 6 saturation control(0-100%)
15
Channel Value Percentage Function Note
32 Lime
in
pixel
6
0..255 Lime
in
pixel
6
saturation
control(0-100%)
33 Red
in
Pixel
7
0..255 Lime
in
pixel
7
saturation
control
(0-100%)
34 Green
in
pixel
7
0..255 Green
in
pixel
7
saturation
control(0-100%)
35 Blue
in
pixel
7
0..255 Blue
in
pixel
7
saturation
control(0-100%)
36 Lime
in
pixel
7
0..255 Lime
in
pixel
7
saturation
control(0-100%)
37 Red
in
Pixel
8
0..255 Lime
in
pixel
8
saturation
control
(0-100%)
38 Green
in
pixel
8
0..255 Green
in
pixel
8
saturation
control(0-100%)
39 Blue
in
pixel
8
0..255 Blue
in
pixel
8
saturation
control(0-100%)
40 Lime
in
pixel
8
0..255 Lime
in
pixel
8
saturation
control(0-100%)
16
channel（ 36CH）
Channel Value Percentage Function Note
1
Shutter
0..9 No function
10..255 Strobe effect slow to fast
2Dimmer
0..255 Dimmer
0%...100%
3
Pixel
Macro
0..4 No
function
5..28 Marcro
1
29..55 Marcro
2
53..76 Marcro
3
77..100 Marcro
4
101..124 Marcro
5
125..148 Marcro
6
149..172 Marcro
7
173..196 Marcro
8
197..220 Marcro
9
221..244 Marcro
10
245..250 Marcro
11
251..255 Marcro
12
4Macro
Speed
0..255 Macro
Speed
from
slow
to
fast
5Red
in
Pixel
1
0..255 Red
in
pixel
1
saturation
control
(0-100%)
6Green
in
Pixel
1
0..255 Green
in
pixel
1
saturation
control
(0-100%)
7Blue
in
Pixel
1
0..255 Blue
in
pixel
1
saturation
control(0-100%)
8Lime
in
pixel
1
0..255 Lime
in
pixel
1
saturation
control(0-100%)
9Red
in
pixel
2
0..255 Red
in
pixel
2
saturation
control(0-100%)
10 Green
in
pixel
2
0..255 Green
in
pixel
2
saturation
control(0-100%)
11 Blue
in
pixel
2
0..255 Blue
in
pixel
2
saturation
control(0-100%)
12 Lime in pixel 2
0..255 Lime in pixel 2 saturation control(0-100%)
17
Channel Value Percentage Function Note
13 Red in Pixel 3
0..255 Red in pixel 3 saturation control (0-100%)
14 Green in pixel 3
0..255 Green in pixel 3 saturation control(0-100%
15 Blue
in
pixel
3
0..255 Blue
in
pixel
3
saturation
control(0-100%)
16 Lime
in
pixel
3
0..255 Lime
in
pixel
3
saturation
control(0-100%)
17 Red
in
Pixel
4
0..255 Red
in
pixel
4
saturation
control
(0-100%)
18 Green
in
pixel
4
0..255 Green
in
pixel
4
saturation
control(0-100%)
19 Blue
in
pixel
4
0..255 Blue
in
pixel
4
saturation
control(0-100%)
20 Lime
in
pixel
4
0..255 Lime
in
pixel
4
saturation
control(0-100%)
21 Red
in
Pixel
5
0..255 Lime
in
pixel
5
saturation
control
(0-100%)
22 Green
in
pixel
5
0..255 Green
in
pixel
5
saturation
control(0-100%)
23 Blue
in
pixel
5
0..255 Blue
in
pixel
5
saturation
control(0-100%)
24 Lime
in
pixel
5
0..255 Lime
in
pixel
5
saturation
control(0-100%)
25 Red
in
Pixel
6
0..255 Lime
in
pixel
6
saturation
control
(0-100%)
26 Green
in
pixel
6
0..255 Green
in
pixel
6
saturation
control(0-100%)
27 Blue
in
pixel
6
0..255 Blue
in
pixel
6
saturation
control(0-100%)
28 Lime
in
pixel
6
0..255 Lime
in
pixel
6
saturation
control(0-100%)
29 Red
in
Pixel
7
0..255 Lime
in
pixel
7
saturation
control
(0-100%)
30 Green in pixel 7
0..255 Green in pixel 7 saturation control(0-100%)
31 Blue in pixel 7
0..255 Blue in pixel 7 saturation control(0-100%)
18
Channel Value Percentage Function Note
32 Lime
in
pixel
7
0..255 Lime
in
pixel
7
saturation
control(0-100%)
33 Red
in
Pixel
8
0..255 Lime
in
pixel
8
saturation
control
(0-100%)
34 Green
in
pixel
8
0..255 Green
in
pixel
8
saturation
control(0-100%)
35 Blue
in
pixel
8
0..255 Blue
in
pixel
8
saturation
control(0-100%)
36 Lime
in
pixel
8
0..255 Lime
in
pixel
8
saturation
control(0-100%)
19
channel（ 32CH）
Channel Value Percentage Function Note
1Red in Pixel 1
0..255 Red in pixel 1 saturation control (0-100%)
2Green in Pixel 1
0..255 Green
in
pixel
1
saturation
control
(0-100%)
3Blue
in
Pixel
1
0..255 Blue
in
pixel
1
saturation
control(0-100%)
4Lime
in
pixel
1
0..255 Lime
in
pixel
1
saturation
control(0-100%)
5Red
in
pixel
2
0..255 Red
in
pixel
2
saturation
control(0-100%)
6Green
in
pixel
2
0..255 Green
in
pixel
2
saturation
control(0-100%)
7Blue
in
pixel
2
0..255 Blue
in
pixel
2
saturation
control(0-100%)
8Lime
in
pixel
2
0..255 Lime
in
pixel
2
saturation
control(0-100%)
9Red
in
Pixel
3
0..255 Red
in
pixel
3
saturation
control
(0-100%)
10 Green
in
pixel
3
0..255 Green
in
pixel
3
saturation
control(0-100%
11 Blue
in
pixel
3
0..255 Blue
in
pixel
3
saturation
control(0-100%)
12 Lime
in
pixel
3
0..255 Lime
in
pixel
3
saturation
control(0-100%)
13 Red
in
Pixel
4
0..255 Red
in
pixel
4
saturation
control
(0-100%)
14 Green
in
pixel
4
0..255 Green
in
pixel
4
saturation
control(0-100%)
15 Blue
in
pixel
4
0..255 Blue
in
pixel
4
saturation
control(0-100%)
16 Lime
in
pixel
4
0..255 Lime
in
pixel
4
saturation
control(0-100%)
17 Red
in
Pixel
5
0..255 Lime
in
pixel
5
saturation
control
(0-100%)
18 Green in pixel 5
0..255 Green in pixel 5 saturation control(0-100%)
19 Blue in pixel 5
0..255 Blue in pixel 5 saturation control(0-100%)
Table of contents
Popular Spotlight manuals by other brands
as-Schwabe
as-Schwabe 46915 Installation
Strong International
Strong International SUPER TROUPER II instruction manual
Stanley FatMax
Stanley FatMax FL5W10 instruction manual
Vector
Vector VECTORLITE VEC117FS Owner's manual & warranty
Will Burt
Will Burt Nightscan Spot Operator's manual
LIVARNO
LIVARNO 314812 Assembly, operating and safety instructions
