Leviton Ellipsoid 5/50 User manual

Engineered for Safe and Easy Operation.
Leviton NSI-Colortran 5/50 Ellipsoidal Series features thermally
insullated handles manufactured with high technology
thermoplastics for cool touch and safe operation. Insulated shutter
blade fingerholes make for quick positioning. Lamp housing is
easily removed by grasping the large insulated adjustment handle
and loosening the bottom phenolic knob.
PK-93195-00-01-1A
10°- 50°
SPOTLIGHTS
USER GUIDE
ELLIPSOID
Series
5/50
Functions
Lamp Installation
Disconnect the unit from power. To remove the lamp housing, loosen the bottom three-
arm handle two full turns and pull the assembly straight out. Please note the three-arm
handle stud has a threadless section preventing inadvertent removal of the socket
assemble during typical alignment procedures.
The lamp socket assembly includes a
medium two-pin socket mounted within a
heat sink assembly. Push the lamp firmly into
the socket until it stops, then push again
harder and the lamp will ease in an
additional 1/16”. A properly seated lamp will
require a substantial tug to remove. Proper
lamp installation is important to insure
maximum lamp and socket life.
Reinsert the lamp housing by lining up the
knob indentations of the socket housing with
the respective bosses on the reflector
housing. Tighten the bottom handle against
the reflector housing.
Focusing
Loosen but do not remove the focus locking knob on
the top front of the unit. The lens tube can now be
moved in and out for desired focus. Soft focus should
be typically attained by moving the lens tube out past
sharp focus. Inward soft focus positions will produce a
wider (flooded) field of diminished uniformity. Tighten
the knob to maintain a desired focus position.
Lamp Alignment
The 5/50 Series Ellipsoidals feature a rapid and precise
lamp alignment system, consisting of two handles. The
center three-arm knob on the lamp housing assembly
accurately positions the lamp within the reflector, while
the bottom three-arm handle controls peak/flat alignment.
Peak/flat focus is achieved by loosening the bottom
handle. Move the assembly forward for peak focus
(brighter intensity) or back for flat focus (even intensity
throughout light beam). Tighten the bottom handle after
desired focus is achieved.
To center the lamp, loosen the three-arm handle on
lamp housing assembly and move lamp along ‘x’ or ‘y’ axis. Tighten back handle
when setting is achieved.
The peak alignment condition is useful for area blending and highlighting, while flat
focus is particularly useful for single isolated areas and pattern protection.
Additionally, intentional lamp misalignment is useful for unusual beam shaping and
highlighting.
Beam Shaping
Beam shaping components include the framing shutters,
a pattern projection slot and an optional iris.
Each framing shutter blade travels in its own plane and
is capable of ±60°of angulation. This provides greater
versatility in creating unusual three and four sided
figures. Each blade has a heat resistant handle with a
convenient finger hole.
A customer installed iris is available as an accessory. If
all components are used concurrently, a soft edge on
either the iris or the shutter can be expected.
Beam size and shape may also be altered by profile
pattern projection (see Pattern Projection).
Lenses
Leviton NSI-Colortran ellipsoidal
spotlights feature a patented lens system
allowing variable locations for plano-
convex lenses, creating different system
field angles. The lenses in the 30°model
(Cat. No. EL30) may be repositioned as a
40°(Cat. No. EL40) or a 20°(Cat. No.
EL20). The addition of a 6” x 12” lens
creates the 15°(Cat. No.
EL15).
To change lenses: Remove
the focus knob, at the top front
of the unit, pull out the lens
tube assembly, and remove
the four phillips head screws
that hold it together.
The tube contains three lens
retaining grooves. See Figure
1 for the lens placements to
obtain various field spreads.
NOTE
Some beam combinations require a corrective field stop. For optimum
sharpness, make sure the correct stop is in place in the designated groove. The
extra stops may be purchased as optional accessories.
When reassembling, make sure the three rubber lens mounts have been replaced on
120°centers. The lenses must not touch metal. Also be sure that the sliding locking
nut is in the groove formed by the top joint of the castings.
NOTE
Interchangeablity is limited to 20°, 30°and 40°fixtures.
Color
Lee Color Effect Filters are recommended for all filter applications. These filters are
available in over 175 colors, color corrections, and diffusion selections. Lee Filters
are available in both 21” x 4” sheets and 25’ x 4’ rolls.
Pattern Projection
All Leviton NSI-Colortran spotlights are equipped
with pattern projection slots. Standard pattern
holders are available as an accessory (Cat. No.
000-AELPH-000).
Place the pattern in the holder and the holder in
the slot. Focus for sharpest detail. If haze appears
around the image, align the lamp to a flat field
condition (see Lamp Alignment). Additional clarity
and contrast may be achieved by the use of
projection stops. These stops fit into the accessory
clips and block flare which decreases projection
contrast.
Custom patterns of sheet metal cut to fit pattern
holder may also be used.
Maintenance
Reflector
The reflector may be taken out by removing
the shroud mounting plate, then removing the
two reflector retaining screws.
The Alzak®finish requires little maintenance:
Occasionally wipe it with cotton, tissue, or a
laundered handkerchief moistened with
isopropyl alcohol, then rinse with water.
Strong alkaline or acid cleaners and abrasives
SHOULD NOT be used.
Lenses
All lenses are precision molded using the highest quality low-
expansion borosilicate glass. Since the spotlight is state-of-the-
art, quality lenses are necessary to withstand the high radiation
energy densities. NEVER use a lens that is chipped, cracked,
scratched, or tinted green.
Gate
The gate is accessed by removing the four phillips
head screws holding the lens shroud to the reflector
housing. The gate assembly is comprised of a
sandwich of shutter blades and separate planes
topped by the pattern slot plate. The assembly is
retained within the casting and tension applied by
four spring clips. A single blade or plate may be
removed for replacement by taking the spring clips
off and then reapplying them.
○○○○○○○ ○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○
○○○○○○○ ○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○
○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○
○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○
○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○
○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○
○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○
LIMITED TWO YEAR WARRANTY AND EXCLUSIONS
Leviton warrants to the original consumer purchaser and not for the benefit of
anyone else that this product at the time of its sale by Leviton is free of defects
in materials and workmanship under normal and proper use for two years
from the purchase date. Leviton’s only obligation is to correct such defects by
repair or replacement, at its option, if within such two year period the product
is returned prepaid, with proof of purchase date, and a description of the
problem to Leviton Manufacturing Co., Inc., Att: Service Department, 20497
SW Teton Ave., Tualatin, Oregon 97062. All products returned to Leviton-
NSI must have factory authorization for return prior to shipping. The purchaser
is responsible for completing and mailing to Leviton, within 15 days of purchase,
the warranty registration card enclosed with each product. This warranty
excludes and there is disclaimed liability for labor for removal of this product
or reinstallation. This warranty is void if this product is installed improperly or
in an improper environment, overloaded, misused, opened, abused, or altered
in any manner, or is not used under normal operating conditions or not in
accordance with any labels or instructions. There are no other or implied
warranties of any kind, including merchantability and fitness for a particular
purpose, but if any implied warranty is required by the applicable jurisdiction,
the duration of any such implied warranty, including merchantability and fitness
for a particular purpose, is limited to two years. Leviton is not liable for incidental,
indirect, special, or consequential damages, including without limitation,
damage to, or loss of use of, any equipment, lost sales or profits or delay or
failure to perform this warranty obligation. The remedies provided herein are
the exclusive remedies under this warranty, whether based on contract, tort or
otherwise.
Part Color Life
Watts No. ANSI Temp. (Hrs.)
1000 176-033 FEL 3200°K 300
750 176-185 EHG 3200°K 500
750 176-187 EHF 3000°K 2000
500 176-029 EHC/EHB 3200°K 500
500 176-031 EHD 3000°K 2000
750 ◊HX86 FKR 3200°K 300
1000 ◊176-095 FEP 3200°K 300
◊(220 or 240 Volt lamps)
Recommended Lamps
With 1000 Watt, FEL lamp, Model No. 176-033
For illumination from any distance, divide candlepower by the distance
squared.
For field diameter at specific distance, multiply field multiplier by
distance.
Field Angle Beam Angle Candlepower Field Multiplier
Peak (Cosine) Peak (Cosine)
10°5.8°(6.7°) 563,000 (563,000) 0.14
15°6.8°(10.0°) 306,000 (286,000) 0.26
20°8.3°(15.3°) 224,000 (171,000) 0.35
30°11.0°(20.0°) 154,000 (118,000) 0.54
40°15.0°(26.7°) 112,000 (48,000) 0.73
50°17.5°(26.7°) 68,200 (27,000) 0.73
Photometric Performance
321
FIELD
ANGLE
20°
30°
40°
FIELD STOP
POSITION
1
2
N/R
LENS
POSITION
3
1
3
1
2
LENS
SIZE
6X9
4.5X9
6X9
4.5X9
6X9
Plano
Side
Figure 1

DI-000-0EL05-01A
Medium throw 10°spotlight is perfect for
spotlight applications from 55 feet to 100
feet. 8” x 14” lens projects 563,000 beam
candlepower with 10°field angle and 5.8°
beam angle.
5/50
Series
1000 Watt
Ellipsoidals
Available in:
50°, 40°, 30°,
20°and 15°
Plus 10°
Medium Throw
1
2
3
4
5
15
16
13
12 7
8
9
10 6
7
8
9
10
11 12 14 13
15
17
18
19
20
21
22
23
24
28
29
26 27
25
30
31
32 33 34 35 36
37
Leviton NSI Division Headquarters
20497 SW Teton Avenue, Tualatin, OR 97062
Customer Service Telephone: [phone]
Customer Service Fax: [phone]
Technical Services: 800.959.6004
Leviton Manufacturing Company, Incorporated.
59-25 Little Neck Parkway, Little Neck, NY 11362-2591.
Visit Leviton’s websites at http://www.nsicorp.com
& http://www.leviton.com
Copyright®2003. Leviton Manufacturing Company, Inc. All Rights Reserved
Specifications and pricing subject to change at any time.
ACCESORIES
Color frame, 15°thru 50°
000-AELKF-000
Color frame, 10°
000-A2KCF-000
Pattern holder
000-AELPH-000
Iris kit
000-AELIK-000 Safety cable
000-A00SC-000
Ref. Qty. Description Item Number
1 1 Socket assembly N00-AS294-490
2 1 U-ground plug 000-05266-00C
3 1 Twist-lock plug 061-02311-000
4 1 Stage pin plug
5 1 C-clamp 000-A00CC-000
6 1 Reflector housing N00-SM292-991
7 2 Step bolt, 5/16-18 x 3/4”
8 2 Disc clutch
9 8 Rivet, 1/8” x 15/32”
10 2 Pivot bushing
11 1 Yoke
12 2 Lock washer, split, 5/16”
13 2 Screw, hex head, 5/16-18 x 1”
14 1 T-Bolt, 5/16-18, insert N00-KB287-832
15 2 Flat washer, 5/16”, steel
16 1 Hex nut, flexlock, 5/16-18
17 1 Reflector N00-SM293-099
18 2 Screw, pan head, 6-32 x 3/8” N00-HD020-800
19 1 Shroud mounting plate N01-SM293-090
20 4 Screw, flat head, 8-32 x 1”
21 4 Shutter blade assembly N00-AS240-701
22-ABCDE 4 Spacer, 3 1/4” diameter N00-SM235-711
22-F 1 Spacer, 3 1/4” diameter N00-SM235-711
23-F 1 Spacer, 2 1/2” diameter
24 1 Mounting pattern holder
25 4 Spring clip N00-HD748-800
26-ABCDE 1 Shroud, 15°- 50°
27-F 1 Shroud, 10°
28 4 Screw, pan head, 6-32 x 1/4”
29 4 Washer, internal tooth, #6
30 1 3-Arm knob, 10-24 x 1/4” stud N00-KB010-040
31 1 Flat washer, teflon
32-A 1 Lens assembly, 50°N03-AS294-741
33-B 1 Lens assembly, 40°N04-AS294-742
34-C 1 Lens assembly, 30°N05-AS294-743
35-D 1 Lens assembly, 20°N06-AS294-744
36-E 1 Lens assembly, 15°N07-AS294-745
37 1 Lens assembly, 10°N00-AS295-700
REPLACEMENT ITEMS
SUFFIX DESIGNATION
A — suffix denotes 50°unit only.
B — suffix denotes 40°unit only.
C — suffix denotes 30°unit only.
D — suffix denotes 20°unit only.
E — suffix denotes 15°unit only.
F — suffix denotes 10°unit only.

DOCUMENTATION
LEVITON INSTRUCTION SHEET/MANUAL
SPECIFICATIONS
EC 08/04/04
Helvetica
PK-93195-00-01-1A
Black
Final fold size:
20# White paper
Dull/Smooth finish TopKote
5.5" X 11"
Overall size:
25.75" X 11"
Paper size:

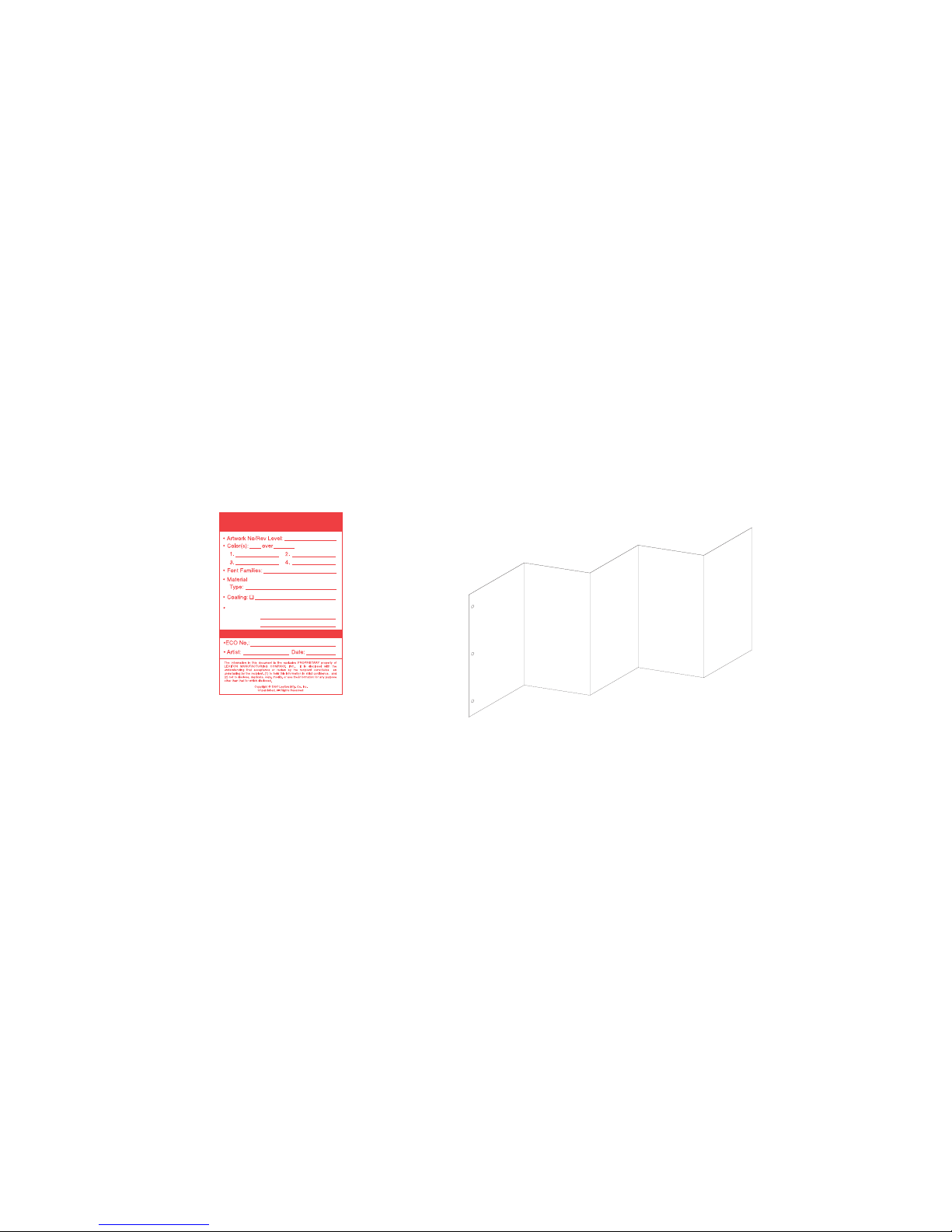

FOLDING DIAGRAM
