(GB) INSTRUCTION MANUAL
(D) BEDIENUNGSANWEISUNG (F) MANUEL D’UTILISATION (NL) GEBRUIKSAANWIJZING
(N) BRUKSANVISNING (SF) KÄYTTÖHJE (S) BRUKSANVISNING (DK) BRUGSANVISNING
(E) MANUAL DE INSTRUCCIONES (P) INSTRUÇNÕES PARA O USO (I) ISTRUZIONI PER L’USO

GB - CONTENTS
1. Speed Control
2. Switch Lever
3. Handle Knob
4. Steady Handle
5. Handle Bolt
6. Tine Collar
7. Multi-purpose Tine
8. Raking Tine
Attatchment
9. Guarantee Card
10. Instruction Manual
11. International Service
Directory
ENGLISH PAGES (2- )
D - INHALT
1. Geschwindigkeitsregler
2. Einschalter
3. Rändelmutter für
Zusatzhandgriff
4. Zusatzhandgriff
5. Schraube für
Zusatzhandgriff
6. Krallenmanschette
7. Boden krúnler
8. Kreiselrechen
9. Garantiekarte
10. Bedienungsanweisung
11. Internationales
Kundendienstverzeichn
is
DEUTSCHE SEITEN
(10-17)
F - CONTENU DU
CARTON
1. Variateur de vitesse
2. Interrupteur
3. Vis papillon
4. Poignée auxiliaire
5. Vis de poignée
6. Bague de fixation
7. Griffe universelle
8. Disque émietteur
9. Carte de garantie
10. Manuel d’instructions
11. Répertoire d’entretien
international
LES PAGES EN LANGUE
FRANÇAISE (18-25)
NL - INHOUD
1. Snelheidscontrole
2. Schakelaar
3. Handvatknop
4. Handgreep
5. Handgreep-bout
6. Kraag voor vork
7. Multi-toepassing vork
8. Harktand-hulpstuk
9. Garantiekaart
10. Handleiding
11. Internationale service-
adressen
NEDERLANDSE
PAGINA’S (26-33)
N - INNHOLD
1. Hastighetsregulering
2. Start/Stopp bryter
3. Mutter for håndtaksbolt
4. Håndtaksb yle
5. Håndtaksbolt
6. Feste
7. Tillegsutstyr som
spavender, lufter,
l sner, luker og jevner
8. Rivelignende redskap,
egnet til st rre områder
9. Garnatikort
10. Bruksanvisning
11. Servicestasjonsliste
NORSKE SIDER(34-41)
SF - SISÄLTÖ
1. Nopeudensäätö
2. Käynnistin
3. Mutterí
4. Vakain
5. Pultti
6. Kinnityskaulus
7. Monitoimipiikki
8. Haravaliitin
9. Takuukortti
10. Käyttöopas
11. Kansainvälinen
Flymo/partner-
huoltohakemisto.
SUOMALAISET SIVUT
(42-4 )
S - INNEHÅLL
1. Hastighetsreglage
2. Strömbrytare reglage
3. Handtagsknopp
4. Stödhandtag
5. Handtagsbult
6. Stoppring
7. Universalverktyg
8. Krattverktyg
9. Garantikort
10. Bruksanvisning
11. Internationell
servicekatalog
SVENSKA SIDOR (50-
57)
DK - INDHOLD
1. Hastighedsregulering
2. Kontakt
3. Håndtagsknap
4. St ttehåndtag
5. Håndtagsbolt
6. Tandkrave
7. Universaltænder
8. Rivetandstilbeh r
9. Garantikort
10. Brugsvejledning
11. International
servicetelefonbog
DANSKE SIDER(58-65)
E - CONTENIDO
1. Control de Velocidad
2. Palanca del Interruptor
3. Perilla del Manillar
4. Asa
5. Perno del Manillar
6. Collar de Púas
7. Púas de Multi-usos
8. Accesorio de Púas de
Rastrillar
9. Tarjeta de Garantía
10. Manual de Instrucciones
11. Directorio de Servicio
Internacional
PAGINAS EN
CASTELLANO (66-73)
P - LEGENDA
1. Controlo de Velocidade
2. Alavanca do interruptor
3. Parte saliente do cabo
4. abo Fixo
5. Parafuso do cabo
6. Encaixe do forcado
7. Forcado com vários
fins
8. Acessório da
engrenagem do
forcado
9. Cartão da garantia
10. Manual de Instruções
11. Lista de Assistência
Internacional
PÁGINAS
PORTUGUESAS (74-81)
I - INDICE
1. Regolazione velocità
2. Leva interruttore
3. Pomello impugnatura
4. Impugnatura inferiore
5. Vite impugnatura
6. Collare punta
7. Punta multiuso
8. Punta a rastrello
9. Tagliando di garanzia
10. Manuale di istruzioni
11. Elenco centri
assistenza
internazionali
ITALIANO (82-8 )

1
(GB) CARTON CONTENTS
(D) KARTONINHALT
(F) CONTENU DU CARTON
(NL) INHOUD
(N) KARTONGEN
INNEHOLDER
(SF) PAKETIN SISÄLTÖ
(S) FÖRPACKNINGENS
INNEHÅLL
(DK) KARTONINDHOLD
(E) CONTENIDO DEL
CARTON
(P) LEGENDAS DOS
DESENHOS
(I) CONTENUTO
A1
2
3
4
7
5
6
8
10
11

2
(GB) SAFETY
If not used properly this Power Hoe can be dangerous! This Power Hoe can
cause serious injury to the operator and others, the warnings and safety
instructions must be followed to ensure reasonable safety and efficiency in using
this Power Hoe. The operator is responsible for following the warning and safety
instructions in this manual and on the Power Hoe.
Explanation of Symbols on the Power Hoe.
Warning.
Read the user instructions
carefully.
Switch off! Remove plug from
mains before adjusting, cleaning
or if cable is entangled or
damaged. Keep the cable away
from the tine.
Do not operate whilst people,
especially children, or pets are in
the hoeing area
Tines continue to rotate after the
machine is switch off, rotating
tines can cause injury
Do not operate in the rain or
leave the Power Hoe outdoors
while raining.
General
1. Never allow children or people unfamiliar
with these instructions to use the Power
Hoe. Local regulations may restrict the age
of the operator.
2. Only use the Power Hoe in the manner and
for the functions described in these
instructions.
3. Never operate the Power Hoe when you are
tired, ill or under the influence of alcohol,
drugs or medicine.
4. The operator or user is responsible for
accidents or hazards occurring to other
people or their property.
Electrical
1. The British Standards Institute recommend
that a R.C.D. be used on the circuit your
Power Hoe is using. Even with a R.C.D.
installed 100% safety cannot be guaranteed
and safe working practice must be followed
at all times. Check your R.C.D. every time
you use it.
2. Before use, examine cable for damage,
replace it if there are signs of damage or
ageing.
3. Do not use the Power Hoe if the electric
cables are damaged or worn.
4. Immediately disconnect from the mains
electricity supply if
the cable is cut, or
the insulation is
damaged. Do not
touch the electric
cable until the
electrical supply
has been
disconnected. Do
not repair a cut or
damaged cable.
Replace it with a new one.
5. Your electric cable must be uncoiled, coiled
cables can overheat and reduce the
efficiency of the Power Hoe.
6. Keep cable away from the tine area.
7. Do not pull cable around sharp objects.

8. Always switch off at the mains before
disconnecting any plug, cable connector or
extension cable.
9. Switch off, remove plug from mains and
examine electric supply cable for damage
or ageing before winding cable for storage.
Do not repair a damaged cable, replace it
with a new one. Use only Flymo
replacement cable.
10. Always wind cable carefully, avoiding
kinking.
Preparation
1. Always wear suitable clothing, gloves, and
stout shoes. The use of eye protection is
recommended. Do not wear loose clothing
or jewellery which can be caught in moving
parts.
2. Thoroughly inspect the area where the
Power Hoe is to be used and remove all
wires and other foreign objects.
3. Before using always visually inspect to see
that the tine is not worn or damaged.
Use
AVOID ACCIDENTAL STARTING. WHEN
CLEARING DEBRIS FROM THE TINE AREA,
REMOVE PLUG FROM MAINS AND KEEP
FEET AWAY FROM THE SWITCH LEVER.
1. Use the Power Hoe only in daylight or good
artificial light.
2. Ensure that shoe laces are tied correctly
and are kept clear of the rotating tine.
3. Do not use the Power Hoe when it is raining
or in damp and wet areas.
4. Never use the Power Hoe in or near water
or ponds
.5. Take extra care when working near shrubs
and bushes to prevent the tine becoming
entangled.
6. Know how to stop the Power Hoe quickly in
an emergency.
7. On slopes, be extra careful of your footing
and wear non-slip footwear.
8. Always start the Power Hoe carefully with
feet well away from the tine.
9. Never pick up or carry the Power Hoe by
the cable.
10. Keep the tine below waist level.
11. Avoid operating while people, especially
children, are nearby.
12. Keep cable away from tine at all times. If
cable becomes entangled, remove plug
from mains and carefully inspect cable for
damage. If in doubt, contact your local
Dealer.

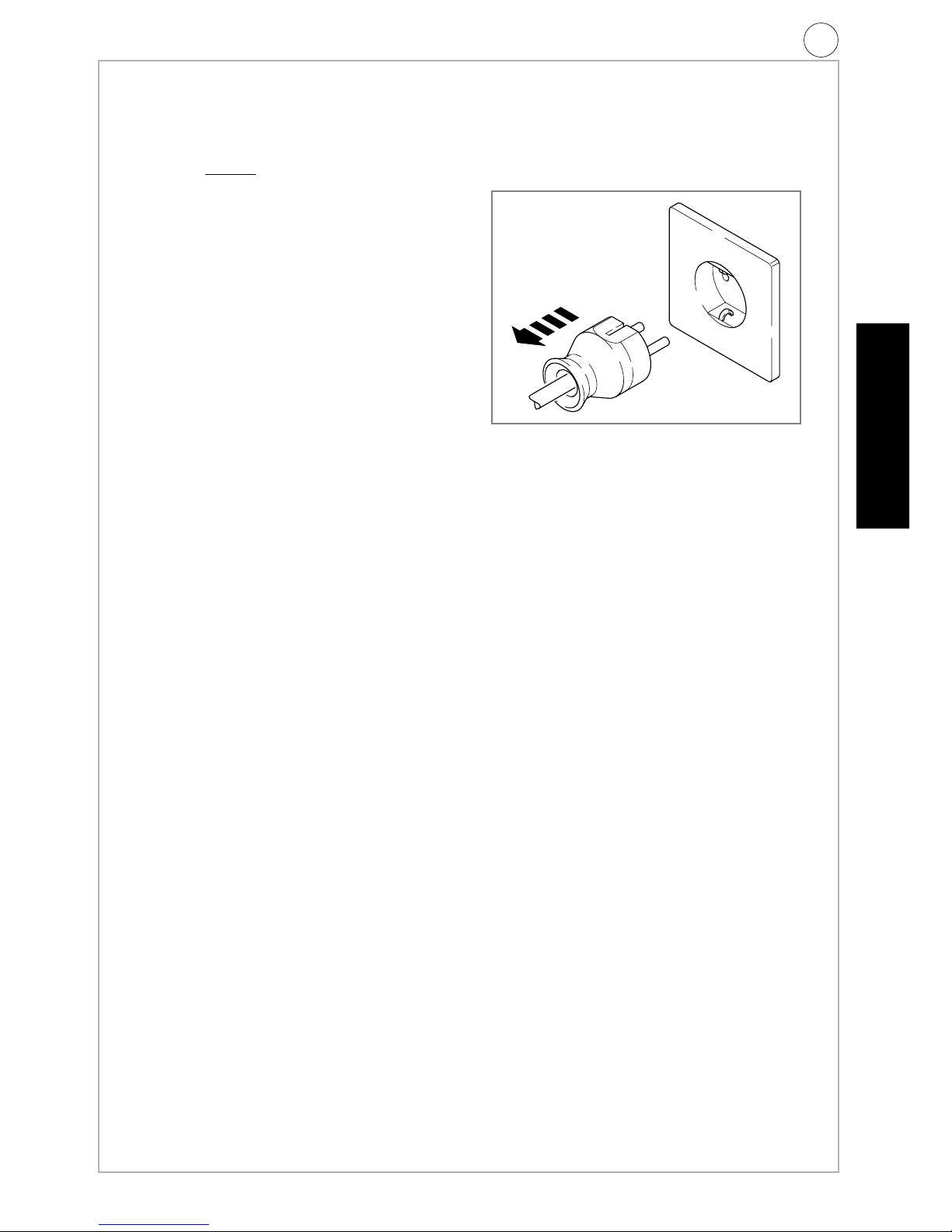

13. Remove the plug from the mains :-
Maintenance and storage
1. Keep all nuts, bolts and screws tight to be
sure the Power Hoe is in safe working
condition.
2. Replace worn or damaged parts for safety.
3. Be careful during adjustment of the Power
Hoe to prevent entrapment of the fingers
between moving and fixed parts of the
machine.
4. After use the Power Hoe should be stored
in a safe place where it is protected from
damage.
3
(GB) SAFETY
- before leaving the Power Hoe
unattended for any period;
- before clearing a blockage;
- before checking, cleaning or working
on the appliance;
- if you hit an object. Do not use the
Power Hoe until you are sure that the
entire Power Hoe is in a safe operating
condition;
- if the Power Hoe starts to vibrate
abnormally. Check immediately.

4
(GB) ASSEMBLY

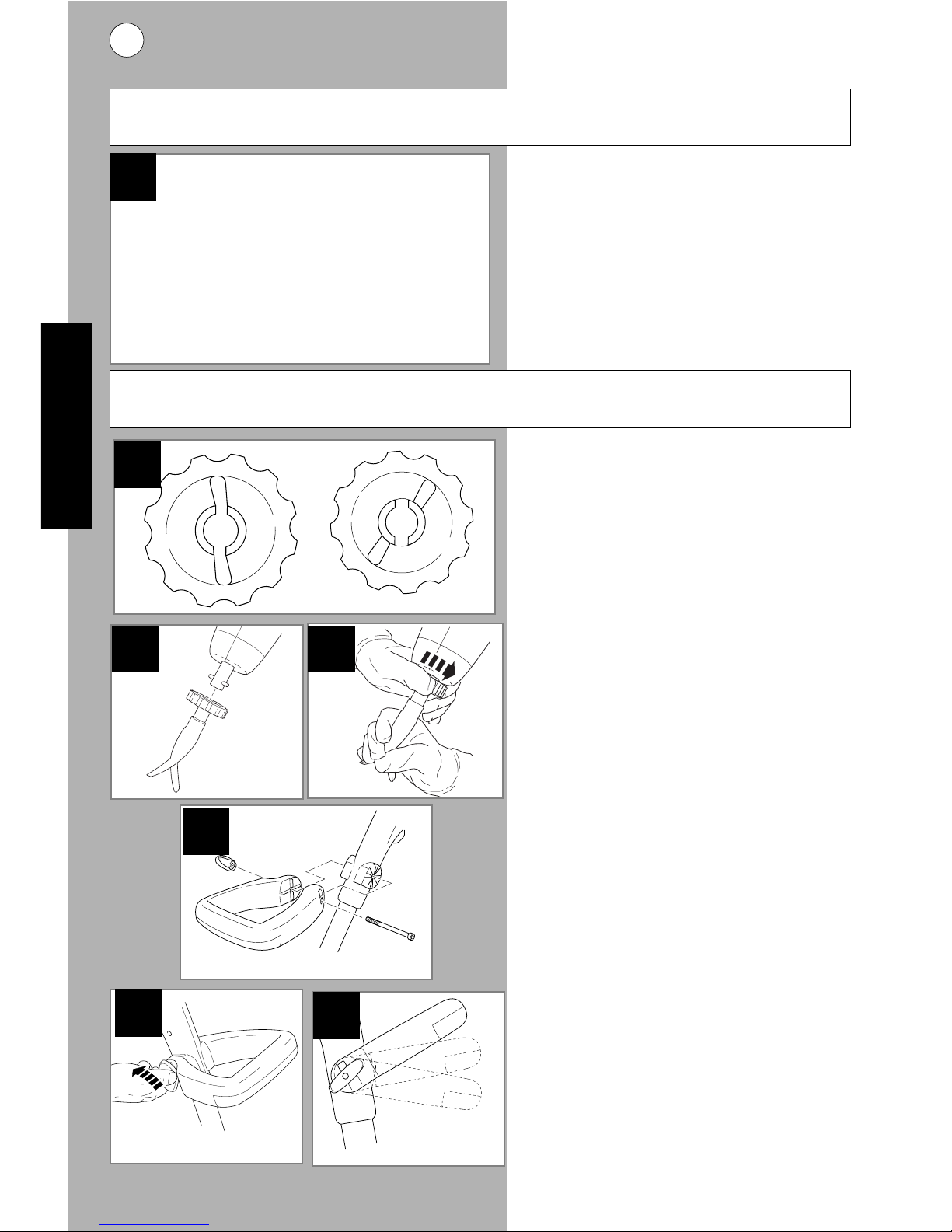

Fitting the Tine
• Use the same procedure for
fitting the Multi-purpose Tine and
the Raking Tine Attachment.
1. Line up the tine collar as
illustrated in Fig. C.
2. Place the tine onto the shaft as
illustrated in Fig. D.
3. Turn the tine collar clockwise, as
illustrated in Fig. E, until it
locates into place.
•Removal is the reverse
procedure. Ensure the tine
collar is clean and free from dirt
before refitting.
Fitting the Steady Handle
1. Attach the steady handle to your
product using the bolt and
handle knob as shown in Fig. F.
Steady Handle Adjustment
1. To adjust the steady handle to a
new position, loosen handle as
shown in Fig G and move
handle to one of the three
positions as shown in Fig H.
2. Re-tighten handle knob.
Product Rating Label
Product Number . . . . . . . . . . . . . . . . .
Model Number. . . . . . . . . . . . . . . . . . .
Serial Number . . . . . . . . . . . . . . . . . . .
Date of Purchase. . . . . . . . . . . . . . . . .
Place of Purchase . . . . . . . . . . . . . . . .
•PLEASE KEEP PROOF OF PURCHASE•
Every Flymo product is uniquely identified by a
silver and black product rating label.
To ensure you have full product information
when obtaining spares or advice from one of
our approved service centres, or if you need
to contact Flymo/Partner's own customer
service department, you should make a note
in the space provided of the information
shown in fig.B. It will also be useful to make
a note of the date and place of purchase
before you return your guarantee card.
B
Assembly & Adjustment
DE
C
F
GH
√x

5
(GB) USE

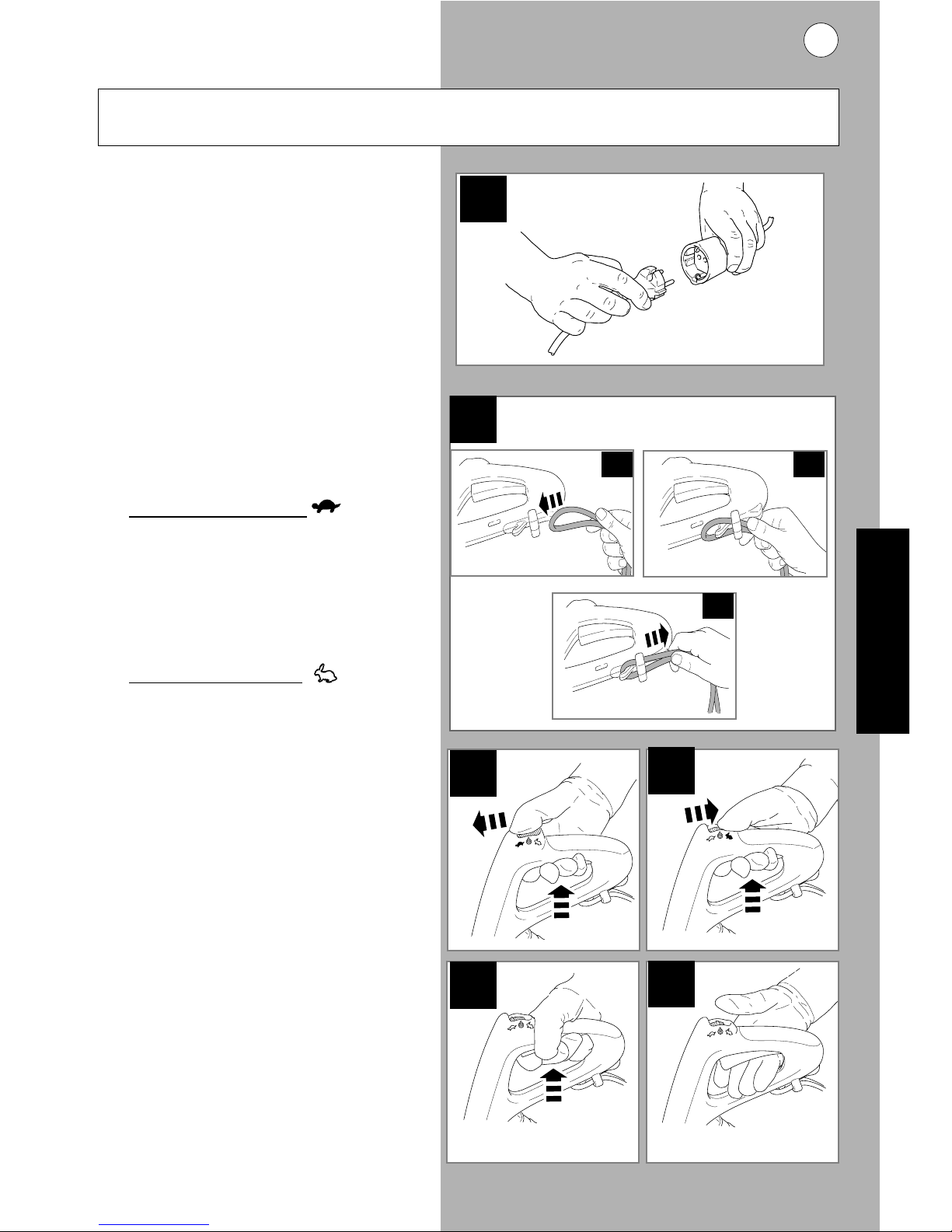

To start the Power Hoe
1. Connect female extension cable
connector to the male plug lead
on your product. (Fig J).
2. Form a loop in the mains cable
and push the loop through the
slot as illustrated in Fig K1.
3. To secure, position loop over the
hook (K2) and pull the cable
back through the slot (K3).
4. Connect plug to mains and
switch on.
5. For slower speeds see note,
move rocker switch forward with
thumb and squeeze switch lever
on handle (See Fig. L).
Keeping the switch lever
squeezed, the thumb can be
removed from the rocker switch.
6. For faster speeds see note,
move rocker switch backward
with thumb and squeeze switch
lever on handle (See Fig. M).
Keeping the switch lever
squeezed, the thumb can be
removed from the rocker switch.
7. When the Power Hoe has
reached required speed, gently
lower it into the soil.
•Note
The speed can be varied by
slightly releasing pressure on
the switch lever. (Fig N)
To stop the Power Hoe
1. Fully release the pressure on
the switch lever. (Fig. P)
Starting and Stopping
K
1
2
1
2
LM
NP
1 2
3
J

6
(GB) USE
How to use the Power Hoe
• Grip the Power Hoe firmly, with
two hands, when operating.
1. Using the Multi-purpose tine,
choose the speed required (See
Starting & Stopping) and break
up the soil by using a stabbing
movement as illustrated in Fig.
Q.
2. Move the machine from side to
to side to evenly hoe the soil.
(Fig R)
3. To remove weeds, place the
machine in the soil at an angle
next to the weed (See Fig S).
4. When using the Power Hoe
close to plants, it is
recommended to use the slower
variable speed. (See Fig. T.)
Recommended Use.
The Multi-purpose tine is ideal for
turning, aerating, loosening,
weeding and cultivating your soil.
The Raking tine attachment is ideal
for levelling soil and larger areas.
(See Fig U)
How to Use
QR
S
T
U

7

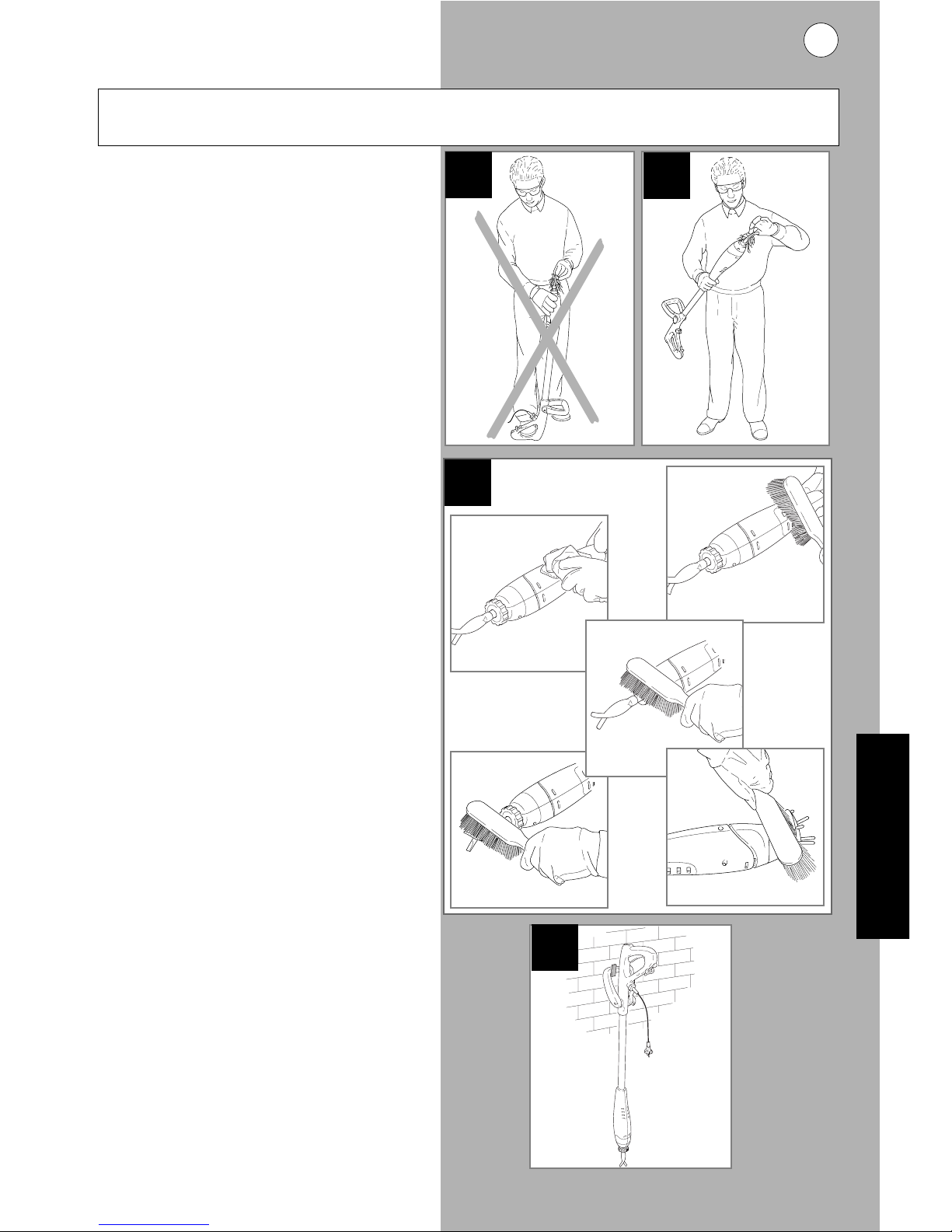

(GB) MAINTENANCE
• Avoid accidental starting.
When clearing debris
from tine area, remove
plug from mains and
keep feet away from
switch lever. (See Figs V
& W)
Cleaning (X)
1. Wipe over the surface of the
Power Hoe with a dry cloth.
2. Using a soft brush remove
debris from all air intakes and
tine area.
• IMPORTANT
Never use water for cleaning the
Power Hoe. Do not clean with
chemicals, including petrol or
solvents, some can destroy
plastic parts.
Caring
1. Check that all nuts and bolts are
tight.
2. Visually inspect the Power Hoe
for any worn or damaged parts,
contact your local Service
Centre if any parts require
replacement.
Storing.
1. Store in a dry place where the
Power Hoe is protected from
damage.
2. The steady handle on the Power
Hoe can be used to hang the
product on the wall as illustrated
in Fig. Y.
• IMPORTANT
Avoid accidental damage, do not
leave the Power Hoe leaning
against a wall where it could fall
over.
Caring for the Power Hoe
VW
X
Y

8
(GB ) MAINTENANCE
Fault Finding Hints & Service Recommendations
To ensure the maximum life and
reliability from your Flymo product we
recommend that it is serviced
regularly by an approved
Flymo/Partner Service Centre/Dealer.
They have the equipment facilities
and trained personnel to advise you
on the service requirements of your
machine. Depending on the
machine's use they will recommend
one of the various types of service
which are designed to ensure the
maximum economic service life of
your machine.
Service Recommendations
Fault Finding Hints
Fails to Operate
1. Is the Power Turned On?
2. Check the fuse in the plug, if blown
replace.
3. Fuse continues to blow?
Immediately disconnect from the mains
electricity supply and consult your local
approved Flymo/Partner Service Centre.
Fails to stop when switch lever is released.
Immediately disconnect from the mains
electricity supply and consult your local
approved Flymo/Partner Service Centre.
Poor hoeing quality
1. Ensure the product is being used correctly
(see How to Use)
2. Ensure tine is free from trapped debris
3. Damaged tine?
Immediately disconnect from the mains
electricity supply and consult your local
approved Flymo/Partner Service Centre.
Excessive Vibration
Immediately disconnect from the mains
electricity supply and consult your local
approved Flymo/Partner Service Centre.

(GB ) MAINTENANCE
Guarantee & Guarantee Policy
If any part is found to be defective due to faulty
manufacture within one year of original
purchase, Flymo/Partner, through its Authorised
Service Repairers will effect the repair or
replacement to the customer free of charge
providing:
(a) The fault is reported directly to the
Authorised Repairer.
(b) Proof of purchase is provided.
(c) The fault is not caused by misuse, neglect
or faulty adjustment by the user.
(d) The failure has not occurred through fair
wear and tear.
(e) The machine has not been serviced or
repaired, taken apart or tampered with by
any person not authorised by
Flymo/Partner.
(f) The machine has not been used for hire.
(g) The machine is owned by the original
purchaser.
(h) The machine has not been used outside of
the country for which it was specified.
(i) The machine has not been used
commercially.
* This guarantee is additional to, and in no
way diminishes the customers statutory
rights.
Failures due to the following are not covered,
therefore it is important that you read the
instructions contained in this Operator's Manual
and understand how to operate and maintain
your machine:
Failures not covered by guarantee
* Replacing worn or damaged tines.
* Failures as a result of not reporting an initial
fault.
* Failures as a result of sudden impact.
* Failures as a result of not using the product
in accordance with the instructions and
recommendations contained in this
Operator's Manual.
* Machines used for hire are not covered by
this guarantee.
* The following items listed are considered as
wearing parts and their life is dependent on
regular maintenance and are, therefore not
normally subject to a valid warranty claim:
Tines, Electric Mains cable.
*Caution!
Flymo/Partner does not accept liability
under the warranty for defects caused in
whole or part, directly or indirectly by the
fitting of replacement parts or additional
parts that are not either manufactured or
approved by Flymo/Partner, or by the
machine having been modified in any way
Guarantee & Certificate of Conformity
I, the undersigned P. Howells of
Flymo/Partner, a Division of
Electrolux Outdoor Products Limited,
Aycliffe Industrial Estate, NEWTON
AYCLIFFE, Co. Durham. DL5 6UP.
Certify that a sample of the above
product has been tested and found
to comply with 89/392/EEC
machinery safety directive,
73/23EEC low voltage directive and
89/336/EEC EMC directive.
Signed at
NEWTON
AYCLIFFE...............................1998
I, the undersigned P. Howells of
Flymo/Partner, a Division of
Electrolux Outdoor Products Limited,
Aycliffe Industrial Estate, NEWTON
AYCLIFFE, Co. Durham. DL5 6UP.
Certify that a sample of the above
product has been tested using
directive 81/1051/EEC as a guide.
The maximum A-weighted sound
pressure level recorded at operator
position under free field semi
anechoic chamber conditions was :-
Signed at
NEWTON
AYCLIFFE...............................1998
I, the undersigned P. Howells of
Flymo/Partner, a Division of
Electrolux Outdoor Products Limited,
Aycliffe Industrial Estate, NEWTON
AYCLIFFE, Co. Durham. DL5 6UP.
Certify that a sample of the above
product has been tested using ISO
5349 as a guide. The maximum
weighted root mean square value of
vibration recorded at operator’s hand
position was:-
Signed at
NEWTON
AYCLIFFE................................1998
Certificate of Conformity
Type
Identification of Series
Level
BMT 270
See Product Rating
Label
70.0 dB(A)
Type
Identification of Series
Value BMT 270
See Product Rating
Label
6.58 m/s2

5118571-02
Flymo/Partner, a division of Electrolux Outdoor Products Ltd.,
Aycliffe Industrial Estate
NEWTON AYCLIFFE
Co.Durham DL5 6UP
ENGLAND
Telephone - (00) 44 1325 300303 Fax - (00) 44 1325 31033
UK Telephone - 01325 300303 Fax - 01325 31033
Our policy of continuous improvement means that the specification of products may be altered from time to time
without prior notice. Flymo/Partner, a division of Electrolux Outdoor Products Ltd. manufacture products for a
number of well known brands under various registered patents, designs and trademarks in several countries.
© Electrolux Outdoor Products Ltd. Registered Office, Electrolux Works, Oakley Road, Luton LU4 9QQ
Registered number 974979 England
