FMI M36 Quick start guide

For more information, visit www.fmiproducts.com
NATURAL GAS MODELS
M36(B,H), M42(B,H), VM36(B,H)
AND VM42(B,H)
PROPANE/LP GAS MODELS
M36P(B,H), M42P(B,H),
VM36P(B,H) AND VM42P(B,H)
B-VENT DECORATIVE GAS FIREPLACE
OWNER’S OPERATION AND INSTALLATION MANUAL
FOR YOUR SAFETY
— Do not store or use gasoline or any other flammable
vapors or liquids in the vicinity of this or any other
appliance.
— WHAT TO DO IF YOU SMELL GAS :
• Do not try to light any appliance.
• Do not touch any electrical switch;
• Do not use any phone in your building.
• Immediatelycallyourgassupplierfromaneighbor’s
phone. Follow the gas supplier’s instructions.
• If you cannot reach your gas supplier, call the fire
department.
— Installationandservicemustbeperformedbyaquali-
fied installer, service agency or the gas supplier.
INSTALLER: Leave this manual with the appliance.
CONSUMER: Retain this manual for future reference.
WARNING: If the information in these instructions
is not followed exactly, a fire or explosion may result
causing property damage, personal injury or death.
PFS
®
USC

www.fmiproducts.com 108795-01W2
WARNING: Improper installation, adjustment, al-
teration, service or maintenance can cause injury or
property damage. Refer to this manual for correct in-
stallation and operational procedures. For assistance
or additional information consult a qualified installer,
service agency or the gas supplier.
NOT FOR USE WITH SOLID FUEL
CHECK LOCAL CODES PRIOR TO INSTALLATION
SAVE THIS BOOK
This book is valuable. In addition to instructing you on
how to install and maintain your appliance, it also con-
tains information that will enable you to obtain replace-
ment parts or optional accessory items when needed.
Keep it with your other important papers.
This appliance may be installed in an aftermarket*, per-
manently located, manufactured (mobile) home, where
not prohibited by state or local codes.
This appliance is only for use with the type of gas indi-
cated on the rating plate.
This appliance is not convertible for use with other
gases, unless a certified kit is used.
*Aftermarket: Completion of sale, not for purpose of resale, from the manufacturer.
State of Massachusetts: The installation must be made
byalicensedplumberorgasfitterintheCommonwealth
of Massachusetts.
TABLE OF CONTENTS
Safety .................................................................. 3
Unpacking............................................................ 4
Introduction.......................................................... 4
Selecting Location............................................... 5
Product Specifications......................................... 6
Pre-Installation Preparation................................. 7
Venting Installation .............................................. 9
Installation ..........................................................11
Operation........................................................... 19
Inspecting Burners ............................................ 20
Cleaning and Maintenance................................21
Wiring Diagram.................................................. 22
Replacement Parts............................................ 22
Service Hints ..................................................... 22
Technical Service............................................... 22
Troubleshooting................................................. 23
Parts.................................................................. 26
Accessories....................................................... 31
Warranty..............................................Back Cover

www.fmiproducts.com
108795-01W 3
SAFETY
1. This appliance isonly for use with thetype
of gas indicated on the rating plate. This
appliance is not convertible for use with
other gases unless a certified kit is used.
2. For propane/LP fireplace, do not place
propane/LP supply tank(s) inside any
structure. Locate propane/LP supply
tank(s)outdoors.Topreventperformance
problems,donot use propane/LPfueltank
of less than 100 lbs. capacity.
3. If you smell gas
• shut off gas supply
• do not try to light any appliance
• donottouchanyelectrical switch; do not
use any phone in your building
• immediately call your gas supplier from
aneighbor’sphone. Follow the gassup-
plier's instructions
• ifyoucannotreachyou gas supplier,call
the fire department.
4. Never install the fireplace
• in a recreational vehicle
• where curtains, furniture, clothing or
other flammable objects are less than
42" from front, top or sides of fireplace
• in high traffic areas
• in windy or drafty areas
5. Thisfireplacereaches high temperatures.
Keep children and adults away from hot
surfaces to avoid burns or clothing igni-
tion. Fireplace will remain hot for a time
after shutdown. Allow surfaces to cool
before touching.
6. Carefully supervise young children when
they are in the room with fireplace.
7. Ahearthextension is not requiredwith this
appliance. If one is installed, it is for aes-
thetic purposes only and does not have
to meet the standard requirements.
8. Turn fireplace off and let cool before ser-
vicingorrepairing.Onlyaqualifiedservice
person should install, service or repair
this fireplace. Have fireplace inspected
annually by a qualified service person.
9. You must keep control compartments,
burners andcirculating air passagesclean.
Morefrequentcleaningmaybeneededdue
to excessive lint and dust from carpeting,
beddingmaterial,etc.Turnoffthegasvalve
and pilot light before cleaning fireplace.
10. Haveventingsysteminspectedannuallyby
aqualifiedservice person. If needed, have
venting system cleaned or repaired. See
Cleaning and Maintenance, page 21.
WARNING:Thisproductcon-
tainsand/orgenerateschemicals
known to the State of California
to cause cancer or birth defects
or other reproductive harm.
IMPORTANT: Read this owner’s
manualcarefullyandcompletely
before trying to assemble, op-
erate or service this fireplace.
Improper use of this fireplace
cancauseseriousinjuryordeath
from burns, fire, explosions,
electrical shock and carbon
monoxide poisoning.
DANGER:Carbonmonoxide
poisoning may lead to death!
Thisfireplaceisavented product.Thisfireplace
willnotproduceanygasleakageintoyourhome
if properly installed. This fireplace must be
properly installed by a qualified service person.
If this unit is not properly installed by a qualified
service person, gas leakage can occur.
Carbon Monoxide Poisoning: Early signs of
carbon monoxide poisoning resemble the flu,
with headaches, dizziness or nausea. If you
have these signs, the fireplace may not have
been installed properly. Get fresh air at once!
Have fireplace inspected and serviced by a
qualifiedserviceperson.Somepeoplearemore
affectedbycarbonmonoxidethanothers.These
include pregnant women, people with heart or
lung disease or anemia, those under the influ-
ence of alcohol and those at high altitudes.
Propane/LP gas and natural gas are both
odorless. An odor-making agent is added
to each of these gases. The odor helps you
detect a gas leak. However, the odor added
tothese gases canfade.Gas may bepresent
even though no odor exists.
Make certain you read and understand all
warnings. Keep this manual for reference. It
is your guide to safe and proper operation of
this fireplace.
WARNING: Any change to
this fireplace or its controls can
be dangerous.

www.fmiproducts.com 108795-01W4
11. Keep the area around your fireplace
clear of combustible materials, gasoline
and other flammable vapor and liquids.
Do not run fireplace where these are
used or stored. Do not place items such
as clothing or decorations on or around
fireplace.
12. Do not use this fireplace to cook food or
burn paper or other objects.
13. Do not use any solid fuels (wood, coal,
paper, cardboard, etc.) in this fireplace.
Use only the gas type indicated on fire-
place nameplate.
14. This appliance, when installed, must be
electrically grounded in accordance with
local codes or, in the absence of local
codes, with the National Electrical Code,
ANSI/NFPA70 or the CanadianElectrical
Code, CSA C22.1.
15. Do not obstruct the flow of combustion
and ventilation air in any way. Provide
SAFETY
Continued
INTRODUCTION
adequate clearances around air open-
ings into the combustion chamber along
with adequate accessibility clearance for
servicing and proper operation.
16. Do not install fireplace directly on carpet-
ing, vinyl tile or any combustible material
other than wood. The fireplace must set
on a metal or wood panel extending the
full width and depth of the fireplace.
17. Do not use fireplace if any part has been
exposed to or under water. Immediately
call a qualified service person to arrange
for replacement of the unit.
18. Do not operate fireplace if any log is
broken.
19. Donot use a blowerinsert,heat exchang-
er insert or other accessory not approved
for use with this fireplace.
20. Provide adequate clearances around air
openings.
UNPACKING
The following items are packed inside the
firebox. Remove before positioning firebox
into framing.
• Transition Collar - For vent connection
• Ceramic Log Pack - Shrink-wrapped on
cardboard
• Three(3)plastic bags containing lavarock,
pan and ember materials
• Rear Log - Remove the two plastic quick
ties from around the burner and grate
• Grate Stand - Lift off of burner pan
Check all items for any shipping damage. If
damaged,promptlyinform dealer or distributor
where you bought the product.
Safely retain these items for later installation.
ModelsM36(P)(B,H), VM36(P)(B,H), M42(P)
(B,H) and VM42(P)(B,H) are vented gas fire-
places that use a millivolt gas control valve
with a millivolt ignition system. A 6" B-Type
venting system and a listed type vent cap
are not supplied but are required for proper
operation. See venting instructions on pages
9 and 10.
WARNING: This gas appli-
ance must not be connected to
a chimney flue servicing a solid
fuel burning appliance.
BEFORE YOU BEGIN
Before beginning the installation of your
appliance, read these instructions through
completely.
This FMI PRODUCTS, LLC appliance and its
approved components are safe when installed
accordingtothisinstallation manualandareop-
erated as recommended by FMI PRODUCTS,
LLC. Unless you use FMI PRODUCTS, LLC
approvedcomponentstestedfor thisappliance,
YOU MAY CAUSE A FIRE HAZARD!
The FMI PRODUCTS, LLC warranty will be
voidedbyandFMIPRODUCTS,LLCdisclaims
any responsibility for the following actions :
A) Modification of the appliance or any of the
components.
B) Use of any component part not approved
by FMI PRODUCTS, LLC in combination
with this appliance.
C) Installation and/or operation in a manner
other than instructed in this manual.
D) Burning of anything other than the type of
gas approved for use in this gas appliance.

www.fmiproducts.com
108795-01W 5
The installation must conform with local codes
or, in the absence of local codes, with the cur-
rent National Fuel Gas Code, ANSI Z223.1/
NFPA 54. This appliance complies with ANSI
Z21.50/CSA 2.22.
WARNING: Installation of
this appliance should be done
by a qualified service person
well trained in the installation
of such appliances. You will
alsoneedabuildingpermitfrom
your local Building and Safety
Commissionerbeforeinstalling
this appliance; otherwise your
insuranceco.maynotcoverthis
appliance.
NOTICE: This appliance is not
intendedtobeusedasaprimary
source of heat.
INTRODUCTION
Continued

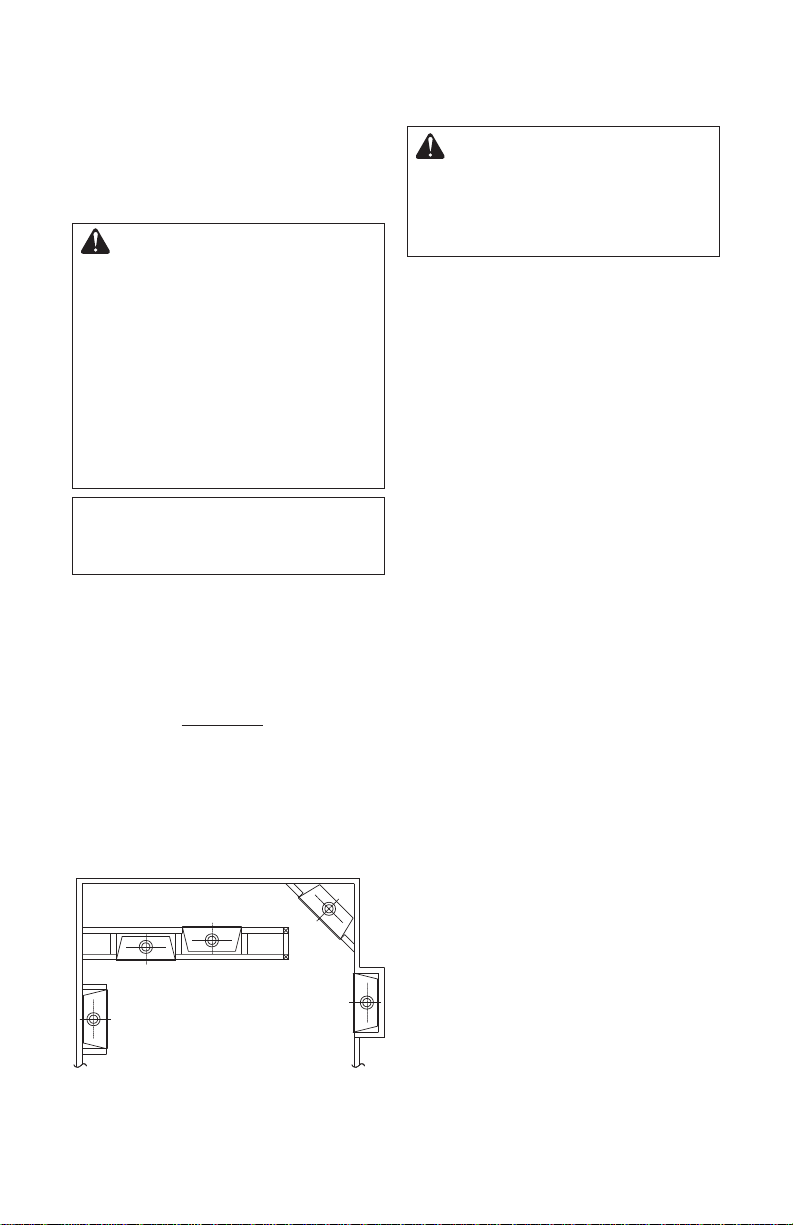

Figure 1 - Possible Locations for
Installing Appliance
INTERNAL WALL
INSTALLATION
CORNER
INSTALLATION
FULL
PROJECTION
INSTALLATION
FLUSH
INSTALLATION
CAUTION: Do not connect
appliance before pressure test-
ing gas piping. Damage to gas
valve may result and an unsafe
condition may be caused.
Theappliance and it’sindividual shutoff valve
mustbe disconnected fromgas supply piping
system during any pressure testing of that
system at test pressures in excess of 1/2
psig (3.5 kPa).
The appliance must be isolated from the gas
supply piping system by closing its individual
manualshutoffvalveduringanypressuretesting
ofthegassupplypipingsystemattestpressures
equal to or less than 1/2 psig (3.5 kPa).
For the purpose of input adjustment two
pressure taps (for IN and OUT pressures)
are provided on the gas control valve for test
gauge connections to the appliance.
Flush installations arerecommendedwhere
living space is limited or at a premium and
since the space required to enclose the ap-
pliance would be located beyond an outside
wall, this would also reduce the cutting of
joists, roof rafters and such. Check local
codes for any restrictions.
Projected installations can extend any
distance into the room. A projection may
be ideal for a new addition on an existing,
finished wall.
Corner installations make use of space
that may not normally be used and provides
a wider and more efficient range for radiant
heat transference.
Internal wall installations providea discreet
option for room separation and can also be
ideal as an addition to an existing wall.
SELECTING LOCATION
To determine the safest and most efficient
locationforyour appliance, you must takeinto
consideration the following guidelines:
1. The location must allow for proper clear-
ances (see Clearances, page 7).
2. Consider a location where heat output
would not be affected by drafts, air con-
ditioning ducts, windows or doors.
3. A location that avoids the cutting of joists
orroofrafterswill make installation easier.
Figure 1 shows a plan view of a few com-
mon locations.

www.fmiproducts.com 108795-01W6
PRODUCT SPECIFICATIONS
GAS RATING - NATURAL
M36(B,H), VM36(B,H) M42(B,H), VM42(B,H)
Max. Input Rating: 40,000 Btu/Hr 45,000 Btu/Hr
Manifold Pressure: 3.5" WC (.87 kPa) 3.5" WC (.87 kPa)
Minimum Supply Pressure: 4.5" WC (1.12 kPa) 4.5" WC (1.12 kPa)
Maximum Supply Pressure: 10.5" WC (2.66 kPa) 10.5" WC (2.66 kPa)
Orifice Size: # 30 # 29
GAS RATING - PROPANE/LP
M36P(B,H), VM36P(B,H) M42P(B,H), VM42P(B,H)
Max. Input Rating: 40,000 Btu/Hr 45,000 Btu/Hr
Manifold Pressure: 10" WC (2.49 kPa) 10" WC (2.49 kPa)
Minimum Supply Pressure: 11" WC (2.74 kPa) 11" WC (2.74 kPa)
Maximum Supply Pressure: 13" WC (3.23 kPa) 13" WC (3.23 kPa)
Orifice Size: # 52 # 51
S
T
P
Q
R
X
Outside Air
Kit Location
(Optional)
K
7"
J
I
M
LV
13.5
"
1.5"
Glass Door
(Optional)
W
O
N
Alternate Gas
Supply Inlet
7"
G
H
F
A
Stand Off
Collar
For Use With
6"Ø Type B-1
Vent Pipe Only
B
E
D
C

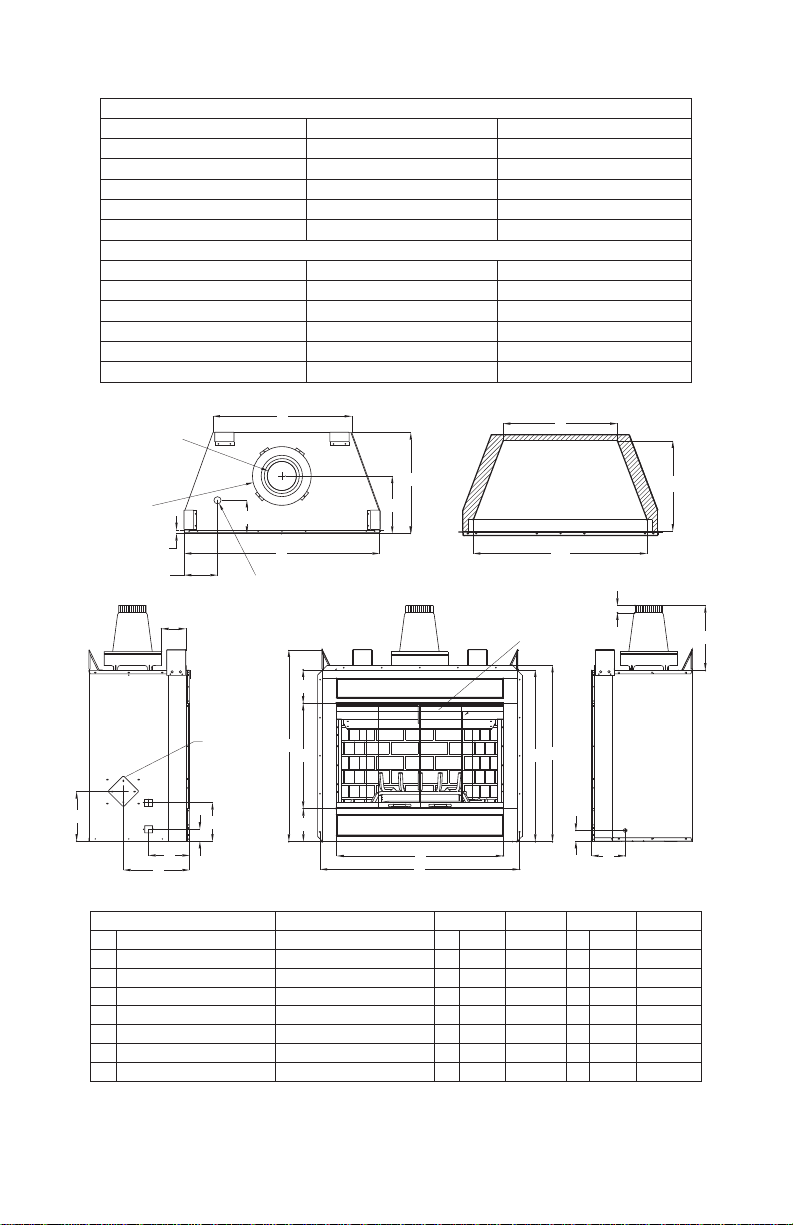

DIMENSIONS
HEARTH AREA
7"
Figure 2 - Appliance Dimensions
Model 36 Model 42 Model 36 Model 42 Model 36 Model 42
A 29" 36" I 40 1/4" 44 1/4" Q 13 7/8" 14"
B 5/8" 5/8" J 21" 24" R 10 1/2" 12 1/2"
C 41" 48" K 8" 9" S 2 1/2"2
1/2"
D 12" 14" L 34 3/4" 42" T 8 1/8"8
1/8"
E 21 1/4" 23" M 42" 49" U 11" 12 3/4"
F 22 1/4" (24" w/o Brick) 29 1/4" (31" w/o Brick) N 36" 40" V 7" 7"
G 32 5/8" (34" w/o Brick) 39 1/2" (41 1/4" w/o Brick) O 37" 41" W 2 1/4"2
1/4"
H 15 3/4" (16 3/4" w/o Brick) 17 3/4" (18 3/4" w/o Brick) P 8 5/8" 10 1/2" X 5" 4 1/2"

www.fmiproducts.com
108795-01W 7
PRE-INSTALLATION PREPARATION
Figure 3 - Minimum Clearances
(Top View)
0"
0" Clearance
Nailing
Flange
Front Face
Left Side
Surround Back
Drywall
2 x 4 Stud
Figure 4 - Minimum Clearances
(Front View)
** **
42" (106.7 cm)
Min. Clearance
from Opening to
Ceiling 0" Clearance
Ceiling
1" (2.5 cm)
Min. Clearance
to "B" Vent's
Outer Pipe
Maintain 2" (5.1 cm)
Min. Clearance to
Transition Pipe as
Measured at Outer
Vent Collar
Required air
spaces are
indicated with
an "
*
". Do not
pack with
insulation or
any other
material.
DO NOT BLOCK
OR OBSTRUCT
OPENINGS
0" Clearance to
Combustible or
Noncombustible
Flooring
MANTEL CLEARANCES AND WALL
DETAILS
A combustible mantle shelf maybe installed
a maximum 12" (22.9 cm) from the wall.
Figures 5 and 6 show the minimum allow-
able distances from various combustible
mantle components in relation to fireplace
opening.
Spacer
3" (7.6 cm)
1
1
/
2
"
(3.8 cm) Max.
B
6" (15.2 cm)
A
12"
(22.9 cm)
Combustible
Materials
Header
Figure 5 - Mantel Clearances - Side View
(Cross Section)
M36(B,H),
M36P(B,H)
VM36(B,H),
VM36P(B,H)
M42(B,H),
M42P(B,H)
VM42(B,H),
VM42P(B,H)
A 14" (35.6 cm) 15" (38 cm)
B 8" (20.3 cm) 9" (22.9 cm)
1
1
/
2
"
(3.8 cm)
Max. 3" (7.6 cm)
Max.
6" (15.2 cm)
Max. A
B
Outer Surround Combustible
Material May
Be Used
TOP VIEW
SAFE
ZONE
Perpendicular
Wall
Figure 6 - Side Clearances - Top View
(Cross Section)
CLEARANCES
Minimum clearances to combustibles are:
Back and Sides of Outer Surround 0" min.
Drywall to Sides of Front Face
(Nailing Flanges) 0" min.
“B” Vent Surfaces 1" min.
Ceiling to Opening 42" min.
Floor 0" min.
Perpendicular Wall See Figure 6
CAUTION: Do not block
required air spaces with insu-
lation or any other material. Do
not obstruct effective opening
of appliance with any type of
facing material.
M36(B,H),
M36P(B,H)
VM36(B,H),
VM36P(B,H)
M42(B,H),
M42P(B,H)
VM42(B,H),
VM42P(B,H)
A 9" (22.9 cm) 6" (15.2 cm)
B 12" (30.5 cm) 9" (22.9 cm)

www.fmiproducts.com 108795-01W8
PRE-INSTALLATION PREPARATION
Continued

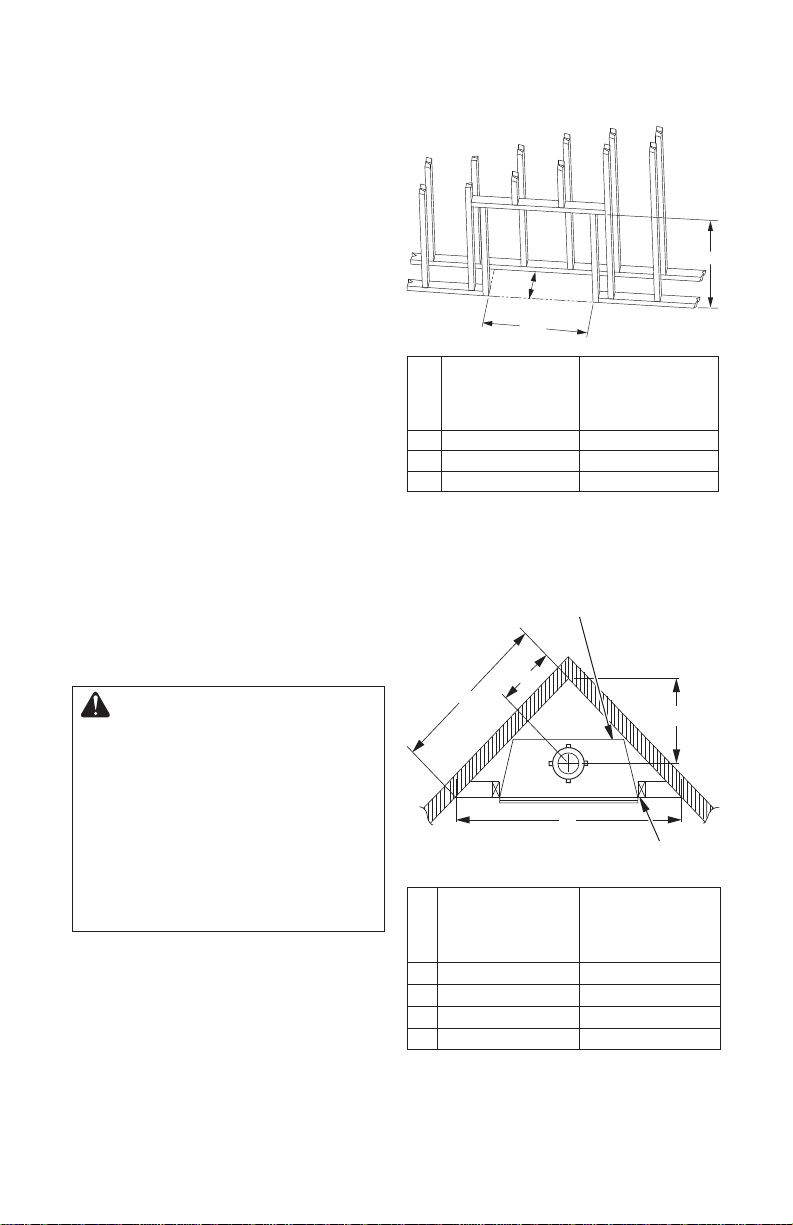

FRAMING
1. Frame appliance enclosure as illustrated
in Figures 7 and 8.
Note: If a wall covering is used to line the
enclosure, then all measurements must
be from the surface of the covering.
2. Place the appliance into the framing and
secure it.
Note: If appliance is to be raised above
floor level, a platform must be built to
support the appliance.
3. Install the supply line to the appliance
using a 1/2" NPT black iron gas line ter-
minating 2 5/16" above the bottom of the
appliance. The gas line must be installed
throughthe lower left sideaccess point or
alternate access hole in the bottom of the
appliance (see Figure 19, page 13).
4. Repack insulation around the gas line to
coverany remaining openings in thecon-
duitsleeve.Prepare the incoming gas line
with teflon tape or pipe joint compound
and hook-up incoming gas line to the
flexible gas line.
Note: If 1/2" NPT black iron pipe does not
mate with fitting at the end of flexible gas
line, remove fitting and replace with a 37°
flare 3/4"-12, 1/2" NPT (female) fitting.
WARNING: When finishing
appliance, do not overlap com-
bustible material onto the black
front face. Brick, tile or other
noncombustible materials may
be applied to the face provided
that any gap is between the
material used and the face is
caulked with a noncombustible
caulking.
Figure 7 - Rough Opening for Installing
in Wall
B
C
A
M36(B,H),
M36P(B,H)
VM36(B,H),
VM36P(B,H)
M42(B,H),
M42P(B,H)
VM42(B,H),
VM42P(B,H)
A 40 3/8" (102 cm) 44 3/8" (112 cm)
B 21 3/8" (54.3 cm) 23 1/8" (58.7 cm)
C 41 1/4" (104.8 cm) 48 1/4" (122.6 cm)
Figure 8 - Corner Installation Guidelines
A
B
C
D
M36(B,H),
M36P(B,H)
VM36(B,H),
VM36P(B,H)
M42(B,H),
M42P(B,H)
VM42(B,H),
VM42P(B,H)
A 24 1/2" (62.2 cm) 27 9/16" (70 cm)
B 73 7/8" (187.6 cm) 83 7/8" (213 cm)
C 52 3/16" (132.6 cm) 595/16" (150.6 cm)
D 17 1/4" (43.8 cm) 19 1/2" (49.5 cm)
These Dimensions Allow for a 3/4"
Clearance at Sides and Back of Fireplace.
However, 0" Clearance is Permitted.
3/4" Clearance Not Required
at Nailing Flanges

www.fmiproducts.com
108795-01W 9
INSTALLING TRANSITION PIPE AND
STARTER COLLAR
The transition pipe and starter collar shown
in Figure 9 are supplied with the fireplace,
unattached and ready for installation. Re-
move starter collar and set aside. Slide
transition pipe over vent collar and attach
with a minimum of three screws. Replace
starter collar over transition pipe and attach
using four screws located on leg stands (five
used on model M42). To install B-vent piping,
slide the first piece of B-vent over transition
pipe and attach with either a minimum of two
screws or other means approved by the vent
manufacturer. Figure 9 - Installing Transition Pipe and
Starter Collar
B-Vent Piping
Transition Pipe
Starter Collar
Vent Collar
PRE-INSTALLATION PREPARATION
Continued

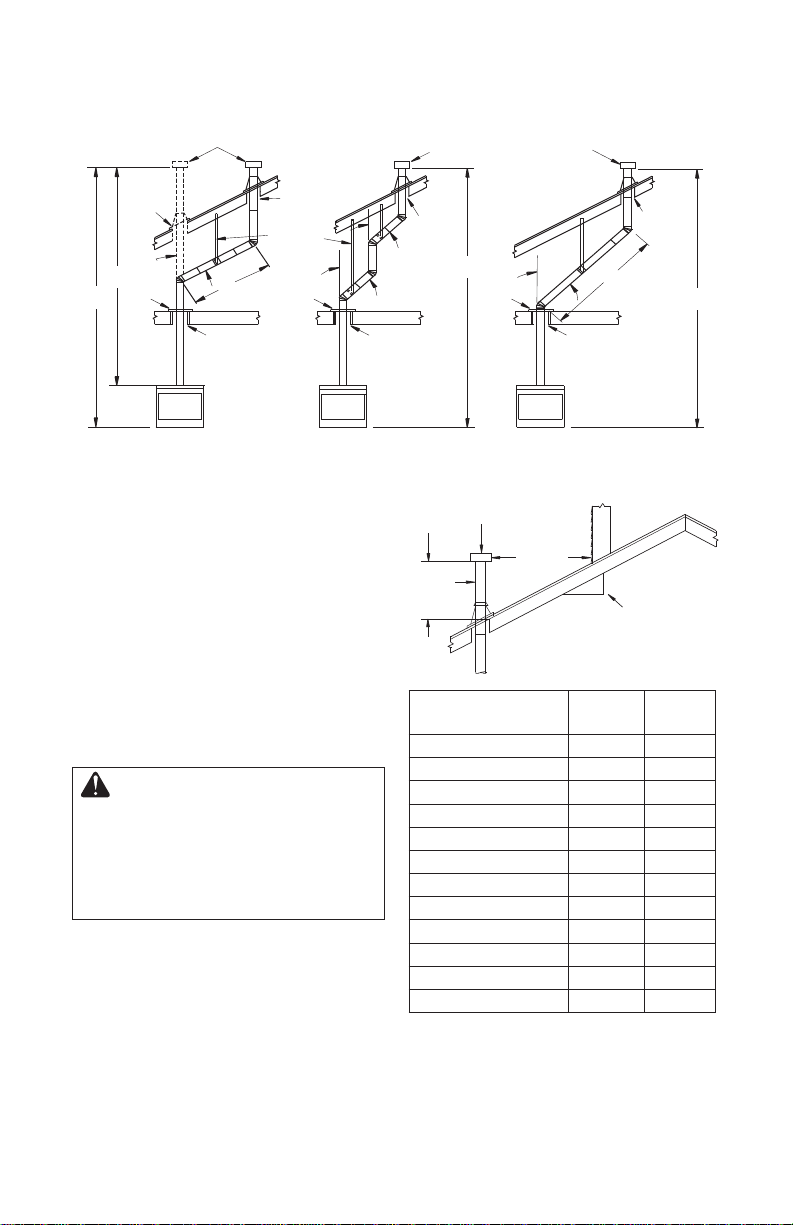

VENTING INSTALLATION
60° or greater. The total vertical height in this
example represents the minimum height of 8
feet and therefore the allowable lateral is 6
feet when the 75% rule applies. If the lateral
length must exceed 75% then the system
must be sized in accordance with Category I
venting tables.
Example 2: Shows a multiple offset each at
45° of inclination. Multiple offsets are permit-
tediftheydonotexceed45° of inclination.The
totallengthsofthetwo offsetsarenotrequired
to meet the 75% allowable rule.
Example 3: Shows a single offset at 45° of
inclination and therefore the lateral length at
10 feet of offset does not have to meet the
75% rule.
In each case the offsets must be supported
and firestops must be positioned wherever
the vent must pass through a sub-floor, ceil-
ing joist or an attic overhang. The vent pipe
mustterminateverticallyintoa listed type vent
cap and extend a sufficient height through
an approved roof flashing, roof jack or a roof
thimble. At all points listed clearances must
be maintained.
Vent terminations must be located in ac-
cordance with height and proximity rules of
NFPA No. 54. These rules apply to vents at
12" diameter or less and require a minimum
heightin accordance withthe roof pitchand a
minimum of 8 ft. distance from a vertical wall
or obstruction (see Figure 11, page 10).
A B-type venting system must be connected
to the appliance for venting to the outside of
the building.
The following section is provided as a guide
to a standard B-type vent installation.
Standing codes requirements concerning B-
type vent installations may vary within your
state, province or local codes jurisdiction.
Therefore, it is recommended that you check
with your local building codes for specific
requirements or in absence of local codes,
followSection 7.0 of thecurrentNational Fuel
Gas Code ANSI Z223.1/NFPA 54.
This gas appliance must be vented to the
outdoorsonly and maynot be terminated into
anattic space orintoa chimney flueservicing
a solid fuel burning appliance.
This appliance may be vented through a
manufactured chimney system or a masonry
chimney using a B-vent adapter or a chim-
ney liner system if all are listed, inspected
and approved by local codes and/or building
authorities.
The examples shown in Figure 10, page 10
are typical of most B-vent installations and
codes practices.
Example 1: Shows the minimum allowable
system height and lateral offset for a 60° or
greaterinclination.Code specifies that offsets
at 60° or greater are considered horizontal
and must follow the 75% rule for lateral to
total vertical system height. Codes also allow
only one offset in the total system when at

www.fmiproducts.com 108795-01W10
Maintain
Listed
Clearance
Maintain
Listed
Clearance
12' Min.
12' Min. 45°
45°
6'
8'
12' Min.
60° 45°
Position
Firestop
Position
Firestop
Position
Firestop
Listed
Vent Cap
Listed
Vent Cap
Listed
Vent Cap
Maintain
Listed
Clearance
Maintain
Listed
Clearance
Maintain
Listed
Clearance
Maintain
Listed
Clearance
Support Each
Lateral At
Least Every
6 Feet
Maintain
Listed
Clearance
10'
EXAMPLE 3EXAMPLE 2
EXAMPLE 1
Figure 10 - Typical B-Vent Configuration
VENTING INSTALLATION
Continued
Some codes areas allow the use of existing
B-type vent systems if the system is at or
abovetherecommended diameter of theflue,
in this case 6".
The flue connection must be made using
listed B-type connectors and the existing
system must be code inspected for damage
and proper installation.
It is not recommended that this appliance be
common vented with an existing gas burning
appliance.
Note: Before connecting this appliance to an
existing vent system consult with your local
architect, planner or building official.
WARNING: This appliance
must be properly connected
to a system and must not be
connected to a chimney flue
servicing a separate solid fuel
burning appliance.
Lowest
Discharge
Opening
Listed
Vent Cap
8 Ft. Min.
Roof Pitch x/12
Listed Clearance
12
x
Listed
Gas
Vent
H (Min)
Height
From Roof
Roof Pitch H (Min.) Feet Meter
Flat to 6/12 1.0 ax 0.30
6/12 to 7/12 1.25 0.38
Over 7/12 to 8/12 1.5 0.46
Over 8/12 to 9/12 2.0 0.61
Over 9/12 to 10/12 2.5 0.76
Over 10/12 to 11/12 3.25 0.99
Over 11/12 to 12/12 4.0 1.22
Over 12/12 to 14/12 5.0 1.52
Over 14/12 to 16/12 6.0 1.83
Over 16/12 to 18/12 7.0 2.13
Over 18/12 to 20/12 7.5 2.27
Over 20/12 to 21/12 8.0 2.44
Figure 11 - B-Vent Terminations

www.fmiproducts.com
108795-01W 11
CHECKING FOR PROPER VENTING
After completing and checking electrical,
gas and vent connections, follow the lighting
instructions and allow main burner to run
for approximately 5 minutes. Hold a lighted
match or cigarette near the top edge of fire-
place opening and play it along entire length
of opening (see Figure 12). Proper venting
should tend to draw the flame or smoke into
the appliance. Improper venting or escaping
of spillage of burned gas, is indicated when
the match flickers or goes out. Smoke from a
cigarette will also tend to disperse away from
the appliance.
If appliance is found to be improperly vent-
ing, shut it off and notify your installer or a
qualified service agency to inspect the vent-
ing system.
VENTING INSTALLATION
Continued
Check this area
along entire top
edge of fireplace
opening. Smoke
or flame should be
drawn into appliance
opening.
Figure 12 - Checking for Spillage
INSTALLATION
Figure 13 - Removing Front Refractory
Access Panel
NOTICE: This appliance is
equipped with a vent safety
shutoff switch which will shut
down the appliance in the case
of a venting problem. Do not
bypasstheventsafety switch.If
theapplianceshouldshutdown,
contactaqualifiedinstaller,ser-
viceagencyoryourgassupplier
tohavetheventinspectedbefore
operating.
WALL SWITCH INSTALLATION
The installation of a wall switch allows you to
activate the gas control valve without normal
household electricity since valve operates on
millivoltcurrentsuppliedby heat generated by
the thermopile. To install wall switch:

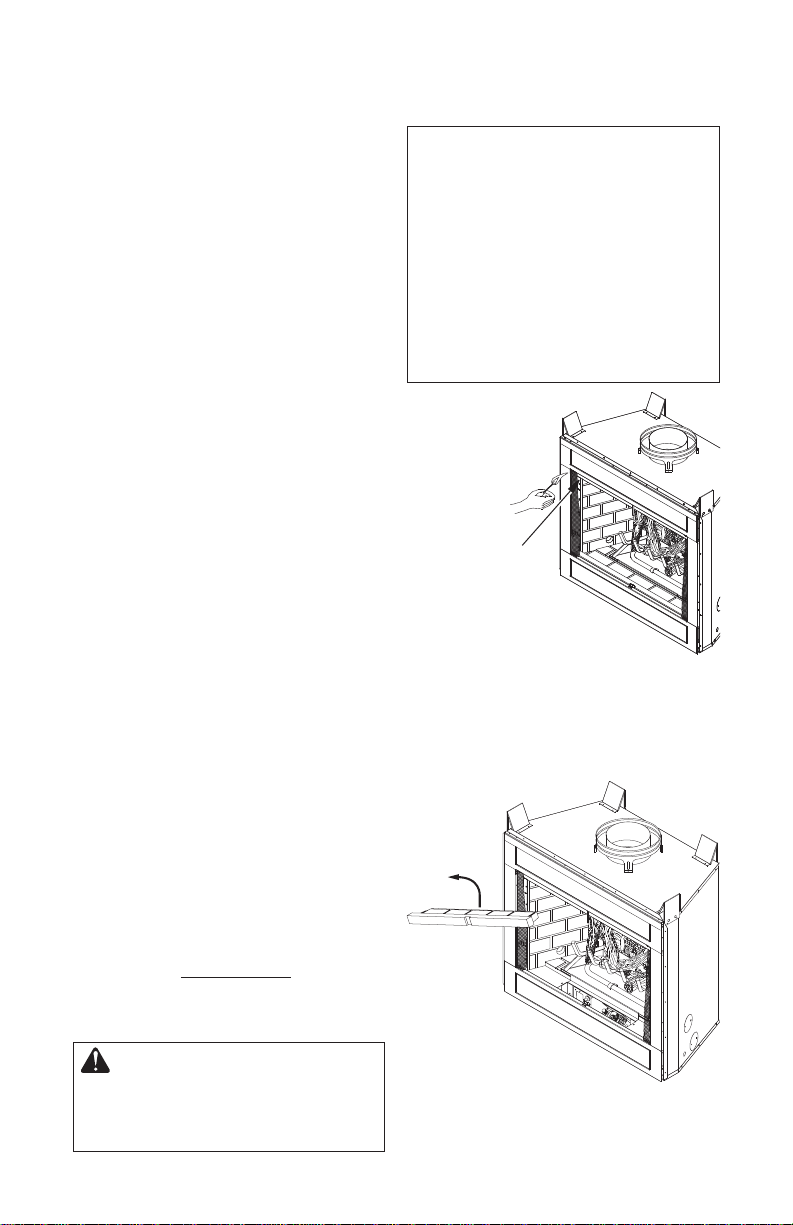

1. Remove front refractory access panel by
lifting up and angling out of firebox open-
ing (see Figure 13).
2. Usewire and connectors provided.Attach
red wire to terminal marked TH/TP on
control valve. Attach white wire to blade
connector on open end of safety circuit
wiring (see Wiring Diagram, page 22).
Note: If any of the original wire from unit con-
trol must be replaced, use the same type or a
higher rated wire (25 ft. maximum length).
WARNING: Do not wire re-
mote wall switch to main power
supply (Standard 120v house-
hold current).
3. Locate wall switch in a convenient location.
4. After wire connections are complete,
replace refractory access panel.

www.fmiproducts.com 108795-01W12
Conduit Sleeve
To Safety Circuit Route Millivolt
Through Gas Line
To Thermopile
Wires (Supplied)
Wall Switch
(Not Supplied)
(Back Vie
w
IN
TH
TP
THTP
IN OUT
O
F
F
P
I
L
O
T
O
N
Note: If any of the original wire
as supplied must be replaced,
use 18 AWG TYPE CL2 (UL)
105 C (25 ft. length MAXIMUM)
or equivalent.
INSTALLATION
Continued
Figure 14 - Wall Switch Wiring Diagram
Figure 15 - Installing Remote Receiver
(Shown from Rear of Mounting Bracket)
Receiver
Mounting Bracket
Plastic
Mounting
Clips
Figure 16 - Installing Battery in Receiver
Battery
Clip
9-Volt Battery
Receiver
Terminal
Wires
OPTIONAL WIRELESS HAND-HELD
REMOTE CONTROL INSTALLATION
Note: If using optional wireless hand-held
remote control, the wall switch is no longer
operational.
Installing Receiver
1. Remove front refractory access panel by
lifting up and angling out of firebox open-
ing (see Figure 13, page 11) to expose
controls.
2. Disconnectwall switch wires fromTH and
TH/TP terminals on control valve (see
Figure 14).
3. Installremote receiver unit ontomounting
bracket using two plastic mounting clips
(see Figure 15).
4. Connect wires to control circuit. Connect
white wire to terminal marked TH/TP on
control valve. Connect red wire to male
blade connector provided at open end of
safety circuit wiring (see Wiring Diagram,
page 22).
5. Locate battery clip mounted on back of
receiver (see Figure 16).
6. Slide9-volt battery (notincluded)through
clip. Note: Only use alkaline battery.
7. Attach terminal wires to battery (see Fig-
ure 16).
8. Replace refractory brick access panel.

www.fmiproducts.com
108795-01W 13
GAS LINE HOOK-UP
WARNING: Gas line hookup
should be done by your gas
supplier or a qualified service
person.
WARNING: Before you pro-
ceed,makesureyourgassupply
is OFF.
A manual shutoff valve has been included in
the appliance’s gas supply system. You may
consider installing an extra gas shutoff valve
outside appliance’s enclosure (check with
local codes) where it can be accessed more
conveniently with a key through a wall as
shown in Figure 18.
In conformance with local codes, route a
1/2" NPT gas line to appliance through hole
in left side of firebox or sub-floor as shown
in Figure 19.
CAUTION: Do not kink flex-
ible gas line.

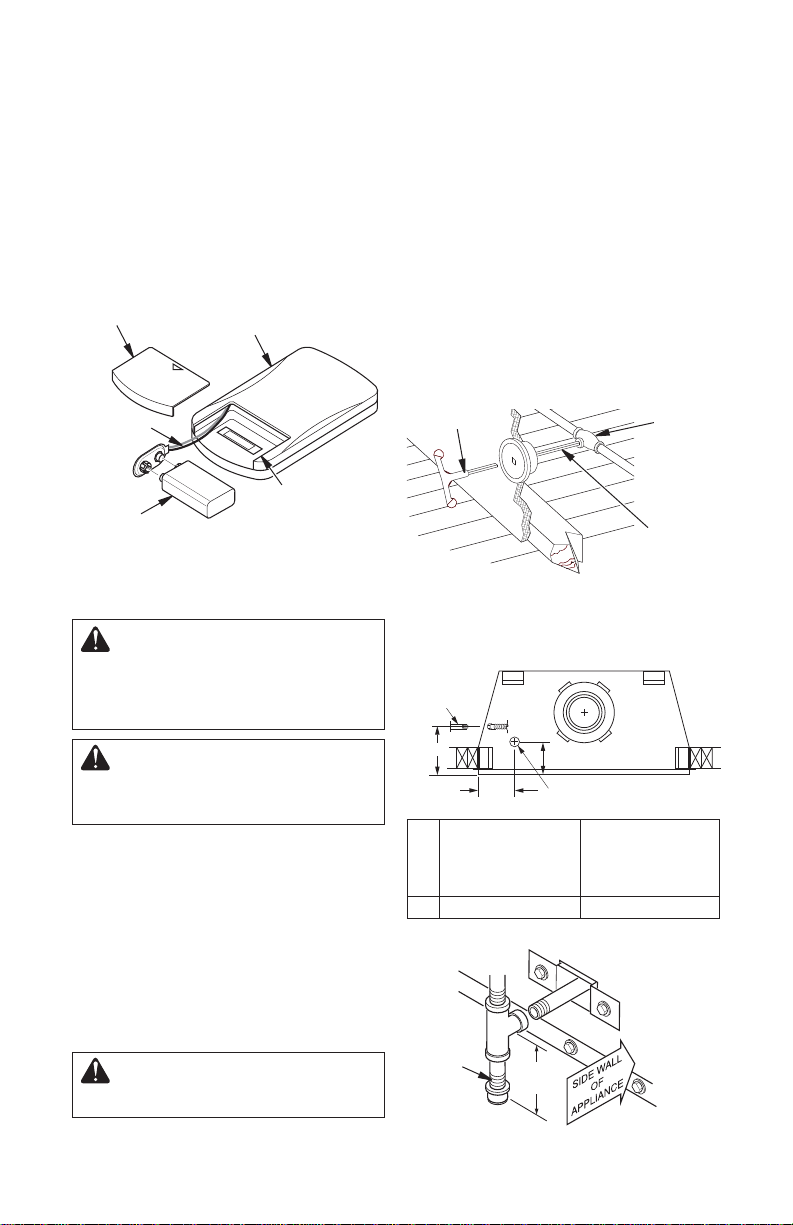

Installing 9-Volt Battery in Hand-Held
Remote Control Unit
1. Remove battery cover on back of remote
control unit.
2. Attach terminal wires to battery (not
included).Placebattery into battery hous-
ing. Note: Only use alkaline battery.
3. Replacebatterycover onto remote control
unit.
Figure 17 - Installing Battery in Hand-
Held Remote Control Unit
Battery Cover
9-Volt
Battery
Terminal
Wires
Remote
Control Unit
Battery
Housing
INSTALLATION
Continued
FMI PRODUCTS, LLC recommends that a
black iron gas line be routed from the gas
source, through a sediment trap (see Figure
20) and into appliance. Once connected
through appliance, a flexible gas line may be
used for ease of installation to gas control
valve (see Figure 21, page 14).
Beforeconnectingblack iron gas line toinside
ofapplianceasediment trap must be included
outside appliance between gas line and gas
shutoff valve. It must extend down 3" beyond
center of pipe. Prepare incoming black iron
gas line with teflon tape or pipe joint com-
pound (Check with local building codes).
Figure 18 - Manual Shutoff Valve
Installation
Typical Exterior Wall Gas
Shutoff Installation
Key
Extension
Shutoff
Valve
Figure 19 - Routing Incoming Gas Line
A
1/2" NPT
Incoming Black
Iron Gas Line
7"
7"
Alternate Gas Supply
Through Sub-Floor
M36(B,H),
M36P(B,H
VM36(B,H),
VM36P(B,H)
M42(B,H),
M42P(B,H)
VM42(B,H),
VM42P(B,H)
A8
5/8" (21.9 cm) 10 1/2" (26.7 cm)
Incoming
1/2" Gas Line
Permitted by
Local Codes
Sediment
Trap (Not
Supplied)
Figure 20 - Sediment Trap
3" Min.
(7.6 cm)

www.fmiproducts.com 108795-01W14
Figure 21 - Connecting Flexible Gas Line to Millivolt Valve
Gas Shutoff
Valve
Flexible Gas Line
Do NOT Kink
1/2" NPT
Incoming
Gas Line
Note:
1) Wire Connections
Not Shown for Clarity
2) * 1/8" NPT Plugged
Tapping
Red Surface Indicates For
Propane/LP Use Only Pilot Adj
Inlet Pressure Tap
Outlet
Pressure Tap
CAUTION:Compoundsused
onthreaded joints of gas piping
shall be resistant to the action
of Liquefied Petroleum (LP or
propane)andshould be applied
lightly to ensure excess sealant
does not enter the gas line.
WARNING: All gas piping
andconnectionsmustbetested
for leaks after the installation is
completed.
Afterensuringthatthegasvalve
is on, apply a commercial leak
detection solution to all con-
nections and joints. If bubbles
appear, leaks can be detected
and corrected.
Donotuseanopenflameforleak
testing and do not operate any
appliance if a leak is detected.
INSTALLATION
Continued
Complete your gas installation by connect-
ing incoming gas line with flexible gas line.
Secure tightly with wrench but DO NOT
OVERTIGHTEN.
EMBER AND PAN MATERIAL
PLACEMENT
1. Open bag(s) of vermiculite and fill entire
burnerpan until burner tubeis completely
covered (see Figure 22).
2. Smoothpan material just even withedges
of burner pan.
3. Remove ember material from bag and
flatten small amounts into quarter size
pieces and lay on top of surface of pan
material (see Figure 23).
4. Place just enough to cover entire surface
and leave about a 1/2" gap under lower
grate members to allow air to flow (see
Figure 24, page 15).
Figure 22 - Fill Entire Burner Pan with
Vermiculite Figure 23 - Ember Material on Surface of
Pan Material (Vermiculite)
Vermiculite
(Pan Material) Burner Pan
Grate Ember
Material Burner
Pan
Vermiculite (Pan Material)
Grate

www.fmiproducts.com
108795-01W 15
0.5"
0.5"
Figure 24 - Pan and Ember Material
Clearances
Grate
Burner Pan
Pan and Ember
Material
INSTALLATION
Continued
LOG PLACEMENT FOR M36, M36P,
VM36 AND VM36P MODELS
1. Place small front right log (log 1) on right
front of grate as shown in Figure 25.
2. Place large back log (log 2) onto grate
making sure notches rest over grate as
shown in Figure 25.
3. Place log 3 into notch on log 2, resting
front end on top of log 1 (see Figure 26).
4. Place upper end of log 4 into notch on log
2 as shown in Figure 26. Rest lower end
oflog 4 onto middlegratefinger as shown
in Figure 27.
5. Place upper end of log 5 into notch on left
of log 2 (see Figure 27). Rest lower end
of log 5 on grate as shown in Figure 28.
6. Insert lower end of log 6 between first
two grate fingers as shown in Figure
28 and position upper end of log 6 into
notched area on front of log 2 as shown
in Figure 28.
Asanoptiontoenhancethelookofthehearth,
you may place the lava rock provided around
front and sides of burner.

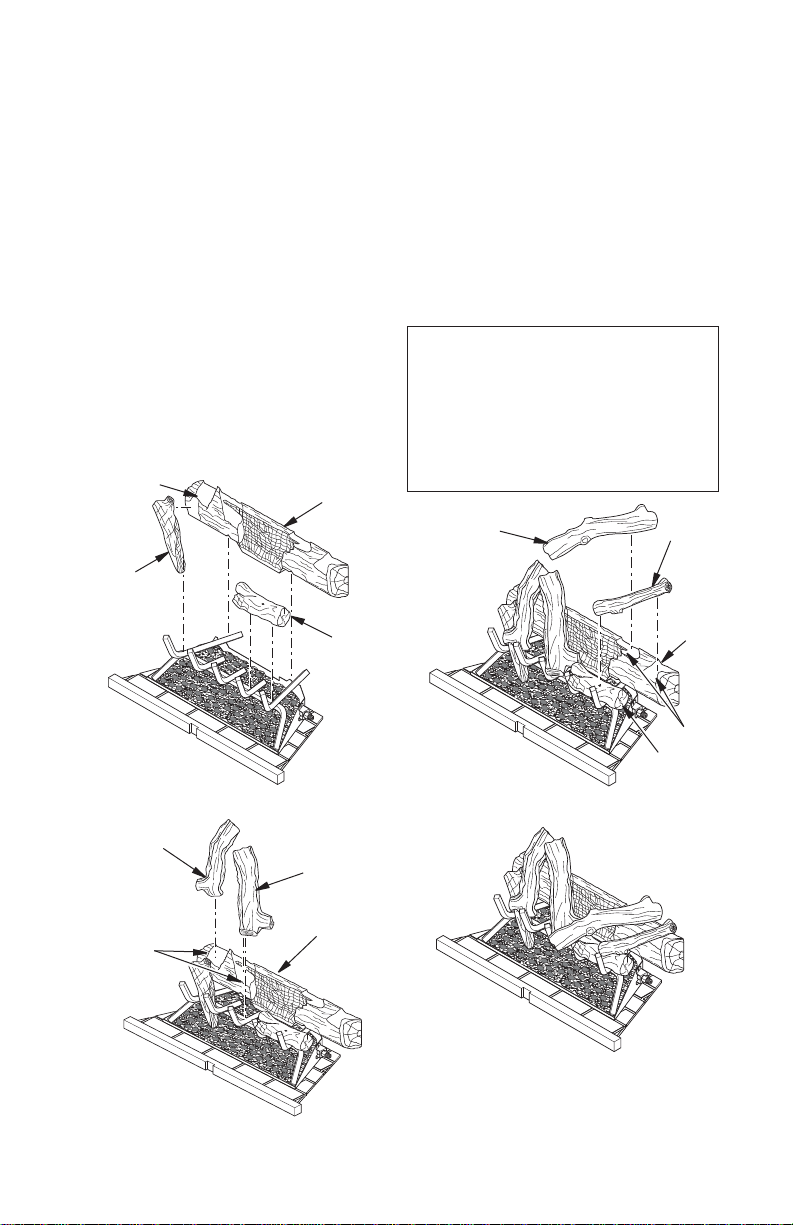

Figure 25 - Installing Logs 1 and 2
Log 1
Log 2
Notch
Figure 26 - Installing Logs 3 and 4
Log 3
Log 4
Log 2
Log 1
Notches
NOTICE:Donotputlavarockin-
sideburnerpanoraroundtheair
mixer fitting. Placing lava rock
inside burner pan or blocking
openings of the propane/LP air-
mixercould causeperformance
problems.
Figure 27 - Installing Logs 5 and 6
Log 5
Log 6
Log 4
Notch
Notch
Figure 28 - Logs Installed for M36, M36P,
VM36 and VM36P Models

www.fmiproducts.com 108795-01W16
INSTALLATION
Continued
LOG PLACEMENT FOR M42, M42P,
VM42 AND VM42P MODELS
1. Place large back log (log 1) onto grate
making sure notches rest over grate (see
Figure 29).
2. Insert lower end of log 2A between first
two grate fingers and position upper end
intonotchon front of log1.See Figure 29.
Placelog 2B on frontright side of grateas
shown in Figure 29.
3. Place log 3 into notch on top left of log 1,
resting lower end on left two grate fingers
(see Figure 30).
4. Place upper end of log 4 into notch on log
1 as shown in Figure 30. Rest lower end
of log 4 on middle grate finger as shown
in Figure 31.
5. Placeupper end oflog 5 into notchon top
inner right of log 1 (see Figure 31). Rest
lower end of log 5 on middle grate finger
as shown in Figure 32.
6. Place log 6 into notch on top right of log
1 (see Figure 31). Rest lower end of log
6 on top of log 2B (see Figure 32).
Asanoptiontoenhancethelookofthehearth,
you may place the lava rock provided around
front and sides of burner pan.
NOTICE: Do not put lava rock
inside the burner pan or around
theairmixerfitting.Placinglava
rock inside the burner pan or
blockingtheopeningsofthepro-
pane/LP air-mixer could cause
performance problems.

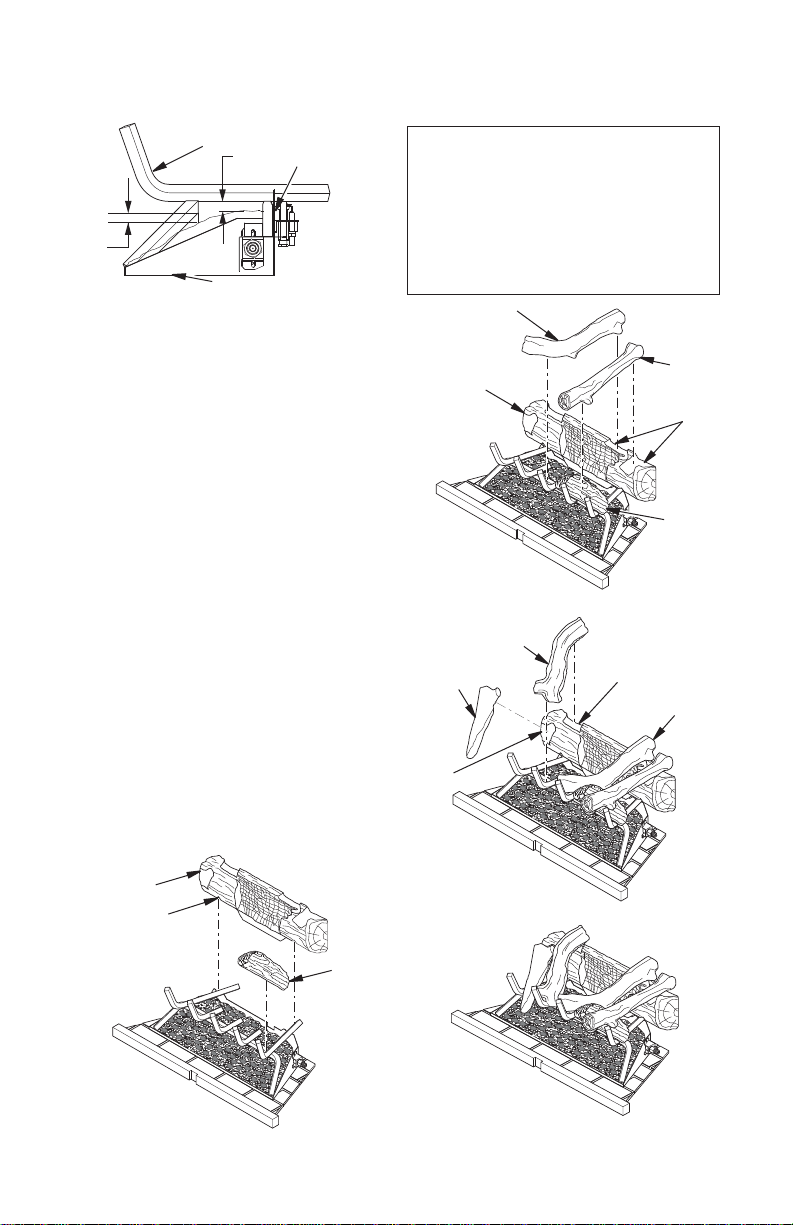

Figure 29 - Installing Logs 1, 2A and 2B
Log 2A
Log 2B
Log 1
Notch
Figure 30 - Installing Logs 3 and 4
Log 4
Log 3
Log 1
Notches
Figure 31 - Installing Logs 5 and 6
Figure 32 - Logs Installed for M42, M42P,
VM42 and VM42P Models
Log 6
Log 5
Notch
Log 1
Log 2B

www.fmiproducts.com
108795-01W 17
INSTALLATION
Continued
COMBUSTION AIR KIT MODEL AK4
(OPTIONAL)
The outside air kit may be installed on the left
sideoffireplaceonly.Theventcanbeinstalled
through any outside wall a minimum of three
feet below fireplace termination cap. The
handle to operate damper door for outside
air inlet will be located inside the left “screen
pocket”of firebox (see Figure 33).Pullhandle
to open or push to close.
CAUTION:Airinletductsare
not to terminate in attic space.
Figure 33 - Air Kit Handle Location
Air Kit
Handle
Screen
Pocket
APPLIANCE ENCLOSURE
Before finishing enclosure around appliance,
inspect all joints around outer surround. Any
gaps between nailing flanges and framing
shouldbesealed with noncombustible insula-
tion or caulking.
If appliance is mounted on a raised platform,
it must be a continuous surface and not
on blocks without a solid surface. This will
prevent the entry of cold air by means of con-
duction through the total bottom of appliance
(see Figure 34).
Side
Framing Side
Framing
Caulk Here Pack Insulation
Figure 34 - Sealing Between Appliance
and Framing
INSTALLING OPTIONAL GLASS
DOOR ACCESSORY
CAUTION: Use only glass
doors certified for use with this
appliance.
Note: Glass door may be heavy for some
individuals. Please request help if needed.
The M36, VM36, M42 and VM42 B-vent
fireplaces are approved for use with optional
bi-fold glass doors (see Accessories, page
31). Glass panels may be ordered and in-
stalled anytime after fireplace installation is
complete.
Follow these steps to install left and right
panels:
1. Withhandle at the bottom, completelyfold
panel on its hinges.
2. With handle facing center of firebox open-
ing, insert lower pivot pin on glass door
panelintoholeinpivotplateonbottomedge
of fireplace opening (see Figure 35).
3. Keepingfolded door tilted, slide upper two
pins into guide track found under upper
facial edge of firebox opening.
4. Tiltglassassembly fully vertical until outer
pivot pin snaps into mounting hole in up-
per spring clip (see Figure 35).
5. Once top and bottom pins are secured,
unfold door into the closed position.
Figure 35 - Installing Optional Glass
Door
Spring Clip
Insert Pin Into Spring Clip
Insert Bottom Pivot Pin Into
Pivot Plate and Swing Door
Into Vertical Position
Pivot Plate
Slide Top
Pin Into
Door Track

www.fmiproducts.com 108795-01W18
6. Repeat the process for the opposite door
assembly.
7. Toadjust doors, slidethempartially open.
Using a screwdriver, loosen hold-down
screws in the spring clip (see Figure 36)
and pivot plate.
8. Closebothdoors until evenly joinedatthe
middleand note thegapat outer edgesof
face.
9. Reopen one door at a time and retighten
upper and lower hold-down screws.
10. Repeat process until both doors areeven-
ly joined, spaced and working freely.
CAUTION: The glass pan-
els become very hot while the
appliance is operating. Do not
attempt to adjust or clean the
glass doors until the appliance
has fully cooled.
The doors may be removed for replacement
or cleaning as follows:
1. Partiallyopen door and press uponupper
spring clip with a screw driver until outer
top pivot pin is free of clip.
2. Fullyfold frame assembly andslideupper
edge towards center of firebox opening
until guide pins are free of frame rail (see
Figure 37).
CAUTION: Always operate
the appliance with the doors ei-
therfullyopenedorfullyclosed.
Operating the appliance with
the doors partially open can re-
sult in improper venting of flue
products.
INSTALLATION
Continued
Figure 36 - Adjusting Glass Doors
Spring
Clip Hold-Down
Screw
Side
Front
Face
Partially
Opened
Door
Figure 37 - Removing Glass Doors
Spring Clip
Press
Spring Clip
to Release
Pivot Pin
Remove Bottom Pin From
Pivot Plate While Sliding Door
Out of the Upper Track Pivot Plate
Fold Bi-Fold
Door After
Releasing
Spring Clip
and Slide
Door Out of
Upper Track
OPENING VENT DAMPER
Vent damper must be locked in the full open
position before operating fireplace. If vent
damper is not open, fireplace will not light.
CLOSEOPEN
VENT DAMPER MUST BE LOCKED
IN THE FULL OPEN POSITION
TO OPERATE THE APPLIANCE
Figure 38 - Opening Vent Damper

www.fmiproducts.com
108795-01W 19
OPERATION
1. STOP! Read the safety information, col-
umn 1.
2. Turn wall switch to the OFF position.
3. Turn off all electric power to appliance.
4. Fully open glass doors if installed.
5. Remove front refractory brick access
panel.
6. Turn gas control knob clockwise
to the OFF position (see Figure 39).
7. Wait five (5) minutes to clear out any gas.
Then smell for gas, including near the
floor. If you smell gas, STOP! Follow “B”
in the safety information, column 1. If you
don’t smell gas, go to the next step.
8. Turn control knob counterclockwise
to the PILOT position.
9. Push in knob all the way and hold in.
Immediately light the pilot manually. Con-
tinue to hold control knob in for about one
minute after pilot is lit. Release knob and
it will pop back up. Pilot should remain lit.
If it goes out, repeat steps 5 through 9.
• If knob does not pop up when released,
stop and immediately call your service
technician or gas supplier.
• If the pilot will not stay lit after several
tries, turn the gas control knob to OFF
and call your service technician or gas
supplier.
10. Turn gas control knob counterclockwise
to O”. Knob can be turned to ON
only if the control knob is popped out.
11. Replace front refractory brick access
panel.
12. Fully close glass doors if installed.
13. Turn on all electric power to appliance.
P
I
L
O
T
ON
OFF
IN OUT
IN
Figure 39 - Control Knob in the PILOT
position
Position Indicator
Gas Control Knob Pilot Adjustment Screw
FOR YOUR SAFETY
READ BEFORE LIGHTING
WARNING: If you do not fol-
low these instructions exactly,
a fire or explosion may result
causing property damage, per-
sonal injury or loss of life.
A. This appliance has a pilot which must
be lighted by hand. When lighting
the pilot, follow these instructions
exactly.
B. BEFORE LIGHTING smell all around
the appliance area for gas. Be sure to
smell next to the floor because some
gas is heavier than air and will settle
on the floor.
WHAT TO DO IF YOU SMELL GAS
• Do not try to light any appliance.
• Do not touch any electric switch; do
not use any phone in your building.
• Immediately call your gas supplier
from a neighbor’s phone. Follow the
gas supplier’s instructions.
• If you cannot reach your gassupplier,
call the fire department.
C. Use only your hand to push in or turn
the gas control knob. Never use tools.
If the knob will not push in or turn by
hand, don’t try to repair it, call a quali-
fied service technician or gas supplier.
Force or attempted repair may result in
a fire or explosion.
D. Do not use this appliance if any part
has been under water. Immediately
call a qualified service technician to
inspect the appliance and to replace
any part of the control system and
any gas control which has been under
water.
LIGHTING
INSTRUCTIONS
NOTICE:Duringinitialoperation
of new heater, burning logs will
give off a paper-burning smell.
Orange flame will also be pres-
ent. Open damper or window to
vent smell. This will only last a
few hours.

www.fmiproducts.com 108795-01W20
TO TURN OFF GAS
TO APPLIANCE
1. Turn off wall switch.
2. Turn off all electric power to appliance if
service is to be performed.
3. Fully open glass doors if installed.
4. Remove front hearth brick and control
access panel.
5. Turn gas control knob clockwise
to OFF. Do not force.
6. Replace front refractory brick access
panel.
7. Fully close glass doors if installed.
OPERATION
Continued
Figure 40 - Pilot
Thermopile
Pilot
Burner
Ignitor
Figure 41 - On/Off Hand-Held Remote
Control Unit HRC100
Control
Button
Indicator
Light
INSPECTING BURNERS
OPTIONAL HAND-HELD
REMOTE OPERATION
Note: The receiver and hand-held remote
controlkitmust be purchased separately(see
Accessories, page 31). Follow installation
instructions on page 10 of this manual.
1. Afterlighting, let pilot flameburnfor about
one minute. Turn control knob to the ON
position. Slide the selector switch to the
REMOTE position.
Note:Burnermaylightifhand-heldremote
was on when selector switch was last
turned off. You can now turn burner on
and off with the hand-held remote control
unit.
IMPORTANT:Do not leave selector switch
inthe REMOTE or ONposition when pilot
is not lit. This will drain the battery.
2. Presscontrolbutton on hand-held remote
to turn burner on. Press control button
again to turn burner off (see Figure 41).
3. To Lock press both buttons on remote
controluntillightstops flashing.Remoteis
nowlocked.If the fire isonit will be turned
off automatically. In the locked state, the
light will not light up when any button is
pressed.
4. To Unlock pressbothbuttons together on
remote control until light stops flashing.
The remote is now unlocked.
Check pilot flame pattern and burner flame
patterns often.
PILOT ASSEMBLY
The pilot assembly is factory preset for the
proper flame height. Alterations may have
occurred during shipping and handling. The
pilot is located on the back right hand side
of the burner.
The height of the thermopile must be 3/8" to
1/2" above the pilot flame. The flame from
the pilot burner must extend beyond the
thermopile.
If your pilot assembly does not meet these
requirements:
• Turn adjustment screw marked pilot clock-
wisetodecrease or counterclockwise toin-
creasethe flame to propersize(see Figure
39, page 19). Do not remove adjustment
screw.
• see Troubleshooting, page 23
