FMI V32S Safety guide
For more information, visit www.fmiproducts.com
WARNING: If the information in this manual is not
FOR USE ONLY WITH A LISTED GAS-FIRED UNVENTED
DECORATIVE ROOM HEATER NOT TO EXCEED 40,000
DO NOT INSTALL AN APPLIANCE IN THIS FIREBOX
UNLESS THIS FIREBOX MEETS THE MINIMUM DIMEN-
UNVENTED (VENT-FREE) UNIVERSAL FIREBOX
OWNER’S OPERATION AND INSTALLATION MANUAL
NON-CIRCULATINg MODELS
V32S, VFB32NC, V36S, V36SH, VFB36NC1, V42S, V42SH AND VFB42NC1
CIRCULATINg MODELS
V32, V36, V42, CUVF36C, VFB32C, VFB36C1, VFB42C1, V36H AND V42H
OUTSIDE AIR MODELS
V32A, V32AS, VFB32AC, VFB32ANC, V36A, V36AS, V36ASH,
V36AH, VFB36AC, VFB36ANC, V42A, V42AS, V42ASH, V42AH,
VFB42AC, VFB42ANC
PFS
®
US
www.fmiproducts.com 108662-01L2
SAFETy
chemicals known to the state
of California to cause cancer or
-
alteration, service or
maintenance can cause
-
for correct installation
-
additional information
-
-
stalled in an aftermarket,*
-
IMPORTANT: Read this owner’s
-
WARNING: Do not allow fans
-
TABLE OF CONTENTS
Safety .................................................................. 2
Local Codes......................................................... 3
Product Features................................................. 4
Locating Firebox.................................................. 4
Product Specications......................................... 5
Air For Combustion and Ventilation ..................... 7
Installation ........................................................... 9
Replacement Parts............................................ 18
Technical Service............................................... 18
Accessories ....................................................... 18
Parts .................................................................. 20
Warranty ..............................................Back Cover
www.fmiproducts.com
108662-01L 3
will remain hot for a time after
-
dren when they are in the room
SAFETy
Continued
1. Do not use this rebox as a wood-burning
replace. Use only decorative unvented
room heaters (log sets).
2. Do not add extra logs or ornaments such
as pine cones, vermiculite or rock wool.
Using these added items can cause
sooting.
3. Do not use blower accessory with model
VFB32NC Series. Use only the provided
hood or appropriate hood accessory. See
Accessories on page 18.
4. Vent-free gas log heaters installed in these
reboxes require fresh air ventilation to
run properly. See Air for Combustion and
Ventilation, page 7.
5. Do not run rebox
• where ammable liquids or vapors are
used or stored
• under dusty conditions
6. Do not use this rebox to cook food or
burn paper or other objects.
7. Turn rebox off and let cool before servic-
ing. Only a qualied service person should
service and repair rebox.
8. Operating rebox above elevations of
4,500 feet could cause pilot outage.
9. Do not use the rebox if it has been un-
der water due to the shock hazard that
could result with the blower accessary (if
installed) in place.
LOCAL CODES
Install and use heater with care. Follow all
local codes. In the absence of local codes,
use the latest edition of The National Fuel Gas
Code, ANSI Z223.1/NFPA 54*. Firebox must
be electrically grounded in accordance with
the National Electrical Code, ANSI/NFPA70
(latest edition).
*Available from:
American National Standards Institute, Inc.
1430 Broadway
New York, NY 10018
National Fire Protection Association, Inc.
Batterymarch Park
Quincy, MA 02269
State of Massachusetts: The installation
must be made by a licensed plumber or
gas tter in the Commonwealth of Mas-
sachusetts.
Sellers of unvented propane or natural
gas-red supplemental room heaters shall
provide to each purchaser a copy of 527
CMR 30 upon sale of the unit.
Vent-free gas products are prohibited for
bedroom and bathroom installation in the
Commonwealth of Massachusetts.
www.fmiproducts.com 108662-01L4
PRODUCT FEATURES
OPERATION
This rebox is designed for use with approved
ANSI Z21.11.2 decorative type unvented room
heaters. (Physical size limitations apply. Refer
to minimum rebox requirements supplied
with log heater.) It requires no outside vent-
ing or chimney making installation easy and
inexpensive. When used without the blower,
the rebox requires no electricity making it
ideal for emergency backup heat.
BLOWER ACCESSORY
The circulating models will accept either a ro-
tary type fan (model BK) or the triple radial fan
blower system (model BK3) accessories. The
blower circulates heated air from the rebox
into the room. Use of blower is optional.
REFRACTORY BRICK LINER
Your rebox may feature a concrete refrac-
tory brick liner. As with all concrete liners,
this liner may develop slight cracks when
exposed to heat. These cracks will not affect
the performance of the replace or vent-free
gas logs.
OUTSIDE AIR KIT ACCESSORY
Fireboxes that include “A” in their model
number can accept any AK4 series outside
air kit accessory.
The optional AK4 air kit provides additional
outdoor air to improve burner efciency and
reduce build-up of condensation in the living
space. Follow the instructions included with
the air kit.
LOCATINg FIREBOX
PLANNING
Plan where you will install the rebox. This will
save time and money later when you install
the rebox. Before installation, consider the
following:
1. Where the rebox will be located. Allow for
wall and ceiling clearances (see Installa-
tion Clearances, page 10).
2. Everything needed to complete installation.
3. These models CANNOT be installed in a
bedroom unless the maximum BTU rating
of the installed vent-free log set is less
than 10,000 Btu/Hr.
4. Proper air for combustion and ventilation
(page 7).
www.fmiproducts.com
108662-01L 5
25
1
/
8
"
29
1
/
2
"34
7
/
16
"
36
3
/
8
"
Standoffs
22
1
/
2
"
4"
29
1
/
2
"
16
3
/
4
"
18
7
/
16
"
32
1
/
4
"
36
1
/
2
"
14
15
/
16
"
6
5
/
16
"
3
3
/
8
"
6"
8
15
/
16
"
9
3
/
4
"
12
1
/
4
"
19
1
/
2
"
8
15
/
16
"
2
9
/
16
"
3
7
/
16
"
16
11
/
16
"
2
1
/
4
"
1
9
/
16
"
2
9
/
16
"
8
1
/
8
"
2
13
/
16
"
8
5
/
8
"
8
1
/
8
"
8
1
/
8
"
10
1
/
2
"
4
1
/
4
"
3
1
/
2
"
Built-In
Side
Nailing
Flanges
Square
Gas Line
Access
Holes
Electrical
Access Hole
5/8"

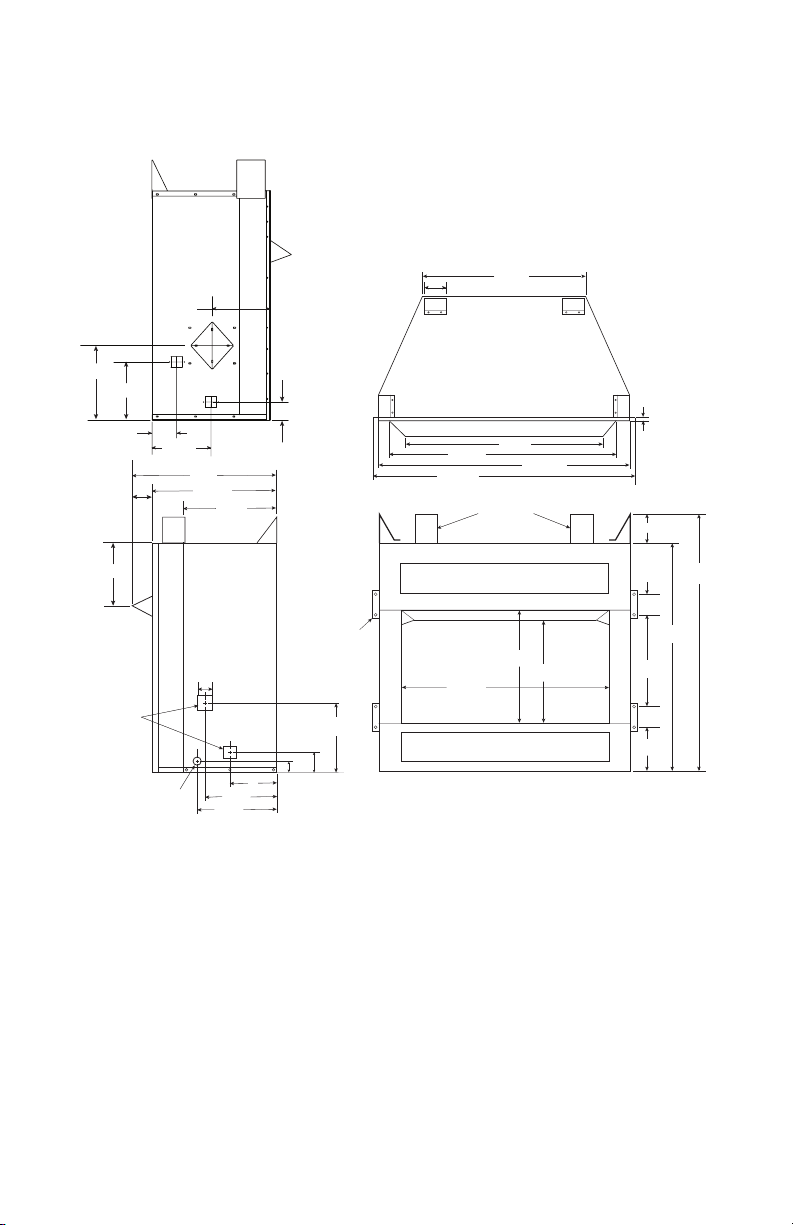

PRODUCT SPECIFICATIONS
Right Side View
Front View
32" MODELS
Outside Air
Kit Location
(Optional)
www.fmiproducts.com 108662-01L6
PRODUCT SPECIFICATIONS
Continued
36" AND 42" MODELS
Note: If only one dimension is shown, the dimension is the same for both 36" and 42" mod-
els.
Firebox Top View
Right Side
View
Outside Air
Kit Location
(Optional)
www.fmiproducts.com
108662-01L 7
AIR FOR COMBUSTION AND VENTILATION
The air that leaks around doors and windows
may provide enough fresh air for combustion
and ventilation. However, in buildings of un-
usually tight construction, you must provide
additional fresh air.
construction where:
-
-112
and
and
If your home meets all of the three criteria
Ventilation Air From Outdoors,
If your home does not meet all of the three
Determining
Fresh-Air Flow for Firebox Location,
The National Fuel Gas Code, ANSI Z223.1/
NFPA 54 denes a conned space as a space
whose volume is less than 50 cubic feet per
1,000 Btu per hour (4.8 m3 per kw) of the ag-
gregate input rating of all appliances installed
in that space and an unconned space as a
space whose volume is not less than 50 cubic
feet per 1,000 Btu per hour (4.8 m3 per kw)
of the aggregate input rating of all appliances
installed in that space. Rooms communicating
directly with the space in which the appliances
are installed*, through openings not furnished
with doors, are considered a part of the un-
conned space.
* Adjoining rooms are communicating only if
there are doorless passageways or ventilation
grills between them.
WARNING: This heater shall
-
-
National Fuel Gas
Code, ANSI Z223.1/NFPA 54, the
International Fuel Gas Code, or
Today’s homes are built more energy efcient
than ever. New materials, increased insulation
and new construction methods help reduce
heat loss in homes. Home owners weather
strip and caulk around windows and doors
to keep the cold air out and the warm air in.
During heating months, home owners want
their homes as airtight as possible.
While it is good to make your home energy
efcient, your home needs to breathe. Fresh
air must enter your home. All fuel-burning ap-
pliances need fresh air for proper combustion
and ventilation.
Exhaust fans, reboxes, clothes dryers and
fuel burning appliances draw air from the
house to operate. You must provide adequate
fresh air for these appliances. This will insure
proper venting of vented fuel-burning appli-
ances.
PROVIDING ADEQUATE
VENTILATION
The following are excerpts from National Fuel
Gas Code, ANSI Z223.1/NFPA 54, Air for
Combustion and Ventilation.
All spaces in homes fall into one of the three
following ventilation classications:
1. Unusually Tight Construction
2. Unconned Space
3. Conned Space
The information on page 7 through 9 will help
you classify your space and provide adequate
ventilation.
www.fmiproducts.com 108662-01L8
DETERMINING FRESH-AIR FLOW
FOR HEATER LOCATION
Use this work sheet to determine if you have
a conned or unconned space.
Includes the room in which you will
install heater plus any adjoining rooms with
doorless passageways or ventilation grills
between the rooms.
1. Determine the volume of the space (length
x width x height).
Length x Width x Height = ______cu. ft.
(volume of space)
Example: Space size 22 ft. (length) x 18
ft. (width) x 8 ft. (ceiling height) = 3168 cu.
ft. (volume of space)
If additional ventilation to adjoining room
is supplied with grills or openings, add the
volume of these rooms to the total volume
of the space.
2. Multiply the space volume by 20 to deter-
mine the maximum Btu/Hr the space can
support.
_____ (volume of space) x 20 = (Maxi-
mum Btu/Hr the space can support)
Example: 3168 cu. ft. (volume of space) x
20 = 63,360 (maximum Btu/Hr the space
can support)
3. Add the Btu/Hr of all fuel burning appli-
ances in the space.
Vent-free heater _______ Btu/Hr
Gas water heater* _______ Btu/Hr
Gas furnace _______ Btu/Hr
Vented gas heater _______ Btu/Hr
Gas replace logs _______ Btu/Hr
Other gas appliances* + ______ Btu/Hr
Total = ______ Btu/Hr
* Do not include direct-vent gas appli-
ances. Direct-vent draws combustion
air from the outdoors and vents to the
outdoors.
Example:
Gas water heater _________ Btu/Hr
Vent-free heater +________ Btu/Hr
Total =________ Btu/Hr
AIR FOR COMBUSTION AND VENTILATION
Continued
4. Compare the maximum Btu/Hr the space
can support with the actual amount of Btu/
Hr used.
_________ Btu/Hr (maximum the space
can support)
_________ Btu/Hr (actual amount of
Btu/Hr used)
Example: 63,360 Btu/Hr (maximum the
space can support)
79,000 Btu/Hr (actual amount
of Btu/Hr used)
The space in the above example is a conned
space because the actual Btu/Hr used is more
than the maximum Btu/Hr the space can sup-
port. You must provide additional fresh air.
Your options are as follows:
A. Rework worksheet, adding the space
of an adjoining room. If the extra space
provides an unconned space, remove
door to adjoining room or add ventilation
grills between rooms. See Ventilation Air
From Inside Building, page 9.
B. Vent room directly to the outdoors. See
Ventilation Air From Outdoors, page 9.
C. Install a lower Btu/Hr heater, if lower Btu/
Hr size makes room unconned.
If the actual Btu/Hr used is less than the
maximum Btu/Hr the space can support, the
space is an unconned space. You will need
no additional fresh air ventilation.
WARNING:Iftheareain which
-
40,000
39,000
79,000
www.fmiproducts.com
108662-01L 9
VENTILATION AIR
This fresh air would come from an adjoining
unconned space. When ventilating to an
adjoining unconned space, you must provide
two permanent openings: one within 12" of the
ceiling and one within 12" of the oor on the
wall connecting the two spaces (see options
1 and 2, Figure 4). You can also remove door
into adjoining room (see option 3, Figure 3).
Follow the National Fuel Gas Code, ANSI
Z223.1/NFPA 54, Air for Combustion and
Ventilation for required size of ventilation
grills or ducts.
AIR FOR COMBUSTION AND VENTILATION
Figure 4 - Ventilation Air from Outdoors
Ventilation Air From Outdoors
Provide extra fresh air by using ventilation
grills or ducts. You must provide two perma-
nent openings: one within 12" of the ceiling
and one within 12" of the oor. Connect these
items directly to the outdoors or spaces open
to the outdoors. These spaces include attics
and crawl spaces. Follow the National Fuel
Gas Code, ANSI Z223.1/NFPA 54, Air for
Combustion and Ventilation for required size
of ventilation grills or ducts.
IMPORTANT: Do not provide openings for
inlet or outlet air into attic if attic has a thermo-
stat-controlled power vent. Heated air entering
the attic will activate the power vent.
INSTALLATION
Or
Remove
Door into
Adjoining
Room,
Option
3
V e ntilation Grills
Into Adjoining Room,
Option 2
V e ntilation
Grills
Into Adjoining
Room,
Option 1
12"
12"
Outlet
Air
V e ntilated
Attic
Outlet
Air
Inlet
Air
Inlet Air V e ntilated
Crawl Space
T o
Crawl
Space
T o Attic
-
WARNING: Never install the
-
arelessthan42"fromthefront,
rated at 10,000 Btu/Hr or less
-
rents move heat to wall surfaces
next to vinyl or cloth wall cover-
-
the air exist, may discolor walls
www.fmiproducts.com 108662-01L10
IMPORTANT: Vent-free gas log heaters add
moisture to the air. Although this is benecial,
installing rebox in rooms without enough
ventilation air may cause mildew to form from
too much moisture. See Air for Combustion
and Ventilation, page 7.
IMPORTANT: Make sure firebox is level.
If rebox is not level, log set will not work
properly.
Note: Your rebox is designed to be used in
zero clearance installations. Wall or framing
material can be placed against any exterior
surface on the rear, sides, top or bottom of
your rebox, except where standoff spacers
are integrally attached. If standoff spacers are
attached to your rebox, these spacers can
be placed directly against wall or framing ma-
terials. Use the dimensions shown for rough
opening to create the easiest installation.
Use dimensions shown for rough openings
to create the easiest installation (see Built-In
Firebox Installation, page 11).
INSTALLATION CLEARANCES
WARNING: Maintain the
Carefully follow these instructions. This will
ensure safe installation.
A. Clearances from the side of fireplace
cabinet to any combustible material and
wall should follow diagram in Figure 5.
Example: The face of a mantel, bookshelf,
etc. is made of combustible material and
protrudes 3 1/2" from the wall. This com-
bustible material must be 4" from the side
of the replace cabinet (see Figure 5).
B. Clearances from the top of rebox opening
to ceiling should not be less than 42".
C. When rebox is installed on carpeting or
other combustible material, other than
wood ooring, rebox should be installed
on a metal or wood panel extending the
full width and depth of enclosure.
D. Clearances from bottom of rebox to the
oor is 0".
These reboxes can be installed as freestand-
ing units against a wall with the approved,
INSTALLATION
Continued
*Minimum 16" from Side Wall
*
optional cabinet mantels (see Accessories,
page 18) or as a built-in unit. Clearances are the
same for either installation method.
CAUTION: Do not install
Example
Mantel Clearances for Built-In Installation
If placing custom mantel above built-in rebox,
you must meet the minimum allowable clear-
ance between mantel shelf and top of rebox
opening shown in Figure 6, page 11. These
are the minimum allowable mantel clearances
for a safe installation. Use larger clearances
wherever possible to minimize the heating of
objects and materials placed on the mantel.
CAUTION: Do not allow the
minimum clearances shown in
www.fmiproducts.com
108662-01L 11
55 5/8"
39 3/8"
34 1/2"
27 3/4"
0" CLEARANCE
0" CLEARANCE
*10 1/2"*10 1/2"
* These dimensions allow for min. Clearances to
a 45° projected side wall. However, clearances
to projected mantel trims and facings are allowed
within a min. Of 16" to a perpenducular wall as
shown in figure 5, on page 10.
*14 1/2"
50 3/8"
71 1/4"
35 5/8"
41 1/2"
0" CLEARANCE
48"
82"
58"
*17"
41"
*17"
FOR 32" MODELS
FOR 36" MODELS
FOR 42" MODELS
INSTALLATION
Figure 6 - Minimum Mantel Clearances
for Built-In Installation
Supplied
Firebox Hood
Must Be Used
at All Times
Wire-mesh
Screen
Firebox
Noncombustible
Material May
Project Off this
Surface above
the Firebox Hood
Mantel Shelf
Note: Any portion of the
mantel shelf must NOT
extend beyond this profile.
12" 16" 20"
1
1
/
2
"
6
3
/
4
"
12"
Note: All vertical
measurements are
from top of fireplace
hood opening to
bottom of mantel shelf.
These minimum
clearances replace any
other recommended
clearances supplied
with your ANSI Z21.11.2
approved gas logs.
Wa ll board or facing
material (above
firebox) may be of
combustible material,
including decorative
mantel ornaments or
other similar projec-
tions off of the facing
material.
Framing
Material
Built-in Installation
Model
Front Width
(Inside to Inside) Height
Depth
(Min.)
32" 34 7/8"36 3/4"16 1/4"
36" 41 1/2"40 1/2"20 3/4"
42" 48 5/8"44 1/2"22 5/8"
Depth
(Minimum)
Width
(Inside to Inside)
Height
Figure
7a
Figure
7b
Figure
7c
Figure
7d
NOTICE: If your installation does
not meet the minimum clear-
ances shown, you must do one
-
BUILT-IN FIREBOX INSTALLATION
Built-in installation of this rebox involves
installing rebox into a framed-in enclosure.
This makes the front of rebox ush with wall.
Optional brass trim accessories are available
(see Accessories, page 18). The brass trim
will extend past sides of rebox approximately
1/2". This will cover the rough edges of the
wall opening. If installing a mantel above the
rebox, you must follow the clearances shown
in Figure 6. Follow the instructions below to
install the rebox in this manner.
1. Frame in rough opening. The rebox fram-
ing should be constructed of 2 x 4 lumber
or heavier. Use dimensions in Table 1
and rough opening layout in Figure 7a.
Adjust framing so that firebox flushes
with nished wall surface. If installing in
a corner, use dimensions in Figures 7b,
7c and 7d for rough opening.
2. Install gas piping to rebox location. See In-
stalling Gas Line,page 12 and Connecting
to Gas Supply in log set owner’s manual.
www.fmiproducts.com 108662-01L12

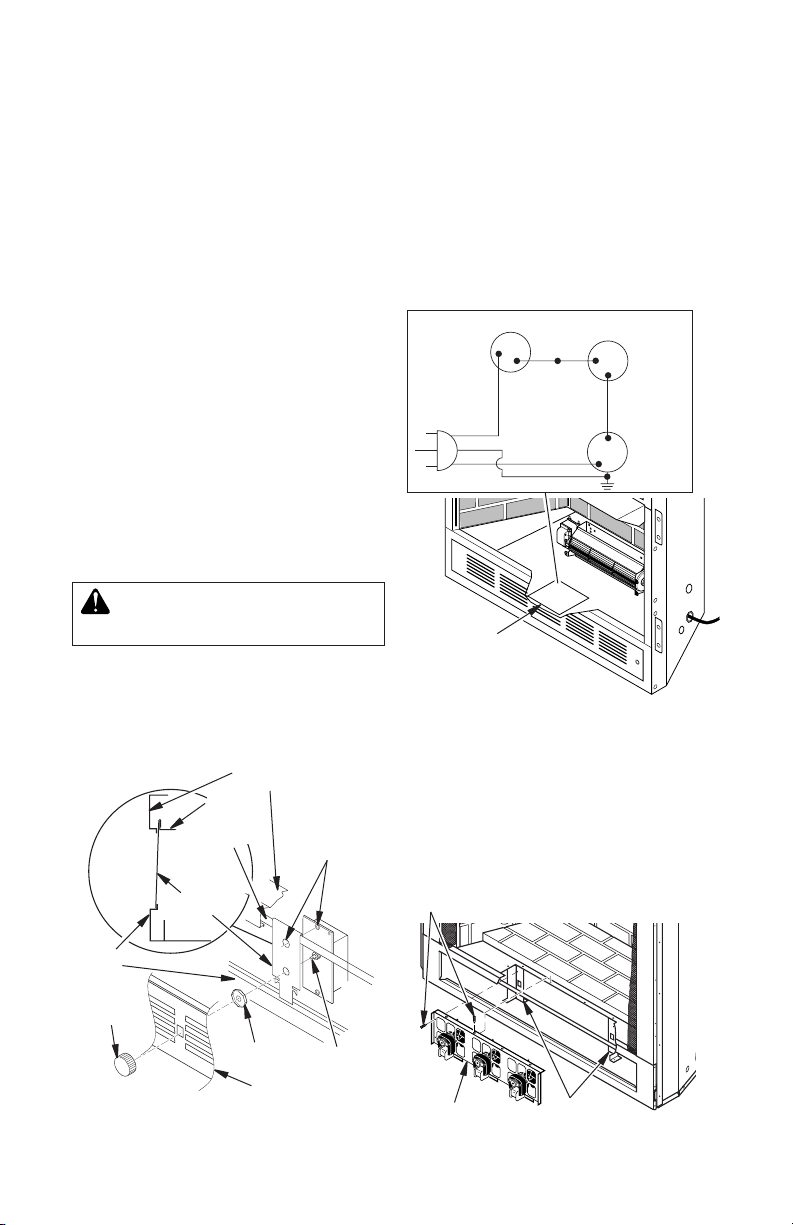

IMPORTANT: If installing blower accessory
(circulating models with louvers only), see
Hard-Wiring Firebox, page 16.
3. Carefully set rebox in front of rough open-
ing with back of rebox inside wall open-
ing. IMPORTANT: If installing a perimeter
trim kit, see instructions included with
trim accessory. You must install shoulder
screws from trim kit now.
4.
Carefully insert rebox into rough opening.
5. Attach rebox to wall studs using nails
or wood screws through holes in nailing
ange (see Figure 8).
6. If using an optional perimeter trim kit,
install the trim after nal nishing and/or
painting of wall. See instructions included
with trim accessory for attaching trim.
7. Install and properly test gas log heater.
Follow installation instructions included
with the vent-free gas log heater that is
being installed.
IMPORTANT: When nishing your rebox,
combustible materials such as wall board,
gypsum board, sheet rock, drywall, plywood,
etc. may be butted up next to the sides and top
of the rebox. Combustible materials should
never overlap the rebox front facing.
WARNING: Do not allow any
INSTALLATION
Continued
Figure 8 - Attaching Firebox to Wall Studs
Nailing
Flanges
Nails or Wood
Screws
IMPORTANT: Noncombustible materials such
as brick, tile, etc. may overlap the front facing,
but should never cover any necessary open-
ings like louvered slots.
WARNING: Do not allow
WARNING: Use only non-
-
INSTALLING FIREBOX USING
OPTIONAL ACCESSORY MANTELS
-
This rebox may be installed using a cabinet
mantel accessory against a wall in your
home. The rebox and cabinet mantel can
be installed directly on the oor. A trim kit is
included with the mantel accessories. Follow
instructions with mantel for installation.
Figure 9 - Installing Gas Line and
Equipment Shutoff Valve (Model May
Vary From Illustration)
Knockout
Locations
(Knock Out
One Hole)
Gas Line Hole
Equipment Shutoff
Valves (Install One)
www.fmiproducts.com
108662-01L 13
INSTALLATION
Continued
INSTALLING GAS LINE
-
IMPORTANT: See Connecting to Gas Supply
in your log set owner’s manual for details on
gas hookup.
You may run the gas line from either side of
the rebox (see Figure 9). Decide which side
you want to run the gas line from.
Note: This is one option for installing shutoff
valve. Check local codes for equipment shut-
off valve location requirements.

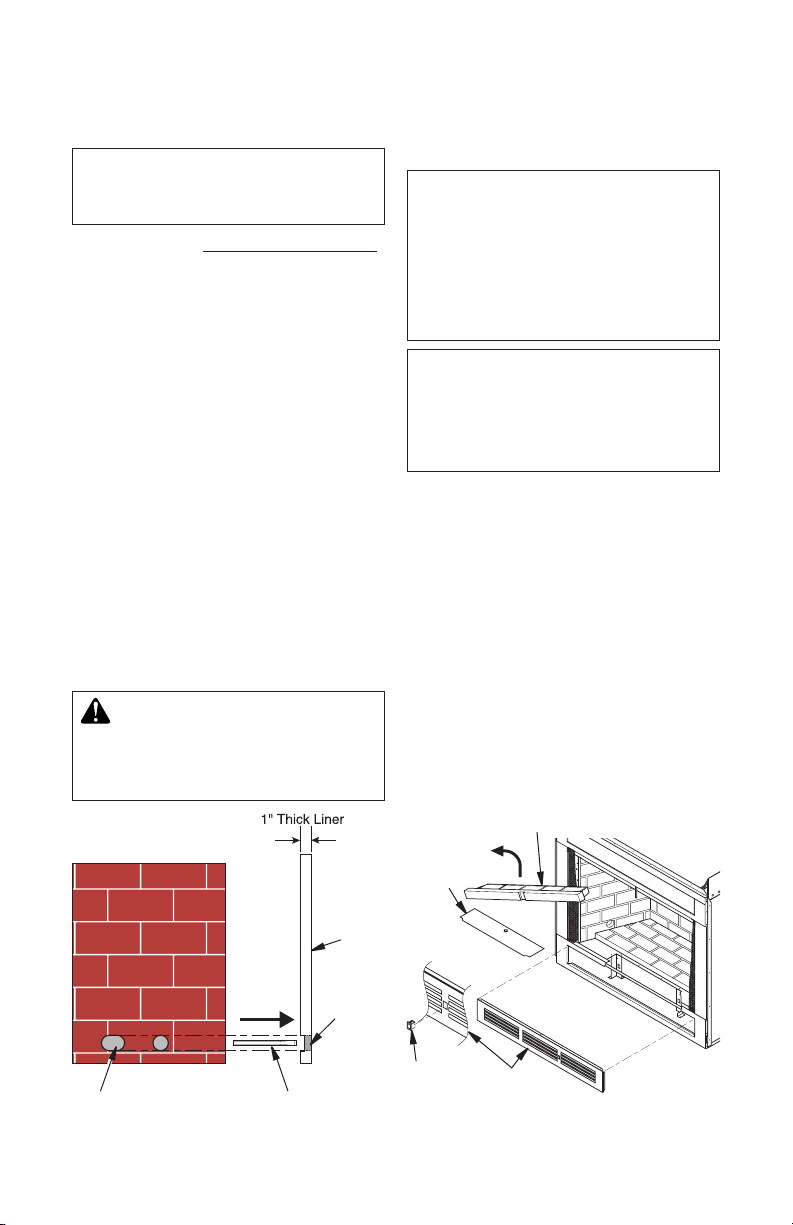

Locate the recessed knockout in one of the
rebrick sidewall liners (see Figure 9 on page
12 and Figure 10). Firmly tap the center of
the knockout with a chisel until it is released.
Carefully chisel the rough edges of the hole
you have made to smooth edges. This hole
will line up with the hole in the outer casing.
Locate the recessed knockout in one of the
rebrick sidewall liners (see Figure 9 on page
12 and Figure 10). Firmly tap the center of
the knockout with a chisel until it is released.
Carefully chisel the rough edges of the hole
to smooth edges. This hole will line up with
the hole in the outer casing.
CAUTION: Do not use exces-
sive force to remove the knock-
Figure 10 - Location of Knockout for
Gas Line
Knockout Chisel
Firebrick Side Wall
Remove
this Area
Side
View
INSTALLING OPTIONAL BLOWER
ACCESSORIES
NOTICE:-
-
NOTICE
Note: Appearance of rebox may vary de-
pending on model.
There are two (2) blower accessory options for
use in the vent-free reboxes. Blower acces-
sory models are BK and BK3. Model BK is a
rotary squirrel cage type blower with magnetic
attachment and variable speed control. The
BK3 is a triple fan blower system with an on/
off rocker switch.
On 32" models only, the blower must be
installed by removing the lower face panel
and placing blower into its proper mounting
position. The 36" and 42" models can use
this method or remove the bottom front re-
fractory brick liner and access panel to allow
installation through the rebox bottom (see
Figure 11).
Figure 11 - Accessing Blower Compartment
(Controls Not Shown for Clarity)
Front Refractory Panel
Lower
Louver Panel
Control
Access
Cover
Knockout
Plug
www.fmiproducts.com 108662-01L14
INSTALLATION
Continued
Decide which way you intend to gain access
into the bottom rear of the rebox to install
the blower accessory. The lower front panel
can be removed easily by snapping out the
front with a at blade screwdriver. Use cau-
tion not to scratch any surfaces. Models with
louvered front panels can also be removed by
inserting ngertips between slots and gently
pulling out. DO NOT FORCE. The panels are
actually held in place by means of a retention
dimple embossed on the edge of removable
panels.
Accessibility to the bottom on 36" and 42"
models only, can also be gained through the
access panel underneath the bottom front
refractory brick liner. Lift the bottom front
refractory brick liner up and out of the rebox
oor, exposing the rectangular shaped access
panel (see Figure 11, page 13). The sides and
back refractory brick liner pieces do not have
to be removed. Lift access panel out by using
nger holes. Blower accessory BK or BK3 can
now be installed.
electrical outlet installed in the
Model BK Installation
1. Attach the power cord to blower motor by
rmly pushing two female terminals at end
of power cord onto two spade terminals
on blower motor (see Figure 13).
2. Attach green ground wire from power cord
to blower housing using screw provided
(see Figure 13). Tighten screws securely
with a phillips screwdriver.
3. Place blower against lower rear wall of
rebox outer wrapper with exhaust port di-
rected upward. Depending on your model,
you may have to carefully route the blower
assembly past controls and brackets and
position blower inside back opening. The
blower will be held in position against the
back wall by magnets incorporated onto
blower housing (see Figure 13).
4. Be certain that all wire terminals are
securely attached to terminals on blower
motor and that the screw retaining the
green ground wire is tight.
5. Position speed control bracket over ange
on hearth pan by sliding it up between
rebox face and hearth pan ange, then
down until seated onto lower ange of lou-
ver opening (see Figure 14, page 15).
6. Mount speed control box by placing plas-
tic control shaft through bottom hole on
speed control bracket. Top screw head
on control box will t inside top hole on
Duplex Electrical Outlet
Figure 12 - Accessing Duplex Electrical
Outlet Installed in Bottom Right Side of
Firebox
Figure 13 - Blower Model BK
Magnetic Strips
Exhaust
Port
Screw
Green
Ground
Wire
Spade
Terminals
Side View
Firebox Bottom
Air Flow
Direction
Blower
Installed
After
Lower
Panel
Removed
Blower
Location Magnets
www.fmiproducts.com
108662-01L 15
INSTALLATION
Continued
bracket (see Figure 14). Secure speed
control to bracket with lock nut by pushing
and turning lock nut with pliers clockwise
until it is tight against bracket.
7. Remove knockout plug from louver panel
by pressing top and bottom retaining clips
(see Figure 11, page 13).
8. Place louver panel, louvers pointing up,
back into framed opening. Align control shaft
with rectangular opening by sliding control
bracket along ange (see Figure 14).
9. Fully seat louver panel into frame open-
ing by gently pressing along ends until
all dimpled retainers have snapped in
place.
10. Place control knob, provided, onto control
shaft (see Figure 14).
11. Check to make sure power cord is com-
pletely clear of blower wheel and there are
no foreign objects in blower wheel. Also,
double check all wire leads and make
sure wire routing is not pinched or in a
precarious position. Correct accordingly.
-
12. Turn on power to duplex outlet if previ-
ously turned off per warning in column 1,
page 14.
13. Plug in blower power cord to duplex outlet
(see Figure 12, page 14).
Figure 14 - Attaching Speed Control to
Firebox with Panel Louvers
Control
Shaft
Control
Knob
Lock Nut
Speed
Control
Bracket
Lower
Louver
Firebox Face
Hearth
Pan
Flange
Screw
Head and
Top Hole
on Bracket
Lower
Flange
Figure 15 - Location of Wiring Diagram
Decal (Model May Vary From Illustration)
Wiring Diagram
Decal 12" in
Front of Blower
Red
V a riable
Fan Switch Fan Switch
(N.O.)
Green
White
On
1 1 0/115
V . A.C.
Blower
Motor
Black
Off 1
2Black
Blue
(BKT Model
Only)
14. Turn blower on and check for operation.
Turn blower off by turning knob fully coun-
terclockwise before continuing.
15. Peel off backing paper and stick supplied
wiring diagram decal on rebox bottom
approximately 12" in from of blower (see
Figure 15).
16. Replace all panels and/or brick bottom
panel if previously removed.
Model BK3 Installation
1. Remove knockout plug from louver panel
by pressing top and bottom retaining clips
(see Figure 11, page 13).
2. Place BK3 fan assembly between two leg
stands with fan blades pointing toward
rear of replace (see Figure 16).
Figure 16 - Mounting BK3 Blower
Screws
BK3 Blower Leg
Stands
www.fmiproducts.com 108662-01L16
3. Using screws provided, fasten upper
ange of blower bracket to hearth pan and
end anges to leg stands (see Figure 16,
page 15).
Note: The wire assembly must be ar-
ranged in front of and away from fan
blades to reach power receptacle plug.
4. Remove 2 connectors from ON/OFF
rocker switch located on wiring harness
(see Figure 17).
5. Insert rocker switch into lower lover panel
with switch lever pointing outward.
6. Reconnect previously removed wire con-
nectors onto switch terminals.
7. Check to make sure power cord is com-
pletely clear of blower and that there are
no foreign objects in blower. Also, double
check all wire leads and make sure wire
routing is not pinched or in a precarious
position. Correct accordingly.
8. Turn on power to duplex outlet if previ-
ously turned off per warning in column 1,
page 14.
9. Plug in blower power cord to duplex outlet
(see Figure 12, page 14).
10. Using ON/OFF rocker switch to turn
blower on and check for operation. Turn
blower off before continuing.
11. Peel off backing paper and stick supplied
wiring diagram decal on rebox bottom
approximately 12" in from of blower (see
Figure 18).
INSTALLATION
Continued
Figure 17 - Connecting Rocker Switch
ON/OFF
Rocker
Switch
Wire Harness
Connectors
Switch
Terminals
Black
110/115
V . A.C.
Blower
Motor
No. 1
Black
Hot
Nuetral
ON/OFF
Panel Switch
Blower
Motor
No. 2
Blower
Motor
No. 3
Figure 18 - BK3 Wiring Diagram
HARD-WIRING FIREBOX
-
The National Electric CodeANSI/
NFPA 70.
The “Handy Box” with duplex outlet is pro-
vided in the rebox located in the lower right
base area.
1. Remove screw holding duplex outlet cover
to handy box. Remove duplex outlet.
2. Route electrical cable through strain relief
and handy box (see Figure 19).
3. Connect electrical cable to duplex outlet.
Match wire colors to those on duplex out-
let. Be sure to connect the ground wire.
4. Place duplex outlet back into handy box
and secure with screws. Replace outlet
cover.
Strain Relief
Duplex Box/
Handy Box
Figure 19 - Hard-Wiring Firebox
12. Replace all panels and/or brick bottom
panel if previously removed.
www.fmiproducts.com
108662-01L 17
INSTALLATION
Continued
COMBUSTION AIR KIT MODEL AK4
The outside air kit may be installed on the
left side of the replace only. The vent can be
installed through any outside wall a minimum
of three feet below replace termination cap.
The handle to operate the damper door for the
outside air inlet will be located inside the left
“screen pocket” of the rebox (see Figure 20).
Pull the handle to open or push to close.
CAUTION: Air inlet ducts are
Figure 20 - Air Kit Handle Location
Air Kit
Handle
Screen Pocket
INSTALLING FIREPLACE HOOD
AND SCREEN
1. Attach hood to rebox using screws pro-
vided (see Figure 21).
2. Insert each rod through all rings located
at top of screen.
3. Insert rst rod into rear hole in left side
of rebox. Fasten rod to rear hole near
center of rebox using #10 x 3/8" Phillips
screw provided (see Figure 22).
4. Insert other rod into front hole on right
side of rebox and fasten using remaining
Phillips screw.
Figure 21 - Screw and Hood Placement
(Model May Vary From Illustration)
Figure 22 - Installing Fireplace Screen
(Model May Vary From Illustration)
Screw
Rear Hole
Top View of Rod Layout
Rod
Front
Hole
Ring
Screen
Identication
Label Location
Screws
Hood
www.fmiproducts.com 108662-01L18
REPLACEMENT PARTS
NOTICE: All accessories may
Purchase these accessories from your local
dealer. If they can not supply these accessories
call FMI PRODUCTS, LLC at 1-866-328-4537
for information. You can also write to the ad-
dress listed on the back page of this manual.
FIRE CRACKLE - CF6-A
Creates the sound of a real burning re.
BLOWER KIT
BK - Squirrel Cage Blower With Speed
Control
BK3 - Triple Fan Blower System
Note: Use only original replacement parts.
This will protect your warranty coverage for
parts replaced under warranty.
Contact authorized dealers of this product.
If they can’t supply original replacement
part(s), call FMI PRODUCTS, LLC at 1-866-
672-6040.
When calling, have ready:
• your name
• your address
• model and serial numbers of your heater
• how heater was malfunctioning
• purchase date
Usually, we will ask you to return the part to
the factory.
TECHNICAL SERVICE
You may have further questions about instal-
lation, operation, or troubleshooting. If so,
contact FMI PRODUCTS, LLC at 1-866-328-
4537. When calling please have your model
and serial numbers of your heater ready.
You can also visit our web site at
.
ACCESSORIES
OUTSIDE AIR KIT
AK4 - Complete Kit w/ Collar, Hood & 3' of
Flex Tube
AK4X - Collar and Hood (accepts any
length of 4" ex tube)
AK4B - 50 pc. Bulk Collar Only Kits
Optional kits provide additional air to reduce
build-up of condensation that occurs in today’s
tightly constructed homes. For optional use
on models with an “A” included in the model
number.
REFRACTORY BRICK LINER KIT
BL36H - 36" Textured Herringbone
BL42H - 42" Textured Herringbone
BL36HS - 36" Smooth Herringbone
BL42HS - 42" Smooth Herringbone
HOODS
H36B - 36" Brushed Brass
H36P - 36" Platinum
H42B - 42" Brushed Brass
H42P - 42" Platinum
www.fmiproducts.com
108662-01L 19
ACCESSORIES
Continued
MANTELS
32" WALL MANTELS
W32TU - 32" Unnished, Traditional
W32TO - 32" Oak Stain, Traditional
W32CO - 32" Oak Stain, Classic
W32DO - 32" Oak Stain, Dentil
W32GO - 32" Oak Stain, Georgian
32" CORNER MANTELS
C32TU - 32" Unnished, Traditional
C32TO - 32" Oak Stain, Traditional
C32CO - 32" Oak Stain, Classic
C32GO - 32" Oak Stain, Georgian
36" WALL MANTELS
W36TU - 36" Unnished, Traditional
W36TO - 36" Oak Stain, Traditional
36" CORNER MANTELS
C36TU - 36" Unnished, Traditional
C36TO - 36" Oak Stain, Traditional
Note: No 42" mantels offered at this time.
LOUVER TRIM (Rolled Louvers Only
LT32B - 32" Brushed Brass
LT32P - 32" Platinum
LT36B - 36" Brushed Brass
LT36P - 36" Platinum
LT42B - 42" Brushed Brass
LT42P - 42" Platinum
PERIMETER TRIM
PT32 - 32" Black
PT32B - 32" Brushed Brass
PT32P - 32" Platinum
PT36 - 36" Black
PT36B - 36" Brushed Brass
PT36P - 36" Platinum
PT42 - 42" Black
PT42B - 42" Brushed Brass
PT42P - 42" Platinum
FACE/LOUVER PANEL KITS
Smooth Faced - Black
SP32 - 32" Model, SP36 - 36" Model,
SP42 - 42" Model
SL32 - 32" Model, SL36 - 36" Model,
SL42 - 42" Model
Rolled - Black
RL32 - 32" Model, RL36 - 36" Model,
RL42 - 42" Model
FP32 - 32" Model, FP36 - 36" Model,
FP42 - 42" Model
FP32B - 32" Model, FP36B - 36" Model,
FP42B - 42" Model
FP32P - 32" Model, FP36P - 36" Model,
FP42P - 42" Model
Extruded- Black
ELK32 - 32" Model, ELK36 - 36" Model,
ELK42 - 42" Model
Extruded- Brushed Brass
ELK32B - 32" Model, ELK36B - 36" Model,
ELK42B - 42" Model
Extruded- Platinum
ELK32P - 32" Model, ELK36P - 36" Model,
ELK42P - 42" Model
www.fmiproducts.com 108662-01L20
1
2
3
6
7
9
28
29
4
8
14
12
13
11
16
15
10
17
18 19
24
25
26
23
27
22
21
20
5
PARTS
MODELS V32, V32A, V32S, V32AS, VFB32C, VFB32AC, VFB32NC,
VFB32ANC
This manual suits for next models
35
Table of contents
Other FMI Indoor Fireplace manuals
FMI
FMI FSDVBNC Quick start guide
FMI
FMI VG36A Series User manual
FMI
FMI CGMFN Safety guide
FMI
FMI VCD36RN Quick start guide
FMI
FMI (V)S42 SERIES Safety guide
FMI
FMI (V)DVF36NS Quick start guide
FMI
FMI VLDV43NE Specification sheet
FMI
FMI (V)GM36 Series Safety guide
FMI
FMI P324 Quick start guide
FMI
FMI L32HN User manual
FMI
FMI (V)G42/50 Safety guide
FMI
FMI GL36PN Quick start guide
FMI
FMI THE WINDSOR 368 ST User manual
FMI
FMI GL36St Quick start guide
FMI
FMI BVC-36Y Safety guide
FMI
FMI (V)PN36-A Safety guide
FMI
FMI Vs68ST Quick start guide
FMI
FMI DVFE34 Quick start guide
FMI
FMI FSF32NEWS User manual
FMI
FMI MF42INF Quick start guide
Popular Indoor Fireplace manuals by other brands
BYSKEUGNEN
BYSKEUGNEN Lilla Installation and operating instructions
Hearth and Home Technologies
Hearth and Home Technologies DV3732 installation manual
Nordica
Nordica DIAMOUND INSERT user manual
Monzana
Monzana DBHK005 manual
Pacific energy
Pacific energy PACIFIC FP30 Installation and operating instructions
Outdoor Lifestyles
Outdoor Lifestyles ODPLAZA-L24E owner's manual
Lennox Hearth Products
Lennox Hearth Products Brentwood SP Installation & operation manual
SEI
SEI FA1028059 Assembly
Napoleon
Napoleon GD82NT-PAESB Installation and operation manual
Dimplex
Dimplex BFSL33 owner's manual
SEI
SEI FA9664 Assembly
FireplaceXtrordinair
FireplaceXtrordinair 42 Apex Clean Face owner's manual
Northwest
Northwest WM50B owner's manual
United States Stove
United States Stove Country Hearth 2200IE Owner's operation and instruction manual
Duraflame
Duraflame DFI-5020-01 manual
La Hacienda
La Hacienda 58281 User instructions
Spark
Spark Fire Ribbon Installation & operation manual
Nordpeis
Nordpeis N-36A Exclusive user manual
