FMI (V)CB36N(E) User manual

VENTED GAS FIREPLACE
INSTALLATION AND OWNER’S OPERATION MANUAL
4" B-VENT DECORATIVE GAS FIREPLACES
MODELS(V)CB36N(E) AND (V)CB36P(E)
WARNING: If the information in this manual is not
followed exactly, a re or explosion may result causing
property damage, personal injury or loss of life.
— Do not store or use gasoline or other ammable
vapors and liquids in the vicinity of this or any other
appliance.
— WHAT TO DO IF YOU SMELL GAS
• Do not try to light any appliance.
• Do not touch any electrical switch; do not use any
phone in your building.
• Immediately call your gas supplier from a neighbor’s
phone. Follow the gas supplier’s instructions.
• If you cannot reach your gas supplier, call the re
department.
— Installation and service must be performed by a quali-
ed installer, service agency or the gas supplier.
INSTALLER: Leave this manual with the appliance
CONSUMER: Retain this manual for future reference.
For more information, visit www.fmiproducts.com
PFS
®
US

www.fmiproducts.com 117437-01F2
WARNING: Improper
installation, adjustment,
alteration, service or
maintenance can cause
injury or property dam-
age. Refer to this manual
for correct installation
and operational proce-
dures. For assistance or
additional information
consult a qualified in-
staller, service agency or
the gas supplier.
This appliance may be in-
stalled in an aftermarket,*
permanently located,
manufactured (mobile)
home, where not prohib-
ited by local codes.
This appliance is only for
use with the type of gas
indicated on the rating
plate. This appliance is
not convertible for use
with other gases.
* Aftermarket: Completion of sale, not for
purpose of resale, from the manufacturer
WARNING: This product
contains and/or generates
chemicals known to the State
of California to cause cancer or
birth defects or other reproduc-
tive harm.
IMPORTANT: Read this owner’s
manual carefully and completely
before trying to assemble, op-
erate or service this replace.
Improper use of this replace
can cause serious injury or death
from burns, fire, explosion,
electrical shock and carbon
monoxide poisoning.
DANGER: Carbon monoxide
poisoning may lead to death!
This fireplace complies with the National
Safety Standards and is listed and tested by
PFS Corporation to ANSI Z21.50 standard as
vented gas replace.
NOTICE: Decorative product not
for use as a heating appliance.
SAFETY
TABLE OF CONTENTS
Safety .................................................................. 2
Product Identication ........................................... 4
Local Codes......................................................... 4
Product Features ................................................. 5
Pre-Installation Preparation ................................. 5
Installation Precautions ....................................... 9
Venting Installation .............................................. 9
Installing Optional Controls................................ 12
Fireplace Installation.......................................... 15
Operating Fireplace ........................................... 20
Inspecting Burners............................................. 23
Cleaning and Maintenance ................................ 24
Specications .................................................... 25
Service Hints ..................................................... 25
Technical Services ............................................. 25
Troubleshooting ................................................. 26
Replacement Parts ............................................ 31
Accessories ....................................................... 31
Parts .................................................................. 32
Warranty ..............................................Back Cover
State of Massachusetts:
The installation must
be made by a licensed
plumber or gas tter in
the Commonwealth of
Massachusetts.

www.fmiproducts.com
117437-01F 3
Due to high temperatures, the
appliance should be located out
of trafc and away from furniture
and draperies.
Do not place clothing or other
ammable material on or near
the appliance. Never place any
objects on or around replace.
Fireplace reaches high tempera-
tures. Keep children and adults
away from hot surface to avoid
burns or clothing ignition. Fire-
place will remain hot for a time
after shutdown. Allow surfaces
to cool before touching.
Do not operate replace with
glass door removed, cracked
or broken.
Carefully supervise young chil-
dren when they are in the room
with the replace.
Keep the appliance area clear
and free from combustible ma-
terials, gasoline and other am-
mable vapors and liquids.
This product is intended only
as a supplement to your central
heating system and is not to be
installed as a primary source of
heat. You may use this product
for emergency heating during a
power outage.
1. This appliance is only for use with the type
of gas indicated on the rating plate. This
appliance is not convertible for use with
other gases unless a certied kit is used.
2. Do not place propane/LP supply tank(s)
inside any structure. Locate propane/
LP supply tank(s) outdoors (propane/LP
units only).
SAFETY
Continued
This replace is a vented product. This replace
will not produce any gas leakage into your
home if properly installed. This replace must
be installed by a qualied (certied or licensed)
service person. If this unit is not properly in-
stalled by a qualied service person gas and/or
carbon monoxide leakage (spillage) can occur.
Carbon Monoxide Poisoning: Early signs of
carbon monoxide poisoning resemble the u,
with headaches, dizziness or nausea. If you
have these signs, the replace may not be
working properly. Get fresh air at once! Have
replace serviced. Some people are more af-
fected by carbon monoxide than others. These
include pregnant women, people with heart or
lung disease or anemia, those under the inu-
ence of alcohol and those at high altitudes.
Natural and Propane/LP Gas: Natural and
propane/LP gases are odorless. An odor-mak-
ing agent is added to these gases. The odor
helps you detect a gas leak. However, the
odor added to the gas can fade. Gas may be
present even though no odor exists.
Make certain you read and understand all
warnings. Keep this manual for reference. It
is your guide to safe and proper operation of
this replace.
WARNING: Any change to
this replace or its controls can
be dangerous.
WARNING: Do not use a blow-
er insert, heat exchanger insert
or other accessory not approved
for use with this replace.
WARNING: Do not allow fans
to blow directly into the replace.
Avoid any drafts that alter burner
ame patterns. Ceiling fans can
create drafts that alter burner
ame patterns. Altered burner
patterns can cause sooting.

www.fmiproducts.com 117437-01F4
3. If you smell gas
• shut off gas supply
• do not try to light any appliance
• do not touch any electrical switch; do not
use any phone in your building
• immediately call your gas supplier from
a neighbor’s phone. Follow the gas sup-
plier’s instructions
• if you cannot reach your gas supplier,
call the re department
4. Never install the replace
• in a recreational vehicle
• in windy or drafty areas where curtains
or other combustible (ammable) objects
can make contact with the replace front
• in high trafc areas
5. Do not modify this replace under any
circumstances. Any parts removed for
servicing must be replaced prior to operat-
ing replace.
6. Turn fireplace off and let cool before
servicing, installing or repairing. Only a
qualied service person should install,
service or repair this replace.
7. You must keep control compartments,
burners and circulating air passages
clean. More frequent cleaning may be
needed due to excessive lint and dust
from carpeting, bedding material, etc.
Turn off the gas valve and pilot light before
cleaning replace.
SAFETY
Continued
Figure 1 - B-Vent Fireplace
PRODUCT
IDENTIFICATION
Top Louver Panel
Glass
Door
Assembly
Bottom
Louver
Panel
Junction Box
(Electronic
Ignition Only)
Control
Valve Ember Tray
Log Set
Nailing
Flange
4" B-Vent
Flue Collar
8. Have replace and venting system inspect-
ed annually by a qualied service person.
If needed, have venting system cleaned or
repaired. See Cleaning and Maintenance,
page 24.
9. Do not use this replace to cook food or
burn paper or other objects.
10. Do not use any solid fuels (wood, coal, pa-
per, cardboard, etc.) in this replace. Use
only gas type indicated on nameplate.
11. This appliance, when installed, must be
electrically grounded in accordance with
local codes or, in the absence of local
codes, with the National Electric Code,
ANSI/NFPA 70.
12. Do not use replace if any part has been
exposed to or under water. Immediately
call a qualied service technician to ar-
range for replacement of the unit.
13. Do not operate replace if any log is bro-
ken or missing.
14. To prevent performance problems, do
not use propane/LP fuel tank of less than
100 lb. (45 kg) capacity (propane/LP
units only).
15. Provide adequate clearances around air
openings.
LOCAL CODES
Install and use replace with care. Follow all
local codes. In the absence of local codes,
use the latest edition of The National Fuel
Gas Code ANSI Z223.1/NFPA 54*.
*Available from:
American National Standards Institute, Inc.
1430 Broadway
New York, NY 10018
National Fire Protection Association, Inc.
Batterymarch Park
Quincy, MA 02269

www.fmiproducts.com
117437-01F 5
PRODUCT FEATURES
These are a few facts that can help you un-
derstand and enjoy your vented decorative
replace:
• The (V)CB36N(E) and (V)CB36P(E) series
of vented decorative replaces may be
recessed into an exterior chase, an interior
ush wall enclosure or a framed-in corner
installation.
• Models (V)CB36N and (V)CB36P are
equipped with a millivolt gas control system
that does not require electricity to operate.
A piezo ignitor is provided to light the pilot
without using matches or lighters.
• Models (V)CB36N(E) and (V)CB36P(E)
are equipped with an electronic ignition
system that requires 120 VAC to operate.
An electrode ignitor automatically lights the
pilot ame when the replace is turned on.
• These replaces can accept any approved
4" B-Type venting system and must be
terminated vertically through the roof using
Through exterior wall
enclosed in a chase
Corner
Installation
Flush with a wall
Figure 2 - Common Fireplace Locations
25"
(63.5 cm)
36"
(91.4 cm)
36"
(91.4 cm)
Figure 3 - Fireplace Bottom Dimensions
a listed type vent cap only. See venting
instructions starting on page 8 for proper
venting requirements.
• These vented replaces require indoor air
for combustion and must be installed in a
room of sufcient size to provide adequate
fresh air for safe and proper operation. The
room intended for installation must be of
sufcient size to meet the requirements
for an unconned space as dened in the
National Fuel Gas Code, ANSI Z223.1/
NFPA 54. Air for Combustion and Ventila-
tion. If sufcient air for combustion is not
available a makeup air kit model AK4 may
be required to provide outside air to this
appliance. Check your local codes as to
specic requirements for make up air.
• This replace may be installed in any room
of the house provided all local codes and
these installation instructions are followed.
PRE-INSTALLATION PREPARATION
LOCATION AND SPACE
REQUIREMENTS
Determine the safest and most efcient loca-
tion for your FMI PRODUCTS, LLC B-vent
replace. Make sure that rafters and wall
studs are not in the way of the venting system.
Choose a location where the heat output is
not affected by drafts, air conditioning ducts,
windows or doors. Figure 2 shows some com-
mon locations. Be aware of all restrictions and
precautions before deciding the exact location
for your replace and termination cap.
When deciding the location of your replace,
follow these rules:
• Do not connect this replace to a chimney
ue servicing a separate solid fuel burning
replace or appliance.
• Do to high temperatures, do not locate this
replace in high trafc areas, windy or drafty
areas, or near furniture or draperies.
• Proper clearances must be maintained.
• If your replace is to be installed directly on
carpeting, vinyl, tile or any combustible mate-
rial other than wood, it must be installed on a
metal or wood panel extending the full width
and depth of the replace (see Figure 3).
• Only trim kits supplied by FMI PRODUCTS,
LLC shall be used in the installation of this
replace, see Accessories, page 31.
• Do not install aftermarket vent dampers.
Manual or automatic vent dampers are not
approved for use with this appliance.

www.fmiproducts.com 117437-01F6
• Your replace is designed to be used in
zero clearance installations. Wall or framing
material can be placed directly against any
exterior surface on the back, sides or top
of your replace, except when clearances
are required from ue vent pipe, see Clear-
ances.
• If recessed into a wall, you can avoid extra
framing by positioning your replace against
an already existing framing member.
• A hearth extension is not required with
this appliance. If one is installed, it is for
aesthetic purposes only and does not have
to meet standard requirements for hearth
extensions.
• If you plan on installing a television or
entertainment center recessed above your
replace, it is recommended that you main-
tain a minimum 18" (45.7 cm) above the top
of louver opening.
• When locating the termination cap, it is im-
portant to observe the minimum vent height
and clearances required under code, see
Venting Installation Instructions, page 9.
• Do not recess termination cap into a wall
or siding.
• You may paint the termination cap with 450°
F (232° C) heat resistant paint to coordinate
with the exterior nish.
PACKAGING AND REMOVAL
The (V)CB36 vented decorative gas replaces
are packaged with the following items:
• one box containing a 4 piece log set located
on the burner in the rebox.
• one bag containing the owner’s manual
with installation instructions, operator’s
guide, and warranty information.
• one bag of glowing ember material.
• one bag of vermiculite hearth treatments.
1. Remove shrink wrap securing 2 carton
trays to unit.
2. Lift top carton tray off and remove four
corner posts.
3. Discard bottom tray once unit is moved
into position.
Note: To prevent damage to ceramic logs and
glass panels you may want to remove them
before positioning and framing the unit. To
access rebox, see Louver Panels and Glass
Door, page 17.
PRE-INSTALLATION PREPARATION
Continued
CLEARANCES
Minimum clearances to combustibles for
replace:
Back, Sides, Floor and Top 0" (0 mm)
Perpendicular walls 10" (25.4 cm)
Ceiling to Louver & Front 36" (91.4 cm)
B-Vent Surfaces 1" (26 mm) (See venting
instructions for specics
on vent clearances.)
Mantel Clearances (See Mantel Clearances,
page 8, for specic clear-
ances to combustible
mantels.)
Combustible material with a maximum thick-
ness of 5/8" (16 mm) may be ush with top
and sides of front face of replace.
FRAMING AND FINISHING
Figure 5, page 7, shows typical framing of this
replace. Figure 6, page 7, shows framing for
corner installation. All minimum clearances
must be met.
For overall unit dimensions, framing allow-
ances and vent collar locations, see Figure
7 on page 7.
For available accessories for this replace,
see Accessories, page 31. If you are using a
separate combustible mantel piece, refer to
Figures 8 and 9, page 8, for proper height and
clearances. You can install a noncombustible
mantel at any height above the fireplace
opening.
Note: Noncombustible mantels may discolor!
Figure 4 - Unpacking Fireplace
Carton
Tray
Glass
Panel
Log
Carton
Corner
Post

www.fmiproducts.com
117437-01F 7
Figure 5 - Framing Clearances for Flush
Wall Installation
36"
(91.4 cm)
36 1/4"
(92.1 cm) 14 3/4"
(37.5 cm)
Figure 6 - Framing Clearances for Corner
Installation
28 5/8"
(72.7 cm)
21" (53.3 cm)
To Center of
Top Vent
14 3/4"
(37.5 cm)
14 3/4" (37.5 cm)
to Nailing
Flanges
56 3/4"
(144 cm)
12 1/4"
(31 cm)
to Opening
PRE-INSTALLATION PREPARATION
Continued
Figure 7 - Unit Dimensions
14 3/4" (37.5 cm)
to Nailing Flanges
7 7/8" (20 cm) to
Center of 4" B-Vent
5 7/8"
(15 cm) to
Nailing
Flange
36 1/4" (92.1 cm)
to Nailing Flange
36 1/4" (92.1 cm)
Face Dimensions
1 1/2" (3.8 cm)
2 1/2" (6.4 cm)
6" (15.2 cm)
5/8"
(16 mm)
11 1/8"
(28.3 cm)
Air Kit Location
1 1/4"
(3.2 cm)
2"
(5.1 cm)
38"
(96.5 cm)
15 3/8"
(39 cm)
36" (91.4 cm)
Face Dimensions
37" (94 cm)
to Nailing Flange
35 3/4"
(90.8 cm)
4 1/2" (11.4 cm) Electrical Inlet
36 3/4" (93.4 cm)
Wall Switch
Wireway Wall Switch
Wireway
8" (20.3 cm)
Gas Supply
Inlet
**These dimensions allow for 1" clearance at
sides and back of replace. However, 0" clearance
is also permitted at all sides when framed.
**

www.fmiproducts.com 117437-01F8

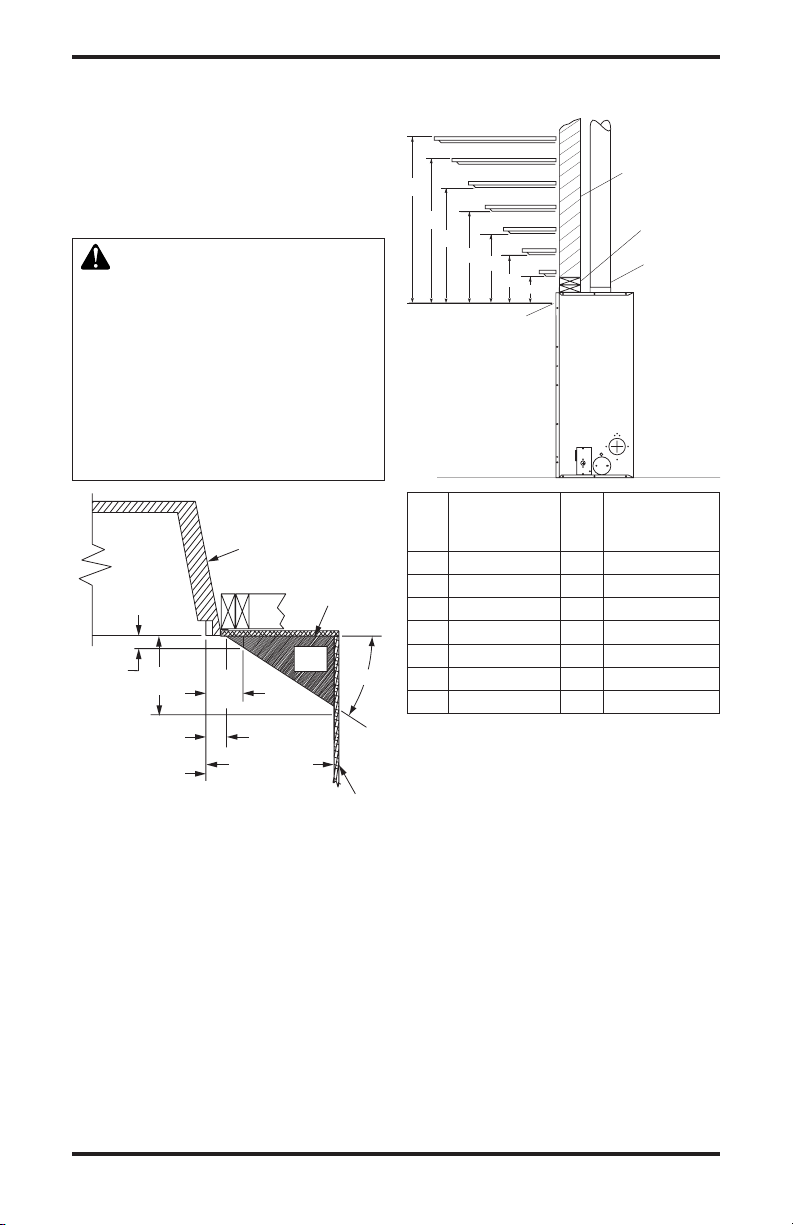

Figure 9 - Clearances for Combustible
Mantels
Figure 8 - Side Clearances for
Combustible Mantels
PRE-INSTALLATION PREPARATION
Continued
1 1/2"
(3.8 cm) 3 1/2"
(8.9
cm)
Outer
Surround
Combustible
Material May
Be Used
Perpendicular
Side Wall
5 1/4"
(13.3 cm)
1 3/4"
(4.4 cm)
To Fireplace
Opening
10" (25.4 cm)
33°
Safe
Zone
Ref. Mantel Depth Ref.
Mantel from
Top of Louver
Opening
116" (40.6 cm) A 18" (45.7 cm)
214" (35.6 cm) B 16" (40.6 cm)
312" (30.5 cm) C 14" (35.6 cm)
410" (25.4 cm) D 12" (30.5 cm)
58" (20.3 cm) E 10" (25.4 cm)
64" (10.2 cm) F 8" (20.3 cm)
72" (5.1 cm) G 6" (15.2 cm)
C
B
A
DE
FG
Top of Louver
Opening
3
2
1
4
5
6
7
Stud Wall
4" B-Vent
Flue Pipe
2 x 4 Header
at 1" Min.
Clearance
MANTEL CLEARANCES
Figure 8 shows projected mantel depths at
various heights above top of louver opening.
Figure 7, page 7, shows minimum allowable
distances from various mantel components in
relation to both sides of replace opening.
WARNING: When nishing
appliance do not overlap com-
bustible materials onto the black
front face. Brick, tile or other
noncombustible materials may be
applied to the face provided that
any replace openings are not
blocked and gaps in the material
used and the face are sealed with
a noncombustible caulking.

www.fmiproducts.com
117437-01F 9
INSTALLATION PRECAUTIONS
NOTICE: Failure to follow these
instructions will void the warranty.
• Wear gloves and safety glasses for
protection
• Use extreme caution when using ladders
or when on roof tops
• Be aware of electrical wiring locations in
walls and ceilings
The following actions will void the warranty
on this product:
• Installation of any damaged venting
component
• Unauthorized modication of the venting
system (Do not cut or alter vent compo-
nents)
• Installation of any component part not
manufactured or approved by FMI PROD-
UCTS, LLC
• Installation other than as instructed by
these instructions
WARNING: Read all instruc-
tions completely and thoroughly
before attempting installation.
Failure to do so could result in
serious injury, property damage
or loss of life.
WARNING: B-type vent pipe
airspace clearance to combus-
tibles is 1" on all sides. Where
the vent pipe passes through a
vertical wall a listed thimble ap-
proved for use with B-type vent
must be used.
VENTING INSTALLATION
A 4" B-type venting system must be connected
to the appliance for venting to the outside of
the building.
The following section is provided as a guide to
install a standard B-type vent installation.
Standing code requirements concerning
B-type vent installations may vary within
your state, province or local codes jurisdic-
tion. Therefore, it is recommended that you
check with your local building code authority
for specic requirements or in absence of
local codes, follow Section 7.0 of the cur-
rent National Fuel Gas Code NFPA 54/ANSI
Z223.1 for Category I systems using double
wall B-1 vent pipe.
This gas appliance must be vented to the
outdoors only and may not be terminated into
an attic space or into a chimney ue servicing
a solid fuel burning appliance.
This appliance may be vented through a
manufactured chimney liner system if all are
listed, inspected and approved by local codes
and/or building authorities.
The examples shown in Figure 10, page 10,
are typical of most B-vent installations and
code practices.
WARNING: This gas replace
and vent assembly must be vented
directly to the outside. The venting
system must NEVER be attached
to a chimney serving a separate
solid fuel burning appliance.
Example 1: Shows the minimum allowable sys-
tem height and lateral offset for a 60° or greater
inclination. Code species that offsets at 60° or
greater are considered horizontal and must fol-
low the 75% rule for lateral to total vertical sys-
tem height. Codes also allows only one offset
in the total system when at 60° or greater. The
total vertical height in this example represents
the minimum height of 8 feet and therefore the
allowable lateral is 6 feet when the 75% rule
applies. If the lateral length must exceed 75%
then the system must be sized in accordance
with the Category I venting tables.
Example 2: Shows multiple offsets each at
45° of inclination. Multiple offsets are permit-
ted if they do not exceed 45° of inclination.
The total lengths of the two offsets are not
required to meet the 75% rule.
Example 3: Shows a single offset at 45° of
inclination and therefore the lateral length at 10
feet of offset does not have to meet the 75%
allowable rule.

www.fmiproducts.com 117437-01F10
In each case the offsets must be supported
and restops must be positioned wherever
the vent must pass through a sub-oor, ceil-
ing joist or an attic overhang. The vent pipe
must terminate vertically into a listed type vent
cap and extend a sufcient height through
an approved roof ashing, roof jack or a roof
thimble. At all points the listed clearances
must be maintained.
Vent terminations must be located in ac-
cordance with height and proximity rules of
NFPA No. 54. These rules apply to vents at
12" diameter or less and require a minimum
height in accordance with the roof pitch and
a minimum of 8 foot distance from a vertical
wall or obstruction (see Figure 11).
If venting horizontally through a side wall be-
comes necessary, a listed thimble approved
for use with B-type vent must be used. Check
with your local codes before venting through
a side wall.
Some codes areas allow the use of existing B-
type vent systems if the system is at or above
the recommended diameter of the ue.
The ue connection must be made using listed
B-type connectors and the existing system
must be code inspected for damage and proper
installation.
It is not recommended that this appliance be
common vented with and existing gas burning
appliance. However, if it becomes necessary
to common vent the appliance. The venting
system must be sized and congured in ac-
cordance with the common venting guides
Appendix G of the current National Fuel Gas
Code NFPA No. 54/ANSI Z223.1.
Note: Before connecting this appliance to an
existing vent system or a common venting
system consult with your local architect plan-
ner, or building ofcial.
CHECKING FOR PROPER VENTING
VENTING INSTALLATION
Continued
Lowest
Discharge
Opening
Listed
Vent Cap
8 Ft. Min.
Roof Pitch x/12
Listed Clearance
12
x
Listed
Gas
Vent
H (Min)
Height
From Roof
Figure 11 - B-Vent Termination
Roof Pitch H (Min.)
Flat to 6/12 1.0 ft (0.3 m)
6/12 to 7/12 1.25 ft (0.38 m)
Over 7/12 to 8/12 1.5 ft (0.46 m)
Over 8/12 to 9/12 2.0 ft (0.61 m)
Over 9/12 to 10/12 2.5 ft (0.76 m)
Over 10/12 to 11/12 3.25 ft (0.99 m)
Over 11/12 to 12/12 4.0 ft (1.22 m)
Over 12/12 to 14/12 5.0 ft (1.52 m)
Over 14/12 to 16/12 6.0 ft (1.83 m)
Over 16/12 to 18/12 7.0 ft (2.13 m)
Over 18/12 to 20/12 7.5 ft (2.27 m)
Over 20/12 to 21/12 8.0 ft (2.44 m)
Figure 10 - Typical B-Vent Conguration
Maintain
Listed
Clearance
Maintain
Listed
Clearance
12' Min.
12' Min. 45°
45
6'
8'
12' Min.
60 45
Position
Firestop
Position
Firestop
Position
Firestop
Listed
Vent Cap
Listed
Vent Cap
Listed
Vent Cap
Maintain
Listed
Clearance
Maintain
Listed
Clearance
Maintain
Listed
Clearance
Maintain
Listed
Clearance
Support Each
Lateral At
Least Every
6 Feet
Maintain
Listed
Clearance
10'
EXAMPLE 3EXAMPLE 2
EXAMPLE 1

www.fmiproducts.com
117437-01F 11
VENTING INSTALLATION
Continued
After completing and checking electrical,
gas and vent connections, follow lighting
instructions and allow main burner to run for
approximately 5 minutes. Hold a match or
butane lighter ame, near opening between
glass and replace face and play it along
entire length of opening (Smoke may also be
used). Proper venting will tend to draw ame
or smoke into appliance. Improper venting,
escaping or spillage of burned gas, is indi-
cated when match ickers or goes out (see
Figure 12). Smoke will also tend to disperse
away from appliance.
If appliance is not venting properly, shut it off
and notify your installer or a qualied service
agency to inspect venting system.
ELECTRICAL SUPPLY CONNECTION
Figure 12 - Checking for Spillage
Figure 13 - Relocating Junction Box Recep-
tacle and Electrical Supply Connection
CAUTION: Disconnect the
electrical power to the supply
circuit before attempting to con-
nect or service this appliance.
A prewired junction box receptacle with strain
relief is provided on right side of cabinet for
hard wiring unit to a 15 Amp, 120 VAC, 60 Hz
grounded branch circuit. If installation demands
electrical supply be connected from the left, the
entire receptacle box can be relocated to the
left side by following these instructions:
J-Box
Cover
with Strain
Relilef
J-Box
Cover
Romex
Cable
J-Box with
Receptacle
J-Box Cover
with Strain
Relief
Screw/Tab
Retainer
Note: If you do not need to relocate the junc-
tion box, to connect the electric supply follow
steps 8 through 11 only:
1. Remove 2 screws and outer cover with
strain relief bushing on right side of cabi-
net (see Figure 13).
2. Remove inner retaining screw on junction
box mounting tab.
3. Slide junction box up until screw mounting
tab is lined up to notch in outer cabinet.
4. Swing junction box out and slip retaining
ange out through slot in outer cabinet.
5. Remove 2 screws and outer cover on left
side of outer cabinet.
6. Reinsert junction box retaining flange
through slot now on left side and swing
screw mounting tab back through notch
as before.
7. Slide junction box down till mounting tab
holes line up and replace inner retaining
screw.
8. With junction box cover removed, pull
end of 3-wire Romex supply line through
universal strain relief bushing on cover.
(see Figure 13).
9. Strip back outer Romex to about 4" and
connect black, white and green wires ac-
cordingly using 3 wire nut connectors.
10. Tuck tailing wires into junction box and
replace junction box cover using 2 remain-
ing screws.
11. Tighten adjustment on universal strain
bushing to secure Romex sheathing and
complete supply connection.

www.fmiproducts.com 117437-01F12
WARNING: This appliance,
when installed must be electri-
cally grounded in accordance
with local code or in the absence
of local code, with the current
National Electric Code, ANSI/
NFPA 70.
HIGH ALTITUDE INSTALLATION
Your FMI PRODUCTS, LLC B-vent replace
has been tested and approved in the USA for
elevations from 0-2,000 feet.
VENTING INSTALLATION
Continued
When installing a non-high altitude replace
at an elevation above 2,000 feet, you may
need to decrease the input rating by changing
the existing burner orice to a smaller size.
Reduce input 4% for each 1,000 feet above
sea level. Check with your local gas company
for proper orice size identication.
Consult your local gas company to help deter-
mine the proper orice for your location.
For assistance with any high altitude installa-
tion contact FMI PRODUCTS, LLC’s Custom-
er Service Department at 1-866-328-4537.
INSTALLING OPTIONAL CONTROLS
INSTALLING OPTIONAL WALL
MOUNT SWITCH - GWMS2
1. Connect one terminal of 15 foot wire from
wall switch to male connector on high limit
harness. Connect remaining wire terminal
to TH terminal on valve. Make sure that
wire terminals are in positions on unit as
pictured in Figure 14. If wires are not con-
nected as shown switch will not work.
2. Route 15 foot wire through hole openings
with bushings provided on either side of
replace cabinet.
3. Connect one bare wire end to each of
terminals of GWMS2 wall switch.
4. Install wall switch and cover in wall.
IMPORTANT: Do not use any other wire than
that provided with GWMS2 wall switch kit. Do
not exceed 15 feet of distance from valve con-
nection. Using wire of higher gauge or turns
or exceeding minimum distance will increase
resistance at control valve causing unreliable
performance of replace controls.
Remote Receiver
or Wall Switch to
Terminal Marked “TH”
Wire Harness From
High Limit Switch
Male Connector to
Remote Receiver
or Wall Switch

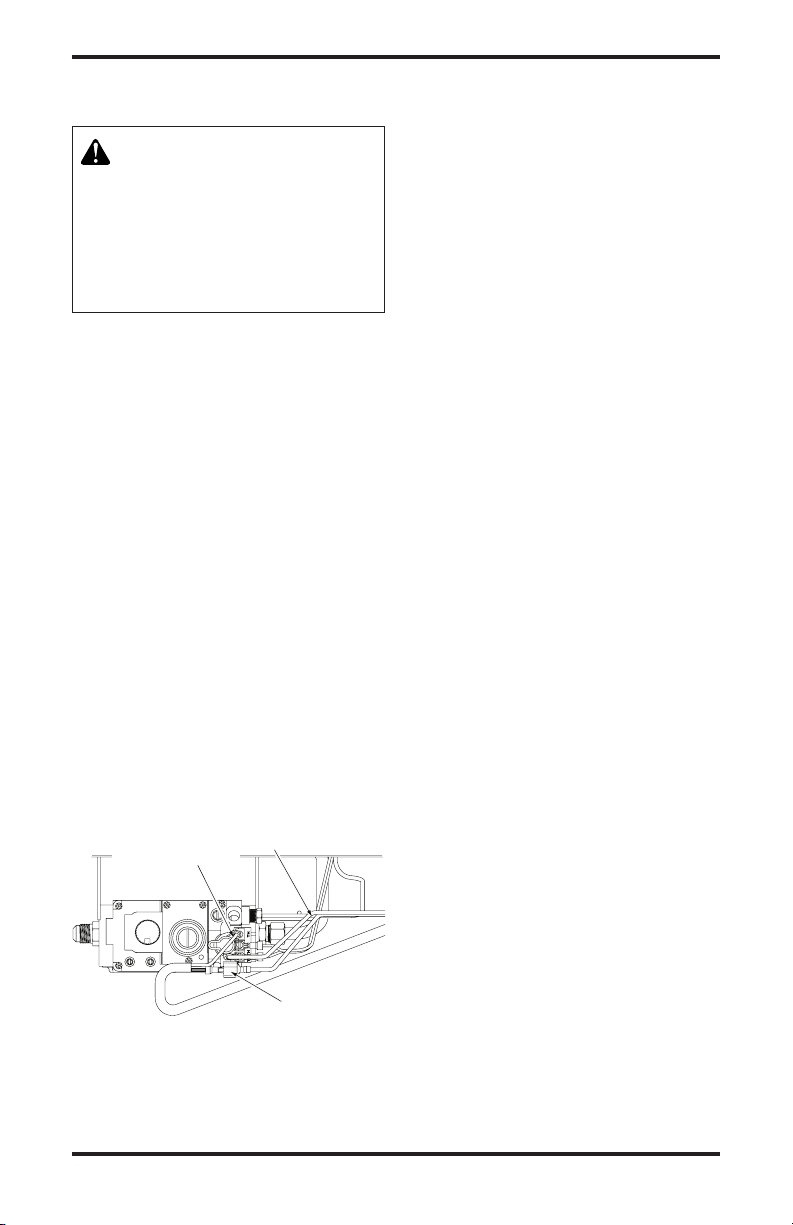

Figure 14 - Connecting Remote Receiver
or Wall Switch to the Gas Control Valve

www.fmiproducts.com
117437-01F 13
INSTALLING OPTIONAL CONTROLS
Continued
Figure 15 - Installing WRC Remote Receiver
Figure 16 - Installing Battery into Back of
Handset
Fireplace
Receptacle
Remote
Control
Receiver
Extension Cord
Ignition
Module
Plug
Pull to
Remove
Insulation
Tab
Battery Cover
12 Volt Battery Back of Handset
INSTALLING OPTIONAL WIRELESS
REMOTE CONTROL - MODEL WRC
(Electronic Ignition)
Installing and Activating the Remote
Receiver
1. Open bottom louver and locate plug re-
ceptacle. Plug receptacle is located either
on right or left side of cabinet.
2. The WRC model receiver does not require
a battery. Receiver can be installed by
rst plugging short extension cord into
replace receptacle. Then plug receiver
unit into extension cord. Finally plug igni-
tion module plug into receiver unit (see
Figure 15).
3. Activate remote handset battery by re-
moving insulating tab on back of handset
(see Figure 16). Battery is included pre
installed
4. Once battery is activated unit is ready to
use.
5. Replace bottom louver panel.

www.fmiproducts.com 117437-01F14
Figure 17 - Millivolt Ignition Wiring Diagram
Figure 18 - Electronic Ignition Wiring Diagram
TH
TP
TH/TP
WHITE
RED
DO NOT
CONNECT
TO 120V
HIGH LIMIT
SWITCH
N
O
T
O
L
P
F
F
O
I
NC
Pilot
Burner
Incoming
Main Gas
Supply
Thermocouple
Wall Switch/Remote Receiver
Replace factory wiring with
105° C equivalent or higher rating
External wiring use only Class 2
thermostat wire 18 Ga. Red/White
Millivolt Wiring Diagram
WIRING DIAGRAMS
NOTICE: This appliance is equipped with a vent safety shutoff switch
which will shut down the appliance in case of a venting problem. Do
not bypass the vent safety shutoff switch. If the appliance should
shut down, have a qualied installer, service agency, or your gas
supplier inspect the vent before operating.
CAUTION: label all wires prior to disconnection when servicing
controls. Wiring errors can cause improper and dangerous opera-
tion. Verify proper operation after servicing.
EV2
EV1
High Limit
Switch
Gas Valve
Orange
Red
Red
Transformer
Ignition Control
Module
Black
Black
Ground
120 VAC
White
24 VAC
Blue
Blue
High Voltage
MV PV TH P/MV GND TR
Green Ignition Module
ELECTRONIC IGNITION
WIRING DIAGRAM
Black
Pilot Burner
Ignitor
NC
INSTALLING OPTIONAL CONTROLS
Continued

www.fmiproducts.com
117437-01F 15
FIREPLACE INSTALLATION
Figure 19 - External Regulator with Vent
Pointing Down (Propane/LP Only)
Propane/LP Supply Tank
External
Regulator
with Vent
Pointing
Down
CAUTION: Use only new,
black iron or steel pipe. Inter-
nally-tinned copper tubing may
be used in certain areas. Check
your local codes. Use pipe of
1/2" diameter or greater to allow
proper gas volume to replace.
If pipe is too small, undue loss
of volume will occur.
Installation must include an equipment shutoff
valve, union and plugged 1/8" NPT tap. Locate
NPT tap within reach for test gauge hook up.
NPT tap must be upstream from replace
(see Figure 20).
CHECK GAS TYPE
Use only the correct type of gas (natural or
propane/LP). If your gas supply is not the
correct gas type, do not install replace. See
dealer where you purchased your replace for
proper gas type replace or to purchase gas
conversion kit (see Accessories, page 31).
INSTALLING GAS PIPING TO
FIREPLACE LOCATION
WARNING: A qualified
service person must connect
replace to gas supply. Follow
all local codes.
CAUTION: For propane/LP
units, never connect fireplace
directly to the propane/LP supply.
This replace requires an external
regulator (not supplied). Install the
external regulator between the
replace and propane/LP supply.
Installation Items Needed
Before installing replace, make sure you
have the items listed below.
• external regulator (supplied by installer)
• piping (check local codes)
• sealant (resistant to propane/LP gas)
• equipment shutoff valve *
• test gauge connection *
• sediment trap
• tee joint
• pipe wrench
• approved exible gas line with gas connec-
tor (if allowed by local codes)
* An equipment shutoff valve with 1/8" NPT
tap is an acceptable alternative to test gauge
connection. Purchase the equipment shutoff
valve from your retailer.
For propane/LP connection only, installer
must supply an external regulator. External
regulator will reduce incoming gas pressure.
You must reduce incoming gas pressure to
between 11" and 14" of water. If you do not
reduce incoming gas pressure, fireplace
regulator damage could occur. Install external
regulator with vent pointing down as shown in
Figure 19. Pointing vent down protects it from
freezing rain or sleet.

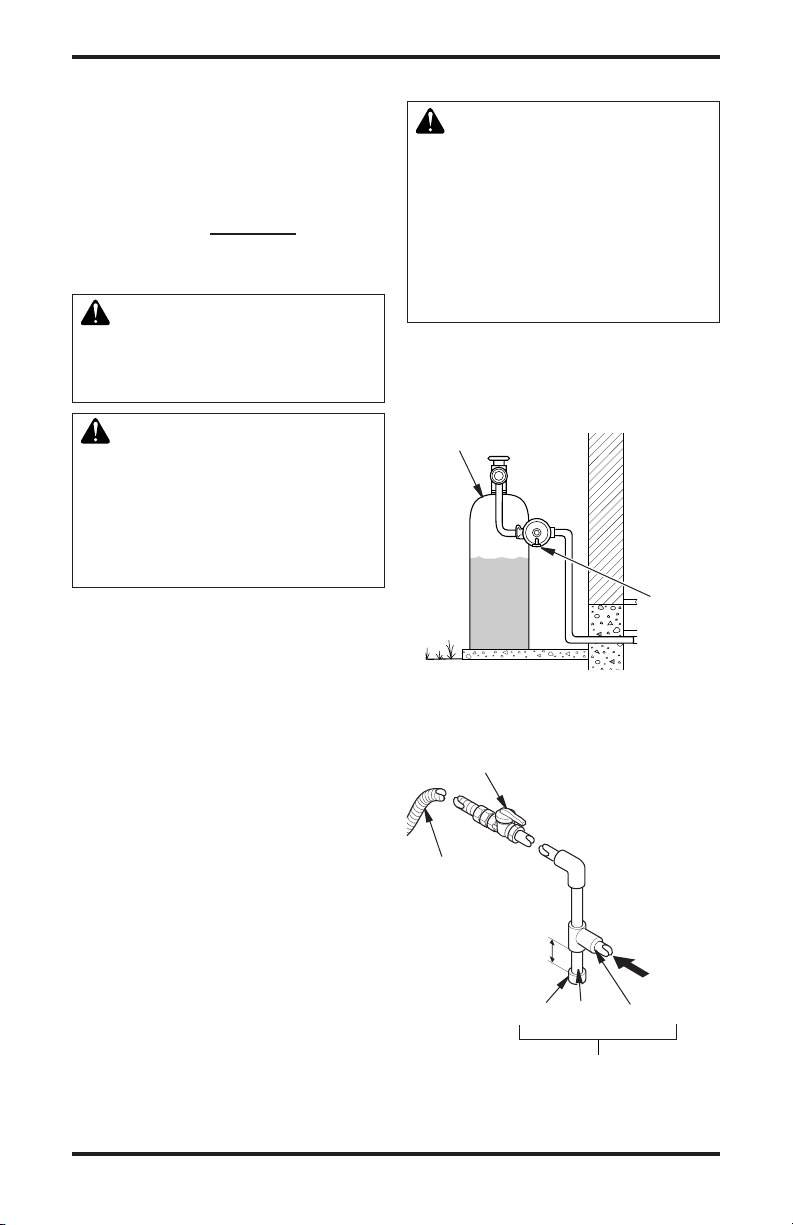

Figure 20 - Gas Connection
Equipment Shutoff Valve
with 1/8" NPT Tap*
3" Minimum
Approved
Flexible
Gas Line
Cap Pipe Tee Joint
Nipple
Sediment Trap/Drip Leg
Natural - From
Gas Meter (5.5"
W.C. to 10.5" W.C.
Pressure)
Propane/LP From
External Regulator
(11" W.C. to 14"
W.C. Pressure)
* The equipment shutoff valve may be sup-
plied with the appliance or you can purchase
it from your retailer.

www.fmiproducts.com 117437-01F16
FIREPLACE INSTALLATION
Continued
IMPORTANT: Install main gas valve (equip-
ment shutoff valve) in an accessible location.
The main gas valve is for turning on or shutting
off gas to appliance.
Check your building codes for any special
requirements for locating equipment shutoff
valve to replaces.
Apply pipe joint sealant lightly to male NPT
threads. This will prevent excess sealant from
going into pipe. Excess sealant in pipe could
result in clogged replace valves.
WARNING: Use pipe joint
sealant that is resistant to liquid
petroleum (LP) gas.
We recommend that you install a sediment
trap/drip leg in supply line as shown in Figure
20, page 15. Locate sediment trap/drip leg
where it is within reach for cleaning. Install
in piping system between fuel supply and
replace. Locate sediment trap/drip leg where
trapped matter is not likely to freeze. A sedi-
ment trap traps moisture and contaminants.
This keeps them from going into replace
gas controls. If sediment trap/drip leg is not
installed or is installed wrong, replace may
not run properly.
CONNECTING FIREPLACE TO GAS
SUPPLY
Installation Items Needed
• 3/4" and a 7/8" open end wrench or adjust-
able wrench
• sealant (resistant to propane/LP gas, not
provided)
1. Remove lower louver door panel by lifting
up until disengaged. Swing forward and
out of locating slots at bottom.
2. Route exible gas line (provided by in-
staller) from equipment shutoff valve to
replace. Route exible gas supply line
through one access hole on each side of
replace cabinet.
3. Attach exible gas line from gas supply
to the 1/2" are tting provided on control
valve (see Figure 21).
4. Check all gas connections for leaks (see
Checking Gas Connections).

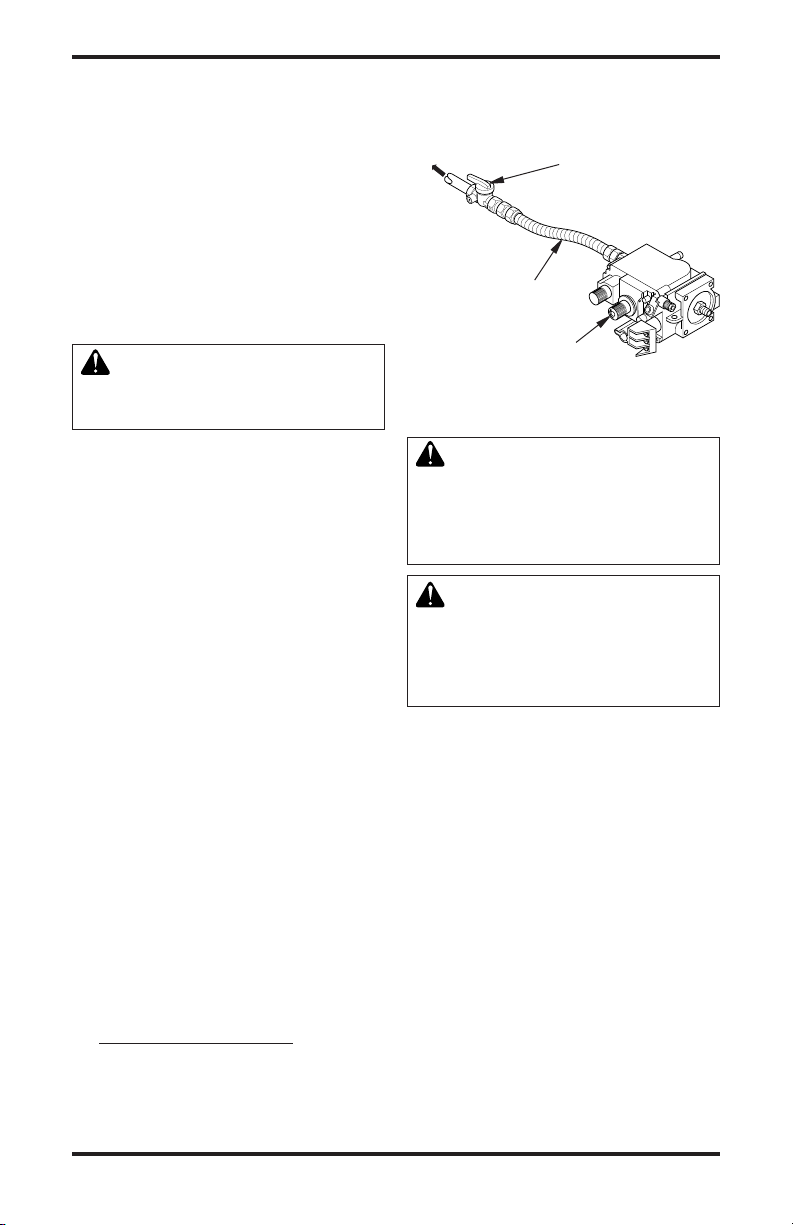

Figure 21 - Connecting Flexible Gas Line
to Millivolt Valve
Flexible Gas Line
Do NOT Kink
Equipment
Shutoff Valve
To Gas Supply
(Natural)
To External
Regulator
(Propane/LP)
Control Valve
CHECKING GAS CONNECTIONS
WARNING: Test all gas piping
and connections, internal and
external to unit, for leaks after
installing or servicing. Correct
all leaks at once.
WARNING: Never use an open
ame to check for a leak. Apply
noncorrosive leak detection uid
to all joints. Bubbles forming show
a leak. Correct all leaks at once.
PRESSURE TESTING GAS SUPPLY
PIPING SYSTEM
Test Pressures In Excess Of 1/2 PSIG
(3.5 kPa)
1. Disconnect replace and its individual
equipment shutoff valve from gas supply
piping system. Pressures in excess of 1/2
psig (3.5 kPa) will damage replace gas
regulator.
2. Cap off open end of gas pipe where equip-
ment shutoff valve was connected.
3. Pressurize supply piping system by either
opening propane/LP supply tank valve
for propane/LP gas replace or opening
main gas valve located on or near gas
meter for natural gas replace or using
compressed air.
4. Check all joints of gas supply piping sys-
tem. Apply noncorrosive leak detection
uid to all joints. Bubbles forming show a
leak. Correct all leaks at once.
5. Reconnect fireplace and equipment
shutoff valve to gas supply. Check recon-
nected ttings for leaks.

www.fmiproducts.com
117437-01F 17
Test Pressures Equal To or Less Than
1/2 PSIG (3.5 kPa)
1. Close equipment shutoff valve (see Fig-
ure 22).
2. Pressurize supply piping system by either
opening propane/LP supply tank valve
for propane/LP gas replace or opening
main gas valve located on or near gas
meter for natural gas replace or using
compressed air.
3. Check all joints from propane/LP supply
tank or gas meter to equipment shutoff
valve (see Figure 23, for propane/LP or
Figure 24, for natural gas). Apply noncor-
rosive leak detection uid to all joints.
Bubbles forming show a leak. Correct all
leaks at once.
FIREPLACE INSTALLATION
Continued
Figure 22 - Equipment Shutoff Valve
Open
Closed
Equipment
Shutoff Valve
Figure 23 - Checking Gas Joints for
Propane/LP Gas Fireplace
Propane/LP
Supply Tank
Gas Valve
Equipment Shutoff Valve
Figure 24 - Checking Gas Joints for
Natural Gas Fireplace
Gas
Meter
Gas Valve
Equipment
Shutoff
Valve
PRESSURE TESTING FIREPLACE GAS
CONNECTIONS
1. Open equipment shutoff valve (see Fig-
ure 22).
2. Open propane/LP supply tank valve for
propane/LP replace or main gas valve
located on or near gas meter for natural
gas replace.
3. Make sure control knob of replace is in
the OFF position.
4. Check all joints from equipment shutoff
valve to gas valve (see Figure 23, for
propane/LP or Figure 24, for natural gas).
Apply noncorrosive leak detection uid to
all joints. Bubbles forming show a leak.
Correct all leaks at once.
5. Light replace (see Operating Fireplace,
page 20). Check all other internal joints
for leaks.
6. Turn off replace (see To Turn Off Gas to
Appliance, page 20 or 21 depending on
your model).
LOUVER PANELS AND GLASS
DOOR
CAUTION: Do not operate
this replace with a broken glass
door panel or without the glass
door panel securely in place.
For replacement part informa-
tion see Replacement Parts,
page 31.
CAUTION: Wear gloves and
safety glasses while handling
or removing broken glass. Do
not remove if glass is hot. Keep
children and pets away from
glass.
WARNING: If replace has
been running, turn off and un-
plug replace. Let cool before re-
moving glass door or louvers.

www.fmiproducts.com 117437-01F18

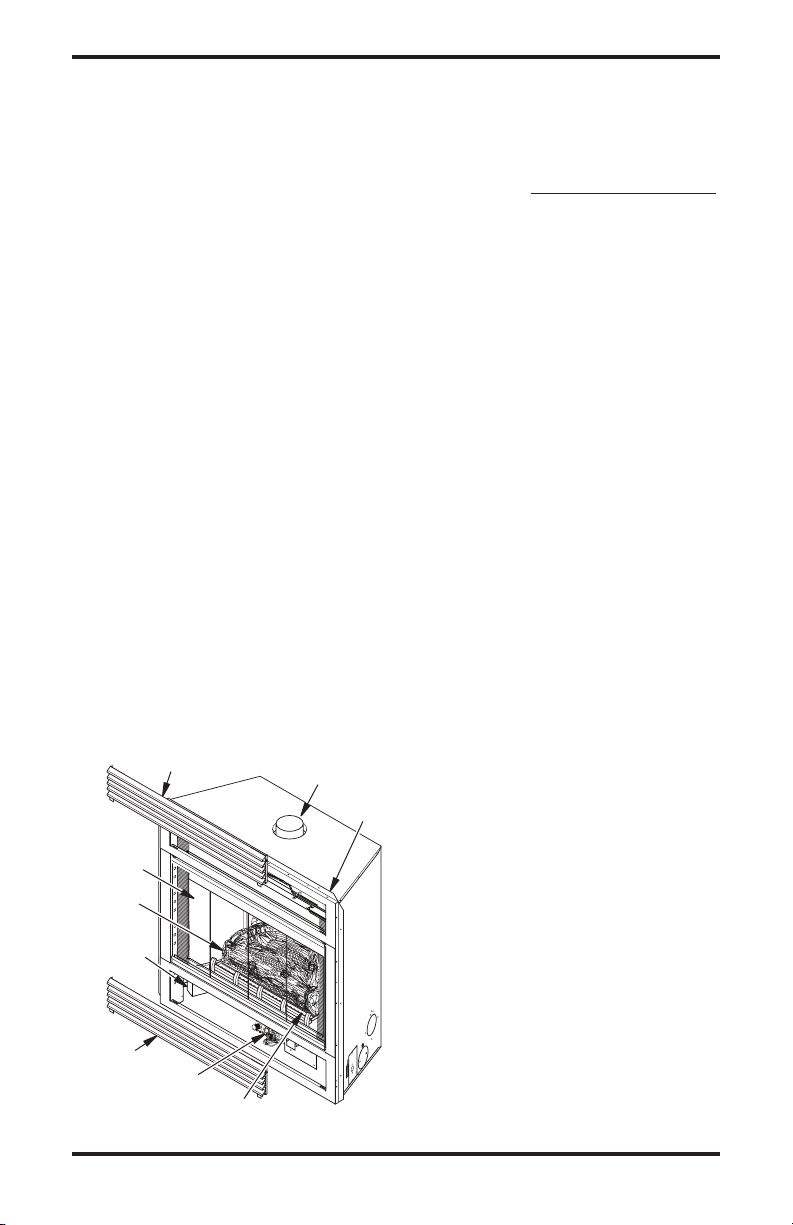

Figure 25 - Removing Louver Panel
Louver
Panel
Spring
Latch
Removing/Replacing Glass Door
WARNING: Handle glass
door panel with care. Do not
strike, slam or otherwise abuse
glass. Do not operate fire-
place with glass door removed,
cracked or broken.
If replacement of glass is necessary, the
entire assembly, glass and frame, must be
replaced. If glass is broken, wear gloves and
tape remaining fragments onto frame.
1. Placing a screw driver or your nger tips
into gap between lower glass panel rail
and bottom face frame, lift glass door as-
sembly until door pins clear locating holes
in bottom face frame (see Figure 26).
2. Swing bottom glass panel assembly out
until door pins on lower rail clear bottom
face frame (see Figure 27).
3. Lower door down until upper door pins are
free of locating holes in spring clips and
place in a safe area.
4. Replace glass panel in reverse order by
inserting top door pins into spring clips,
lifting up at lower frame rail and locating
bottom pins in holes on lower face frame.
FIREPLACE INSTALLATION
Continued
Figure 27 - Removing/Replacing Glass
Door
Spring Clips
Glass Panel
Frame Rail
1. Lift Up Panel
at Lower Rail
Figure 26 - Removing/Replacing Glass
Door
Locating
Hole
Door Pin
Glass Panel
Frame Rail
2. Swing Out
Panel
3. Lower
Panel Out
Removing Louver Panels
Remove top and bottom louver panels by
simultaneously pulling both top end spring
latches toward center of appliance until they
are disengaged from locating holes (see
Figure 25). Repeat for bottom spring latches
and pull louvers outward. To install or replace
items removed, simply reverse procedures
above.

www.fmiproducts.com
117437-01F 19
INSTALLING LOGS AND GLOWING
EMBERS
A 4 piece ceramic log set comes packed in-
side the unit rebox. Removal of glass door is
necessary to unpack and assemble logs and
add hearth treatments. Follow steps under
Removing/Replacing Glass Door, page 18 to
access logs and burner.
Assemble logs and add burner treatments
as follows:
1. Position base log onto burner log mounts
(see Figure 28).
Figure 28 - Installing Logs
FIREPLACE INSTALLATION
Continued
Figure 29 - Applying Ember Material
Note: Cut out on bottom should t over
mounts and base log should be positioned
against rear panel.
2. Position holes on bottom of rear log over
pins on base log (see Figure 28).
3. Position top left log and top right log
onto rear log and base log as shown in
Figure 28.
4. Break ember material into quarter sized
pieces and place a single layer along the
full length of ember tray to hide bottom
edge of base log (see Figure 29).
5. Replace glass door and louver panels
(see Removing/Replacing Glass Door,
page 18).
WARNING: The glass door
must be securely in place before
running this replace. Do not run
this replace if glass is missing
or broken.
Top
Right
Log
Top Left
Log
Rear
Log
Burner
Base Log
Rear Log
Stand
Burner
Pan
Log
Mounts
Ember
Tray
Ember
Material

www.fmiproducts.com 117437-01F20
O
F
F
P
I
L
O
T
O
N
OPERATING FIREPLACE
MANUAL IGNITION SYSTEM
FOR YOUR SAFETY
READ BEFORE LIGHTING
WARNING: If you do not fol-
low these instructions exactly,
a re or explosion may result
causing property damage, per-
sonal injury or loss of life.
A. This appliance is equipped with an igni-
tion device which automatically lights
the pilot. Do not light pilot by hand.
B. BEFORE LIGHTING smell all around
the appliance area for gas. Be sure to
smell next to the oor because some
gas is heavier than air and will settle
on the oor.
WHAT TO DO IF YOU SMELL GAS
• Do not try to light any appliance.
• Do not touch any electric switch; do
not use any phone in your building.
• Immediately call your gas supplier
from a neighbor's phone. Follow the
gas supplier's instructions.
• If you cannot reach your gas supplier,
call the re department
C. Use only your hand to push in or turn
the gas control knob. Never use tools.
If the knob will not push in or turn
by hand, don't try to repair it, call a
qualied service technician. Force or
attempted repair may result in a re or
explosion.
D. Do not use this appliance if any part
has been under water. Immediately call
a qualied service technician to inspect
the appliance and to replace any part of
the control system and any gas control
which has been under water.
LIGHTING
INSTRUCTIONS
1. STOP! Read the safety information
above.
2. Open lower louver panel.
3. Turn off all electric power to the replace.
4. Push in gas control knob slightly and turn
clockwise to OFF (see Figure 30).
5. Wait ve (5) minutes to clear out any
gas. Then smell for gas, including near
Figure 30 - Control Valve Millivolt
the oor. If you smell gas, STOP! Follow
“B” in the safety information above. If you
don’t smell gas go to the next step.
6. The pilot is located by the main burner and
should not require accessing for lighting.
7. Turn gas control knob counterclockwise
to PILOT.
8. Push in gas control knob all the way and
hold. Immediately light the pilot by repeat-
edly pressing the piezo ignitor until a ame
appears. Continue to hold for about one
(1) minute after the pilot is lit. Release
gas control knob and it will pop up. Pilot
should remain lit. If it goes out, repeat
steps 5 through 8.
• If gas control knob does not pop up when
released, stop and immediately call your
service technician or gas supplier.
• If the pilot will not stay lit after several tries,
turn gas control knob to OFF and call your
service technician or gas supplier.
9. Turn on all electric power to replace.
10. Turn gas control knob counterclockwise
to ON.
11. To leave pilot lit and shut off burners only:
turn control knob clockwise to the
PILOT position. Set wall switch or remote
selector switch to OFF position to prevent
draining battery.
12. Close lower louver panel.
Gas Control Knob
Regulator Cap
Piezo Ignitor
TO TURN OFF GAS
TO APPLIANCE
1. Open lower louver panel.
2. Set the wall switch to “OFF” position or the
HRC selector switch (when equipped) to
prevent draining the battery.
3. Turn off all electric power to the appliance
if service is to be performed.
4. Push in gas control knob slightly and turn
clockwise to OFF.
5. Close lower louver panel.
6. Close equipment shutoff valve (see Figure
22, page 17).
