FNX Solar FLEX-GEN 600 User manual

User manual
Please read the manual carefully to avoid damaging the unit
FLEX-GEN 600
PORTABLE POWER STATION
USER MANUAL
v1.0

Please read the following information before you using
the power station.
For precautionary measures on handling,operating,etc.:
Safety Precautions (pages 1-3)
Handling Instructions(page 3-5).
We recommend that you thoroughly read the whole
manual before operating
Please read the instructions carefully before use.
Our company does not assume any responsibility for any
damage to your equipment caused by incorrect usage,
handling,or storage of the device.

User Manual
Thank you for choosing FLEX-GEN600.
Please read the user manual carefully before operating in
order to ensure safe and correct use of the product.
▇ This manual covers all essential knowledge in
operating this product.
▇ This manual is only applicable to FLEX-GEN600.
▇ Due to product improvements and upgrades,the
contents of product specifications and manuals may be
changed without prior notice. visit www.fnxsolar.ca to
check for updates.
▇ The images and screenshots used in this manual may
differ from the actual product.
▇ Copyright - it is strictly prohibited to copy the contents
of this manual without permission.

Symbols
(Page **):Reference page for more information
:warning about problems in the power supply
:Additional information
:Tips or advices for better use of the power pack
Suggestions for troubleshooting

Handling Precautions (Correct usage and storage of the
unit).......................................................................................... 3
List of included products ......................................................... 6
Product introduction ............................................................. 7
Product specifications ............................................................ 8
Introduction of the parts and functions ............................. 9
Operation instructions and precautions ............................. 11
How to charge the battery ................................................... 12
How to use AC output ............................................................ 14
How to use DC output ........................................................ 16
Troubleshooting....................................................................... 17
Company rights .................................................................... 18
Content
Safety Precautions 1
..............................................................

1
Safety Precautions
To protect yourself and others from harm and to protect
your equipment from damage, please read all the
following information carefully before using your
equipment.
1.Do not put the battery near high temperature objects
and do not store in places >40 degrees celsius.
2.NEVER use the product when wet.Keep it in a
cool and dry place during storage.
3.Do not use the product near flammable or
explosive objects/substances.
• Operate according to regulations, instructions and
professional recommendation
• Do not store or carry flammable liquids, gases, or
explosive materials inside the same box containing the
power station and accessories.
4..Do not use the power supply near a corrosive
substance.
5.Do not apply paint or stickers to the power supply. Paints
and stickers can cover equipment parts and prevent
proper use and operation.

2
6.Make sure that there is at least 10cm of clearance around
the power station for heat dissipation.
7.Do not disassemble, modify or repair the power station.
Any changes or modifications made to the equipment will
void the warranty.For repairs, please
contact the dealer where you purchased the product.
8.Do not use a charger/s that has not been approved by
FNX-Solar. Contact FNX-Solar directly for any concern/s.
9.Do not use the device in wet environments.This may
cause malfunctions,damage the device,or cause
electric shocks.
10.Proper handling and disposal of device(battery,charger ,
etc.)
• Use only chargers that are specifically designed for the
device and approved by our company. Unmatched chargers
may cause danger or damage the device.
•Do not throw battery into fire.please comply with local
and national regulations for proper disposal.
• Donot place thebattery or device insideor on top of a
heating device (such as amicrowave oven, oven, or radiator
).
• Do not squeeze or puncture the power supply and battery.
Do not subject the battery to external high voltage, which
may cause internal short circuit and overheating.
11.Protect the power supply and charger from damage.
• Avoid exposing the power supply to extremely cold or hot
temperatures.

3
• Extreme temperatures can damage the device, reduce its
charging capacity, and shorten the life of the power supply.
• Do not use a damaged charger.
Handling Precautions (Correct use and
storage of the device)
Keep the power supply dry
• Moisture and liquids can damage equipment components
or circuits。
• Do not switch on the device when it is wet. If the device
is turned on, turn it off immediately (if thedevice does
not turnoff,pleaseplace it away from children and
wait for it todry).
• If liquid enters the powerstation and damage the
internal parts of the device, the warranty will be voided
Do not use or store equipment in dusty areas
Dust may cause equipment malfunction, fire or electric
shock.
Secured storage of the equipment
Accidental damage of the device due to falls
will void the warranty
Use the equipment within the temperature range -5°
C to +40°C
• Do not store the device inside a closed vehicle, the device
may the internal temperature of the vehicle can reach as high

4
as 80°C during summer.
• Do not expose the power supply to direct sunlight
for a long period.
• When charging the power supply,the operating
temperature should be between 0°C and 40°C
Do not store equipment near or inside water heaters,
microwave ovens, hot cooking equipment or high pressure
vessels
• Equipment may be overheated and many cause fire.
Collision with hard objects
• This may damage the device's screen. Deformities
may affect the device and cause malfunctions.
When cleaning equipment
• Wipe the device or charger with a towel or eraser
• Do not use chemicals or cleaners
How to ensure maximum life for the battery and charger
• If the device has not been used fora longtime,the battery
may runout.
Please make sure to charge the powerstation every 6months.
• After a long-term storage,please fully charge it first.
(the power display will show

5
100% for the battery capacity,but the actual battery
power is less than 100% due to self-consumption of the
battery).
• When the charger is not in use, please disconnect the
power adapter
• Battery can only be used for specific purposes.
• To make thebattery last long, please don't drain the
battery to0% when using it, and it's better torecharge it
when thebattery is at 10%.
Please use original accessories of our company to ensure
the best performance.
•Our company will not be responsible for any damage to
the product or any accident(such as fire)caused by using
accessories not provided by FNX Solar.
• Please note that any failure of this product caused by the
use of accessories that are not original is not covered by
the warranty, but the user can opt topay for therepairs.
• Our company will not take any responsibility for the
malfunction or accident caused by using an incompatible
charger or accessory.
If there is any malfunction,problem or damage to the
product,please contact FNXSolar immediately

Charging adapter Charging cable
6
Packing list Quantity
1
1
1
1
1
FLEX-GEN 600
Charging adapter
Charging cable
4-in-1 DC output cable
Car charger
MC4 Solar charging cable
Accessories Bag
1
2
3
4
5
NO.
4 in 1 DC output cable
Package list
Please check if the following standard items are included in
the box after you buy our product.If there is an
item missing,please contact the dealer.
1
1
6
7

7
Product Introduction
Built tough, engineered to last -- introducing our power
station that uses an ultra-durable, high-capacity LiFePO4
batteries! Enjoy a bigger power capacity for your
adventures. The newest addition into our power station
portfolio can give you higher confidence on-the-go and
comes with 2-year battery warranty. The FLEX-GEN 600
can power your equipment and charge your gears while
you explore the great outdoors.
The following examples illustrate the power capacity of
FLEX-GEN200 based on common appliances
Laptop (50W): 11+ Hours Tablet: 23-43 Recharges
Smartphone: 40-55 Recharges 12V Refrigerator: 11+ Hours
LED Bulb (5W): 100+ Hours Portable AM/FM Radio: 188+ Hours
CD/DVD Player: 100+ Hours Shaver: 58+ Recharges
Radio 2-Way: 70+ Recharges Printer: 36+ Hours
Electric Fan: 23+ Hours Satellite Dish & Receiver: 21+ Hours
32" HDTV: 15+ Hours Heating Pad: 10+ Hours
Portable Projectors: 21+ Hours Car Vacuum: 5+ Hours
Electric Blanket: 4+ Hours Inflator Pump: 4+ Hours
Rice Cooker (500W): 1 Hour Mini Desktop Computer: 23+ Hours
Blender (350W): 1.7+ Hours LCD projector: 2.5+ Hours

8
Product parameters
Model Flex-Gen 600
Rated output power 600W
Peak power 1200W
Output voltage
AC pure-sine wave
AC110V60Hz
DC 12V10A USB 5V(QC3.0)
Battery type Lithium Iron Phosphate (LiFePO4)
Battery capacity 768 Wh
LiFePo4
Life cycle 70% @ 2000 cycles
Charging time 3-4H
Charging voltage
and current
DC 28.6V9A
Solar 36V15A(MAX)
Protection Over-voltage, low-voltage, over temperature,
overload and AC short circuit protection
Working Temp -5degC~+40degC
Size (mm) L340*W175*H250 mm
Weight (kg) 9.75 kg

3
1
2
4
5
9

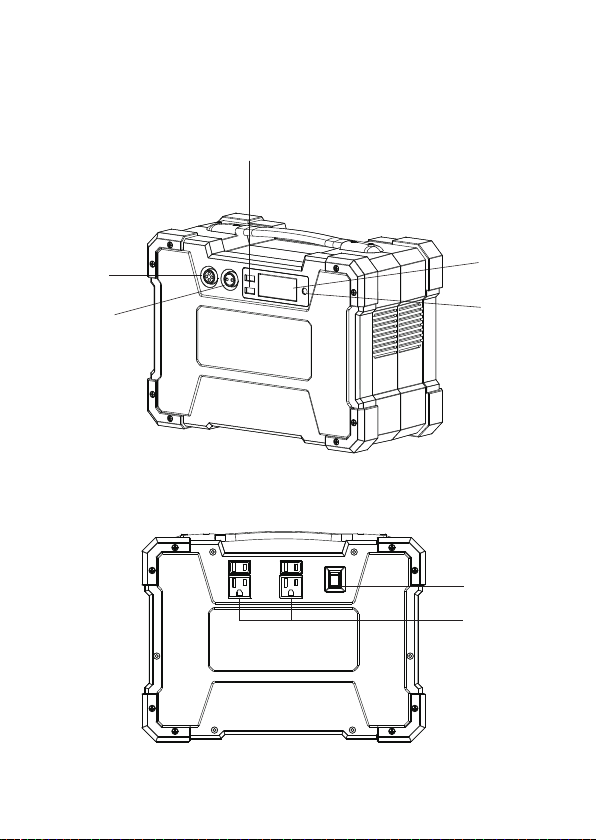

Parts and its functions
Front Panel
Back Panel
6
7

NO.
7
Description
Charging DC 16MF four-pins aviation power socket:
(1, 2 is positive, 3, 4 is negative): When the power
station needs to be charged, you can use
16MF four-core aviation plug (IN 29.4-40V10A)
DC output 16MF two-core aviation power socket:
(1 is positive, 2 is negative): When the DC switch is open,
you can use 16MF two-core aviation socket (12V10A)
10
Smart display : showsthe battery capacity,
percentage,power,and time of charging and
discharging
USB ports*2 : supply power to electrical devices
with DC 5V(4~9V2A 12V1.5A)
AC output switch : Turn on AC output
AC outputs : supply 110V output after pressing the AC
switch.
DC output/Power switch : Press this button to view the
remaining power of the power unit. The display will turn
on, the same time as the DC output. Press again to turn
off
5
1
2
3
4
6

11
Operation instructions and precautions
▇ Charge the power unit before using it
The battery is intentionally set below 100% to ensure safe
transport
▇ Low power alert
When battery has only 10% left, the outline of the battery
frame will flash. You should charge the power pack at this
time.
▇ Use the original charger provided by the manufacturer
In order to ensure the safety of charging, please use the
original charger provided by FNXSolar, or use solar panels
with 36V 540Wmax.
Warning : Please pay attention the power unit when it's
charging.Please disconnect the charger and stop charging
when the power is fully charged.

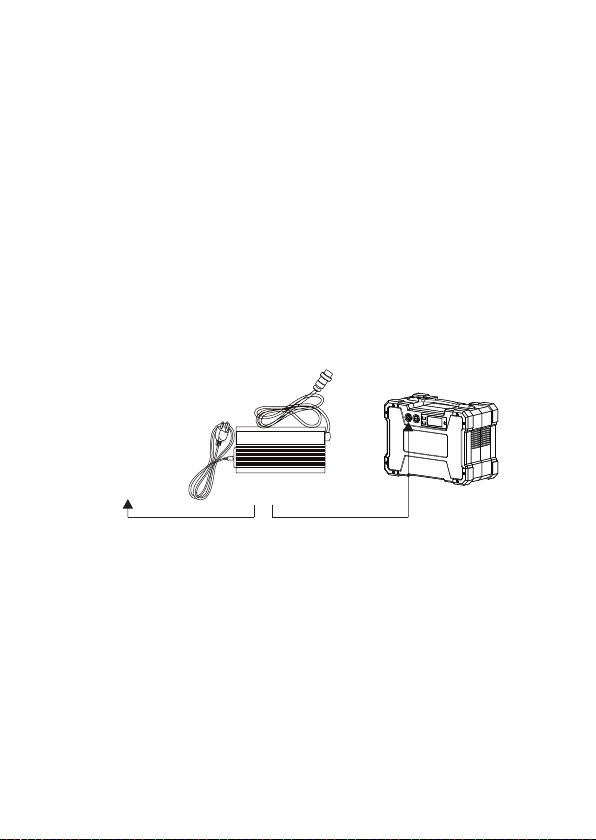

How to charge the power unit
12
At this stage, we can charge the battery through the
following ways:
1. Use our power adapter to charge. When charging, we
need to plug the end of the power cord into the socket at
the end of the adapter. Connect the other end of the
adapter to the power charging port then connect the
other end of the power cable to a 110V AC source.
Electric supply
2. Charge the battery with original car charging cable
(optional):When you use the car charger(after starting the
car engine), you only need to insert the cigarette lighter plug
into the car cigar socket, and then connect the
other end of the DC output port with the powerstation. Do
not use the car charger when the car has not yet started.

13
2.Charge the battery with solar panel. connect one end of
the solar PV connection cable to the solar panel and the
other end to the power charging socket. (maximum voltage
of solar panels not more than 36V)
Warnings :
1. Only use original accessories and don't operate the
device when wet .
2. Before car charging and solar charging,Please pay
attention to the polarity of the terminals,NEVER reverse
the polarity, this may cause equipment damage.
3. When you leave the portable power supply unused
for a long period of time,the battery will run out.Make
sure to charge it every 6months.
Car cigar port

14
How to use AC output
Please note the following before using it：
1.The input voltage and frequency of the appliance must be
the same as that of the FLEX-GEN 600.
2.Please ensure that the rated power of the appliance is
less than the rated power of the 600W power station,
preferably within 80% of the rated power.
* The appliances/unit will be damaged if is not within the
range of the power station
Remarks : since the consumed power of some appliances
is greater than its rated power on power-on, the overload
protection will occur and power output will turn off. For
example, the general starting current for inductive load
equipment is up to 3~8 times of its rated power. And its
starting power for energy saving lamp is up to dozens of
times of its rated power; Their starting power is much more
than the instantaneous maximum power that the power
pack can bear, so the load protection works automatically.
FLEX-GEN 600 is equipped with overload protection, short-
circuit protection, over-temperature protection, over
voltage protection,etc.

3.E1000/E1500 will stop working to protect the device once
following conditions occur.
① When external load exceed the load power limit
② AC output or load circuit
③ Internal temperature of the device is too high.
④ The voltage of the internal battery is too low.
Step 5 : Turn off the AC output switch after using it.
ON
OFF
15
How to use AC output：
Step 1 : Press the AC/DC switch to see the remaining power
capacity.
Step 2 : Check the working voltage and frequency of the
load.
Step 3 : Check the load power and ensure it’s not higher
than the rated power of FLEX-GEN 600
Step 4 : Plug the load into socket of FLEX-GEN 600 and
turn on the load switch.
AC OUT
