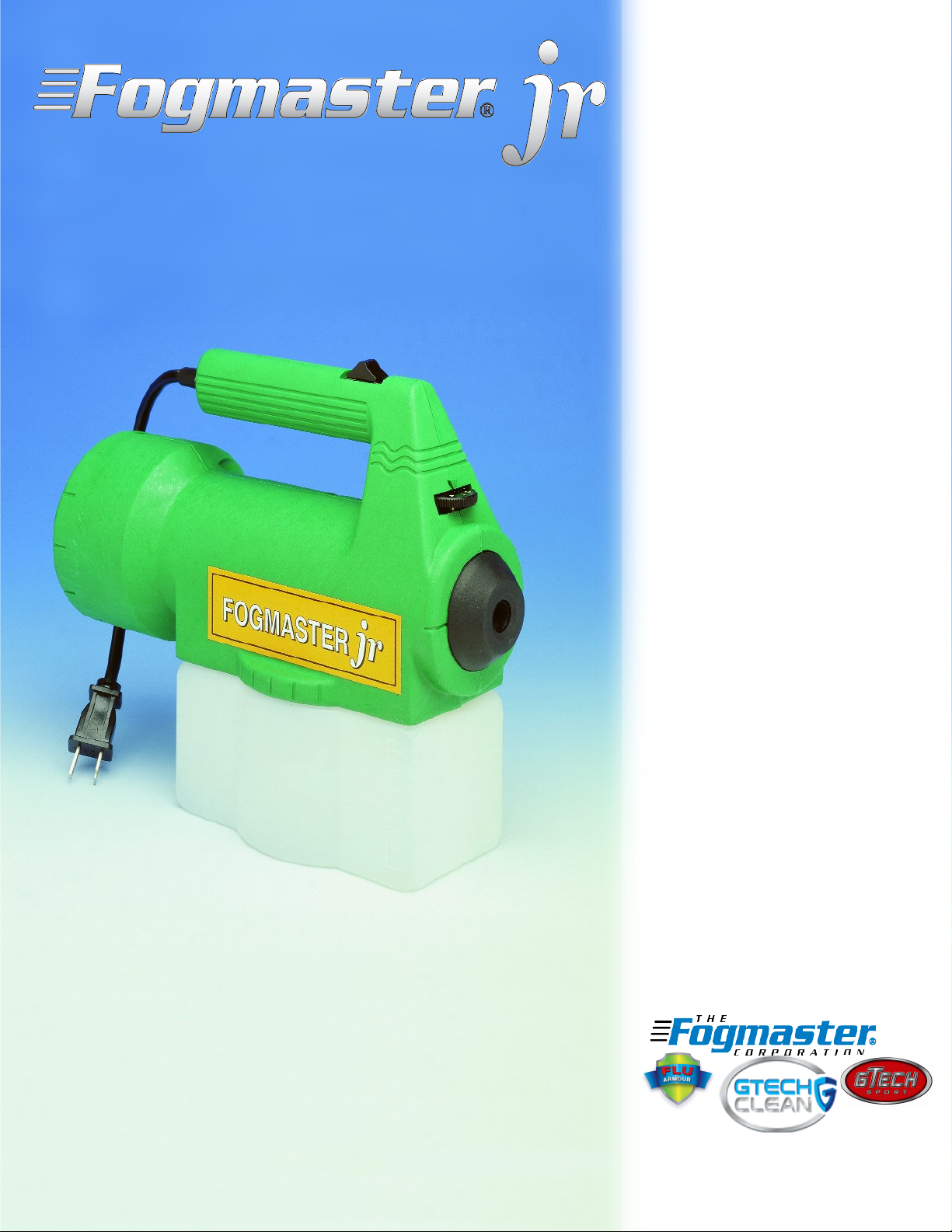

Fogmaster FOG-001 User manual
The Fogmaster Corporation is proud
to announce the newest member of
our family of fogging machines,
Fogmaster jr™
. Constructed of corrosion
resistant materials, it is designed for
jobs where a smaller and less
expensive fogging machine is desired.
Applications
Key markets are ODOR CONTROL
of hotels, autos, beauty - nail salons,
restaurants, restrooms, nursing homes,
schools and churches. Market this
machine with your chemical deodor-
ant regardless of type: masking,
enzymic, bacterial, or chemical coun-
teractant. Cold fogging works with all
oil- or water-based chemicals.
A smaller fogger for the smaller jobs –
disinfecting.
The Fogmaster jr™ can also be used
with pesticides, sanitizers, plain water
(mist plants) or deodorants, as well as
for aroma therapy. Its a great market-
ing tool for chemical sales demonstra-
tions.
Specifications
Color Forest green body, white
(translucent) tank.
Materials Nylon, polyethylene tank.
(Internal components have
been tested with leading
fogging chemicals. We will
evaluate with proprietaries.)
Tank One quart capacity.
Packaging Single unit: white corrugated
box with instruction sheet.
Shipping carton (weight):
6x1 (25#); 12x1 (52#);
18x1 (77#). Sample quantities
available as 1x1 (5#).
Shipping Cartons are UPS shippable.
Multiple cartons UPS or
palletized.
Terms FOB Deerfield Beach, FL
Net 30 with approved credit.
Order Info Model 533010(120VAC);
Model 533020(240VAC).
Distributor for :
1 11040 Bollinger Canyon Rd Ste.# I San Ramon, CA 94583
11040 Bollinger Canyon Road Ste#I
San Ram
8o
66
n
-4
,8
C
6-a
240
9
0
4582
CP5330.01
1
2
11040 Bollinger Canyon Rd Ste.# I San Ramon, CA 94583
866-486-2400

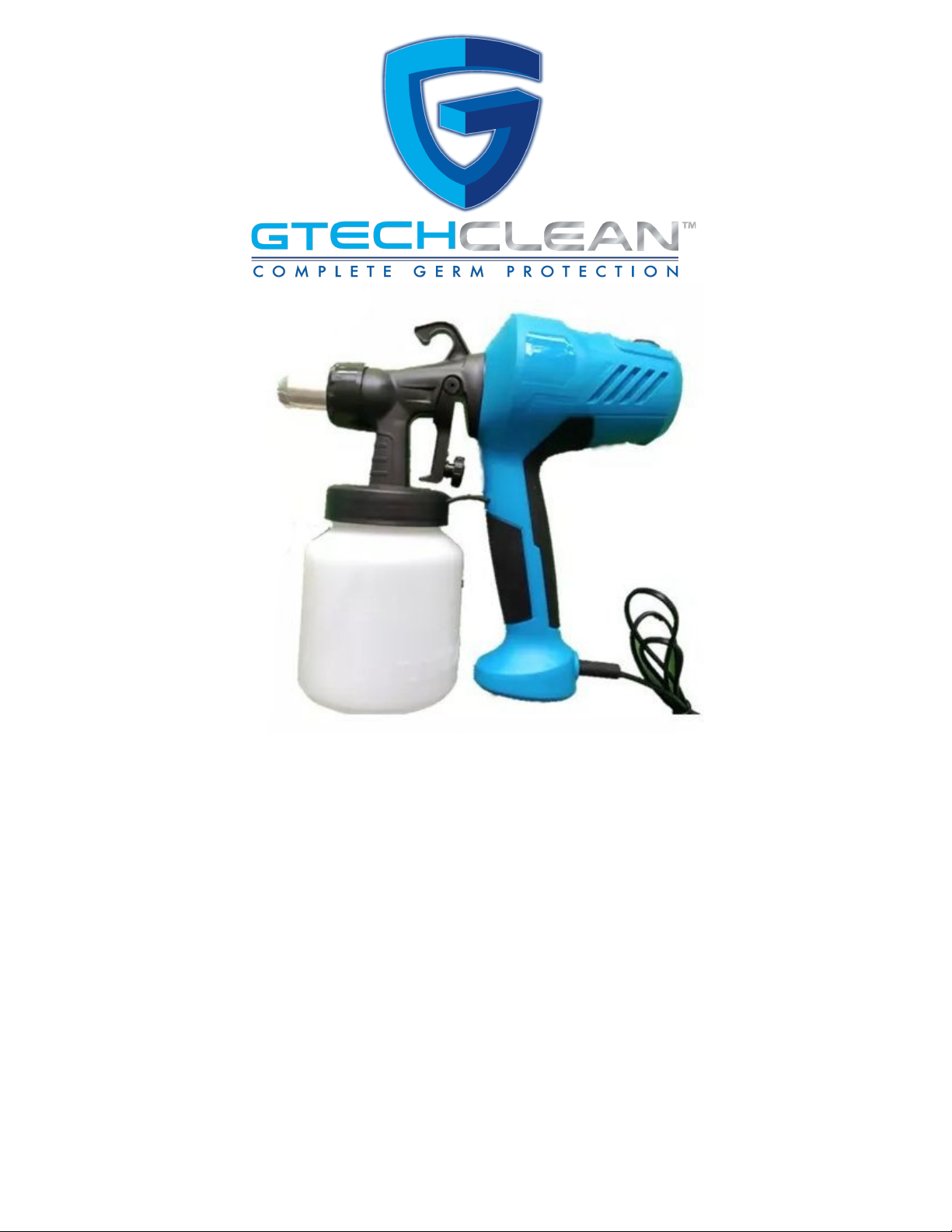

Mini Fogger Manual
Model#: FOG-001
Fogger Mini Trigger Controlled Fogger used for disinfection and
deodorization of any location. Primarily used for medical, first
responders, education, automotive, commercial, elevators, senior care,
homes, restaurants, health clubs, indoor turf, hotels, travel, planes,
trains, transit, cruises, wherever human traffic is found, and high touch
points.
2
3
11040 Bollinger Canyon Rd Ste.# I San Ramon, CA 94583
866-486-2400
Please read the manual in its entirety before you start to use it. Not
following the recommended instructions can reduce the life of your fogger,
and possible serious harm.
3
4
11040 Bollinger Canyon Rd Ste.# I San Ramon, CA 94583
866-486-2400
Table of Contents
Safety Instructions
…………………..….
4
Included in the Box
…...…………………
6
Preparation Instructions ................................ 6
Usage of the Fogger ....................................... 7
User Maintenance ........................................... 8
Fogger Specifications .................................... 10
Warranty Information .................................... 10
Contacting Us ................................................ 10
4
5
11040 Bollinger Canyon Rd Ste.# I San Ramon, CA 94583
866-486-2400
Please keep away from children! Hot tip from the fogger, can
severely burn a child.
Do Not Use Fogger if:
●Noticeable damage, dents, melted case, or
protrusions on Fogger exist.
●Missing parts are seen on the Fogger.
●Loud grinding noise when powered on.
●The fan stops suddenly.
●The fan noise changes significantly.
If any of the above situations exist, please stop use
immediately, and return for service.
Never use Fogger by pools of liquids, or in the rain, to prevent
possible electric shock, or fires.
Do not use Fogger with flammable liquids or corrosive materials.
Doing so can cause physical harm or damage to your unit.
Safety Instructions
Read all safety instructions and warnings in its entirety. Failure to do so may
result in fire, electric shock, and or serious injury.
5
6
11040 Bollinger Canyon Rd Ste.# I San Ramon, CA 94583
866-486-2400
Do not disassemble the Fogger, doing so can cause harm to you and
the Fogger, voiding your warranty.
Keep the Fogger away from highly flammable chemicals, or extreme
temperatures.
6
7
11040 Bollinger Canyon Rd Ste.# I San Ramon, CA 94583
866-486-2400
Gtech Clean Ready to Use
Disinfectant
Included in the Box
1. Mini Trigger Controlled Fogger
2. Manual
7
8
11040 Bollinger Canyon Rd Ste.# I San Ramon, CA 94583
866-486-2400
Preparation Instructions:
- Always keep the Fogger upright when liquid is in the unit. Failing to do so can cause liquid to
reach the motor causing failure to the unit.
- Never overfill the Disinfectant reservoir, always keep at least 1” below the top of the reservoir.
- During usage, the reservoir should be tightened enough to allow pressure to build up while
using the Fogger.
- Please insure no impurities are found in the disinfectant as this can cause clogging to the unit
causing it to stop functioning.
-Please make sure the tip is lined up with the arrow.
8
9
11040 Bollinger Canyon Rd Ste.# I San Ramon, CA 94583
866-486-2400
Usage Instructions:
- Always keep the Fogger upright when liquid is in the unit. Failing to do so can
cause liquid to reach the motor causing failure to the unit.
- Point unit at target and pull trigger to begin spraying of disinfectant. Please allow
enough time for pressure to build.
- After enough pressure is built into the system the disinfectant will begin to leave
the Fogger.
- After use, unscrew the reservoir to relieve the pressure from the reservoir.
- After usage please clean the unit by placing clean water in the disinfectant
reservoir and turning on the Fogger, allowing the water to purge the unit of any
disinfectant for 2 minutes.
9
10
11040 Bollinger Canyon Rd Ste.# I San Ramon, CA 94583
866-486-2400
USER MAINTENANCE INSTRUCTIONS
We recommend that the machine be returned to an authorized Distributor or
Service Center for repairs. However, users may undertake maintenance if they
wish. The Instruction Manual contains information on common repair procedures.
DANGER - RISK OF ELECTRIC SHOCK. Remove electrical plug
from outlet before attempting any service. Do not unplug by pulling on
cord. To unplug, grasp the plug, not the cord.
10
11
11040 Bollinger Canyon Rd Ste.# I San Ramon, CA 94583
866-486-2400
One Year Limited Warranty
For one year from the date of purchase of this fogger product if you find any
defect in material or workmanship, through normal usage, either return it to
the place of purchase, or send it to for repair or
replacement at our discretion. In order to obtain this service send your tool
and proof of purchase, transportation prepaid, fogger
Returns Dept, 11040 Bollinger Canyon Rd Ste. I San Ramon, CA 94582.
This warranty gives you specific legal rights, and you may also have other
rights, which vary from state to state. This product is not guaranteed if used
for industrial or commercial purposes.
TOLL FREE HELPLINE: 1-866-483-2400
Fogger Specifications:
Rated Voltage/Frequency: 110V / 60hz
Maximum Power: 350W
Droplet Sizes: 50-150 microns
Spray Distance: 10 ft.
Spray Width: 3 ft.
Contact Us:
If you have any questions or concerns please call us at:
1-866-483-2400
Or send us an email at:
