FONESTAR FO-350 User manual

FO-350
FO-356
FO-350, FO-356
VGA AND STEREO AUDIO
MATRIX/SP ITTER
EN Instruction manual

- 2-
We take this opportunity to thank you for buying this product.
We recommend you read the instruction manual before switching on the machine and follow the instructions
that are given. Keep the manual for future reference.
SECURITY AND THE ENVIRONMENT
E ECTRICA SECURITY
Check that the current in the mains connection where the machine is to be installed corresponds to the
power supply of the machine.
To avoid damaging the equipment, electrical shocks, fire or physical injury when you connect or disconnect
the equipment from the power supply, pull the plug firmly out of the mains socket holding the plug, never the
cable.
Always do this with dry hands.
Keep the power supply cable far from sources of heat. Do not put heavy objects on top of it or change it.
Clean dust and dirt off the power supply cable regularly.
Do not open the machine; you could get an electric shock.
CAUTION
While installing the machine, make sure it is switched off and unplugged.
Do not open the machine. Touching the internal parts is dangerous and you could receive an electric shock.
The machine must not be splashed or dripped on. Never place recipients with liquid inside on the machine.
Do not place anything inside the machine.
OCATION
Place the equipment on a horizontal surface with enough space around it to allow ventilation.
Avoid direct sunlight, heat sources and excessive dust.
Do not place the machine near magnetic fields or static electricity.
Do not use surfaces which vibrate or receive impact.
Do not pile machines on top of one another.
VENTI ATION
Never block or cover the ventilation slits on the machine.
Do not expose it to direct sunlight or place it near sources of heat.
PERIODS OF INACTIVITY
When the machine is not going to be used for a long period of time, disconnect it from the mains.
If you are using an adapter, take into account that it will continue using electricity even if the machine is
switched off. If it is not going to be used for a long period of time, disconnect it from the mains.
THE ENVIRONMENT
To save energy, switch the machine off when you are not going to use it for a long time. The machine could
contain substances that are harmful to the environment or human health. To minimize the effect of these
substances the machine must be correctly managed and recycled when you decide to dispose of it.
When you dispose of it remember: it cannot be thrown into a conventional rubbish bin.
If it contains or uses batteries, these must be disposed of separately.
The machine (without batteries) must be disposed of correctly. Put it in a container specially intended for the
collection of electronic and electrical appliances, at the dump or hand it over to the dealer when you purchase
similar equipment, so that the dealer can dispose of it correctly (at no added cost).
EN

EN
-3-

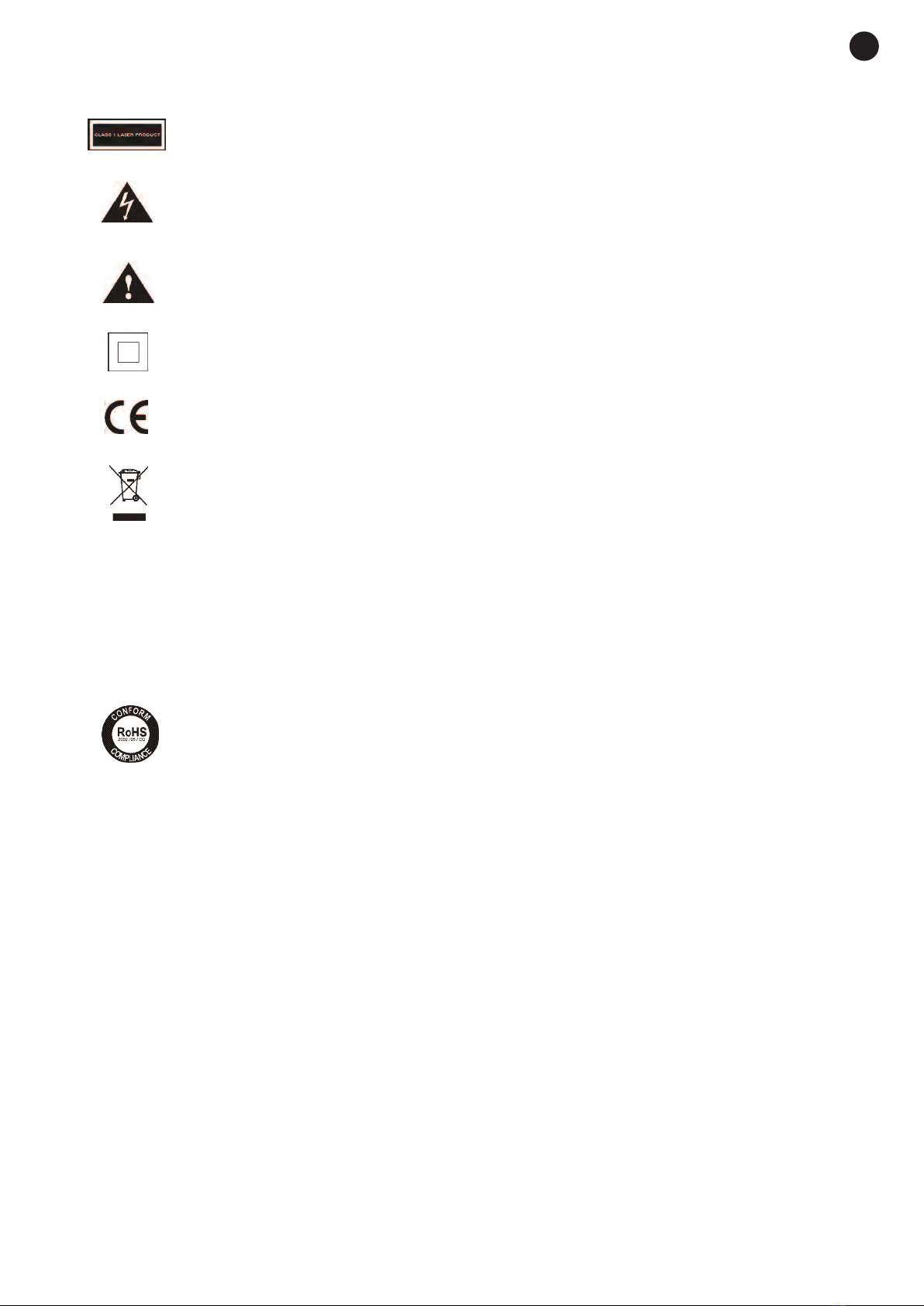

SIGNIFICANCE OF THE S MBOLS ON THE MACHINE*
The symbol formed by the expression “Class 1 laser product” written in a rectangle
indicates that visible or invisible laser radiation could be produced. Avoid direct expose to
the laser.
The symbol formed by a ray of lightening inside a triangle shows that the machine has
connection terminals or a circuit with areas with a current which could cause an electric
shock, even in normal working conditions.
The symbol formed by an exclamation mark in a triangle shows that the instruction manual
must be referred to for information on how the machine works and its use.
The symbol formed by one square inside another square shows that the machine has
double electrical insulation.
The European Community symbol shows that the machine complies with the current
European Union legislation, as well as its transposition to local legislation.
The symbol of a rubbish bin crossed out and over a horizontal line shows that when the
product is disposed of it must be done properly, placing it in a special selective electronic
and electrical equipment container or through a dealer when purchasing a similar product,
at no additional cost. It also shows that the machine was put on the market after 13th
August 2005 (European Community Directive 2002/96/CE of Electrical and Electronic
recycling, and its Spanish equivalent R.D.208/2005).
In accordance with what is set out in the aforementioned decree, FONESTAR is registered
in the RAEE (Registro de Aparatos Eléctricos y Electrónicos) in a special section REI
(Registro de establecimientos Industriales), with the entry number 001851.
The symbol RoHS (Restriction of Hazardous Substances) shows that the product has been
designed and manufactured restricting the use of certain dangerous materials (Directive
2002/95/CE on the restriction of certain dangerous substances in electrical and electronic
appliances, and its transferal to the Spanish regulations, R.D.208/2005).
*It is possible that some of these symbols do not appear on the machine.
EXEMPTION OF LIABILIT
The characteristics of the equipment and the content of the manual can change without forewarning.
FONESTAR, S.A. does not assume responsibilities regarding the inappropriate use of the equipment or the
information supplied in this instruction manual, and specifically disclaims any implied liability for marketability
or fitness for any other use.
All rights reserved by FONESTAR, S.A.

EN
-4-
DESCRIPTION
The FONESTAR VGA and stereo audio matrix/splitters mod. FO-350 and FO-356 let you connect several
VGA and stereo audio signals, and select individually the input that is going to be sent to each one of the VGA
and stereo audio outputs (TV, computer screen and loudspeakers, etc.).
The FO-350 model has 2 inputs and 2 outputs.
The FO-356 model has 4 inputs and 4 outputs.
They have distribution functions from one input to all the outputs using just one button (SP ITTER).
Besides, they let you select manually as well as remotely using the remote control.
They are compatible with VGA, SVGA, XGA and WXGA, with a maximum resolution of 1920 x 1440, 60 Hz.
CONTROLS AND FUNCTIONS
FRONT PANEL
1.- SPLITTER SELECT: on pressing these buttons the equipment acts as a 1 x 2 or 1 x 4 signal splitter,
depending on the model, letting you select the audio/video input which is assigned to all the outputs
at the same time.
2.- OUTPUT SELECT: selection buttons for the audio/video input that is sent to the corresponding output.
3.- IR: IR signal receiver on the remote control.
4.- SPLITTER ON: ED indicators that show the audio/video input that is assigned to all outputs at the same
time.
5.- OUTPUT ON: ED indicators that show which audio/video input is assigned to the corresponding output.
Note: the front panel of model FO-350 is the same as that of FO-356 except that it only has 2 outputs.
BACK PANEL
FO-350
1.- DC INPUT: power connection for 5 V DC adapter.
2.- OUT VGA: A-B video signal outputs, female VGA D15 connector.
3.- OUT AUDIO: A-B audio signal outputs, 3.5 mm stereo jack connector.
4.- IN VGA: 1-2 video signal inputs, female VGA D15 connector.
5.- IN AUDIO: 1-2 audio signal inputs, 3.5 mm stereo jack connector.

FO-356
1.- POWER: equipment on/off switch.
2.- 230 V AC: power supply socket.
3.- OUT VGA: A-D video signal outputs, female VGA D15 connector.
4.- OUT AUDIO: A-D audio signal outputs, 3.5 mm stereo jack connector.
5.- IN VGA: 1-4 video signal inputs, female VGA D15 connector.
6.- IN AUDIO: 1-4 audio signal inputs, 3.5 mm stereo jack connector.
REMOTE CONTROL
1.- 1-16 number buttons for selecting the inputs to be assigned to each output.
Buttons 1-4: for selecting the desired inputs for output A. Button 1 assigns input 1 to output A, button
2 assigns input 2 to output A, etc.
Buttons 5-8: for selecting the desired inputs for output B. Button 5 assigns input 1 to output B, button
6 assigns input 2 to output B, etc.
Buttons 9-12: for selecting the desired inputs for output C. Button 9 assigns input 1 to output C, button
10 assigns input 2 to output C, etc.
Buttons 13-16: for selecting the desired inputs for output D. Button 13 assigns input 1 to output D,
button 14 assigns input 2 to output D, etc.
Note: on the remote control for model FO-350 only buttons 1-4 are active:
Buttons 1-2: for selecting the desired inputs for output A. Button 1 assigns input 1 to output A, button
2 assigns input 2 to output A, etc.
Buttons 3-4: for selecting the desired inputs for output B. Button 3 assigns input 1 to output B and
button 4 assigns input 2 to output B.
- 5-
EN
