FONESTAR SM-2702U User manual

SM-2702U
PROFESSIONAL 8-CHANNEL MIXER
WITH USB/MP3 PLAYER
INSTRUCTION MANUAL
SM-2702U_MANUAL_(EN)_20180309_Maquetación 1 9/3/18 13:39 Pá ina 1

We take this opportunity to thank you for buying this product.
We recommend you read the instruction manual before switching on the machine and follow the instructions
that are given. Keep the manual for future reference.
ECURITY AND THE ENVIRONMENT
ELECTR CAL SECUR TY
Check that the current in the mains connection where the machine is to be installed corresponds to the
power supply of the machine.
To avoid damaging the equipment, electrical shocks, fire or physical injury when you connect or disconnect
the equipment from the power supply, pull the plug firmly out of the mains socket holding the plug, never the
cable.
Always do this with dry hands.
Keep the power supply cable far from sources of heat. Do not put heavy objects on top of it or change it.
Clean dust and dirt off the power supply cable regularly.
Do not open the machine; you could get an electric shock.
CAUT ON
While installing the machine, make sure it is switched off and unplugged.
Do not open the machine. Touching the internal parts is dangerous and you could receive an electric shock.
The machine must not be splashed or dripped on. Never place recipients with liquid inside on the machine.
Do not place anything inside the machine.
LOCAT ON
Place the equipment on a horizontal surface with enough space around it to allow ventilation.
Avoid direct sunlight, heat sources and excessive dust.
Do not place the machine near magnetic fields or static electricity.
Do not use surfaces which vibrate or receive impact.
Do not pile machines on top of one another.
VENT LAT ON
Never block or cover the ventilation slits on the machine.
Do not expose it to direct sunlight or place it near sources of heat.
PER ODS OF NACT V TY
When the machine is not going to be used for a long period of time, disconnect it from the mains.
f you are using an adapter, take into account that it will continue using electricity even if the machine is
switched off. f it is not going to be used for a long period of time, disconnect it from the mains.
THE ENV RONMENT
To save energy, switch the machine off when you are not going to use it for a long time. The machine could
contain substances that are harmful to the environment or human health. To minimize the effect of these
substances the machine must be correctly managed and recycled when you decide to dispose of it.
When you dispose of it remember: it cannot be thrown into a conventional rubbish bin.
f it contains or uses batteries, these must be disposed of separately.
The machine (without batteries) must be disposed of correctly. Put it in a container specially intended for the
collection of electronic and electrical appliances, at the dump or hand it over to the dealer when you purchase
similar equipment, so that the dealer can dispose of it correctly (at no added cost).
- 2-
EN
SM-2702U_MANUAL_(EN)_20180309_Maquetación 1 9/3/18 13:39 Pá ina 2

IGNIFICANCE OF THE YMBOL ON THE MACHINE*
The symbol formed by the expression “Class 1 laser product” written in a rectangle
indicates that visible or invisible laser radiation could be produced. Avoid direct expose to
the laser.
The symbol formed by a ray of lightening inside a triangle shows that the machine has
connection terminals or a circuit with areas with a current which could cause an electric
shock, even in normal working conditions.
The symbol formed by an exclamation mark in a triangle shows that the instruction manual
must be referred to for information on how the machine works and its use.
The symbol formed by one square inside another square shows that the machine has
double electrical insulation.
The European Community symbol shows that the machine complies with the current
European Union legislation, as well as its transposition to local legislation.
The symbol of a rubbish bin crossed out and over a horizontal line shows that when the
product is disposed of it must be done properly, placing it in a special selective electronic
and electrical equipment container or through a dealer when purchasing a similar product,
at no additional cost. t also shows that the machine was put on the market after 13th
August 2005 (European Community Directive 2002/96/CE of Electrical and Electronic
recycling, and its Spanish equivalent R.D.208/2005).
n accordance with what is set out in the aforementioned decree, FONESTAR is registered
in the RAEE (Registro de Aparatos Eléctricos y Electrónicos) in a special section RE
(Registro de establecimientos ndustriales), with the entry number 001851.
* t is possible that some of these symbols do not appear on the machine.
EXEMPTION OF LIABILITY
The characteristics of the equipment and the content of the manual can change without forewarning.
FONE TAR, .A. does not assume responsibilities regarding the inappropriate use of the equipment or the
information supplied in this instruction manual, and specifically disclaims any implied liability for marketability
or fitness for any other use.
All rights reserved by FONE TAR, .A.
- 3-
EN
SM-2702U_MANUAL_(EN)_20180309_Maquetación 1 9/3/18 13:39 Pá ina 3

EN
- 4-
DE CRIPTION

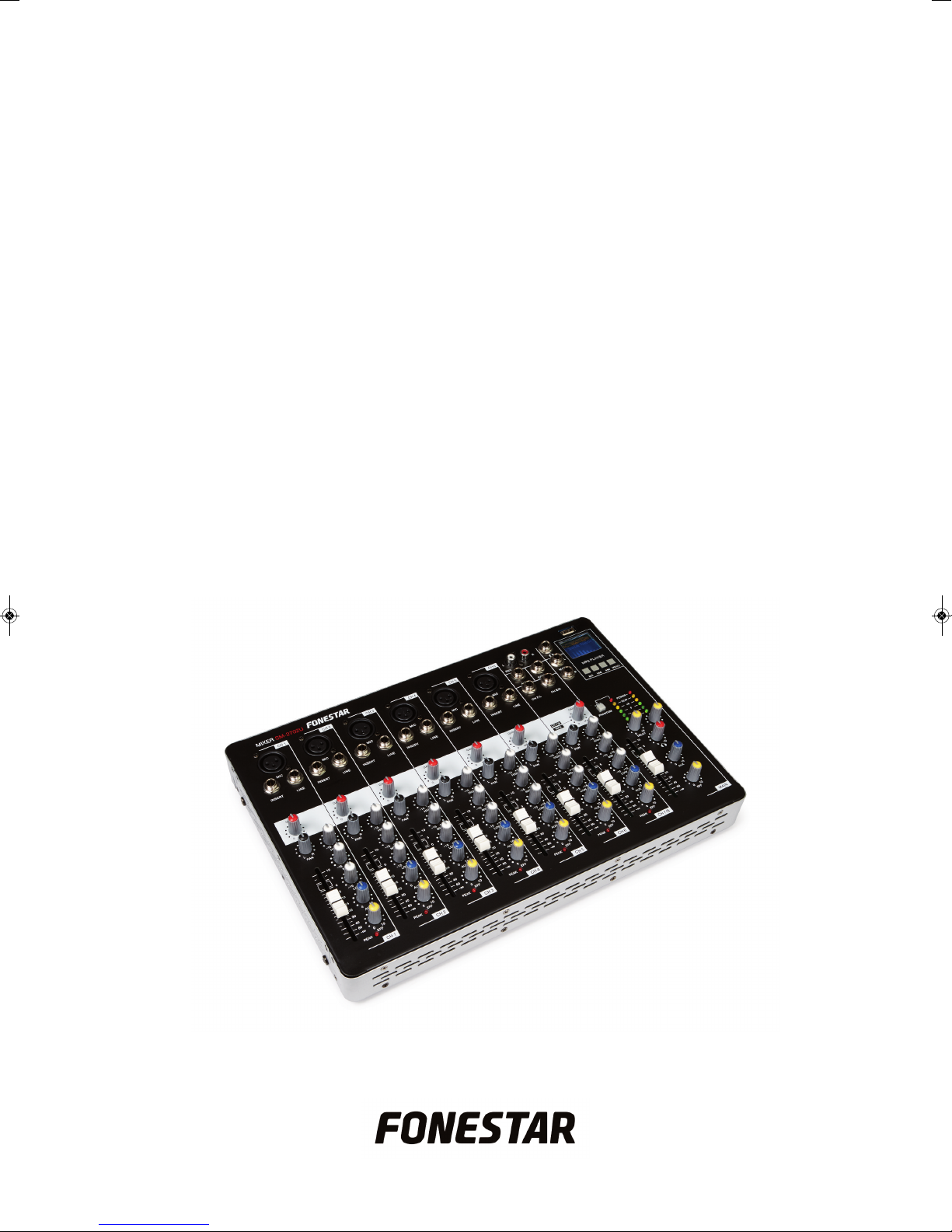

- The model M-2702U is a professional 8 channel mixer. t is equipped with an MP3 player with USB
storage device connection port.
- The mixer inputs accept a great variety of signals, the controls for each channel equalize and adjust the
levels of the different audio sources, adjust volumes and obtain a final mixture of the audio sources.
- The microphone inputs are equipped with phantom power supply(+48 V) through its XLR connectors for
condenser microphones.
-The mixer has an effect section which can be sent to the input signals. The repetition and the delay of the
effect can be adjusted. Each input channel can also be sent individually to the effect section.
- This mixer is designed for use in live applications, music group sound systems, social events and audio
editing. t can be used in a wide variety of applications thanks to its flexibility.
CONTROL AND FUNCTION
FRONT PANEL
1.- MIC: balanced microphone input with XLR connector and phantom power
supply +48 V selectable
2.- IN ERT: connector (signal input and output) to insert an audio processor
(noise gate, compressor etc.) in the signal path.
3.- LINE: balanced line level input, 6.3 mm jack connector.
4.- GAIN: gain control of the corresponding channel. Adjustment of the input
sensitivity.
5.- PAN: balance control. Sends the signal to the left channel (L) or the right
(R) of the stereo image of the final mix (MA N).
6.- HIGH, MID, LOW: 3 band equalizer per channel. Treble, midrange and
bass tone controls with a gain of ±15 dB.
7.- FADER: sliding volume control. Adjusts the channel signal that is sent to
the final mix (MA N).
8.- AUX: sends the signal from the input channel to the bus of the AUX mix
(PRE-FADER).
9.- EFF: sends the signal from the input channel to the bus of the EFF mix
(POST-FADER).
10.- PEAK: LED peak level indicator.The LED indicator will light up when the
input signal has a high level and is distorted. Adjust the input level with the
GA N control so that the LED indicator lights up occasionally.
SM-2702U_MANUAL_(EN)_20180309_Maquetación 1 9/3/18 13:39 Pá ina 4

EN
- 5-
11.- CH 7/L - CH 8/R: unbalanced line inputs with 6.3 mm jack connectors for
the left channel (L) and right (R) of the stereo image.
12.- GAIN: gain control for the input signal from channel CH 7/8 input and
from the USB/MP3 player.
13.- PAN: balance control. Sends the signal to the left channel (L) or right
(R) of the stereo image of the final mix (MA N).
14.- HIGH, MID, LOW: 3 band equalizer per channel. Bass, midrange and
treble tone controls with a gain of ±15 dB.
15.- FADER: sliding volume control. Adjusts the channel signal level that is
sent to the final mix (MA N).
16.- AUX: sends the input channel signal to the bus of the AUX mix (PRE-
FADER).
17.- EFF: sends the input channel signal to the bus of the EFF mix (POST-
FADER).
18.- PEAK: LED peak level indicator. The LED indicator will light up when
the input signal has a high level and is distorted. Adjust the input level
with the GA N control so that the LED indicator lights up occasionally.
19.- Headphone output, 6.3 mm jack connector.
20.- REC: line level output, 2 x RCA connectors. For
recording applications.
21.- AUX: unbalanced bus signal output AUX, 6.3 mm
jack connector.
22.- EFFECT: unbalanced bus signal output EFF, 6.3
mm jack connector.
23.- MAIN (L, R): unbalanced bus level signal, 2 x 6.3
mm jack connector. The output signal is the final
mix.
24.- USB storage dveice connection port
25.- USB/MP3 player module information display.
26.- Controls for playback of MP3 files stored in the
USB storage device. For more information,
consult the section Operating the MP3 module.
27.- PHANTOM +48 V: phantom power supply
selector +48 V to provide power to the condenser
microphones. The phantom power supply is
activated in channels CH 1 to CH 6 at the same
time. The LED indicator lights up red when the
switch is activated.
28.- DELAY: control to adjust the time interval between effect repetitions.
29.- FADER: sliding volume control. Adjust the output signal level of the final mix (MA N).
30.- POWER: LED power indicator of the mixer. t lights up red when the mixer is connected to the power
supply.
SM-2702U_MANUAL_(EN)_20180309_Maquetación 1 9/3/18 13:39 Pá ina 5

31.- LED output signal level indicators MA N (L, R).
32.- REPEAT: control to adjust the number of repetitions of the effect.
33.- Headphone output volume control.
34.- AUX: level control of the output AUX.
35.- EFF: level control of the output EFF.
OPERATING THE MP3 MODULE
- When the M-2702U mixer is connected to the power supply, a menu appears on the display with three
options:
1.- Music (MSC): accesses the player. f no button is pressed for approximately 3 seconds, this option will
be accessed directly.
2.- System (SYS): allows the following parameters of the mixer to be consulted/modified:
- Date and time
- Back-lighting
- Language
- Contrast
- Firmware version
Access each menu with the 12 button, and then navigate through the options with the 7/8buttons and
select the required option with the 12 button.
3.- UD : activates the audio interface. Allows playback of audio files from the computer.
Connect the computer via the mixer’s USB port and use it to play the USB audio files it contains. Playback
is controlled from the computer.
1.- 12: starts/pauses playback.
2.- 7: a short press of this button allows you to move to the previous track. A
long press allows you to reduce the volume of the MP3 playback.
3.- 8: a short press allows you to move to the next track. A long press allows
you to increase the volume of the MP3 playback.
4.- MENU: accesses the mixer menu. Allows you to choose among the following
options:
- Repeat: allows selection of playback mode among the following: all (repeat
all tracks), folder (repeat folders), one (repeat one track) and random
(random playback).
- Equalizer: allows selection among the different equalizations that exist: natural, pop, rock, jazz,
classic, soft, DBB.
- File explorer: allows visualization of files (tracks and folders) in a list.
Access each menu with the 12 button, navigate through the options with the 7/8buttons and select
the required option with the 12 button.
CONNECTION
-- Before making any connections make sure that all the devices are switched off and disconnected from the
power supply.
- Check that all the sliding controls and the gain control of each channel and the sliding volume control
MA N are at their minimum.
- Connect the devices of your choice to the channel inputs, use the XLR connector if it is a microphone (M C)
or the 6.3 mm jack connectors if it is a line level input (L NE).
- 6-
EN
SM-2702U_MANUAL_(EN)_20180309_Maquetación 1 9/3/18 13:39 Pá ina 6

- 7-
EN
-Connect the MA N L/R unbalanced output to a line level input of an amplifier. f you wish, the REC output
can be connected to a recorder.
-f you wish, connect a USB storage device with MP3 files to the corresponding port.
- Connect the devices to the power supply.
- Switch on the devices in this order: firstly the periphary devices such as CD players, followed by the mixer
M-2702U and finally, the amplifier.
TECHNICAL PECIFICATION
M-2702U
CHARACTERI TIC Stereo mixer, 6 mono channels and 1 stereo channel.
USB/MP3 player.
Echo effect.
U B PLAYER Reproduce ficheros MP3
Puerto USB para conexión de memorias USB
Admite memorias hasta 32 GB
nformación D3 tag
INPUT 6 balanced mic. XLR, 2,500 Ω 2.5 mV or 6 balanced line, 6.3 mm jack,
47,000 Ω 250 mV
6 x 6.3 mm jack inserts, 47,000 Ω 775 mV
1 unbalanced stereo line 2 x 6.3 mm jack, 47,000 Ω 775 mV
CONTROL Mic./line: gain, bass (±15 dB, 100 Hz), mid (±15 dB, 1,000 Hz), trebles
(±15 dB, 10,000 Hz), aux sender, sending to effects bus, pan and sliding
volume
USB/MP3 player: play/pause, stop, repeat, track forward and rewind
Aux: volume control
Eff: volume control, delay and repeat
Main: sliding volume
Headphone output: volume control
FUNCTION 3-band equalizer per channel
LED excess signal and master output level indicator
Echo with repeat controls and time
OUTPUT Main (unbalanced 2 x 6.3 mm jack), rec (2 x RCA), mono aux (unbalanced
6.3 mm jack), mono effect (unbalanced 6.3 mm jack) and stereo headphones
(6.3 mm jack)
PHANTOM 48 V
RE PON E 20-20,000 Hz
DI TORTION Harmonic < 0.1 %
POWER UPPLY 2 x 17 V AC, 420 mA with adapter included
DIMEN ION 360 x 63 x 356 mm depth
OPTIONAL M-A5: mounts for assembly in 19” rack
SM-2702U_MANUAL_(EN)_20180309_Maquetación 1 9/3/18 13:39 Pá ina 7

WARRANTY
This product has been tested and has passed the corresponding quality control prior to being put on the market.
FONE TAR guarantees the suitability of the product for its specified use during a period of 2 years from the
delivery date and commits itself to repair or substitute the goods as expressed in the Spanish law ‘La Ley General
para la Defensa de los Consumidores y Usuarios, Real Decreto Legislativo 1/2007 16 Noviembre.
The lack of conformity in the first six months after purchase, due to a manufacturing defect, will be rectified with
no more than showing the proof of purchase. After six months FONE TAR reserves the right to demand proof of
the product being sold with that problem.
This warranty does not include damage produced by: inappropriate use or negligence, accidents, worn out parts
due to use, breakages, burns, spilt liquids or other substances, excessive humidity, battery deterioration and
internal manipulation of the device, the software or its components by unauthorized persons, and in general any
use that is unrelated to the nature and purpose of the product.
f any service is needed during the warranty period because of lack of conformity, please contact the business or
distributor where the product was purchased in no more than 2 months after being conscious of the problem. t
is only necessary to contact FONE TAR if it is impossible or imposes an undue burden for them to solve it.
To benefit from this warranty it is necessary to show the proof of purchase with the date clearly visible, with no
corrections or crossing out.
This document adds information, and never decreases the consumers’ rights, which in all cases are protected by
the Spanish law ‘La Ley General para la Defensa de los Consumidores y Usuarios, Real Decreto Legislativo 1/2007
16 Noviembre.
FONE TAR is a member of ECOEMBALAJES ESPAÑA, S.A. “ECOEMBES”, with number 03497 and all our products
carry the symbol, backed by our membership and subscription to the above mentioned organization with the recycling
and subsequent management of our packaging.
FONESTAR, S.A. - N F: A28780443 - Polígono Trascueto - 39600 Revilla de Camargo, Cantabria (Spain) www.fonestar.com
SM-2702U_MANUAL_(EN)_20180309_Maquetación 1 9/3/18 13:39 Pá ina 8
