FONESTAR FS-2930R User manual

FS-2930R
AM/FM DIGITAL TUNER
INSTRUCTION MANUAL
FS-2930R_MANUAL_(EN)_20170703_Maqueta ión 1 3/7/17 12:41 Página 1

We take this opportunity to thank you for buying this product.
We recommend you read the instruction manual before switching on the machine and follow the instructions
that are given. eep the manual for future reference.
SECURITY AND THE ENVIRONMENT
ELECTRICAL SECURITY
Check that the current in the mains connection where the machine is to be installed corresponds to the
power supply of the machine.
To avoid damaging the equipment, electrical shocks, fire or physical injury when you connect or disconnect
the equipment from the power supply, pull the plug firmly out of the mains socket holding the plug, never the
cable.
Always do this with dry hands.
eep the power supply cable far from sources of heat. Do not put heavy objects on top of it or change it.
Clean dust and dirt off the power supply cable regularly.
Do not open the machine; you could get an electric shock.
CAUTION
While installing the machine, make sure it is switched off and unplugged.
Do not open the machine. Touching the internal parts is dangerous and you could receive an electric shock.
The machine must not be splashed or dripped on. Never place recipients with liquid inside on the machine.
Do not place anything inside the machine.
LOCATION
Place the equipment on a horizontal surface with enough space around it to allow ventilation.
Avoid direct sunlight, heat sources and excessive dust.
Do not place the machine near magnetic fields or static electricity.
Do not use surfaces which vibrate or receive impact.
Do not pile machines on top of one another.
VENTILATION
Never block or cover the ventilation slits on the machine.
Do not expose it to direct sunlight or place it near sources of heat.
PERIODS OF INACTIVITY
When the machine is not going to be used for a long period of time, disconnect it from the mains.
If you are using an adapter, take into account that it will continue using electricity even if the machine is
switched off. If it is not going to be used for a long period of time, disconnect it from the mains.
THE ENVIRONMENT
To save energy, switch the machine off when you are not going to use it for a long time. The machine could
contain substances that are harmful to the environment or human health. To minimize the effect of these
substances the machine must be correctly managed and recycled when you decide to dispose of it.
When you dispose of it remember: it cannot be thrown into a conventional rubbish bin.
If it contains or uses batteries, these must be disposed of separately.
The machine (without batteries) must be disposed of correctly. Put it in a container specially intended for the
collection of electronic and electrical appliances, at the dump or hand it over to the dealer when you purchase
similar equipment, so that the dealer can dispose of it correctly (at no added cost).
-2-
EN
FS-2930R_MANUAL_(EN)_20170703_Maqueta ión 1 3/7/17 12:41 Página 2

SIGNIFICANCE OF THE SYMBOLS ON THE MACHINE*
The symbol formed by the expression “Class 1 laser product” written in a rectangle
indicates that visible or invisible laser radiation could be produced. Avoid direct exposure
to the laser.
The symbol formed by a ray of lightening inside a triangle shows that the machine has
connection terminals or a circuit with areas with a current which could cause an electric
shock, even in normal working conditions.
The symbol formed by an exclamation mark in a triangle shows that the instruction manual
must be referred to for information on how the machine works and its use.
The symbol formed by one square inside another square shows that the machine has
double electrical insulation.
The European Community symbol shows that the machine complies with the current
European Union legislation, as well as its transposition to local legislation.
The symbol of a rubbish bin crossed out and over a horizontal line shows that when the
product is disposed of it must be done properly, placing it in a special selective electronic
and electrical equipment container or through a dealer when purchasing a similar product,
at no additional cost. It also shows that the machine was put on the market after 13th
August 2005 (European Community Directive 2002/96/CE of Electrical and Electronic
recycling, and its Spanish equivalent R.D.208/2005).
In accordance with what is set out in the aforementioned decree, FONESTAR is registered
in the RAEE (Registro de Aparatos Eléctricos y Electrónicos) in a special section REI
(Registro de establecimientos Industriales), with the entry number 001851.
*It is possible that some of these symbols do not appear on the machine.
EXEMPTION OF LIABILITY
The characteristics of the equipment and the content of the manual can change without forewarning.
FONESTAR, S.A. does not assume responsibilities regarding the inappropriate use of the equipment or the
information supplied in this instruction manual, and specifically disclaims any implied liability for marketability
or fitness for any other use.
All rights reserved by FONESTAR, S.A.
-3-
EN
FS-2930R_MANUAL_(EN)_20170703_Maqueta ión 1 3/7/17 12:41 Página 3

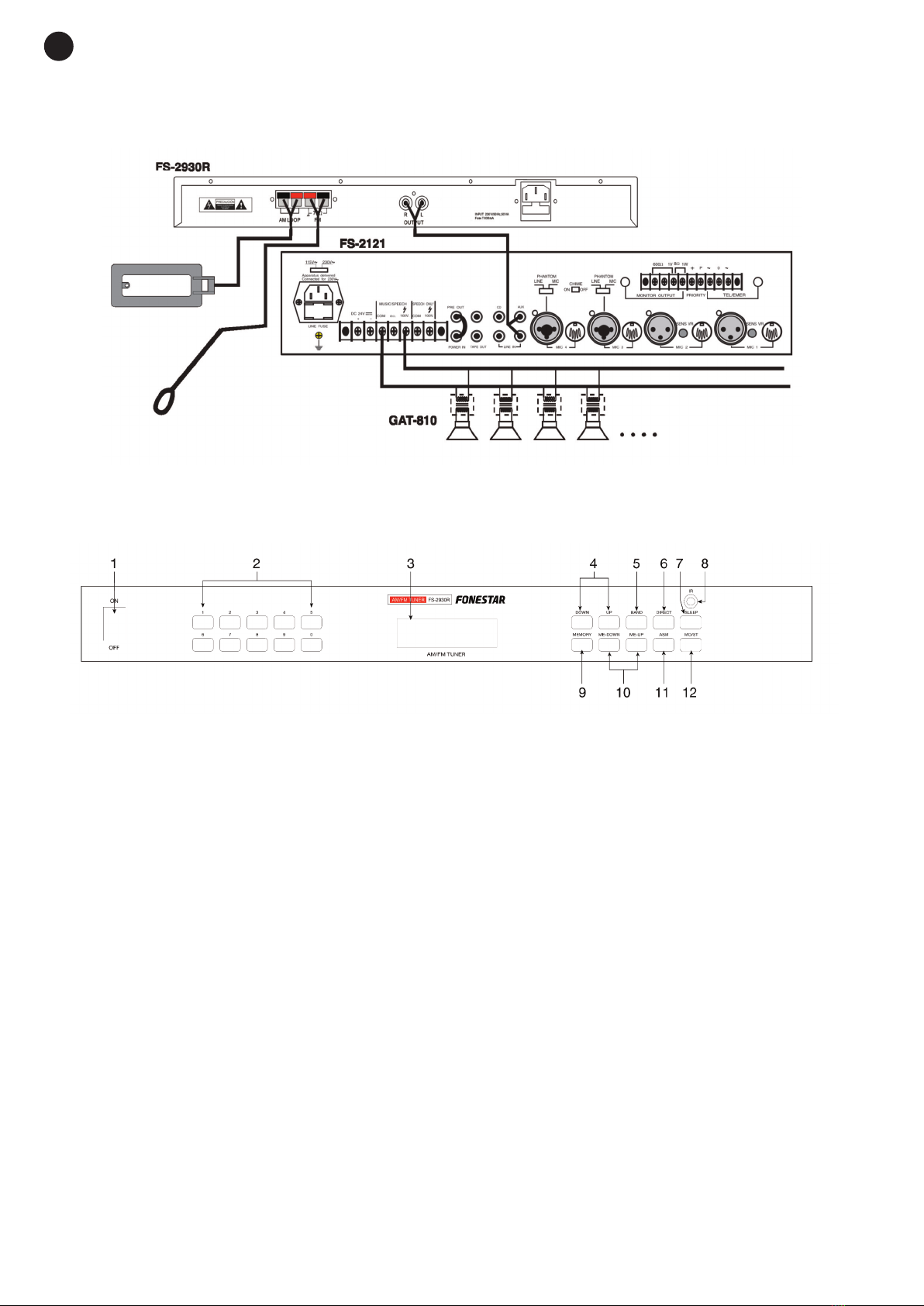

CONNECTION
Switch off the equipment and unplug it from the mains before connecting it.
Connect the equipment to the mains. Switch the equipment on.
CONTROLS AND F NCTIONS
FRONT PANEL
1.- ON/OFF: tuner on/off switch.
2.- 1 to 10: direct selection buttons for memorized frequencies.
3.- Information display.
4.- DOWN, P: pressing these once moves to the previous or following frequency.
Holding them down starts to move downwards or upwards through the frequencies.
5.- BAND: selects between the AM/FM bands.
6.- DIRECT: selects one frequency directly. Press DIRECT, then select the desired frequency using the
number buttons and to finalize press DIRECT again. The station is selected in this way. If the frequency
inserted does not correspond to a valid one, ERR will appear on the display.
7.- SLEEP: pressing this button activates the automatic off option. Pressing it consecutively lets you choose from
the different sleep times: 90, 80, ...20, 10 minutes or OFF.
8.- IR: infrared sensor for the remote control.
9.- MEMORY: button for memorizing favourite frequencies. 60 frequencies for FM and 40 for AM can be
tuned.
To memorize a station, tune in to it (manually or automatically), then press the MEMORY button and
select the number of the memory where it is going to be saved using the number buttons on the front
panel or on the remote control. Press the MEMORY button again and the frequency tuned in will be
saved in the selected memory.
10.- ME-DOWN, ME- P: for selecting the memorized frequency or the previous or the following one to it.
11.- ASM: holding this button down for more than 1.5 seconds, the tuner looks for stations automatically and
stores them directly in the memory.
12.- MO/ST: for selecting between mono or stereo mode.
- 4-
EN
FS-2930R_MANUAL_(EN)_20170703_Maqueta ión 1 3/7/17 12:41 Página 4

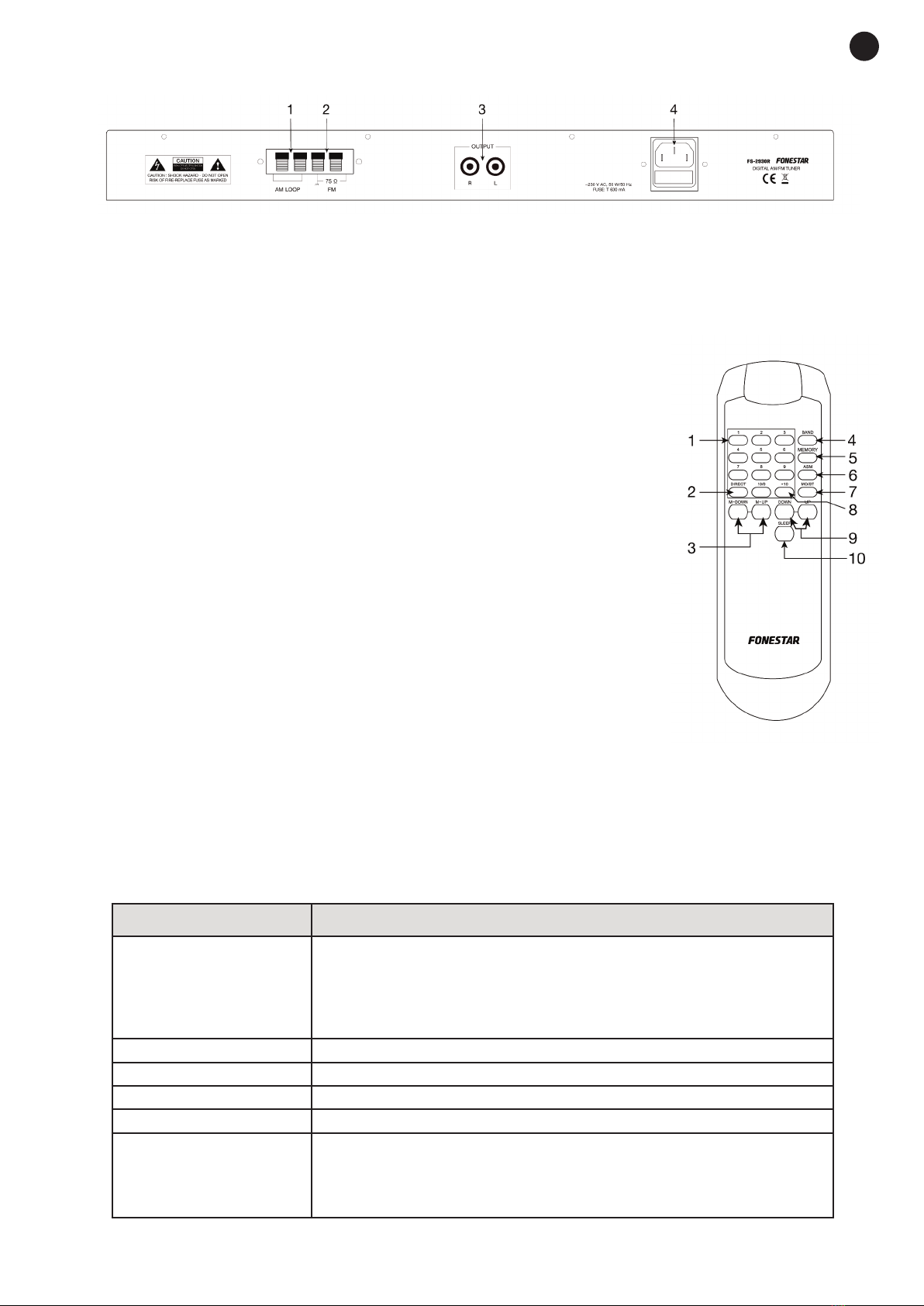

BACK PANEL
1.- AM LOOP: AM aerial input. The AM aerial is normally loop shaped.
2.- 75 W FM: FM aerial input. The impedance for this aerial is 75 Ω.
3.- O TP T: radio tuner output. RCA connectors.
4.- 230 V CA/50 Hz mains connection.
REMOTE CONTROL
1.- 1 to 10: direct selection buttons for memorized frequencies.
2.- DIRECT: for selecting a frequency directly. Press DIRECT, then press
the numbers that correspond to the desired frequency and to finalize,
press DIRECT again. After doing this the station has been selected. If
the frequency inserted does not coincide with a valid one, ERR will
appear on the display.
3.- M-DOWN, M- P: select the previous or following frequency memorised
to the current one.
4.- BAND: select between AM/FM bands.
5.- MEMORY: button for memorizing favourite frequencies. 60 frequencies
for FM and 40 for AM can be tuned.
To memorise a station, see the Controls and Functions section.
6.- ASM: holding this button down for more than 1.5 seconds, the tuner
looks for stations automatically and stores them directly in the memory.
7.- MO/ST: for selecting between mono or stereo mode, for the output.
8.- +10: for moving through the stations stored in the memory 10 by 10.
9.- DOWN, P: pressing these once moves to the previous or following frequency. Holding them down
starts to move downwards or upwards through the frequencies.
10.- SLEEP: pressing this button activates the automatic off option. Pressing it consecutively lets you choose from
the different sleep times.
TECHNICAL SPECIFICATIONS
FS-2930R
CHARACTERISTICS Digital AM/FM tuner.
Very sensitive reception and permanent memory.
Manual and automatic scan.
100 pre-tuned channels (60 FM and 40 AM).
Automatic switch off and remote control.
RESPONSE 40-14 000 Hz
O TP TS 1 auxiliary, 2 x RCA
POWER S PPLY 230 V AC, 50 W
DIMENSIONS 430 x 44.5 x 250 mm depth. 1 x 19" U rack
ACCESSORIES 2 x RCA cable
Mounts for assembly in 19" U rack
AM and FM aerial
Batteries for the remote control
- 5-
EN
FS-2930R_MANUAL_(EN)_20170703_Maqueta ión 1 3/7/17 12:41 Página 5

EN
-6-
FS-2930R_MANUAL_(EN)_20170703_Maqueta ión 1 3/7/17 12:41 Página 6
