FONESTAR RDT-756U User manual

RD -756U
DIGITAL TV RECEIVER WIT PVR
FUNCTION AND TIME S IFT
EN Instruction manual

EN
- 2-
We take this opportunity to thank you for buying this product.
We recommend you read the instruction manual before switching on the machine and follow the instructions
that are given. Keep the manual for future reference.
SECURITY AND T E ENVIRONMENT
ELECTRICAL SECURITY
Check that the current in the mains connection where the machine is to be installed corresponds to the
power supply of the machine.
To avoid damaging the equipment, electrical shocks, fire or physical injury when you connect or disconnect
the equipment from the power supply, pull the plug firmly out of the mains socket holding the plug, never the
cable.
Always do this with dry hands.
Keep the power supply cable far from sources of heat. Do not put heavy objects on top of it or change it.
Clean dust and dirt off the power supply cable regularly.
Do not open the machine; you could get an electric shock.
CAUTION
While installing the machine, make sure it is switched off and unplugged.
Do not open the machine. Touching the internal parts is dangerous and you could receive an electric shock.
The machine must not be splashed or dripped on. Never place recipients with liquid inside on the machine.
Do not place anything inside the machine.
LOCATION
Place the equipment on a horizontal surface with enough space around it to allow ventilation.
Avoid direct sunlight, heat sources and excessive dust.
Do not place the machine near magnetic fields or static electricity.
Do not use surfaces which vibrate or receive impact.
Do not pile machines on top of one another.
VENTILATION
Never block or cover the ventilation slits on the machine.
Do not expose it to direct sunlight or place it near sources of heat.
PERIODS OF INACTIVITY
When the machine is not going to be used for a long period of time, disconnect it from the mains.
If you are using an adapter, take into account that it will continue using electricity even if the machine is
switched off. If it is not going to be used for a long period of time, disconnect it from the mains.
T E ENVIRONMENT
To save energy, switch the machine off when you are not going to use it for a long time. The machine could
contain substances that are harmful to the environment or human health. To minimize the effect of these
substances the machine must be correctly managed and recycled when you decide to dispose of it.
When you dispose of it remember: it cannot be thrown into a conventional rubbish bin.
If it contains or uses batteries, these must be disposed of separately.
The machine (without batteries) must be disposed of correctly. Put it in a container specially intended for the
collection of electronic and electrical appliances, at the dump or hand it over to the dealer when you purchase
similar equipment, so that the dealer can dispose of it correctly (at no added cost).

EN
- 3-
SIGNIFICANCE OF HE SYMBOLS ON HE MACHINE*
The symbol formed by the expression “Class 1 laser product” written in a rectangle
indicates that visible or invisible laser radiation could be produced. Avoid direct exposure
to the laser.
The symbol formed by a ray of lightening inside a triangle shows that the machine has
connection terminals or a circuit with areas with a current which could cause an electric
shock, even in normal working conditions.
The symbol formed by an exclamation mark in a triangle shows that the instruction manual
must be referred to for information on how the machine works and its use.
The symbol formed by one square inside another square shows that the machine has
double electrical insulation.
The European Community symbol shows that the machine complies with the current
European Union legislation, as well as its transposition to local legislation.
The symbol of a rubbish bin crossed out and over a horizontal line shows that when the
product is disposed of it must be done properly, placing it in a special selective electronic
and electrical equipment container or through a dealer when purchasing a similar product,
at no additional cost. It also shows that the machine was put on the market after 13th
August 2005 (European Community Directive 2002/96/CE of Electrical and Electronic
recycling, and its Spanish equivalent R.D.208/2005).
In accordance with what is set out in the aforementioned decree, FONESTAR is registered
in the RAEE (Registro de Aparatos Eléctricos y Electrónicos) in a special section REI
(Registro de establecimientos Industriales), with the entry number 001851.
The symbol Ro S (Restriction of azardous Substances) shows that the product has been
designed and manufactured restricting the use of certain dangerous material(Directive
2011/65/EU on the restriction of certain dangerous substances in electrical and electronic
appliances, and its transferal to the Spanish regulations, R.D. 219/2013).
*It is possible that some of these symbols do not appear on the machine.
EXEMP ION OF LIABILI Y
The characteristics of the equipment and the content of the manual can change without forewarning.
FONES AR, S.A. does not assume responsibilities regarding the inappropriate use of the equipment or the
information supplied in this instruction manual, and specifically disclaims any implied liability for marketability
or fitness for any other use.
All rights reserved by FONES AR, S.A.

EN
- 4-
DESCRIP ION
The RD -756U is a digital TV receiver with PVR function with time-shift. It records digital TV programmes and
reproduces video, audio and image files.
Amongst other characteristics it has highly sensitive reception, it allows the choice of language in multi-audio
channels and has and electronic programme guide EPG, list of favourites, etc.
It has a PVR function (Personal video recorder), playing and recording video in USB storage devices, with time
shift function. This allows the reproduction of a digital TV signal to be stopped at a desired moment and
stored in a temporary buffer in the USB device, so that you do not miss one moment of your favourite
programme and you can return to that moment whenever you want.
It allows software upgrading through OTA and USB.
Easy to use menus with a quick start menu which makes tuning and setting the receiver easier the first time
you turn it on.
CON ROLS AND FUNC IONS
FRON PANEL
1.- Remote sensor.
2.- LED operating indicator.
3.- USB: connection port for USB storage devices.
4.- On/standby button.
BACK PANEL
1.- RF IN: digital TV tuner aerial input.
2.- RF OU : digital TV tuner aerial output to connect to the input of another tuner in cascade.
3.- V: standard definition (SD) audio and video output to connect to the television input. Scart.
4.- VIDEO: composite video output.
5.- R/L: stereo audio output.
6.- COAXIAL: digital audio output.
7.- Power supply cable.

REMO E CON ROL
1.- S ANDBY: on/standby mode.
2.- 0-9: number buttons.
3.- INFO: shows information on the current channel.
4.- MENU: shows the main menu on the screen.
5.- RECORD: to start recording the chosen programme.
6.- VOL+,VOL-: volume adjustment.
7.- X: shows teletext on the screen.
8.- MEDIA: shows the files recorded in the USB through the
system.
9.- 7/8: buttons for previous or next.
10.- USB: shows the files in the USB.
11.- Red/green/yellow/blue buttons: submenu function
buttons.
12.- MU E: activates/deactivates the audio output.
13.- EPG: shows the electronic programme guide.
14. -AUDIO: shows the languages available in the channel on
the display.
15.- SUB I LE: activates/deactivates subtitles.
16.- V/RADIO: selects between tuned TV or radio channels.
17.- RECALL: button for returning to the previous
programme.
18.- EXI : exits the current menu on the display.
19.- For moving through the menu options.
20.- OK: confirms the action selected in the menus.
21.- 3: stops the current recording or playback.
22.- CH+,CH-: channel selection.
23. -FAV: shows the list of favourite channels.
24.- 1: starts file playback.
25.- 5/6: for rewinding or fast forwarding current playback.
26.- 2: pauses file playback. Activates the timeshift function.
EN
- 5-

EN
- 6-
CONNEC ION
Before making any connections, switch off all the equipment and disconnect it from the mains.
It is recommendable to read the whole manual before connecting anything.
Respect the connector colour coding when you make the audio and video connections.
Connect the digital TV receiver to a television with just one type of connector.
The general connection procedure is the following:
- Connect the aerial to the RF IN tuner input.
- Connect the audio and video output signal to the television with the scart output (SCART TV), the
composite video output (VIDEO) and stereo audio (AUDIO L and R) or the appropriate cable in each case.
- If your audio amplifier/receiver is compatible with AC3, you can connect the coaxial output to one of the
digital audio inputs to enjoy AC3 audio if available on the channel or the file being reproduced.
- Once the connections have been made according to your needs, connect the equipment to the mains
and switch them on.

INS RUC IONS FOR USE
S AR UP
When you switch the digital TV receiver on for the first time, a quick start menu will appear on the screen
which will make the receiver set up and channel tuning easier.
Once the initial configuration (region, language, etc.) has been chosen, select OK and the automatic channel
search will start.
INS ALLA ION
By accessing the main menu you can set the receiver, tune and edit the TV channels and play the content
from a USB memory.
1. Press the MENU button to access the main menu.
2. Press the up/down buttons to choose the INSTALLATION option and then press the right button to
access the installation menu.
3. Press the up/down buttons to choose the desired option and straight afterwards press OK to access
the submenu.
4. Press the EXIT menu to exit.
- 7-
EN
- 7-

EN
- 8-
AU O SCAN
This lets you perform an automatic channel search.
1. Select AUTO SCAN and press the OK button to access the menu.
2. Press the movement buttons and select FTA ONLY, place the cursor over the SEARC option and press
OK to start the search.
Manual scan
This lets you perform a manual channel search.
1. Select C ANNEL SCAN, press the OK button to access the menu.
2. Use the movement buttons and adjust the search mode, A/B band, channel number, frequency and
bandwidth. Move the cursor over the SEARC option and press the OK button to perform the manual
search.
Aerial adjustment
1. Select AERIAL ADJUSTMENT and press the OK button to enter the menu.
2. Press the movement keys to select the desired option. When the LNB power supply is activated, the
receiver will supply a 5 V voltage to the aerial.

EN
- 9-
LCN
When LCN (Logical Channel Number) is activated, the numbers of each TV channel assigned during tuning
cannot be modified. You can activate or deactivate the LCN function. It is important to deactivate this option
if you want to order the channels according to your preferences in the Channel editing >TV channel list menu
option.
OPERA ING
CHANNEL CHANGING
There are three ways of changing channel:
1.- Browsing through the list of channels: press the buttons C + (w) and C - (s) on the remote control.
2.- Pressing the channel number: insert the channel number directly and press the OK button.
3.- Through the list of channels on the screen: see the C ANNEL EDITING section in this manual.
EPG (ELEC RONIC PROGRAMME GUIDE)
1. Press the button EPG to access the electronic programme guide.
2. Press the movement buttons to choose from the channel list, programme list of the chosen channel or
the programmes currently/shortly being broadcast.
3. Press the green button to open the timer menu. See TIMER section.
4. Press the red button to see the programming in time intervals.

EN
- 10 -
EDI CHANNEL
CHANNEL EDI MENU
1. Press the MENU button to access the main menu.
2. Press the up/down buttons to choose the EDIT C ANNEL option and press the right button to enter
the EDIT C ANNEL menu.
3. Press the up/down buttons to choose the desired option and press OK to enter the submenu.
4. Press the EXIT button to exit.
LIS OF V CHANNELS
1. Select TV C ANNEL LIST and press the OK button to enter the channel list menu.
2. Press the movement keys to choose the desired channel.
Use this menu to add to favourites, block, jump, move, sort, delete, and rename a channel.
Press the FAV button and then press the OK button to add thee channel to the list of favourites.
Press the coloured buttons and then press OK to edit the corresponding function.

EN
- 11 -
SOR ING HE CHANNEL LIS
To order the channel list, access the C ANNEL EDITING list and use the option MOVE to change the position
of a channel within the list.
The LCN option must be deactivated in order to move a channel. Check the LCN option in the
INSTALLATION>Aerial adjustment menu.
LIS OF RADIO CHANNELS
1. Select LIST OF RADIO C ANNELS and press the OK button to enter the radio channel list menu.
2. Press the movement keys to select the desired channel. This menu works in practically the same way
as the TV C ANNEL LIST, except that there is no video image in this mode and therefore a logo will
always appear on the right-hand side of the screen in its place.
DELE E ALL
1. Select DELETE ALL and press the OK button to enter the channel list menu. You will be asked for a
password (by default it is 0000).
2. A window will appear asking for confirmation. Select YES to delete all the channels or NO to cancel
the process.

EN
- 12 -

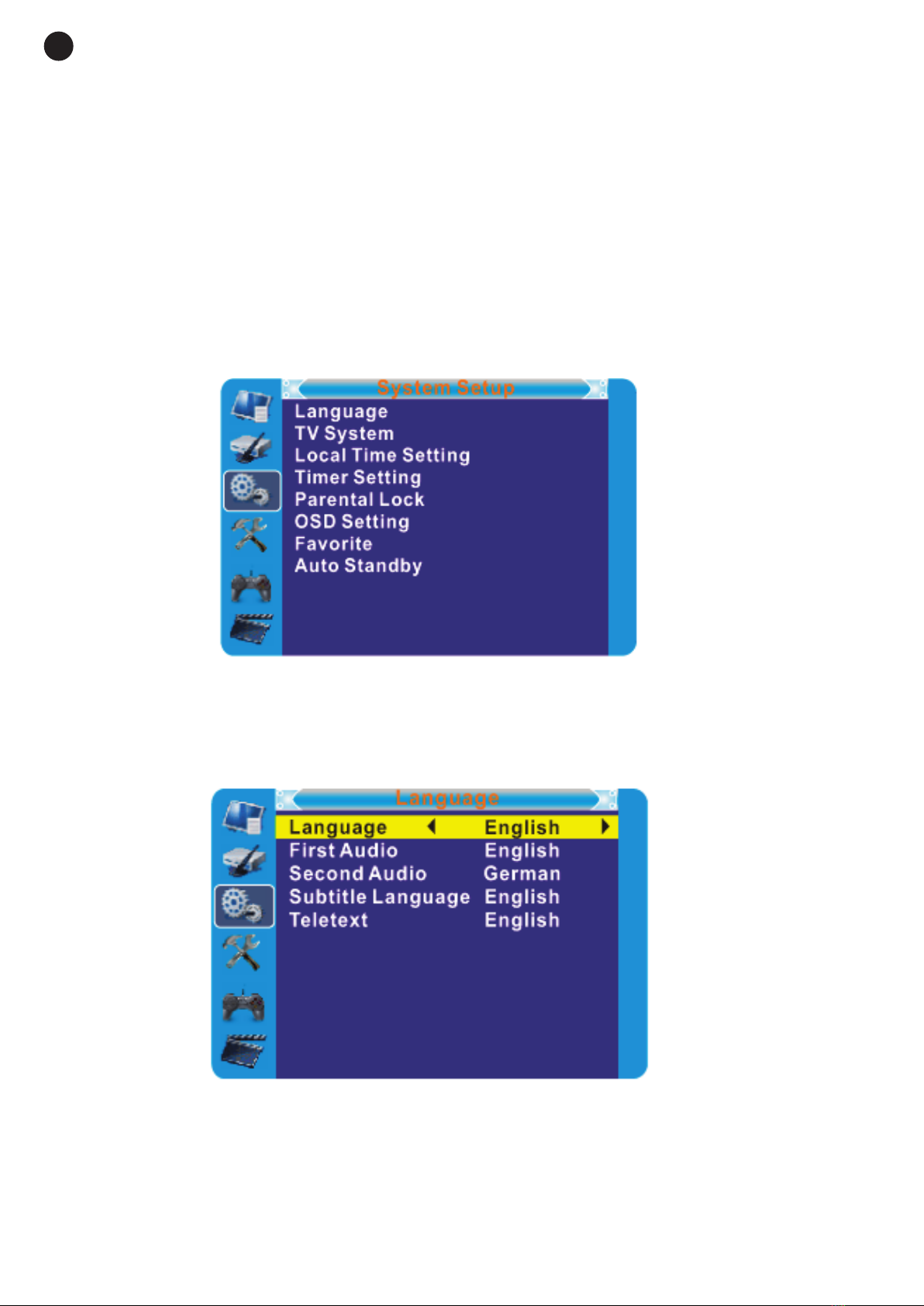

SYS EM SE UP
This lets you set the language, TV system, date and time, timer, parental lock, OSD options, favourites and
auto standby.
SYS EM SE UP MENU
1. Press the MENU button to access the main menu.
2. Press the up/down buttons to choose the SYSTEM SET UP option and then press the right button to
enter the SYSTEM SET UP menu.
3. Press the up/down buttons to choose the desired option and press OK to enter the submenu.
4. Press the EXIT button to exit.
LANGUAGE
This lets you choose the system set up language, for audio, subtitles and teletext.
.

EN
- 13 -
V SYS EM
This lets you set the display mode, the aspect mode and the video output.
Display mode: 480i/576i.
Aspect mode: Auto/4:3PS/4:3LB/16:9.
Video output: CVBS/RGB.
IME SE ING
This lets you set the region, time and date.
Region: to change the region setting.
GMT Usage: to activate or deactivate GMT time zone.
GMT OFFSET: This menu is only valid when “defined by the user” is selected in the GMT usage menu. The
applicable offset range is from -11:30 to +12:00 with an increase of 30 minutes.
Summer Time: If this option is activated, the system will automatically update the time.
Date: This menu is only valid when the “GMT usage” option is deactivated. It allows you to adjust the date.
Time: This menu is only valid when the “GMT usage” option is deactivated. It allows you to adjust the time.

EN
- 14 -
IMER SE ING
This lets you set the timer/programmer. Up to 8 timers can be set.
Timer mode: Off/once/daily/weekly/monthly.
Timer service: Channel/record.
Wakeup channel: Select the desired channel to switch on as an alarm.
Wakeup date: Insert the alarm date with the number buttons.
Wakeup time: Insert the alarm time with the number buttons.
Duration: Insert the duration with the number buttons.
PAREN AL LOCK
This lets you protect menus and channels, and change the password.
1. In the System set up menu, select PARENTAL LOCK and press the OK button. You will be asked for a
password (by default the password is 0000).
2. Once the password has been inserted with the number buttons, the PARENTAL LOCK menu will show:
Menu Lock: this limits access to all the menus. If this option is activated, the password will be asked for
every time you access the menus.
Channel Lock: This lets you block channels depending on the content: Off/10 years/12 years/ 16 years/18
years.
New password: This lets you change the password.
Confirm password: if you want to change the password, you must reinsert it here in order to avoid errors.

EN
- 15 -
OSD SE ING
This lets you set the duration of the OSD, transparency and the original OSD load.
OSD timeout: The time that it takes for the menu to disappear if nothing is touched.
Transparency: This lets you set the transparency level of the menu to the values: Off/10%/20%/30%/40%.
OSD Load default setting: This lets you re-establish the OSD default values.
FAVOURI ES
This lets you rename the groups of favourites.
1. In the SYSTEM SET UP menu, choose FAVOURITE and press the OK button to access the menu.
2. Select the group you want to change, then press the OK button and a keyboard will appear on the
screen. Insert the name you want using the corresponding letters and numbers (moving with the
movement buttons) and pressing OK to introduce them. Once you have finished inserting the new
name, select OK on the keyboard on the screen to confirm.
3. Press the EXIT button to exit the menu.

EN
- 16 -
AU O S ANDBY
On: If the device does not receive any signal on its front panel or in the remote control and no timers have
been programmed, it will switch itself off in 3 hours.
Off: It will not switch itself off automatically.
OOLS
This menu lets you upgrade the receiver software and load default values amongst other options.
1. Press the MENU button to enter the main menu.
2. Press the movement keys to choose the TOOLS option and then press the right movement button to
enter the TOOLS menu.
3. Press the up/down keys to choose the desired option and press the OK button to enter the submenu.
4. Press the EXIT button to exit.
RECEIVER INFORMA ION
This menu shows information on the receiver and the software.
1. In the TOOLS menu, select INFORMATION and press the OK button to open the receiver information
window.
2. Press the EXIT button to exit.

EN
- 17 -
LOAD FAC ORY SE ING
This menu lets you reset the system with the default values, deleting all channels.
1. In the TOOLS menu, select LOAD FACTORY SETTING and press the OK button.
2. You will be asked for a password (the password by default is 0000).
3. A window will appear asking for confirmation. Select YES to restore the default settings, deleting all
the existing channels. Select NO to cancel the action.
4. Press the EXIT button to exit.
SOF WARE UPGRADE
This menu lets you upgrade the software via OTA or USB.
1. In the TOOLS menu, select UPGRADE SOFTWARE BY OTA or UPGRADE SOFTWARE BY USB and
press the OK button to access the menu. The software upgrade menu is shown in each case.
2. Once the option has been chosen, press START to start upgrading.
3. Press the EXIT button to exit.

EN
- 18 -
O SAFELY REMOVE HE USB
In the TOOLS menu, select DISK REMOVE. Press the OK button to confirm and a message will appear. Press
the OK button again for the message to disappear.

EN
- 19 -
GAMES
This menu lets you access GAME.
1. Press the MENU button to access the main menu.
2. Press the up/down buttons to choose GAME and press the right button to enter the games menu.
3. Use the up/down buttons to choose the desired option and press the OK button to enter the game.
4. Press the EXIT button to exit.
REC
This menu lets you access the recording software and storage management.
1. Press the MENU button to access the main menu.
2. Press the up/down buttons to choose REC and press the right button to enter the REC menu.
3. Use the up/down buttons to choose the desired option and press the OK button to enter the submenu.
4. Press the EXIT button to exit.

EN
- 20 -
USB DEVICE
This lets you reproduce files from the USB device.
1. In the REC menu, select USB DEVICE and press the OK button to enter the MEDIA PLAYER menu.
You can also access it through the USB button on the remote control.
2. Press the up/down buttons to choose the desired option and press the OK button to reproduce the
desired files.
3. Press the EXIT button to exit.
RECORDING LIS
This lets you reproduce files that have been recorded with the system in the USB device.
1. In the REC menu, select RECORD MANAGE and press the OK button to enter the recording list menu.
2. Press the up/down buttons to choose the desired option and press the OK button to reproduce the
desired files.
3. Press the EXIT button to exit.
