COLOUR TV RECEIVER
OWNER'S MANUAL
Please read this manual carefully
before operating the unit, and keep
it for future reference.
The Owner's Manual for the Follow Model:
29FA10-AM

CONTENTS
Before Operation
Basic Operation
Others
Technical operation
Warning and Cautions
Installation
Antenna connection
Preparation for theremote control
Position of keysand plug-ins
Front and sidepanel
Back panel
the remote control
Power on andpower off
Viewing TV programs
Viewing TV programs
Program scan andscreen display

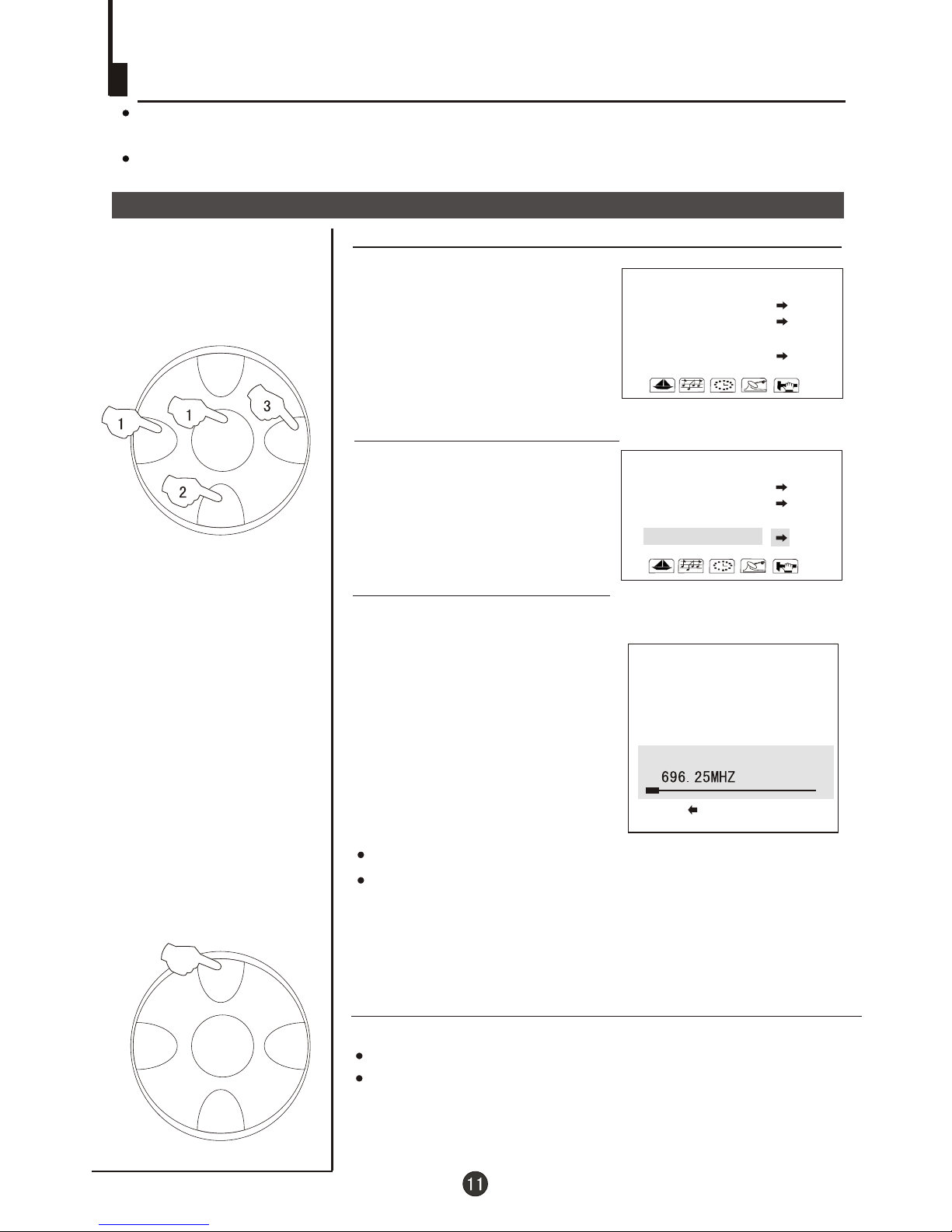

Tuning
Automatic search. ..
Manual search
MFT
Skip
Adjusting the pictureand the sound
S.C.C auto off and mute

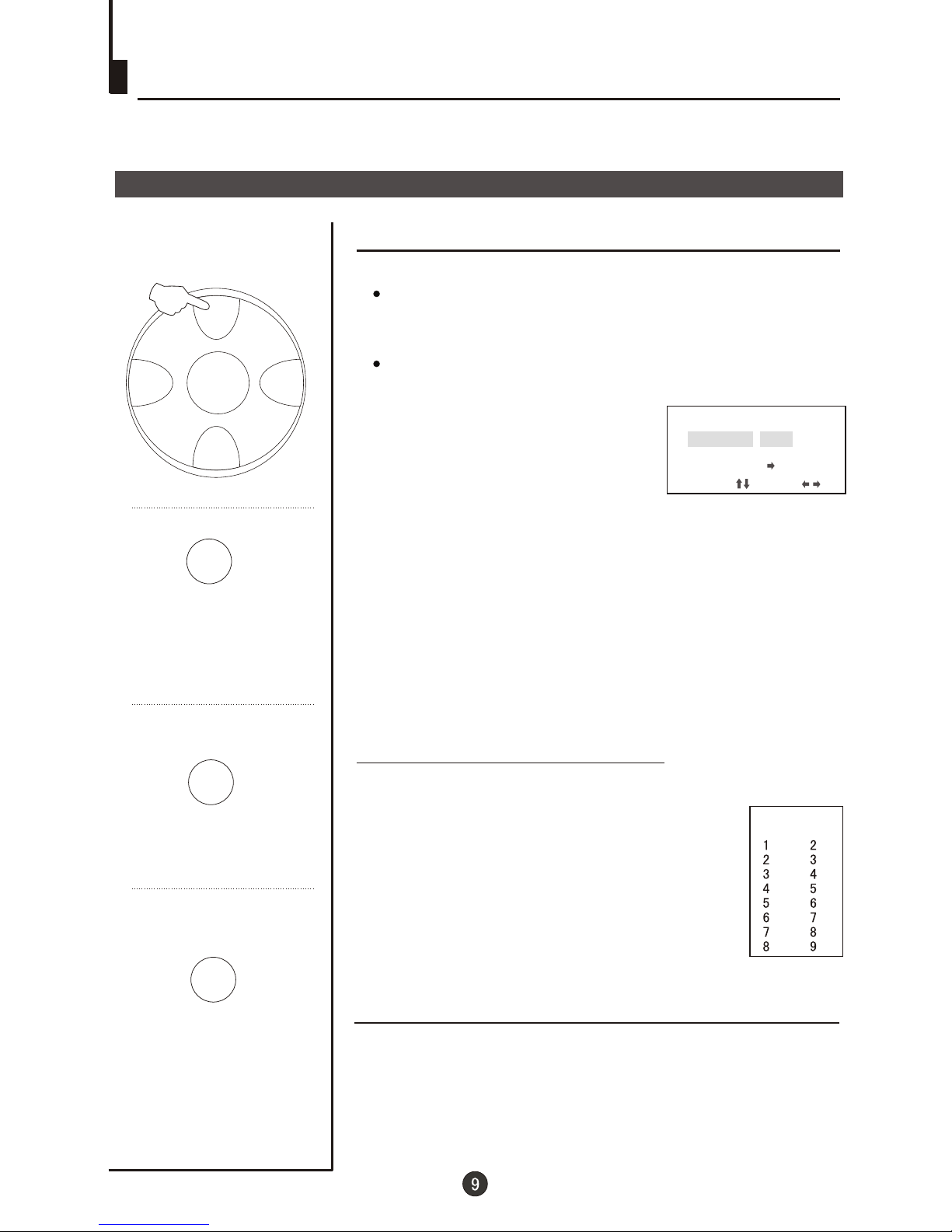

Setting the otherfunction
and screen protection..
Timer off.. .................................................. 9
Setting the timer
Curtain function, calendardisplay

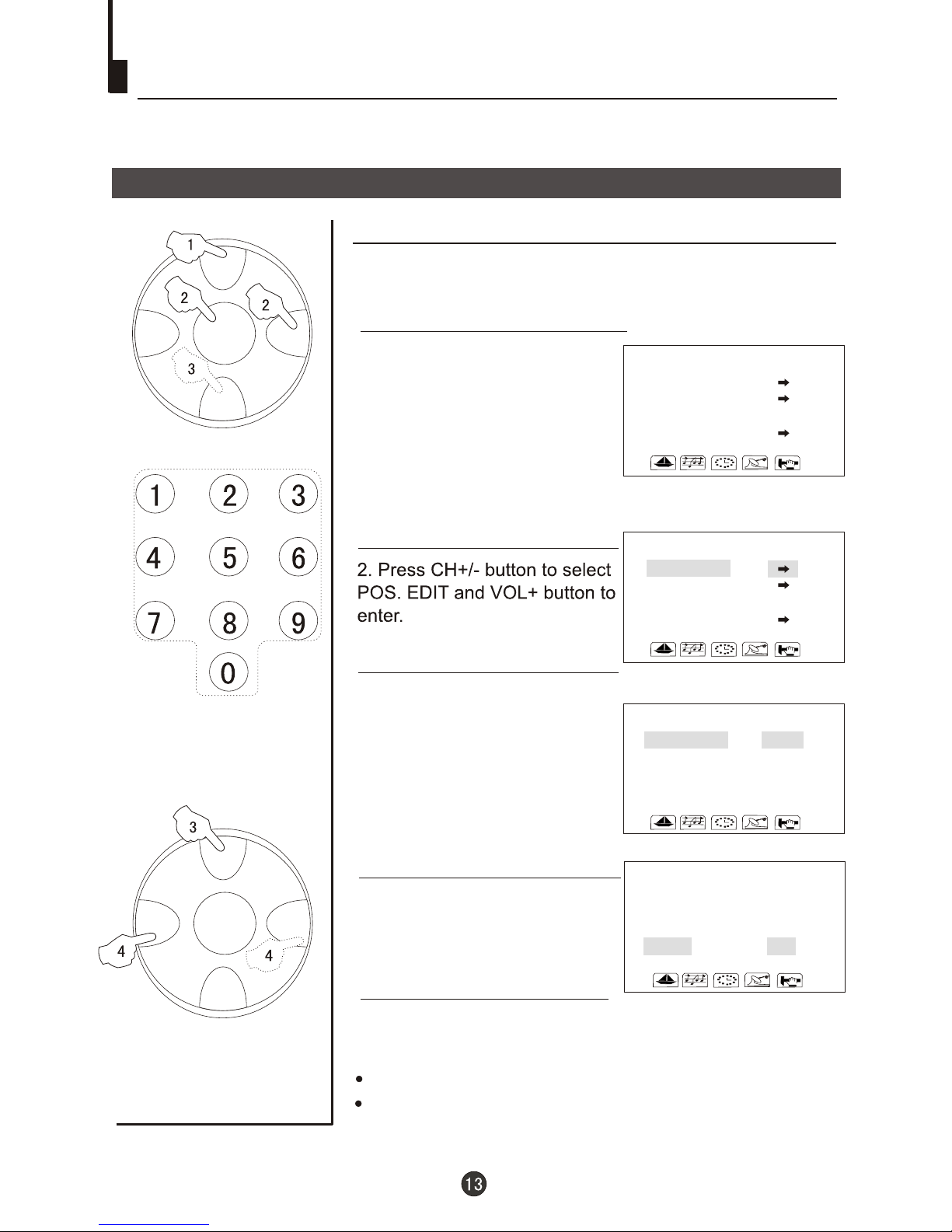

Channel exchange
Setting the lock
Changing your password
Connecting Additional Equipments
Troubleshooting
Specifications
.................................... . ..........................................2
..............................................................................................................3
................................... ..........................................................3
.........................................................................3
....................................................................................4
.............................................................................................4
...........................................................................................................4
Using ..........................................................................................5
............................................................................................6
................................................................................................7
............................................................................................7
...................................................................................................................11
...........................................................................................11
...................................................................................................12
...................................................................................................................13
...................................................................................................................14
.........................................................................15
Multiple picture modes . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . ... . 1 5
........................................................................................18
..........................................................................18
.....................................................................................................20
Game
Game control buttons and method ofplaying the game
.........................................................................28
..................................................................................................29
......................................................................................................30
..............
..........................................................................8
............................. ....
............................. ....
Multiple sound modes and setting thesound.... .................................................. .16
.......................................................................................17
3A filter
.......................................................... 1
Sleep timer andon timer ....................................................................................20
Channels appointment.......................................................................................21
Background.....................................................................................................22
......................................................................23
.............................................................................................24
.....................................................................................................25
....................................................................................25
Setting the lock..................................................................................................26
...................................................................................................................27
........................................27
Saving mode.favorite program and shuttle . ...........................9
FM . ...............................................................................10

Warning and Cautions
1. When you clean the TV set, please
pull out the power plug from AC outlet.
Don't clean the cabinet and the
screen with benzene, petrol and other
chemicals.
4. To prevent the TV set from firing
and electric shock, don't expose the
TV set to rain or moisture.
2. In order to prolong the using life of
the TV set, please place it on a
ventilated place.
5. Don't open the back cover,
otherwise it is possible to damage the
components in the TV set and harm
you.
3. Don't place the
TV set in the
sunshine or near
heat source.
6. When the TV set isn't going to be
used for long time or it is in thunder
and lightening, please pull out the
plug from AC outlet and the antenna
plug from the cover of the TV set.
Explanation on the display tube
In general, it is not needed to clean the tube surface. However, necessary,
it's surface can be cleaned with a dry cotton cloth after cutting off the power.
Don't use any cleanser. If using hard cloth, the tube surface will be damaged.

Installation
Antenna connection
Generally speaking, to enjoy a clearer picture, we recommend that you use a CATV
system or an outdoor antenna .In different places, the suitable antenna type and position
are different.
300 twin-lead cable
Antenna adapter
75 coaxial cable
Plug
(additional purchase) AC power socket
Antenna input
75 standard
coaxial type
Mixer
additional
purchase
Note
* It is recommended that you'd better use 75
* Don't bind antenna cable and electric wire together.
coaxial cable to remove the
disturbance caused by airwave.
Preparation for the remote control
Battery installation Tips for remote operation
Remove the batteries cover. !The battery life should be about one year
under normal use.
! When the remote control will not be used
for a long period of time or when the
batteries are worn out, remove the batteries
to prevent leakage.
! Do not throw the batteries into a fire.
Dispose of used batteries in the specified
manner.
! Do not drop, dampen or disassemble the
remote control.
Insert two size AA batteries matching
the +/-polarities of the battery to the +/-
marks inside the battery compartment.
!
!

Position of Keys and Plug-ins
Back paneland side
Front panel
Antenna input socket
S-VIDEO input terminal
Video Yinput terminal
Video Cb inputterminal Video Cr inputterminal
Video output terminal Audio left channeloutput terminal
Audio right channeloutput terminal
Video input terminal Audio left channelinput terminal
Audio right channelinput terminal
AUDIO
VIDEO
L
R
Power indicator
Menu
TV/AV switch
Volume down/up
Channel down/up
Power switch
¢Ù¢Ù
¢Ú
¢Û¢Û
¢Ý¢Ý¢Þ¢Þ¢ß¢ß
¢Ü¢Ü

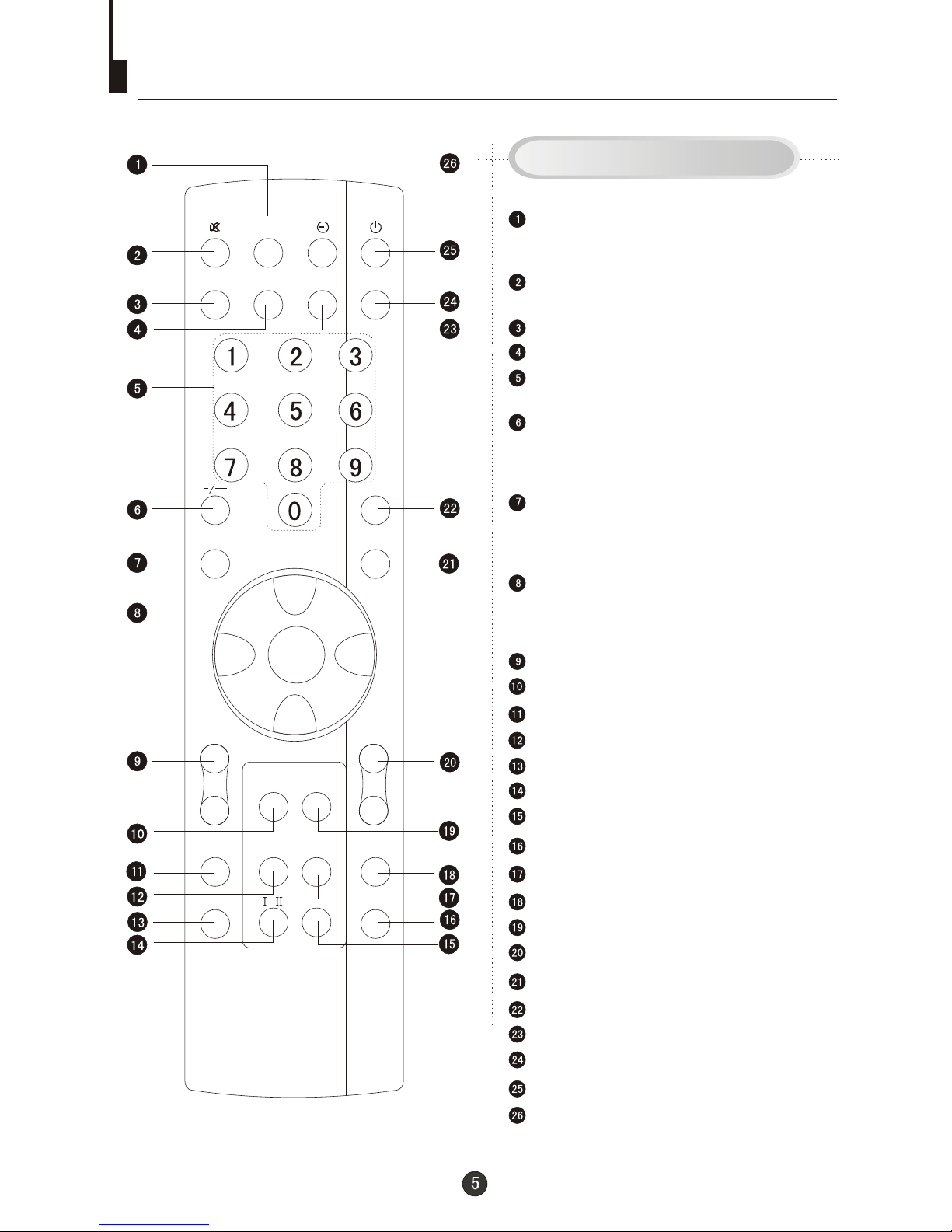

Using the Remote Control
TV/AV
DISP SYSTEM SCAN
S.STD
P.STD
LOCK
PRE BACK
CALENDAR
EXIT
QSET
MODE
Buttons and Descriptions
TV and AV Exchange Button
Toexchanger between TVand
other available videoinputs
Mute Button
Press to conceal thesound of programs.
Screen Display Button
System Adjust Button
Direct-digit Choosing Button
Directly select channelnumbers
Lock Setting button
Menu Select/Adjust Button
Use this buttonto adjust the menu,
the volume andthe channels, as well
as to controlthe game.
Program Play-forward Button
Calendar
Change the aspectratio
Start/Restart Game Button
Game Exit Button
Program Play-backward Button
Sound Mode Select Button
Digit Select Button
Change the channel position number
between one digit, two-digits and three
-digits.
Picture Mode SelectButton
There are DYNAMIC,STANDARD,
MILD,MEMORY, PICTURE MUTEand
COLOR MUTE sixmodes of picture.
Program Scan Button
DC Standby Button
Sleep TimerButton
GAME
CH+
CH-
VOL+
VOL- MENU
FAVORITE
Favorite program button
SHUTTLE
FM ZOOM
TDX
/
Game Background SelectButton
FM on /off button
No available
No available
Saving mode on/off button
Shuttle button

Power On and Power Off
Below are methods on how to power on/off the TV set with the switch on the TV and
on the remote control.
Power on/off
Connect/disconnect to the power
1. Connect the power supply wire, then press
power switch button, the power indicator will
light, in several seconds the picture will appear
on the screen.
2. If the TV is in the state of standby, press the
button on the remote control.
3. Press the button on the remote control
to get into the standby status.
4. Press the button on the TV set to
completely turn off the TV.
NOTE
1. You can also press the 0-9
button to call off the standby
status instead of pressing the
DC Standby button. Press the
digit button of the preset channel
(limited to one digit) , you can
complete the selection of channel while you turn on the
TV set( To operate the preset of TV channel, please see
TUNING on page ).11-14
2. When you do not use the remote control, you can
directly press the CH+/- button on the television to
call off the standby status.
DC Standby Button
Direct-digit Choosing Button
Power indicator
Menu
TV/AV switch
Volume down/up
Channel down/up
Power switch
¢Ù¢Ù
¢Ú
¢Û¢Û
¢Ý¢Ý¢Þ¢Þ
¢ß¢ß
¢Ü¢Ü

VOLUME
PRE BACK
SYSTEM

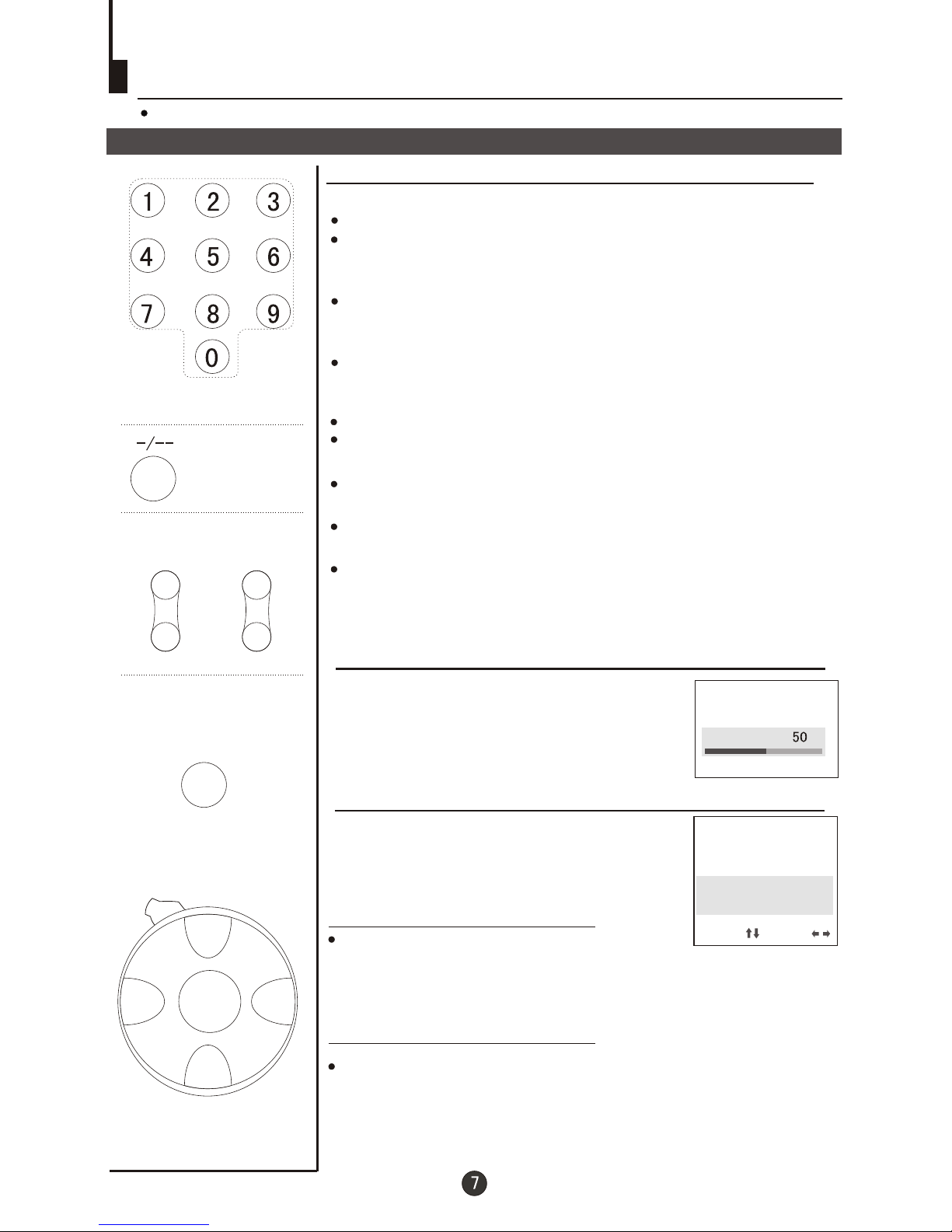

Viewing TV Programs
The channels amountto 218 .
Viewing TV programs
How to select the TV program
1. Use the direct-digit choosing button
2. Use CH+/- button
Press CH+ to increase the channel position number.
Press CH- to decrease the channel position number.
Press the button from 0-9 to select a one digit channel.
If you want to select a two-digits channel, press the
Digit Select button and change it into two-digits mode,
then press the number of the channel.
If you want to select a three-digits channel, press the
Digit Select button and change it into three-digits mode,
then press the number of the channel.
3. Use PRE button and BACK button
Press PRE button, you can go back to the channels you
viewed (as many as four).
Then, press BACK button, you can return to the channels you
were watching just now (as many as four) .
For example, if you have viewed channel 1,2,3,4,5,6 after the
TV is powered on, and the channel you are watching now is
number 7, then press PRE button, you can view channel 6,5,
4,3, and you may press the Back button to return to channel 7.
If the channel position number you select is larger than 218,
the TV will use the first two number as the channel position.
Choose the proper volume you like
Press VOL+/- button to adjust the volume.
If the color of one channel is abnormal
It might be because the color has been
set improperly.You may follow the
instruction below toadjust it. Press
SYSTEM button, and you can see
the figure.
Press CH+/- button, and move the indicator to COLOR,
and press VOL+/- button to select the proper color(AUTO,
NTSC3.58,NTSC4.43 and PAL will appear alternately).
Generally, please set to AUTO.
If the color of the picture is abnormal
MENU
CH+
CH-
VOL- VOL+
Direct-digit Choosing
button
Digit Select
button
Press CH+/- button, and move the indicator to SOUND,
and press VOL+/- button to select the proper sound.
If the sound is abnormal
COLOR AUTO
SOUND BG
SELECT ADJUST

Screen display
SCAN
½ÚÄ¿ä¯ÀÀ¼°ÆÁÄ»ÏÔʾ¹¦ÄÜ
Viewing TV Programs(coutinued)
Program scanning function is to let the television automatically scan all
preconcerted channel program(abouttwo seconds per channel).
Program scan and screen display
Program scanning function
1. If you want to scan the programs
and select your favorite channel ,
just press the SCAN button, then
the television will start scanning
from the present channel with a
rate of two seconds per channel
and until all the preconcerted
programs have been displayed
once, the TV set will return to the
starting channel.
2. If you want to terminate this
function during thescanning, press
the SCAN button again, and the
program will stay at the present channel.
DISP Usually, when you press the DISP button, the channel
number will appear on the top right corner of the screen
and press it again, the channel number will disappear
or disappear automaticallyin about 5 seconds.

MENU
CH+
CH-
VOL- VOL+
Shuttle
½ÚÄ¿ä¯ÀÀ¼°ÆÁÄ»ÏÔʾ¹¦ÄÜ
Viewing TV Programs(coutinued)
Saving mode.favorite program and shuttle
Saving mode
1. Using the QSET button
Press FAVORITE button for long time to enter the menu
as right figure.Press CH+/- button to select
the favorite programand VOL+/- button to
adjust the channel.You could set 8favorite
programs.
After thesetting, press FAVORITE button
to select yourfavorite channel you have
set .
Press SHUTTLE for long timeto set the program you are
watching as the shuttle channel.
If you want to back to this channel from the current
channel, press SHUTTLEbutton once .
Press the QSET button to switch the saving mode
on/off. And the screen will display on/off at the
same time.
Press the QSET button more than 3 seconds to
call the ENERGY SAVE menu .
2.Press VOL+/- button and CH+/-
button to set the options of
AMBI-LUM/ AMBI-SND, after
this, select the ADJUST option
and press VOL+/- button to
display OK, the set is finished.
Note: 1. After adjusting the item in the ENERGY
SAVE, the energy save function is on
automatically.
2. If the energy save mode is on, the buttons
P.STD and S.STD will not work. The screen
displays ENERGY SAVE ON.
Favorite program setting
FAV.POS
QSET
FAVORITE
SHUTTLE
SELECT ADJUST
ENERGY SAVE
AMBI-LUM BRI.
AMBI-SND NOISE
ADJUST
