THIS MANUAL CORREPONDS TO THE FOLLOWING MODELS:
FA-8060 Wireless Hi-Fi stereo headphones via UHF radio frequency. Composed of a transmitter
(FA-8055T) and wireless stereo Hi-Fi receiver headphones (FA-8060R).
FA-8055T Transmitter by UHF radio frequency. For the extension or replacement of FA-8060.
FA-8060R Wireless headphones UHF. For the extension or replacement of sets FA-8060.
DESCRIPTION
Wireless headphones via UHF radio frequency. The model FA-8060 is characterized by the headphones
fitting firmly on the head allowing freedom of movement.
The transmitter FA-8055T is equipped with an audio stereo input and 3 selectable transmission channels
(863.5, 864 and 864.5 MHz).
They allow total mobility and comfort, with maximum transmission distance in favourable conditions.
Several wireless Hi-Fi stereo headphones can be used (FA-8060R) with the same transmitter (FA-8055T)
and up to 3 transmitters (FA-8055T) simultaneously (one in each transmission channel).
CONTROLS AND FUNCTIONS
TRANSMITTER (mod. FA-8055T)

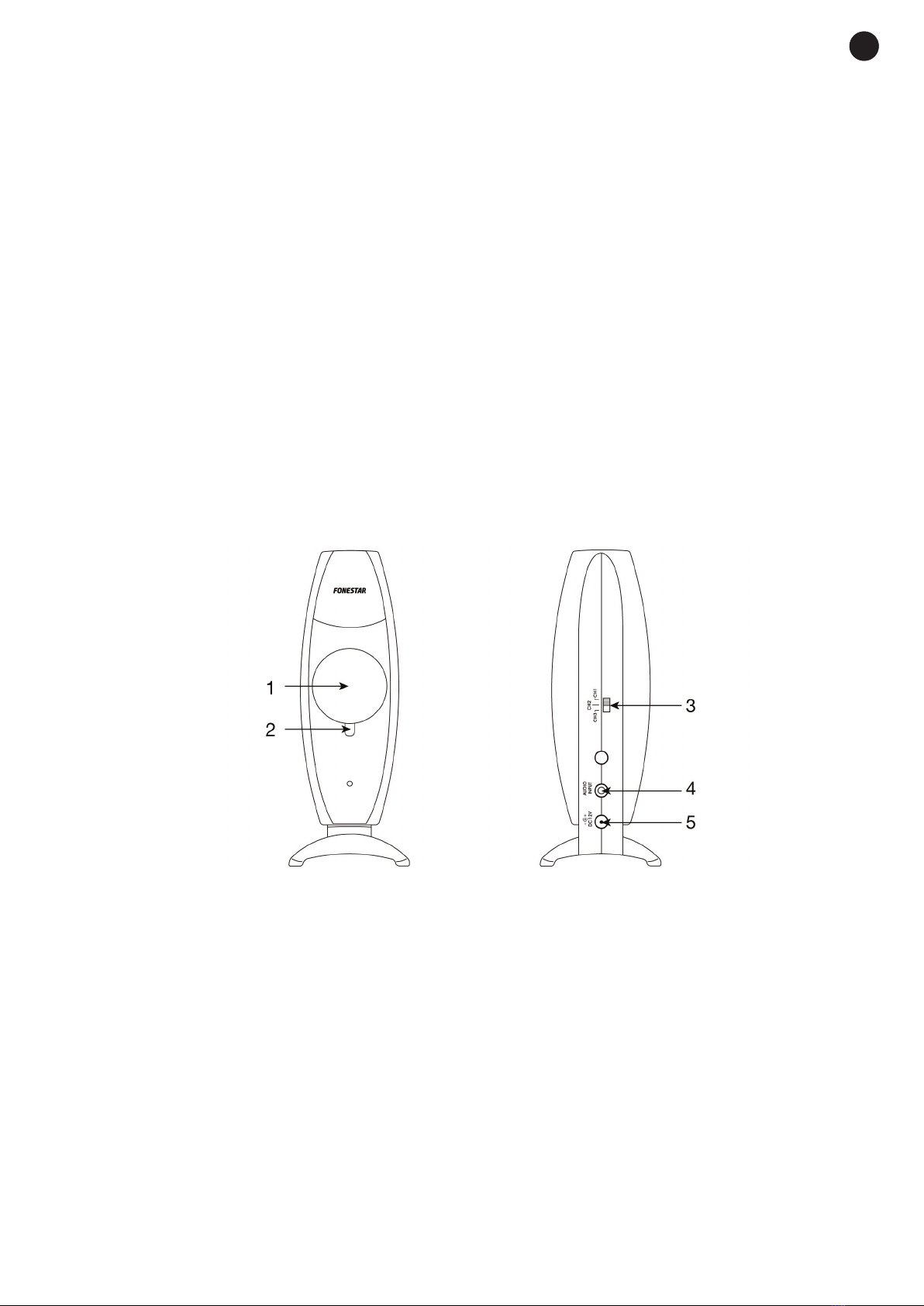

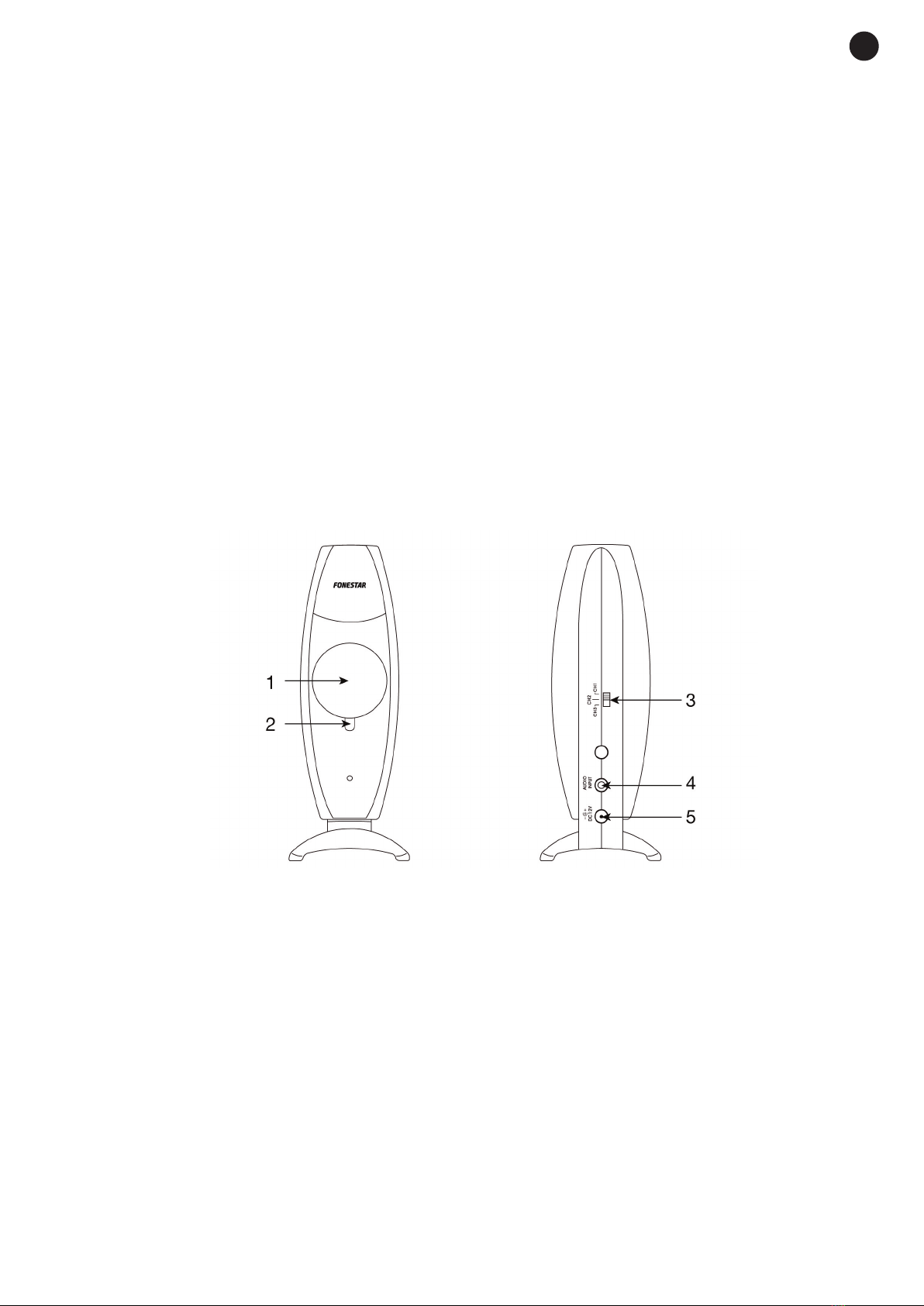

1.- LED audio level indicators. Show the audio signal level going into the transmitter coming from the audio
source.
2.- LED power indicator. It lights up automatically when an audio signal goes into the transmitter. It switches
off automatically after 3 minutes without receiving a signal.
3.- CH1/CH2/CH3: UHF radio frequency transmission channel switch. 3 available channels: 863.5, 864
and 864.5 MHz.
4.- AUDIO INPUT: stereo audio input, 3.5 mm jack stereo connector for connection to a CD player, Hi-Fi
system, etc.
5.- DC 12 V: 12 V DC power supply input, for the mains adapter provided.
- 2 -
EN
FA-8060_MANUAL_(EN_ES_FR_PT)_20190727_Maquetación 1 30/09/2019 10:23 Página 2

HEADPHONE RECEIVER (mod. FA-8060R)

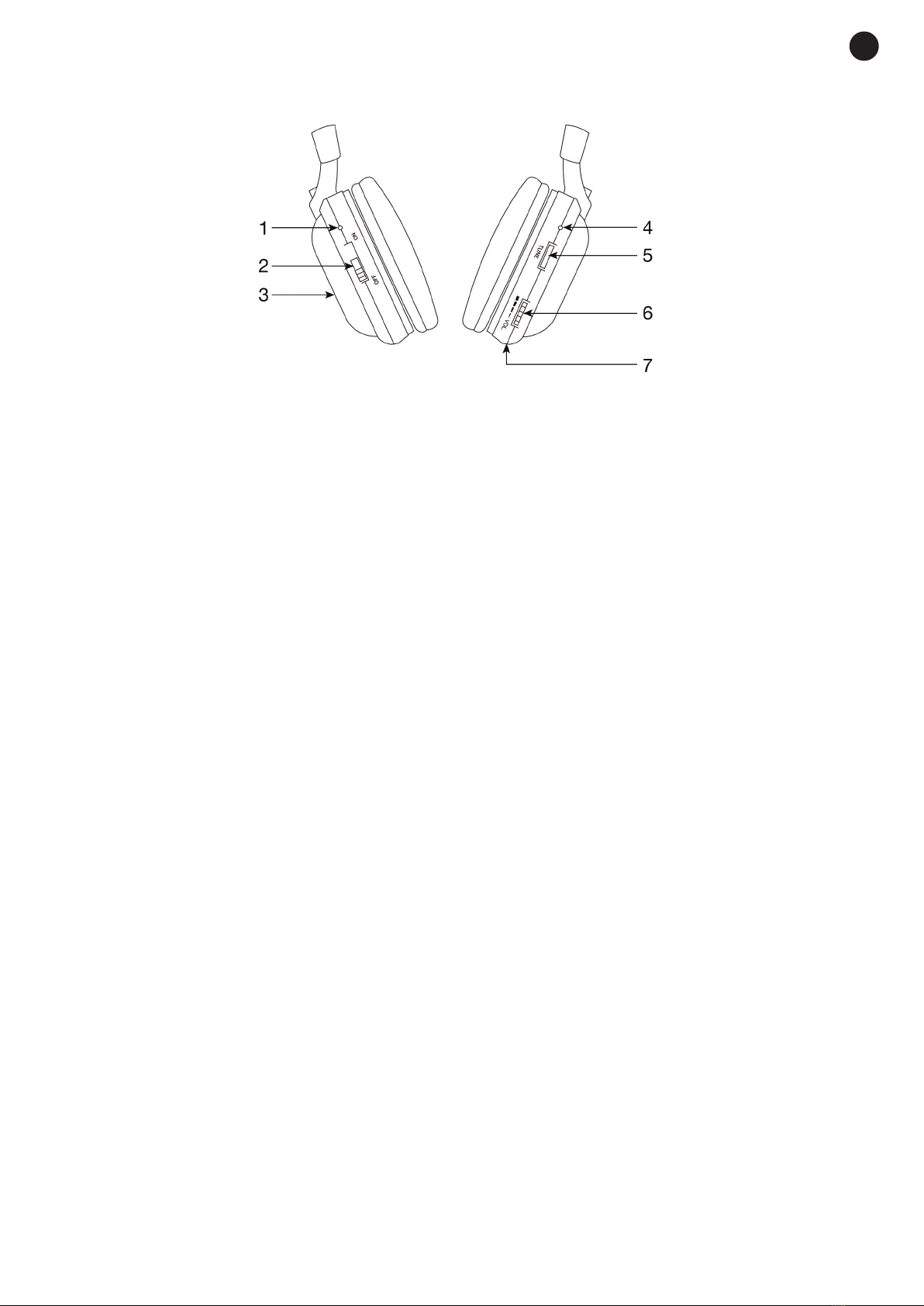

1.- LED power indicator. Remains lit if the headphones are in use.
2.- ON/OFF: headphone on/off switch.
3.- Battery compartment, uses two alkaline or rechargeable 1.5 V batteries type LR03-AAA. When inserting
the batteries, make sure that the polarity is correct.
4.- LED signal reception indicator: it lights up when a signal is received coming from the transmitter.
5.- TUNE: press this button to automatically tune the transmission channel.
6.- VOL: .volume control. Increases or decreases the audio level.
7.- Audio input, 3.5 mm stereo jack connector to use as wired headphone.
CONNECTION
- Connect the audio source stereo audio output signal to the transmitter’s AUDIO INPUT with the
corresponding cable.
- Power the transmitter with the mains adapter provided.
-Insert two alkaline or rechargeable 1.5 V batteries type LR03-AAA in the Hi-Fi stereo headphone receiver,
making sure that the polarity is correct.
INSTRUCTIONS FOR USE
1.- Make the transmitter connections according to the Connection section.
2.- The transmitter will switch on automatically when the audio signal is received, activating the LED power
indicator
Note: if it does not receive an audio signal, the transmitter will automatically switch itself off after 3
minutes
3.- Switch on the headphone receiver by placing the power switch in the ON position. The headphone LED
power indicator will light up.
4.- Press the TUNE button to automatically tune the transmission channel.
5.- In the event that no clear or strong signal is received or a signal with interference is received, change the
transmission channel with the transmitter’s CH1/CH2/CH3 switch. Then repeat step 4 to tune the new
transmission channel.
6.- Adjust the volume of the signal received until an adecuate level is reached using the headphone VOL
control.
- 3 -
EN
FA-8060_MANUAL_(EN_ES_FR_PT)_20190727_Maquetación 1 30/09/2019 10:23 Página 3

TECHNICAL SPECIFICATIONS
SIMPLIFIED EU DECLARATION OF CONFORMITY
FONESTAR SISTEMAS S.A. hereby declares that the wireless headphones FA-8060 comply with the Directive
2014/53/EU.
The complete text of the EU Declaration of Conformity is available at the following internet address:
fonestar.com/ES/FA-8060
FA-8060
CHARACTERISTICS Wireless stereo Hi-Fi headphone system via UHF radio frequency.
Transmitter with audio stereo input and 3 selectable transmission
channels.
Allows freedom of movement and comfort when listening, even through
walls and ceilings.
100m maximum transmission distance in perfect conditions.
3 transmitters can be used simultaneously with 3 different programs
selectable from the headphones.
Several receiver headphones can be used with the same transmitter.
TRANSMITTER Transmission: via UHF radio frequency
Modulation: FM stereo
Power < 10 mW
Input: audio, 3.5 mm stereo jack
Channel selector (3 selectable channels): 863.5, 864 and 864.5 MHz
LED indicators: power and audio signal level
Power supply: 12 V DC, 150 mA with adapter included
HEADPHONE RECEIVER Response: 30-20,000 Hz
Input: 3.5 mm stereo jack to use as a cabled headphone
Power switch: on/off
Controls: volume and automatic tuning for 3 channels: 863.5, 864 and
864.5 MHz
LED indicators: power on/off and signal reception
Power supply: 2 x 1.5 V LR03-AAA type batteries
ACCESSORIES 1 3.5 mm stereo jack cable to 3.5 mm stereo jack and 2 x RCA
- 4 -
EN
FA-8060_MANUAL_(EN_ES_FR_PT)_20190727_Maquetación 1 30/09/2019 10:23 Página 4

ESTE MANUAL CORRESPONDE A LOS SIGUIENTES MODELOS:
FA-8060 Sistema inalámbrico de auriculares Hi-Fi por radiofrecuencia UHF. Compuesto por un emisor
(FA-8055T) y un auricular receptor inalámbrico (FA-8060R).
FA-8055T Emisor UHF. Para ampliación o repuesto del conjunto FA-8060.
FA-8060R Auricular inalámbrico UHF. Para ampliación o repuesto del conjunto FA-8060.
DESCRIPCIÓN
Auriculares inalámbricos UHF. El modelo FA-8060 se caracteriza por una sujeción firme del auricular a la
cabeza que permite libertad de movimientos.
El emisor FA-8055T dispone de entrada de audio estéreo y 3 canales de transmisión (863’5, 864 y 864’5 MHz)
seleccionables.
Permite total movilidad y comodidad de escucha incluso a través de paredes y techo, con una distancia
máxima de transmisión de 100 m en condiciones favorables.
Pueden utilizarse varios auriculares receptores estéreo Hi-Fi inalámbricos (FA-8060R) con el mismo emisor
(FA-8055T) y hasta 3 emisores (FA-8055T) simultáneamente (uno en cada canal de transmisión).
CONTROLES Y FUNCIONES
EMISOR (mod. FA-8055T)

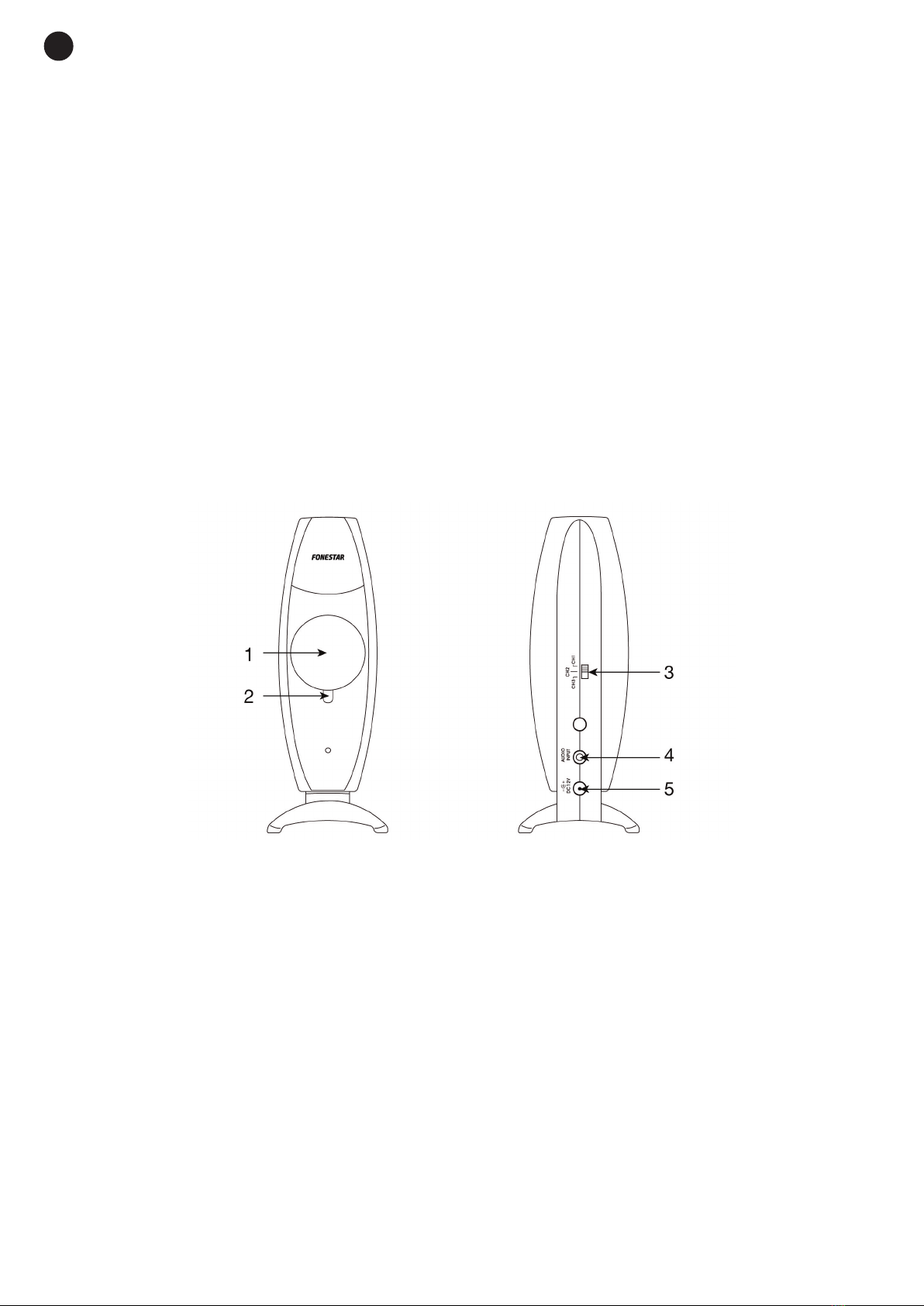

1.- Indicadores luminosos de nivel de audio. Muestran el nivel de la señal de audio que entra en el emisor
procedente de la fuente de sonido.
2.- Indicador luminoso de encendido. Se ilumina automáticamente cuando entra una señal de audio en el
emisor. Se apaga automáticamente transcurridos 3 minutos sin recibir señal.
3.- CH1/CH2/CH3: selector del canal de transmisión de radiofrecuencia UHF. 3 canales disponibles: 863’5,
864 y 864’5 MHz.
4.- AUDIO INPUT: entrada de audio estéreo, conector jack 3’5 mm estéreo para conexión de un
reproductor de CD, equipo Hi-Fi, etc.
5.- DC 12 V: entrada de alimentación de 12 V CC, para el adaptador de corriente suministrado.
- 5 -
ES
