for Living L-GZ512PST-C User manual

Soft-top Gazebo
Product No. 088-2119-0
Model No. L-GZ512PST-C
Toll free:
IMPORTANT: Please read this manual carefully before beginning assembly of this product.
Keep this manual for future reference.
Production Number: 20194773
Assembly Instructions

Imported for Trileaf Distribution Trifeuil Toronto, Canada M4S 2B8
Made in China

USE & CARE:
• This gazebo is not a permanent structure and should be disassembled & stored away after use.
• Do not repack your gazebo until completely dry.
• In order to reduce the risk of personal injury and damage to equipment, basic safety precautions should always
be followed when assembling and using this product. Read all instructions carefully before assembly and use.
• Some parts may contain sharp edges. Wear protective gloves if necessary. In order to ensure safe assembly, it
is recommended that this product be assembled by at least two people.
• Keep children and pets away from the assembly area.
• Begin assembly at least 6’ (1.8 m) away from any obstruction, such as a fence, garage, house, overhanging
branches, laundry line, or electrical wires.
• Install gazebo on level ground. Anchor the gazebo to the ground with stakes for added safety. Stakes are provided
to secure the gazebo to the ground. If you wish to secure the gazebo to concrete and wood surfaces, use anchors
suited for these surfaces (anchors not included). Gazebo is intended for decorative and sunshade purposes only,
and is not designed to withstand harsh weather, including high winds, rain, and snow.
• Verify that all nuts and bolts are tightly secured before and during use.
• Remove canopy or take other precautions in high wind conditions.
• Anchor or stake a minimum of four (4) locations of the unit to the ground for added safety and security.
• Assembly Instructions must be followed.
• Pegs supplied must be used to hold this gazebo in place when upright.
• Do not use candles, matches or open flames of any kind in or near this gazebo.
• Do not cook inside this gazebo.
• Build campfires downwind and several meters away from the gazebo and be sure to fully extinguish campfires before
leaving a campsite or before retiring for the night.
• Exercise extreme caution when using fuel-powered lanterns or heaters inside a gazebo and use battery-operated
lanterns whenever possible.
• Do not refuel lamps, heaters or stoves under or near this gazebo.
• Extinguish or turn off all lanterns before going to sleep.
• Do not smoke under or near this gazebo.
• Do not store flammable liquids under or near this gazebo.
• KEEP ALL FLAME AND HEAT SOURCES AWAY FROM THIS FABRIC.
This gazebo is made of flame-resistant fabric. It is not fireproof. The fabric will burn if left in continuous contact
with a flame source.
3
Table of ContentsImportant Safety Instructions
Table of Contents 3
Important Safety Instructions 3
Parts List 4
Assembly 5-13
Cleaning and Maintenance 14
Technical Data 14
Warranty 15
Warning! To reduce the risk of serious injury, read the following safety instructions before
assembling and using the gazebo.
Caution! Always keep children under close supervision while they are using or around this product.
Never leave children unattended.
IMPORTANT: RETAIN FOR FUTURE REFERENCE AND READ CAREFULLY

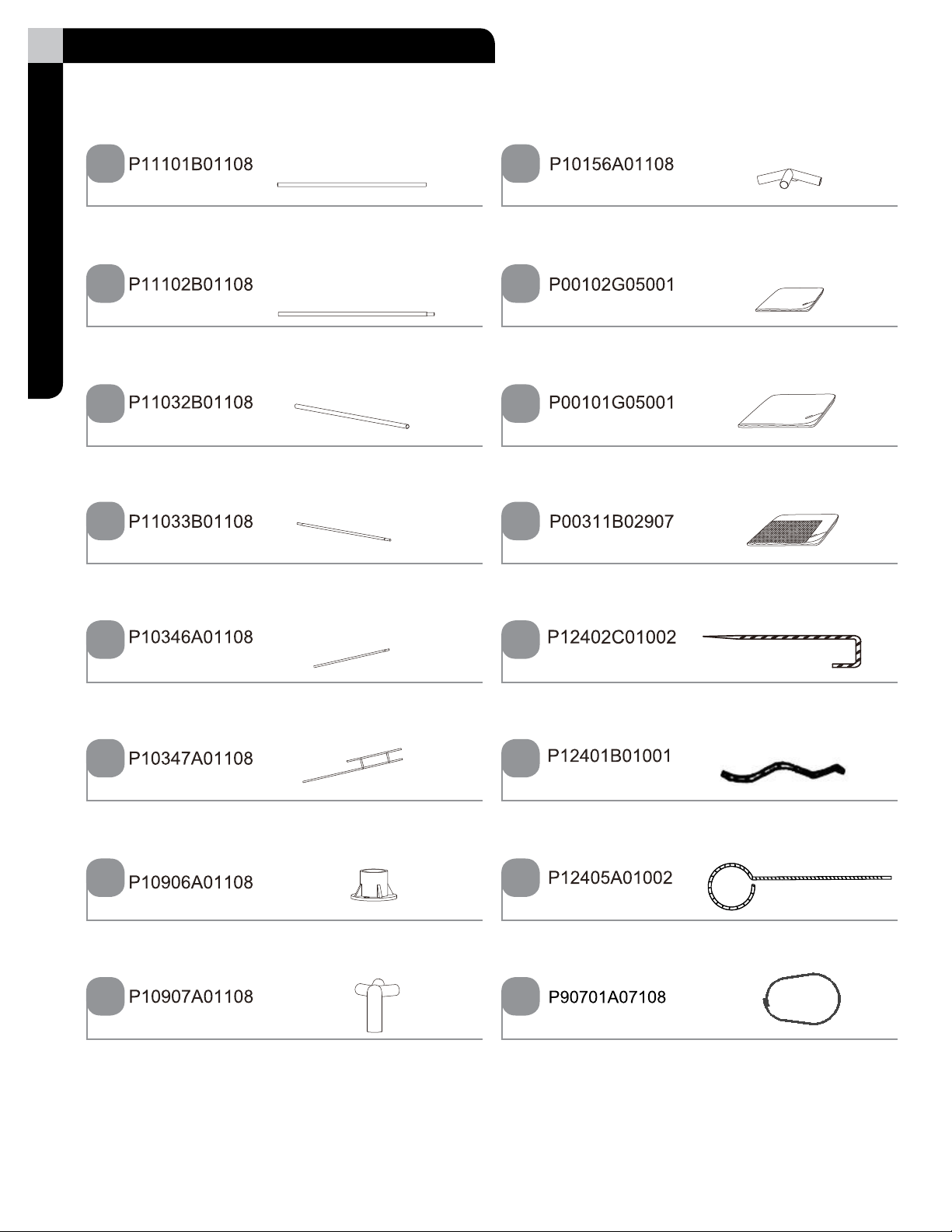

Upper Post - 4Top Connector - 1
Small Canopy - 1
Big Canopy - 1
Mosquito Netting - 1
Rope - 8Spare
Ring - 40 + 5Spare
Stake Dia.4 - 8
Stake Dia.6 - 8
Lower Post - 4
Long Support - 8
Short Support - 4
Top Short Beam - 4
Top Long Beam - 4
Base - 4
Beam Connector - 4
1 C
2 D
3 E
4 F
5 AA
6 BB
A CC
B DD
4Product No. 088-2119-0 •Model No. L-GZ512PST-C
Parts List

Needed for assembly:（The following tools are not included）
Hammer Screwdriver Ladder 2 people
5
Assembly
Caution!
•Proper placement of your gazebo is essential.
Do not place the product underneath electrical lines.
•Keep children away during assembly.
This product contains small parts which can be swallowed by children.
•Keep fingers away from the places where they can be pinched or trapped.
•Do not attempt to assemble the gazebo if any parts are missing.
Let us help you!
DO NOT RETURN YOUR PRODUCT TO THE STORE. CALL US FIRST!
1-877-483-6759
If you have questions regarding your product, require warranty assistance,
or have damaged or missing parts, please call our customer service toll-free helpline.
Contact us for assistance, we’re here to help.
IMPORTANT: Please read and understand this manual before any assembly. Before beginning assembly of product,
make sure all parts are present. Compare parts with packaging contents list. If any part is missing, or if you have
any questions, please contact the service centre at 1-877-483-6759 (toll free).
Place all parts from the box in a cleared area and position them on the floor in front of you. Remove all packing
materials and place them back into the box. Do not dispose of the packing materials until assembly is complete.
Read each step carefully before beginning any assembly and make sure you understand each step. If you are
missing a part, please call our toll-free number for assistance.

STEP 1:Assembly of Post
4x
8x
6Product No. 088-2119-0 •Model No. L-GZ512PST-C
Assembly
STEP 2:Assembly of Beam Connector
4x

7
Assembly

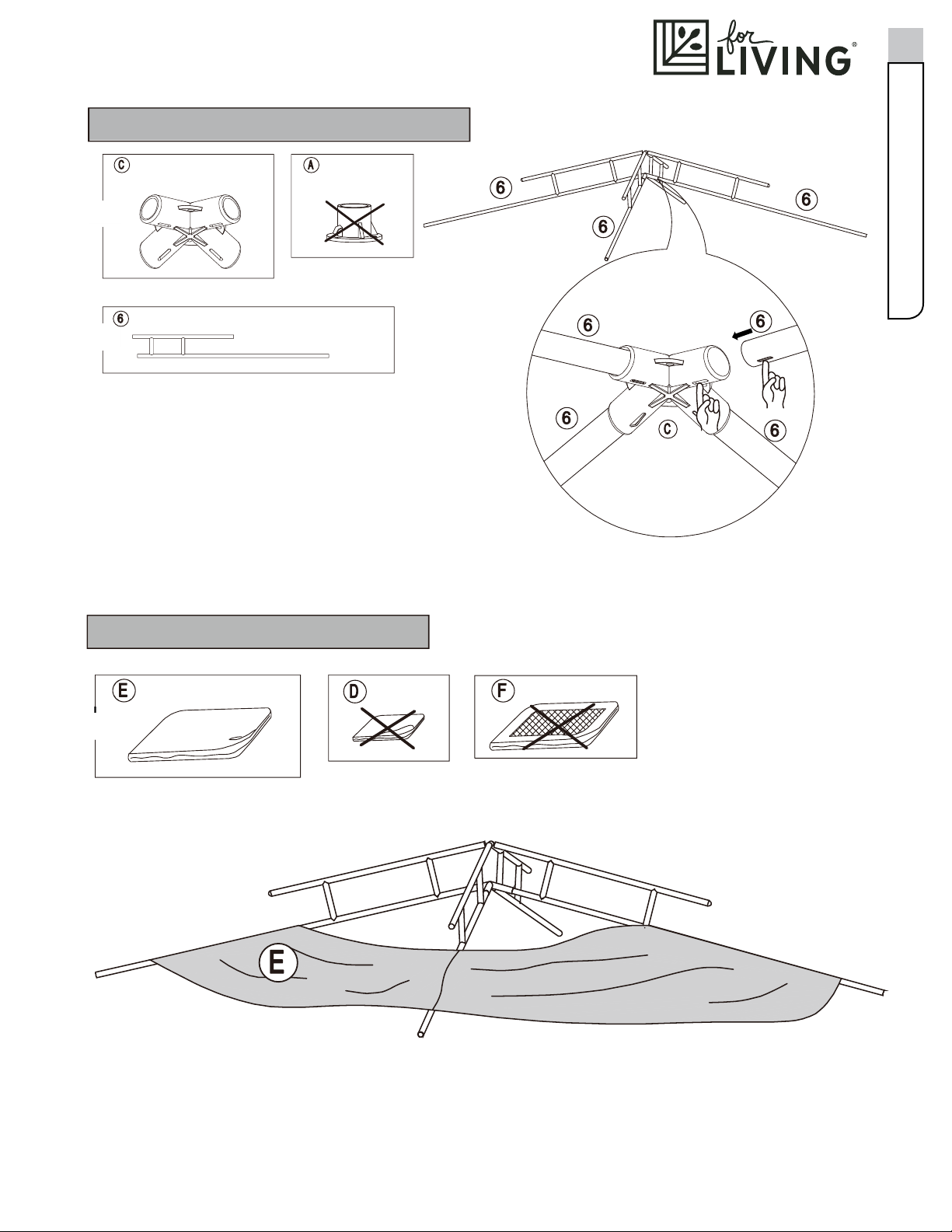

STEP 3:Assembl y of Top Connector
1x
4x
STEP 4:Assembly of Big Canopy
1x

8Product No. 088-2119-0 •Model No. L-GZ512PST-C
Assembly
STEP 5:Assembly of Small Canopy
1x
STEP 6:Assembly of Top Short Beam
4x

STEP 7:Assembly of Support

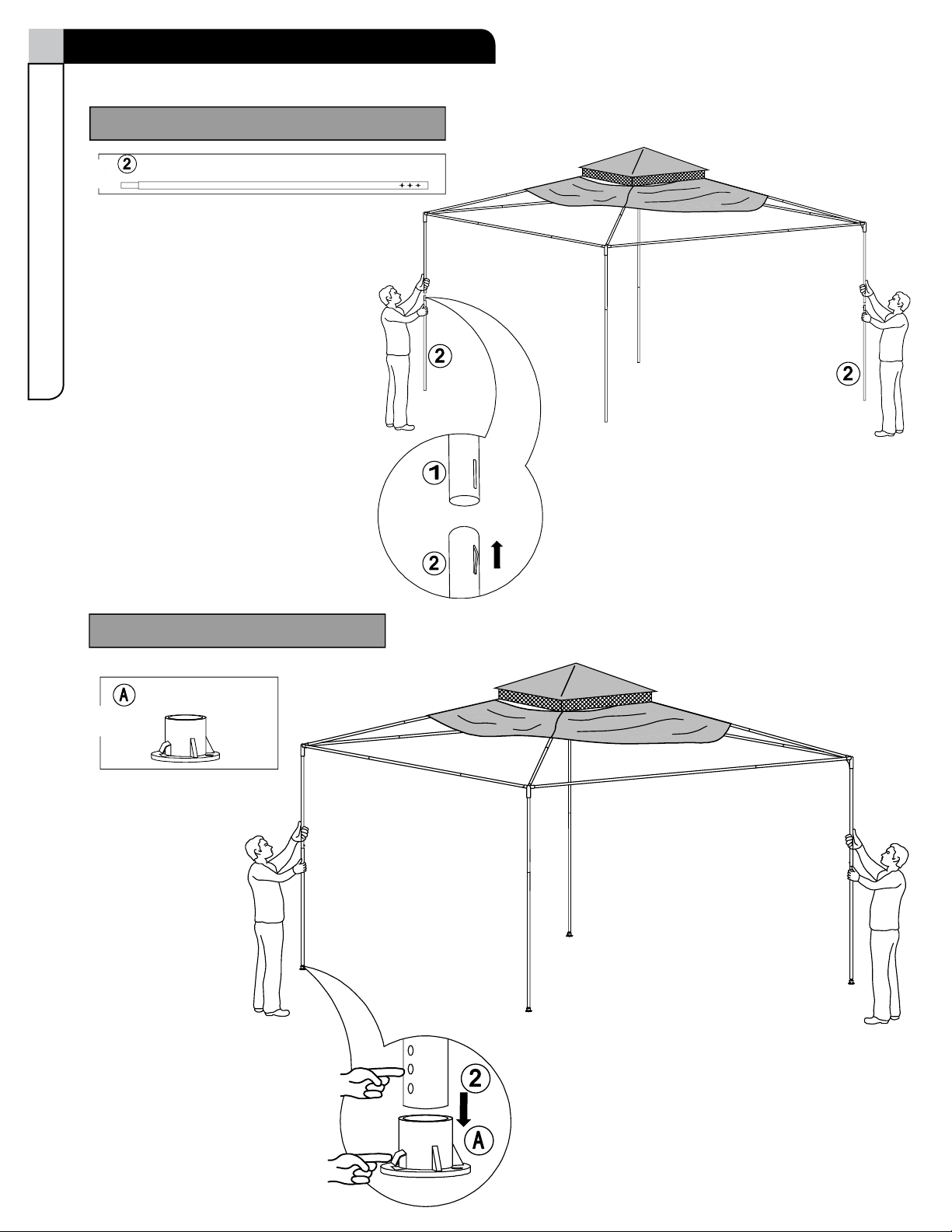

STEP 8:Assembly of Upper Post
4x
9
Assembly

STEP 9:Assembly of Lower Post
4x
STEP 10:Assembly of Base
4x
10 Product No. 088-2119-0 •Model No. L-GZ512PST-C
Assembly

STEP :Assembly of Big Canopy and Stake
8x
STEP :Assembly of Big Canopy
11
Assembly

STEP 13:Assembly of Mo squito netting
1x
40x
Please match the zippers
for different panels as shown
in the diagram.
12 Product No. 088-2119-0 •Model No. L-GZ512PST-C
Assembly

13
Assembly
STEP 14:Assembly of Stake
8x

14 Product No. 088-2119-0 •Model No. L-GZ512PST-C
Cleaning and MaintenanceTechnical Data
Dimensions (L x W x H) 10' x 10' x 8' 8"
3 x 3 x 2.69 m
Product weight 26 lb 7 oz
12 kg
Caution!
•Check all screws and nuts periodically for tightness, fastening them again as required.
•Disassemble the gazebo in the reverse order of the assembly steps. Always disassemble
the gazebo completely. A partially disassembled gazebo is not stable enough to resist
wind and bad weather, and therefore can be damaged and/or cause damage.
•Clean the gazebo with mild soap and water. Rinse thoroughly, and wait until the product
is dry before reassembling it.
•For washing the fabric parts:
- Spread the fabric and use a soft bristle brush to clean;
- Always use a natural soap, never detergent;
- Water should be cold to lukewarm, never more than 25°C (77°F);
- Air dry only, do not spin in washing machine nor hand squeeze.
•Do not use bleach, acid, or other abrasive cleaners on the canopies or frame parts.
•Steel components of garden accessories and furniture are treated with rust inhibiting paint. However, due to
the nature of steel, surface oxidation (rusting) will occur if this protective coating is scratched. This is a natural
process. To minimize this condition, it is recommended that care be taken when assembling and handling the
product, in order to prevent the paint from being scratched. If scratching or damage occurs, it is recommended
that the area be touched up immediately with rust inhibiting paint, which is supplied with the product (DD).
Surface rust can be removed easily using a very light application of common cooking oil. If surface oxidation
(rusting) occurs and no measures are taken to correct it, the oxidation may start dripping onto the assembly
surface, which may cause damaging stains that may be difficult to remove.

Warranty
15
This For Living™product carries a six (6) month warranty against defects in workmanship and materials.
Trileaf Distribution agrees to replace the defective product free of charge within the stated warranty period,
when returned by the original purchaser with proof of purchase. This product is not guaranteed against wear
or breakage due to misuse and/or abuse.
Warranty
