OWNER’S MANUAL F-1360
Force USA 1360 Multi Home Gym
CAUTION!
Read all precautions and instructions in this manual before using this equipment.

ASSEMBLY MANUAL
FORCE USA 1360 MULTI HOME GYM
BEFORE YOU START
Remove all parts from the packaging and separate and count each various component to ensure
everything has been correctly provided.
Follow the instructions and consult both the individual assembly pages and the overall expanded
views of the equipment.
Certain parts may arrive pre-assembled from the factory.
It is the owner’s responsibility to ensure that all users of this unit have read the owner’s manual and
are familiar with the safety precautions.
SAFETY PRECAUTIONS
Highly recommended for two or more people to assemble the equipment to avoid injury.
Assemble the equipment on a flat level surface.
Consider placing a mat under the equipment to protect your floor.
Wear appropriate footwear and clothing during assembly and use.
Only tighten nuts and bolts by hand until the whole equipment is assembled
Ensure you correctly orientate each piece before attaching
Do not allow children and pets to be unsupervised around the assembly or usage of this
equipment.
Ensure all parts are in full working order before use.
Only one person should use the machine at any one time.
Do not use the equipment outdoors or around water.
Keep hair, fingers or clothing away from moving parts.
Only use attachments recommended by the manufacturer.
Never operate if any parts are not functioning correctly.
Always correctly stretch and warm up before using the equipment.
Stop immediately if your experience any pain, dizziness or nausea. See a doctor at once.
PLEASE NOTE: Descriptions of pieces as LEFT and RIGHT are from the point of view of standing
behind the equipment facing towards the front.
BEFORE STARTING ANY EXERCISE PROGRAM, CONSULT YOUR DOCTOR.
ESPECIALLY IF YOU ARE OVER THE AGE OF 35 OR HAVE PRE-EXISTING
HEALTH PROBLEMS.
READ ALL INSTRUCTIONS BEFORE ASSEMBLING OR USING ANY FITNESS
EQUIPMENT.
FORCE USA FITNESS EQUIPMENT ASSUMES NO RESPONSIBILITY FOR
PERSONAL INJURY OR PROPERTY DAMAGE SUSTAINED BY OR THROUGH THE
USE OF THIS PRODUCT.
SAVE THESE INSTRUCTIONS.

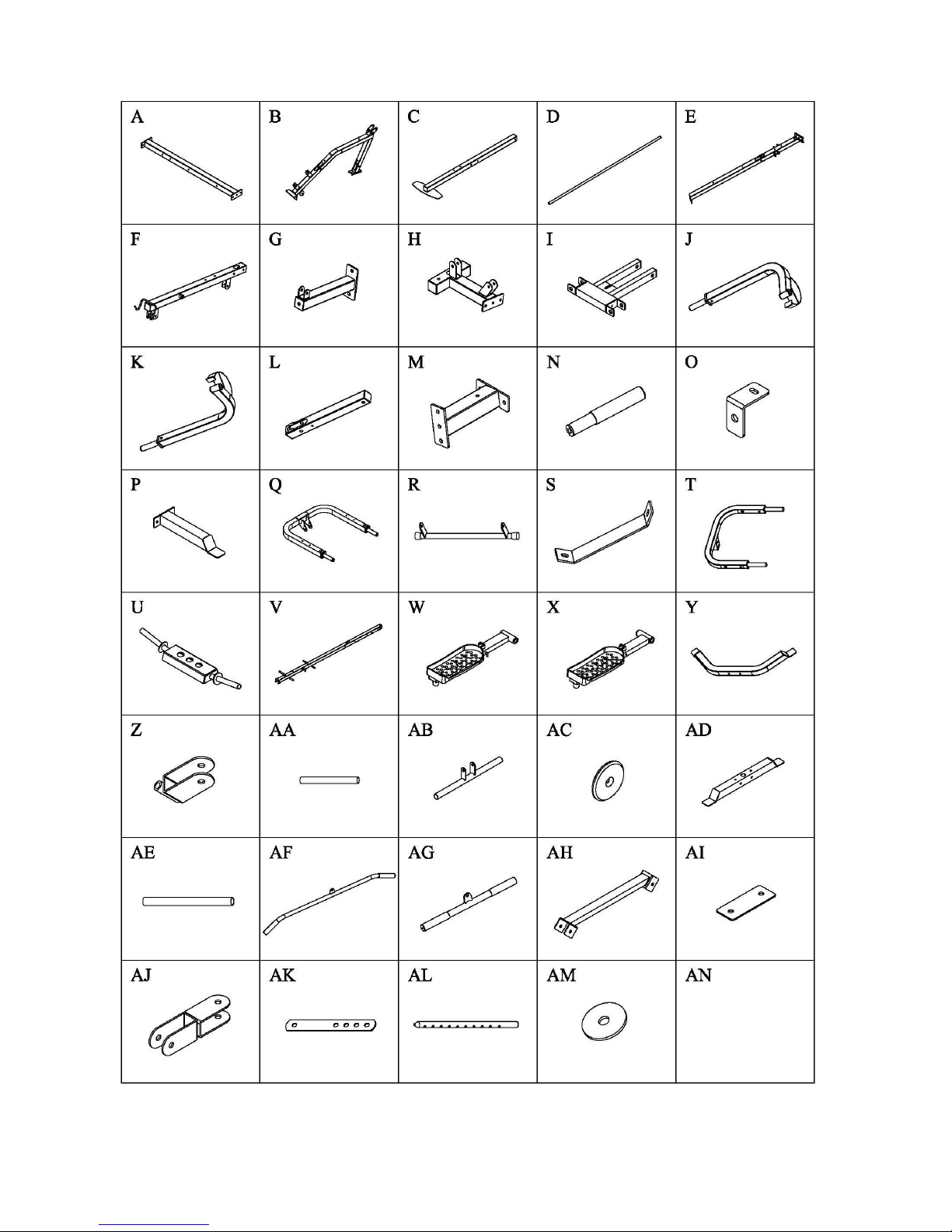

PART LIST
NUMBER
DESCRIPTION
QUANTITY
A
REAR BASE
1
B
MAIN FRAME
1
C
FRONT BASE
1
D
GUIDE ROD
2
E
MAIN VERTICAL FRAME
1
F
TOP CROSS BEAM
1
G
RESIST BAR
1
H
RIGHT TOP BEAM
1
I
PRESS BAR
1
J
RIGHT CHEST SUPPORT
1
K
LEFT CHEST SUPPORT
1
L
LEG EXTENSION
1
M
LEFT TOP BEAM
1
N
HAND GRIP
6
O
ANGLE IRON
2
P
FRONT SIDE BASE
2
Q
DIP- BAR
1
R
CHIN-UP BAR
1
S
DIAGONAL PLATE
1
T
CHIN-UP SUPPORT
1
U
PLATE SUPPORT
1
V
REAR VERTICAL FRAME
1
W
LEFT STEP
1
X
RIGHT STEP
1
Y
SIDE BASE
1
Z
PULLEY BLOCK
3
AA
JOINT TUBE
1
AB
ANKLE FOAM TUBE
1
AC
SHEATHING
4
AD
REAR SIDE BASE
1
AE
FOAM TUBE
1
AF
LAT BAR
1
AG
PULL BAR
1
AH
DIGONAL SUPPORT
1
AI
REINFORCEMENT PLATE
7
AJ
UPRIGHT PULLEY BLOCK
1
AK
PARALLEL PULLEY BLOCK
2
AL
SELECTOR SHARFT
1
AM
BIG WASHER
1
1
BACK CUSHION
1
2
SEAT CUSHION
1
3
SIDE BACK CUSHION
1
4
ARMREST CUSHION
2
5
RUBBER DONUT
2

6
SHORT CABLE WITH NO BALL
1
7
LONG CABLE WITH NO BALL
1
8
CABLE WITH ONE AND HALF BALL
1
9
CABLE WITH ONE BALL AND BOLT
1
10
BIG FOAM ROLLER
2
11
FOAM ROLLER
4
12
WEIGHT PLATE
9
13
TOP PLATE
1
14
LOCK LEVER TUS
1
15
PULLEY
17
16
CHAIN
1
17
HOOK
4
18
PIN
1
19
PLASTIC CIRCLE
1
20
ADJUSTABLE CYLINDER
2
21
RUBBER BUFFER
3
22
SPRING CLIP
2
23
BALL HEAD PIN
1
24
BUSHING
8
25
PLASTIC BOLT
2
26
SCREW M16 + TWO WASHERS + LOCK NUT
2
27
SCREW M12*165 + TWO WASHERS + TWO LOCK NUTS
1
28
BOLT M8×16＋WASHER
2
29
BOLT M8×16＋BIG WASHER
2
30
HEX SOCKET BOLT M8×30
4
31
HEX SOCKET BOLT M8×40 + WASHER + LOCK NUT
2
32
BOLT M8×40 + WASHERS + LOCK NUT
1
33
BOLT M8×45 + WASHER + LOCK NUT
6
34
BOLT M8×65 + WASHER
9
35
BOLT M10×20 + WASHER
7
36
BOLT M10×20 ＋LOCK NUT
2
37
CROSS HEAD BOLT M10×45
1
38
CROSS HEAD BOLT M10×45 + LOCK NUT
2
39
BOLT M10×50＋TWO WASHERS＋LOCK NUT
13
40
BOLT M10×60＋TWO WASHERS＋LOCK NUT
2
41
SQUARE NECK BOLT M10×65
2
42
SQUARE NECK BOLT M10×65 + WASHER + LOCK NUT
2
43
BOLT M10×65 + WASHER
2
44
BOLT M10×65＋TWO WASHERS＋LOCK NUT
1
45
BOLT M10×70 + WASHER
1
46
BOLT M10×70＋TWO WASHERS＋LOCK NUT
8
47
THICK BOLT M10×70＋TWO WASHERS＋LOCK NUT
2
48
BOLT M10×75＋TWO WASHERS＋LOCK NUT
18

49
THICK BOLT M10×75＋BEND WASHERS＋LOCK NUT
3
50
THICK BOLT M10×85＋TWO WASHERS＋LOCK NUT
2
51
AB CURL STRAP
1
52
ANKLE STRAP
1

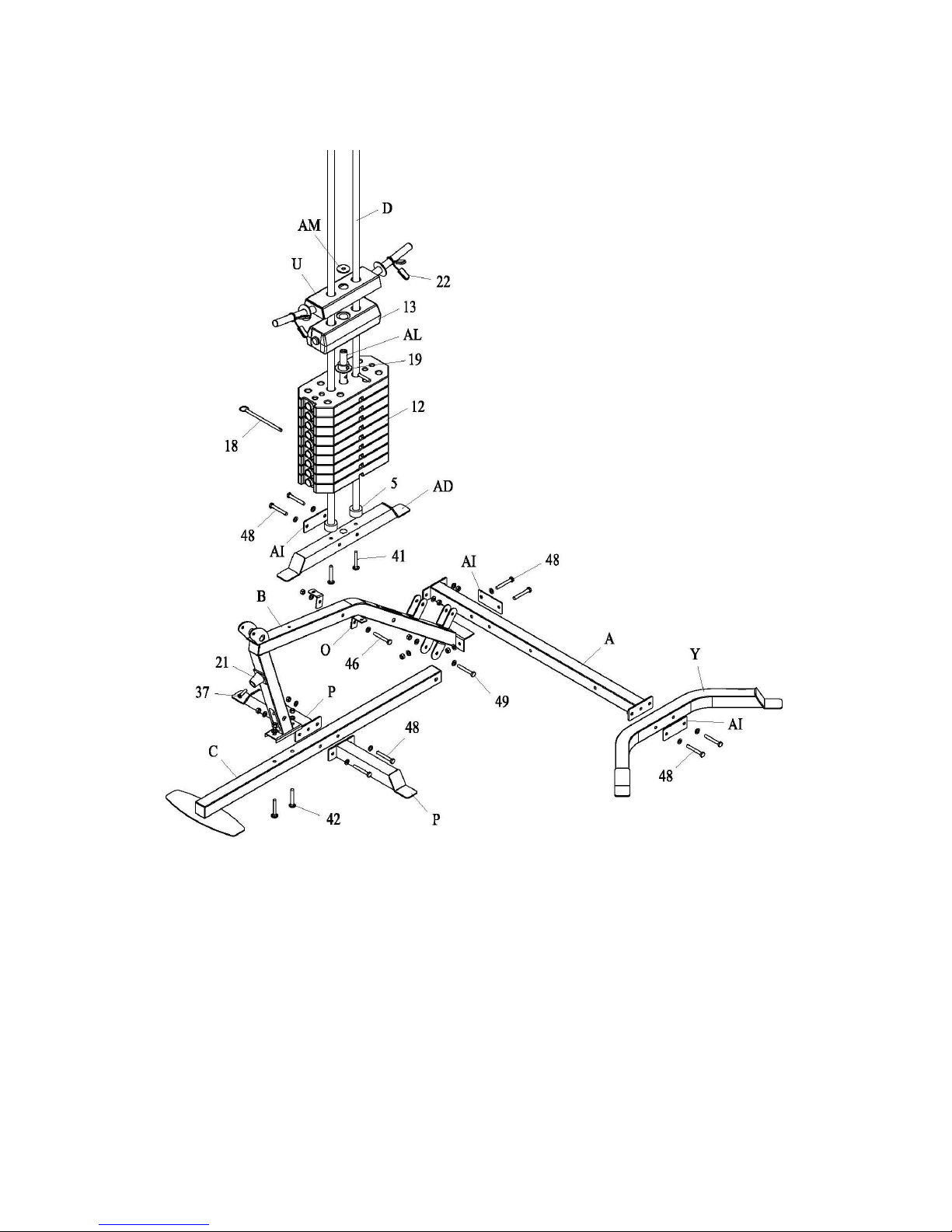

STEP 01
1．Attach part (21) to part (B) with bolt (37). Attach part (O) to part (B) with bolt assembly (46). Attach part (B)
to part (C) with bolt assembly (42) and (49).
2．Attach part (P) to part (C) with bolt assembly (48).
3．Attach part (Y) and part (AI) to part (A) with bolt assembly (48).
4．Attach part (AD) and part (AI) to part (A) with bolt assembly (48).
5．Attach part (D) to part (AD) with bolt (41).
6．Attach part (B) and part (AI) to part (A) with bolt assembly (48).
7．Slide part (5) and part (12) onto part (D), insert part (AL) into mid hole of part (12). Attach part (19) to part
(AL). Then slide part (13) onto part (D).
8．Slide part (U) onto part (D).

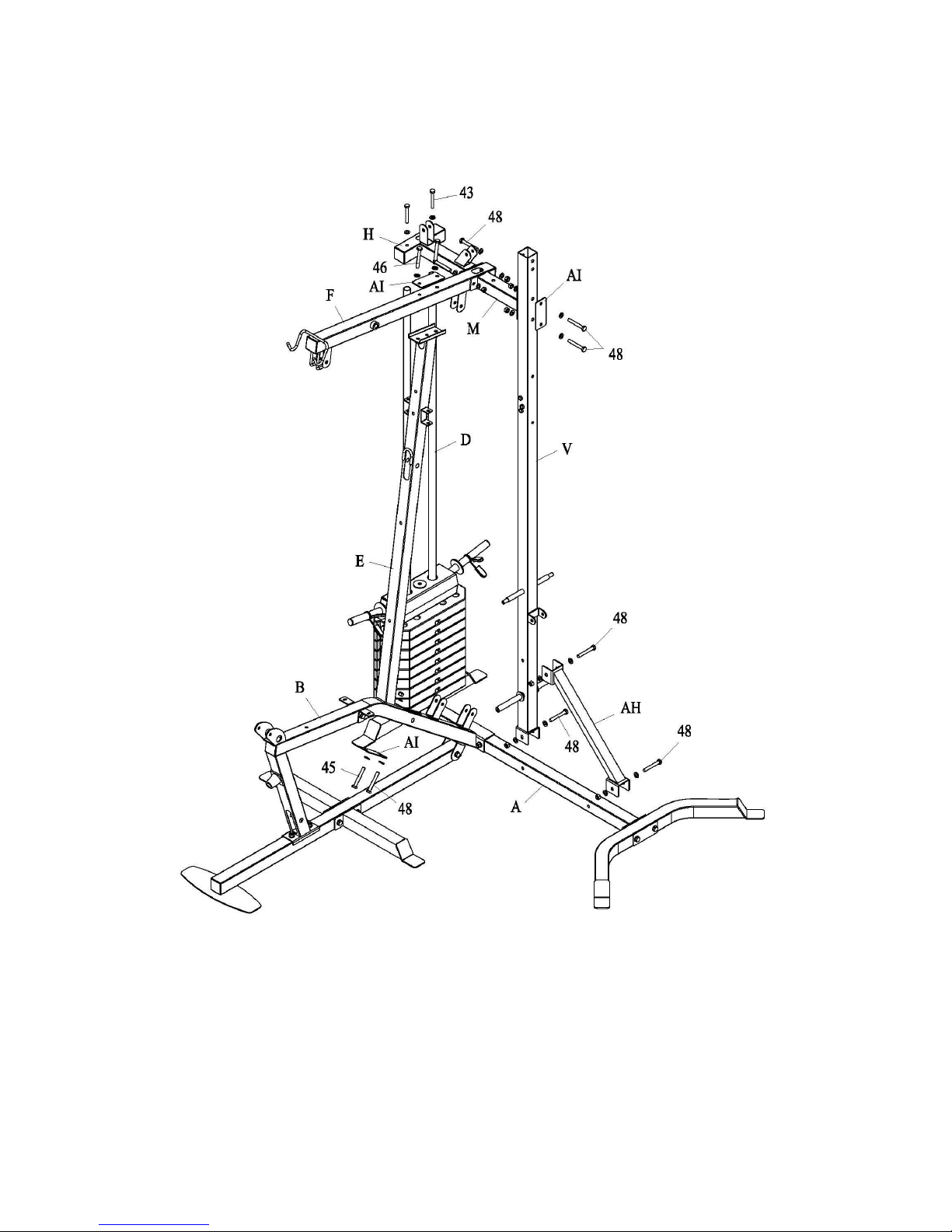

STEP 02
1. Attach part (E) and part (AI) to part (B) with bolt assembly (45) and (48).
2. Attach part (V) and part (AH) to part (A) with bolt assembly (48). Attach part (AH) to part
(V) with bolt assembly (48).
3. Attach part (M) and part (AI) to part (V) with bolt assembly (48).
4. Attach part (F) and part (AI) to part (E) with bolt assembly (46).
5. Attach part (H) to part (D) with bolt assembly (43). Attach part (H) and part (M) to part (F)
with bolt assembly (48).

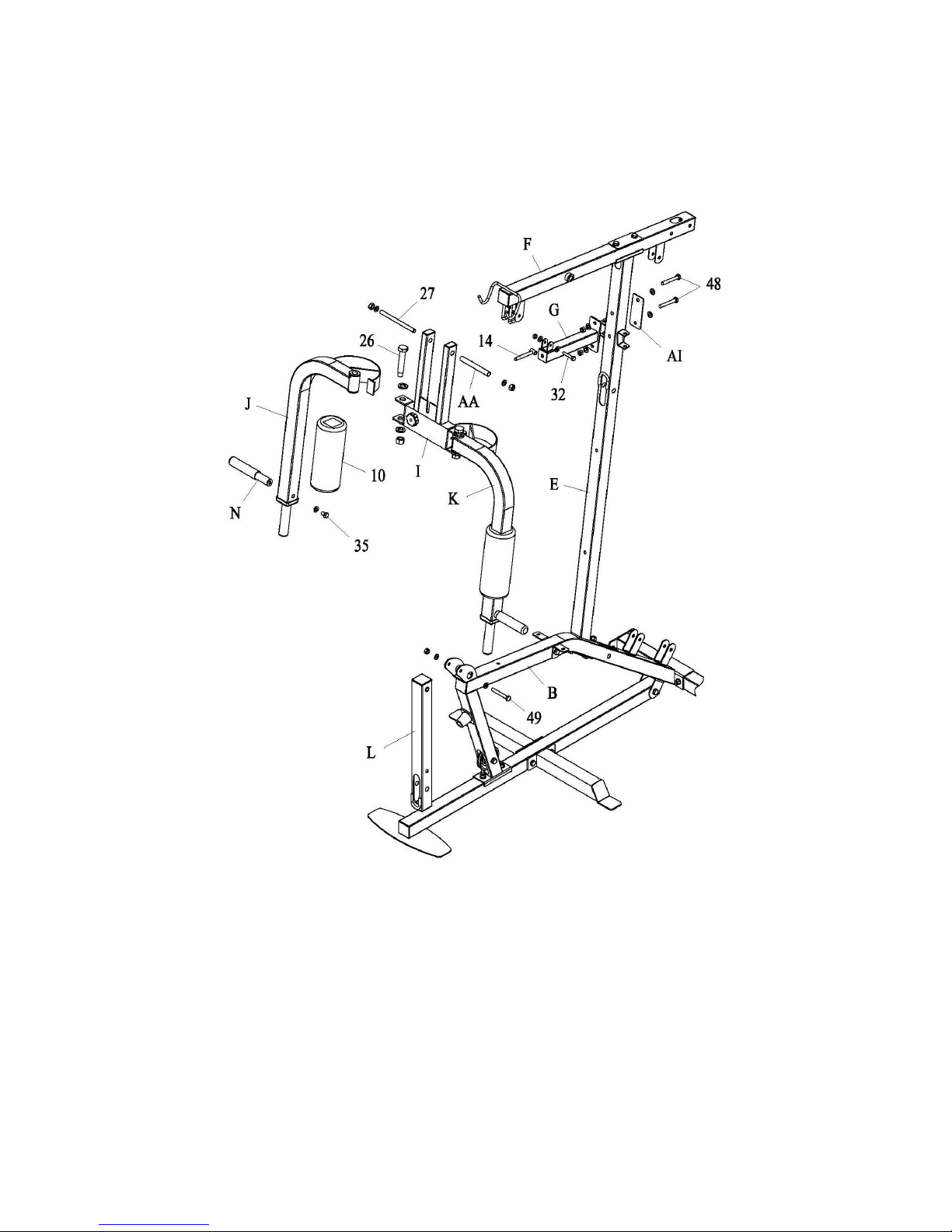

STEP 03
1．Attach part (L) to part (B) with bolt assembly (49).
2．Attach part (G) and part (AI) to part (E) with bolt assembly (48).
3．Attach part (I) to part (F) with part (AA) and bolt assembly (27).
4．Attach part (J) and part (K) to part (I) with bolt assembly (26).
5．Slide part (10) onto part (J) and part (K).
6．Attach part (N) to part (J) and part (K) with bolt assembly (35).

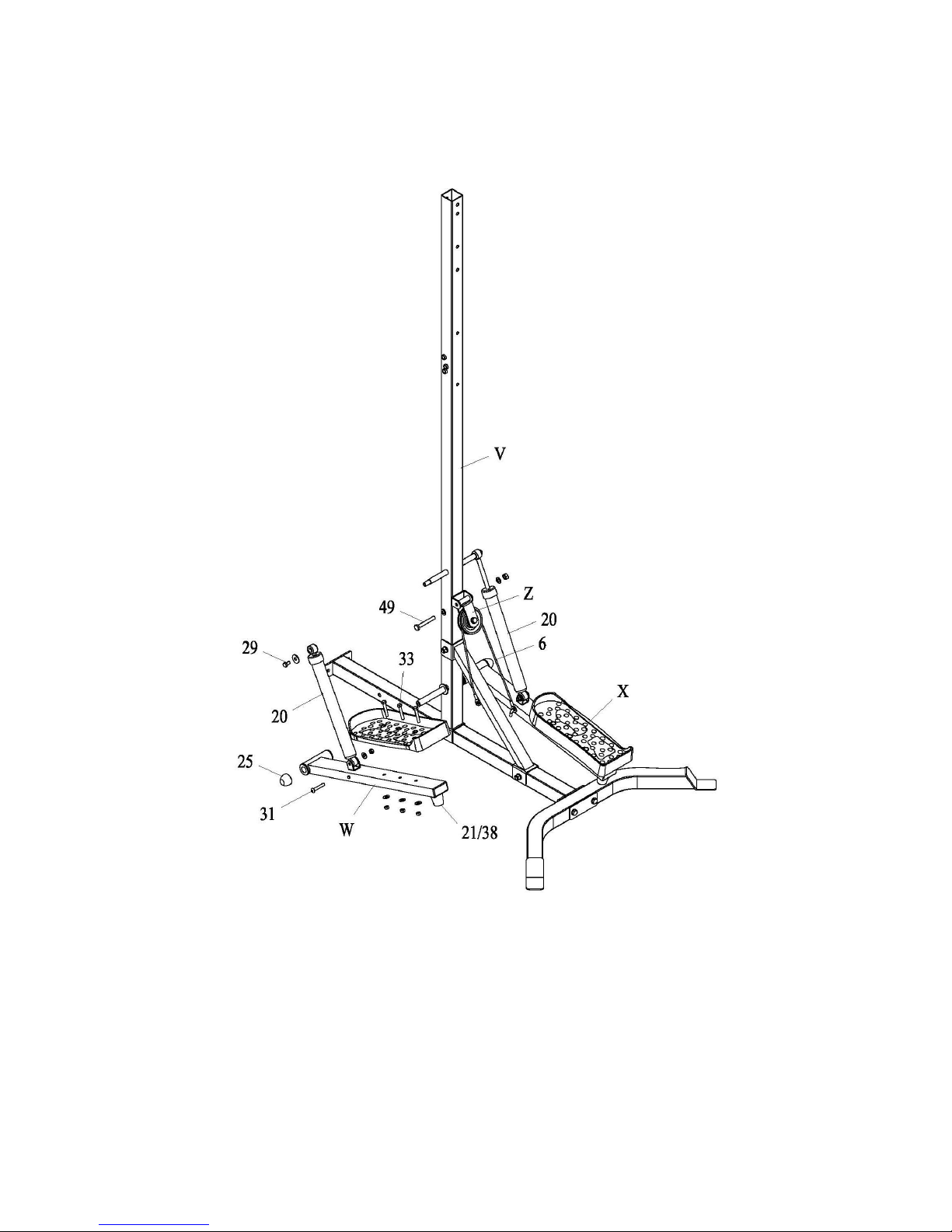

STEP 04
1．Attach part (Z) to part (V) with bolt assembly (49).
2．Slide part (W) and part (X) to part (V), secure with plastic bolt (25).
3．Attach part (20) to part (V) with bolt assembly (29).
4．Attach the other side of part (20) to part (W) and part (V) with bolt assembly (31).
5．Hook one end of cable (6) to part (W), then through the pulley on part (Z), hook the other end to part (X).

STEP 05
1. Attach part (S) to part (M) with bolt assembly (35).
2. Insert part (T) into port of part (V), secure with bolt assembly (44).
3. Attach part (S) to part (V) and part (T) with bolt assembly (46).
4. Attach part (R) to part (T) with bolt assembly (40).
5. Attach part (Q) to part (V) with bolt assembly (50) and part (23).
6. Attach part (N) to part (Q) and part (T) with bolt assembly (35).

STEP 06
1. Attach two pulley (15) to part (F) with bolt assembly (39).
2. Attach two pulley (15) to part (H) with bolt assembly (39).
3. Attach two pulley (15) to part (Z) with bolt assembly (39).
4. Attach a pulley (15) to part (E) with part (24), bolt assembly (46).
5. Attach four pulley (15) to part (B) with part (24), bolt assembly (46) and (39).
6. Attach a pulley (15) to part (L) with part (24), bolt assembly (46).
7. Attach other pulleys (15) to part (AJ) and (AK) with bolt assembly (39).

STEP 07
CABLE ASSEMBLY
1. Assembly the long cable with no ball (7)
Attach one end of the cable to part (K) with bolt assembly (36). Then thread the other end of
the cable over pulley Z1, down and round pulley AJ1 on upright pulley block (AJ), up and
over pulley Z2, finally attach the end to part (J) with bolt assembly (36).
2. Assembly the cable with one and half ball (8)
Run the end with half ball of the cable (8) through the pulley F1 on part (F), through hole on
part (E),round F2 on part (F), down and round pulley AK1 on part (AK), up and attach the
end to E1 on part (E) with bolt assembly (46) and bushing (24).
3. Assembly the cable with one ball and bolt (9)
Run the end with bolt of the cable (9) through the pulley L1 and B1 on part (L) and part (B),
round the pulley B2 on part (B), up and round pulley AJ2 on part (AJ), under and round
pulley B3 on part (B), up and round pulley AK2 on part (AK), down and round pulley B4 on
part (B), up and through hole on part (F), through pulley H1 and H2 on part (H), then through
hole on part (H), finally through part (AM) and attach the end to the part (AL).

STEP 08
1. Attach part (1) to part (E) with bolt assembly (34).
2. Attach part (2) to part (B) and part (O) with bolt assembly (34) and (28).
3. Attach part (3) to part (V) with bolt assembly (34).
4. Attach part (4) to part (Q) with bolt assembly (34).
5. Attach part (AB) to part (L) with bolt assembly (50).
6. Insert part (AE) into hole of part (B), push part (11) onto each side of part (AE) and (AB).
7. Attach part (AC) to part (AE) and (AB) with bolt (30).

WARRANTY
LIFETIME WARRANTY ON FRAME
2 YEAR WARRANTY ON MOVING PARTS (Such as cables and pulleys)
Force USA, the Trusted Name in Strength Equipment™ was designed to be
the best value strength equipment for home use and proudly set the
benchmark for our home use equipment around the world. Offering one of
the best warranties on the market for your peace of mind, each piece of
Force USA strength equipment is hand crafted for quality and we use
state-of-the-art production methods for our entire range. The Force USA
range of strength equipment carries a Lifetime Structural Warranty along
with 5 years cover on all cables and pulleys. This warranty applies to first
owners and does not cover second hand equipment or re-sold equipment.
This Force USA warranty covers only failures due to defects in structural,
cables and pulleys and workmanship that occur during normal home use. It
will not cover damage that occurs in transport/delivery or failure due to
misuse, abuse, neglect, incorrect application, alteration or improper
assembly of the product. This warranty does not cover the use or failure of
equipment in studio commercial applications. The replacement or repair
provided for under the Force USA warranty is the responsibility of the user
and the customer will be responsible for any freight charges applicable.
Force USA will not be liable for any consequential damages or for breach of
any implied warranty on the range of Force USA strength equipment. Force
USA reserves the right to provide reconditioned parts and/or to request a
return and repair existing defective parts on the Force USA product.
