Foremost LAGOON User manual

COPY THE MODEL NUMBER FOR YOU RECORDS HERE #
DOUBLE ROLLER
SHOWER & TUB DOOR
LAGOON
by
C 2020 Foremost Groups,Inc.
6241 Northwind Parkway, Hobart, IN USA 46342
www.ForemostBath.com
Toll Free Customer Assistance 1-888-620-3667 US Customers
1-888-256-7551 Canada Customers
Monday-Friday, 9:00 a.m. To 5:30 p.m. EST
5970 Chedworth Way, Unit B, MIssissauga, Ontario, Canada L5R 4G5
www.ForemostCanada.com
READ THE INSTRUCTIONS CAREFULLY
Familiarize yourself with all the parts as shown in the exploded
view. The exploded view will also provide a helpful reference
when relating to the location of the various parts and how
they are mounted.
Please visit us on YouTube and view our shower door installation videos.
One may be available for your installation. www.youtube.com/foremostgroups.
RIGHT HAND INSTALL
LEFT HAND INSTALL

1
2
2
44
5
5
66
14
15
16
9
9
7
7
8
8
1010
11
12
13
18
19
3
21
17
20
5
8
5
4
- 1 -
1 1/4”Pan Head Screw (8 pcs)
1 1/4”Flat Head Screw (8 pcs)

180°Magnet Seal (2 pcs)
16 17 18
19 20 21
Spanner (2 pcs)
Wall Anchor (16 pcs)
Top Rail (1 pc) Double Roller (2 pcs) Roller (2 pcs)
Inner oor (1 pc)
Screw over (2 pcs) Threshold over (2 pcs) Threshold (2 pcs) Threshold gasket (2 pcs)
Water-Retaining asket (2 pcs)
Allen ey (3 pcs)
SILICONEDRILLTAPE MEASURE RUBBER MALLETDRILL BITSKNIFE
LEVELPENCILSCREW DRIVERSHANDSAW SAFETY GLASSESCUTTING SNIPS
1/4" (6mm)
Outer oor (1 pc)
PARTS LIST
RECOMMENDED TOOLS
WARNING: Safety glass should alway be worn whem working with tempered glass.
- 2 -
Aluminum Wall Channel (2 pcs) 1 1/4”Pan Head Screw (8 pcs) Towel Bar (2 pcs)
Rail Wall Bracket Assembly (2 pcs) 1 1/4”Flat Head Screw (8 pcs) Anti-Jumper (2 pcs)
Door Guide(1 pc)
1/8" (3mm)

INSTALLATION MEASUREMENT
.
43"-47"(1093-1194mm)
55"-59"(1397-1498mm)
.
43"-47"(1093-1194mm)
55"-59"(1397-1498mm)
- 3 -
CHOOSE WHETHER YOU ARE INSTALLING LEFT OR RIGHT SHOWER DOOR
1
LEFT HAND ASSEMBLY RIGHT HAND ASSEMBLY
Determine which assembly configuration you need to follow based on the location of the shower
head as viewed from the outside of the shower. Left hand shower head must use Left Hand Assembly
and right hand shower head must use Right Hand Assembly to insure a water tight finished
installation.
IMPORTANT NOTE: PROPER INSTALLATION REQUIRES A MINIMUM 2¾"WIDE FLAT FRONT LEDGE

1/4" (6mm)
8
2
3
19
4
b
b
19
a
a
1
8
2
3
19
4
b
b
19
a
a
1
5
8
INSTALLATION PROCEDURE / STEP 2
2
LEFT HAND ASSEMBLY RIGHT HAND ASSEMBLY
1. Install door guide (19) at the middle of tray.
2. Position door guide as shown in the drawings and mark holes making certain it is positioned
straight and square.
3. Drill hole with 1/8(3mm) drill bit.
4. Fix door guide (19) on tray with 1 1/4flat head screw (8).
Note: Shower or tub threshold needs to have a flat surface of 2 3/4.
- 4 -
a = a a = a
b=b b=b
1 1/4” Flat Head Screw (2 pcs)
5
8
1 1/4” Flat Head Screw (2 pcs)
1/4" (6mm)

c
23mm
2
4
7
1
1"
5
67
6
8
5
8
c
23mm
2
4
7
1
1"
5
67
6
8
1/4" (6mm)
1 1/4"Flat Head Screw (4 pcs)
1840mm
1510mm
76"
63"
72 1/2"
59 1/2"
7/8" 7/8"
1840mm
1510mm
76"
63"
72 1/2"
59 1/2"
INSTALLATION PROCEDURE / STEP 3
3
LEFT HAND ASSEMBLY RIGHT HAND ASSEMBLY
1. Outside distance between rail wall bracket assembly (7) and door guide(19) should be 1.
2. Remove top plates from both rail wall bracket assemblies (7).
3. Measure straight up the wall to a point 3 ½ less than the overall height of the enclosure
(Distance C in the table below) and mark it.
4. Position the rail wall bracket (7) so that the front bottom corner of the bracket is at the point shown
in the drawing below. (3 ½"below overall height and 7/8"behind the front edge of the door guide).
Make certain the bracket is level and square before tracing the bracket and marking the screw holes.
5. Drill hole with 1/4drill bit.
6. Glue a little silicone into the hole, then insert wall anchor(6).
7. Fix rail wall bracket against the wall with flat head screw 4x 1 1/4(8).
HINT: Before proceeding to Step 4, to ease the installation process, it is recommended that you set the
inner glass panel against the back wall of the shower. Be sure to first put down a towel or piece of card-
board as a cushion to protect the glass and your shower floor from possible damage and to position the
glass so that the H2OFF® protectant is on the side of the glass that is against the back wall.
- 5 -
5
8
1 1/4"Flat Head Screw (4 pcs)
Overall Height Overall Height
Distance C Distance C
1/4" (6mm)

23
9
9
9
Make the adjustment equally
for both sides
9
9
7
X
X-3/4"(20mm)
23
9
9
Make the adjustment equally
for both sides
9
7
X-3/4"(20mm)
X
11
45 5/8"-47"(1158-1194mm)
57 1/2"-59"(1462-1498mm)
43"-45 5/8"(1093-1158mm)
55"-57 1/2"(1397-1462mm)
INSTALLATION DIMENSION
DO NOT
CUT
CUT
STEP4
45 5/8"-47"(1158-1194mm)
57 1/2"-59"(1462-1498mm)
43"-45 5/8"(1093-1158mm)
55"-57 1/2"(1397-1462mm)
INSTALLATION DIMENSION
DO NOT
CUT
CUT
STEP4
INSTALLATION PROCEDURE / STEP 4
4
LEFT HAND ASSEMBLY RIGHT HAND ASSEMBLY
1. Depending on your overall opening, you may not have to cut your top rail.
Use the table below to determine your situation and cut the rail as shown in the diagram if
necessary.
2. Insert top rail into brackets with the slot to the inside of the shower and use a level to ensure top rail
is level, adjusting the brackets if necessary. Adjust the top rail so that the gap at both ends are
approximately the same then slide the bracket top plates back into position.
3. Use the allen keys provided to tighten 2 top and 1 bottom set screws on each end of brackets to firmly
anchor the top rail in place. Use caution not to over-tighten while insuring the top rail does not move.
- 6 -

17
3
4 3/4"
18
2
1
18
3
17
3
18
2
1
18
3
(120mm)

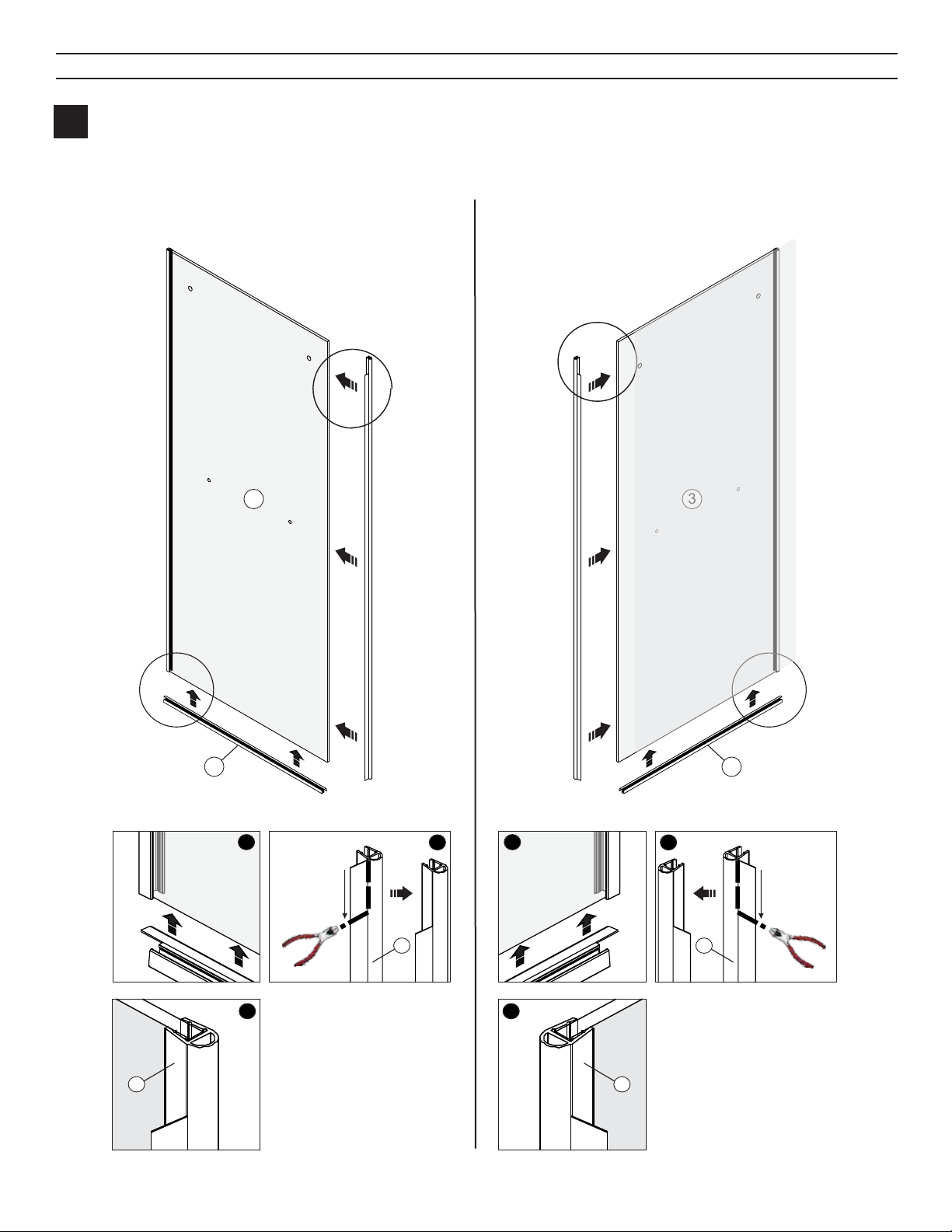

INSTALLATION PROCEDURE / STEP 5
.
5
LEFT HAND ASSEMBLY RIGHT HAND ASSEMBLY
- 7 -
1. Install threshold gasket (17) on the bottom of inner door panel (3).
2. Trim water-retaining gasket (18) down 4 ¾from the top as shown in the diagram below.
3. Install water-retaining gasket (18) on inner glass.
4 3/4"
(120mm)

1. Use the enclosed spanner to disassemble both double rollers (10) and then slide the rollers
into the slot in the back of the top rail (9).
1
2
1010
10
1010
1
2
10 10
10
1010
INSTALLATION PROCEDURE / STEP 6
6
LEFT HAND ASSEMBLY RIGHT HAND ASSEMBLY
- 8 -

1
2
34
1
2
34
INSTALLATION PROCEDURE / STEP 7
7
LEFT HAND ASSEMBLY RIGHT HAND ASSEMBLY
- 9 -
1. While tilting inner glass door panel (3) back into the shower slightly, insert it into the inner
slot of the bottom panel guide (19).
2. Insert the hexagonal nuts into the holes in the top of the inner glass panel (3), line them up
with the threaded rod in the double rollers and (using the spanner provided) secure in place.
It is strongly recommended that a second person assist with this step.

2
7
2
1/4"
4
5
67
4
1
6
5
4
4
5
67
4
1
6
3
1
.
1
2
2
2
1
3
3
2
2
2
1
3
5
4
INSTALLATION PROCEDURE / STEP 8
8
LEFT HAND ASSEMBLY RIGHT HAND ASSEMBLY
- 10 -
1. Adjust the rollers so that the panel meets the wall evenly from top to bottom.
2. Attach 180° magnet seal (2) to inner door (3) magnetic seal using the magnetic attraction
(if they repel, flip 180° magnet seal (2) upside down) and slide on the aluminum wall channel (1)
temporarily.
3. Slide the panel and magnetic wall seal assembly against the wall and mark the position.
4. Disengage the aluminum wall channel (1), place it in position on the wall and mark the hole locations.
5. Drill holes with ¼(6 mm) drill bit.
6. Glue a little silicone into the hole, then insert wall anchor.
7. Attach the aluminum wall channel (1) to the wall with 1 ¼pan head screws (4)
1 1/4"Pan Head Screw (4 pcs) 1 1/4"Pan Head Screw (4 pcs)
(6mm)
1/4"
(6mm)

11 17
2
1
18
13
11
17
18
4
11 17
2
1
18
13
11
17
18
4
OutsideOutside
18
3
4 3/4"
18
3
(120mm)
INSTALLATION PROCEDURE / STEP 9
9
LEFT HAND ASSEMBLY RIGHT HAND ASSEMBLY
- 11 -
1. Install roller (11) on outer door (13), then tighten with spanner.
2. Install threshold gasket (17) at the bottom of outer door (13).
3. Cut 4 ¾ (120 mm) notch in top of water retaining gasket (18) as shown in drawing #3.
4. Install water-retaining gasket (18) on outer glass (13).
4 3/4"
(120mm)

H
H
H=Product Height H=Product Height
INSTALLATION PROCEDURE / STEP 10
10
LEFT HAND ASSEMBLY RIGHT HAND ASSEMBLY
- 12 -
Set outer door (13) on top rail taking care to slide the panel bottom into the outer channel of
the bottom panel guide (19).

11
22
INSTALLATION PROCEDURE / STEP 11
11
LEFT HAND ASSEMBLY RIGHT HAND ASSEMBLY
- 13 -
1. Use a level on the top of outer door (13) to ensure it is level and then install anti-jumper (12).
2. Install towel bars (5) on inner and outer door panels.

1/4" (6mm)
45
67
6
6
4
4
1
5
4
1/4"
45
67
6
6
4
4
1
11
13
2
2
2
1
3
13
2
2
2
1
3
5
4
INSTALLATION PROCEDURE / STEP 12
12
LEFT HAND ASSEMBLY RIGHT HAND ASSEMBLY
- 14 -
1. Adjust the rollers so that the panel meets the wall evenly from top to bottom.
2. Attach 180° magnet seal (2) to outer door (13) magnetic seal using the magnetic attraction
(if they repel, flip 180° magnet seal (2) upside down) and slide on the aluminum wall channel (1)
temporarily.
3. Slide the panel and magnetic wall seal assembly against the wall and mark the position.
4. Disengage the aluminum wall channel (1), place it in position on the wall and mark the hole locations.
5. Drill holes with ¼ (6 mm) drill bit.
6. Glue a little silicone into the hole, then insert wall anchor.
7. Attach the aluminum wall channel (1) to the wall with 1 1/4 pan head screw (4).
1 1/4"Pan Head Screw (4 pcs) 1 1/4"Pan Head Screw (4 pcs)

X–1/2"(12mm)
1
2
34
5
15
15
16
16
16
8
14
X
5
8
2
34
5
15
15
16
16
8
14
X
5
8
116
X–1/2"(12mm)

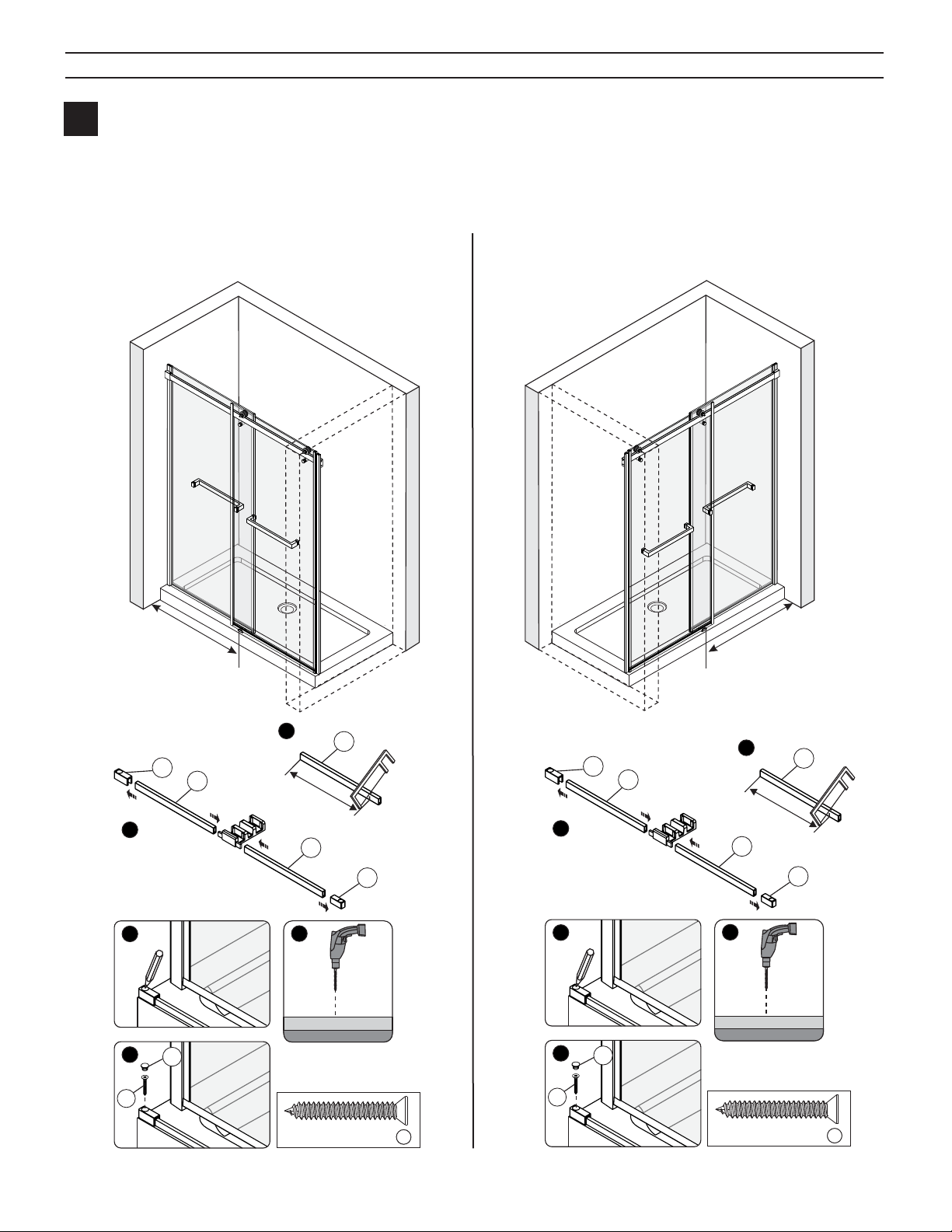

INSTALLATION PROCEDURE / STEP 13
13
LEFT HAND ASSEMBLY RIGHT HAND ASSEMBLY
- 15 -
1. Measure distance from wall on each side to main body of the panel guide. Deduct ½ from this
dimension and cut threshold (16) to size. Repeat this process for the other side.
2. Install threshold (16) and threshold cover (15).
3. Mark the hole locations for threshold cover mounting screws.
4. Drill holes with 1/8(3 mm) drill bit.
5. Attach threshold covers with 1 ¼ flat head screws (8).
1 1/4"Flat Head Screw (2 pcs) 1 1/4"Flat Head Screw (2 pcs)
1/4 "
(6mm)
1/4 "
(6mm)

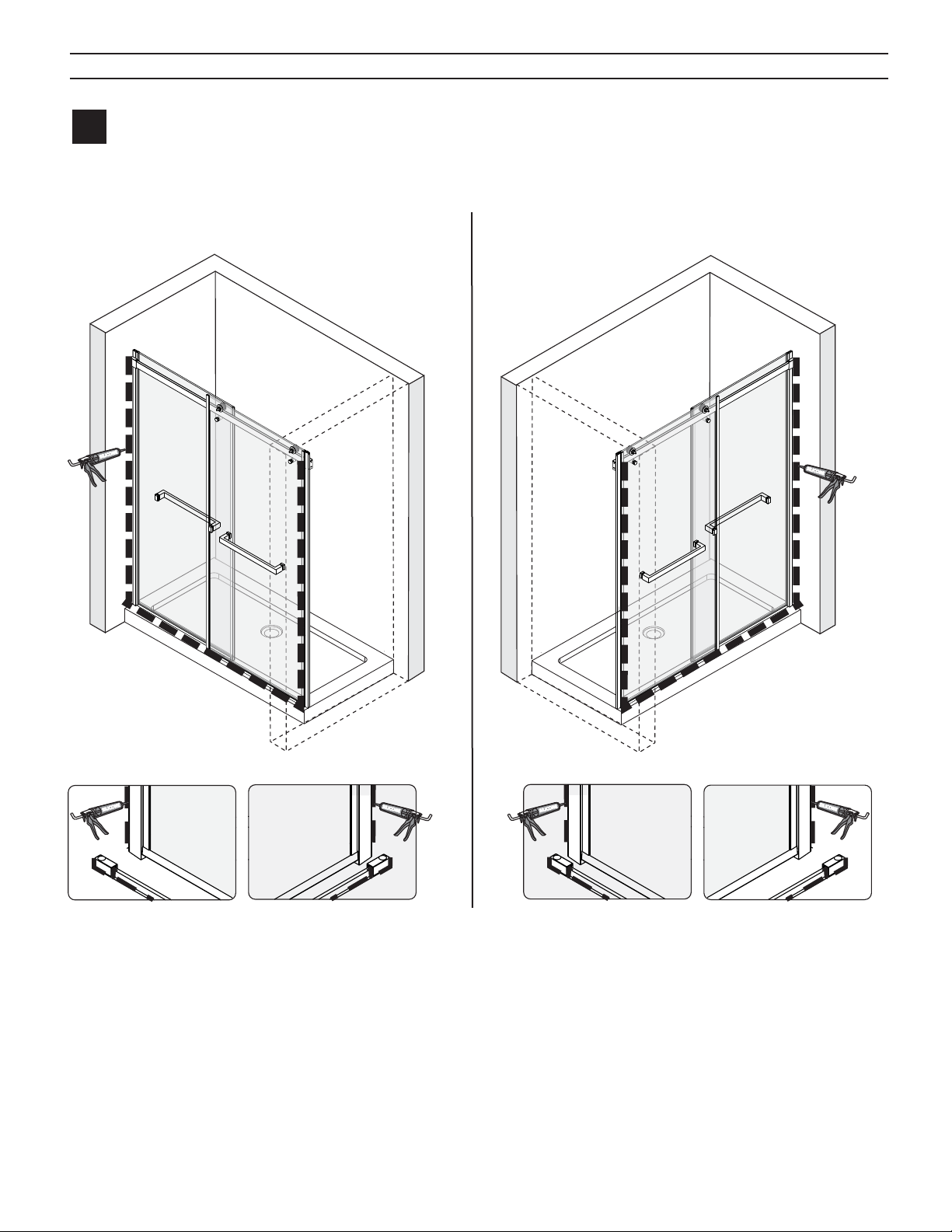

INSTALLATION PROCEDURE / STEP 14
14
LEFT HAND ASSEMBLY RIGHT HAND ASSEMBLY
- 16 -
Caulk the entire outside edge where the aluminum wall channels (1), threshold (16) and panel
guide (19) meet the walls and threshold and then keep the entire area dry for a minimum of 24
hours while the caulk cures.

Thank you for your purchase of a shower door
from Foremost® Groups, Inc.
In order to be eligible for product warranty, please register
your base on our website within two (2) weeks of installation.
Go to:
www.ForemostBath.com/registration
and follow the instructions.
For any questions or comments
about your new shower base,
please contact our Customer Service at:
ATTENTION
CONSUMER:
IMPORTANT SHOWER ENCLOSURE
WARRANTY INFORMATION
PLEASE DO NOT DISCARD
C 2020 Foremost®Groups,Inc.
6241 Northwind Parkway
Hobart, IN USA 46342
US CUSTOMERS:
1-888-620-3667
[email protected]
CANADA CUSTOMERS:
1-888-256-7551
[email protected]
5970 Chedworth Way, Unit B
MIssissauga, Ontario, Canada L5R 4G5
