Forge Aura MEN0903 User manual

Aura
Dual Height Stool
4803116
Model MEN0903
QUESTIONS?
Contact Customer Care
1-800-721-4191
Monday - Friday 8 - 5 Central Time
PARTS INCLUDED
ABCDEF
G
for 29”
H
Long Bolt Wrench
Washer
Lock Washer
J
x1
x1 x1 x1 x4 x1
x4 x4
I
Short Bolt
x16 x8
KL
x1
M
x8
x8
for 24”
I
M
K
L
B
C
I
B
E
Holes facing
upwards Holes facing
upwards
Place the cross frame Bon a clean surface, with
the holes in the cross bars facing upwards.
Attach the rotating plate Cto the cross frame B
by threading the short bolts Ithrough lock
washers Mand washers K, half-way into the
holes in the frame as shown, using wrench L.
Once bolts have been threaded into all holes,
fully tighten the bolts.
STEP 1

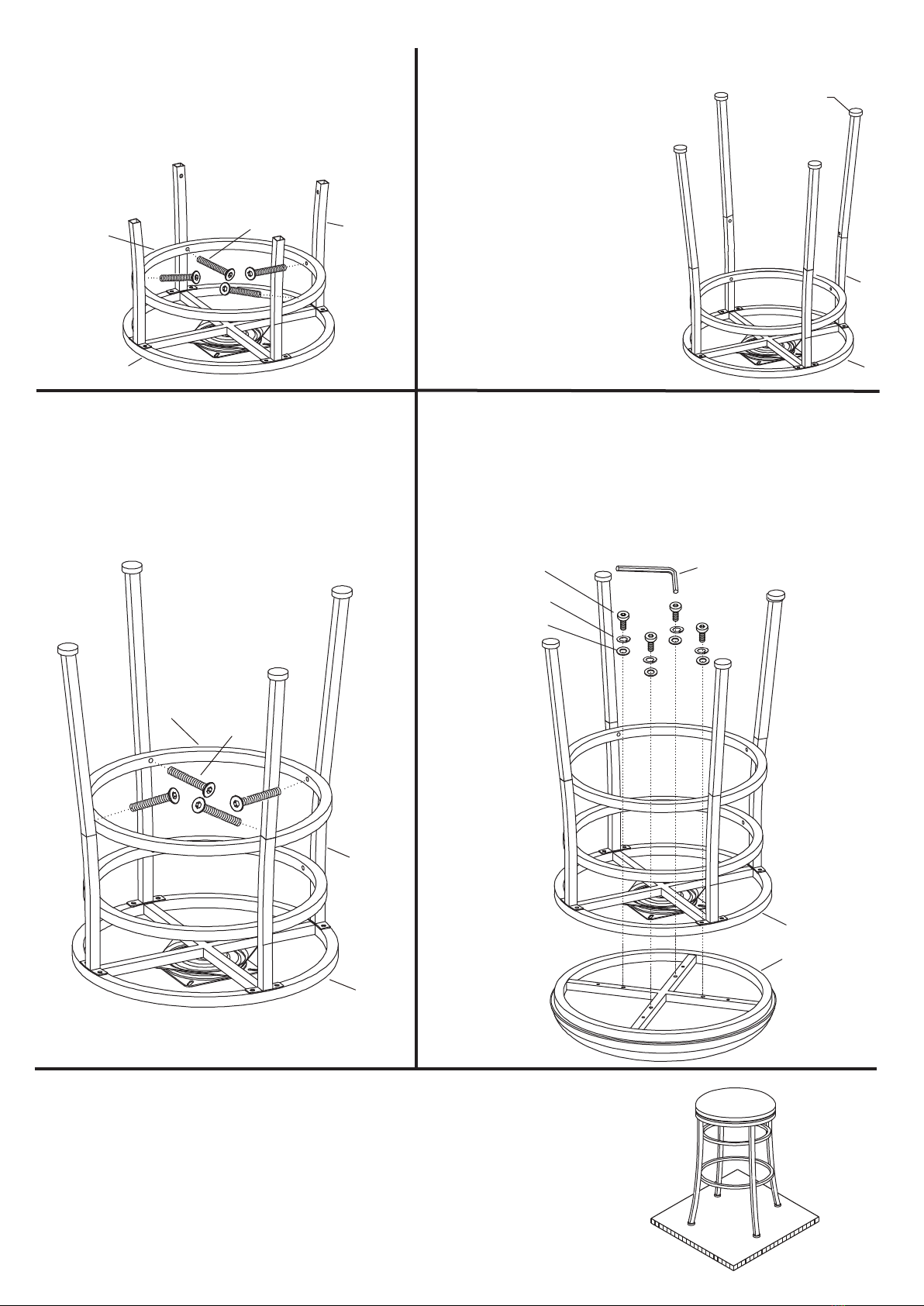

Turn the cross frame Bover so the holes in the
circle bar are facing upwards. Attach the legs
Eto the cross frame Bby threading the short
bolts Ihalf-way into the holes as shown, using
wrench L.
NOTE: The holes in the legs Eshould face
inward.
DO NOT fully tighten the bolts.
STEP 2

B
E
DJ
F
B
E
J
L
M
K
I
A
B
B
E
H or G
Attach the top bar Dto the legs Eby
threading the long bolts Jhalf-way into the
holes in the legs as shown, using wrench L.
DO NOT fully tighten the bolts.
STEP 3
Insert foot pieces Gor H
into legs E.
NOTE: For a 24" tall stool,
use foot H. For a 29" tall
stool, use foot G.
Attach foot rest Fto legs Eby threading
the long bolts Jhalf-way into the holes in
the legs, using wrench L.
DO NOT fully tighten the bolts.
STEP 4
STEP 5
Place the chair right side up on a flat, level surface.
Fully tighten all the bolts from Step 2 that are attaching the legs to
the cross frame.
Fully tighten all the bolts from Step 3 that are attaching the top
bar to the legs.
Fully tighten all the bolts from Step 5 that are attaching the foot
pieces and the foot rest to the legs.
STEP 7
Attach the seat Ato the rotating plate Cby threading
the short bolts Ithrough lock washers Mand washers
K, half-way into the holes in the seat as shown, using
wrench L.
Once bolts have been threaded into all holes, fully
tighten the bolts attaching the rotating plate to the
seat.
STEP 6
