FourStarGroup 11202557S User manual

This unit is intended for use only with the
products and maximum weights indicated. Use
with other products or products heavier than the
maximum weights indicated may result in
instability causing possible injury. Furniture can
tip over or break if improperly moved. Have a
friend help to lift and carry the unit to it's new
location.
ITEM# 11202557C
SIZE: 21L X 29.7H(CM)
MODEL: 11202557S

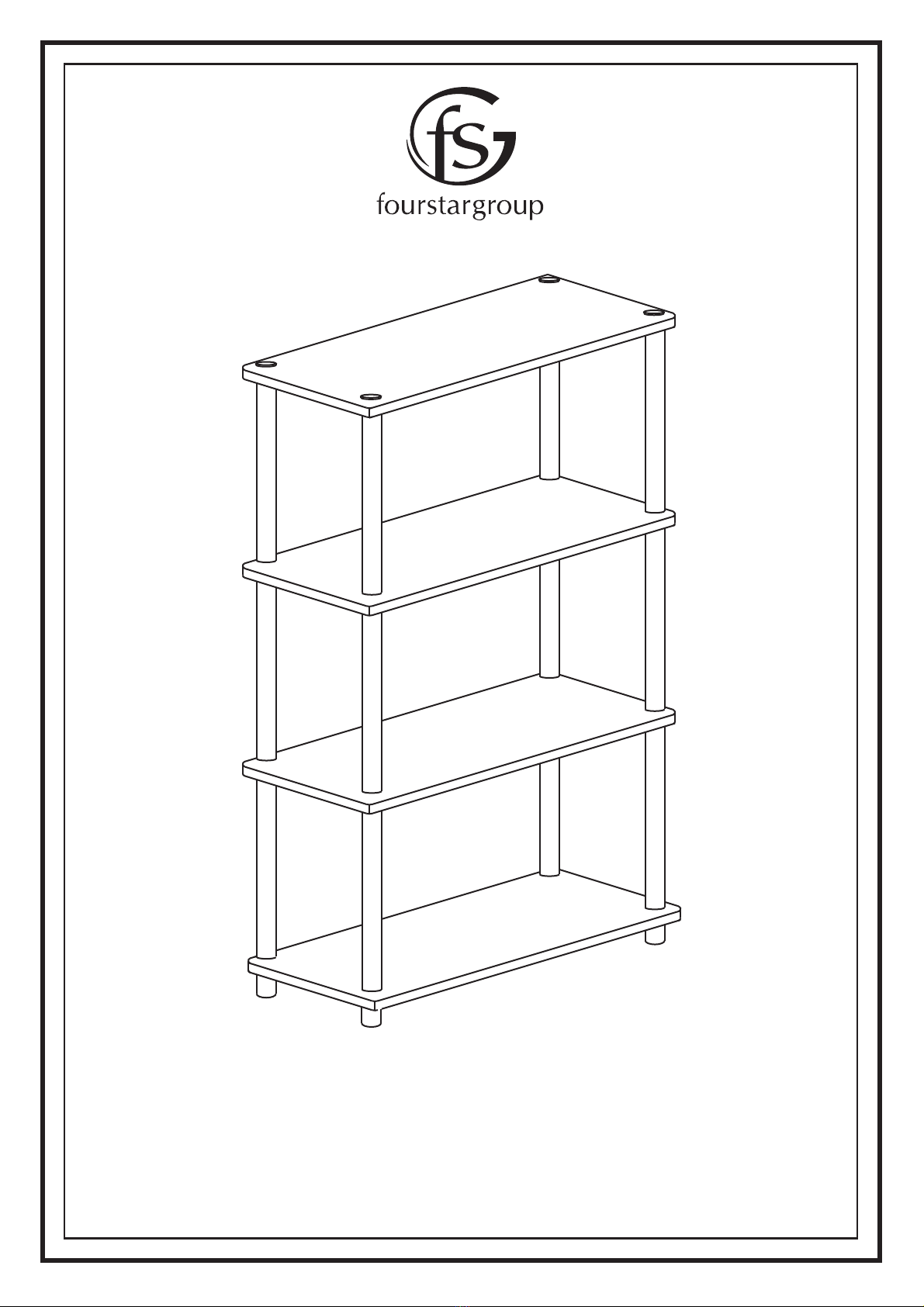

FOUR TIER SHELF
FDS 11202557C FOUR TIER SHELF DorisJosh 2008
01/24
ITEM DESCRIPTIONITEM NO. DESIGNERMDSERCUSTOMER DATEA/W NO.
This proprietary artwork and concepts are copyright designs of Fourstar Group Inc. 2006.
No part of this artwork may be reproduced or transmitted in any form without prior approval or consent
2 43
BEFORE YOU BEGIN, PLEASE READ ASSEMBLY
INSTRUCTIONS CAREFULLY. FOLLOW THEM STEP BY STEP.
CAUTION :
1. ADULT SUPERVISION IS REQUIRED DUE TO SMALL PARTS. CARE
SHOULD BE TAKEN IN THE UNPACKING AND ASSEMBLY OF THE
PRODUCT.
2. ASSEMBLE ON SOFT SURFACES TO PREVENT DAMAGE TO THE
PRODUCT FINISH.
3. MAKE SURE ALL PARTS ARE INCLUDED BEFORE ASSEMBLY.
STEP 2
SECURE THE 4TH SHELF (D) TO 4 POSTS (A) USING 4 CAPS (B),
AS SHOWN.
ASSEMBLY INSTRUCTIONS
STEP 1
START BY SCREWING 4 LEGS (C) INTO ONE SHELF (D), CONTINUE
SCREWING 12 POSTS (A) INTO 3 SHELVES (D), AS SHOWN.
A POST - 12 PCS
C LEG - 4 PCS
D SHELF - 4 PCS
Do you have any questions ? Missing small parts or hardware ?
If you need assistance with the assembly of your
4 TIER SHELF please e-mail our Customer Service
Department at:
[email protected]
or call us at [phone]
or [phone]
Please include the following information in your email:
• Where item was purchased
• Item, model, style or SKU number listed on instructions
or box
• Part number, description of the part and quantity needed
This information will help us get the proper part to you faster
PARTS AND HARDWARE
A POST (12 PCS)
B CAP (4 PCS)
C LEG (4 PCS)
D SHELF (4 PCS)
89 lbs.
89 lbs.
89 lbs.
89 lbs.
A
A
A
A
A
A
A
A
A
A
A
A
C
C
C
C
D
D
D
B
B
B
B
A
A
A
A
D
B CAP - 4 PCS
