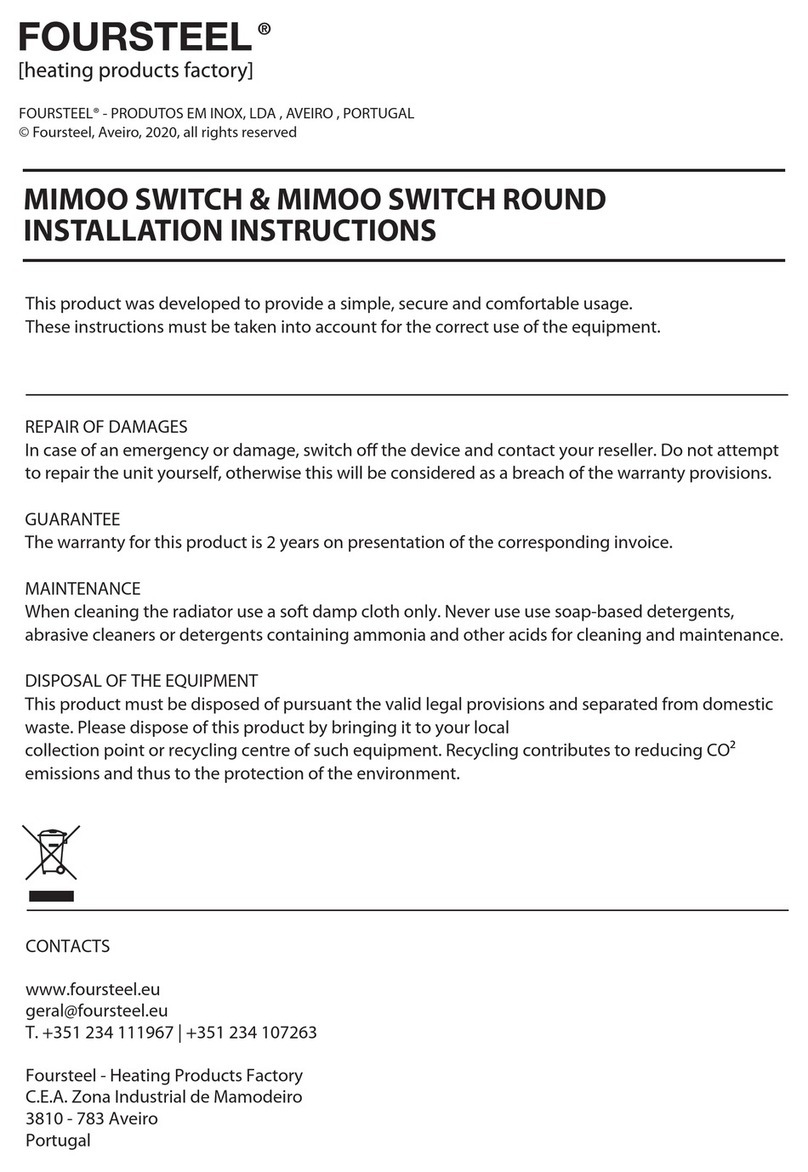

FOURSTEEL MIMOO SWITCH User manual

FOURSTEEL® - PRODUTOS EM INOX, LDA , AVEIRO , PORTUGAL
© Foursteel, Aveiro, 2020, all rights reserved
This product was developed to provide a simple, secure and comfortable usage.
These instructions must be taken into account for the correct use of the equipment.
REPAIR OF DAMAGES
In case of an emergency or damage, switch o the device and contact your reseller. Do not attempt
to repair the unit yourself, otherwise this will be considered as a breach of the warranty provisions.
GUARANTEE
The warranty for this product is 2 years on presentation of the corresponding invoice.
MAINTENANCE
When cleaning the radiator use a soft damp cloth only. Never use use soap-based detergents,
abrasive cleaners or detergents containing ammonia and other acids for cleaning and maintenance.
DISPOSAL OF THE EQUIPMENT
This product must be disposed of pursuant the valid legal provisions and separated from domestic
waste. Please dispose of this product by bringing it to your local
collection point or recycling centre of such equipment. Recycling contributes to reducing CO²
emissions and thus to the protection of the environment.
CONTACTS
www.foursteel.eu
[email protected]
T. [phone] | [phone]
Foursteel - Heating Products Factory
C.E.A. Zona Industrial de Mamodeiro
3810 - 783 Aveiro
Portugal
MIMOO SWITCH & MIMOO SWITCH ROUND
INSTALLATION INSTRUCTIONS

60 cm
64 5mm
80
ø74mm
TECHNICAL CHARACTERISTICS
SWITCH ON OFF
power supply – AC 240V - 16A
Ingress Protection Rating – IP 54
BEFORE THE INSTALLATION
Verify if you have the requested product.
The placement of this product should respect the minimum safety
distance (see g. 1).
g 1 : minimum safety distance
Bathtub or shower area
TECHNICAL DRAWING
frontal view

ø74mm
1 2
3
230V
230V
N N
FF
Make the hole in the wall to place the plastic
box for the switch.
INSTALLATION SCHEME
Place the electrical connectors on each cable
to connect to the switch,
according to the diagram above
radiator
radiator
Pass the cables from the radiator and the
supply line.

54
Screw the inner xing plate to the plastic box
previously installed on the wall. Align and support the outer cover with its
magnet to the inner plate xed to the wall.
INSTALLATION SCHEME
