FOURSTEEL MIMOO SWITCH User manual

REPAIR OF DAMAGES
In case of an emergency or damage, switch o the device and contact your reseller.
Do not attempt to repair the unit yourself, otherwise this will be considered as a breach of the
warranty provisions.
GUARANTEE
The warranty for this product is 2 years on presentation of the corresponding receipt.
MAINTENANCE
When cleaning the product use a soft damp cloth only.
Never use use soap-based detergents, abrasive cleaners or detergents containing ammonia and
other acids for cleaning and maintenance.
DISPOSAL OF THE EQUIPMENT
This product must be disposed of pursuant the valid legal provisions and separated from domestic
waste. Please dispose of this product by bringing it to your local collection point or recycling centre of
such equipment.
Recycling contributes to reducing CO² emissions and thus to the protection of the environment.
note : the guarantee is only valid when accompanied by the sales receipt.
Reseller (name/address/date)
User’s Manual
MIMOO SWITCH
switch on o
This product was developed to provide a simple, secure and comfortable usage.
These instructions must be taken into account for the correct use of the product.

60 cm
12.2 4
N N
FF
2.1
N N
FF
PE
3
TECHNICAL CHARACTERISTICS
power supply – AC 220V, 50Hz
Ingress Protection Rating – IP 54
dimension - 80 x 80 x 5mm
from radiator
from radiator
from radiator
from supply
from supply
from supply
from radiator
from radiator
from supply
from supply
BEFORE THE INSTALLATION
Verify if you have the requested product.
The placement of this product should respect the minimum safety distance (see g. 1).
fig 1 : minimum safety distance
Bathtub or shower area

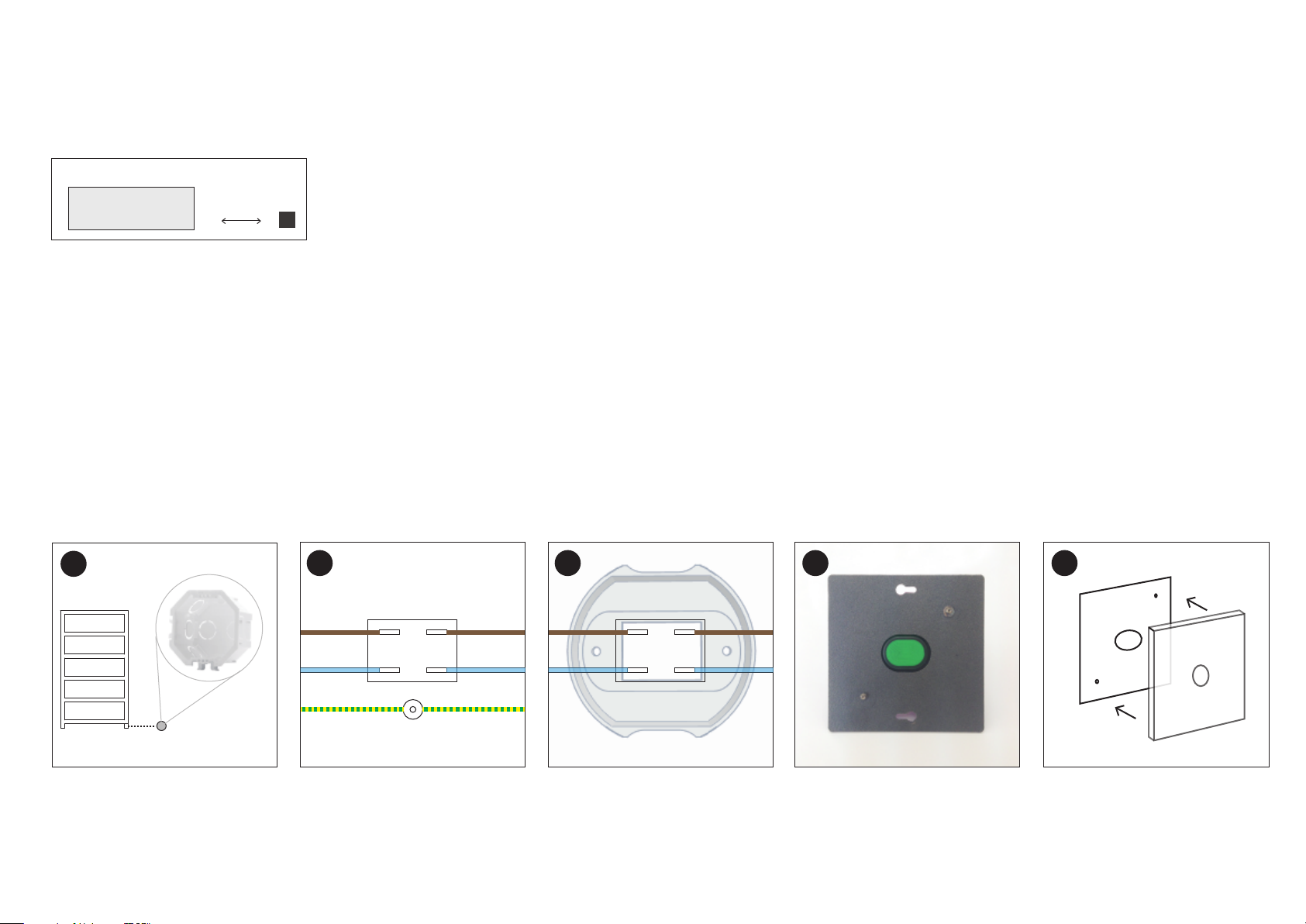

INSTALLATION SCHEME
CLASSE II INSTALLATIONCLASSE I INSTALLATION
Make the hole in the wall to place the plastic
box for the switch.
INSTALLATION CLASSE I :
Pass the cables from the radiator and the
supply line. Place the electrical connectors
on each cable to connect to the switch,
according to the diagram above
INSTALLATION CLASSE II :
Pass the cables from the radiator and the
supply line. Place the electrical connectors
on each cable to connect to the switch,
according to the diagram above
Screw the inner xing plate to the plastic
box previously installed on the wall.
Align and support the outer cover with its
magnet to the inner plate xed to the wall.
