fox fury TacSwan YUNEEC 700-YPS User manual

PAYLOAD & SPOTLIGHT SYSTEMS
FOR YUNEEC H520 & H520E
700-YPS | 700-YSS
PRODUCT MANUAL

2
TABLE OF CONTENTS
Yuneec Systems
3
Yuneec Bracket
Physical Characteristics
Reference Guide
Installation
4
5
5-7
Manual Payload Delivery System
Reference Guide
Physical Characteristics
Installation
8
9
9-10
D100 Drone Spotlight
©
Reference Guide
Physical Characteristics
Battery
Operational Modes
Installation
11
12
13
13
CARE/CLEANING
16
WARNINGS/WARRANTY
16-17
CONTACT FOXFURY
17
14-15

3
YUNEEC SYSTEMS
PAYLOAD
MOUNT
SPOTLIGHT
MOUNT
MANUAL
PAYLOAD
SYSTEM
D100©
PAYLOAD DELIVERY
SYSTEM FOR YUNEEC
5520 &520E
P/N 700-YPS
SPOTLIGHT
SYSTEM FOR YUNEEC
5520 &520E
P/N 700-YPS
ITEMS INCLUDED
- - - - - -
P/N 700-YPS
P/N 700-YSS
P/N 640-100: Manual Payload Delivery System
P/N 85-055: Payload Mount
P/N 700-340: D100 Drone Spotlight©
P/N 85-054: D100©Mount
P/N 600-155: Battery Charger
P/N 70-18650T: Rechargeable 18650 Li-Ion Battery
- - - - - -

4
PHYSICAL CHARACTERISTICS
DIMENSIONS WEIGHT
Payload Mount
6.41 x 0.88 x 1.88 in
(162.8 x 22.3 x 47.7 mm)
6.41 x 0.75 x 2.5 in
(162.8 x 19 x 63.5 mm)
3.46 x 2.01 x 2.44 in
(88 x 51 x 62 mm)
1.18 oz (33.4 g)
D100© Mount 1.17 oz (33.2 g)
D100 Drone Spotlight©
8.92 oz (346.6 g)
TOTAL WEIGHT OF SYSTEMS
SYSTEM WEIGHT
P/N 700-YPS
8.10 oz (229.7 g)
P/N 700-YSS
13.4 oz (379.8 g)
WARNING
It is the responsibility of drone/UAV users to follow the FAA and global laws and
regulations and/or the laws and regulations applicable to the flight location.
©

5

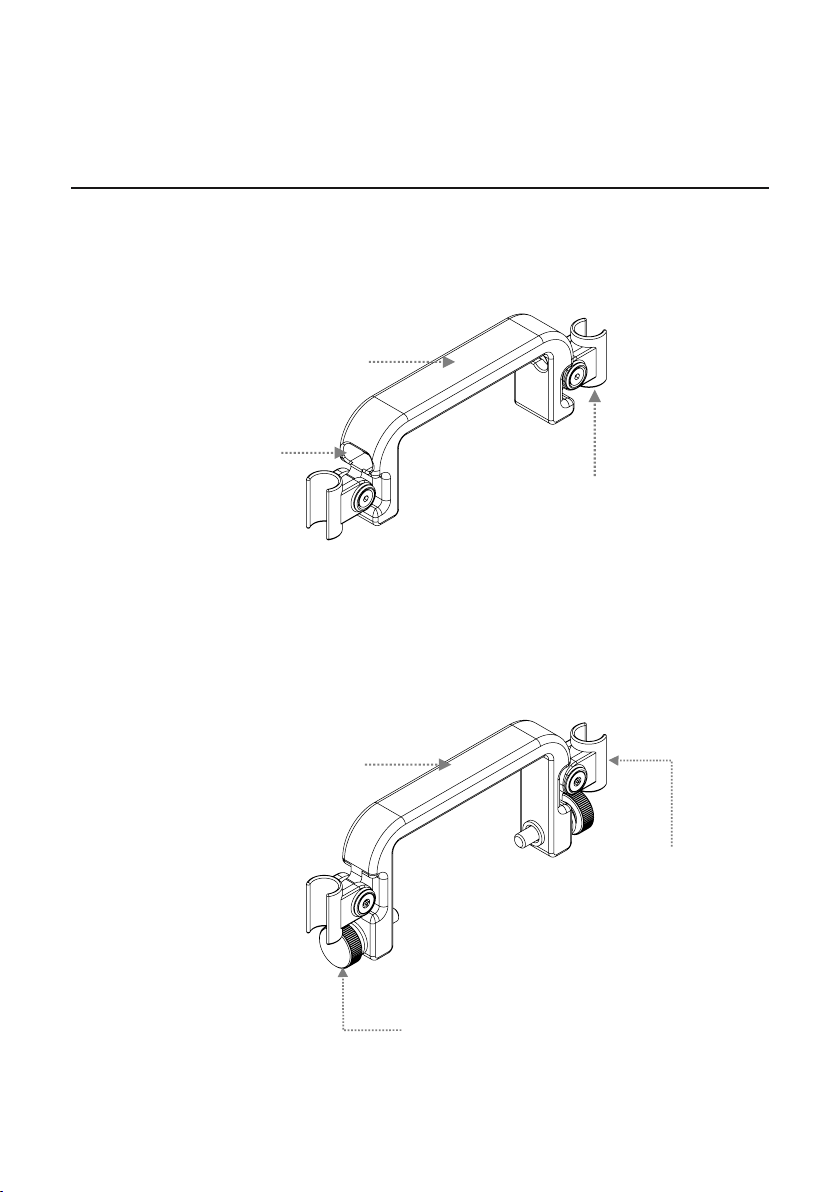

SYSTEM FOR YUNEEC H520/H520E
REFERENCE GUIDE
SPOTLIGHT MOUNT
PAYLOAD MOUNT
Manual Payload Mount Bracket
Payload Delivery
Mounting Slot
(2 ea)
12mm Mount
(2 ea)
D100©Mount Bracket
12mm Mount
(2 ea)
Payload Delivery
Mounting Slot
(2 ea)

6

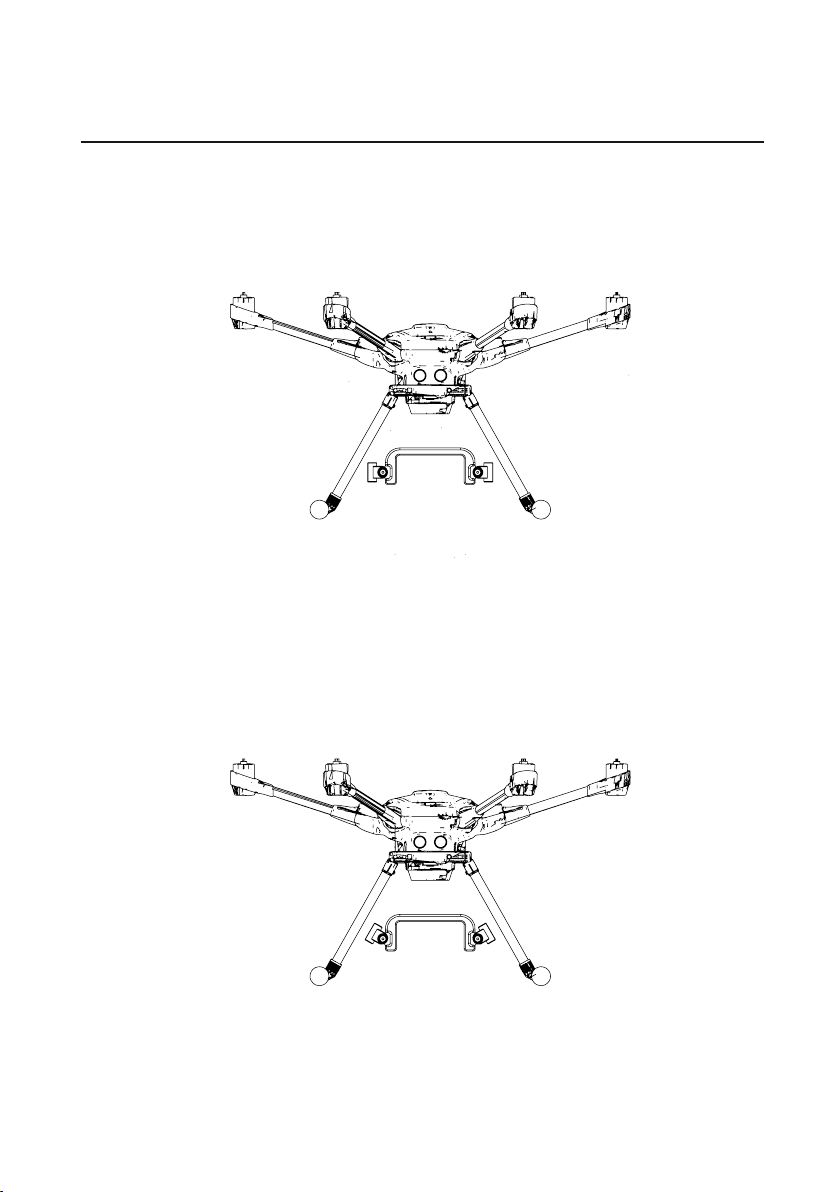

MOUNT INSTALLATION
❶Install the Payload or Spotlight Mount Bracket to the drone landing gear.
1. Position the bracket and 12mm Mount so that they are aligned under
the drone landing gear.
2.
3.
Tilt the 12mm Mounts so that they match the approximate angle of
the landing gear legs. Press the entire bracket upwards into position.
Firmly hold the 12mm Mount and press it onto the leg, snapping the
mount in place. Then, move to the other 12mm Mount and repeat
the previoius step.

7
4. The Payload Mount or Spotlight Mount is now installed.
WARNING:
Manually test the that the bracket is secure by wiggling it and making sure
nothing is loose. Both 12mm Mounts should be tight, but may still have
some slight acceptable movement.

8
MANUAL PAYLOAD DELIVERY
SYSTEM©REFERENCE GUIDE
WHAT'S INCLUDED
Payload Delivery Unit with Cross Bar
Handle/Cord Reel with 550 Paracord (20 ft / 6.1 m)
1/4 x 1½ QR Pin with Ring
Key Ring (38 mm diameter)
Carabiner with Ring
Payload Delivery Bag
Payload
Delivery Bag
Payload Delivery Unit
with Cross Bar
Carabiner
with Ring
Handle/Cord Reel
with 550 Paracord
Key Ring
(38 mm Diameter)
¼ x 1½ QR Pin
with Ring

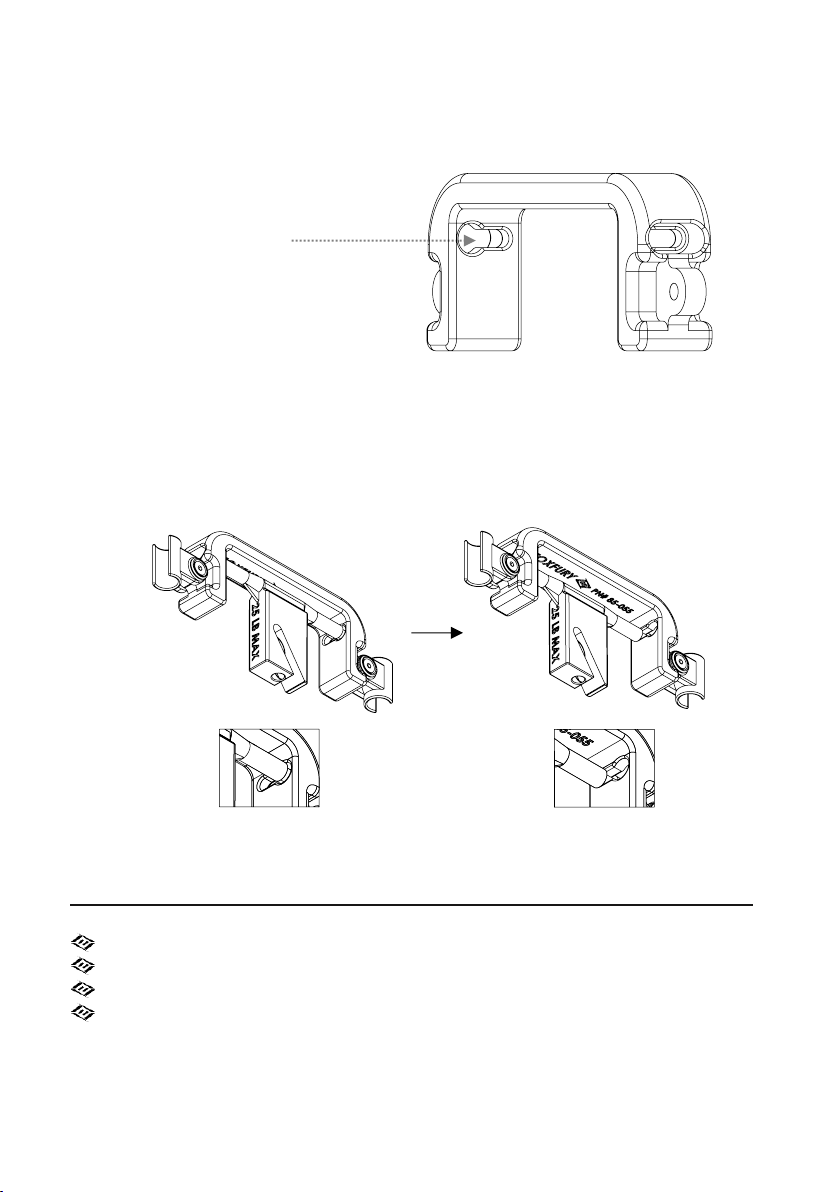

9
PHYSICAL CHARACTERISTICS
WEIGHT
6.92 oz (196.3 g) - fully assembled
3.56 oz (101 g) – without bag
MANUAL PAYLOAD DELIVERY
SYSTEM©INSTALLATION
❶Install Payload Mount Bracket referenced on page 6-7.

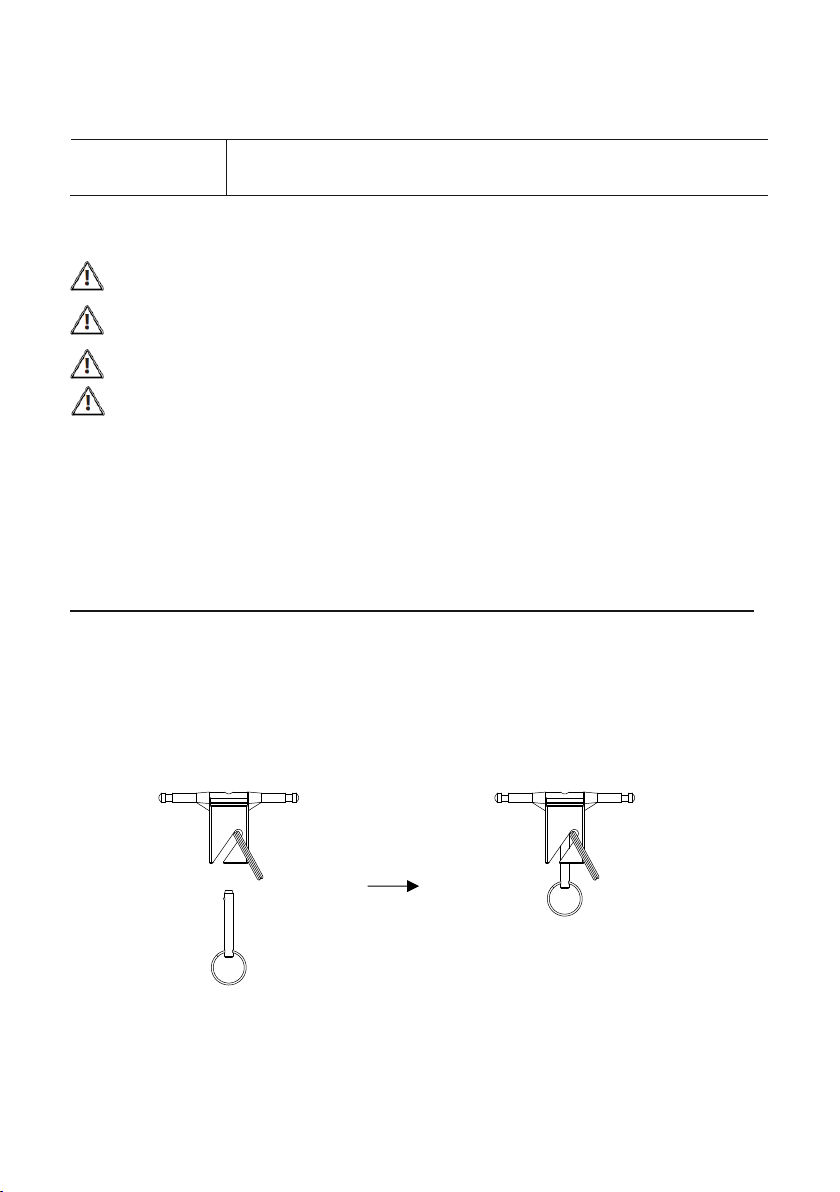

❷Install Key Ring (38 mm Diameter) and 1/4 x 1½ QR Pin with Ring on the
Payload Delivery Unit with Cross Bar if not already installed.
WARNINGS
While using any FoxFury product, please operate at safe speeds.
It is the responsibility of drone/UAV users to follow the FAA and global laws and
regulations and/or the laws and regulations applicable to the flight location.
If delivering with D100©installed, maximum payload is 14.1 oz (400 g).
If delivering without the D100©installed, maximum payload is 28.2 oz (800 g).

10
❸Install Payload Delivery Unit with Cross Bar into the bracket.
1. Locate Payload Delivery Mounting Slots.
2. Align the Cross Bar on the larger hole of the Payload Delivery
Mounting Slot and slide the crossbar into the locked position of the
smaller slot hole.
PAYLOAD DELIVERY
Insert the payload inside the Payload Delivery Bag.
Place the bag with payload behind drone, about 24 inches (61 cm) away.
Unwind the Paracord and fly the drone.
To release payload, simply pull on the Handle with a force of 2 - 4 lbs
(0.9 - 1.8 kg). Note that this effort will translate into minimal movement
on the drone.
Payload Delivery
Mounting Slot

11

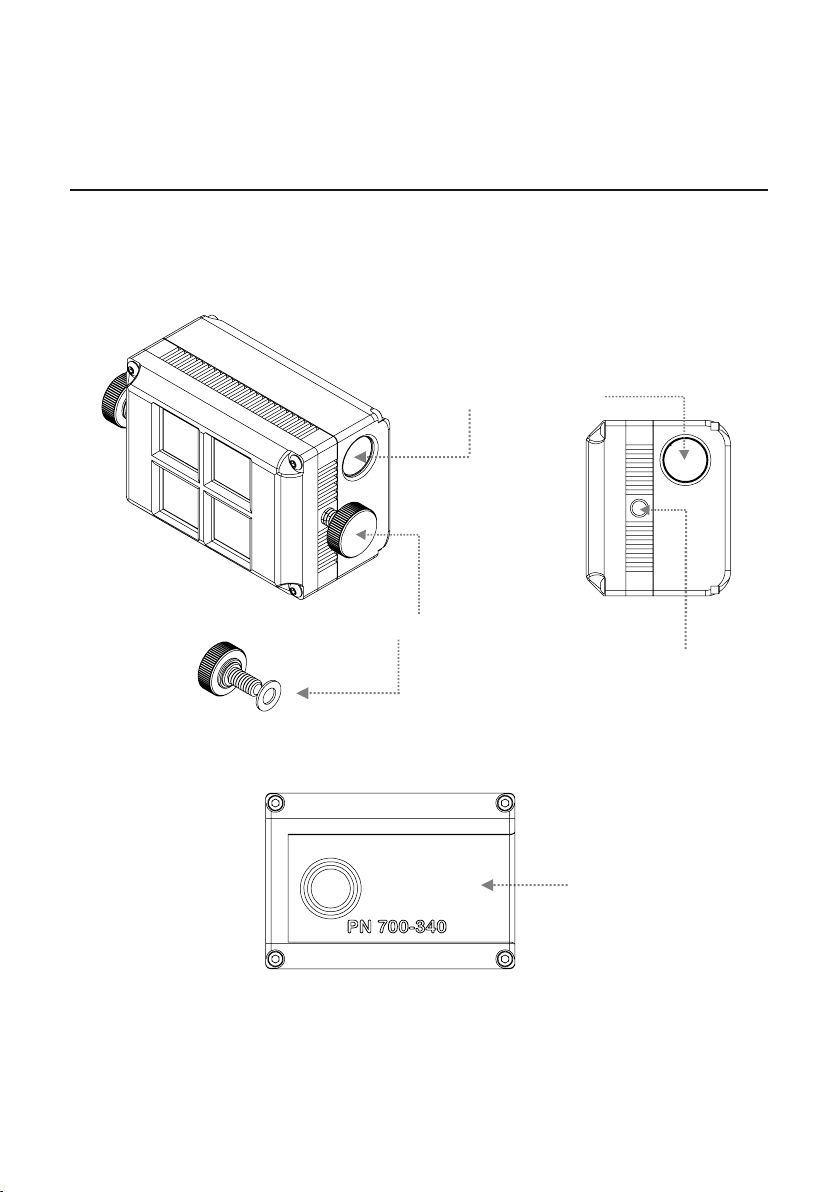

D100 DRONE SPOTLIGHT©
REFERENCE GUIDE
¼-20 Threaded Hole
(2 ea)
Mounting Knob
(2 ea)
Back View
Battery Cover
Power/Mode Switch
D100 DRONE SPOTLIGHT©

12
WHAT'S INCLUDED
D100 Drone Spotlight©
Mounting Knob (2 ea)
18650 Lithium-Ion Battery (2 ea)
XTAR Battery Charger
PHYSICAL CHARACTERISTICS
DIMENSIONS
3.46 x 2.03 x 2.46 in (88 x 51.5 x 62.5 mm)
WEIGHT
8.92 oz (253 g)
12.23 oz (346.6 g) with provided 18650 batteries
WARNINGS
Please fully charge the provided 18650 batteries before using the D100©for the
fi
rst time.
D
o not stare into the LEDs for long periods of time or from close range (less than
2
ft / 0.6 m)
W
hile using any FoxFury product, please operate at safe speeds.
It
is the responsibility of drone/UAV users to follow the FAA and global laws and
r
egulations and/or the laws and regulations applicable to the flight location.
T
he D100©will become hot to touch after 20 min of continuous use. Please handle
ca
refully by avoiding contact with the metal heatsink.

13

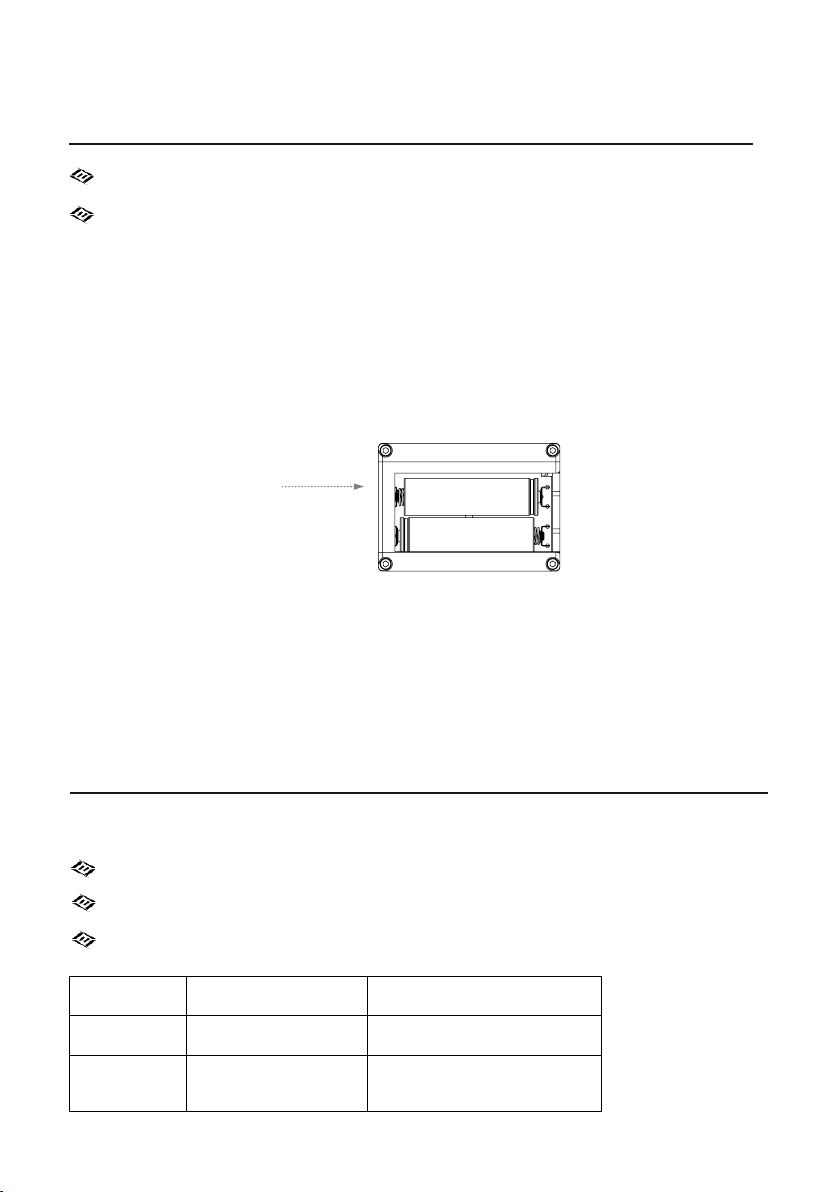

BATTERY
D100©requires two (2) 18650 batteries.
Mixing of new and used, or different brand batteries, is not
recommended as this could lead to leakage or explosion.
BATTERY INSTALLATION AND REPLACEMENT
❶Slide the battery cover open and insert the battery according to the plus
(+) and minus (-) symbol located inside of the battery compartment.
❷Once batteries are installed, test the light’s performance by activating the
Power/Mode Switch. Slide the battery cover back on.
CHARGING THE BATTERY
Refer to the instruction manual provided with the XTAR Battery Charger.
OPERATIONAL MODES
OPERATIONAL MODES
Press and hold Power/Mode Button to turn the light ON.
Press Power/Mode Button again to change the mode to STROBE.
Press Power/Mode Button again to turn the light OFF.
MODE LUMENS BATTERY LIFE
ON 2,300 70 minutes
TURBO-
STROBE 2,300 140 minutes
Power/Mode
Switch
+
-
-
+

14

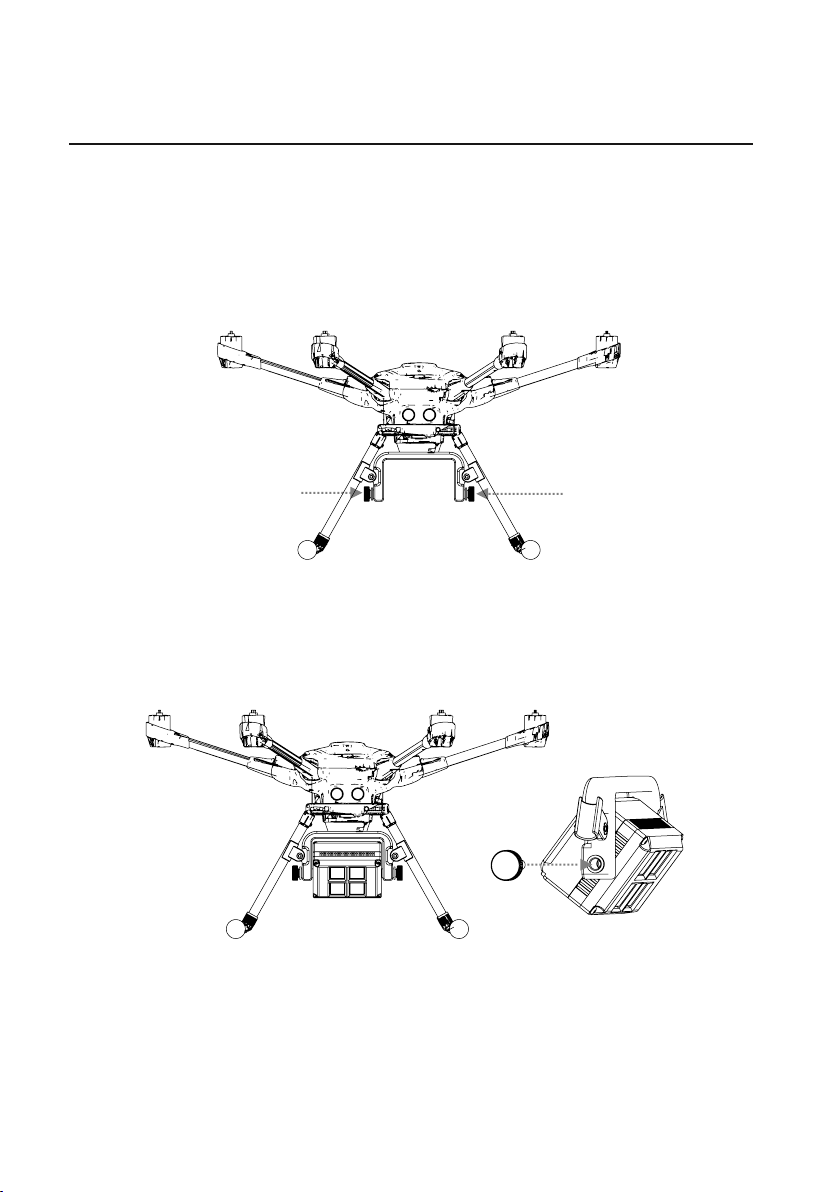

D100©INSTALLATION
❶Install the bracket as referenced on page 6-7.
❷Install D100©onto the Spotlight Mount.
1. Insert each Mounting Knob in the D100©Mounting Hole of the
bracket.
2. Align the Mounting Knobs with the ¼-20 threaded screw holes on
D100© to install D100©on the bracket.
Mounting Knob
Mounting Knob

15
3. Tilt D100 to easily access the Switch and turn it ON to desired
mode, and turn it ON to the desired mode.
©
4. Adjust the tilt of D100©to desired angle and tighten the Mounting
Knobs.
Power/Mode
Switch

16
WARRANTY AND OTHER
INFORMATION
PRODUCT DURABILITY
CARE/CLEANING
Your FoxFury product is a professional
tool. Regular maintenance and care of
your light will maximize performance for
you. As needed, clean your FoxFury
product using a soft washcloth. Do not
immerse.
ACCESSORIES
Rechargeable 18650 Li-Ion
Battery (P/N 70-18650T)
Battery Charger (P/N 600-155)
WARNINGS
FoxFury, LLC is not responsible for the
incorrect use of any FoxFury Lighting
product.
When used for extended periods
of time the D100©will become
HOT to the touch. Please use care
when operating.
Lights are strong enough to cause
damage to the human eye.
Do not stare into LEDs for long
periods of time or from a close
range (less than 2 ft / 0.6 m).
FoxFury, LLC is not responsible
for any injury or damage caused
during the use of this product.
Usage of this product must be
supervised by an adult when it is
being used by a minor.
Any FoxFury product should be
operated at speeds safe enough
to maneuver around surrounding
obstacles.
Do not use under the influence of
drugs or alcohol.
ONE YEAR WARRANTY
FoxFury, LLC (“FoxFury”) warrants
this product to be free from defects
in material for one year after
purchase. Li-Ion batteries have a one
year pro-rated or 500 re-charge cycle
pro-rated warranty, whichever the
user reaches first.
This warranty is given only to the
original end user of the accompanying
product. If you purchased a product
from someone other than an
authorized FoxFury reseller/distributor
or if the product was used, (including
but not limited to demo models, show
models or refurbished product by
someone other than FoxFury) prior to
your purchase, you are not the
Original Purchaser and the product
that you purchased is not covered by
this warranty. This warranty is VOID
if this Product has been altered or
modified in any way (including but not
limited to attempted warranty repair
without authorization from FoxFury
and/or alteration/removal of the serial
number). To expedite warranty
concerns, we encourage the end user
to register their FoxFury Product at
3M

19
www.foxfury.com/pages/warrantyregi
stration.
THIS IS THE ONLY WARRANTY,
EXPRESSED OR IMPLIED,
INCLUDING ANY WARRANTY OF
MERCHANTABILITY OR FITNESS
FOR A PARTICULAR PURPOSE.
INCIDENTAL, CONSEQUENTIAL
OR SPECIAL DAMAGES ARE
EXPRESSLY DISCLAIMED
EXCEPT WHERE SUCH
LIMITATION IS PROHIBITED BY
LAW.
You may have other specific legal
rights which vary by jurisdiction. Go
to www.foxfury.com/pages/warranty
for a complete copy of the warranty.
Retain your receipt for proof of
purchase.
CONTACT FOXFURY
FoxFury, LLC
Oceanside, CA 92056 USA
Toll-Free: 844-FOXFURY
Tel: [phone]
Fax: [phone]
Email: [e-mail]
Web: FoxFury.com
All FoxFury products are designed in
Oceanside, CA. All FoxFury
products are manufactured with the
highest quality USA and foreign
parts. Products are assembled in
either FoxFury’s controlled plant in
Asia or the USA, under strict quality
control.
CALIFORNIA PROPOSITION
65
This product can expose you to
chemicals including Lead and DEHP,
which are known to the State of
California to cause cancer and birth
defects or other reproductive harm.
For more information go to www.
P65Warnings.ca.gov.

FOXFURY.COM 11/2021
