Foxconn D51S series User manual

D51S/D41S Series
Motherboard
User’s Manual

Statement:
This manual is the intellectual property of Foxconn, Inc. Although the information
in this manual may be changed or modied at any time, Foxconn does not obligate
itself to inform the user of these changes.
Trademark:
All trademarks are the property of their respective owners.
Version:
User’s Manual V1.0 for D51S/D41S Series motherboard.
Symbol description:
Caution : refers to important information that can help you to use motherboard
better, and tells you how to avoid problems.
Warning : indicating a potential risk of hardware damage or physical injury may
exist.
WEEE:
The use of this symbol indicates that this product may not be treated as household
waste. By ensuring this product is disposed of correctly, you will help prevent potential
negative consequences for the environment and human health, which could otherwise
be caused by inappropriate waste handling of this product. For more detailed
information about recycling of this product, please contact your local city ofce, your
household waste disposal service or the shop where you purchased this product.
More information:
If you want more information about our products, please visit Foxconn’s
website: http://www.foxconnchannel.com
CAUTION
!
W
A
R
N
I
N
G
!
© All rights reserved.
All trade names are registered trademarks of respective manufacturers listed.
All images are for reference only, please refer to the physical motherboard for specic features.

Declaration of conformity
HON HAI PRECISION INDUSTRY COMPANY LTD
66 , CHUNG SHAN RD., TU-CHENG INDUSTRIAL DISTRICT,
TAIPEI HSIEN, TAIWAN, R.O.C.
declares that the product
Motherboard D51S/D51S-V/D41S/D41S-V
is in conformity with
(reference to the specication under which conformity is declared in
accordance with 89/336 EEC-EMC Directive)
■ EN 55022:1998/A2: 2003 Limits and methods of measurements of radio
disturbance characteristics of information technology
equipment
■ EN 61000-3-2/:2000 Electromagnetic compatibility (EMC)
Part 3: Limits
Section 2: Limits for harmonic current emissions
(equipment input current <= 16A per phase)
■ EN 61000-3-3/A1:2001 Electromagnetic compatibility (EMC)
Part 3: Limits
Section 2: Limits of voltage uctuations and icker in low
voltage supply systems for equipment with rated current
<= 16A
■ EN 55024/A2:2003 Information technology equipment-Immunity
characteristics limits and methods of measurement
Signature : Place / Date : TAIPEI/2009
Printed Name : James Liang

Declaration of conformity
Trade Name: FOXCONN
Model Name: D51S/D51S-V/D41S/D41S-V
Responsible Party: PCE Industry Inc.
Address: 458 E. Lambert Rd.
Fullerton, CA 92835
Telephone: [phone]
Facsimile: 714-738-8838
Equipment Classication: FCC Class B Subassembly
Type of Product: Motherboard
Manufacturer: HON HAI PRECISION INDUSTRY
COMPANY LTD
Address: 66 , CHUNG SHAN RD., TU-CHENG
INDUSTRIAL DISTRICT, TAIPEI HSIEN,
TAIWAN, R.O.C.
Supplementary Information:
This device complies with Part 15 of the FCC Rules. Operation is subject to the following
two conditions : (1) this device may not cause harmful interference, and (2) this device
must accept any interference received, including interference that may cause undesired
operation.
Tested to comply with FCC standards.
Signature : Date : 2009

Installation Precautions
Please carefully read the following procedures to install your computer :
■ It is suggested to select high-quality, certied fans in order to avoid damage
to the motherboard and CPU due to high temperature. Never turn on the
computer if the CPU fan is not properly installed.
■ We cannot guarantee that your system can operate normally when your
CPU/Memory is overclocked. Normal operation depends on the overclocking
capacity of your device.
■ If there is any, when connecting USB, audio, 1394a, RS232 COM, IrDA or
S/PDIF cables to the internal connectors on the motherboard, make sure
their pinouts are matching with the connectors on the motherboard. Incorrect
connections might damage the motherboard.
■ When handling the motherboard, avoid touching any metal leads or connec-
tors.
■ If there is a PCI Express x16 graphics card installed in your system, we
recommend using a 24-pin ATX power supply to get the best performance.
■ Before turning on the power, please make sure the power supply AC input
voltage setting has been congured to the local standard.
■ To prevent damage to the motherboard, do not allow screws to come in contact
with the motherboard circuit or its components. Also, make sure there are no
leftover screws or metal components placed on the motherboard or within the
computer casing.
■ If you are uncertain about any installation steps or have a problem related to
the use of the product, please consult a certied computer technician.
CAUTION
!
■ Electrostatic discharge (ESD) is the sudden and momentary electric current
that ows between two objects at different electrical potentials. Normally it
comes out as a spark which will quickly damage your electronic equipment.
Please wear an electrostatic discharge (ESD) wrist strap when handling
components such as a motherboard, CPU or memory.
■ Ensure that the DC power supply is turned off before installing or removing
CPU, memory, expansion cards or other peripherals. It is recommended to
unplug the AC power cord from the power supply outlet. Failure to unplug
the power supply cord may result in serious damage to your system.
W
A
R
N
I
N
G
!

TABLE OF CONTENTS
Chapter 1 Product Introduction
Product Specications..................................................................2
Layout........................................................................................... 4
Back Panel Connectors................................................................5
Chapter 2 Hardware Install
Install the Memory ........................................................................8
Install other Internal Connectors ..................................................9
Jumpers...................................................................................... 13
Chapter 3 BIOS Setup
Enter BIOS Setup.......................................................................15
Main Menu.................................................................................. 15
System Information ....................................................................17
Advanced BIOS Features........................................................... 19
Fox Central Control Unit............................................................. 22
Advanced Chipset Features .......................................................25
Integrated Peripherals ................................................................28
Power Management Setup.........................................................32
PC Health Status........................................................................34
BIOS Security Features.............................................................. 35
Load Optimal Defaults................................................................36
Save & Exit Setup .....................................................................36
Exit Without Saving ...................................................................36
Chapter 4 CD Instruction
Utility CD content........................................................................ 38
Install driver and utility................................................................39
FOX ONE
Main Page............................................................................. 41
CPU Control.......................................................................... 45
Frequency Control ................................................................ 47

Limit Setting .......................................................................... 48
Voltage Control .....................................................................50
Fan Control ........................................................................... 51
FOX LiveUpdate
Local Update......................................................................... 52
Online Update ....................................................................... 54
Congure .............................................................................57
About & Help......................................................................... 59
FOX LOGO................................................................................. 60
FOX DMI ....................................................................................61
Technical Support :
Website :
http://www.foxconnchannel.com
Support Website :
http://www.foxconnsupport.com
Worldwide online contact Support :
http://www.foxconnsupport.com/inquiry.aspx
CPU Support List :
http://www.foxconnsupport.com/cpusupportlist.aspx
Memory, VGA Compatibility List :
http://www.foxconnsupport.com/complist.aspx
Support

Thank you for buying Foxconn D51S/D41S Series motherboard.
Foxconn products are engineered to maximize computing power,
providing only what you need for break-through performance.
With advanced overclocking capability and a range of connectivity
features for today multi-media computing requirements, D51S/D51S-
V/D41S/D41S-V enables you to unleash more power from your
computer.
This chapter includes the following information:
■ Product Specications
■ Layout
■ Back Panel Connectors

2
1
1-1 Product Specications
CPU Intel®AtomTM D510 processor mounted onboard (D51S/D51S-V)
Intel®AtomTM D410 processor mounted onboard (D41S/D41S-V)
Chipset Intel®NM10 Express
Memory 2 x 240-pin DDR2 DIMM socket
Support up to 4GB of system memory
Single channel DDR2 800/667MHz architecture
Audio Realtek ALC662 codec
High Denition Audio
2/4/5.1-channel
LAN Realtek 10/100/1000Mb/s LAN chip (D51S/D41S)
Realtek 10/100Mb/s LAN chip (D51S-V/D41S-V)
Expansion Slot 1 x PCI slot
Onboard Serial ATA 2 x SATA connectors
300MB/s data transfer rate
USB Support hot plug
Support up to 8 USB 2.0 ports (4 rear panel ports, 2 onboard USB
headers providing 2 extra ports)
Supports USB 2.0 protocol up to 480Mb/s
Internal Connectors 1 x 24-pin ATX main power connector
1 x 4-pin ATX main power connector
2 x SATA connectors
2 x USB 2.0 headers (supporting 4 x USB devices)
1 x Front panel connector
1 x Front audio connector
1 x S/PDIF_OUT connector
1 x CPU fan header (4-pin)
1 x System fan header (4-pin)
1 x TPM connector
1 x IR/CIR connector
1 x COM2 connector
1 x Chassis intrusion alarm header (INTR)
Back Panel 1 x PS/2 keyboard port
Connectors 1 x PS/2 mouse port
1 x Serial port
1 x Parallel port
1 x VGA port
4 x USB 2.0 ports
1 x RJ-45 LAN port
6-channel Audio ports
Hardware Monitor System voltage detection

3
1
CPU/System temperature detection
CPU/System fan speed detection
CPU overheating shutdown
Green Function Low power consumption and power management features
Support ACPI (Advanced Conguration and Power Interface)
Support S0 (normal), S1 (power on suspend), S3 (suspend to RAM), S4
(Suspend to disk), and S5 (soft - off)
Operating System Support for Microsoft®Windows® 7/Vista/XP
Form Factor Mini-ITX Form Factor, 6.75 inches x 6.75 inches (171mm x 171mm)

4
1

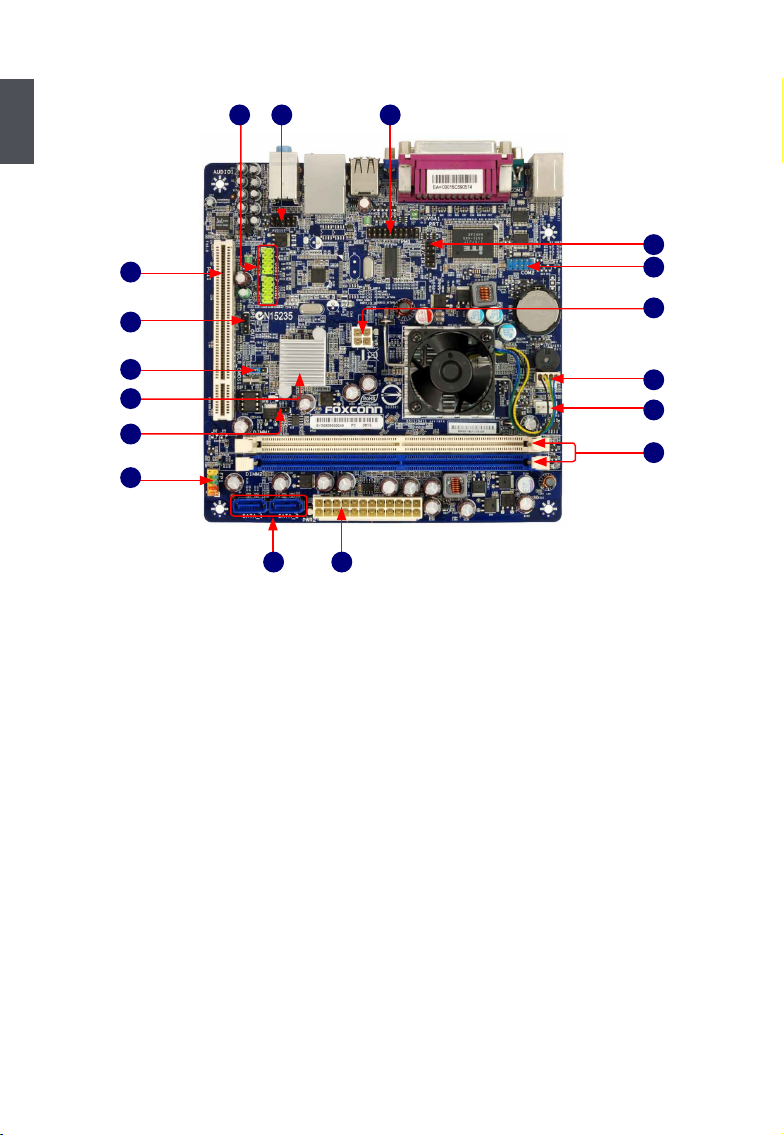

1-2 Layout
Note : The above motherboard layout is for reference only, please refer to the physical
motherboard for detail.
1. TPM Connector
2. Front Audio Connector
3. Front USB Connectors
4. PCI Slot
5. SPDIF_OUT Connector
6. Clear CMOS Jumper
7. Chipset: Intel®NM10 Express
8. Chassis Intrusion Alarm Header
9. Front Panel Connector
10. SATA Connectors
11. 24-pin ATX Power Connector
12. DDR2 DIMM Slots
13. System Fan Header
14. CPU Fan Header
15. 4-pin ATX 12V Power Connector
16. COM2 Connector
17. IR/CIR Connector
11
16
12
13
14
17
15
13 2
6
7
5
4
9
8
10

5
1

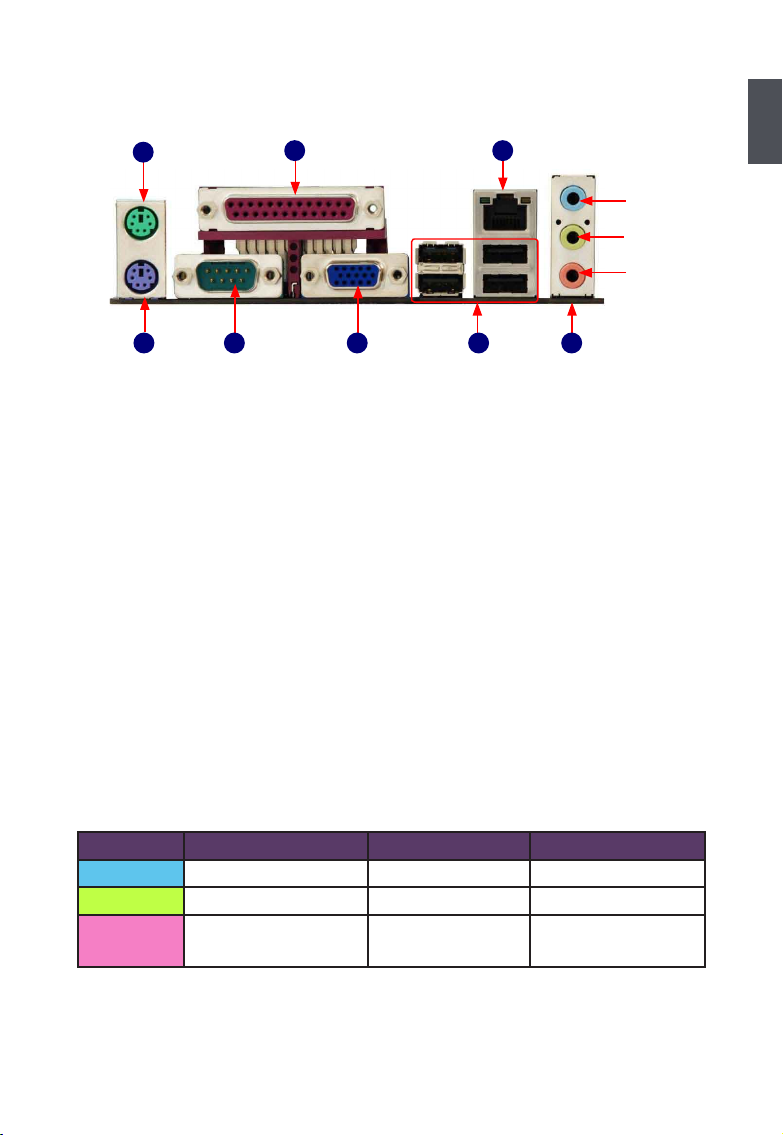

1-3 Back Panel Connectors
1. PS/2 Mouse Port
Use the upper port (green) to connect a PS/2 mouse.
2. PS/2 Keyboard Port
Use the lower port (purple) to connect a PS/2 keyboard.
3. Serial Port
This is output of RS232 COM1 port.
4. Parallel Port
This connector provides printer port interface.
5. VGA Port
To connect with external display devices, such as monitor or LCD display.
6. USB Ports
The USB port supports the USB 2.0/1.1 specication. Use this port for USB devices such as an
USB keyboard/mouse, USB printer, USB ash drive and etc.
7. Audio Ports
For the denition of each audio port, please refer to the table below :
* : Please refer to Chapter 4, and install the Realtek audio driver (in CD) to assign the audio
output ports for different applications of 2/4/5.1 channels. The fundamental audio outputs are
depicted in the table above.
Port 2-channel 4-channel 5.1-channel
Blue Line In Rear Speaker Out Rear Speaker Out
Green Line Out Front Speaker Out Front Speaker Out
Pink Microphone In Microphone In Center/Subwoofer
Speaker Out
VGA Port
LAN Port
PS/2 Keyboard
Port
PS/2 Mouse Port
Line Out
Microphone In
Line In
1
7
5 6
2
8
USB Port Audio Ports
Serial Port
3
Parallel Port
4

6
1

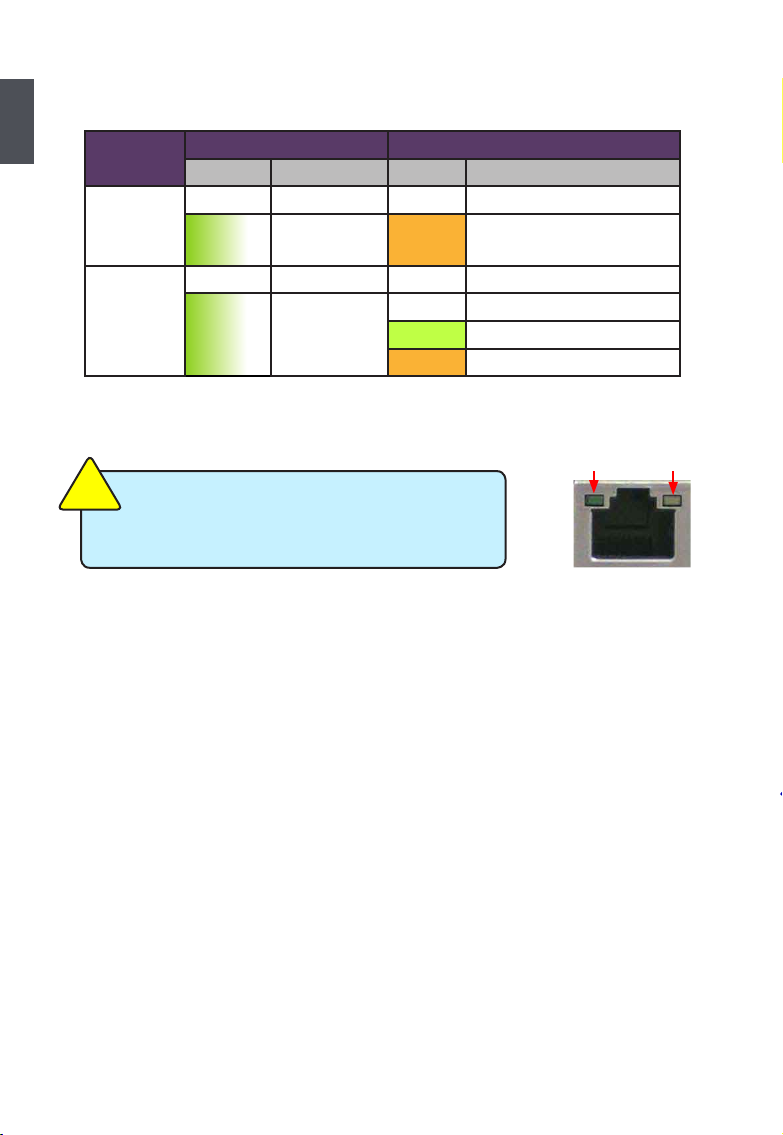

8. RJ-45 LAN Port
The Ethernet LAN port provides Internet connection at up to 10/100/1000Mb/s data rate.
Active
LED
Link
LED
LAN Type Left: Active Right: Link
Status Description Status Description
100M
Off No Link Off No Link
Green
Blinking Data Activity Orange 10/100Mb/s Connection
1000M
Off No Link Off No Link
Green
Blinking Data Activity
Off 10Mb/s Connection
Green 100Mb/s Connection
Orange 1000Mb/s Connection
D51S-V/D41S-V supports 10/100 Mb/s Ethernet.
D51S/D41S supports 1Gb/s Ethernet.
CAUTION
!

This chapter introduces the hardware installation process, including
the installation of the CPU, memory, power supply, slots, pin headers
and the mounting of jumpers. Caution should be exercised during
the installation of these modules. Please refer to the motherboard
layout prior to any installation and read the contents in this chapter
carefully.
This chapter includes the following information :
■ Install the Memory
■ Install other Internal Connectors
■ Jumpers
Please visit the following website for more supporting information about your motherboard.
CPU Support List:
http://www.foxconnsupport.com/cpusupportlist.aspx
Memory, VGA Compatibility List:
http://www.foxconnsupport.com/complist.aspx

8
2
2-1 Install the Memory
If you take a look at front side of memory module, it has asymmetric pin counts on both sides
separated by a notch in the middle, so it can only t in one direction. Follow the steps below to
correctly install your memory modules into the sockets.
Step 1:
Spread the clips at both ends of the memory socket.
Place the memory module onto the socket, then put
your ngers on top edge of the module, and push
it down rmly and seat it vertically into the memory
socket.
Step 2:
The clips at both ends of the socket will snap into
place when the memory module is securely inserted.
112-Pin128-Pin
Read the following guidelines before you begin to install the memory :
■ Make sure that the motherboard supports the memory. It is recommended that memory
of the same capacity, brand, speed, and chips be used.
■ Always turn off the computer and unplug the power cord from the power outlet before
installing the memory to prevent hardware damage.
■ Memory modules have a foolproof design. A memory module can be installed in only
one direction. If you are unable to insert the memory, switch the direction.
■ Be sure to install DDR2 DIMMs on this motherboard.
CAUTION
!
Notch

9
2
2-2 Install other Internal Connectors

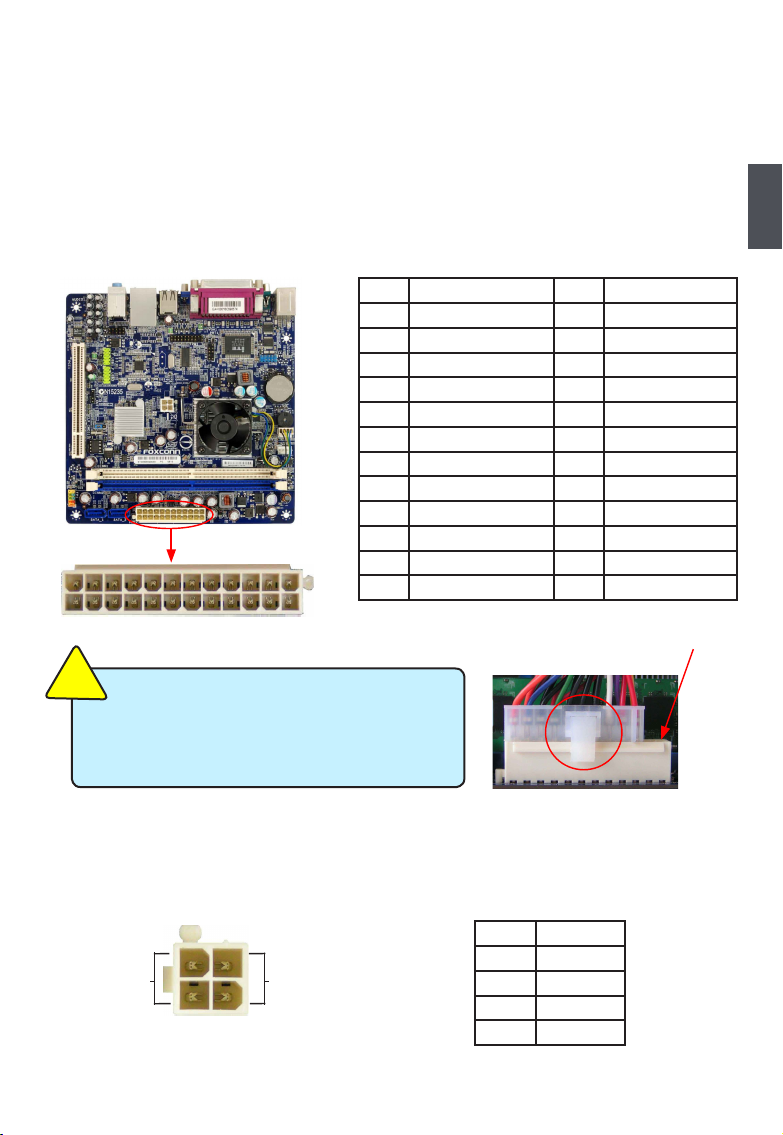

Power Connectors
This motherboard uses an ATX power supply. In order not to damage any device, make sure all the
devices have been installed properly before applying the power supply.
24-pin ATX power connector : PWR2
PWR2 is the ATX power supply connector. Make sure that the power supply cable and pins are
properly aligned with the connector on the motherboard. Firmly plug the power supply cable into the
connector and make sure it is secure.
4-pin ATX 12 V Power Connector : PWR1
Connect the 4-pin ATX 12V power supply to PWR1 and provides power to the CPU.
Pin # Denition Pin # Denition
1 3.3V 13 3.3V
23.3V 14 -12V
3 GND 15 GND
4 +5V 16 PS_ON(Soft On/Off)
5 GND 17 GND
6 +5V 18 GND
7 GND 19 GND
8 Power Good 20 NC
9 +5V SB(Stand by +5V) 21 +5V
10 +12V 22 +5V
11 +12V 23 +5V
12 3.3V 24 GND
PWR2
24 13
12 1
We recommend you using a 24-pin power supply.
If you are using a 20-pin power supply, you need
to align the ATX power connector according to
the picture.
CAUTION
!
20-Pin Power
Pin No. 24
Pin # Denition
1 GND
2GND
3+12V
4+12V
3 1
GND
+12V
4 2
PWR1

10
2
USB Connectors : F_USB1/2
In addition to the four USB ports on the rear panel, this
product also provides two 10-pin USB headers on its
motherboard. By connecting through USB cables with
them, user can quickly expand another four USB ports
on the front panel.
S/PDIF OUT Connector : SPDIF_OUT1
The connector is used for S/PDIF output.
TPM Connector : TPM1
The TPM (Trusted Platform Module) provides the ability
to the PC to run applications more secure and to make
transactions and communication more trustworthy. To
utilize this function, you should purchase additional
device and install it.
COM Connector : COM2
This motherboard supports one serial RS232 COM port
for legacy compatibility. User must purchase another
RS232 cable with a 9-pin D-sub connector at one end
to connect with the external RS232 device and another
end with 10-pin female connector to connect with COM2
connector in the motherboard.
NC
GND
VCC
D+
D-
D+
GND
D-
VCC
EMPTY
12
10
9
F_USB 1/2
SPDIF_OUT
+5V
EMPTY
SPDIF_OUT1
GND
1
2
3
4
LCLK#
LFRAME#
LRESET#
LAD3
VDD
LAD0
SB3V
NC
GND
LPCPD#
GND
EMPTY
LAD2
NC
LAD1
GND
NC
SERIRQ
CLKRUN#
NC
12
19 20
TPM1
RLSD
SOUT
RI
GND
RTS
DSR
DTR
CTS
EMPTY
SIN
12
10
9
COM2

11
2

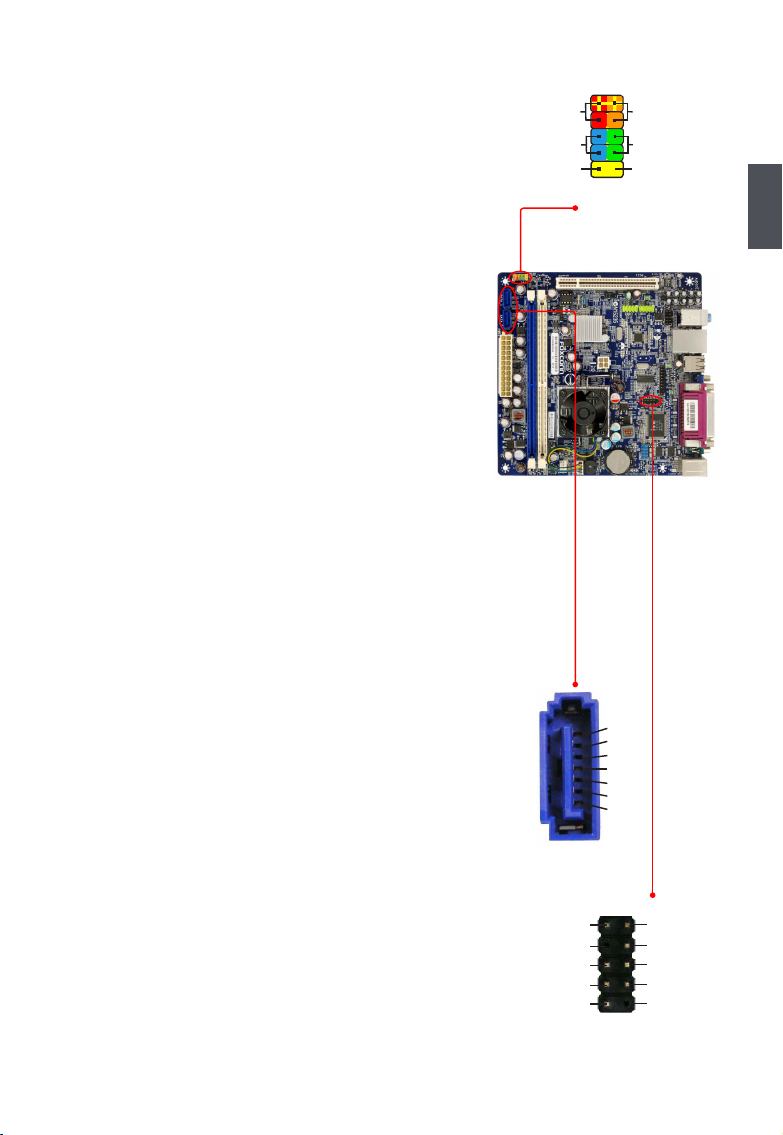

Front Panel Connector : FP1
This motherboard includes one connector for connecting the
front panel switch and LED Indicators.
Hard Disk LED Connector (HDD-LED)
Connect to the chassis front panel IDE indicator LED. It
indicates the active status of the hard disks. This 2-pin
connector is directional with +/- sign.
Reset Switch (RESET-SW)
Attach the connector to the Reset switch on the front
panel of the case; the system will restart when the switch
is pressed.
Power LED Connector (PWR-LED)
Connect to the power LED indicator on the front panel of
the chassis. The Power LED indicates the system’s status.
When the system is in operation (S0 status), the LED is
on. When the system gets into sleep mode (S1) , the LED
is blinking; When the system is in S3/S4 sleep state or
power off mode (S5), the LED is off. This 2-pin connector
is directional with +/- sign.
Power Switch Connector (PWR-SW)
Connect to the power button on the front panel of the
chassis. Push this switch allows the system to be turned
on and off rather than using the power supply button.
Serial ATA Connectors : SATA_1/2
The Serial ATA connector is used to connect with SATA Hard
Disk or CD devices which supporting this feature. The current
Serial ATA II interface allows up to 300MB/s data transfer
rate.
IrDA Connector : IR/CIR1
This connector supports infrared wireless transmitting and
receiving device.
EMPTY
HDD-LED
RESET-SW
NC
+
-
PWR-SW
+
-PWR-LED
12
10
9
FP1
SATA _1/2
GND
TX+
TX-
GND
RX-
RX+
GND
1
IR/CIR1
+5V
EMPTY
IRRX
GND
IRTX
+5VSB
CIRRX
CIRTX
GND
EMPTY
12
9 10

12
2
Audio Connector : F_AUDIO1
The audio connector supports HD Audio standard.
It provides the Front Audio output choice.
Fan Headers : CPU_FAN1, SYS_FAN1
There are two main fan headers on this motherboard. The
fan speed can be controlled and monitored in “PC Health
Status” section of the BIOS Setup. These fans can be
automatically turned off after the system enters S3, S4
and S5 sleeping states.
PORT1_L
PORT1_R
PORT2_L
SENSE_SEND
SENSE1_RETURN
PRESENCEJ
EMPTY
SENSE2_RETURN
AUD_GND
12
109
F_AUDIO1
PORT2_R
CPU_FAN1/SYS_FAN1
GND
POWER
SENSE
CONTROL
1

13
2
2-3 Jumpers
For some features needed, users can change the jumper settings on this motherboard to modify them.
This section explains how to use the various functions of this motherboard by changing the jumper
settings. Users should read the following content carefully prior to modifying any jumper setting.
Description of Jumpers
1. For any jumper on this motherboard, Pin 1 can be identied by the bold silkscreen next to it.
However, in this manual, Pin 1 is simply labeled as “1”.
2. The following table explains different types of the jumper settings. "Closed" means placing a jumper
cap on the two pins to temporarily short them. The shorting can also be done by touching two
pins by a screwdriver for a few seconds, but using jumper cap is recommended. It can prevent
hazardous ESD (Electrical Static Discharge) problem.

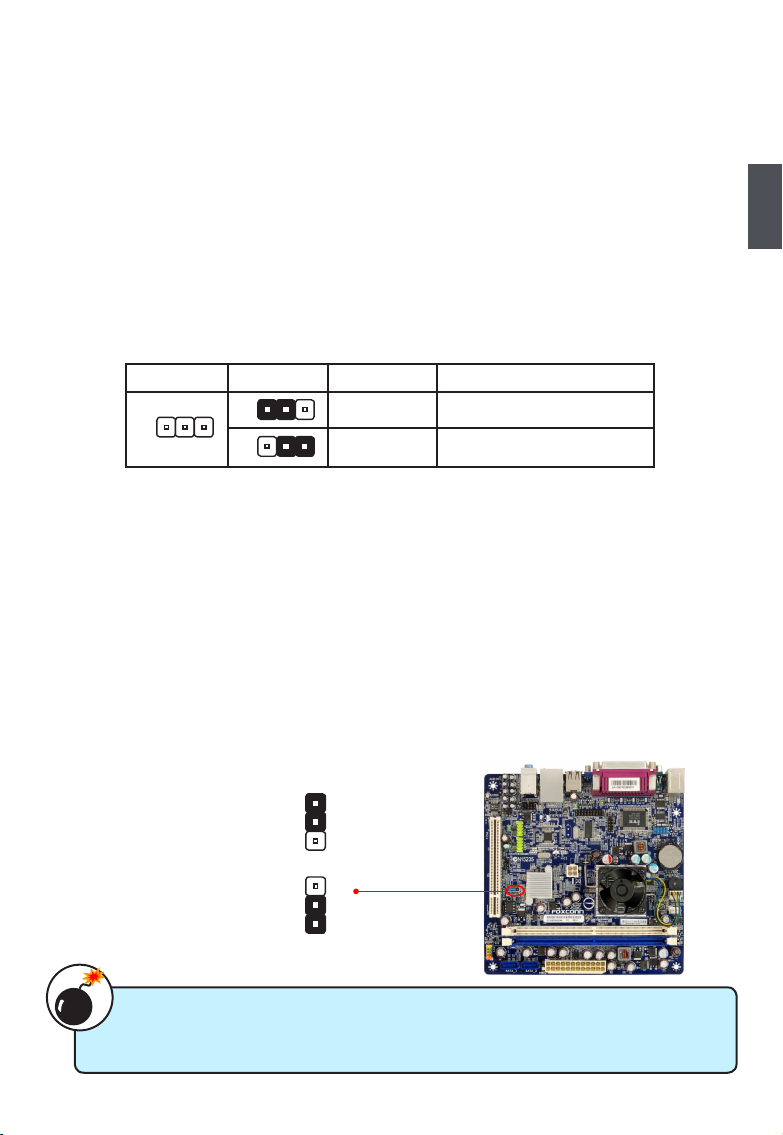

Clear CMOS Jumper: CLR_CMOS
The motherboard uses CMOS RAM to store the basic hardware information (such as BIOS data,
date, time information, hardware password...etc.). Clear CMOS data is the fast way to go back to
factory default when the BIOS settings were mistakenly modied.
The steps to clear CMOS data are :
1. Turn off the computer, unplug the power cord from the power outlet.
2. Remove jumper cap from pins 2-3, put it onto pins 1-2 to short them. This will clear CMOS
data.
3. Return the setting to its original with pins 2-3 closed.
4. Plug in the power cord to your computer and turn it on.
5. Go to BIOS Setup to congure new system as described in next chapter.
Jumper Diagram Denition Description
1-2 Set Pin 1 and Pin 2 closed
2-3 Set Pin 2 and Pin 3 closed
1
1
1
■ Disconnect the power cable before adjusting the jumper settings.
■ Do not clear the CMOS while the system is turned on.
W
A
R
N
I
N
G
!
Clear
1
2
3
Normal
(Default)
1
2
3
CLR_CMOS
