Fracarro CB-540WDR User manual

-1-
Day/Night DNR Color Camera
CB-540WDR
User Manual
Thanks for purchasing our product. Before operating the unit, please read the instructions
carefully and keep this manual for future reference.

-2-
Safety Warning
1. Read manual carefully before installing the unit.
Please read this manual first for correct installation and operation.
2. Never install the camera on a ceiling that cannot hold its weight
The product may fall down to cause damages.
3. Do not install the camera near electric or magnetic fields.
Installed the camera away from TV, radio transmitter, magnet, electric motor,
transformer, audio speakers because the magnetic fields generate from above
devices will distort the video image.
4. Always stop using when the product emits smoke or abnormal heat
5. Never disassemble the camera nor put impurities in it
Disassembly or impurities may result in trouble or fire.
6. Never face the camera toward the sun.
Direct sunlight or severe ray may cause fatal damage to sensor and internal circuit.
7. Keep the power cord away from wet and never touch the power cord with wet
hands.
Touching the wet power cord with hands or touching the power cord with wet hands
may result in electric shock.
8. Never install the camera in areas exposed to water, oil or gas.
The water, oil or gas may result in failure, electric shock or file.
9. Cleaning
Do not touch the surface of sensor by hand directly. Use a soft cloth to remove the
dirt from the camera body. Use lens tissue or a cotton tipped applicator and ethanol
to clean the sensor and the camera lens.
10.Do not operate the camera beyond the specified temperature, humidity or
power source ratings.
Use the camera at temperatures within -10°C ~ 50°C and humidity below 90%. The
input power source is dual power DC12V/AC 24V.
11.Retain Instructions
The safety and operating instructions should be retained for future reference.

-3-
12.Heed Warnings
All warnings on the unit and in the operating instructions should be adhered to.
13.Follow Instructions
All operating and use instructions should be followed
14.Cleaning
Unplug the unit from the outlet before cleaning. Do not use liquid cleaners or aerosol
cleaners. Use a damp cloth for cleaning
15.Attachments
Do not use attachment not recommended by the product manufacturer as they may
cause hazards.
16.Water and Moisture
Do not use this unit near water-for example, near a bath tub, wash bowl, kitchen sink,
or laundry tub, in a wet basement, near a swimming pool, in an unprotected outdoor
installation, or any area which is classified as a wet location.
17.Servicing
Do not attempt to service this unit yourself as opening or removing covers may
expose you to dangerous voltage or other hazards. Refer all servicing to qualified
service personnel.
18.Power Cord Protection
Power supply cords should be routed so that they are not likely to be walked on or
pinched by items placed upon or against them, playing particular attention to cords
and plugs, convenience receptacles, and the point where they exit from the
appliance.
19.Object and Liquid Entry
Never push objects of any kind into this unit through openings as they may touch
dangerous voltage points or short-out parts that could result in a fire or electric shock,
Never spill liquid of any kind on the unit.
Notice:
The information in this manual was current when published. The manufacturer
reserves the right to revise and improve its products. All specifications are
therefore subject to change without notice.
.

-4-
1. Product Overview.......................................................................................................... 6
1.1 Main Features: ......................................................................................................... 6
1.2 Content List.............................................................................................................. 6
1.3 Specifications ........................................................................................................... 7
2. Dimension and Functions .............................................................................................. 8
2.1 Dimension .................................................................................................................. 8
2.2 Description of functions .............................................................................................. 8
3.1 Setup Buttons:............................................................................................................ 9
3.2 Display/Close the user setup menu screen .............................................................. 10
4. User Setup..................................................................................................................... 11

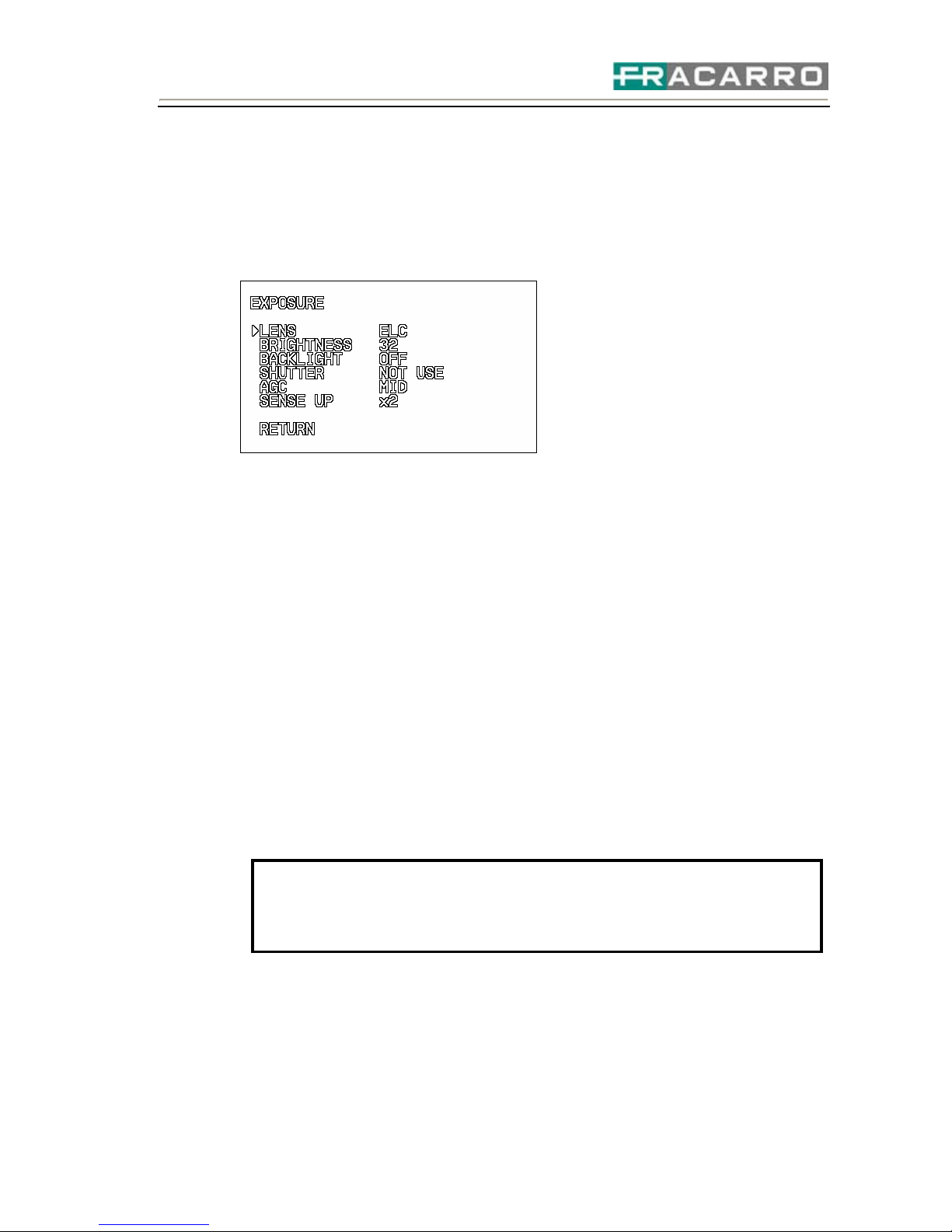

4.1 EXPOSURE ............................................................................................................. 11
4.1.1. LENS ............................................................................................................................ 11
4.1.2. BRIGHTNESS .............................................................................................................. 11
4.1.3. BACKLIGHT ................................................................................................................. 11
4.1.4. SHUTTER..................................................................................................................... 11
4.1.5. AGC .............................................................................................................................. 11
4.1.6. SENSE UP.................................................................................................................... 11
4.1.7. RETURN.......................................................................................................................12
4.2 WHITE BALANCE .................................................................................................... 12

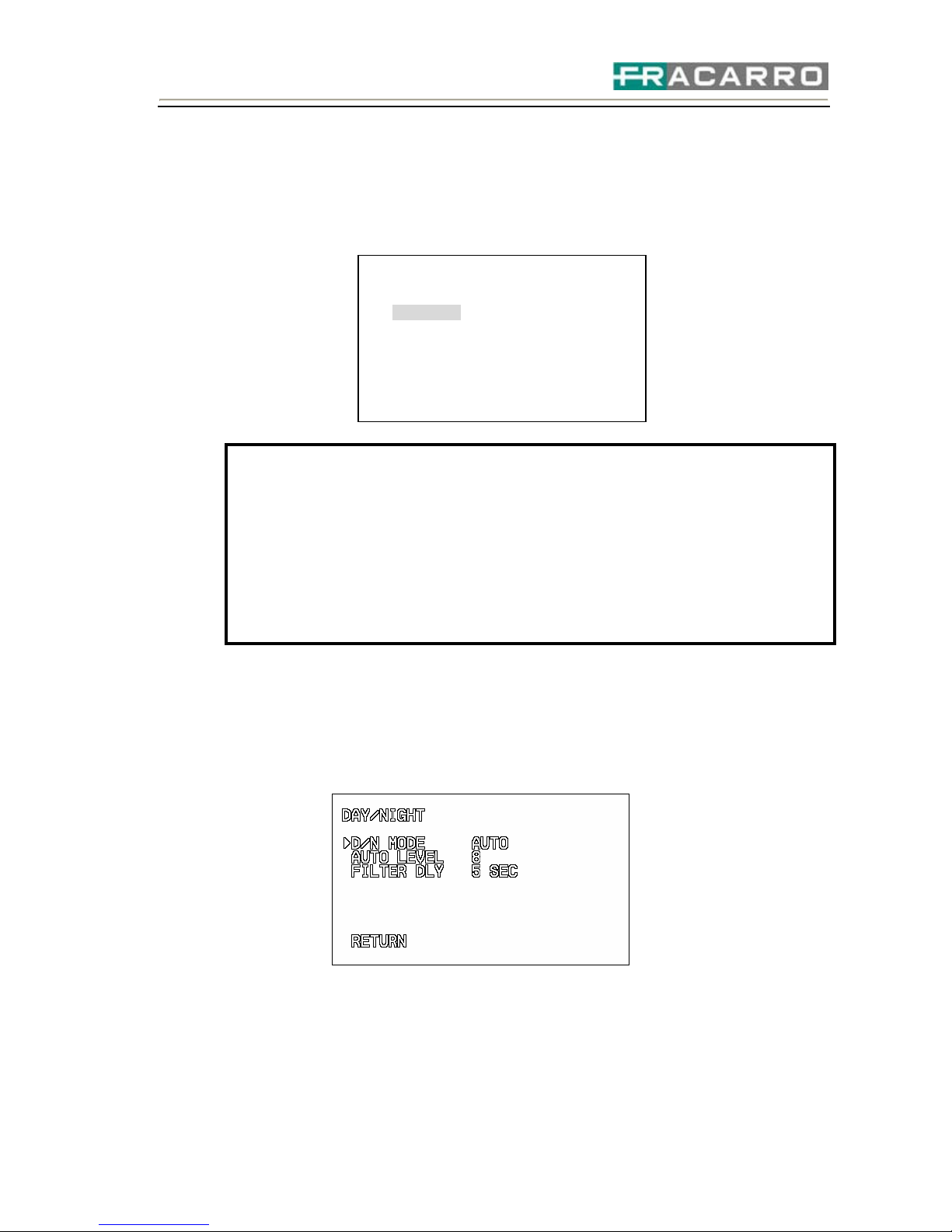

4.3 DAY/NIGHT MODE .................................................................................................. 13
4.3.1. D/N MODE....................................................................................................................13
4.3.2. AUTO LEVEL................................................................................................................14
4.3.3. FILTER DLY..................................................................................................................14
4.3.4. RETURN.......................................................................................................................14
4.4 MOTION DETECTION: ............................................................................................ 14
4.4.1. DETECT MODE............................................................................................................14
4.4.2. DETECT AREA.............................................................................................................14
4.4.3. SENSITIVITY................................................................................................................15
4.4.4. ALARM TIME ................................................................................................................15
4.4.5. RETURN.......................................................................................................................15
4.5 PRIVACY: ................................................................................................................. 15
4.6 OPTION:................................................................................................................... 17
4.6.1 TITLE .............................................................................................................................17
4.6.2. NEGA/POSI ..................................................................................................................18
4.6.3. SHARPNESS................................................................................................................18
4.6.4. MIRROR .......................................................................................................................18
4.6.5. ZOOM...........................................................................................................................18
4.6.6. PAN/TILT ......................................................................................................................18
4.6.7. PHASE..........................................................................................................................19
4.6.8. RETURN.......................................................................................................................19
4.7 DISPLAY: ................................................................................................................. 19
4.7.1. TITLE ............................................................................................................................19
4.7.2. MOTION DET ...............................................................................................................19

-5-
4.7.3. CAMERA ID ..................................................................................................................19
4.7.4. RETURN.......................................................................................................................19
4.8 SYNC: ...................................................................................................................... 19
4.9 INITIAL: ....................................................................................................................20
4.10 EXIT: ......................................................................................................................20

-6-
1. Product Overview
CB-540WDR is designed with advanced new generation 16-bit DSP which has powerful
processing capability to show over 540TVL horizontal resolution. Built-in DNR (Dynamic
Noise Reduction) function, it performs clear & crisper image in low light and substantial
disk-saving effect. In addition, designed with SENS-UP slow shutter technology, the
starlight super-high sensitivity of 0.001 Lux is achieved.
1.1 Main Features:
Excellent Super-high Resolution technology, 540 TV lines of horizontal resolution
Advanced 16-bit Digital Signal Processor (DSP) delivers excellent picture quality
and performance
Day/Night function
Built-in Mechanical IR Cut Filter
Built-in DNR (Dynamic Noise Reduction) for noise reduction
The super-high sensitivity of 0.001 Lux/F=1.0 is achieved by setting SENS-UP
Shutter X32
OSD setting menu
Support Motion Detection function
Support Privacy function

1.2 Content List
CB-540WDR Color Camera unit
User’s manual

-7-
1.3 Specifications
TV System PAL NTSC
Image Sensor 1/3 SONY Super HAD CCD
Total Pixels 811 (H) x 508 (V) 795 (H) x 596 (V)
Effective Pixels 768 (H) x 494 (V) 752 (H) x 582 (V)
Synchronization Internal / Line-Lock
Frequency H:15.734 KHz
V: 59.94Hz
H:15.625 KHz
V: 50.00Hz
Resolution 540TVL(Color Mode); 650TVL(B/W Mode)
Dynamic Range x80 normal camera
Minimum Illumination Normal: 0.05Lux/F1.0 ;
0.001 Lux/F1.0 (Sens-up)
S/N (Y signal) More than 50dB (γ, Sharpness, AGC OFF)
Video Output 1.0Vp-p/75Ω
Iris Control DC/ ELC
Camera Title OFF/ON
Day & Night AUTO/ DAY/ NIGHT/ EXT Selectable
Gain Control Low, Middle, High, OFF Selectable
White Balance ATW/AWC/Manual
Back Light Compensation LOW/MIDDLE/HIGH/OFF Selectable
Electronic Shutter ESC (X128 ~1/60~1/120000 sec)
Menu OSD Control
Color AUTO/ Day/ Night/ Ext Selectable
(Daytime: Color, Night Time: B/W)
Motion Detection ON/OFF
Privacy Function ON/OFF (4 Programmable Zone per Screen)
Power Supply DC12V / AC24V
Power Consumption 5.0W Max.
Operating Temperature/
Humidity
-10°C~+50°C
90% RH Max.
Storage Temperature/
Humidity
-20°C~+60°C /
20%~90% RH
Dimensions 63(W)×52(H)×121(L)mm
Weight 400g

-8-

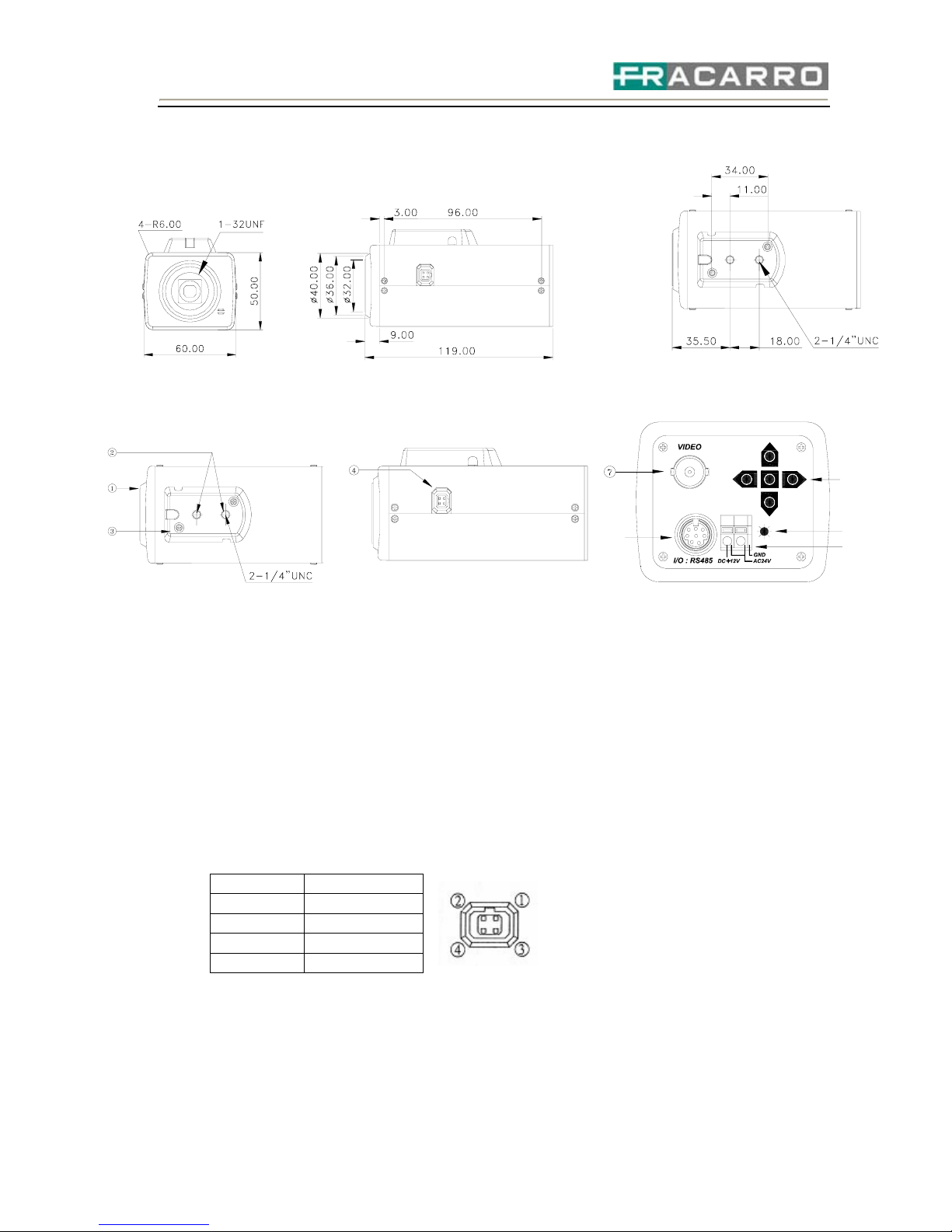

2. Dimension and Functions
2.1 Dimension
2.2 Description of functions
1Lens mount
This mount is used to install a CS-mount lens. CS-adaptor ring is required if use
a C mount lens.
2Camera mounting screw holes
Screw hole for fixing camera.
eMount adaptor
This adaptor can be attached to either the top or bottom of unit.
fAuto iris lens connector (4-pin type)
The lens connector supplies the auto-iris lens (not supplied) with DC control
signal.
6Setting Button
SETUP button
UP & DOWN button
LEFT & RIGHT button
PIN NO. DC
1 CONTROL -
2 CONTROL +
3 DRIVE +
4 DRIVE -
5
8
9
6

-9-
7VIDEO connector
This is an output for connection to a video monitor, etc (75Ω).
8MINI DIN connector
9Power Input Indicator Light
When the camera is connected to a power supply, the indicator light will be on.
Power input terminal
Connect the power supply of 12Vdc / 24Vac.
3.1 Setup Buttons:
To set items on the user setup menu, use the following buttons on the back panel.
Up Button
Set Button
Left Button
Down Button
Right Button
① Up Button: This button is used to move the cursor upwards. Use this button
to select the item wanted to set.
② Down Button: This button is used to move the cursor downwards. Use this
button to select the item wanted to set.
③ Right Button: Use this button to select or adjust the parameters of the
select item. The parameter changes each time as this button is pressed. If
the item has its own setting sub-menu (sign +...), press this button to display
the setting menu.

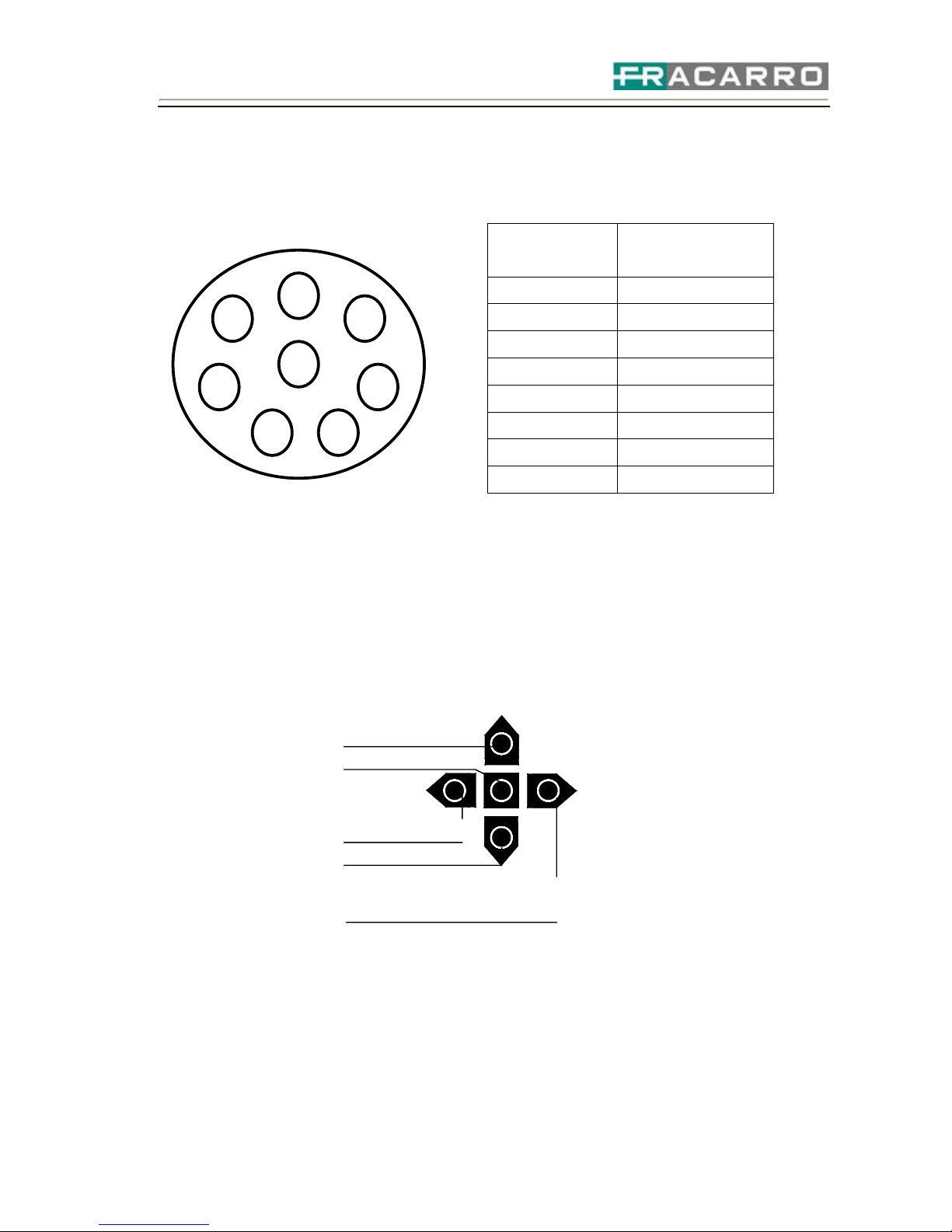

MINI DIN PIN PIN
ASSIGNMENT
PIN 1 RS485 +
PIN 2 RS485 -
PIN 3 GND
PIN 4 MD LED OUT
PIN 5 GND
PIN 6 D/N LED CONT
PIN 7 CDS IN
PIN 8 12V OUT
21
4
35
8
7
6

-10-
④ Left Button: Use this button to select or adjust the parameters of the select
item. The parameter changes each time as this button is pressed.
⑤ Set Button: This button is used to switch to the main menu. This is also a
quick button to return the previous menu.
3.2 Display/Close the user setup menu screen
I. Press the SET button
The menu screen will appear on the monitor as the block shown above.
II. Using the cursor button
Use the cursor button cor dto move the cursor up or down. Use the cursor
button eor fto adjust the mode or parameter of settings.
III. Switch to sub-menu screens
When the item with sub-menu is selected, press the ENTER button to switch
to the sub-menu for further settings. Please refer to the figure below.
Note: For those select items with “+...” sign in the end, they have the sub-menu
for further settings.
IV.Return to previous page
Select RETURN and press the ENTER button to return to previous page.
V. Close the menu screen
To close the menu screen, use the cursor button to select EXIT and press the
ENTER button, or press the SET button.
The Cursor Buttons & the SET Button
Sub-Menu
Main Menu
SET button
ENTER button
