FRAM OUTDOORFIRE W Guide

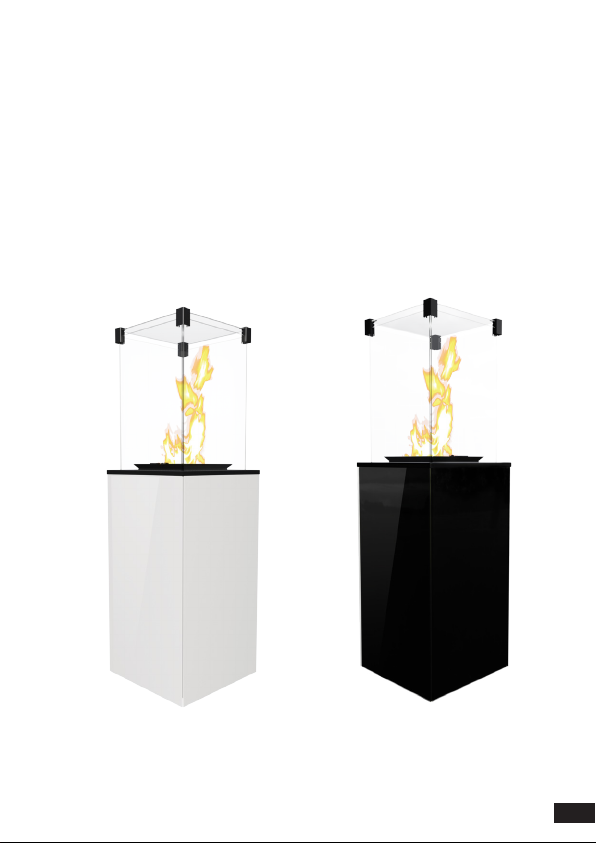

GAS OUTDOOR HEATER OUTDOORFIRE W & OUTDOORFIRE B
User Manual and Warranty Card (EN)

2
EN
WARNING!
THE DEVICE IS HOT DURING WORK!
AS A RESULT OF CONTACT WITH HOT DEVICE SURFACES, BURNS MAY CAUSE. CHILDREN, ELDERLY
PEOPLE (OR OTHER PEOPLE REQUIRING CARE), ANIMALS, CLOTHES, FLAMMABLE FURNITURE, ANY
FUEL OR OTHER FLAMMABLE MATERIALS SHOULD BE FAR AWAY FROM THE DEVICE.
REMEMBER TO CARE FOR THE MAINTENANCE OF THE APPLIANCE IN ACCORDANCE WITH THE RE-
COMMENDATIONS OF THIS MANUAL!
Read the whole manual and share it with every possible user of the device before using the
device.
Any modications to this device are strictly forbidden. Never attempt to tamper with the de-
vice or any part of it. Any changes or modications will void the warranty immediately and
void any device certicates.
The device must only be installed and serviced only by a qualied installer.
ATTENTION
!
A HOT GLASS MAY CAUSE BURNS
DO NOT TOUCH THE GLASSES
BEFORE THEY COOL DOWN
EVER LEAVE CHILDREN AND OTHER CONSCIOUS PEOPLE
NEAR THE WORKING APPLIANCE.

3EN
APPLIANCE DIMENSIONS
Fig. 1. Dimensional drawing of the OUTDOORFIRE W & OUTDOORFIRE B heater

4
EN
Model version Valve Category Pressure / Gas Destination countries
OUTDOORFIRE W
OUTDOORFIRE B
MERTIK
MAXITROL
GV32
I3B/P
30 mbar, G30
BE, CY, CZ, DK, EE, ES, FR, GB,
GR, HU, IE, IT, LT, NL, NO, PT, RO,
SE, SI, SK,
37 mbar, G30 PL
50 mbar, G30 AT, CH, DE, FR, SK
I3P
30 mbar, G31 FI, NL, RO
37 mbar, G31 BE, CH, CY, CZ, ES, FR, GB, GR,
IE, IT, LT, HR, NL, PL, PT, SI, SK
50 mbar, G31 AT, CH, DE, NL
I3+
30 mbar. G30
BE, CY, CZ, DK, EE, ES, FR, GB,
GR, HU, IE, IT, LT, NL, NO, PT, RO,
SE, SI, SK
37 mbar, G31 BE, CH, CY, CZ, ES, FR, GB, GR,
IE, IT, LT, HR, NL, PL, PT, SI, SK
TECHNICAL SPECIFICATION
Technical specication - manual control - GV32 gas blockw
Unit Appliance category
I3P(30) I3P(37) I3P(50) I3B/P(30) I3B/P(37) I3B/P(50) I3+(30/37)
Destination
countries -FI, NL, RO
BE, CH,
CZ, ES, FR,
GB, GR,
HR, IE, IT,
LT, NL, PL,
PT, SI, SK
AT, CH,
DE, NL,
SK
BE, CY, DK,
EE, FR, GB,
GR, HU, HR,
IT, LT, NL,
NO, RO, SE,
SI, SK, TR
PL
AT, CH,
DE, FR,
SK
BE,CH, CY,
CZ, ES, FR,
GB, GR, IE,
IT, LT, PT,
SI, SK
Reference gas - G31 G31 G31 G30 G30 G30 G30/G31
Nominal connection
pressure
[mbar]
30 37 50 30 37 50 30/37
Gas pressure per
burner for nominal
(maximum) load
23 23 23 17 17 17
Regulati-
on screw
fully
opened
Gas pressure per
burner for minimum
load
7,5 8,0 6,5 5,5 7,0 5,5 12,0/14,0
Nominal (maxi-
mum) heat load,
according to Hs
8,2 8,2 8,2 8,2 8,2 8,2 8,2
Minimal heat load,
according to Hs 4,9 4,9 4,9 4,9 4,9 4,9 4,9
Gas nozzle [mm]
-
1,65
LPG 1.65
1,65
LPG 1.65
1,65
LPG 1.65
1,65
LPG 1.65
1,65
LPG 1.65
1,65
LPG
1.65
1,65
LPG 1.65

5EN
Manufacturer data:
Contact details:
European standard
FRAM GmbH
FRAM GmbH
ndustriestrasse 12/22
49324 Melle
www.fram-gmbh.de
EN 14543 + A1
INSTALLATION
WE RECOMMENDTHE OUTDOORFIRE GAS OUTDOOR HEATER TO BE INSTALLED AND / OR SE-
RVICED BY A QUALIFIED SPECIALIST.
DO NOT ATTEMPT TO MODIFY THE CONSTRUCTION OF THE DEVICE OR ITS COMPONENTS.
ANY MODIFICATION WILL CAUSE IMMEDIATE LOSS OF WARRANTIES AND CERTIFICATES.
PLEASE NOTE: AVOID THE RECOMMENDATIONS OF THESE INSTRUCTIONS WITH REGARD TO
INSTALLATION, OPERATION OR AVOIDING THE RECOMMENDATIONS CONCERNING AUTHO-
RIZED PARTS AND ACCESSORIES FOR THIS APPLIANCE MAY RESULT IN SERIOUS INJURIES OR
DAMAGE TO PROPERTY.
THIS APPLIANCE HAS BEEN DESIGNED IN ACCORDANCE WITH RESTRICTED SAFETY STANDARDS
AND RECOMMENDED. IT WAS TESTED AND CERTIFIED BY A NOTIFIED BODY ACCORDING TO EN
14543.
It is important to periodically check the proper functioning and integrity of individual components
of the gas control system, as well as structural elements for any damage. It is very important that the
gas control system remains intact and free from any damage. The device can be serviced only by a
qualied technician with appropriate qualications. Failure to comply with these rules may result in
serious health damage and even death and property damage.
Installation and use must be carried out in accordance with national building regulations. Your au-
thorized dealer can help you determine what safety precautions should be taken when installing
or using the device. In some cases, you may need to obtain permission to install or operate such a
device. Always consult an authorized dealer or building inspector to determine which regulations
apply to the use and / or installation of the device in your area. In the absence of provisions gover-
ning installation and use, it is essential to comply with the instructions in the manual and the re
safety code.
Do not switch on the device if any of its components has been previously dismantled, damaged
or destroyed. Before reuse, the missing or damaged part must be replaced by the original replace-
ment provided by the manufacturer.
GENERAL INFORMATION
IMPORTANT: KEEP THESE INSTRUCTIONS!

6
EN
If the device, especially gas control system components or the burner has been ooded, switch o
the device and consult a technical department or a qualied serviceman in order to check whether
the reuse will require replacement of any of the system components.
The device is for external use only or for use in a well ventilated areas!
A well-ventilated space must have 25% of its surface exposed.This area is determined on the
basis of the sum of the wall surfaces of the given usable space.
Due to the possibility of high temperatures of all surfaces of gas garden replaces and due to po-
ssible exposition to the re, all ammable materials should be located at a safe distance from the
device.
Elderly people, children and other unconscious persons should be informed and warned of the
possibility of high temperatures occurring on the appliance during its operation and immediately
after it is extinguished, and should avoid contact with the appliance to prevent burns and ignition
of clothing.
Children, infants, inrm people and other people who require special attention that can be close
the appliance should be subject to special supervision. These persons may be particularly exposed
to accidental contact with the apppliance. If necessary, use safety barriers to limit access to the
applinace.
NEVER obstruct THE VENTILATION ROOM OF A GAS CYLINDER!
Under no circumstances any of solid fuels (wood, paper, coal, etc.) shall be used in this appliance.
IT IS STRICTLY PROHIBITED to use any liquid fuels or other ammable materials to light the ap-
pliance!
To avoid accidents, it is not recommended to allow the use of the device to persons not familiar
with the operation of the device. For safety, always use gloves and goggles for maintenance.
- Always make sure that the gas supply is cut o before checking, servicing or cleaning the device.
Do not hit or lean against any part of the apppliance.
ATTENTION: No elements in the appliance may be replaced by other parts than those provided by
the manufacturer or recommended by the manufacturer.
Use only the gas type and gas cylinder type specied by the manufacturer. In case of strong wind,
protect the device against gusts or turn it o.
SAFETY INFORMATION
SET COMPONENTS - FIRST UNPACKING OF THE PURCHASED HEATER
If any damage or deciencies are noticed during the consignment inspection, please contact your
authorized dealer.
Please make sure that all parts of the set are not damaged during transport. The check should take
place in the presence of the supplier. The purchased heater should contain a complete gas cylinder
connection kit.

7EN
We recommend that the connection of a gas garden heater to liqueed gas cylinders, as well
as its adjustment and checking the tightness of the installation to be made by an authorized
gas equipment installer or authorized service technician in accordance with applicable regu-
lations, which should be conrmed on the product warranty card. Lack of such conrmation
voids the warranty!
DEVICE INSTALLATION AND STORAGE OF BOTTLES SHOULD BE IN COMPLIANCEWITH APPLI-
CABLE LAWS
NEVER USE ANY PARTS OF THE APPLIANCE NOT PROVIDED OR RECOMMENDED BY THE MA-
NUFACTURER!
NOTES ABOUT HANDLING:
This device is designed for easy installation and movement. Before moving it, make sure that all
anti-removal components have been uninstalled, the gas supply has been cut o, and the hose
is disconnected from the heater gas cylinder. Moving the device while it is in operation is strictly
prohibited. After placing the heater in the desired place, secure it against slipping, falling out or
falling over.
WARNING: DO NOT MOVETHE APPLIANCE WHEN IT IS IN OPERATION!
WARNING!
The OUTDOORFIRE gas garden heater is adapted to work with a cylinder or a household tank of a
propane-butane gas mixture. The exible connection pipe should be intended for LPG from the
cylinder.
The device is sold with complete automation and tubes connecting the main burner and pilot
burner with the valve. Do not use replacement system components other than those installed or
supplied by the manufacturer or recommended by your dealer or manufacturer.
FOR OUTDOORFIRE W and OUTDOORFIRE BWITH GV32 MANUAL CONTROL:
• Acomplete,ready-to-useburnerwithafullgascontrolcontrolsystemarmedwiththeMERTIKMA-
XITROL GV32 controller.
•Asetofdecorativestonesforaburner.
•Installationandoperatinginstructions.
•Steelbodywithwheelsandstabilizingfeet.
•0.6mhosewithregulatorandanti-tiltsafetyvalve
INSTALLATION - INTRODUCTION
The device has an open combustion chamber without the option of connecting it to a chimney ue.
The OUTDOORFIRE gas garden heater is sold with the pre-installed gas control control system, howe-
ver, before the rst use it is recommended to check the tightness of the system due to the possibility
of its unsealing in transport. All instructions on how to properly connect the system, installation in the
table and frame can be found below in the following instructions.
All European type GAS cylinders up to 11 kg weight and not wider than 33 cm or higher than 65
cm are compatible with the appliance.
INSTALLATION RULES
Installation should be carried out in accordance with the requirements of the law in force in the given
country or region. In the absence of such provisions, the rules contained in this manual and the princi-
ples of re safety should be followed.
This appliance has been tested for quality and safety and has been certied by a notied testing la-
boratory.

8
EN
CHOOSING THE LOCATION OF THE GAS OUTDOOR HEATER.
The OUTDOORFIRE gas garden heater is a mobile device capable of movementto any place of your
choice. However, there are restrictions that must be strictly followed. The device, due to the possibility
of high temperatures on its external surfaces, especially windows, should be kept away from amma-
ble materials, and also because of the open combustion chamber without the possibility of connecting
to chimney ues, it should be used in open spaces or in well-ventilated rooms. IT IS ABSOLUTELY PRO-
HIBITED to place the device in a position other than vertical.
Tips for proper and safe installation of the device:
• Connect the regulator to the liquid gas cylinder so that the anti-tilt valve is in a vertical position.
Connecting it in any other way may block the gas supply to the device. To do this, use the appro-
priate tools. Tightening the regulator by hand is insucient and may result in gas leakage. Cylinder
replacement and / or connection should take place in well ventilated areas.
• Make sure that the rubber gaskets are in place and undamaged before connecting the gear unit. If
this is not the case, the device cannot be used until the seal has been replaced.
• Remember that the gas cylinder should always be in an upright position and the hose connecting
the cylinder to the burner should be laid in such a way that it does not come into contact with sharp
objects or edges, as well as hot elements of the burner.
• Check the correctness and tightness of the installed gas control control system and the entire gas
system of the device. To do this, you can use soapy water or a dedicated spray to detect gas leaks.
To check for leaks, cover with water and soap or spray any connections (cylinder- reducer, reducer
- tilting valve, tilting valve - gas hose, gas hose - gas block of the controller, gas block - copper wires
of the magneto and main burner, main burner nozzle - copper wire ) between the cylinder and the
controller, as well as those behind the gas block, and then ignite the device so that the gas also lls
the section from the gas block to the burner nozzles. If bubbles appear on the joints, it means that
there is a leak in this place.
• Remove the glass according to the instructions on page 18, arrange the decorative elements evenly
on the burner according to the graphic (g. 7), then reinstall them.
•ATTENTION: Safe distances from ammable materials that should be observed in accordance
with the instructions in this manual have been established on the basis of safety tests. Flammable
materials can be called anything that can catch re, i.e. paper, wood, all kinds of fuels, plastic,
clothing, etc. The designated space is not limited by non-ammable materials, but also applies
to ammable materials directly behind non-ammable objects exposed to contact with device.
•Ifyouareunsureoftheammabilityofanymaterialwithinthedevice,consultyourrebrigade.
•Rememberthatreproofmaterialsareconsideredammabledespitetheirreresistance.
•They can be dicult to set on re, but they also burn.

9EN
MOVING OF THE APPLIANCE
This appliance has been designed for easy movement. However, safety precautions should be taken
and moving the device in accordance with the instructions below:
- Shut o the appliance and close the gas valve on the gas supply!
- If the gas cylinder is inside the appliance, take it o before moving the appliance!
- Ask someone to help you. Moving the device should be done with two people!
Fig. 2.Wheels with brakes for easy movement and safe positioning of the device.
To move the appliance unlock the brakes on the wheels and move the appliance. The other way to
move the appliance is to slightly lift the mask as shown below and insert the handles into the holes on
the side walls to move the device. Slide in the handle gently and turn it up to lock the handle in place,
then move the device. It is recommended that the device be carried by two people.
For safety, after placing the heater in the selected destination, it is absolutely necessary to lock the
brakes on at least two wheels of the heater.
Fig. 3. Scheme of handles installation.

EN
REQUIREMENTS FOR AREA AROUND THE HEATER, FREE OF FLAMMABLE MATERIALS.
The OUTDOORFIRE gas garden heater has been tested and approved for heating open or well ven-
tilated spaces, subject to safe distances from ammable materials, as shown in the diagrams below.
Fig. 4. Minimum free space from flammable materials / objects
10
It is absolutely prohibited to use a gas garden heater in an open space during ATMOSPHERIC
precipitation.
STORING A GAS GARDEN HEATER OUTSIDE THE BUILDING IS ONLY PERMITTED WHEN COVE-
RING THE RAIN COVER.
IN ANY OTHER ACCIDENT, THE DEVICE SHOULD BE LOCATED IN A PLACE WHICH PROTECTED
AGAINST FLOODING AND EFFECTS OF LOW TEMPERATURES.
THE EQUIPMENT IN STANDING SHOULD BE UNDERCURRENTLY CUT OFF THE GAS SUPPLY.
(GASVALVE IN THE CLOSED POSITION), ALL SAFETY HANDLES SHOULD BE LOCKED, ANDTHE
DEVICE PROTECTED AGAINST FALLING. IF IT IS NOT POSSIBLE TO PROTECT THE APPLIANCE
AGAINST IT OVERTURNING OR FALLING OUT LEAVING IT WITHOUT ATTENTION, THE GAS
BOTTLE SHOULD BE DISCONNECTED AND LEAVED IN A SAFE PLACE.
ATTENTION!!!

11 EN
Fig. 5. Minimum free space from ammable materials / objects
The space indicated above is the minimum free space from ammable materials, unless this
is removed by another entry. Failure to observe the above clearances (free space) may result
in a re.

EN
THE USE OF THIS APPLIANCE IN ENCLOSED AREAS IS DANGEROUS AND IT IS PROHIBITED!
- FOR USE OUTDOORS OR IN AMPLY VENTILATED ARE
- AN AMPLY VENTILATED AREA MUST HAVE A MINIMUM OF 25% OF THE SURFACE AREA OPEN
- THE SURFACE AREA IS THE SUM OFTHE WALLS SURFACE
ARRANGEMENT OF DECORATIVE STONES ON THE BURNER
Fig. 6. Correct distribution of decorative stones on the burner.
12

13 EN
The manufacturer recommends using decorative elements supplied with the device or in the com-
pany's oer. The FRAM GmbH company is not liable for damages resulting from the use of decorative
elements other than recommended.
If the decorative elements were not installed before the rst installation, then to remove them, the side
walls and glass of the device should be removed, as shown below.
DECORATIVE GLASS WALLS OPTION
There are two versions of OUTDOORFIRE with a decorative glasses on the walls available in black or
white version. These can be found under following codes:
For white color:
OUTDOORFIRE W
For black color:
OUTDOORFIRE B
Fig. 7White and Black Glass Decorative versions

14
EN
REMOVAL AND REPLACEMENT OF GLASS / WALLS:
Before disassembling the walls and windows of the device, make sure that the device is turned o
and cooled down, and the gas supply is closed! The period of time needed to cool down the hottest
elements of the device is about 60 minutes. Do not touch the glass or the upper casing parts within an
hour after switching o the device.
Step 1. Remove the screws that secure the side walls to the base and remove the door by lifting
it slightly upwards and then tilting it towards you.
Step 2. Remove the glass cover with the catches, and then remove the sidewall cover.

15 EN
Step 3. Tilt the side walls slightly towards you, and then lifting them up, remove them from the
mounting holes.
Step 4. Loosen the screws of the window clamps and remove the windows.

16
EN
FIRST START
Before rst use, make sure that all connections of individual system components have been made in
accordance with the instructions contained in the manual. Incorrect connection of the gas control
system may result in its damage.
During the rst few ignitions a specic smell may be perceptible, persisting even for several hours after
using the device.This phenomenon is associated with the burning of paint. Animals may be particular-
ly sensitive to smells caused by burning o paint. To speed up the process, it is recommended to heat
the device to maximum ame for several hours.
INSTALLATION OF GAS CONTROL SYSTEM
The standard gas control system includes a manual control valve. Elements of the system should be
installed in places designated for this. Moving them may expose the device to damage due to harmful
temperatures or ooding.
The appliance can only work with the gas control valve supplied with the appliance. Connections of in-
dividual system components have been made in such a way as to prevent their improper connection.
WARNING! The device is equipped with a very sensitive anti-tilt valve. Shaking of the ground
or the device itself as a result of impact or other forces may cause cutting o the gas supply to
the device, and thus shutting it down. If you notice that the device does not burn, immediately
turn the knob to the closed position clockwise and according to the instructions in the section
"lighting the device".
ATTENTION!!!
This appliance together with the gas control system can only be installed at the factory settings.
ATTENTION!!!
Individual elements of the gas control system should be installed in accordance with the instruc-
tions in this manual.

17 EN
Gas pressure reducer
Shut-o tilt valve
Igniter
Thermocouple
Interrupter block
Burner
GV32 controller
Control pills
Fig. 8. Connection diagram for the GV32 manual gas control system

18
EN
Gas pressure reducer
Interrupter block
Fig. 9. Connection diagram for the GV60 automatic gas control system
Magneto wire
Receiver
Igniter
Sterownik GV60
GV32 controller
Steuerer GV32
контроллер GV32
Controlador GV60
Control
burner
Shut-o tilt valve
8-core cord
Thermocouple
Burner

19 EN
Pilot burner
Thermocouple
Piezoigniter
Anti tilt valve
Main burner gas
output Gas inlet for a gas
hose (has to be
installed with pres-
sure regulator)
Valve operating knob
Fig. 10. Connection diagram for the ASC90 manual gas control system
CONNECTION TO THE GAS SOURCE (GAS BOTTLES/CYLINDERS)
Connect the regulator to the cylinder making sure that the seals are in place (See diagram above), if
the seals are old or damaged or if one of them is missing, the device cannot be used until the seals
are replaced. The valve must remain in the position it is installed at the factory. Changing the angle of
the valve with anti-tilt valve results in closing the gas supply to the device and thus switching it o.
ATTENTION!!!
The anti-tilt valve is a protection against overturning of the appliance, thanks to which in the event
of the appliance overturning, the valve automatically cuts o the gas supply to the controller, which
extinguishes the ame. Below you can see the GOK anti-tilt valve which is preinstalled on the OUT-
DOORFIRE.

20
EN
Fig. 11. Anti-tilt valve, installed on the regulator in the device.
ATTENTION!
Gas garden replaces are designed to work with a propane and propane-butane cylinder in size of 5
and 11 kgs (the sizes may vary depending to the country you are buying them in).
The device is sold with complete automation, tilting valve, reducer and connecting hose. Do not use a
hose other than recommended by the manufacturer, or any other system components.
You can buy GOK hose from FRAM GmbH or ask your serviceman or salesman to provide information
on the hose type that can replace the original one.
ATTENTION!!!
The appliance should be connected to the gas source only when the heater is turned o and the
cylinder valve is turned o.
Never connect the gas cylinder directly to the appliance without the regulator!
Before replacing the cylinder, make sure that the device is not near to any sources of re or
other sources that could ignite.
It is essential to close the gas supply valve on the cylinder or regulator after each use.
f you feel any gas leakage, you must absolutely stop using the device, if it is running turn it o
or if it is turned o, do not start it. Then switch o the valve on the gas cylinder and contact
the service center.
ATTENTION!!!
It is forbidden to use open re during the installation process or connecting the cylinder. Failure to
comply with this prohibition may result in re, explosion, property damage, personal injury, and
even loss of life.
