CONTENTS
SAFETY INSTRUCTIONS
IMPORTANT INFORMATION
SPECIFICATIONS
PACKING LIST
ASSEMBLY
GETTING STARTED
APP UI DESCRIPTION
MAINTENANCE & CARE
WARRANTY & AFTER SERVICE

Please read the instructions below carefully
before assembling or using this bike. This contains
important information for the use and mainte-
nance of the equipment as well as for your
personal safety. Keep this guide in a safe place for
maintenance purposes or for ordering spare parts.
Consult your doctor before starting your exercise program
to ensure that you are fit enough to use this equipment.
Take your exercise program as a basis for advice from your
doctor. Incorrect or excessive exercise can be harmful to
your health.
The equipment should only be used for the intended
purpose, i.e. for physical activity by adults. Any other use of
the equipment is prohibited and can be dangerous.
The manufacturer cannot be held liable for damages or
injuries caused by improper use of the equipment.
Incorrect repairs and structural modifications (e.g. removal
or replacement of original parts) may endanger the safety
of the user.
Damaged components can jeopardize your safety or
reduce the lifetime of the equipment. Therefore, incorrect
or damaged parts should be replaced immediately and
the equipment taken out of use until then. Use only
original spare parts.
For regular use, carefully inspect all components every 1-2
months. Pay close attention to the tightness of bolts and
nuts. This is especially true for all connected parts. To
ensure that the safety level is maintained at the highest
possible level determined by its design, this product should
be serviced regularly (once a year) by certified dealers.
Before using this equipment, please check the flywheel in
case of a sudden injury.
Inform the users of the equipment, especially children,
about possible sources of danger during the workout.
Any interference with parts of the product that are not
described in the operating instructions may cause damage
or endanger the person using the machine. Extensive
repairs may only be carried out by certified dealers or
qualified personnel trained by the manufacturer.
If there are any problems, please consult
customerservice @freebeatfit.com.
WARNING

Before using the equipment for
exercise, check carefully to
ensure that it has been correctly
assembled.
Before using the equipment for
exercise, please read the manual
book carefully and familiarize all the
functions of the equipment.
This machine is designed for adults,
and children should not be allowed
to play with it. Children playing can
behave unpredictably and
dangerously, for which the
manufacturer cannot be held liable.
The maximum payload is 100 kg. It
is not recommended that two or
more people train on the machine
at the same time.
The flywheel is designed to be
bi-directional so that it cannot be
turned in a second. It has to press the
brake button and then turn away.
A slight noise of production on the
belt or motor is due to the
construction and has no negative
effects upon operation.
Always check all screws and
connectors and the respective
safety precautions before use.
Do not use corrosive or abrasive
materials to clean the equipment.
Make sure that these materials do
not pollute the environment.
The saddle and handle are designed
as step-less adjustment, so please
make sure the minimum insert
depth is 55mm and fasten up.
To avoid injuries in case of
emergencies, always make sure that
you have enough space behind
your exercise bike (min. 2000 mm x
1000 mm).
Make sure that there are no others
in the area of your exercise bike, as
they may be injured.
Always wear appropriate shoes and
clothing when using the equipment.
Do not wear loose clothing to avoid
getting into the exercise bike.
Barefoot, high-heeled shoes, and
leather shoes are not permitted
during the workout. If your foot slips
off the footplate, please insert your
foot into the plate cover.
The resistance is adjusted by the
applied force between the
brakesheet and flywheel. You can
rotate the brake button clockwise/
PROFESSIONAL INSTALLATION
Handle all packaging materials
carefully to avoid any possible
hazards. Children playing with
plastic bags may cause a risk of
suffocation.
The equipment must be properly
installed by an adult. If in doubt and
help is needed, look for someone
with technical skills.
Please install the equipment
carefully and pay attention to your
safety to avoid injuries caused by
careless mishandling of tools.
CORRECT ORDER
Open all individual parts and place
them on the floor in order. To avoid
scratches on the floor, place them
on cardboard boxes.
For technical reasons, we reserve the
right to perform the preliminary
installation work.(e.g., install the plug).
Fix all parts with screws but do not
lock them first. Then check if they
are properly installed and lock the
screws completely with a wrench.
Finally check that all the
PACKAGING DISPOSAL
Please be sure to keep the packing
for the event of repairs / warranty
matters.
At the end of the product’slife cycle,
it cannot be treated as ordinary
household waste but must be
transported to a recycling site.
Please contact your local municipal
administration for a place to
dispose of the product.

1
5
6
8
9
10
11
7
3
2
4
MEASUREMENTS Dimensions: 49.3" L × 58.8" H × 22.6" W
Screen: 21.5" diagonal
Flywheel: 28.6 lbs
Weight: 113.3 lbs (N.W)
USER
REQUIREMENT Height range: 5' - 6'4"
Weight maximum: 300lbs
Age minimum: 14+
CONSTRUCTION Frame: Welded steel
Resistance: Auto resistance system
Drive: Power transmission belt drive
Saddle: Smart saddle detection+
CONTROLS Vertical and horizontal seat adjustment
Adjustable non-slip multi-position handlebar
Rotatable touchscreen with 180° of movement
DISPLAY
AND
SOUND
21.5" Screen 1080p HD
10-Point multi-touch touchscreen
4-Core 1.8GHz CPU
2GB RAM
8GB internal flash storage
2-Channel 3 watts rear-facing stereo-speaker system
Type-C port × 1
USB port × 1
POWER Input: 100V to 240V, 50Hz - 60Hz, 1.5A Max
Output: 12.5V, 4.0A
CONNECTION 802.11 a/b/g/n - 2.4GHz & 5GHz
Bluetooth® 5.0
12
13
1 4
13
1 5
16
SEAT
DUMBBELL RACK
SEAT DEPTH ADJUSTMENT PIN
PEDAL
SEAT HEIGHT ADJUSTMENT PIN
EMERGENCY BRAKE & GEARSHIFT
TOUCHSCREEN
HANDLEBAR
HANDLEBAR ADJUSTMENT PIN
FLYWHEEL
TRANSPORT WHEELS
LEVELING FEET
SPEAKERS × 2
VOLUME -
VOLUME +
POWER BUTTON
1.
2.
3.
4.
5.
6.
7.
8.
9.
10.
11.
12.
13.
14.
15.
16.

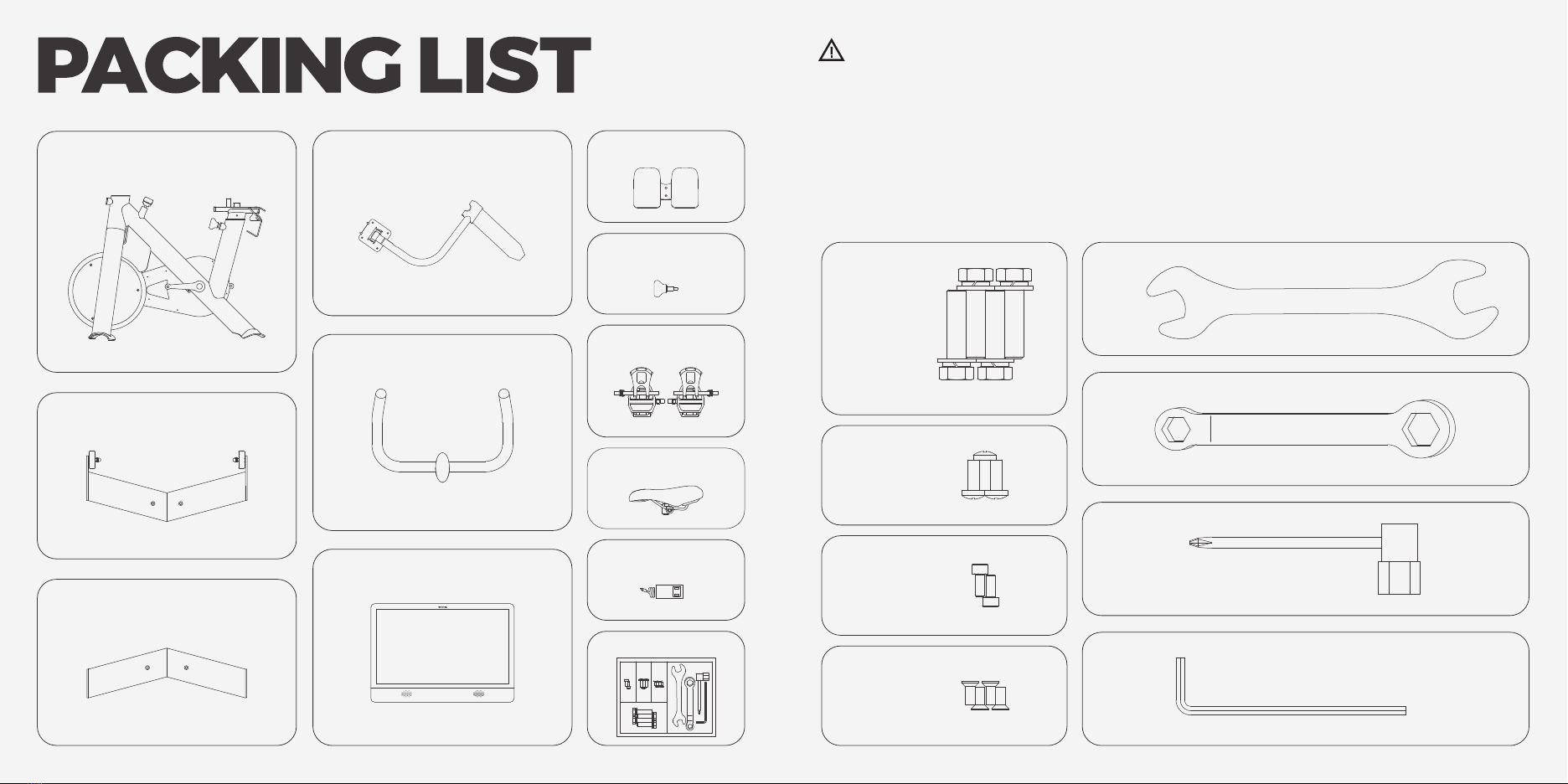

A. MAIN FRAME ASSEMBLY G. CUP HOLDER
L1.
J. SADDLE
H. WEIGHT SELECTOR
PIN
K. POWER ADAPTER
L. TOOL KIT
B. FRONT STABILIZER ASSEMBLY
C. REAR STABILIZER ASSEMBLY
D. HANDLEBAR RISER ASSEMBLY
E. HANDLEBAR ASSEMBLY
F. MONITOR
I. PEDAL L/R
WARNING Turn the box over and empty the bike pieces out.
Handle with care, since the box's content can be
easily stuck within the box.
Locate the instruction manual placed between the
bike and the monitor.
Take out all the parts of bike before assembly. Only
remove screws for each step on the package shown
to reduce confusion.
TOOL KIT
×4
L8.
4mm
L6.
17mm13mm
L5.
15mm
L7.
HEX BOLT
ASSEMBLY
M10 × 40mm
L4.
SCREW
M5 × 10mm
×4
L2.
SCREW
M6 × 16mm
×3
SCREW
M5 × 12mm
L3.
×2

Place the main frame above the stabilizers, and fix the main
frame (part A) into place by tightening parts Hex bolt into
the corresponding Spring Washers and Curved Gasket (part
L1) on the stabilizer.
*Place all parts G1 into stabilizers before tightening the main
frame and stabilizers together.
Acquire part B and part C front and rear stabilizer. Part B
stabilizer with wheels fits in the rear of the bike, while part C
stabilizer without wheels fits at the front of the bike.
*Use foam from the packaging to give extra support to hold
bike upright, if needed.
STEP 1
SCAN HERE TO VIEW
THE COMPLETE VIDEO
OF STEP-BY-STEP
GUIDE FOR ASSEMBLY
L1
L1
L7
B
A
C
17mm

Screw part G Water Bottle Holder into
part D Handlebar Riser with Phillips
Pan Head Screws (part L2).
STEP 2
Carefully attach part D Handlebar
Riser with main bike frame and
connect Computer Upper Cable with
Computer Lower Cable (removed the
black string).
STEP 3
Once the cables are connected and Handle
Riser (part D) is attached to the main frame
(part A), find part H Weight Selector Pin and
insert into the screwhole and adjust the riser
tube to a suitable height.
* If the data chord is unsteady: part H Weight
Selector Pin and part D Handlebar Riser in
the front end of the main frame needs to be
unscrewed and readjusted and tightened
again.
STEP 4
D
G
L2
H
D
A
4mm
E
D
STEP 5
Fit the handlebar post (part D), onto the
handlebars (part E), push the handlebars from
behind in place. Add two Hexagon Socket Head
Bolt (part L3) and bolt them to the front of the
handlebar post. Screw them in with a 4mm
Allen wrench. Make sure the screws are fully
tightened and secured.
*Suggest to use short side of 4mm Allen wrench,
and use long side as the bolts are tighter.
α
β
D
A
L3
L8
L7

STEP 6

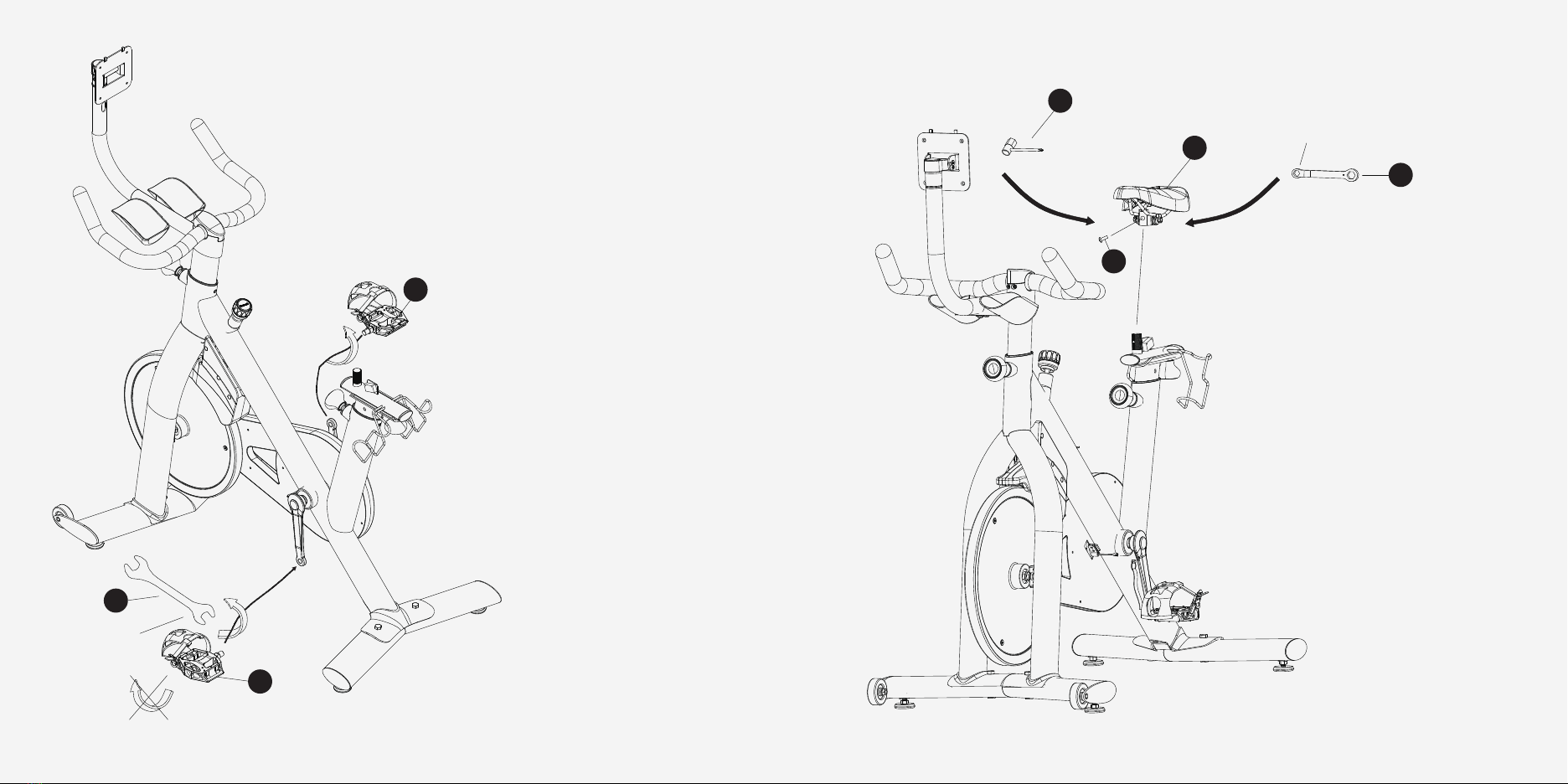

Find part I-L & I-R: left and right pedals.
Look for either an L or R symbol on the
crank and axle to distinguish between
left and right respectively. Tighten any
loose pedal with a 15 mm wrench.
Twist the pedals onto their respective
sides of the bike. The left pedal turns
counterclockwise, and the right
clockwise.
*Please test ride the bike slowly after
construction and tighten the pedals
accordingly to ensure safety.
STEP 7
Take out part J saddle and install it onto
the bike, use 13mm wrench to tighten
the seat-fixing nuts firmly on both sides
of the saddle.
15mm
I-R
I-L
L5
L2
J
L7
L6
13mm

STEP 8
Attach the square panel from the back of
the touchscreen. Using a Phillips head
screwdriver and four Phillips Countersunk
Head Screw (part L4), secure the
touchscreen (part F) to the monitor arm.
Plug the monitor cable into the back of
the touchscreen.
Connect the Power Adapter (part K) to an
electricity outlet and turn on the monitor.
Before you start riding, make sure the bike is
stable by adjusting the leveling feet
underneath the front and back stabilizers.
Turn them counterclockwise until they rest
firmly on the ground and ensure stability on
the ground. Use either hand or wench to
turn the leveling feet.
Tighten any loose screws if the bike is still
unstable. Ensure the bike does not wobble.
Finally, login to your freebeat account, pick
a class and start pedaling!
F
L4
K
WARNING
13mm
J
L6
L7
L3
L7
GETTING
STARTED
STEP 1
CONNECT TO WIFI
Select and tap the WiFi network
name
If the network is secured, you will
be prompted to enter a
password. Type in the password
and tap Connect
If the network is not secured, the
bike will connect to the network
*
*

STEP 3.1 Tap on 'LET'S GO!' to start
setting up your account.
STEP 3.2 Enter your preferred name.
You can change your
account name later too.
STEP 3.4 You're nearly there! Join our
'freebeat training day' to learn
more about the system and
how to ride it.
STEP 3.3 Follow the steps on the screen
to adjust the bike to fit your
body. Ensure you maintain a
proper body position when
you ride to avoid any injuries
or strains.
STEP 2
SELECT TIME ZONE
Choose your current location and
correct time zone. TAP NEXT
STEP 3
SETTING UP YOUR ACCOUNT
Enter your email address and
password. TAP CREATE

APP UI
DESCRIPTION
TIME REMAINING
LEADERBOARD
% ON BEAT
COMBO
LEVEL
BONUS SCORE
DOUBLE BEAT
CADENCE
SINGLE BEAT
CALORIES
SCORE
STEP 4
YOUR PERSONALIZED
HOMESCREEN
Everyone's homescreen is different.
We personalized your homescreen
to what the system thinks suits you
the best. The more classes you
take, the algorithm will understand
you more. You can use filters and
the search bar to find specific
classes and trainers.

WARRANTY
INFORMATION
Stochastic Process Technology Group Limited provides a
limited warranty for your in-home, indoor, non- commercial
use of the Freebike. A complete description of the terms
and conditions of the limited warranty, including the scope
of coverage, applicable warranty periods, and certain
important exclusions and limitations, can be accessed at:
www.freebeatfit.com/warranty.
MAINTENANCE
& CARE
SADDLE: Make sure the saddle is parallel to the ground.
Then use the included 13mm wrench to tighten the
seat-fixing nuts on both sides.
EVERY 3 TO 5 RIDES SECTION
To ensure safe operation and optimal performance, check
for wear and damage and perform maintenance on a
regular basis. Replace any damaged or defective parts
immediately. Do not use the bike until the repair is
performed for safety reasons. Only use original parts from
the manufacturer. Changes or modifications to this unit not
expressly approved by freebeat could void the warranty.
CLEANING: Wipe down the bike using a damp cloth.
LEVELING FEET: If the bike is unstable and rocks back and
forth, turn each leveling foot below the stabilizers clockwise
(when viewed from above) until it rests firmly on the
ground.
AFTER RIDES
CLEANING: Clean the bike thoroughly using a damp cloth
and a mild household cleaner diluted in water. Clean the
touchscreen using an electronics wipe.
PEDALS: Tighten any loose pedal with the included
wrench. Pedals should be tightened to 25 lb-ft of torque.
Turn clockwise to tighten the right pedal and counterclock-
wise to tighten the left pedal.
EVERY 4 TO 6 RIDES
CAUTION: Service other than the procedures described
here must be performed by an authorized technician.
EMERGENCY BRAKE: Test the emergency brake by
pressing down on the resistance knob while pedaling
slowly. The flywheel should come to a complete stop
immediately. If it does not, stop using the bike immediately
and contact freebeat support.
FRAME: Check the entire frame for signs of wear and
damage, and tighten any loose screws and bolts.
EVERY 15 TO 20 RIDES SECTION
PEDALS: Replace pedals if necessary. Tighten new pedals
to 25 lb- ft of torque.
For further instructions, see www.freebeatfit.com
ANNUAL MAINTENANCE
Your hands should rest comfortably on the handlebars
without reaching. Your arms should be slightly bent at the
elbows.
Your leg should be slightly bent at the bottom of the stroke.
Adjust accordingly if not as described.
RECOMMENDED BODY POSITIONING

www.freebeatfit.com
