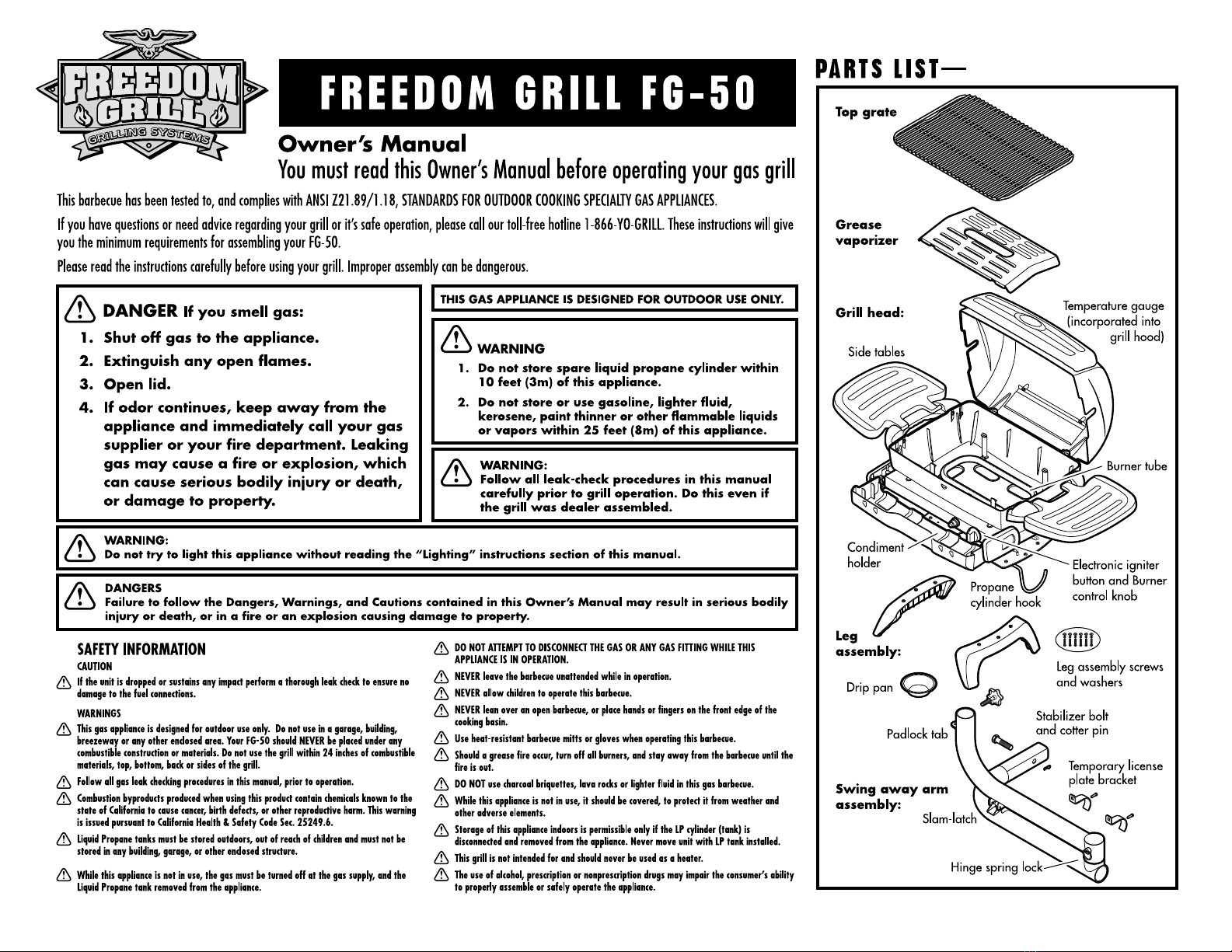

FREEDOM GRILL FG-50 User manual

Owner’s Manual
Manuel d’utilisation
Manual del propietario
Read the cautions and warnings listed on the
first page and throughout this manual!
Veuillez lire les mises en garde et les avertissements indiqués
à la première page et tout au long du présent manuel!
¡Lea las precauciones y advertencias que se encuentran
en la primera página y en todo este manual!
You must read this Owner’s
Manual before operating your gas grill.
Avant d’utiliser le gril à gaz, veuillez
lire le présent manuel d’utilisation.
Lea este Manual del propietario
antes de utilizar su parrilla a gas.

1

2
Install legs using the 6 provided screws
and a Phillips Head Screwdriver.
ASSEMBLY—ATTACHING THE GRILL TO YOUR VEHICLE’S HITCH
Slide the swing away arm assembly into
your hitch and secure it with the hitch
stabilizer bolt.
Tighten the bolt
using a 15/16”
wrench, make
sure to tighten
the bolt all the
way through to
the other side of
the hitch, slide
the cotter pin
into the bolt.
A. Pull out and twist the hinge spring lock.
B. Release the slam-latch by pressing
down on the lever.
Swing the arm
away from the
vehicle and
lock at the 90
degree position
for stability. Place
the grill head onto
the arm.
Tighten the arm collar. Lock the grill head
onto the arm with a padlock. Rotate the hinge spring lock to
engage the plunger.
DO NOT DRIVE VEHICLE WITH THE
FG-50 INSTALLED UNTIL ALL OF THE
INSTRUCTIONS ON THIS PAGE HAVE
BEEN COMPLETED!
DO NOT MOVE VEHICLE UNLESS THE
SWING AWAY ARM ASSEMBLY IS
SECURELY BOLTED ONTO THE HITCH.
DO NOT MOVE VEHICLE UNLESS THE GRILL
HEAD IS LOCKED IN PLACE.
Swing the arm closed, pushing
towards the vehicle until the slam-
latch is fully engaged.
DO NOT DRIVE WITH A PROPANE
CYLINDER INSTALLED ON THE GRILL.
Fold canister hook on the right side of the
grill head back against the side.
Make sure that side tables are folded
securely under the grill hood. Make sure
that the condiment holder is securely
snapped shut.
Close the hood latch,
hinge spring lock
and slam-latch.
DO NOT MOVE VEHICLE UNLESS THE
HOOD LATCH, HINGE SPRING LOCK &
SLAM-LATCH ARE SECURE.
Thread the knob into the arm collar clamp.
Do not over-tighten. Slide the cotter pin
through the hole at the end
of the bolt.

3
TAILGATE USE—TABLETOP USE—
A. Pull out and twist the hinge spring lock.
B. Release the slam-latch by pressing down on the lever.
Swing the swing away arm and grill away from the
vehicle.
Rotate the hinge spring lock to engage the plunger and
lock the arm’s position at either 90 or 180 degrees.
Remove the padlock that locks the
collar to the arm. Loosen the
rotation knob on the arm collar.
Remove the padlock that locks the collar
to the arm. Loosen the rotation knob on
the arm collar.
Rotate the grill head
to the desired position and
tighten rotation knob on
the arm collar. Follow the
cooking instructions
on the next page.
Lift the grill head straight up and off the arm
assembly. You may have to twist and rotate the grill
slightly to release it from the arm.
Place the grill on a level surface
or tabletop. Follow the cooking
instructions on the next page.

4
Fold down the condiment holder to expose the
electronic igniter and burner control knob. Make sure
that the burner control knob is in the OFF position.
Fold out the propane
cylinder hook on the
right side of the grill.
Attach a 1 lb.
propane cylinder.
See the instructions
listed in this manual
under “Attaching
the Propane
Cylinder”.
DO NOT
OVERTIGHTEN
THE PROPANE
CYLINDER. MAKE
SURE THAT YOU
DO NOT CROSS
THREAD THE
CONNECTION.
Unlatch the hood latch and open the grill hood. Fold out both side tables, slide drip pan into
holder on the underside of the grill.
COOKING—TAILGATE OR TABLETOP OPERATING INSTRUCTIONS
To light the grill:
Refer to the Lighting instructions in this owner’s manual and
printed on the control panel of your grill. Never light the grill
without rst folding out the side tables.
To preheat the grill:
Light the FG-50 according the lighting instructions in
this owner’s manual. Close the lid and turn the burner
control knob to Start/Hi. Preheat the grill for 5-10 minutes
(depending on conditions such as air temperature and wind).
Once the grill is preheated, set the burner control knob to the
setting specied in the recipe.
Note: Wind and weather may require adjustment of
the burner control knob to obtain the correct cooking
temperature. If the burner goes out during cooking, open
the lid, turn off the burner, and wait ve minutes before
relighting.
Drippings and grease: Excess drippings and grease
will collect in the disposable drip pan. (Located on the
underside of the grill). Use a new pan before each use and
dispose of used pans properly.
WARNINGS
Check the drip pan and the bottom of the grill for
grease build-up before each use. Remove excess
grease to avoid a re in the bottom of the grill.
Do not move the FG-50 when operating or while
the grill is hot.
Wait for the grill to cool before folding up the
fold-out side tables.
Wait for the grill to cool before closing the arm
assembly.
ATTACHIN G T H E PROPA NE
CYLINDE R
Use 1 lb. propane cylinders. Use propane cylinders that are
approximately 4 inches in diameter and 8 inches in length.
The propane cylinder must t through the cylinder hook.
CAUTION: Use cylinders that are marked
“Propane Fuel” only. Prior to installing the
cylinder, check to make sure its tting is not
damaged or bent. If the propane cylinder is
damaged, DO NOT install it on your FG-50.

5
WARNING: CHECK FOR GAS LEAKS BY WETTING THE
CONNECTIONS WITH A SOAP AND WATER SOLUTION AND
WATCHING FOR BUBBLES. IF BUBBLES FORM OR IF A
BUBBLE GROWS, THERE IS A LEAK.
NOTE: ALL CONNECTIONS SHOULD BE RINSED WITH
CLEAN WATER AFTER CHECKING FOR LEAKS.
WARNING: DO NOT LEAN OVER THE OPEN
GRILL. KEEP YOUR FACE AND BODY
AT LEAST ONE FOOT AWAY
FROM THE GRATE WHEN
LIGHTING THE GRILL.
Note: All factory-made connections have been
thoroughly checked for gas leaks. The burners
have been ame tested.
As a safety precaution check all ttings for leaks
before using your FG-50. Shipping and handling
may have loosened or damaged a gas tting.
Perform these leak checks even though your grill
has been pre-assembled.
Do not ignite burner while checking for leaks.
Check connections:
1) Regulator to propane cylinder connection.
WARNING: If there is a leak at connection, remove
propane cylinder. Do not operate grill. Use a
different propane cylinder and recheck for leaks
with soap and water solution. If a leak persists
after retightening the propane cylinder, turn OFF
the gas. DO NOT OPERATE THE GRILL.
2) Valve-to-regulator connections.
WARNINGS
If there is a leak at the valve-to-regulator
connection turn OFF the gas. DO NOT OPERATE
THE GRILL.
When leak checks are complete, turn gas supply
OFF at the source and rinse connections with water.
DANGER! Do not use an open ame to check for
gas leaks.
DANGER! Be sure there are no sparks or open
ames in the area while you check for leaks.
Sparks or ames may result in a re or explosion,
which can cause serious bodily injury or death,
and damage to property.
DANGER! Do not store a spare LP-gas cylinder
under or near this appliance. 1 lb. cylinders are
not rellable. If the instructions are not followed
exactly, a re causing death or serious injury may
occur.
LIGHTING
A summary of the lighting instructions is printed on
the control panel.
1) Fold down the condiment holder to expose the burner
control knob and electronic igniter button.
2) Open the lid.
3) Unfold the side tables.
4) Make sure the burner control knob is turned OFF. (Push
control knob in and turn clockwise to ensure that it is in
the OFF position.)
WARNING: Do not lean over the open grill. Keep
your face and body at least one foot away from
the grate when lighting the grill.
5) Push control knob in and turn counterclockwise to
START/HI. (Figure below).
6) Push the electronic igniter button (you should hear a
clicking sound). Burner should ignite.
7) Check that the burner is lit by looking down through the
cooking grate. You should see a ame.
WARNING: If the burner does not light, turn the
burner control knob to OFF and wait 5 minutes
to let the gas clear before you try again or try to
light with a match.
To Extinguish:
Push in and turn burner control knob clockwise to the OFF
position.
CAUTION: Do not fold in side tables until grill is cold.
When installing the cylinder, be sure that it screws in
securely in a smooth and straight manner. DO NOT
CROSS THREAD.
Slide propane cylinder through cylinder hook, (Figure
below). While holding carrying handle closest to propane
cylinder with one hand, push propane cylinder into regulator
and turn clockwise until tight.
The propane cylinder must be removed prior to storing or
transporting your grill. Do not carry or drive with the
cylinder attached.
WARNING: Do not use a wrench to tighten the
connection. Using a wrench could damage the
regulator coupling and could cause a leak.
Check for gas leaks:
WARNINGS
You should check for gas leaks every time you
disconnect and reconnect a gas tting.

6
WARNING: DO NOT LEAN OVER THE OPEN GRILL. KEEP
YOUR FACE AND BODY AT LEAST ONE FOOT AWAY FROM
THE GRATE WHEN LIGHTING
THE GRILL.
Tips occasionally
 icker yellow
Light blue
Dark blue
To inspect the burner tube, look up from directly below
the burner control knob. If there is dust or dirt in the tube,
remove the burner tube for cleaning.
CAUTION: Do not clean the burner tube with
hard or sharp tools.
Lightly tap the burner tube to get debris and dirt out. Once
burner tube is clean replace it in the grill. If the burner tube
becomes damaged or cannot be cleaned, call Freedom Grill
for replacement parts.
1) The smell of gas in conjunction with the burner  ames
appearing yellow and lazy.
2) Grill does not reach temperature.
3) Grill heats unevenly.
4) Burner does not ignite.
DANGER! Failure to correct the above mentioned
symptoms may result in a  re, which can cause
serious bodily injury or death, and cause damage
to property.
Main Burner Flame Pattern:
The FG-50 burner has been factory set for the correct air
and gas mixture. The correct  ame pattern is shown:
If the  ames do not appear to be uniform throughout the
burner tube, follow the instructions listed in this manual
under “Main Burner Cleaning Procedure”.
CL E ANING
WARNING: Turn your FG-50 OFF and wait for it to
cool before cleaning.
For availability of replacement cooking grate go to
freedomgrill.com or call Freedom Grill directly at
1-866-YO-GRILL.
Outside surfaces: Use a warm soapy water solution to
clean, then rinse with water.
Cooking grate: Clean with a soft brass bristle brush. As
needed, remove from grill and wash with warm soapy water
then rinse with water.
Drip pan: A disposable drip pan is included with the grill.
Foil pot pie pans (4 3/8”) are available at most grocery
stores or replacements can be ordered at freedomgrill.com
or call 1-866-YO-GRILL. To clean the tray, wash with warm
soapy water, then rinse.
Inside grill basin: Wash inside of grill basin with warm
soapy water and a water rinse.
Inside Lid: While lid is warm, wipe inside with paper towel
to prevent grease build-up.
Fold out side tables: Wash with a soft cloth and a soap
and water solution. Do not use cleaners that contain acid or
mineral spirits. Rinse well after cleaning.
Fold out side tables are not to be used as cutting
boards.
ANNUAL MAINTEN A NCE
After a period of nonuse, we recommend that you perform
the following maintenance procedures for your safety.
Inspect and clean the burner tube. Inspect the burner for
correct  ame pattern. Clean if necessary, following the
procedures outlined in the “General Maintenance” section
of this manual. Check all gas  ttings for leaks following the
instructions listed in this manual under “Check for gas
Leaks”.
Inspection and cleaning of Burner
Tube:
Your FG-50 grill, as well as any outdoor gas appliance, is
a target for spiders and other insects. They can nest in the
venturi section of the burner tube. This blocks the normal
gas  ow, and can cause the gas to  ow back out of the
air shutter. This could result in a  re in and around the air
shutter, causing serious damage to your grill.
Manual Lighting:
DANGER! Failure to open the lid while igniting the
grill’s burner, or not waiting 5 minutes to allow
the gas to clear if the grill does not light, may
result in an explosive  ame-up, which can cause
serious bodily injury or death.
1) Fold down condiment holder to expose burner control knob.
2) Open the lid.
3) Unfold the side tables.
4) Make sure the burner control knob is turned OFF.
5) Strike a match and put the  ame into the matchlight
hole on the right side of the lower grill basin.
6) Push burner control knob in and turn to START/HI.
7) Check that the burner is lit by looking down through the
cooking grate. You should see a  ame.
WARNING: If the burner does not light, turn
the burner control knob to OFF and wait 5
minutes to let the gas clear before you try
attempting to re-light.

7
If the Freedom Grill blocks the visibility of your vehicle’s license
plate remove the license plate and mount it on the temporary
license plate bracket on the upper swing arm as shown. Be sure
to replace the license plate when you remove the Freedom Grill
from your vehicle.
Ignition System Operations:
This appliance has an electronic igniter that uses a triple A
battery (AAA – V.), (battery should be checked periodically).
The grill can also be lit using a match clip extender, via the
 ame view window. Follow the lighting instructions exactly
when lighting the grill.
STOR AGE AND / OR NONUSE
When the FG-50 is not in use or is being transported, the
propane cylinder must be DISCONNECTED and the
propane cylinder stored in a well-ventilated space.
DO NOT DRIVE WITH THE CYLINDER ATTACHED!
The FG-50 should be checked for gas leaks and any
obstructions in the burner tubes before using. (See Sections:
“General Maintenance and Annual Maintenance.”) The
burner tube should also be checked for any obstructions.
(See Section: “Annual Maintenance.”)
GENERAL M AINTENANCE
Main Burner Cleaning Procedure:
Turn off the gas supply. Remove the burner. (See below)
Look inside the burner with a  ashlight. Clean the inside of
the burner with a wire. (A straightened-out coat hanger will
work)
Check and clean the opening at the end of the burner. Check
and clean the valve ori ce at the base of the valve. Use a
Steel bristle brush to clean outside of burner. This is to make
sure all the burner ports are fully open.
CAUTION: Do not enlarge the burner ports when
cleaning.
Removing Burner Tube:
1) Your FG-50 grill must be OFF and cool.
2) Unscrew and remove propane cylinder from the valve/
regulator assembly.
3) Open the lid.
4) Remove cooking grate.
5) Remove the drip vaporizer.
6) Unscrew and remove the (3) 1/4” screws that hold the
burner tube inside grill basin.
7) Carefully slide the burner tube out from the grill basin.
8) To reinstall the burner, reverse the above steps. Check
proper assembly before fastening burner tube in place.
CAUTION: The burner opening must be positioned
properly over the valve ori ce.
Battery Check:
The battery compartment is located behind
the electronic igniter push button on the
control panel. Rotate the push button
counter-clockwise to expose the
battery compartment. When
replacing the battery be
sure to attach positive
and negative ends
correctly. Check the
igniter by pressing the
button. You should hear
a “clicking spark” sound.
LICENSE PLATE BRACKET
Air Mixture Adjustment:
The air mixer sleeve for the burner has been pre-set at the
factory for gas conditions at sea level. However, if the burner
 ame is too yellow (this may occur at higher altitudes) open
the air mix sleeve slightly until the  ame turns blue.

8
LIMITED WAR R ANTY
Freedom Grill® hereby warrants to the ORIGINAL PURCHASER of this
Freedom Grill Gas Barbecue, that it will be free from defects in material and
workmanship from the date of purchase as follows:
Steel & Aluminum Castings 3 years
Cooking Grates 3 years
Burners 3 years
Spark Igniters 3 years
All Remaining Parts 3 years
When assembled and operated in accordance with the accompanying printed
instructions.
Freedom Grill may require reasonable proof of your date of purchase.
YOU SHOULD RETAIN YOUR SALES SLIP OR INVOICE AND RETURN THE
WARRANTY REGISTRATION CARD WITHIN 10 DAYS OF PURCHASE.
This Limited Warranty shall be limited to the repair and/or replacement of parts
that prove defective under normal use and service and which on examination
shall indicate, to Freedom Grill’s satisfaction, that they are defective. Before
returning any parts, contact Freedom Grill Customer Service Center. If Freedom
Grill conrms the defect and approves the claim, Freedom Grill will replace
such parts without charge. If you are required to return defective parts,
transportation charges must be prepaid. Freedom Grill will return parts to the
purchaser, freight or postage prepaid.
This Limited Warranty does not cover any failures or operating difculties due
to accident, abuse, misuse, alteration, misapplication, vandalism, improper
installation or improper maintenance or service, or failure to perform normal
and routine maintenance, including but not limited to, damage caused by insects
within the burner tubes, as set out in this owner’s manual warranty section.
Deterioration or damage due to severe weather conditions such as hail,
hurricanes, earthquakes, or tornadoes including rust, discoloration due to
exposure to chemicals (including salt), either directly or in the atmosphere, or
very high humidity, is not covered by this Limited Warranty.
There are no other express warranties except as set forth herein and any
applicable implied warranties of merchantability and tness are limited in
duration to the period of coverage of this express written Limited Warranty.
Freedom Grill is not liable for any special, indirect or consequential damages.
Freedom Grill’s liability is limited to the purchase price of this Freedom Grill Gas
Barbecue. Some states do not allow the exclusion or limitation of incidental or
consequential damages, so this limitation or exclusion may not apply to you.
Freedom Grill does not authorize any person or company to assume for it
any other obligation or liability in connection with the sale, installation, use,
removal, return, or replacement of its equipment; and no such representations
are binding on Freedom Grill.
This Warranty applies only to products sold at retail and manufactured by:
FREEDOM GRILL®
13771 Danielson Street, Suite G
Poway, CA 92064
[phone] or (866) YO-GRILL
Internet: www.freedomgrill.com
e-mail: [e-mail]
The manufacturer of the Liquid Propane tank is responsible for the materials,
workmanship, and performance of the LP tank. If the tank has a defect,
malfunctions, or you have a question regarding the tank, please call the tank
manufacturer’s customer service center.
TRO U BLESHOOTING
PROBLEM OBSERVED
• Gas odor during set up.
• Gas odor before rst ignition.
• When ignition button is pressed,
there is no spark at burner electrode.
• When igniter button is pressed, there
is spark at the electrode, but no ignition.
• Delayed ignition.
• Burner lights but does not stay lit.
• Incorrect burner ame.
• Backre of burner.
POSSIBLE CAUSE
• Gas leak.
• Gas leak.
• Battery dead or missing.
• Igniter electrode or switch wires
not connected or damaged.
• Broken electrode or switch wires.
• Electrode positioned improperly.
• Faulty electronic igniter.
• Electronic ignition is wet.
• Gas supply not turned on.
• Burner control knob not in
HIGH ON position.
• Air in gas lines not fully bled from system.
• Low gas pressure.
• Faulty Regulator.
• Electrode positioned improperly.
• Low gas pressure.
• Clogged or dirty burner ports.
• Blocked orice.
• Faulty valve.
• Out of gas.
• Low gas pressure.
• Faulty valve.
• Clogged or dirty burner ports.
• Faulty regulator.
• Windy conditions.
• Out of gas.
• Incorrect gas supply or pressure.
• Incorrect primary air mix.
• Blocked orice.
• Clogged or dirty burner ports.
• Faulty valve.
• Faulty regulator.
• High altitude.
• Blocked orice.
• Clogged or dirty burner ports.
• Incorrect primary air mix.
CORRECTIVE MEASURE
• Refer back to Page 1 “DANGER If you
smell gas”. Check all gas connections.
• Refer back to Page 1 “DANGER If you
smell gas”. Check all gas connections.
• Replace battery.
• Reconnect or replace electrode wires.
• Replace broken electrode or wires.
• Reposition electrode - 3/16” clearance.
• Replace electronic igniter.
• Keep ignition system dry.
• Turn on gas supply.
• Follow Operational Instructions.
• Bleed air from system.
• Check gas supply pressure.
• Replace regulator.
• Reposition electrode - 3/16” clearance.
• Check gas supply pressure.
• Clean burner ports - see manual section.
• Check orice opening.
• Replace valve.
• Replace propane cylinder.
• Check gas supply pressure.
• Replace valve.
• Clean burner ports - see manual section.
• Replace regulator.
• Shield from wind.
• Replace propane cylinder.
• Check gas supply pressure.
• Adjust air mixer - see manual section.
• Check orice opening.
• Clean burner ports - see manual section.
• Replace valve.
• Replace regulator.
• Adjust orice size for altitude.
• Check orice opening.
• Clean burner ports - see manual section.
• Adjust air mixer - see manual section.

(© 2006 Freedom Grill, Inc.) “Freedom Grill”, Freedom Grill logo, “Ofcial Grill of Tailgating”, ofcial grill logo, “FG-50”, “Ofcial Grill of The Outdoors”, “Extreme Tailgating”,
“Born to Grill”, and “Get Your Grill On!” are registered trademarks of Freedom Grill, Inc.
