FreeTec DA-5700 User manual

<i—

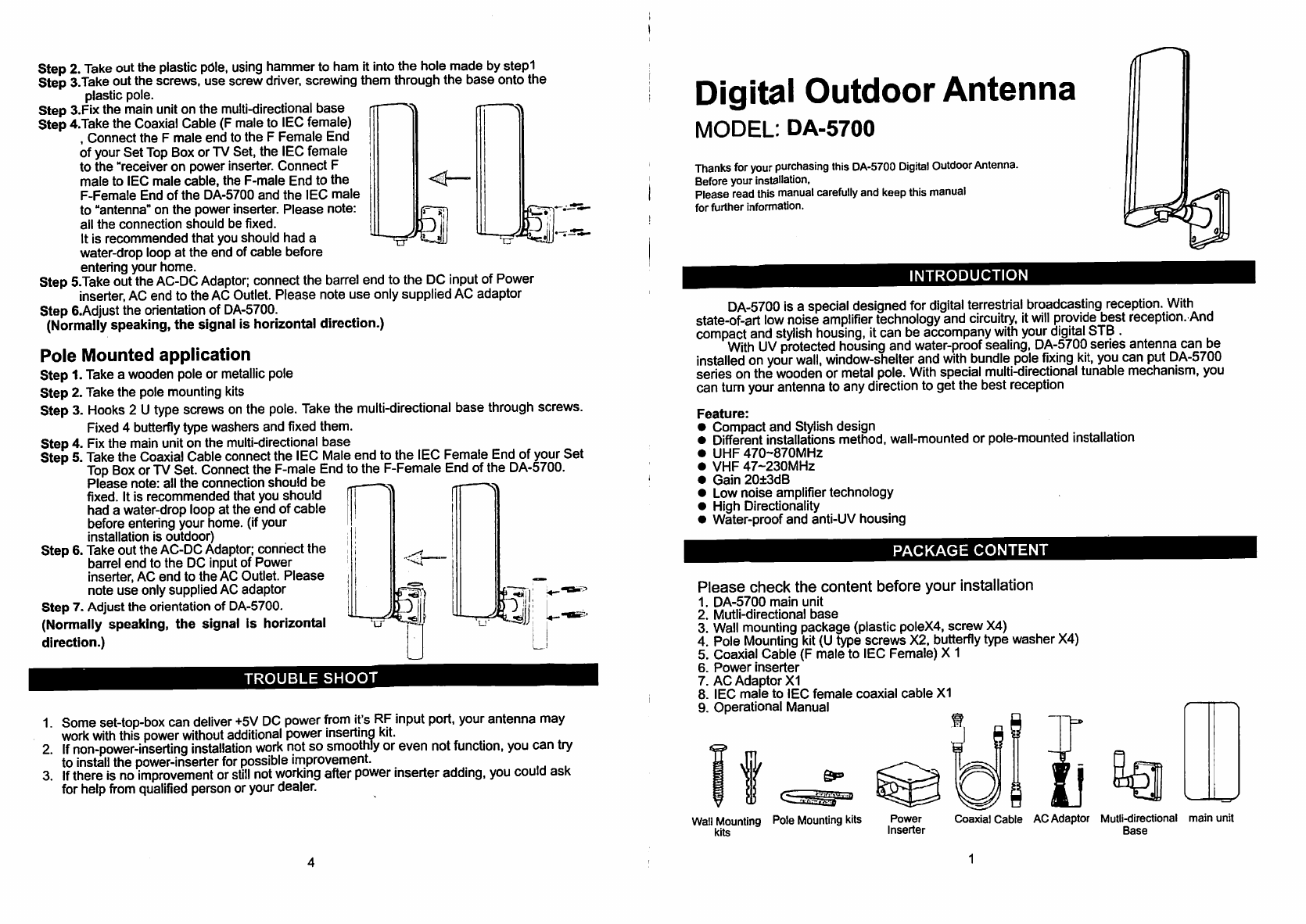

Step 2. Take out the plastic pdle, using hammer to ham it into the hole made by stepi
Step 3.Take out the screws, use screw driver, screwing them through the base onto the
plastic pole.
Step 3.Fix the main unit on the multi-directional base
Step 4.Take the Coaxial Cable (F male to IEC female)
, Connect the F male end to the F Female End
of your Set Top Box or TV Set, the IEC female
to the "receiver on power inserter. Connect F
male to IEC male cable, the F-male End to the
F-Female End of the DA-5700 and the IEC male
to "antenna" on the power inserter. Please note:
alt the connection should be fixed.
It is recommended that you should had a _
water-drop loop at the end of cable before
entering your home.
Step S.Take out the AC-DC Adaptor; connect the barrel end to the DC input of Power
inserter, AC end to the AC Outlet. Please note use only supplied AC adaptor
Step 6.Adjust the orientation of DA-5700.
(Normally speaking, the signal is horizontal direction.)
Pole Mounted application
Step 1. Take a wooden pole or metallic pole
Step 2. Take the pole mounting kits
Step 3. Hooks 2 U type screws on the pole. Take the multi-directional base through screws.
Fixed 4 butterfly type washers and fixed them.
Step 4. Fix the main unit on the multi-directional base
Step 5. Take the Coaxial Cable connect the IEC Male end to the IEC Female End of your Set
Top Box or TV Set. Connect the F-male End to the F-Female End of the DA-5700.
Please note: all the connection should be
fixed. It is recommended that you should
had a water-drop loop at the end of cable
before entering your home, (if your
installation is outdoor)
Step 6. Take out the AC-DC Adaptor; connect the
barrel end to the DC input of Power
inserter, AC end to the AC Outlet. Please
note use only supplied AC adaptor
Step 7. Adjust the orientation of DA-5700.
(Normally speaking, the signal is horizontal
direction.)
L-
TROUBLE SHOOT
1 Some set-top-box can deliver +5V DC power from it's RF input port, your antenna may
work with this power without additional power inserting kit.
2. If non-power-inserting installation work not so smoothly or even not function, you can try
to install the power-inserter for possible improvement.
3. If there is no improvement or still not working after power inserter adding, you could ask
for help from qualified person or your dealer.
Digital Outdoor Antenna
MODEL: DA-5700
Thanks for your purchasing this DA-5700 Digital Outdoor Antenna.
Before your installation,
Please read this manual carefully and keep this manual
for further information.
INTRODUCTION
DA-5700 is a special designed for digital terrestrial broadcasting reception. With
state-of-art low noise amplifier technology and circuitry, it will provide best reception. And
compact and stylish housing, it can be accompany with your digital STB .
With UV protected housing and water-proof sealing, DA-5700 series antenna can be
installed on your wall, window-shelter and with bundle pole fixing kit, you can put DA-5700
series on the wooden or metal pole. With special multi-directional tunable mechanism, you
can turn your antenna to any direction to get the best reception
Feature:
Compact and Stylish design
Different installations method, wall-mounted or pole-mounted installation
UHF 470-870MHZ
VHF 47~230MHz
Gain 20±3dB
Low noise amplifier technology
High Directionality
Water-proof and anti-UV housing
PACKAGE CONTENT
Please check the content before your installation
1. DA-5700 main unit
2. Mutli-directional base
3. Wall mounting package (plastic poleX4, screw X4)
4. Pole Mounting kit (U type screws X2, butterfly type washer X4)
5. Coaxial Cable (F male to IEC Female) X 1
6. Power inserter
7. AC Adaptor X1
8. IEC male to IEC female coaxial cable X1
9. Operational Manual
Wall Mounting Pole Mounting kits
kits
Power
Inserter
Coaxial Cable AC Adaptor Mutli-directional main unit
Base

INSTALLATION
Notice:
For the best reception, Please check the following conditions
1. Far away the source of interference: Far away those big power consumption devices, such
as air conditioner, elevator, hair dryer and microwave oven. Etc
2. Installed As high as possible: In case of digital terrestrial reception, if there are some
interceptions between Antenna and transmission tower, it will cause the signal loss
temporary. So if the antenna is installed as high as possible, those interceptions will be
reduced.
Indoor . Outdoor
Powering by STB or Digital TV
CUD-
Coaxial Cable
STB or Digital TV
Powering by Adaptor
AC Adaptor
(DC 9V)
Coaxial Cable
Coaxial Cable
STB or Digital
X^ Water-Drop Loop
(recommended)
X^ Water-Drop Loop
(recommended)
The normal installation is like the above scheme
Condition 1, Powering the Antenna by STB or Digital TV and installation method
(mounting method is the same in the following pages)
Step 1-Take out the main unit DA-5700
Step 2.Take out the multi-directional base. Fixed it on the wooden pole( as figure, please
check the follow paragraph for information)
Step 3.fix the main unit to the multi-directional base
Step 4.Take the Coaxial Cable (F male to IEC female), connect the F male end to the F
Female End of your Set Top Box or TV Set, the IEC female to the "receiver on power
inserter. Connects male to IEC male cable, the F-male End to the F-Female End of
the DA-5700and the IEC male to "antenna" on the power inserter. Please note: all the
connection should be fixed. It is recommended that you should had a water-drop loop
at the end of cable before entering your home.
Step S.Take out the AC-DC Adaptor; connect the barrel end to the DC input of Power inserter,
AC end to the AC Outlet. Please note use only supplied AC adaptor
Step 6.Adjust the orientation of DA-5700. (Normally speaking, the signal is horizontal
direction.)
Condition 2, Powering the antenna by AC adaptor( in cases that there is no DC power
out from the STB or Digital TV, you need to do this installation)
When you finished the installation, you can use your Set Top Box to check the signal
strength and quality. If the quality is not good enough to have good picture, you can
move the antenna to get the best reception position, when you find the best position ,
please fixed it. If not, you can change the reception direction by adjust the main unit
Indoor/Outdoor Wall Mounted installation
Step 1. Mark the fixing position with pencil or
another pen( please use the multi-directional base
to mark the position)
Please note, if you want to install On
a wooden wall, please follow the step below
Step 2. Take out the screws attached, using
Screw driver to fix these crews through
the base and fix it on the wall
Step 3. Fix the main unit on the multi-directional base
Step 4. Take the Coaxial Cable (F male to IEC female), connect the F male end to the F
Female End of your Set Top Box or TV Set, the IEC female to the "receiver on power
inserter. Connect F male to IEC male cable, the F-male End to the F-Female End of
the DA-5700and the IEC male to "antenna" on the power inserter. Please note: all the
connection should be fixed. It is recommended that you should had a water-drop loop
at the end of cable before entering your home.
Step S.Take out the AC-DC Adaptor; connect the barrel end to the DC input of Power inserter,
AC end to the AC Outlet Please note use only supplied AC adaptor
Step 6.Adjust the orientation of DA-5700. (Normally speaking, the signal is horizontal
direction.)
If you want to hook this unit onto a brick wall or RC wall, please follow the steps bellow
Before the following step, please make sure that you have enough protection when you try to
drill on the wall.
Step 1. Take the electric drill, using 5.8mm drill bit (please note, when you use the electnc
drill, you should better to wear the protection device. And the drill bit should be fixed,
otherwise there will be a serious injuring happened when the bit is broken or loose).
Drill the depth to 35mm. Then dean the hole.
